Toyota Fortuner
2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General
Supported model
Data version 2022-11
Seat & Seat Track
191 part groups · 17 illustrations

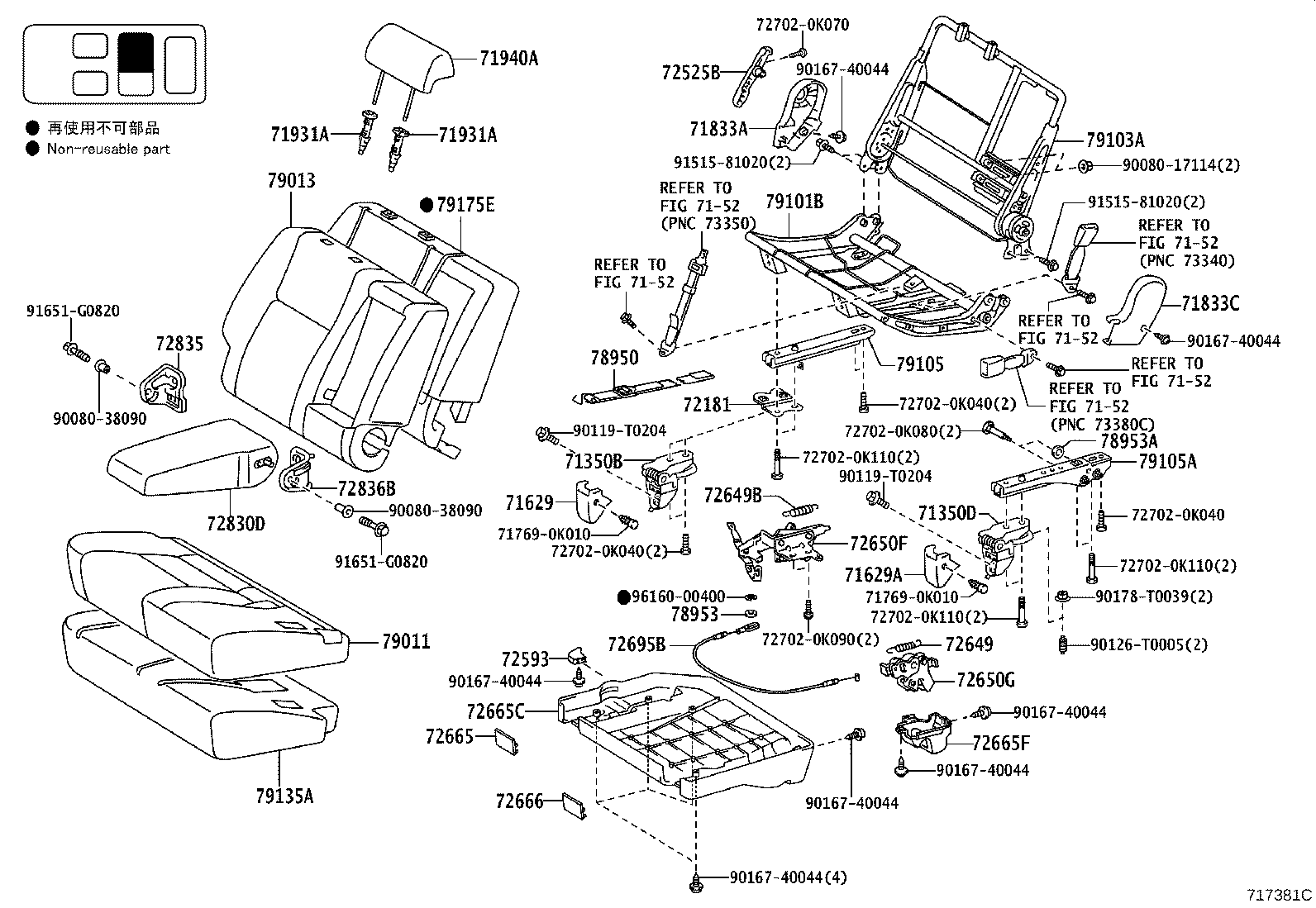

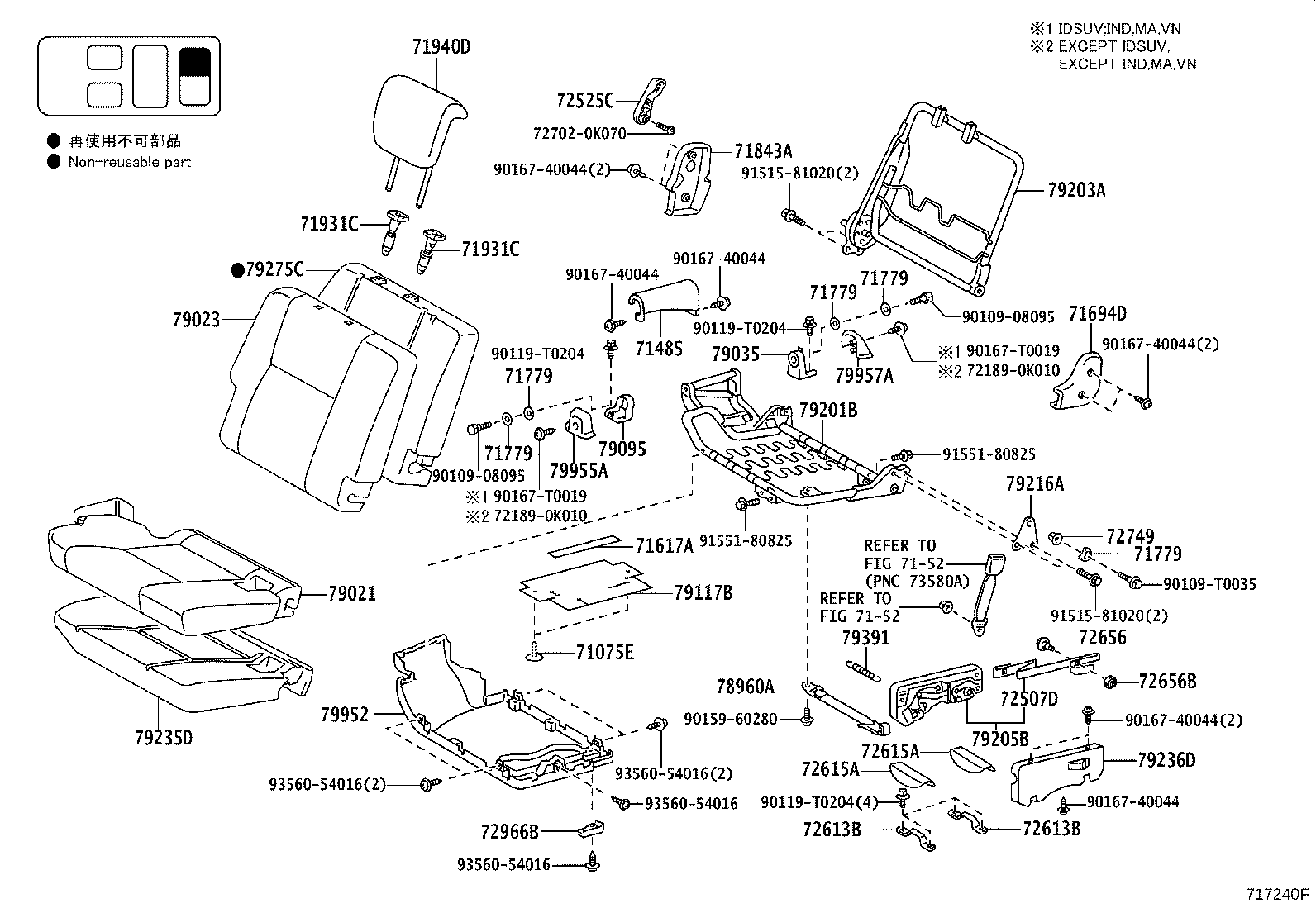

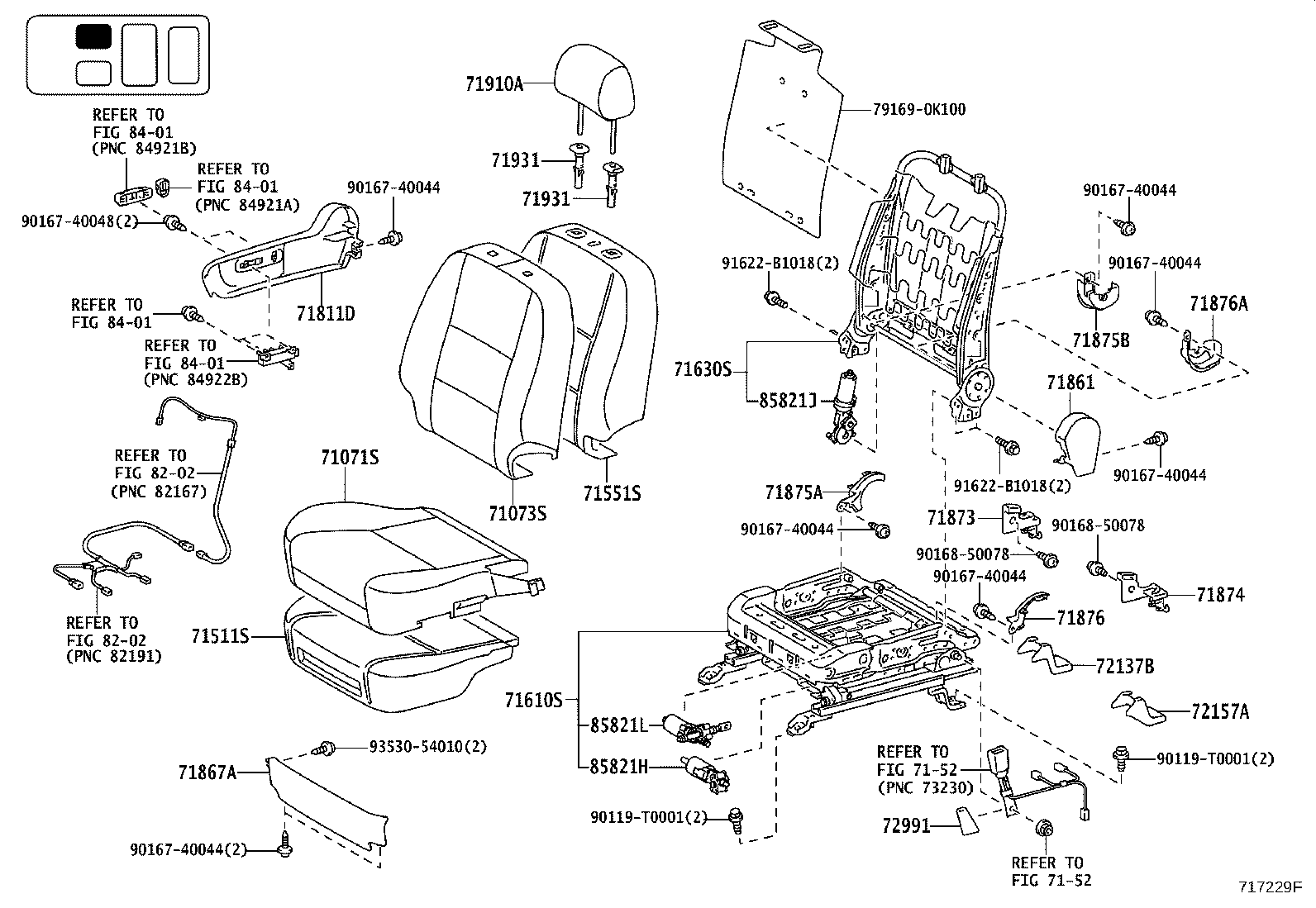

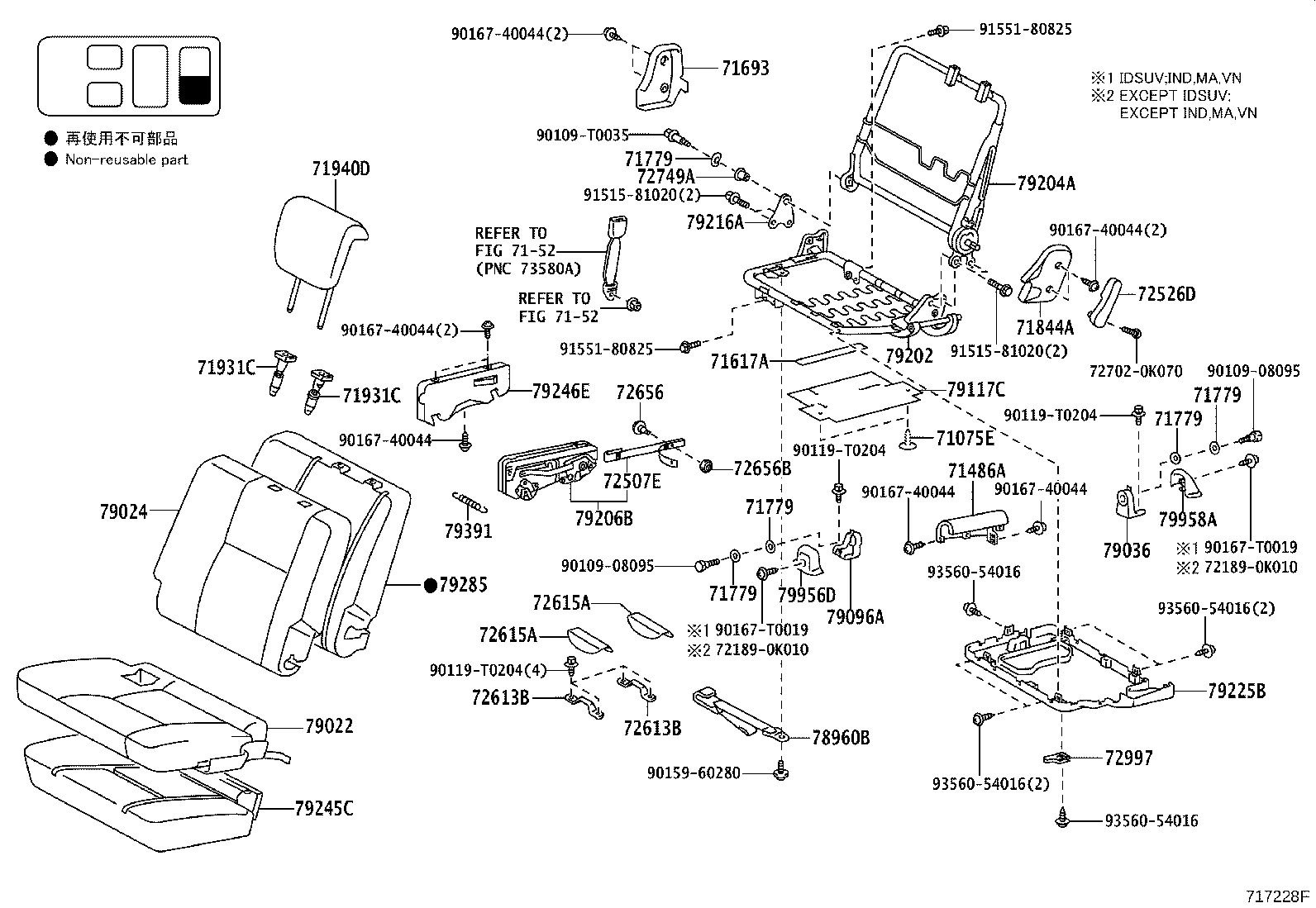

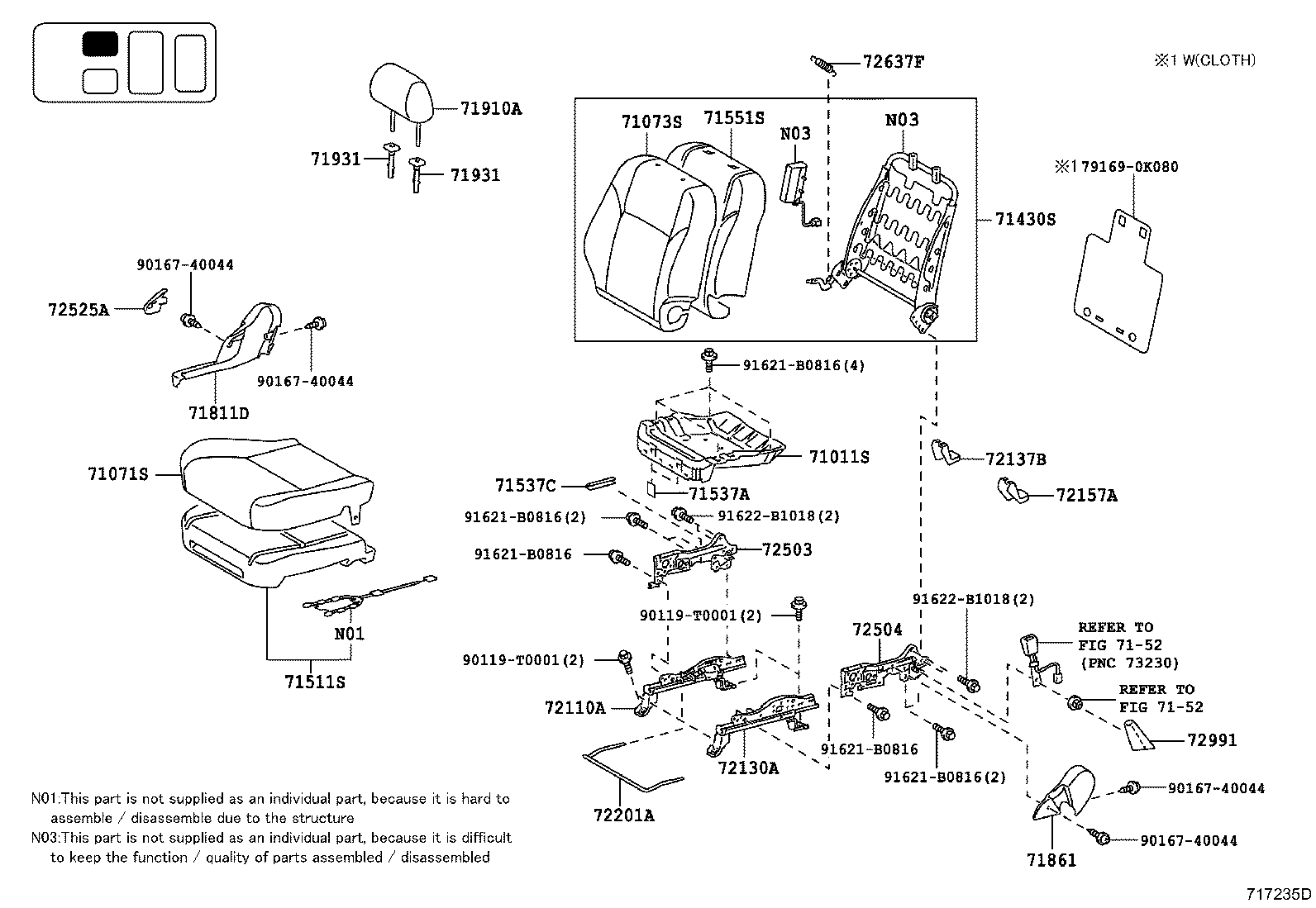

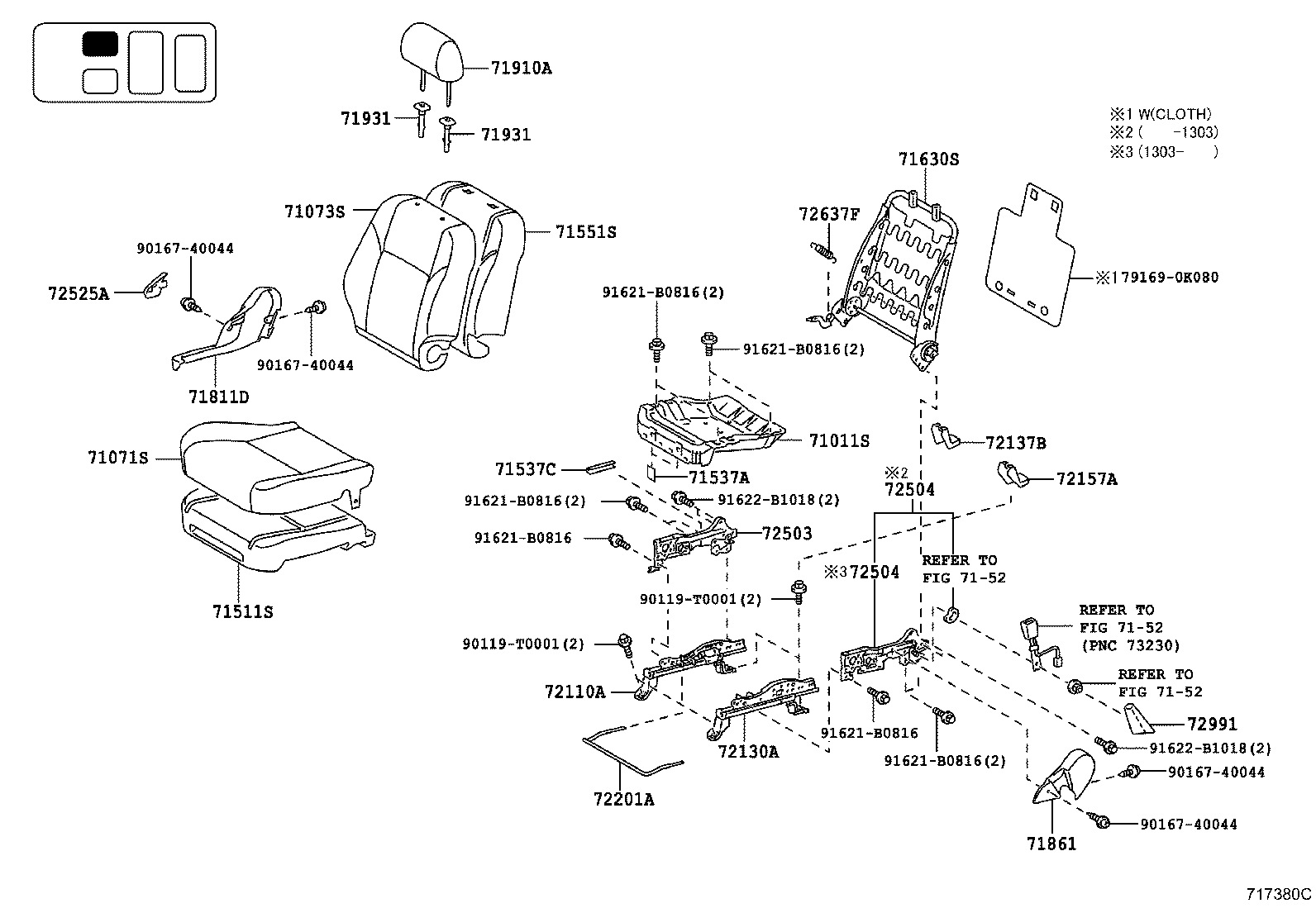

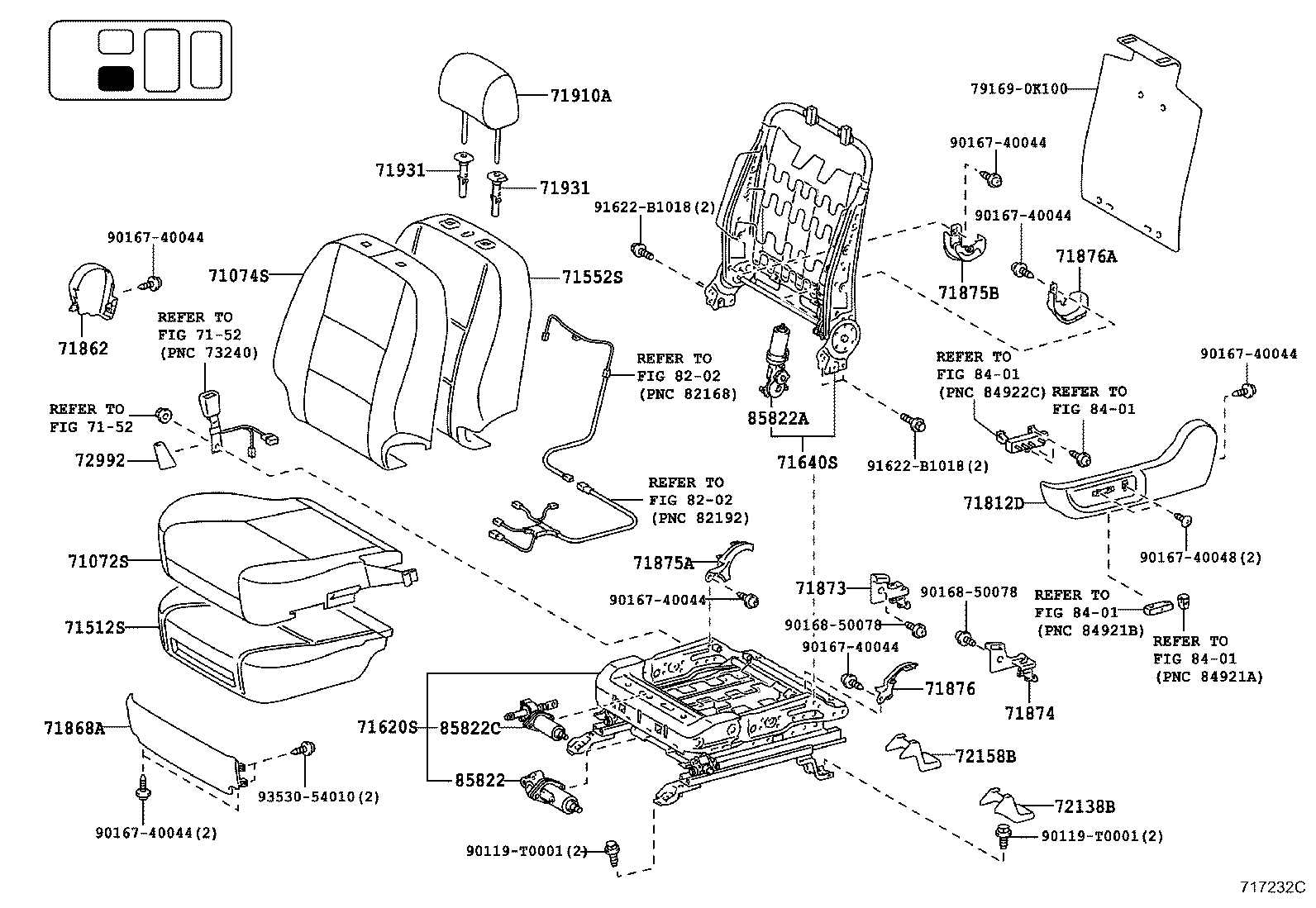

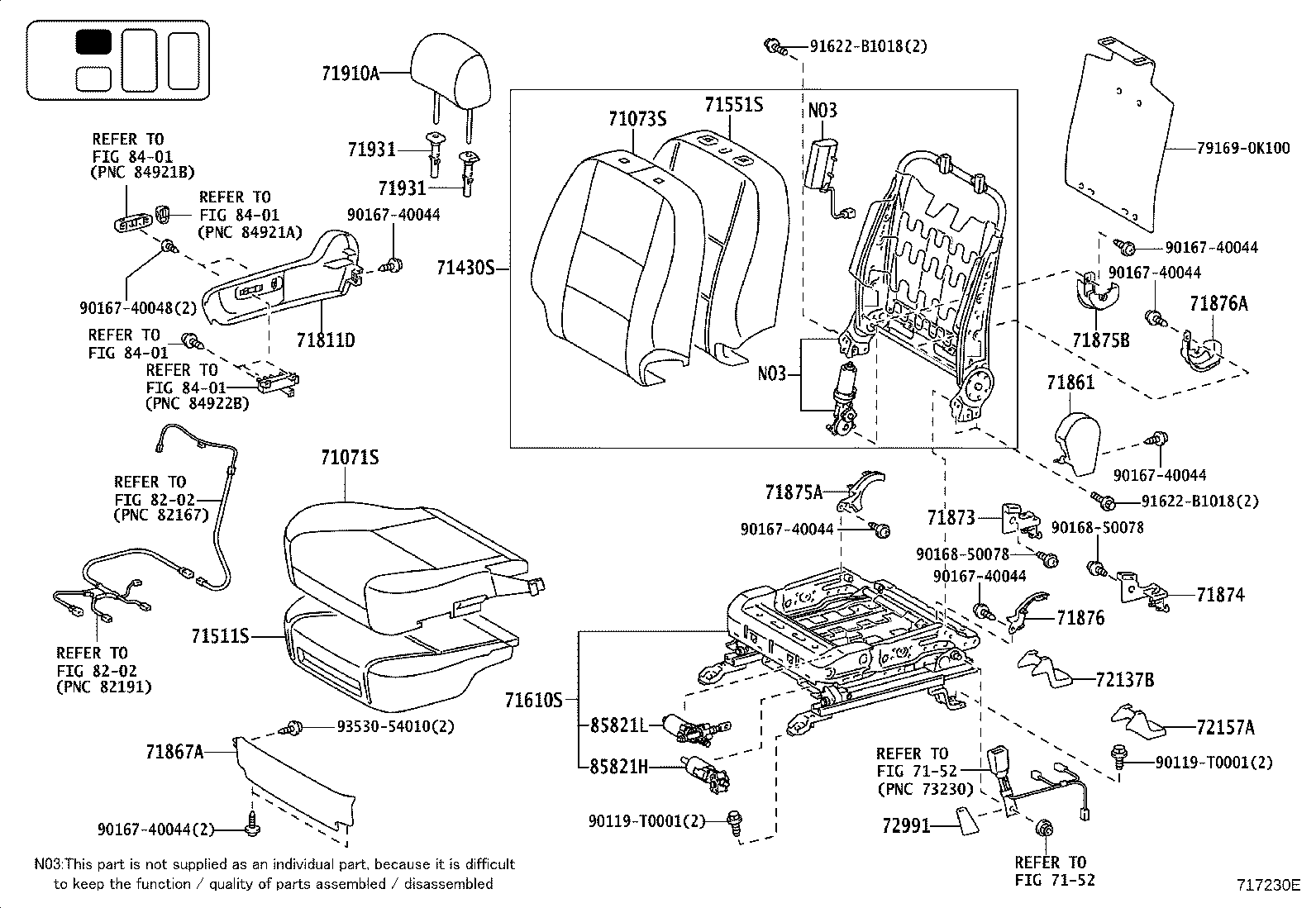

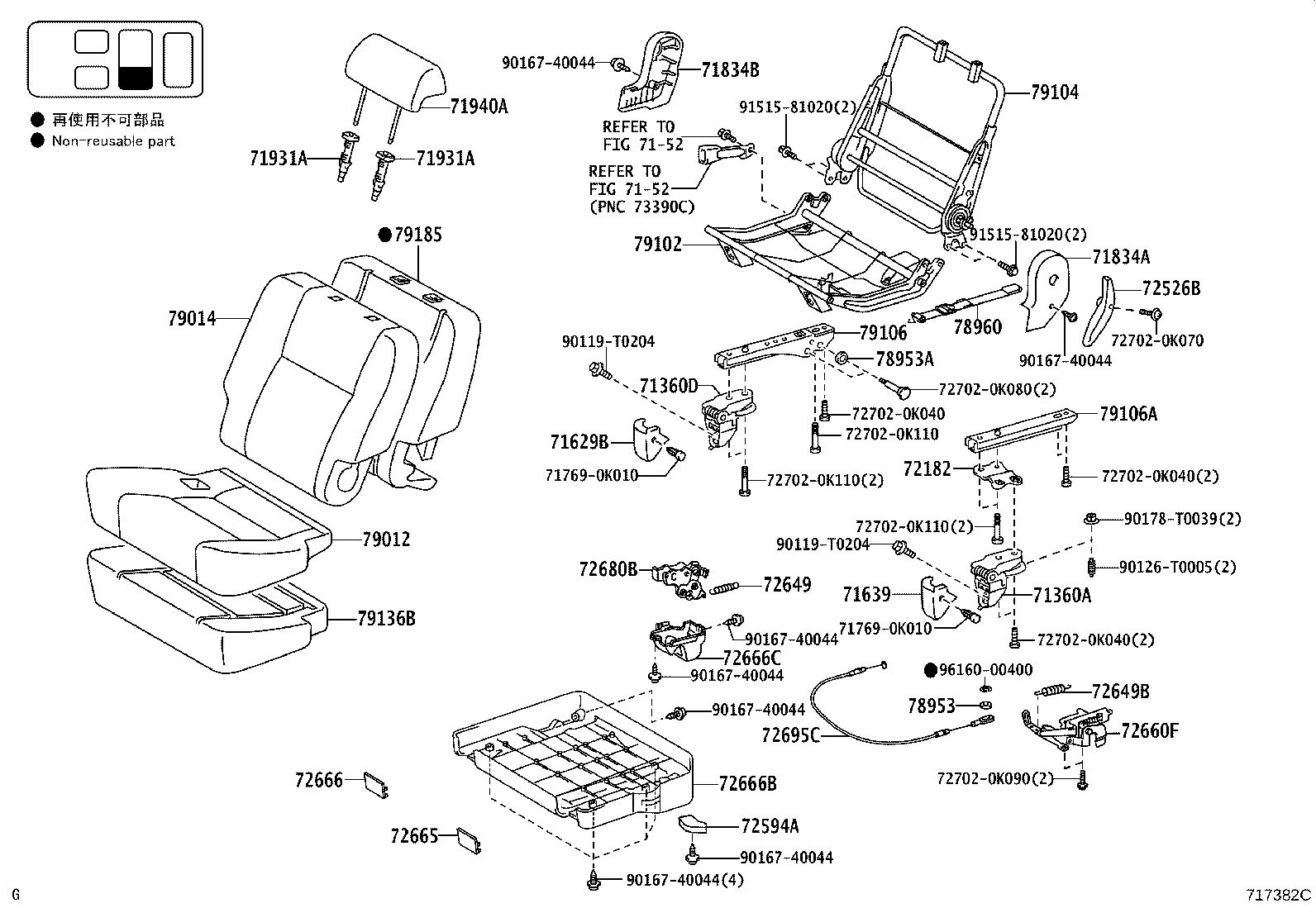

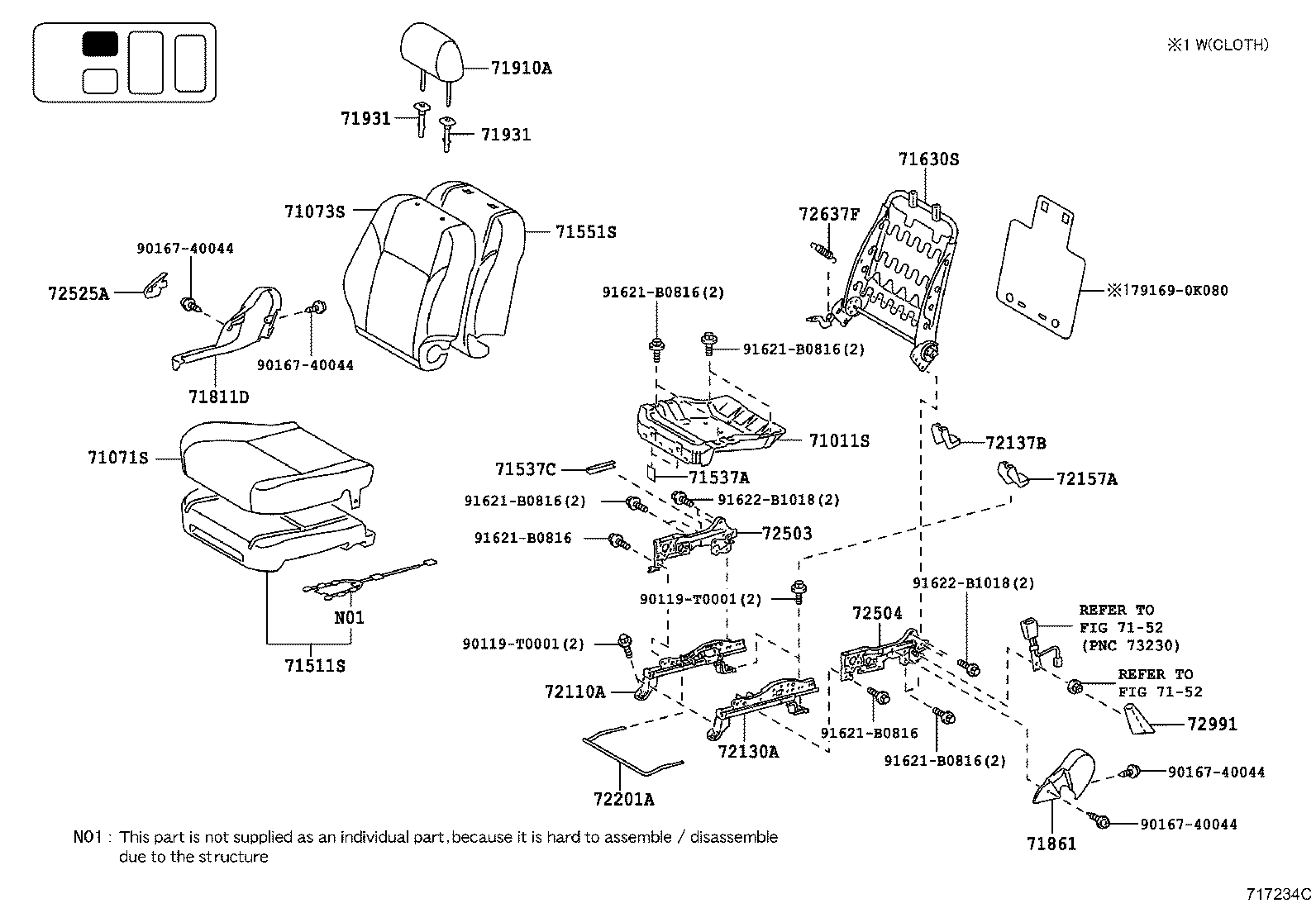

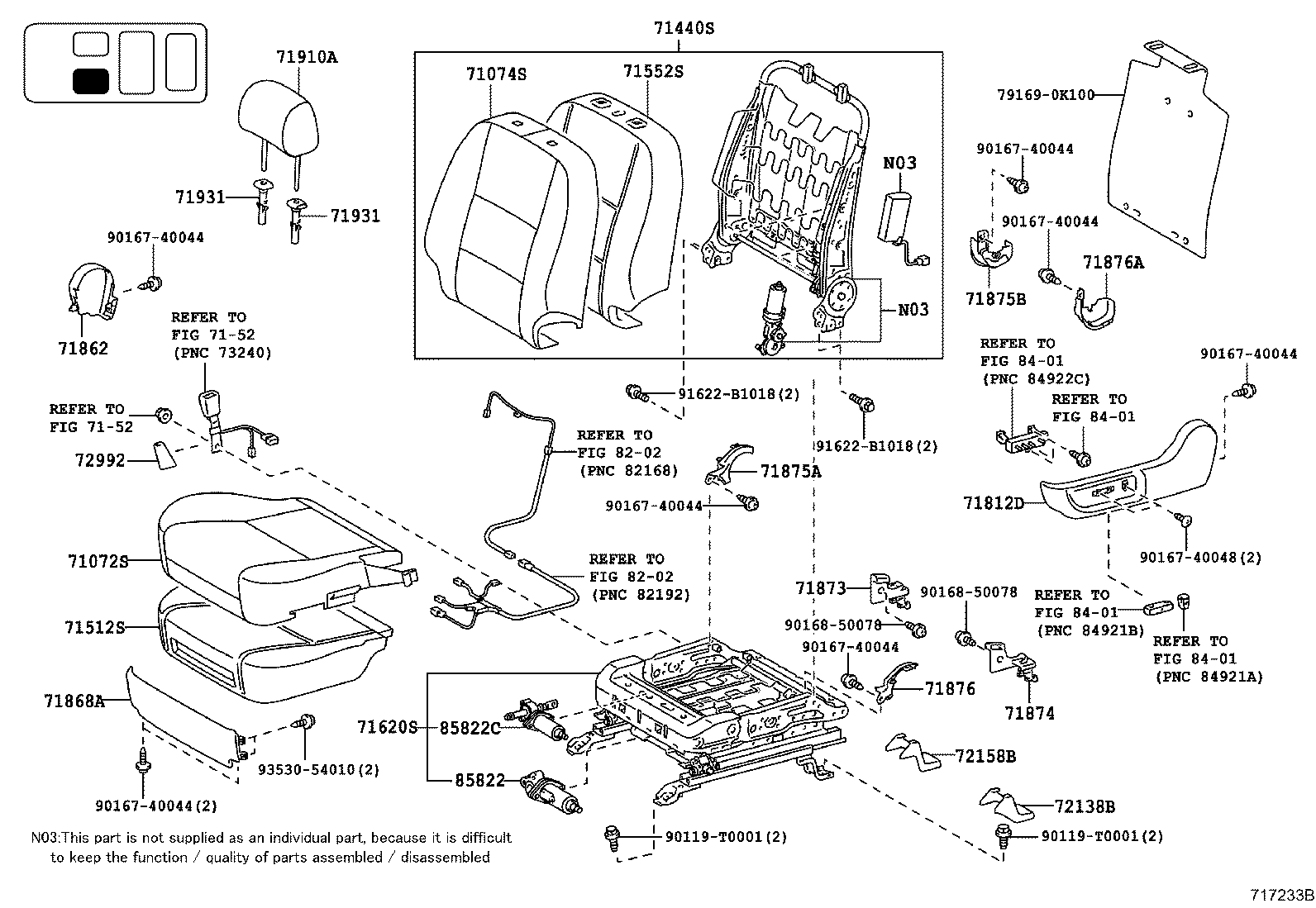

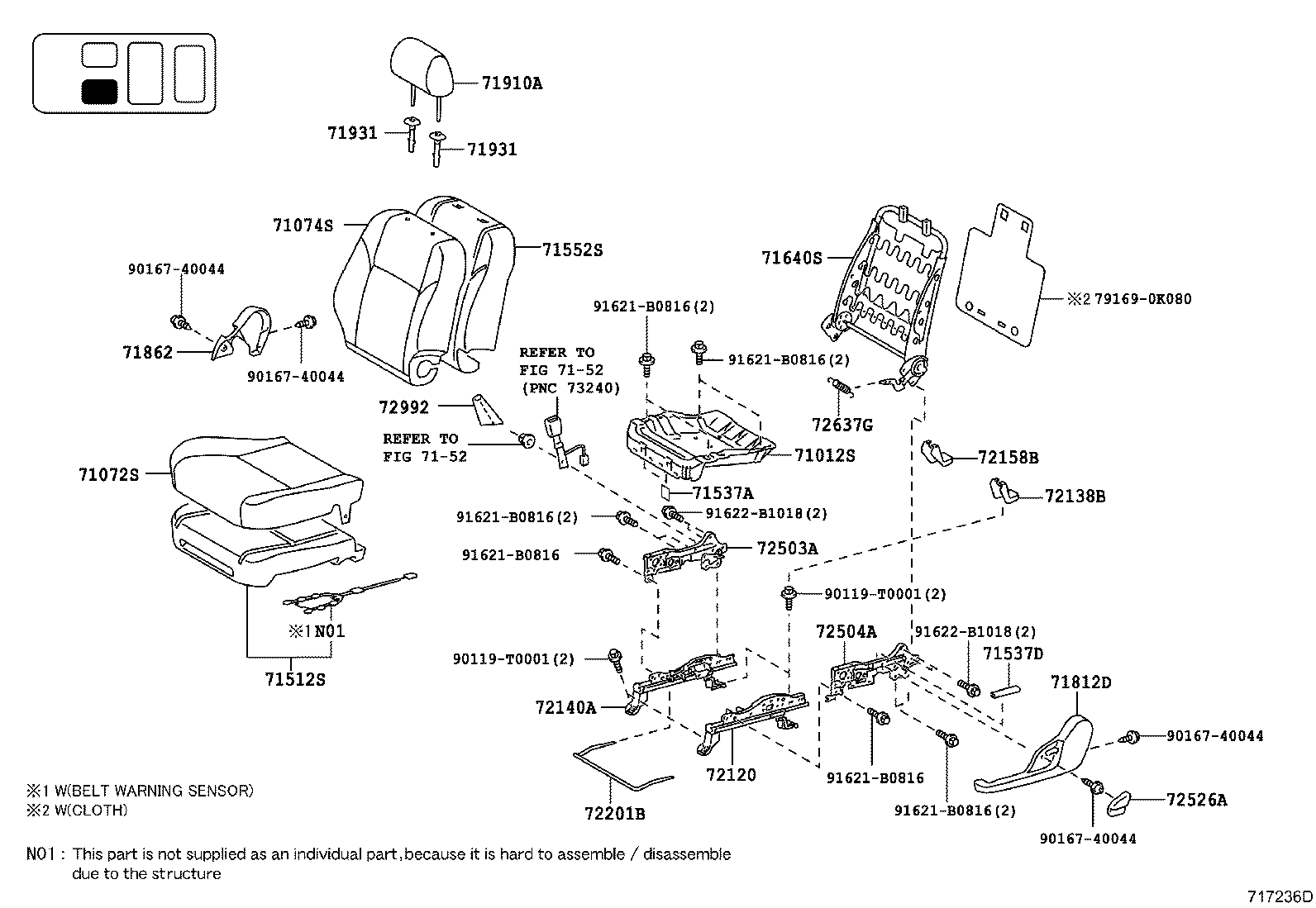

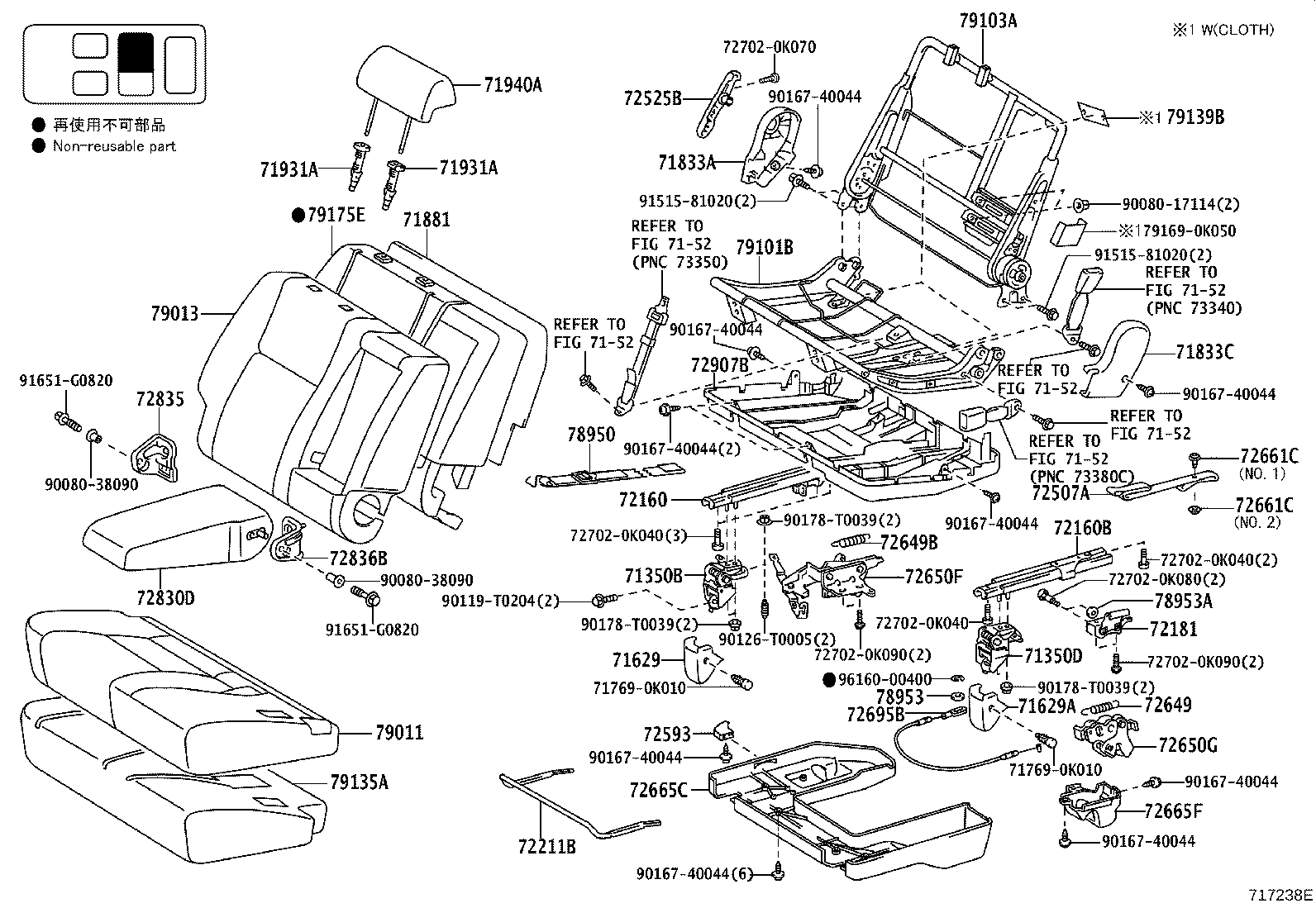

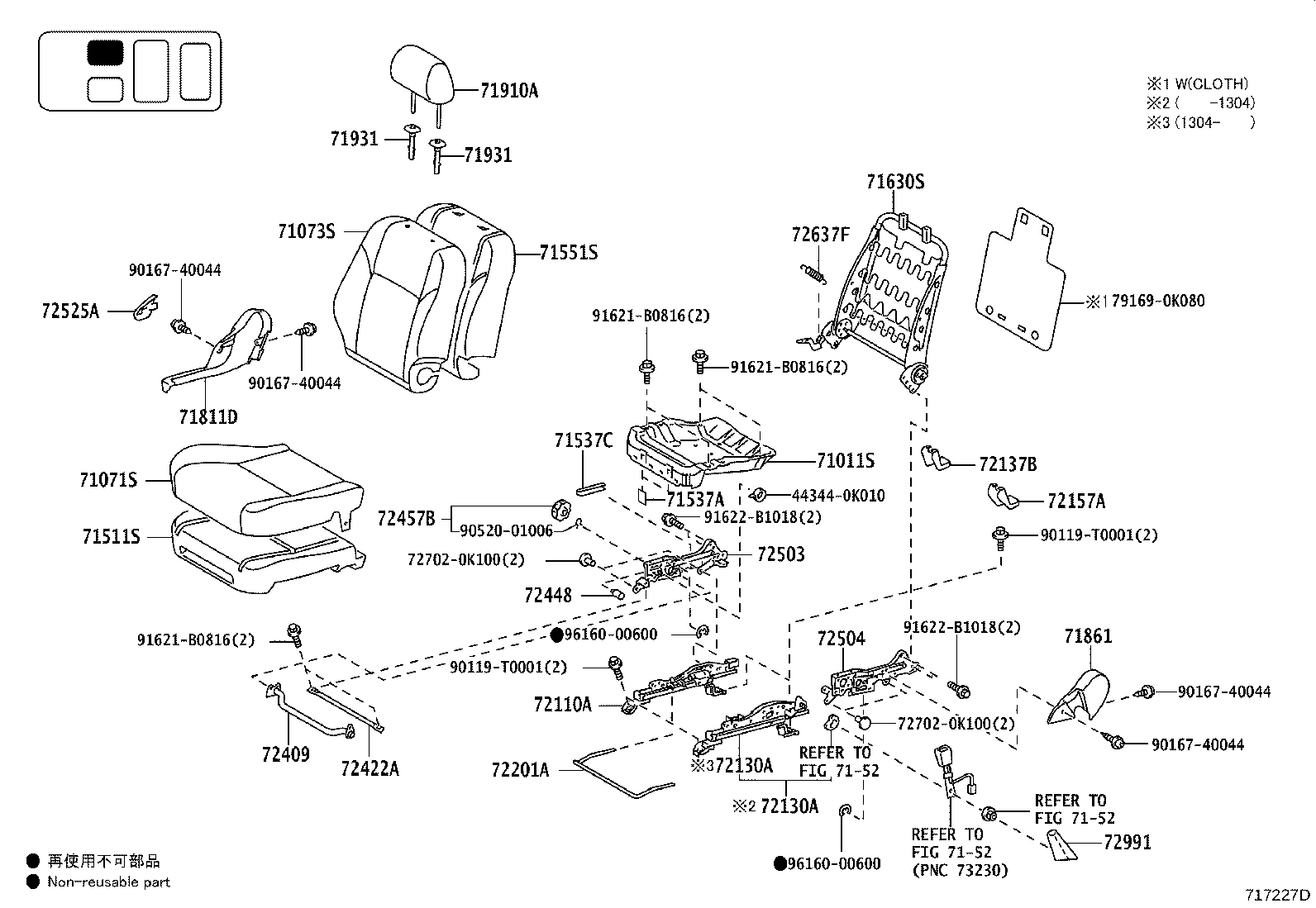

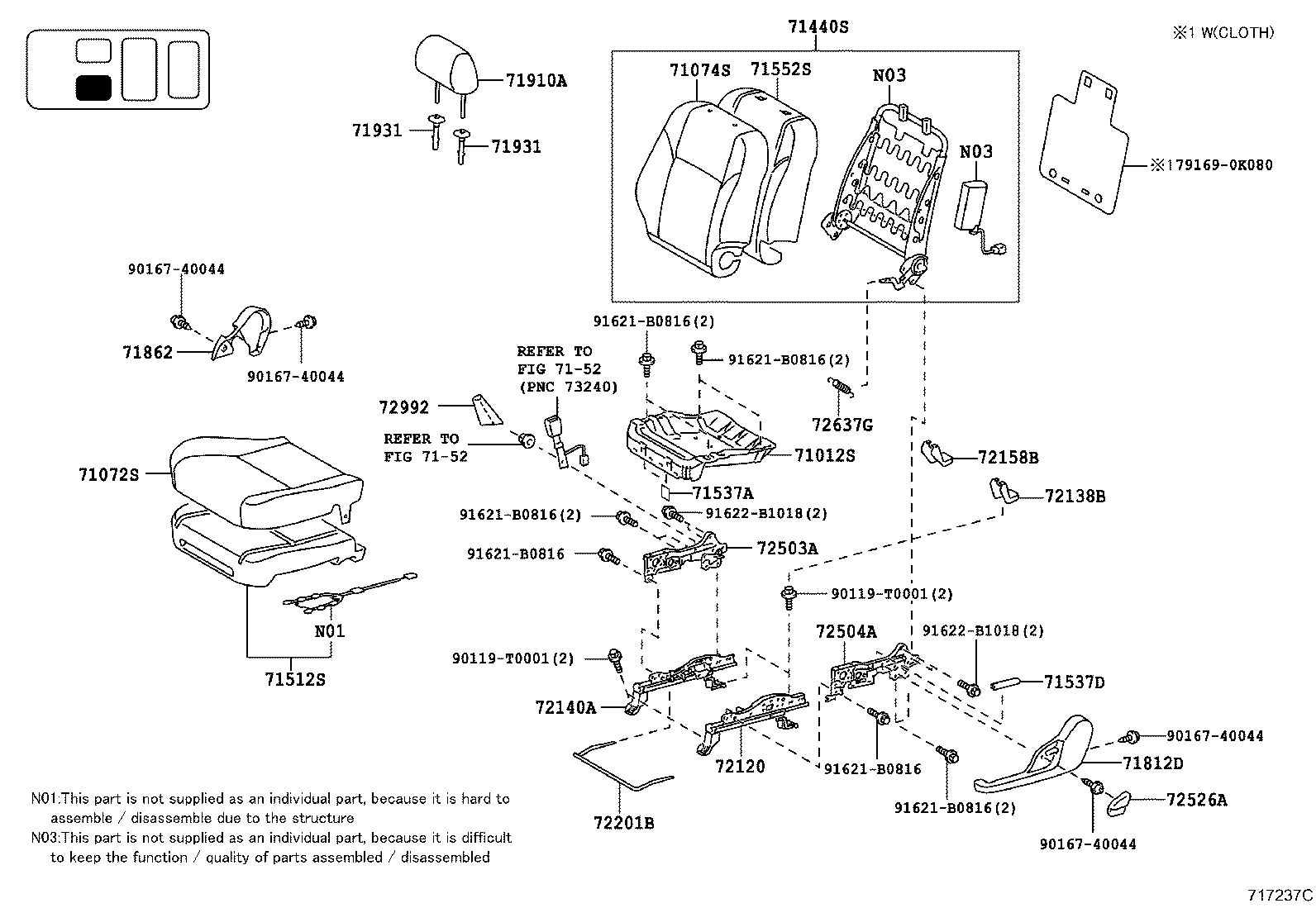

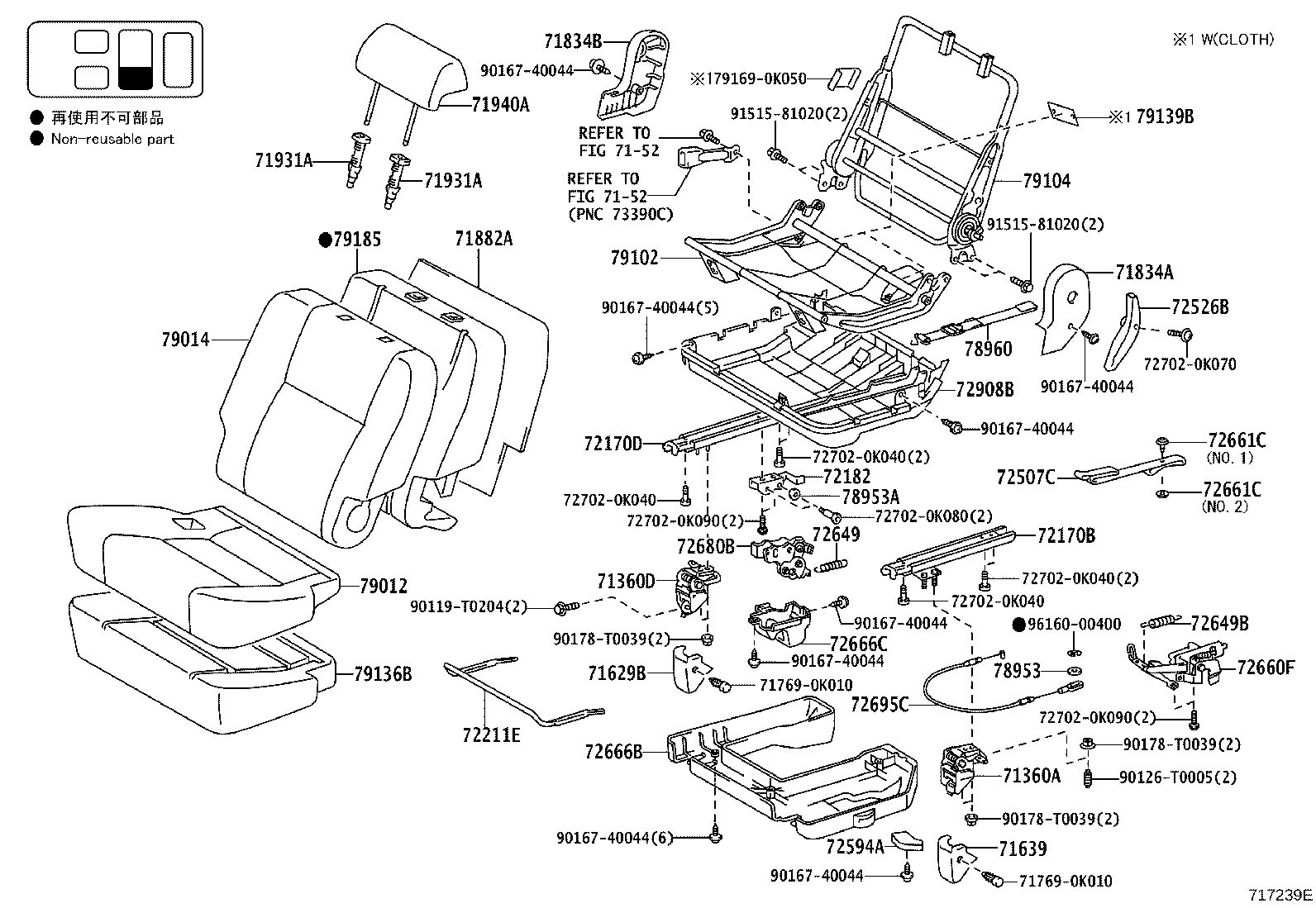

Illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075E | Clip(FOR REAR SEAT) |
| 71350B | Hinge Assy, Rear Seat, RH |
| 71350D | Hinge Assy, Rear Seat, NO.2 RH |
| 71360A | Hinge Assy, Rear Seat, LH |
| 71360D | Hinge Assy, Rear Seat, NO.2 LH |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71485 | Cover, Rear Seat Hinge |
| 71486A | Cover, Rear Seat Hinge, NO.2 LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71617A | Cloth, Rear Seat Cushion Under |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71629 | Cover, Rear Seat Cushion Hinge |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71629B | Pad, Rear Seat Cushion Cover Side, LH |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71693 | Cover, Rear Seat Cushion Hinge, Lower RH |
| 71694D | Cover, Rear Seat Cushion Hinge, Outer LH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71833C | Cover, Rear Seat Reclining, NO.2 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71834B | Cover, Rear Seat Reclining, NO.2 LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71881 | Board, Rear Seatback, RH |
| 71882A | Board, Rear Seatback, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71931A | Support, Rear Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71940D | Headrest Assy, Rear NO.2 Seat, RH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158B | Cover, Seat Track Bracket, Inner LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72160B | Track Assy, Rear NO.1 Seat, RH |
| 72170B | Track Assy, Rear NO.1 Seat, LH |
| 72170D | Track Assy, Rear Seat, Outer LH |
| 72181 | Bracket, Rear Outer Seat Track, Lower Front RH |
| 72182 | Bracket, Rear Outer Seat Track, Lower Front LH |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72201B | Handle Sub-assy, Seat Track LH |
| 72211B | Handle, Seat Track Adjusting |
| 72211E | Handle, Seat Track Adjusting |
| 72409 | Shaft Sub-assy, Vertical Adjusting |
| 72422A | Rod, Front Seat Adjuster |
| 72448 | Pin, FR Seat Adjuster, NO.2 RH |
| 72448A | Pin, FR Seat Adjuster, NO.2 LH |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72457D | Knob, Vertical Seat Adjuster, LH |
| 72503 | Arm Sub-assy, Reclining Adjuster, Lower RH |
| 72503A | Arm Sub-assy, Reclining Adjuster, Lower RH |
| 72504 | Arm Sub-assy, Reclining Adjuster, Lower LH |
| 72504A | Arm Sub-assy, Reclining Adjuster, Lower LH |
| 72507A | Handle Sub-assy, Reclining Release |
| 72507C | Handle Sub-assy, Reclining Release, LH |
| 72507D | Handle Sub-assy, NO.2 Seat Reclining Release |
| 72507E | Handle Sub-assy, Reclining Release, NO.1 |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72525C | Handle, Reclining Adjuster Release, NO.1 RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72526B | Handle, Reclining Adjuster Release, NO.1 LH |
| 72526D | Handle, Reclining Adjuster Release, NO.3 LH |
| 72593 | Knob, Reclining Remote Control Lever |
| 72594A | Knob, Reclining Remote Control Lever, LH |
| 72613B | Striker, Rear Seat Lock |
| 72615A | Cover, Rear Seatback Lock Striker, RH |
| 72637F | Spring, Seatback, RH |
| 72637G | Spring, Seatback, LH |
| 72649 | Spring, Rear Seat Cushion Support |
| 72649B | Spring, Rear Seat Cushion Support |
| 72650F | Lock Assy, Rear Seat, RH |
| 72650G | Lock Assy, Rear NO.2 Seat, RH |
| 72656 | Button, Rear Seatback Stop Release |
| 72656B | Button, Rear Seatback Stop Release |
| 72660F | Lock Assy, Rear Seat, LH |
| 72661C | Button, Rear Seatback Lock Release |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72665C | Cover, Rear Seat Lock, RH |
| 72665F | Cover, Rear Seat Lock, RH(FOR RH SEAT) |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72666B | Cover, Rear Seat Lock, LH |
| 72666C | Cover, Rear Seat Lock, NO.2 LH |
| 72680B | Lock Assy, Rear Seat Cushion, LH |
| 72695B | Cable, Rear Seat Lock Control, RH |
| 72695C | Cable, Rear Seat Lock Control, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72749A | Spacer, Rear Seat Reclining |
| 72830D | Armrest Assy, Rear Seat, RH |
| 72835 | Arm, RR Seat Armrest, RH |
| 72836B | Arm, Rear Seat Armrest, LH |
| 72907B | Cover Sub-assy, Rear Seat Cushion Under, RH |
| 72908B | Cover Sub-assy, Rear Seat Cush Under, LH |
| 72966B | Plate, Rear Seat Turn Lock, NO.1 RH |
| 72991 | Cover, Front Seat Cushion, RH |
| 72992 | Cover, Front Seat Cushion, LH |
| 72997 | Cover, Rear Seatback, LH |
| 78950 | Band Assy, Fold Seat Stopper, NO.1 |
| 78953 | Plate, Rear Seat Under |
| 78953A | Plate, Rear Seat Under, NO.1 |
| 78960 | Band Assy, Fold Seat Stopper, NO.2 |
| 78960A | Band Assy, NO.2 Fold Seat Stopper, NO.2 |
| 78960B | Band Assy, Fold Seat Stopper, NO.4 |
| 79011 | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79035 | Leg Sub Assy, NO.3 Seat Outer Rear, RH |
| 79036 | Leg Sub Assy, NO.3 Seat Outer Rear, LH |
| 79095 | Leg Sub Assy, NO.3 Seat Outer Front, RH |
| 79096A | Leg Sub Assy, NO.3 Seat Outer Front, LH |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79103A | Frame Sub-assy, NO.1 Seatback, RH |
| 79104 | Frame Sub-assy, NO.1 Seatback, LH |
| 79105 | Leg Sub-assy, NO.1 Seat, RH |
| 79105A | Leg Sub-assy, NO.1 Seat |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79106A | Leg Sub Assy, Seat, LH |
| 79117B | Cover, NO.1 Seat Cushion, RH |
| 79117C | Cover, NO.1 Seat Cushion, LH |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79139B | Cloth, NO.1 Seat Cushion |
| 79175E | Pad, NO.1 Seatback, RH |
| 79185 | Pad, NO.1 Seatback, LH |
| 79201B | Frame Sub-assy, NO.2 Seat Cushion, RH |
| 79202 | Frame Sub-assy, NO.2 Seat Cushion, LH |
| 79203A | Frame Sub-assy, NO.2 Seatback, RH |
| 79204A | Frame Sub-assy, NO.2 Seatback, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |
| 79216A | Plate, NO.2 Seat Cushion |
| 79225B | Carpet, Rear NO.2 Seat Cushion, LH |
| 79235D | Pad, NO.2 Seat Cushion, RH |
| 79236D | Cover, Rear Seat Leg, RH (FOR RH SEAT) |
| 79245C | Pad, NO.2 Seat Cushion, LH |
| 79246E | Cover, NO.2 Seat Leg, Rear LH (FOR LH SEAT) |
| 79275C | Pad, NO.2 Seatback, RH |
| 79285 | Pad, NO.2 Seatback, LH |
| 79391 | Spring, Rear Seat Cushion |
| 79952 | Cover, NO.2 Seat Cushion |
| 79955A | Cover, Rear Seat Front Bracket, RH |
| 79956D | Cover, Rear Seat Front Bracket, LH |
| 79957A | Cover, Rear Seat Rear Bracket, RH |
| 79958A | Cover, Rear Seat Rear Bracket, LH |
| 85821H | Motor Assy, Power Seat Slide, RH |
| 85821J | Motor Assy, Power Seat Reclining, RH |
| 85821L | Motor Assy, Power Seat Lifter, RH |
| 85822 | Motor Assy, Power Seat Slide, LH |
| 85822A | Motor Assy, Power Seat Reclining, LH |
| 85822C | Motor Assy, Power Seat Lifter, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
