Toyota Fortuner
2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General
Supported model
Data version 2022-11

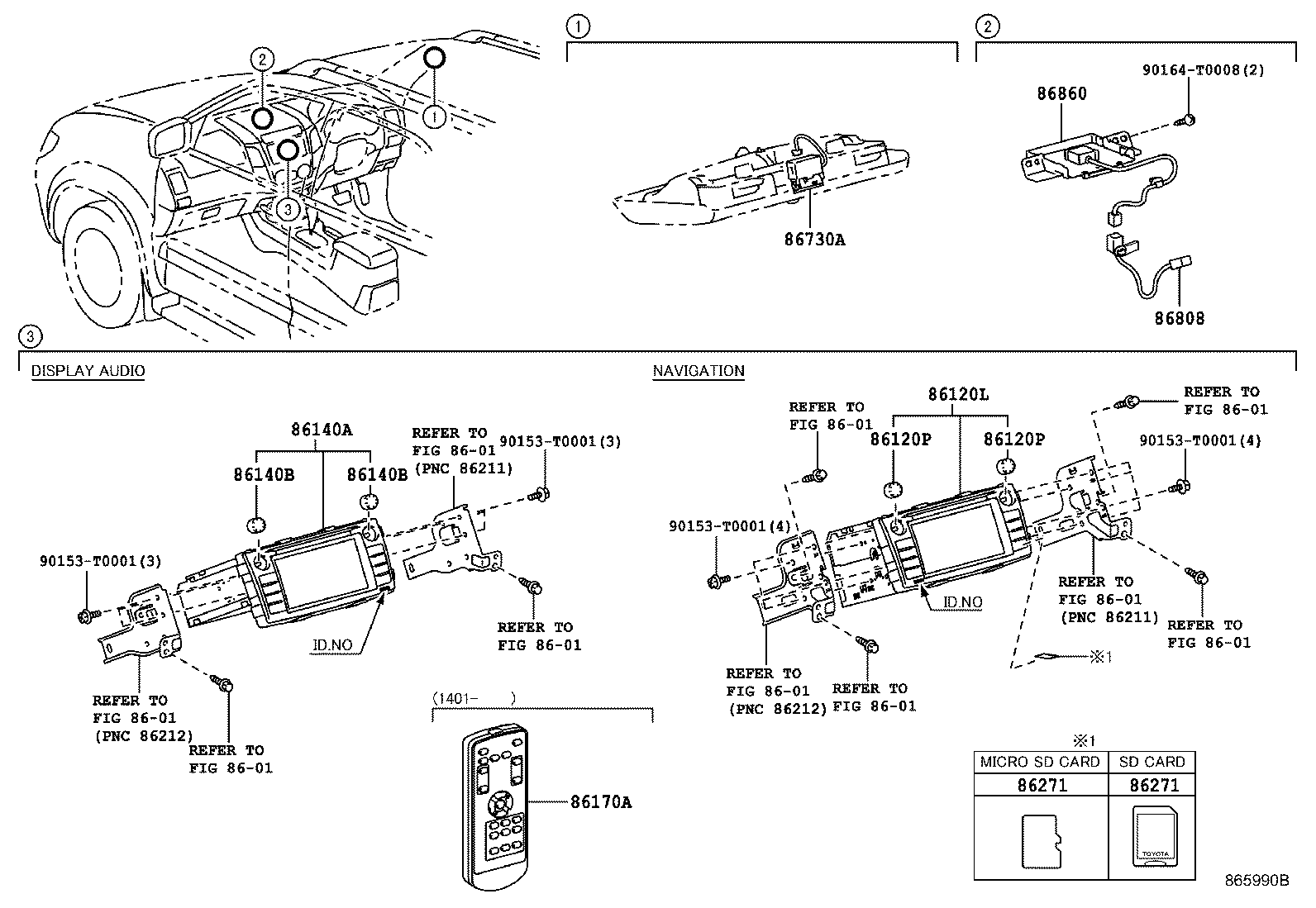

Navigation & Front Monitor Display
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86170A | Switch & Volume Assy |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86808 | Cord Sub-assy, Navigation Antenna, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
