Toyota Fortuner (SUV)
2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General
Supported model
Data version 2024-07

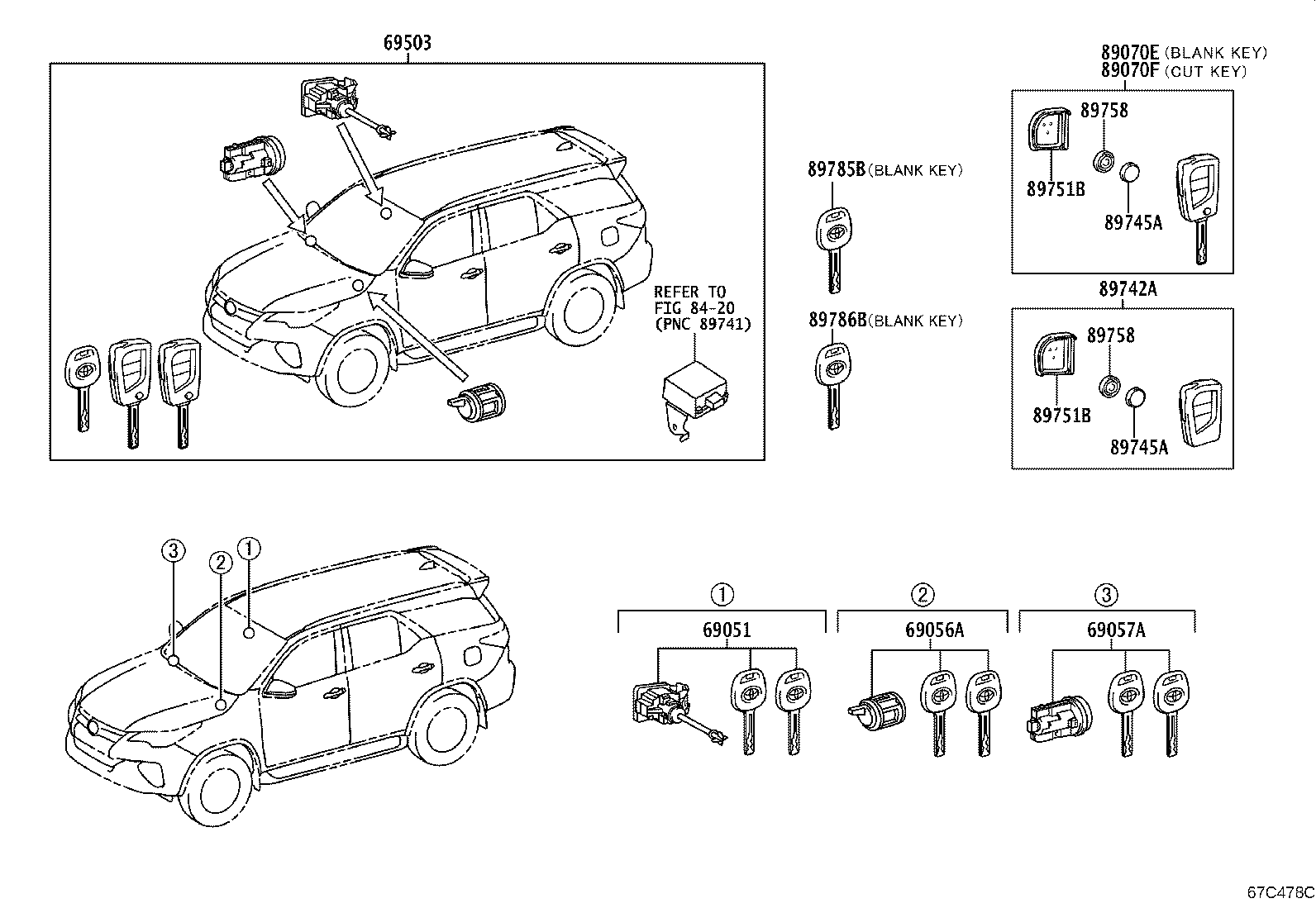

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-0K070 |
Cylinder & Key Set, Door Lock, RH
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 69051-0K070 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69051-0K070 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 69051-0K080 |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69051-0K080 note |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69051-0K100 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69051-0K100 |
Cylinder & Key Set, Door Lock, RH
2023-01 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 69051-0K110 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN155,165 RHD IDNP S | — | |
| 69051-0K120 note |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 69051-0K120 |
Cylinder & Key Set, Door Lock, RH
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP (H,L) | — | |
| 69051-0K130 |
Cylinder & Key Set, Door Lock, RH
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69056A — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 69056-0K050 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69056-0K050 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 69056-0K050 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2024-03
ended
|
GGN155,GUN156 EPT,KEN | — | |
| 69056-0K060 note |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2023-01 → 2024-01
ended
|
GUN15#,16# RHD SA | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
GUN156,166 THP;GGN155,GUN155 THP H;GUN165,TGN156 +2 | — | |
| 69056-0K060 note |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69056-0K060 |
Cylinder & Key Set, Glove Compartment Lock
2022-08 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69056-0K070 |
Cylinder & Key Set, Glove Compartment Lock
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69056-0K080 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN165 C,GEN,IDN) RHD IDNP +6 | — | |
| 69056-0K080 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 69056-0K090 note |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 69056-0K090 note |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69056-0K090 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-08
ended
|
GUN155,165 IDNP IDNP (H,L) +6 | — | |
| 69056-0K090 |
Cylinder & Key Set, Glove Compartment Lock
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-0K220 |
Cylinder & Key Set, Ignition Switch Lock
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 69057-0K220 |
Cylinder & Key Set, Ignition Switch Lock
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 69057-0K220 |
Cylinder & Key Set, Ignition Switch Lock
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 69057-0K220 |
Cylinder & Key Set, Ignition Switch Lock
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 69057-0K220 note |
Cylinder & Key Set, Ignition Switch Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69057-0K220 note |
Cylinder & Key Set, Ignition Switch Lock
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69057-0K260 |
Cylinder & Key Set, Ignition Switch Lock
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 69057-0K260 |
Cylinder & Key Set, Ignition Switch Lock
2022-09 → 2023-08
ended
|
GUN165 C,GEN,IDN) RHD IDNP +6 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → —
|
GUN156,TGN156,166 PKNP | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
GUN156 KEN | — | |
| 69005-0KC00 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
GUN15#,16# RHD THP | — | |
| 69005-0KC00 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2023-10
ended
|
GGN155,GUN156,165,TGN166 AGTP H | — | |
| 69005-0KC70 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
GGN155 EPT | — | |
| 69005-0KC70 note |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
GGN155,GUN155 THP S | — | |
| 69005-0KC70 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
TGN156 THP S;GGN155,GUN15# LHD +2 | — | |
| 69005-0KF50 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 69005-0KF50 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN15#,16#,TGN156,166 RHD IDNP (H,L) | — | |
| 69005-0KF80 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GGN155,GUN15#,166 LHD IDNP H;GUN165,TGN156,166 +3 | — | |
| 69005-0KF80 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 69005-0KF80 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 69005-0KF80 |
Cylinder Set, Lock
2022-09 → 2023-09
ended
|
GUN156,165,TGN166 VNP 6FC | — | |
| 69005-0KG00 |
Cylinder Set, Lock
2022-10 → 2023-09
ended
|
GUN156,166,TGN166 IND | — | |
| 69005-0KG20 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN15#,TGN156 MA | — | |
| 69005-0KG20 |
Cylinder Set, Lock
2022-09 → 2024-01
ended
|
GUN155,16# RHD SA;GUN156 RHD +2 | — | |
| 69005-0KK30 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89704-0KS20 note |
Cylinder Set, Lock
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 89704-0KS20 |
Cylinder Set, Lock
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 (L,S) LA | — | |
| 89704-0KW30 |
Cylinder Set, Lock
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 89704-0KW30 note |
Cylinder Set, Lock
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 (6F,6FC) (L,S) LA | — | |
| 89704-0KW30 note |
Cylinder Set, Lock
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89704-0KW30 |
Cylinder Set, Lock
2022-11 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89704-0KW50 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89704-0KW50 note |
Cylinder Set, Lock
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89704-0KW50 |
Cylinder Set, Lock
2023-06 → 2024-03
ended
|
GUN155 KEN | — | |
| 89704-0KY50 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 89704-0KY60 note |
Cylinder Set, Lock
2022-09 → 2023-05
ended
|
GGN155,GUN155 IDNP S GCC | — | |
| 89704-0KY60 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 IDNP L;GGN155,GUN155,165,TGN166 IDNP +2 | — | |
| 89704-0KY70 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 RHD GEN | — | |
| 89704-0KY70 note |
Cylinder Set, Lock
2022-09 → 2023-05
ended
|
GUN165 RHD GEN | — | |
| 89704-0KY90 |
Cylinder Set, Lock
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89704-0KY90 note |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 89704-0KY90 |
Cylinder Set, Lock
2022-09 → 2023-08
ended
|
GUN165 IDNP L (PH,VN) | — | |
| 89704-F0090 |
Cylinder Set, Lock
2022-09 → 2022-12
ended
|
GUN155,165 S IDN | — | |
| 89704-F0091 |
Cylinder Set, Lock
2023-01 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 89070E — Transmitter Assy, Door Control | ||||
| 89070-0KG00 note |
Transmitter Assy, Door Control
2022-08 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 S +1 | — | |
| 89070-0KG00 |
Transmitter Assy, Door Control
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89070-0KG00 |
Transmitter Assy, Door Control
2022-08 → 2023-08
ended
|
TGN156 IDNP L;GUN165 RHD +4 | — | |
| 89070-0KG00 |
Transmitter Assy, Door Control
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 89070-0KG00 |
Transmitter Assy, Door Control
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 (L,S) LA | — | |
| 89070-0KG40 |
Transmitter Assy, Door Control
2022-11 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89070-0KG40 note |
Transmitter Assy, Door Control
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89070-0KG40 note |
Transmitter Assy, Door Control
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 (6F,6FC) (L,S) LA | — | |
| 89070-0KG40 |
Transmitter Assy, Door Control
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 89070-0KG40 note |
Transmitter Assy, Door Control
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89070-0KG40 note |
Transmitter Assy, Door Control
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89070-0KG40 |
Transmitter Assy, Door Control
2022-11 → 2024-03
ended
|
GUN155 KEN | — | |
| 89070-0KJ80 note |
Transmitter Assy, Door Control
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 89070-0KJ90 |
Transmitter Assy, Door Control
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89070-0KJ90 note |
Transmitter Assy, Door Control
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 89070-0KJ90 |
Transmitter Assy, Door Control
2022-09 → 2023-08
ended
|
GUN165 IDNP L (PH,VN) | — | |
| 89070-0KN40 |
Transmitter Assy, Door Control
2022-09 → 2022-12
ended
|
GUN155,165 S IDN | — | |
| 89070-0KN41 |
Transmitter Assy, Door Control
2023-01 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 89070F — Transmitter Assy, Door Control (CUT KEY) | ||||
| 89070-0KG70 |
Transmitter Assy, Door Control (CUT KEY)
2022-08 → 2024-03
ended
|
TGN166 EPT | — | |
| 89070-0KG70 |
Transmitter Assy, Door Control (CUT KEY)
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 (L,S) LA | — | |
| 89070-0KG70 |
Transmitter Assy, Door Control (CUT KEY)
2022-08 → 2023-08
ended
|
TGN156 IDNP L;GUN165 RHD +4 | — | |
| 89070-0KG70 note |
Transmitter Assy, Door Control (CUT KEY)
2022-08 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 S +1 | — | |
| 89070-0KG70 |
Transmitter Assy, Door Control (CUT KEY)
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89070-0KJ10 |
Transmitter Assy, Door Control (CUT KEY)
2022-11 → 2023-10
ended
|
GUN156,TGN156 (L,S) BZAGT | — | |
| 89070-0KJ10 note |
Transmitter Assy, Door Control (CUT KEY)
2022-11 → 2023-10
ended
|
GUN156,16#,TGN156,166 (6F,6FC) (L,S) LA | — | |
| 89070-0KJ10 note |
Transmitter Assy, Door Control (CUT KEY)
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89070-0KJ10 |
Transmitter Assy, Door Control (CUT KEY)
2022-11 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89070-0KJ10 note |
Transmitter Assy, Door Control (CUT KEY)
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89070-0KJ10 note |
Transmitter Assy, Door Control (CUT KEY)
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89070-0KJ10 |
Transmitter Assy, Door Control (CUT KEY)
2022-11 → 2024-03
ended
|
GUN155 KEN | — | |
| 89070-0KK10 note |
Transmitter Assy, Door Control (CUT KEY)
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 89070-0KK20 |
Transmitter Assy, Door Control (CUT KEY)
2022-09 → 2023-08
ended
|
GUN165 IDNP L (PH,VN) | — | |
| 89070-0KK20 note |
Transmitter Assy, Door Control (CUT KEY)
2022-09 → 2023-08
ended
|
TGN156 L GEN | — | |
| 89070-0KK20 |
Transmitter Assy, Door Control (CUT KEY)
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89070-0KN30 |
Transmitter Assy, Door Control (CUT KEY)
2022-09 → 2022-12
ended
|
GUN155,165 S IDN | — | |
| 89070-0KN31 |
Transmitter Assy, Door Control (CUT KEY)
2023-01 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 89742A — Transmitter, Door Control | ||||
| 89742-0K050 |
Transmitter, Door Control
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89742-0K050 note |
Transmitter, Door Control
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 89745-0D040 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89745-0D040 note |
Battery, Transmitter
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89745-0D040 note |
Battery, Transmitter
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89745-0D040 note |
Battery, Transmitter
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
| 89745-0D060 note |
Battery, Transmitter
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89745-0D060 note |
Battery, Transmitter
2022-09 → 2023-08
ended
|
GUN165 C,IDN) RHD IDNP +6 | — | |
| 89745-0D060 note |
Battery, Transmitter
2022-09 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89751B — Cover, Transmitter Housing | ||||
| 89751-0K161 |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89751-0K161 note |
Cover, Transmitter Housing
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
| 89751-0K180 note |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
TGN156 IDNP L GCC | — | |
| 89751-0K191 |
Cover, Transmitter Housing
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89751-0K191 |
Cover, Transmitter Housing
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 89751-0K191 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89751-0K191 note |
Cover, Transmitter Housing
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89751-0K191 |
Cover, Transmitter Housing
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89751-0K191 note |
Cover, Transmitter Housing
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89751-0K191 |
Cover, Transmitter Housing
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 89751-0K191 note |
Cover, Transmitter Housing
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89751-0K201 |
Cover, Transmitter Housing
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89751-0K201 |
Cover, Transmitter Housing
2022-09 → 2023-08
ended
|
GUN165 RHD GEN;GUN165,TGN156 IDNP +4 | — | |
| 89751-0K201 note |
Cover, Transmitter Housing
2022-09 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89751-0K460 |
Cover, Transmitter Housing
2022-09 → 2023-01
ended
|
GUN155,165 S IDN | — | |
| 89751-0K461 |
Cover, Transmitter Housing
2023-01 → 2023-08
ended
|
GUN155,165 S IDN | — | |
| 89758 — Packing, Door Control Transmitter | ||||
| 89758-02010 note |
Packing, Door Control Transmitter
2023-01 → 2024-01
ended
|
GUN155,165 L SA;GUN156 RHD +2 | — | |
| 89758-02010 |
Packing, Door Control Transmitter
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 89758-02010 note |
Packing, Door Control Transmitter
2023-01 → 2024-01
ended
|
GUN156 RHD 6F SA | — | |
| 89758-02010 |
Packing, Door Control Transmitter
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89758-02010 note |
Packing, Door Control Transmitter
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89758-02010 |
Packing, Door Control Transmitter
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 89758-02010 |
Packing, Door Control Transmitter
2022-08 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89758-02010 |
Packing, Door Control Transmitter
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89758-02010 note |
Packing, Door Control Transmitter
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
| 89758-02010 note |
Packing, Door Control Transmitter
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89758-0K010 |
Packing, Door Control Transmitter
2022-09 → 2023-08
ended
|
GUN165 C,IDN) RHD IDNP +6 | — | |
| 89758-0K010 note |
Packing, Door Control Transmitter
2022-09 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89758-0K010 |
Packing, Door Control Transmitter
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89785B — Transmitter, Transponder Key Master | ||||
| 89785-0K100 note |
Transmitter, Transponder Key Master
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
| 89785-0K100 note |
Transmitter, Transponder Key Master
2022-09 → 2023-08
ended
|
GUN155 L GEN | — | |
| 89786B — Transmitter, Transponder Key Sub | ||||
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2023-01 → 2024-01
ended
|
GUN15#,165 RHD SA | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 89786-0K070 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-07
ended
|
TGN156 THP L;GGN155,GUN155,165,TGN166 THP +2 | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-10
ended
|
GUN156,16#,TGN156,166 AGTP (L,S) | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2023-01 → 2023-11
ended
|
GUN15#,TGN156 LHD 6FC SA | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2022-08 → 2024-01
ended
|
GUN15#,LAN155,TGN156 LHD SA | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2022-08 → 2023-05
ended
|
GGN155,GUN155 THP S | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2023-01 → 2024-01
ended
|
GUN15#,165 RHD SA | — | |
| 89786-0K150 note |
Transmitter, Transponder Key Sub
2022-08 → 2024-03
ended
|
GUN155,TGN166 EPT,KEN | — | |
| 89786-0K160 note |
Transmitter, Transponder Key Sub
2022-09 → 2023-08
ended
|
GUN165 C,GEN,IDN) RHD IDNP +6 | — | |
| 89786-0K160 note |
Transmitter, Transponder Key Sub
2022-09 → 2023-09
ended
|
GUN165 VNP L | — | |
| 89786-0K160 note |
Transmitter, Transponder Key Sub
2022-09 → 2023-05
ended
|
GUN165 RHD GEN;GGN155,GUN155 IDNP +2 | — | |
| 89786-0K160 note |
Transmitter, Transponder Key Sub
2022-09 → 2023-05
ended
|
GUN155 L GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
