Toyota Fortuner (SUV)

2022-08 → present · chassis GGN155,GUN15#,16#,LAN155,TGN156,166 · catalogue 6713E0 · General

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

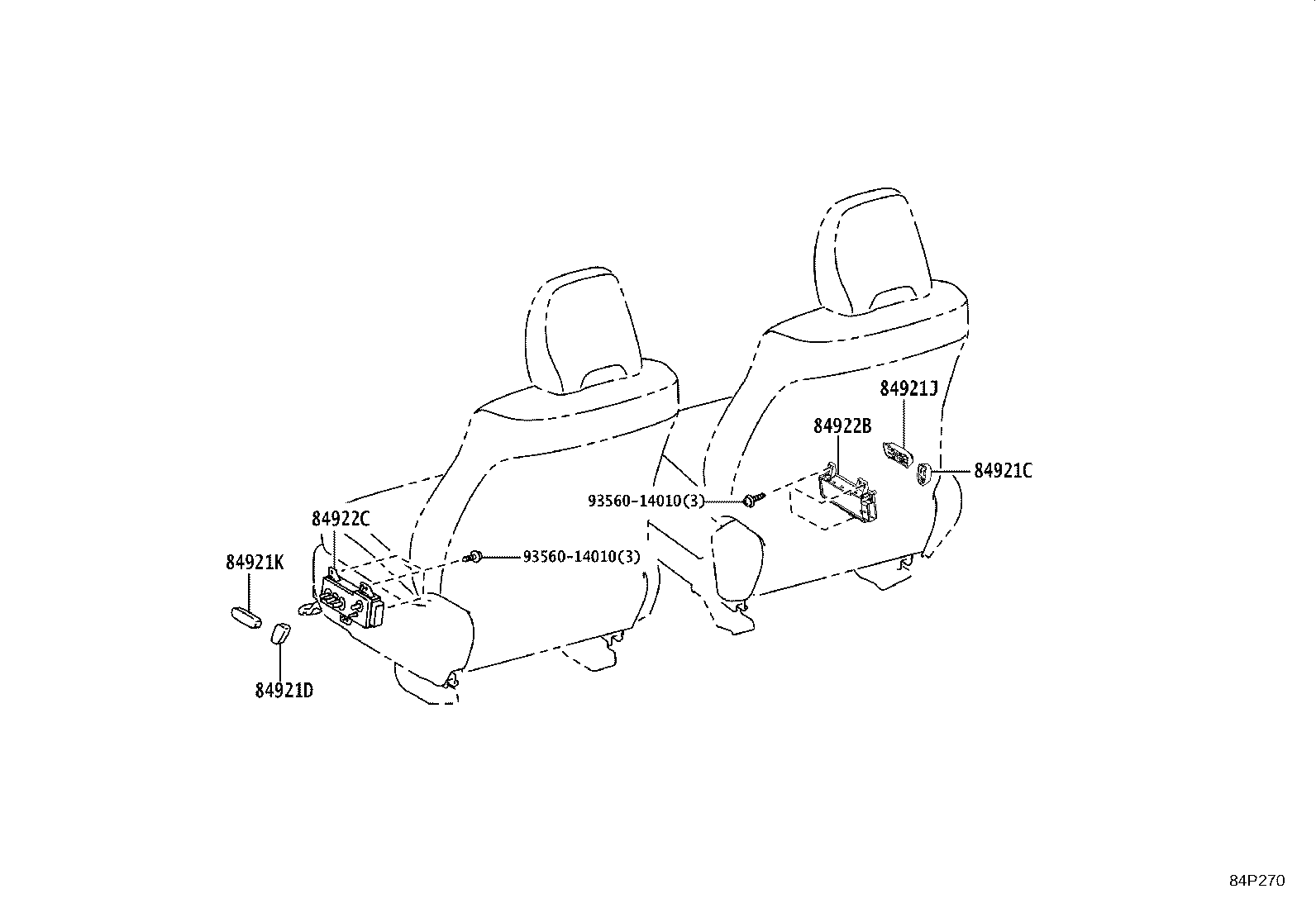

Exploded illustration 84P270A 84922C — SWITCH, FRONT POWER SEAT, LH (14 parts) 84921D — KNOB, POWER SEAT SWITCH, LH (28 parts) 84921K — KNOB, POWER SEAT SWITCH, LH (28 parts) 9356014010 — not listed in this catalogue 84921C — KNOB, POWER SEAT SWITCH, RH (28 parts) 84921J — KNOB, POWER SEAT SWITCH, RH (28 parts) 84922B — SWITCH, FRONT POWER SEAT, RH (14 parts) 9356014010 — not listed in this catalogue
84P270A · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
140 parts on this figure
Part number Description Fitment Price
84921C — Knob, Power Seat Switch, RH
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-05 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-05 ended
GUN156 H ARL;GGN155,TGN156 H +1 —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-10 → —
GUN156 PKN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → —
GUN156 PKNP TH —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → —
TGN156 PKN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-11 → 2024-01 ended
GUN156 LHD SA;GUN155,LAN155,TGN156 SA —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-10 ended
GUN156 H BZAGT —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-09 → 2023-09 ended
GUN156,165 VNP H —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-09 ended
GUN165,TGN166 VNP S —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 H ARL —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN15#,16# H TH —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN165 S TH —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 THP GEN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 S ARL —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN156 RHD GEN;GGN155,GUN155,TGN156,166 H +1 —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN165 (IDN,MA,VN) IDNP S +5 —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN165 GEN —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84921-0K120-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GGN155 THP H —
84921D — Knob, Power Seat Switch, LH
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-09 ended
GUN165,TGN166 VNP S —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-09 → 2023-09 ended
GUN156,165 VNP H —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-10 ended
GUN156 H BZAGT —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-11 → 2024-01 ended
GUN156 LHD SA;GUN155,LAN155,TGN156 SA —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → —
TGN156 PKN —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → —
GUN156 PKNP TH —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-10 → —
GUN156 PKN —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-05 ended
GUN156 H ARL;GGN155,TGN156 H +1 —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-05 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 H ARL —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN15#,16# H TH —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN165 S TH —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 THP GEN —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 S ARL —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GGN155 THP H —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN156 RHD GEN;GGN155,GUN155,TGN156,166 H +1 —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN165 (IDN,MA,VN) IDNP S +5 —
84921-0K110-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN165 GEN —
84921J — Knob, Power Seat Switch, RH
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-09 ended
GUN165,TGN166 VNP S —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-09 → 2023-09 ended
GUN156,165 VNP H —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-10 ended
GUN156 H BZAGT —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-11 → 2024-01 ended
GUN156 LHD SA;GUN155,LAN155,TGN156 SA —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → —
TGN156 PKN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → —
GUN156 PKNP TH —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-10 → —
GUN156 PKN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN15#,16# H TH —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-05 ended
GUN156 H ARL;GGN155,TGN156 H +1 —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-11 → 2023-05 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 H ARL —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN165 S TH —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 THP GEN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GUN156 S ARL —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-07 ended
GGN155 THP H —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN156 RHD GEN;GGN155,GUN155,TGN156,166 H +1 —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN165 (IDN,MA,VN) IDNP S +5 —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GUN165 GEN —
84921-0K100-C0 note Knob, Power Seat Switch, RH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84921K — Knob, Power Seat Switch, LH
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-09 ended
GUN165,TGN166 VNP S —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-11 → 2024-01 ended
GUN156 LHD SA;GUN155,LAN155,TGN156 SA —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-09 ended
TGN166 IND;GUN156,166 6F IND —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-09 → 2023-09 ended
GUN156,165 VNP H —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-10 → 2023-09 ended
GUN156,166 6FC IND —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-10 ended
GUN156 H BZAGT —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → —
TGN156 PKN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → —
GUN156 PKNP TH —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-10 → —
GUN156 PKN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN15#,16# H TH —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-09 → 2023-08 ended
GUN156,166 MA,PH —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-05 ended
GUN156 H ARL;GGN155,TGN156 H +1 —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-11 → 2023-05 ended
GGN155,GUN156,165,TGN166 H LA —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 H ARL —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN165 S TH —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 THP GEN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GUN156 S ARL —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-07 ended
GGN155 THP H —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN156 LHD IDNP GEN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN156 RHD GEN;GGN155,GUN155,TGN156,166 H +1 —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN165 (IDN,MA,VN) IDNP S +5 —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GUN165 GEN —
84921-0K090-C0 note Knob, Power Seat Switch, LH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84922B — Switch, Front Power Seat, RH
84922-06150 Switch, Front Power Seat, RH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) (H,S) —
84922-06150 Switch, Front Power Seat, RH
2022-08 → —
GUN156,TGN156 PKNP —
84922-06150 Switch, Front Power Seat, RH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84922-06150 note Switch, Front Power Seat, RH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2024-01 ended
GUN15#,166,LAN155,TGN156 SA —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84922-06150 Switch, Front Power Seat, RH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-08 ended
GUN165 GEN —
84922-06150 Switch, Front Power Seat, RH
2022-08 → 2023-08 ended
GUN165 GEN,IDN,MA,PH,VN) IDNP S +6 —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-07 ended
GGN155 THP H —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-07 ended
GUN156 S ARL —
84922-06150 Switch, Front Power Seat, RH
2022-08 → 2023-07 ended
GUN155,16# TH;GUN156 THP H +1 —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-05 ended
GUN156,TGN166 H (ARL,LA);GGN155,GUN165,TGN156 H +1 —
84922-06150 note Switch, Front Power Seat, RH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84922C — Switch, Front Power Seat, LH
84922-06140 Switch, Front Power Seat, LH
2022-08 → —
GUN156,TGN156 PKNP —
84922-06140 Switch, Front Power Seat, LH
2022-08 → 2024-03 ended
GGN155,GUN156 EPT,KEN —
84922-06140 note Switch, Front Power Seat, LH
2023-01 → 2024-01 ended
GUN156,166 RHD SA —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2024-01 ended
GUN15#,166,LAN155,TGN156 SA —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-10 ended
GUN166,TGN156 AGTP S;GUN156,165,TGN166 AGTP +2 —
84922-06140 Switch, Front Power Seat, LH
2022-08 → 2023-10 ended
GGN155,GUN156,165,TGN166 AGTP H —
84922-06140 Switch, Front Power Seat, LH
2022-08 → 2023-09 ended
GUN156,16#,TGN166 (INDP,VNP) (H,S) —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-08 ended
GGN155 IDNP H GCC —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-08 ended
GUN165 GEN —
84922-06140 Switch, Front Power Seat, LH
2022-08 → 2023-08 ended
GUN165 GEN,IDN,MA,PH,VN) IDNP S +6 —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-07 ended
GGN155 THP H —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-07 ended
GUN156 S ARL —
84922-06140 Switch, Front Power Seat, LH
2022-08 → 2023-07 ended
GUN155,16# TH;GUN156 THP H +1 —
84922-06140 note Switch, Front Power Seat, LH
2022-08 → 2023-05 ended
GUN156,TGN166 H (ARL,LA);GGN155,GUN165,TGN156 H +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
