Toyota Fortuner (SUV)

2023-08 → present · chassis GGN155,GUN15#,16#,TGN156,TGN166 · catalogue 6713F0 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

47 part groups · 11 illustrations

Illustrations

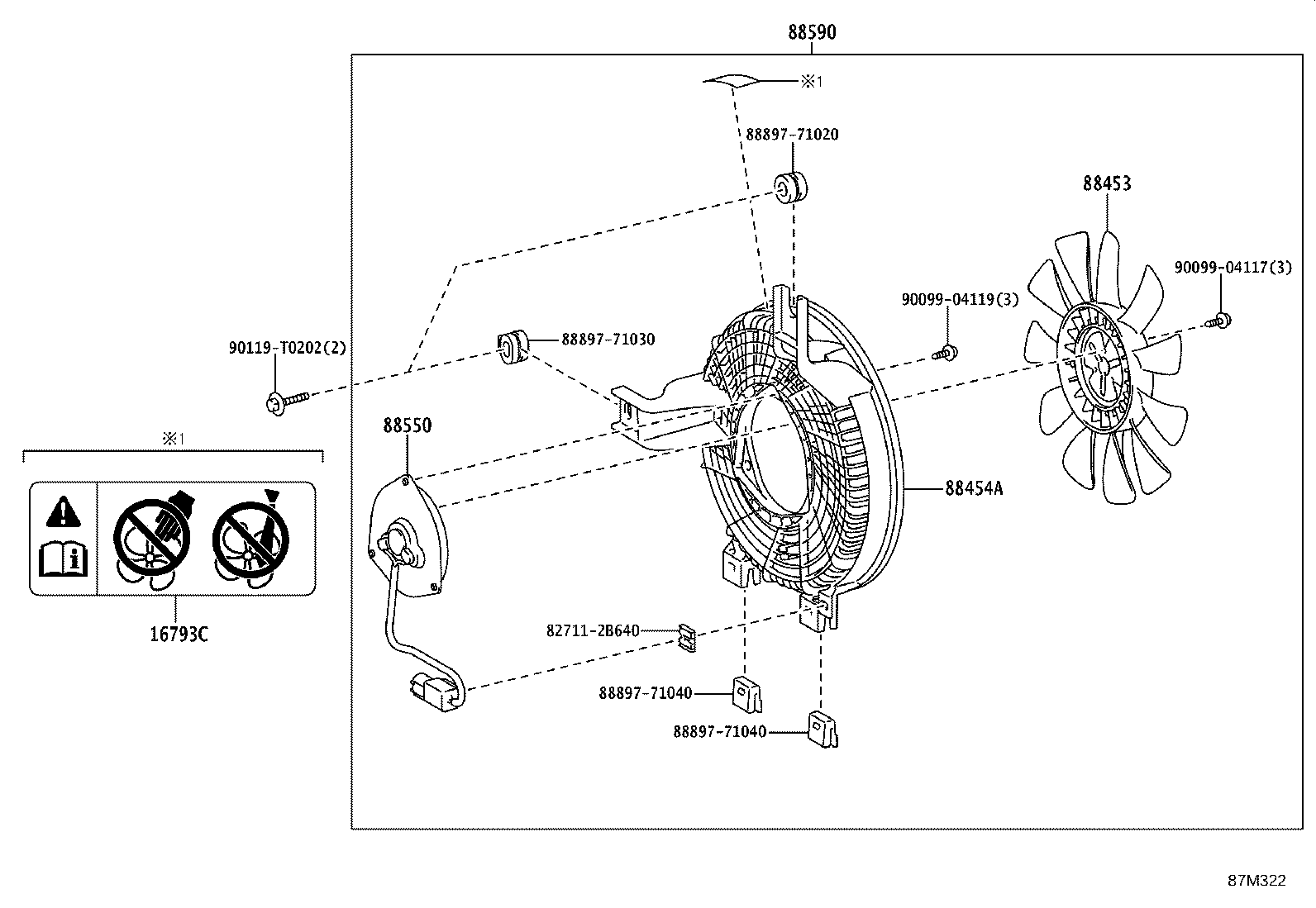

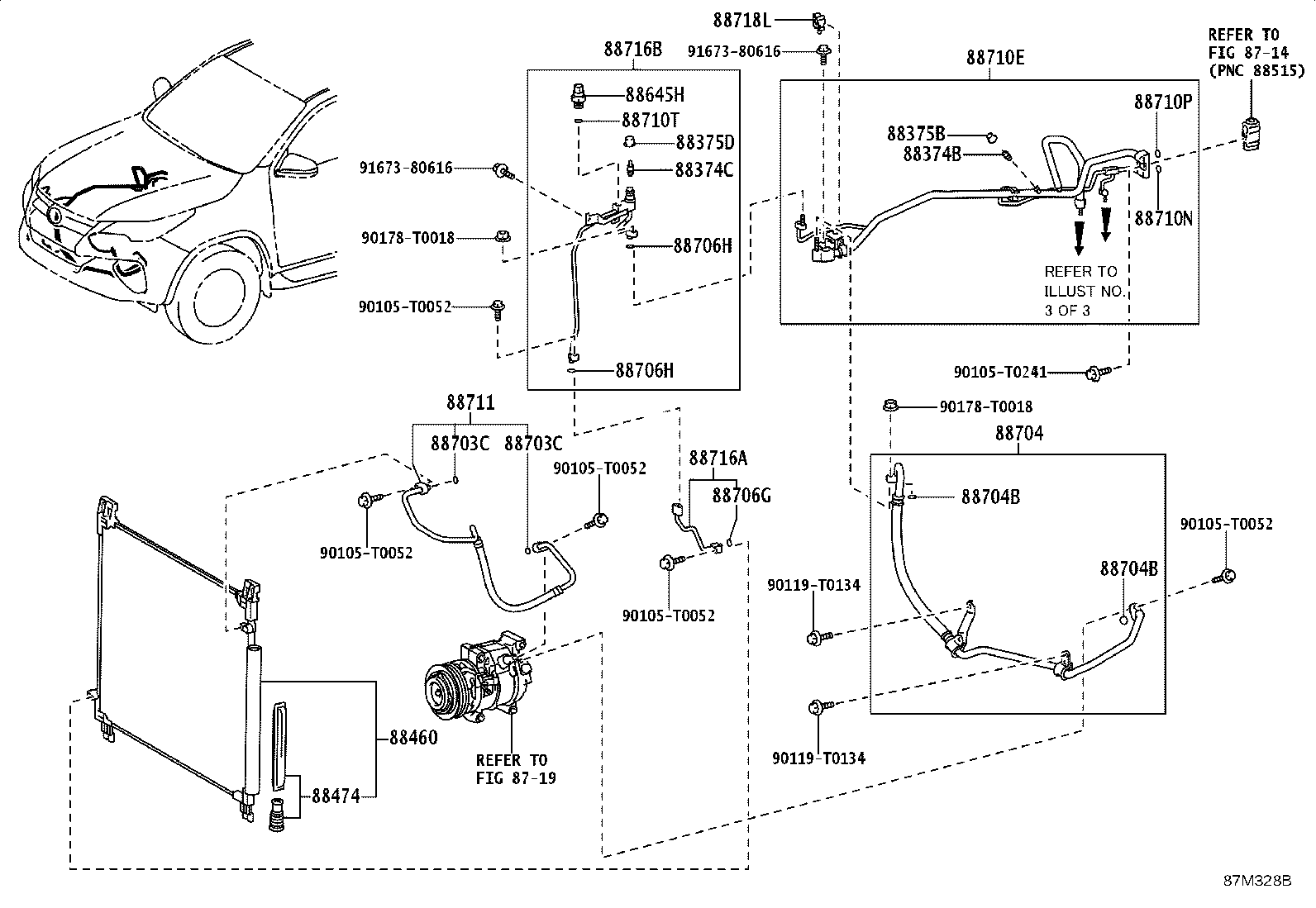

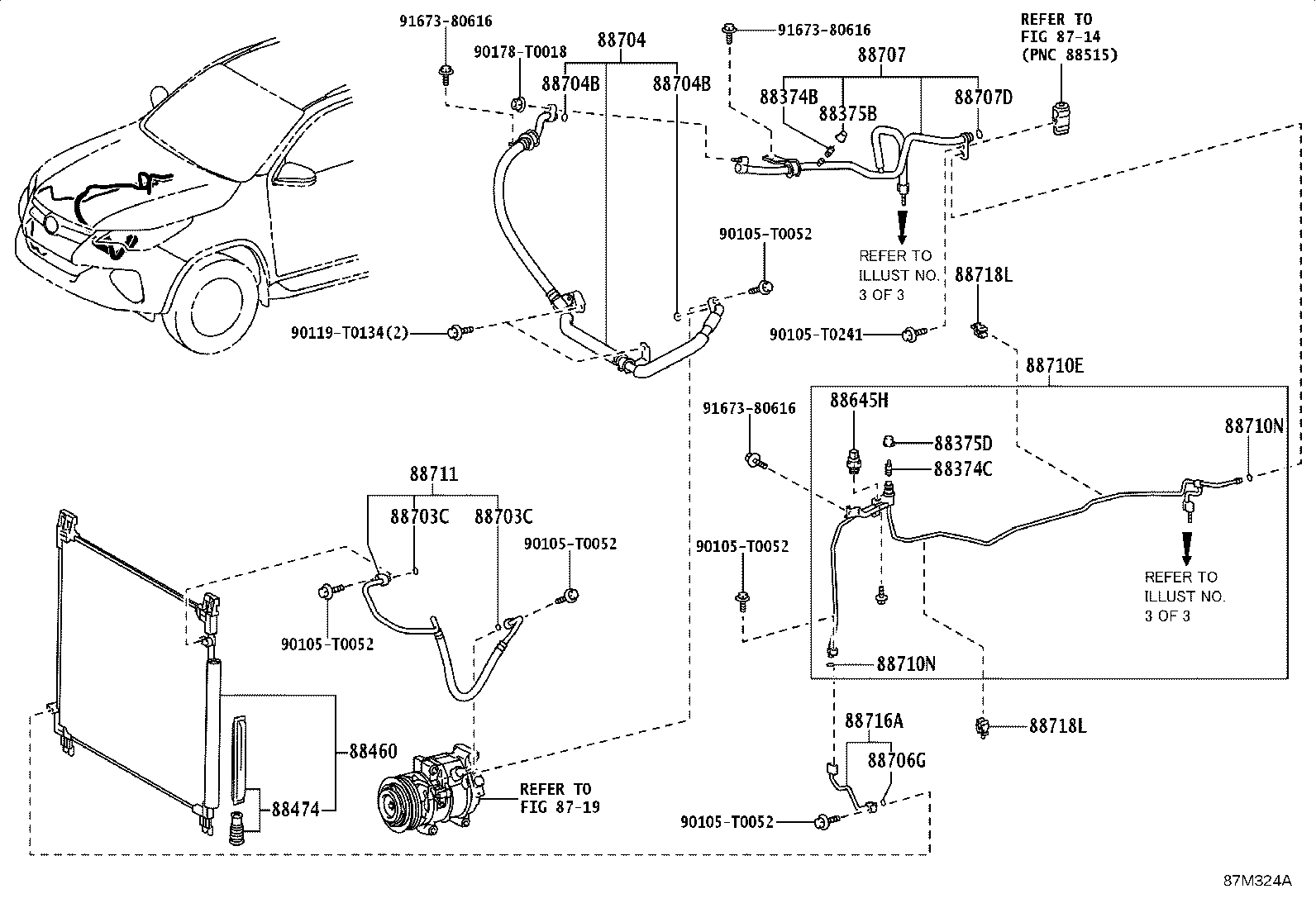

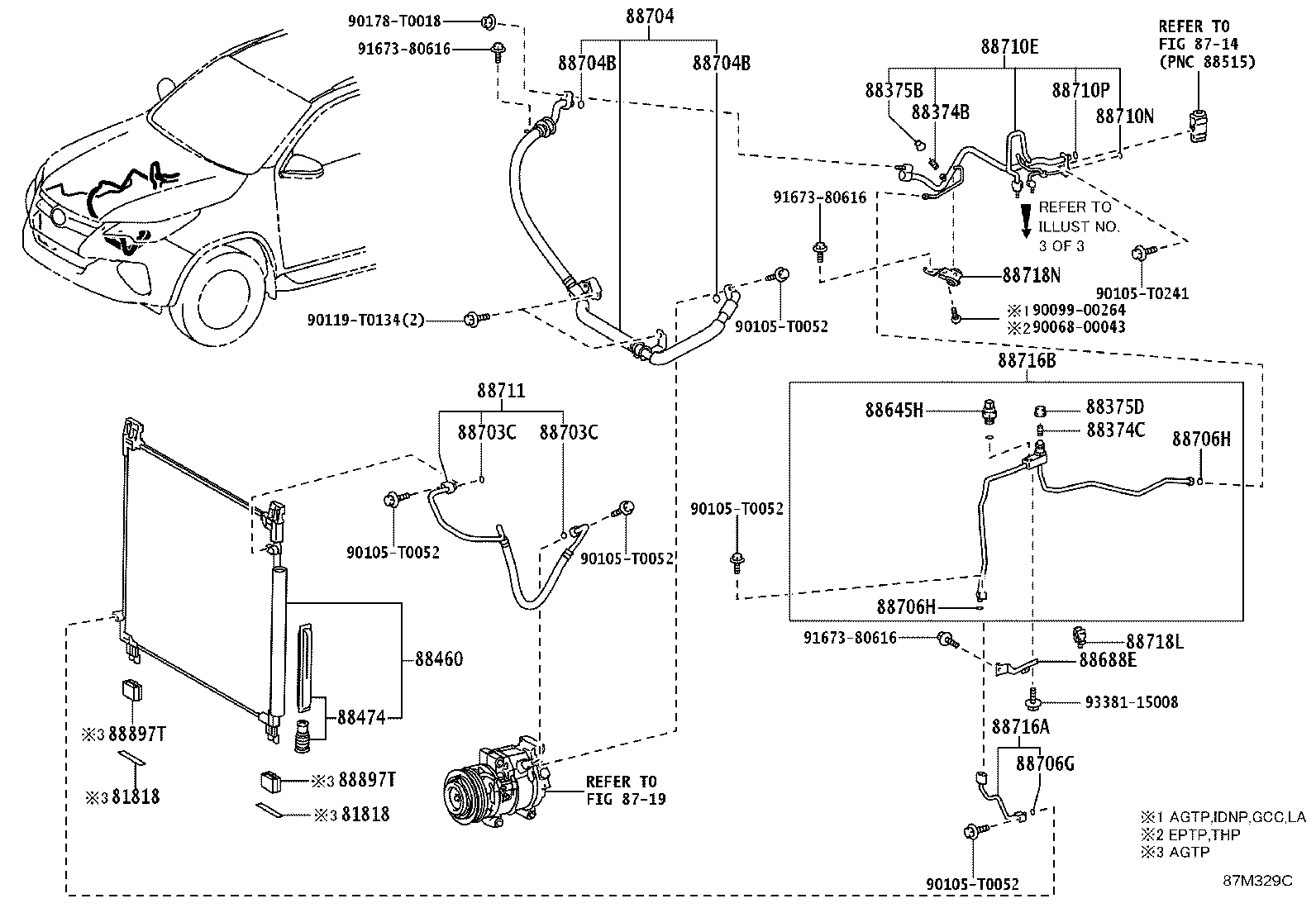

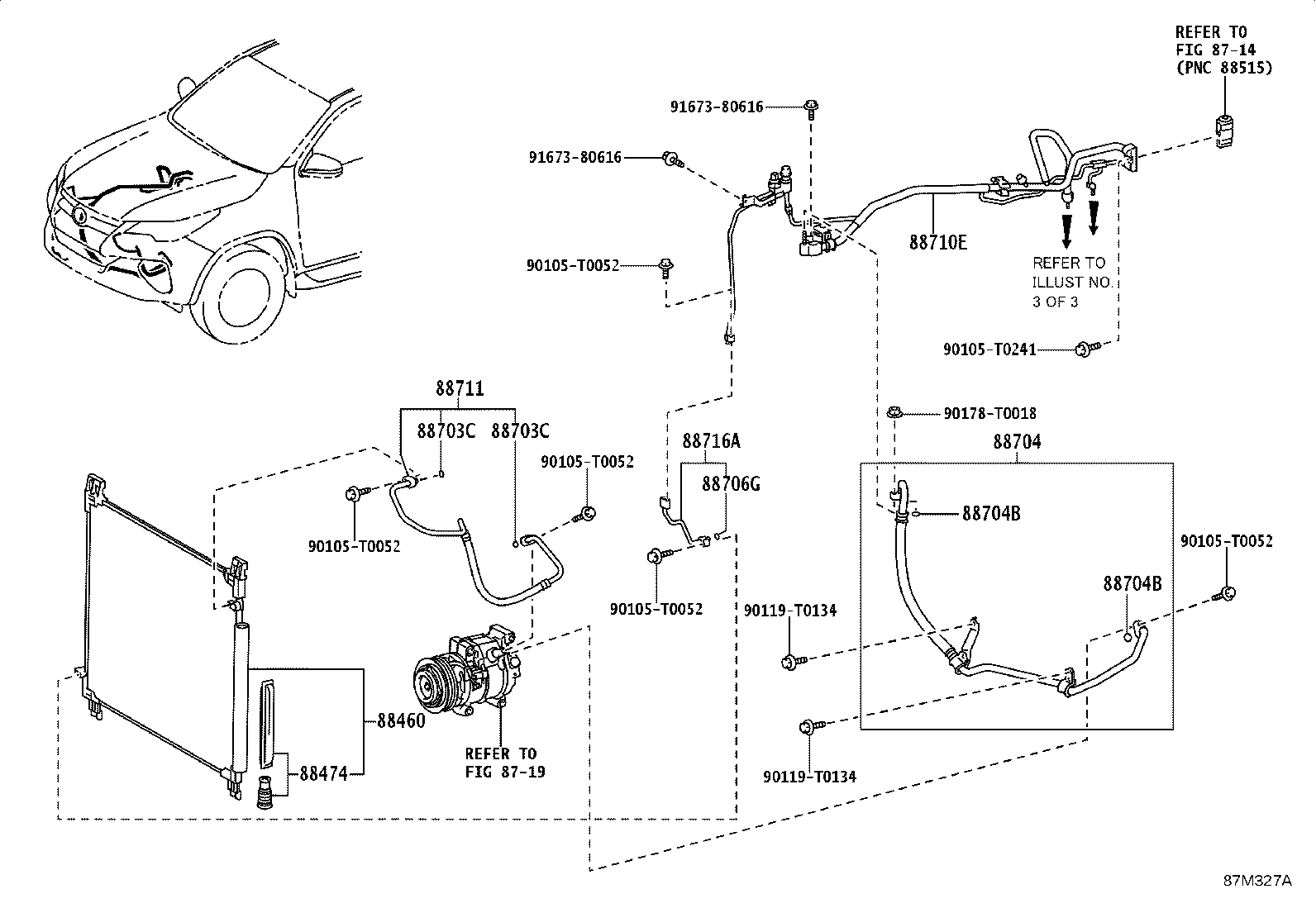

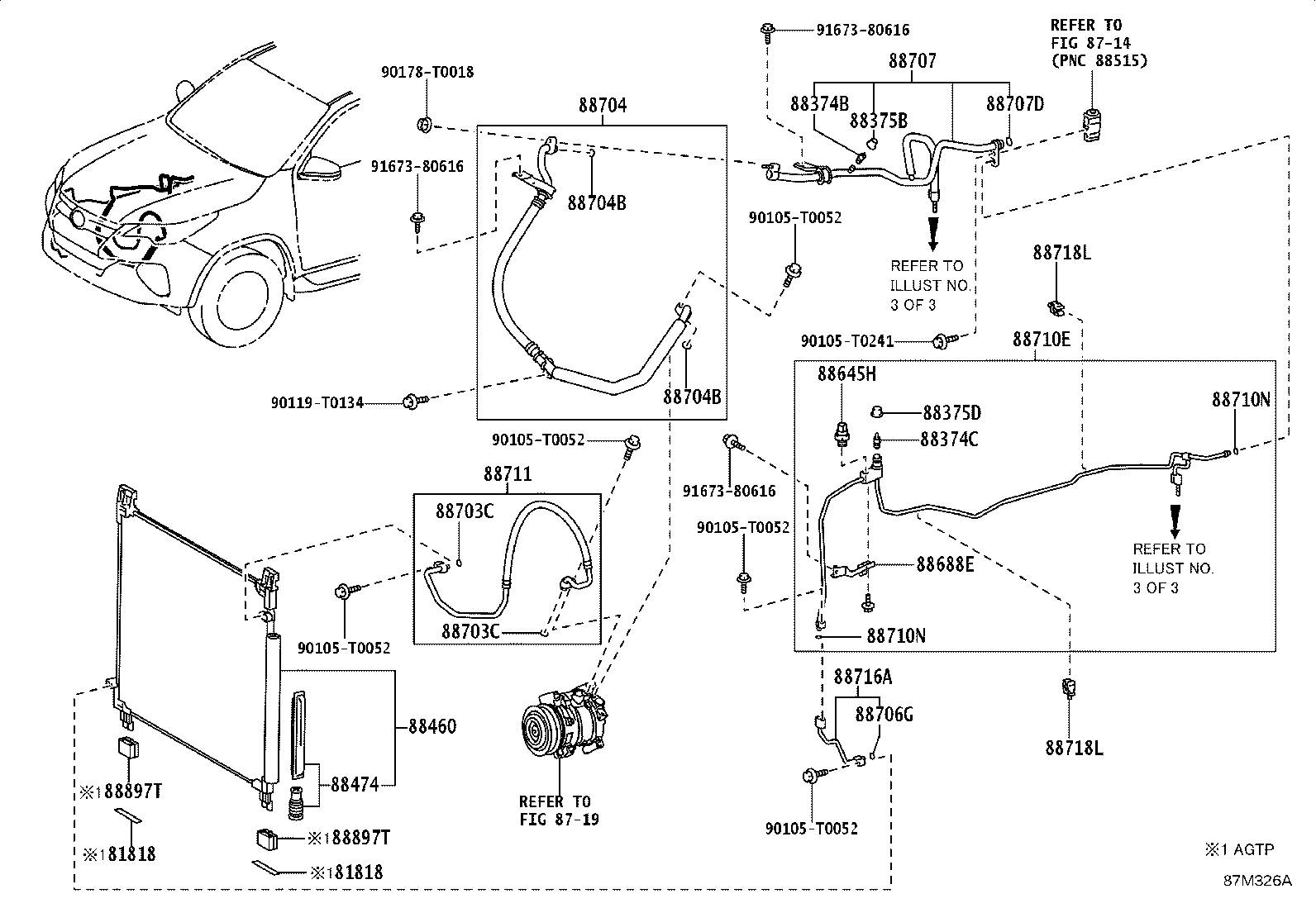

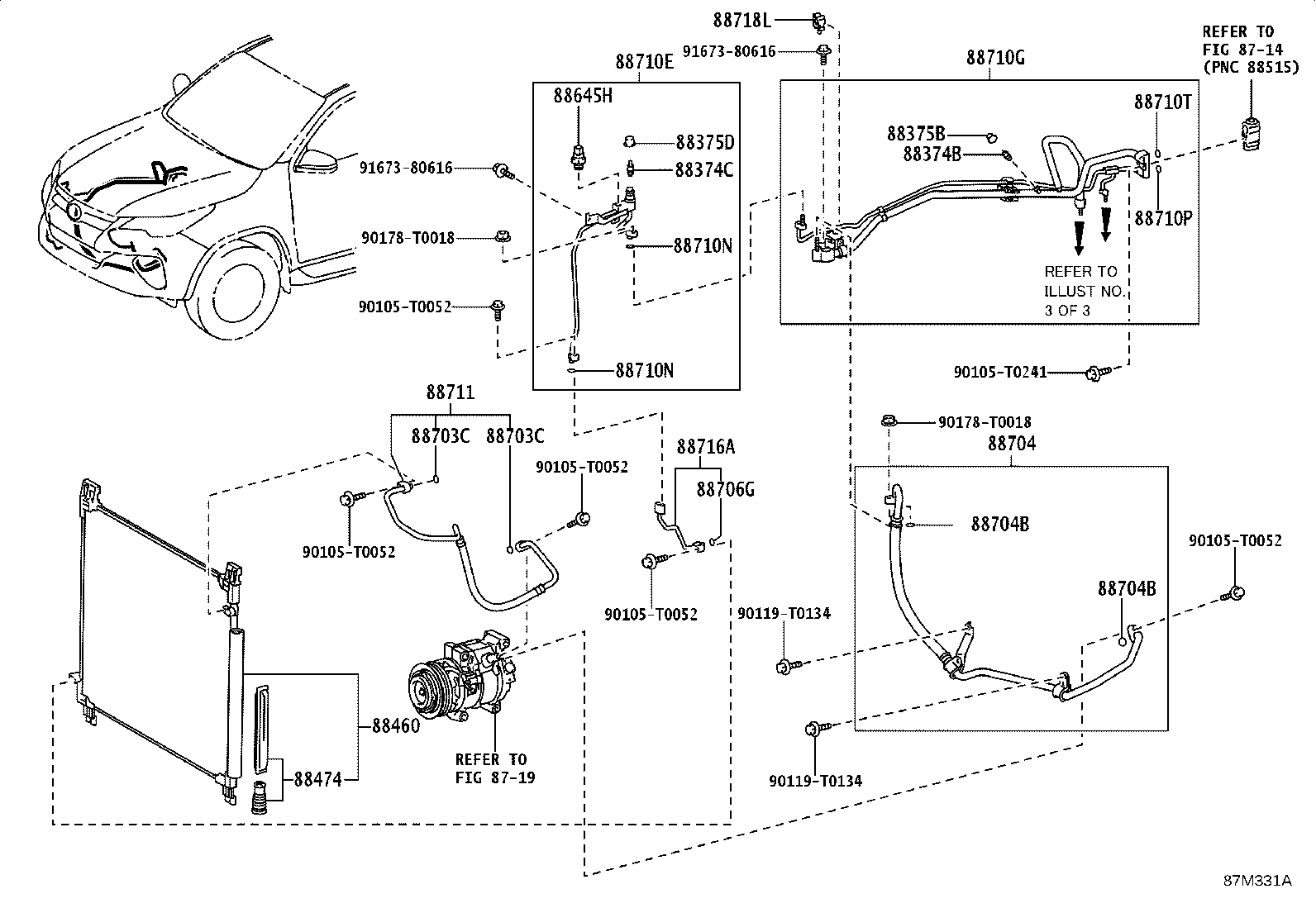

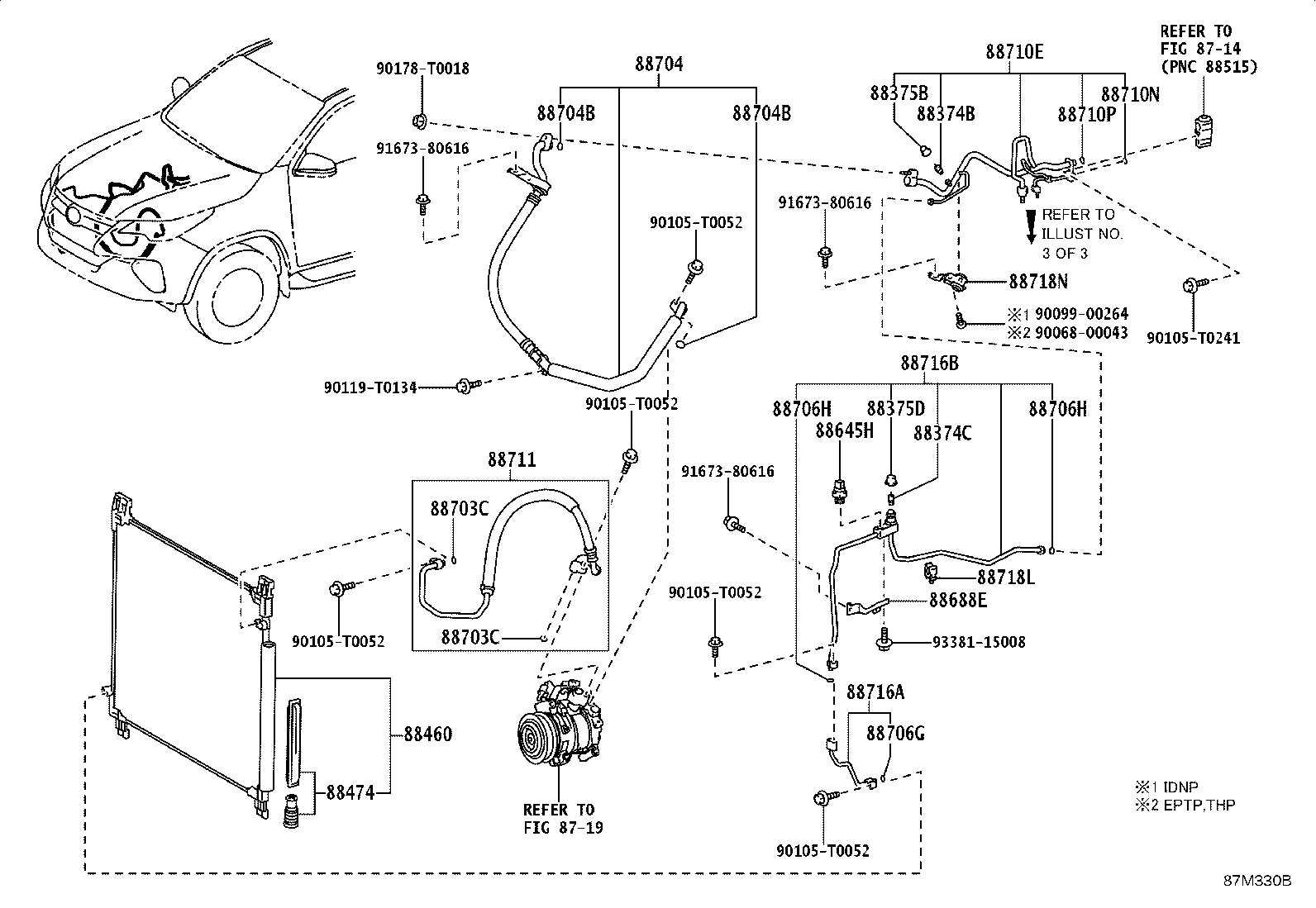

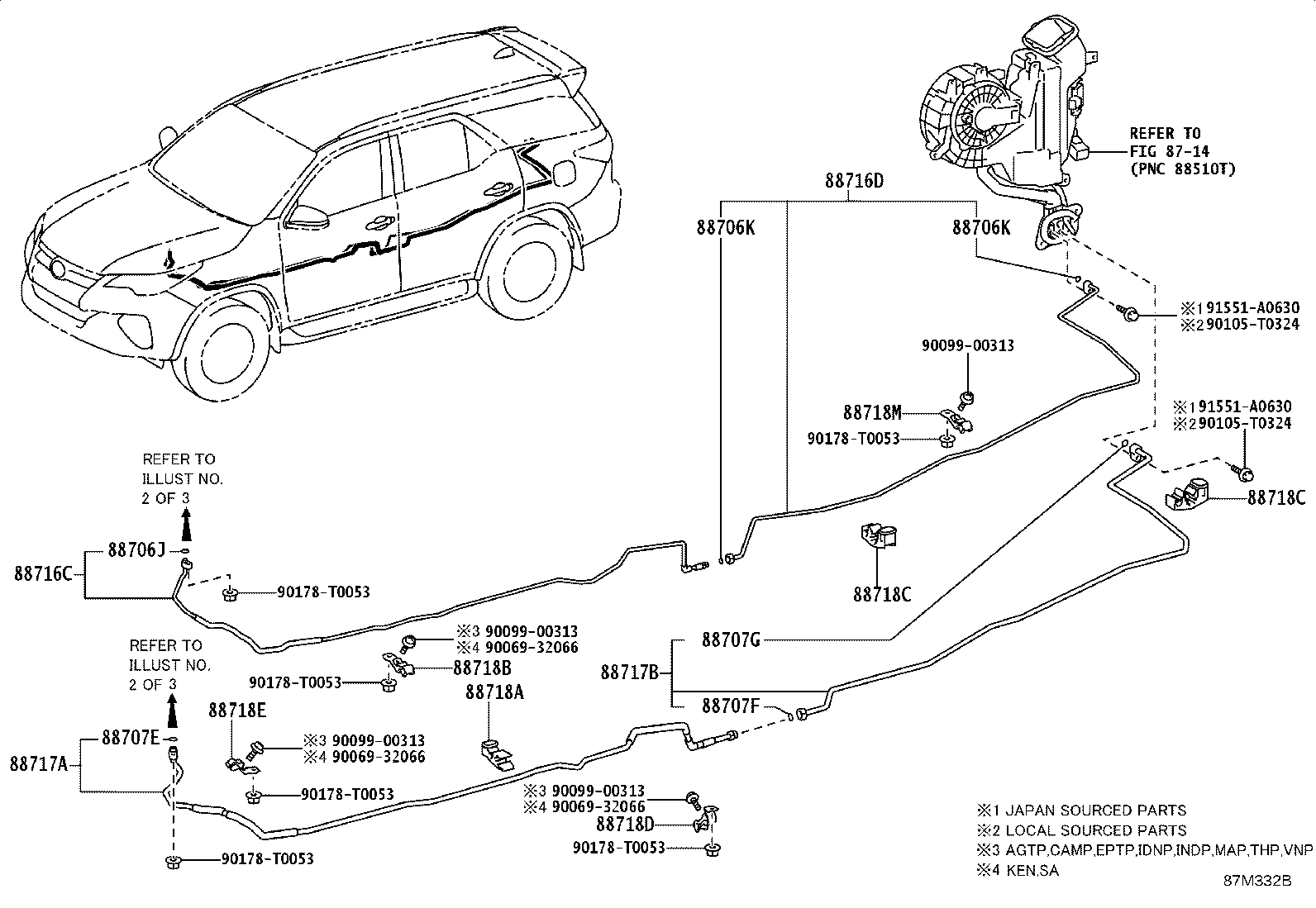

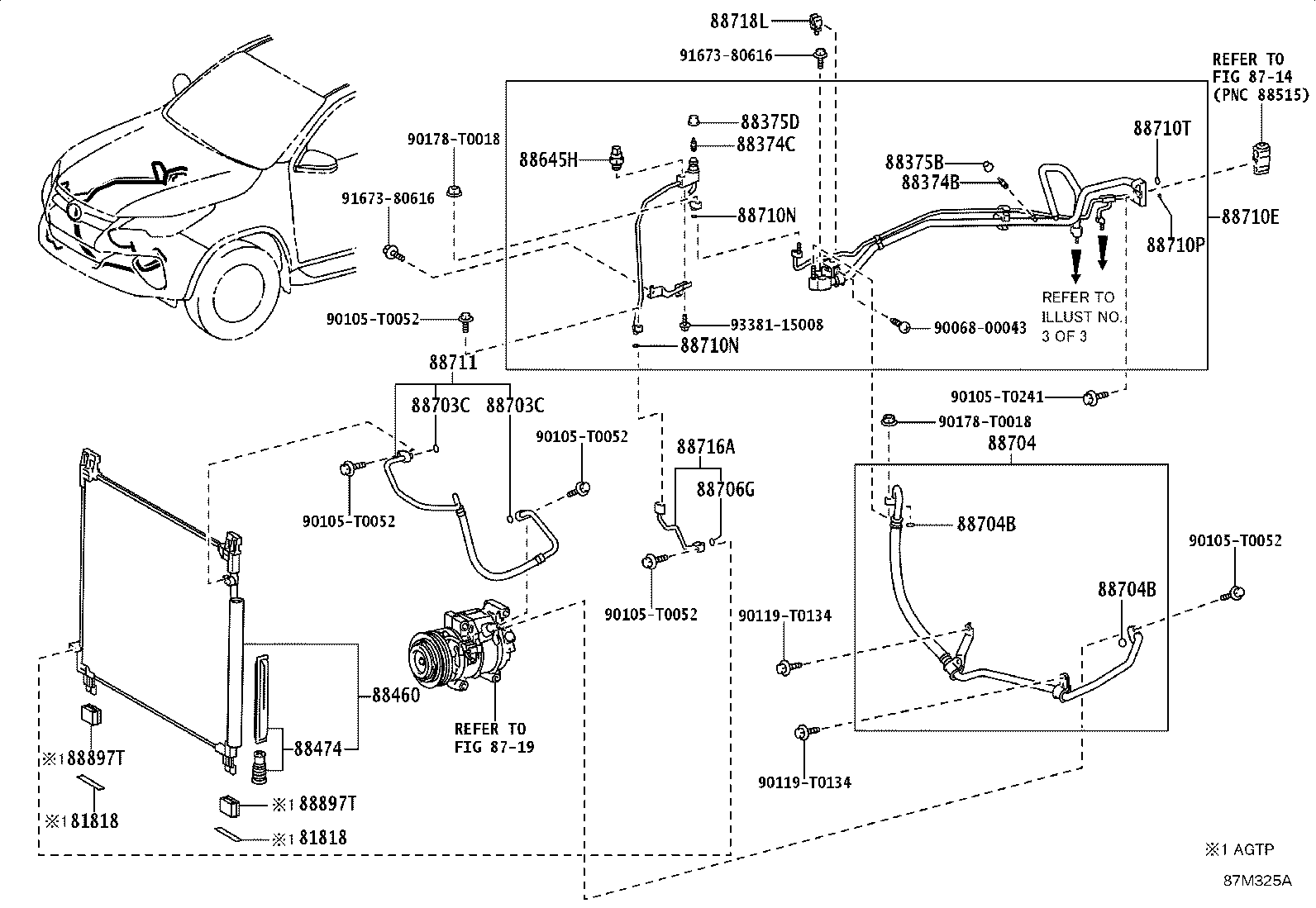

Figure 87M323 87M323 2023-08 → — Figure 87M322 87M322 2023-09 → — Figure 87M325A 87M325A 2023-08 → — Figure 87M327A 87M327A 2023-08 → — Figure 87M329C 87M329C 2023-08 → — Figure 87M330B 87M330B 2023-08 → — Figure 87M324A 87M324A 2023-09 → — Figure 87M326A 87M326A 2023-09 → — Figure 87M328B 87M328B 2023-09 → — Figure 87M331A 87M331A 2023-10 → — Figure 87M332B 87M332B 2023-08 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
81818 Packing
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88706H Ring, O, NO.2(FOR LIQUID TUBE)
88706J Ring, O, NO.3(FOR LIQUID TUBE)
88706K Ring, O, NO.4(FOR LIQUID TUBE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88707F Ring, O, NO.3(FOR SUCTION TUBE)
88707G Ring, O, NO.4(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
