Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

57 part groups · 23 illustrations

Illustrations

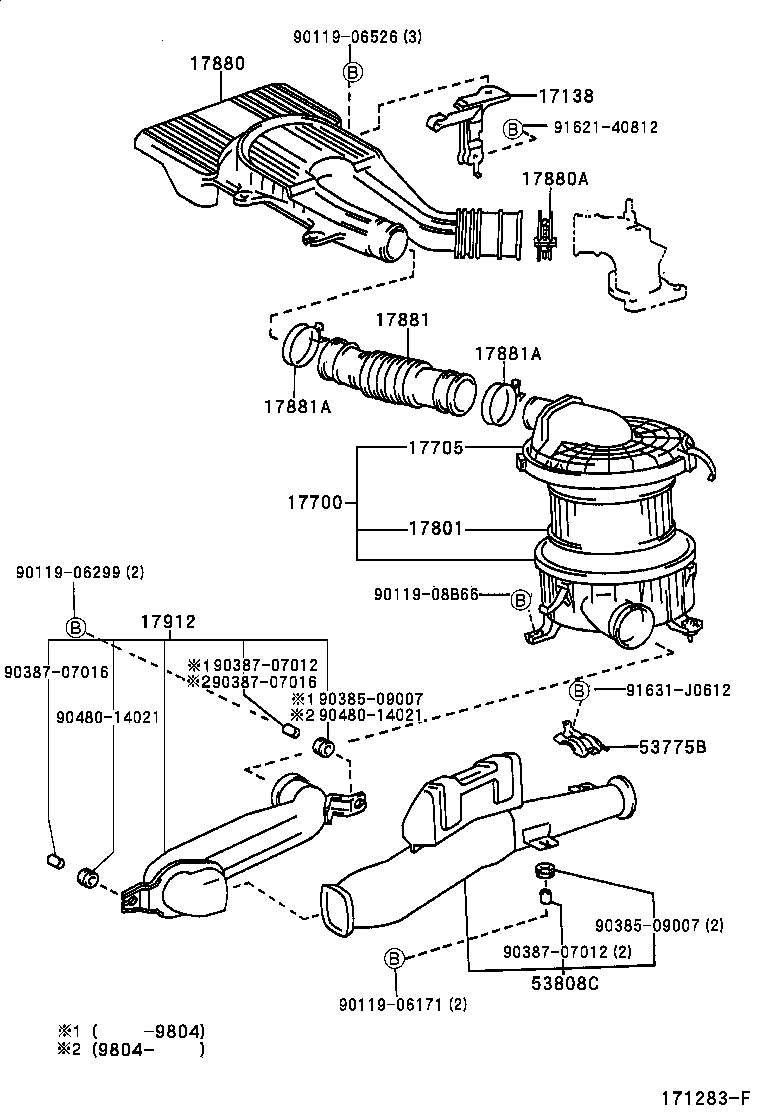

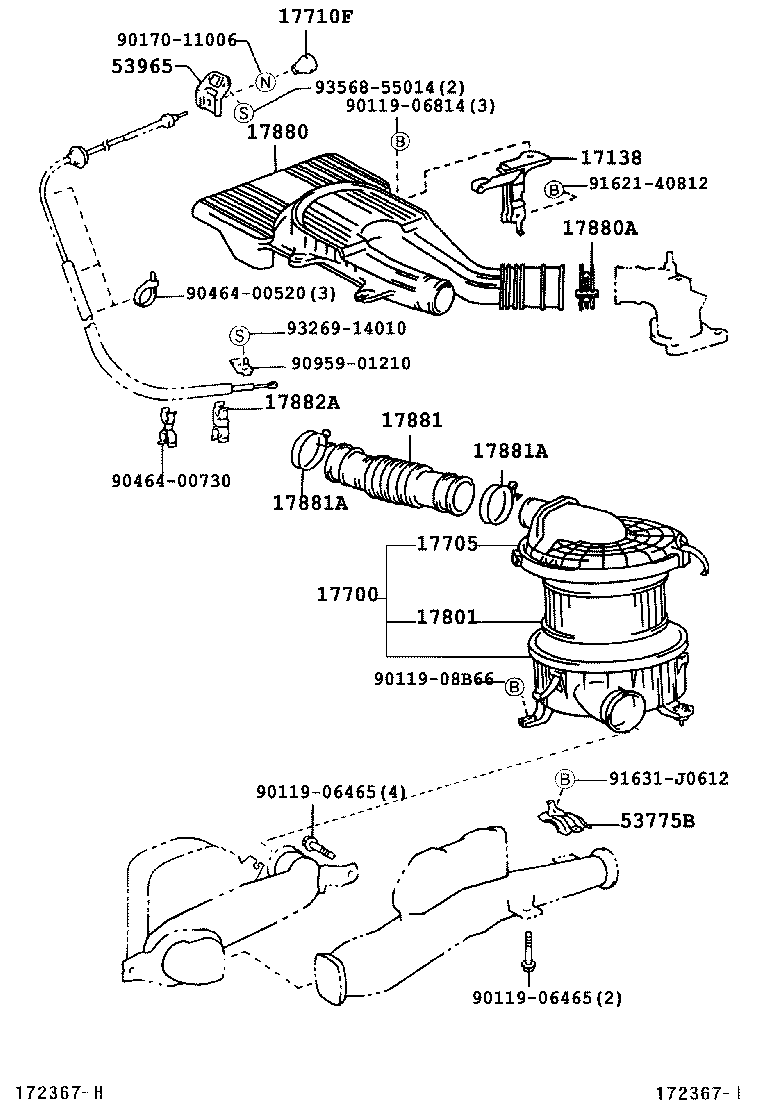

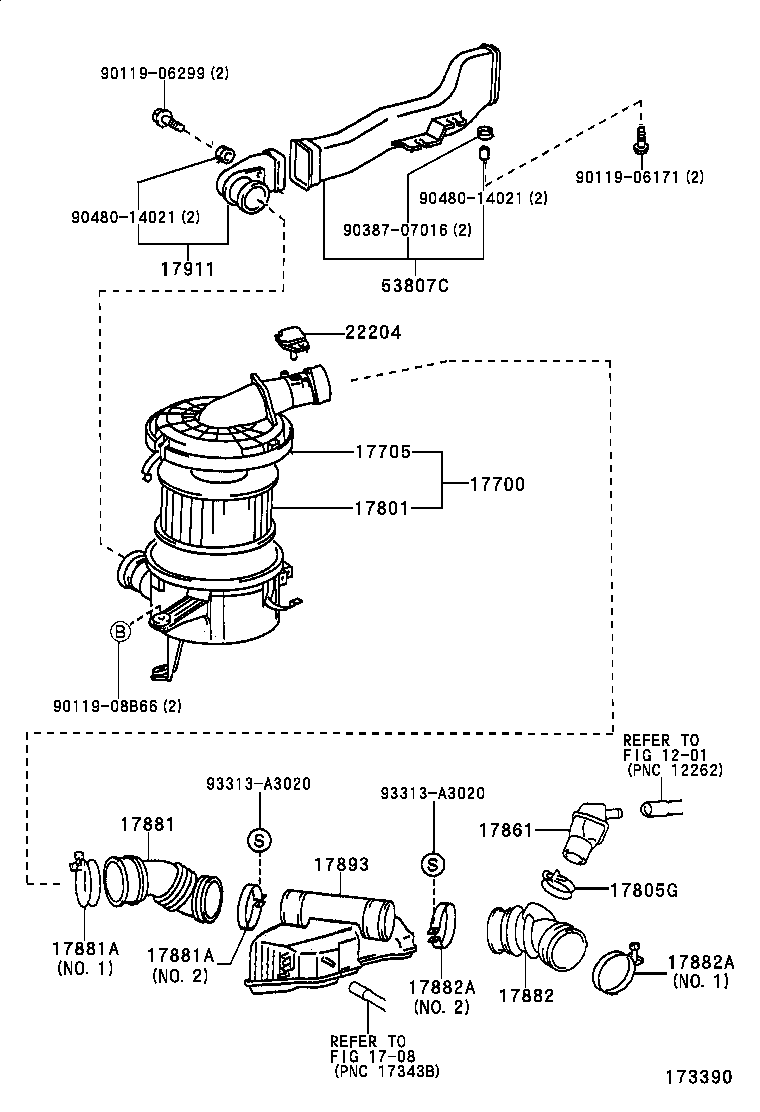

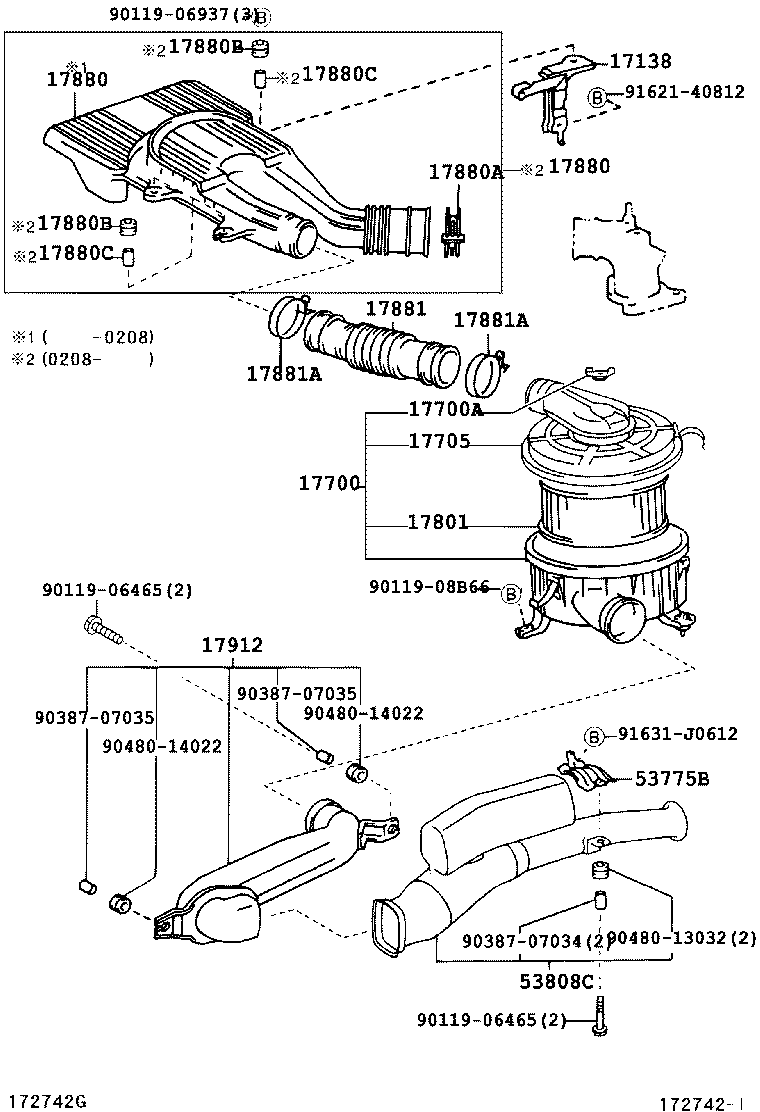

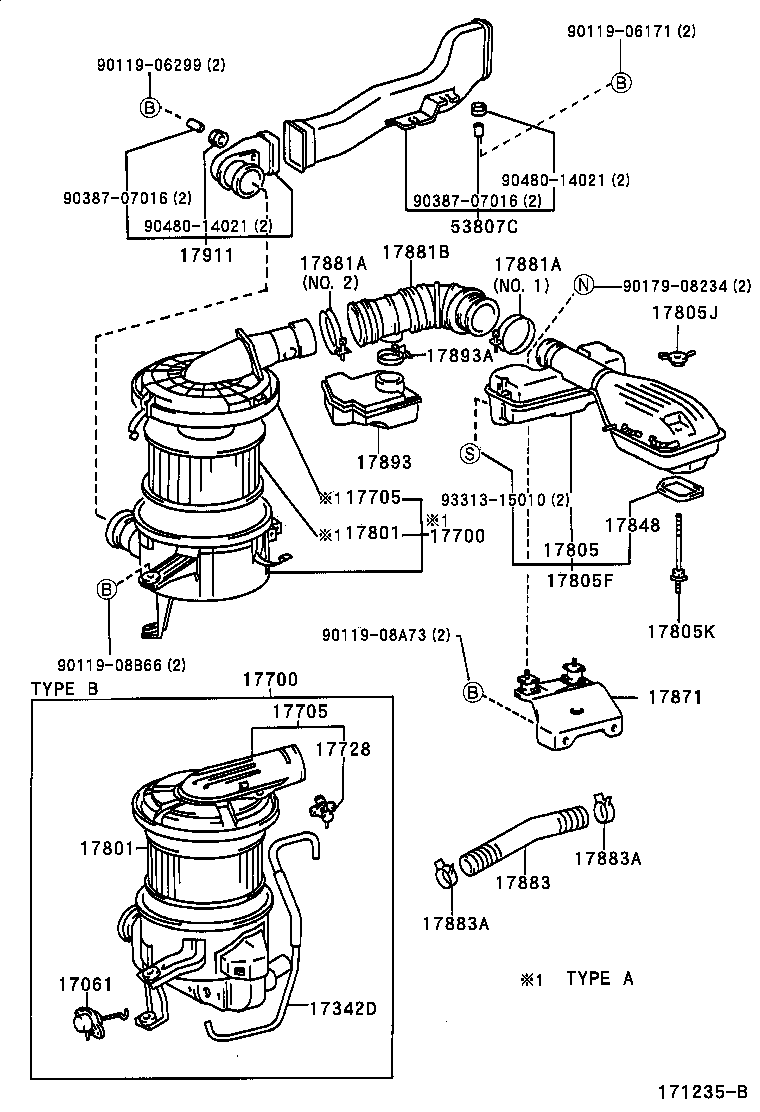

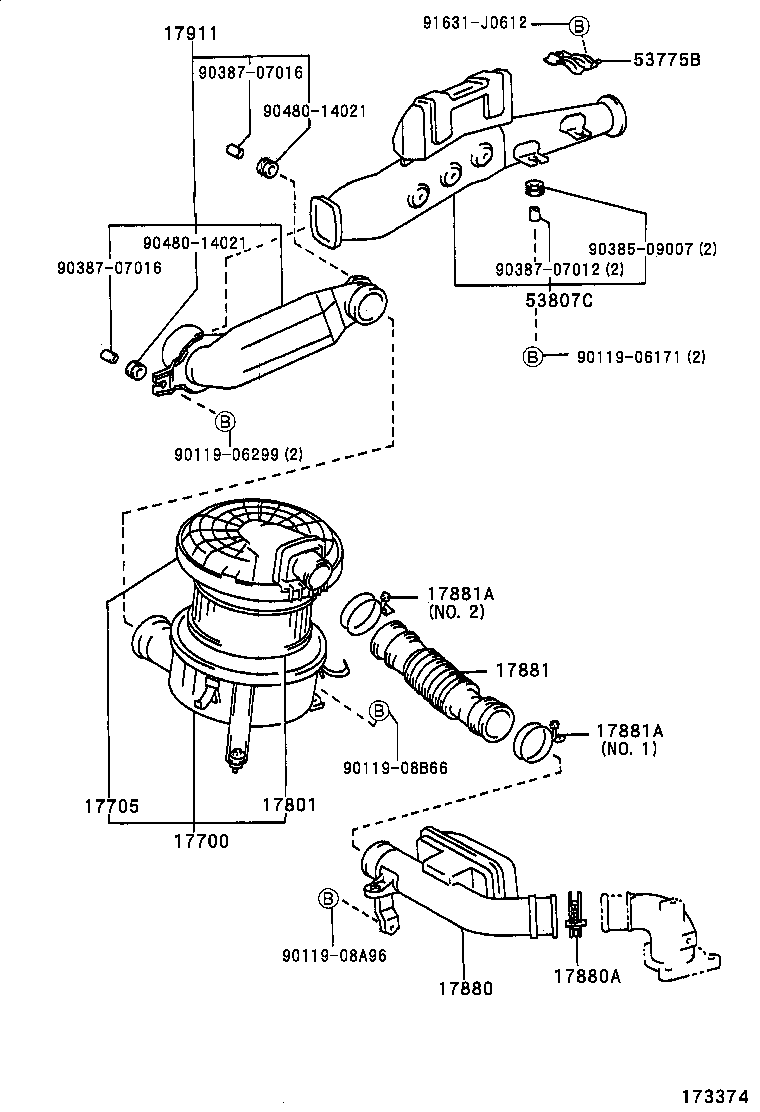

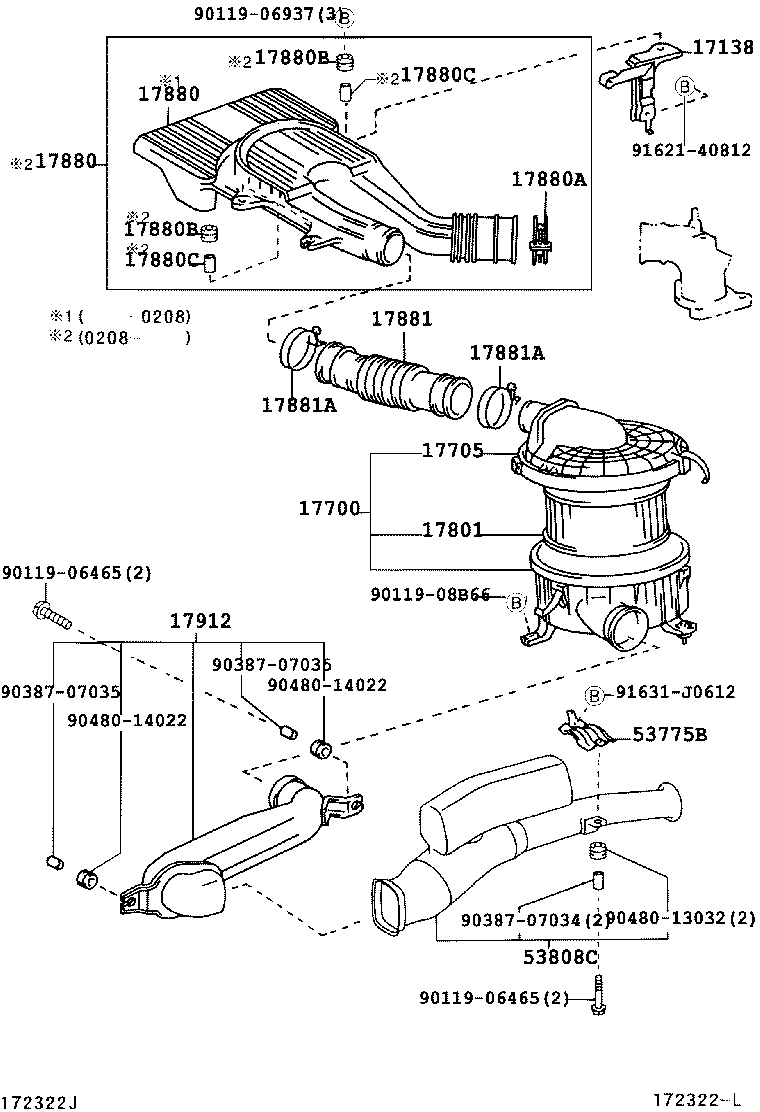

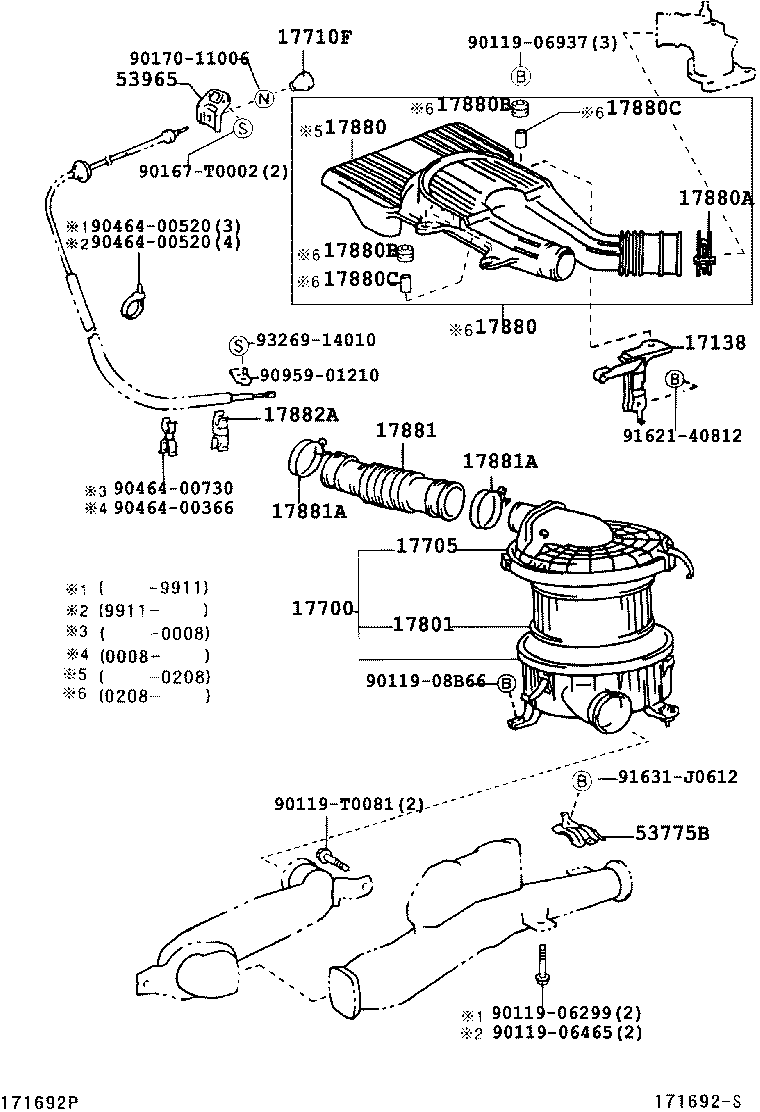

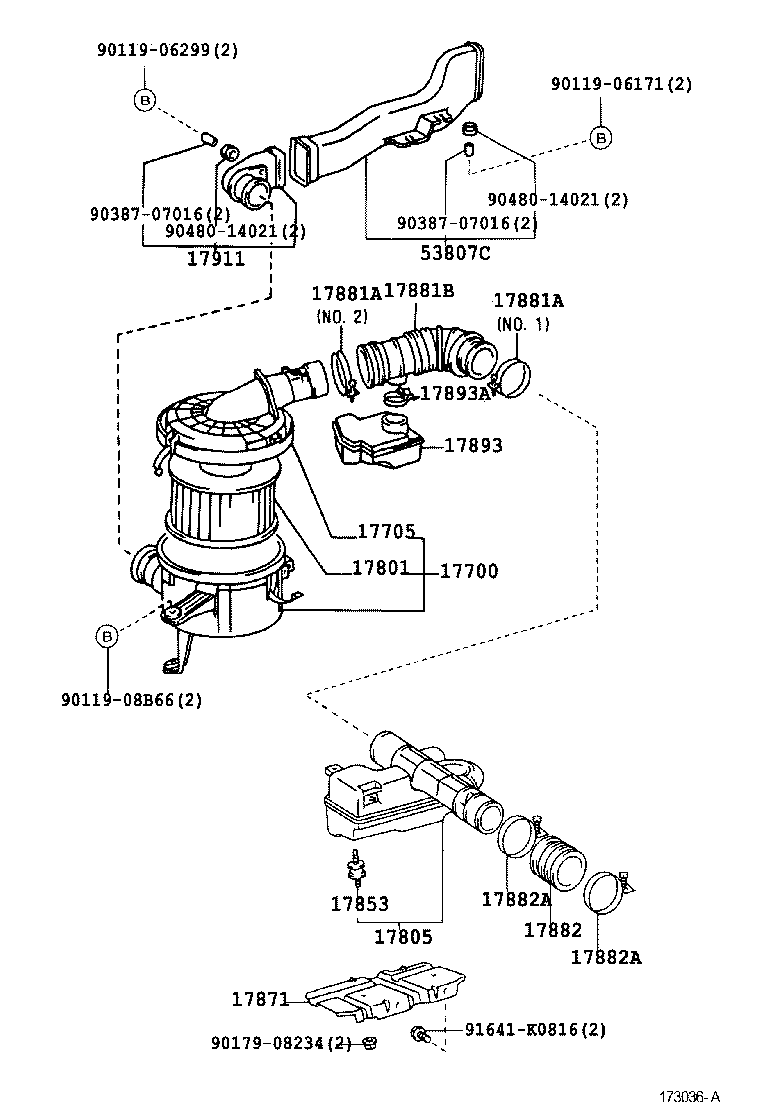

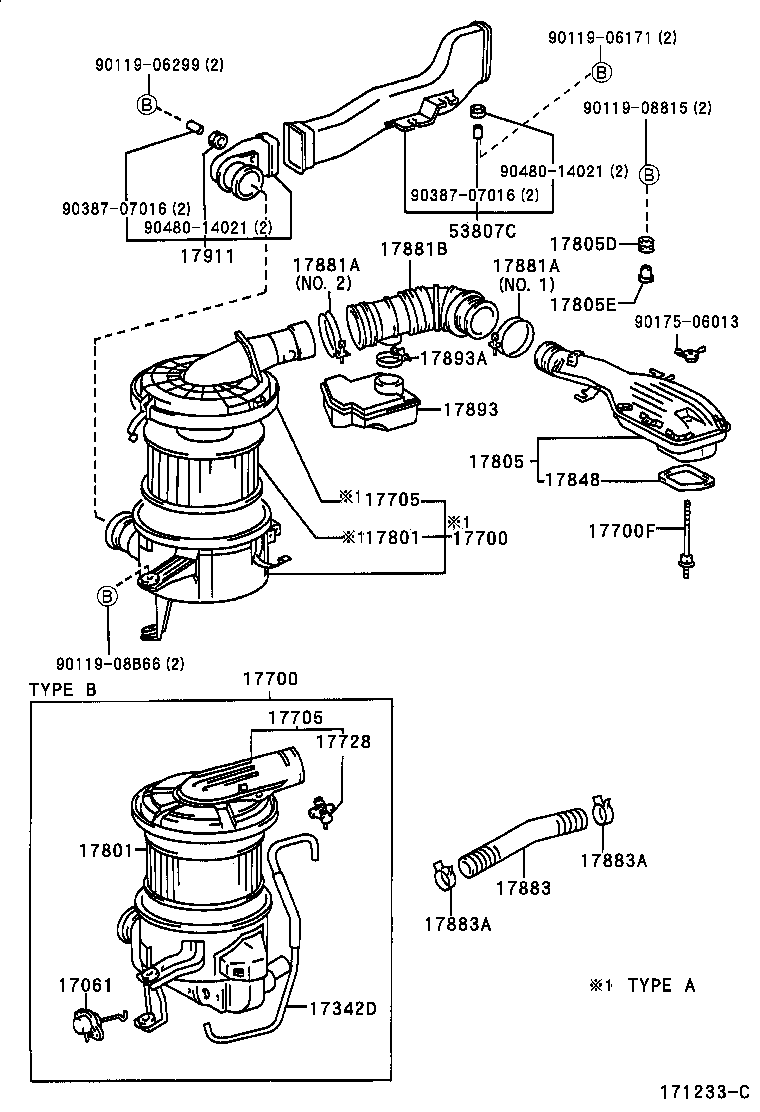

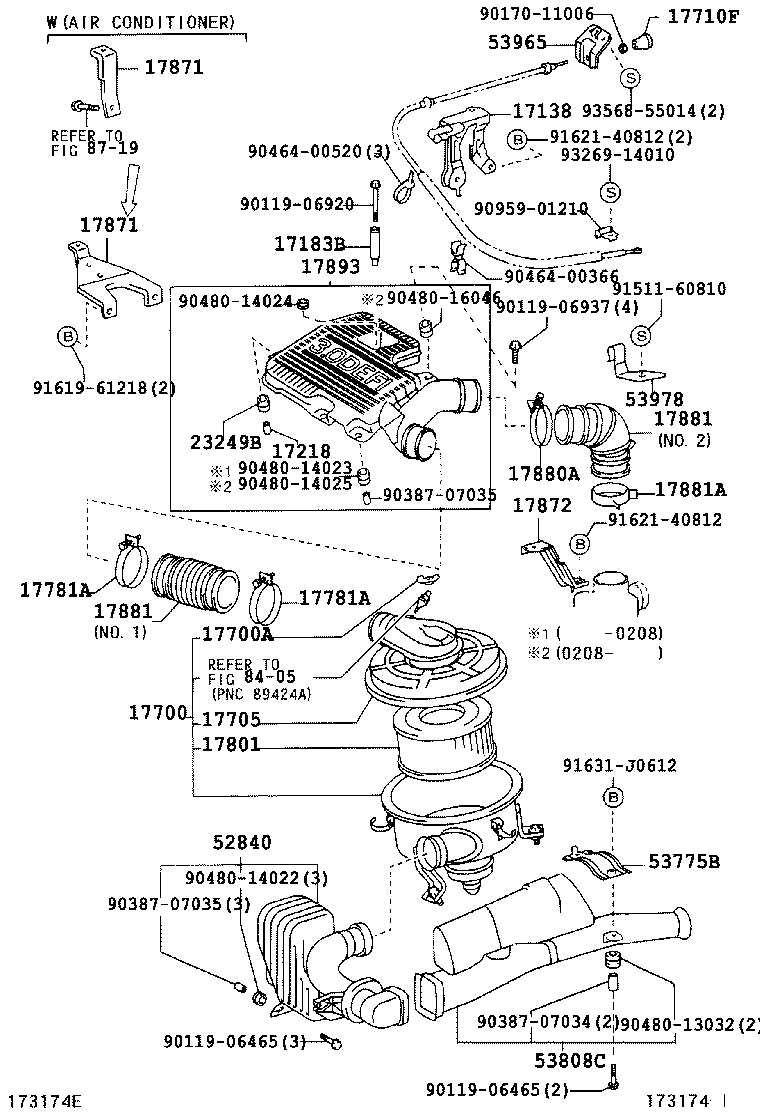

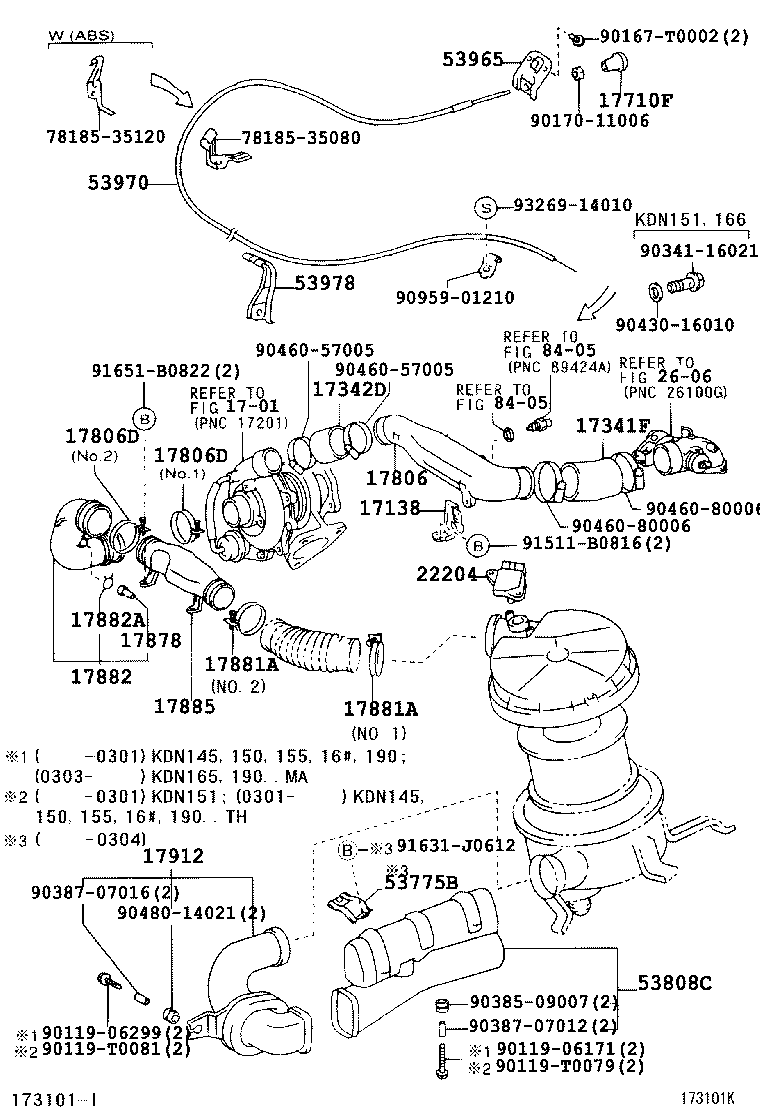

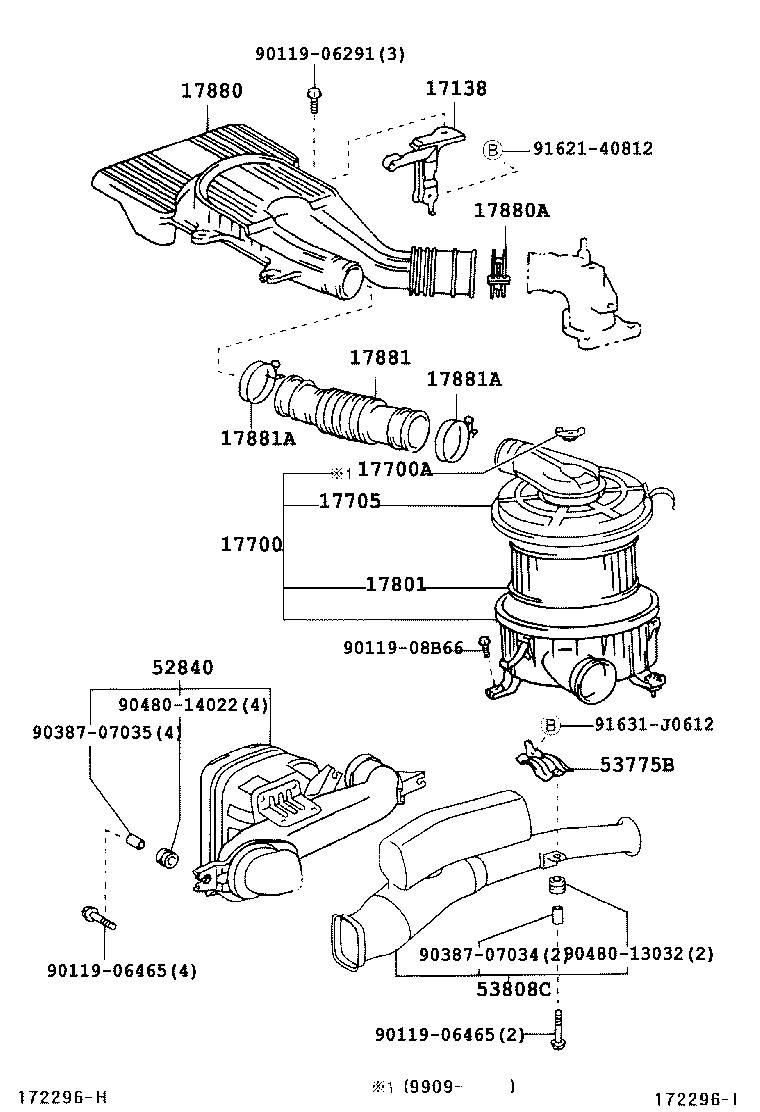

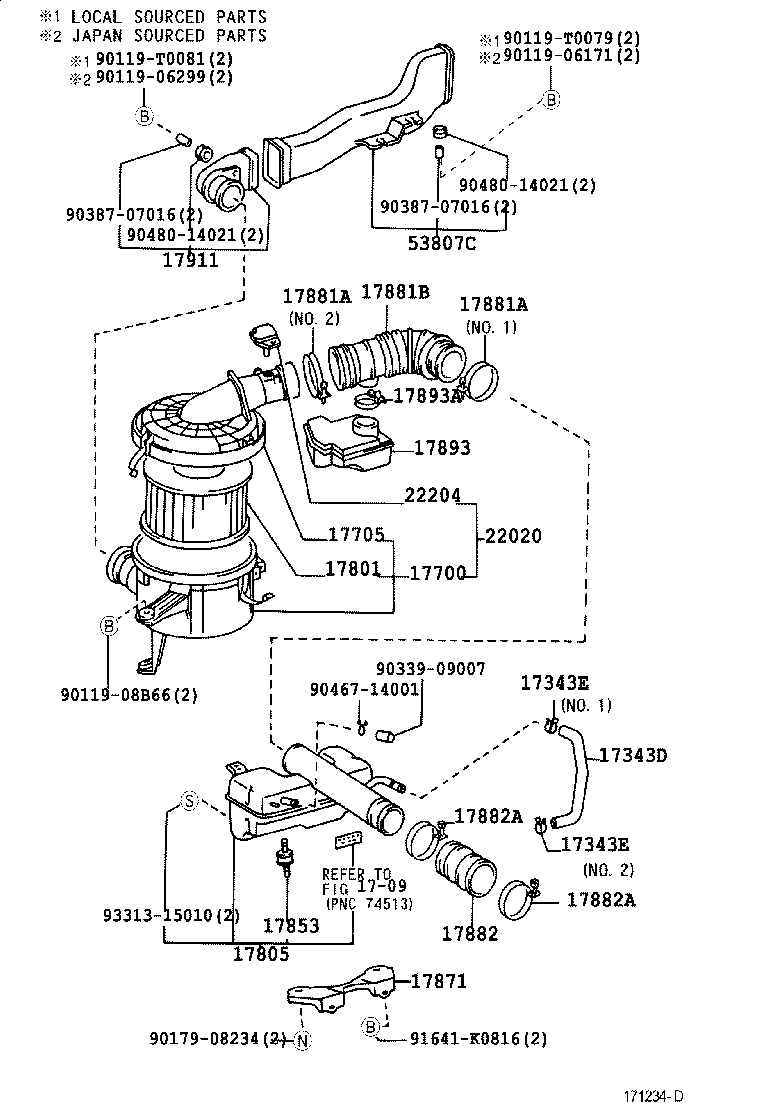

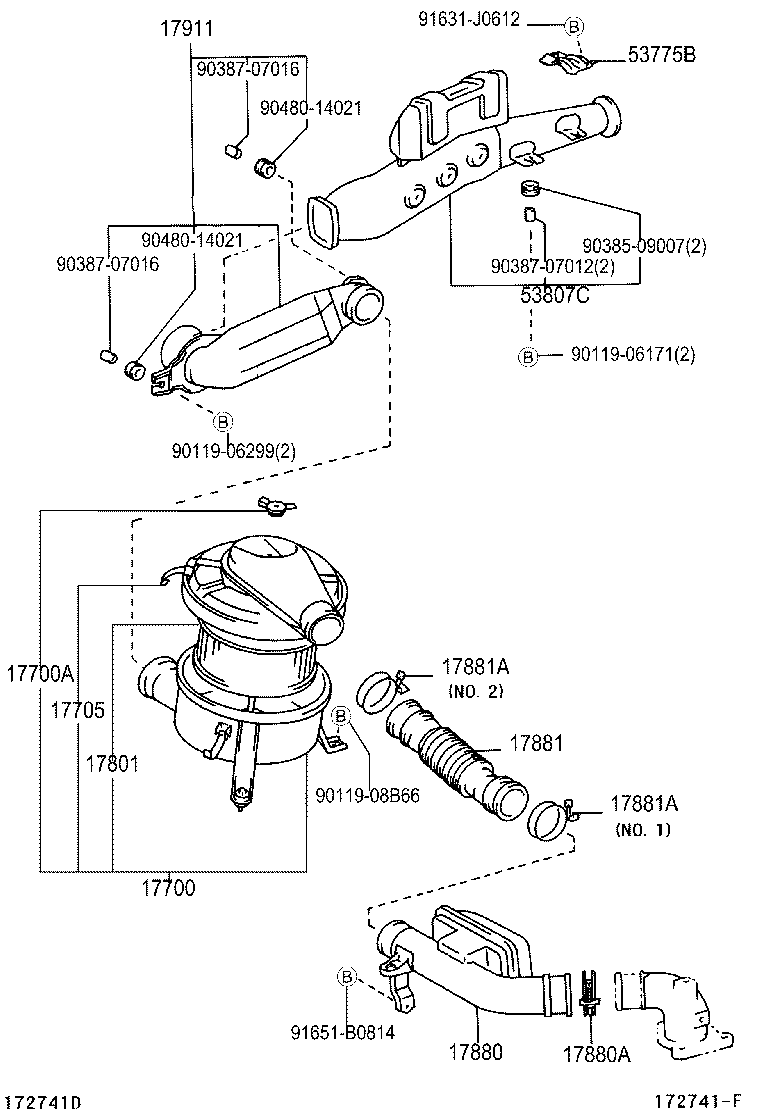

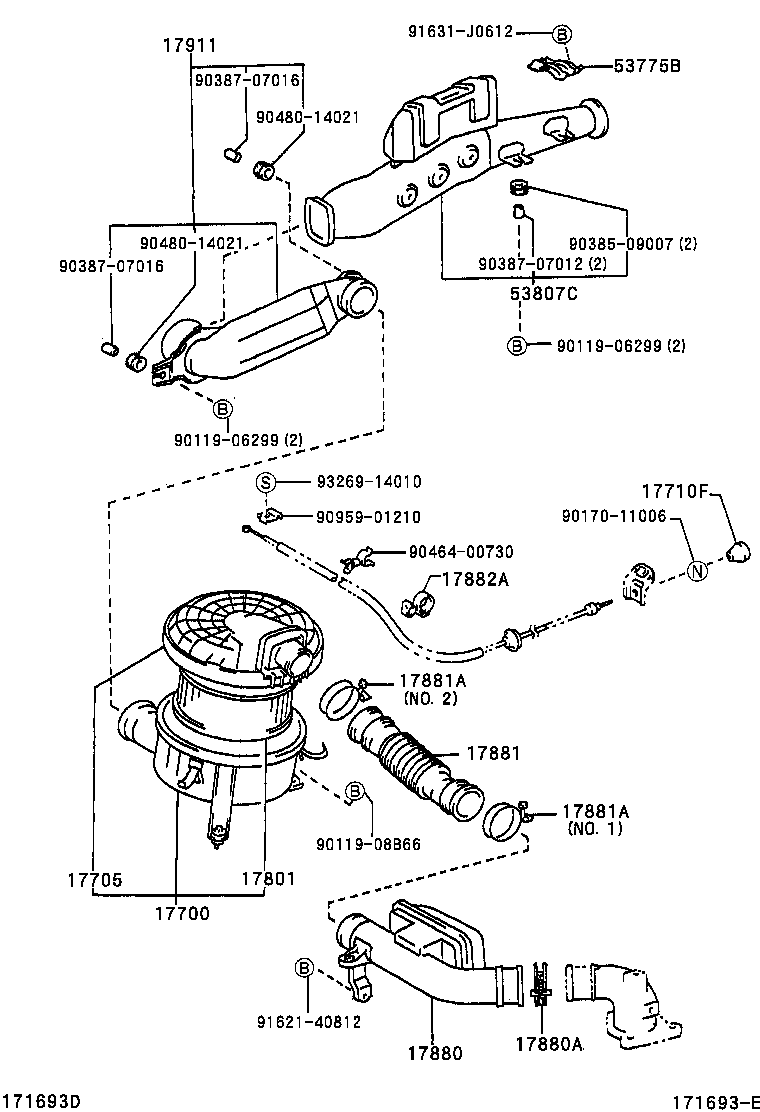

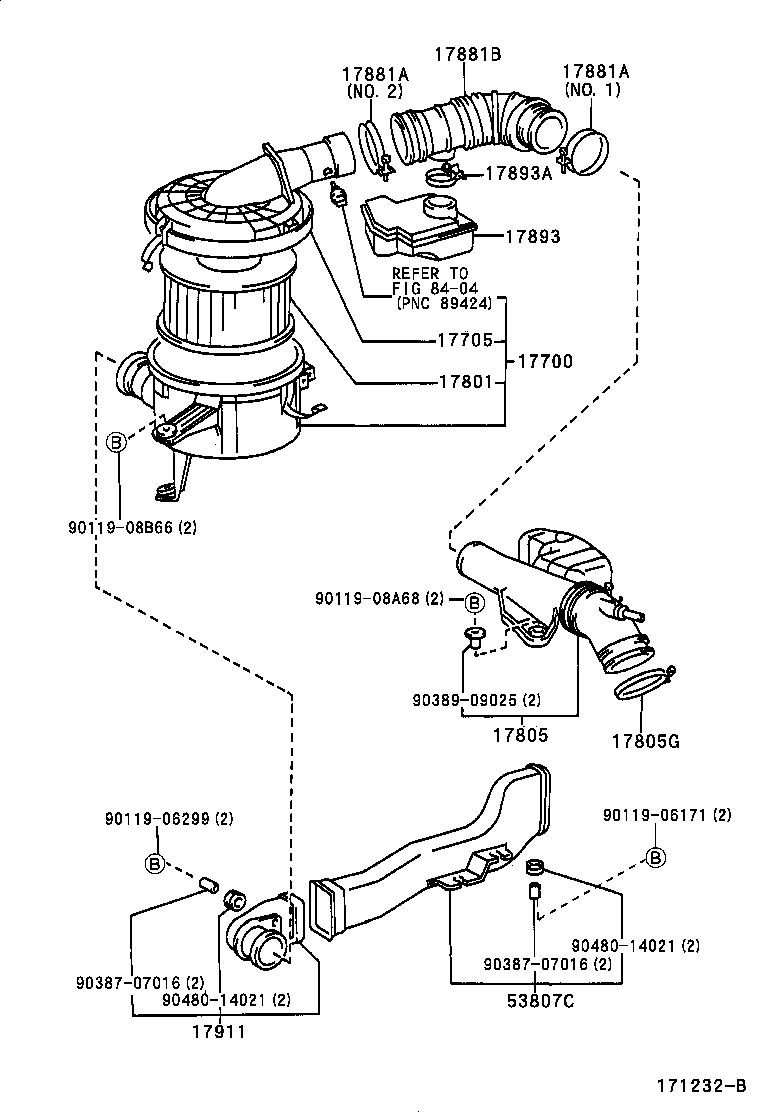

Figure 172229B 172229B 1999-09 → — Figure 173101K 173101K 2001-10 → — Figure 171283F 171283F 1997-08 → 1999-08 Figure 171692S 171692S 1998-06 → 1999-11 Figure 171692S 171692S 1999-11 → — Figure 173374 173374 1997-08 → 2000-04 Figure 173374 173374 2000-04 → 2000-07 Figure 171693E 171693E 1998-06 → — Figure 172322L 172322L 1999-08 → 2000-04 Figure 172322L 172322L 2000-04 → — Figure 172296I 172296I 1999-08 → 2000-10 Figure 172367I 172367I 1999-11 → 2000-09 Figure 172742I 172742I 2000-04 → — Figure 172741F 172741F 2000-04 → — Figure 172741F 172741F 2000-07 → — Figure 173174I 173174I 2000-09 → — Figure 171233C 171233C 1997-08 → — Figure 171232B 171232B 1997-08 → — Figure 171234D 171234D 1997-08 → — Figure 173036A 173036A 2001-08 → — Figure 171235B 171235B 1997-08 → — Figure 173390 173390 2002-08 → 2005-02 Figure 171800 171800 1998-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17138 Stay, Intake Pipe OR Hose
17183B Collar, Manifold
17218 Collar, Thrust
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17710F Knob Sub-assy, Control
17728 Valve, Thermostatic
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17805F Resonator Sub-assy, Intake Air
17805G Clamp, Hose(FOR AIR CONNECTOR)
17805J Nut, Wing(FOR AIR CONNECTOR)
17805K Bolt, Stud(FOR AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17871 Stay, Air Connector
17872 Bracket, Intake Air Connector
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17880B Collar(FOR AIR CLEANER HOSE)
17880C Grommet(FOR AIR CLEANER HOSE)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881B Hose, Air Cleaner, NO.1
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
22020 Meter Assy, Air Flow W/Air Cleaner
22204 Meter Sub-assy, Intake Air Flow
23249B Rubber, Cushion
52840 Resonator Assy, Cool Air Intake
53775B Bracket, Cool Air Intake Duct Mounting
53807C Duct Sub-assy, Front Fender Air, RH
53808C Duct Sub-assy, Front Fender Air, LH
53965 Bracket, Air Cleaner Inlet Shutter Control Cable
53970 Cable Assy, Air Cleaner Inlet Shutter Control
53978 Bracket, Air Cleaner Shutter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
