Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 53 illustrations

Illustrations

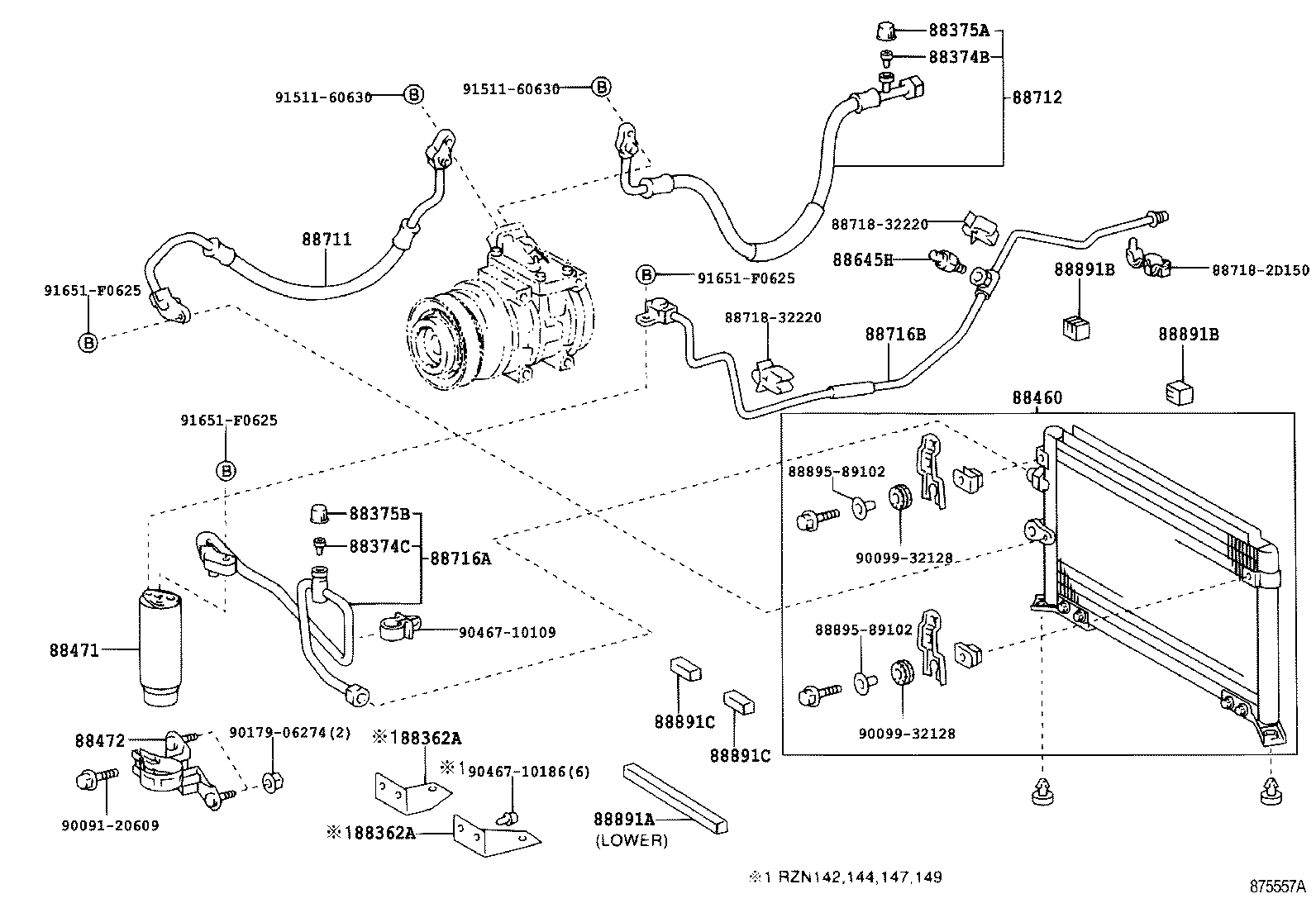

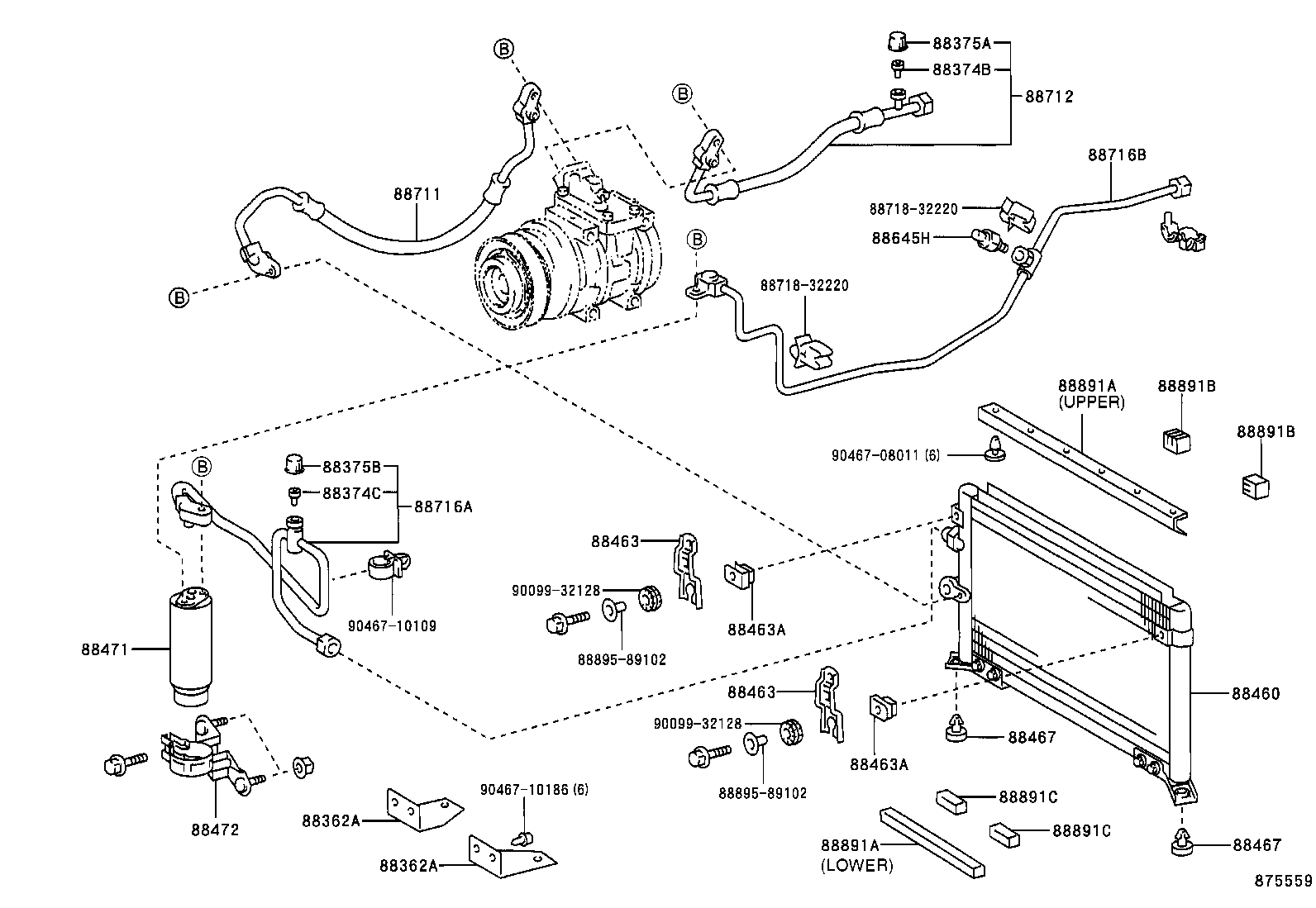

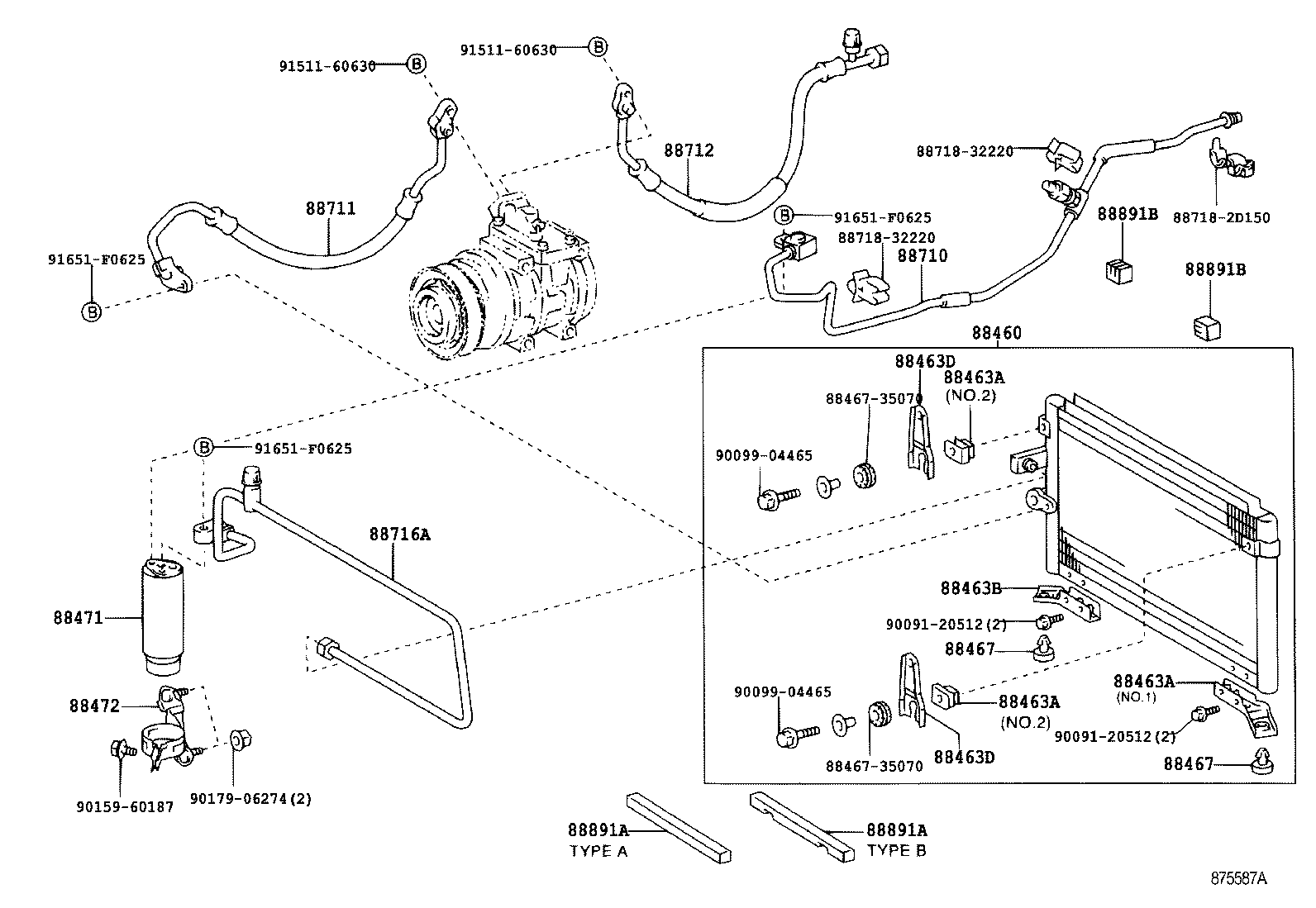

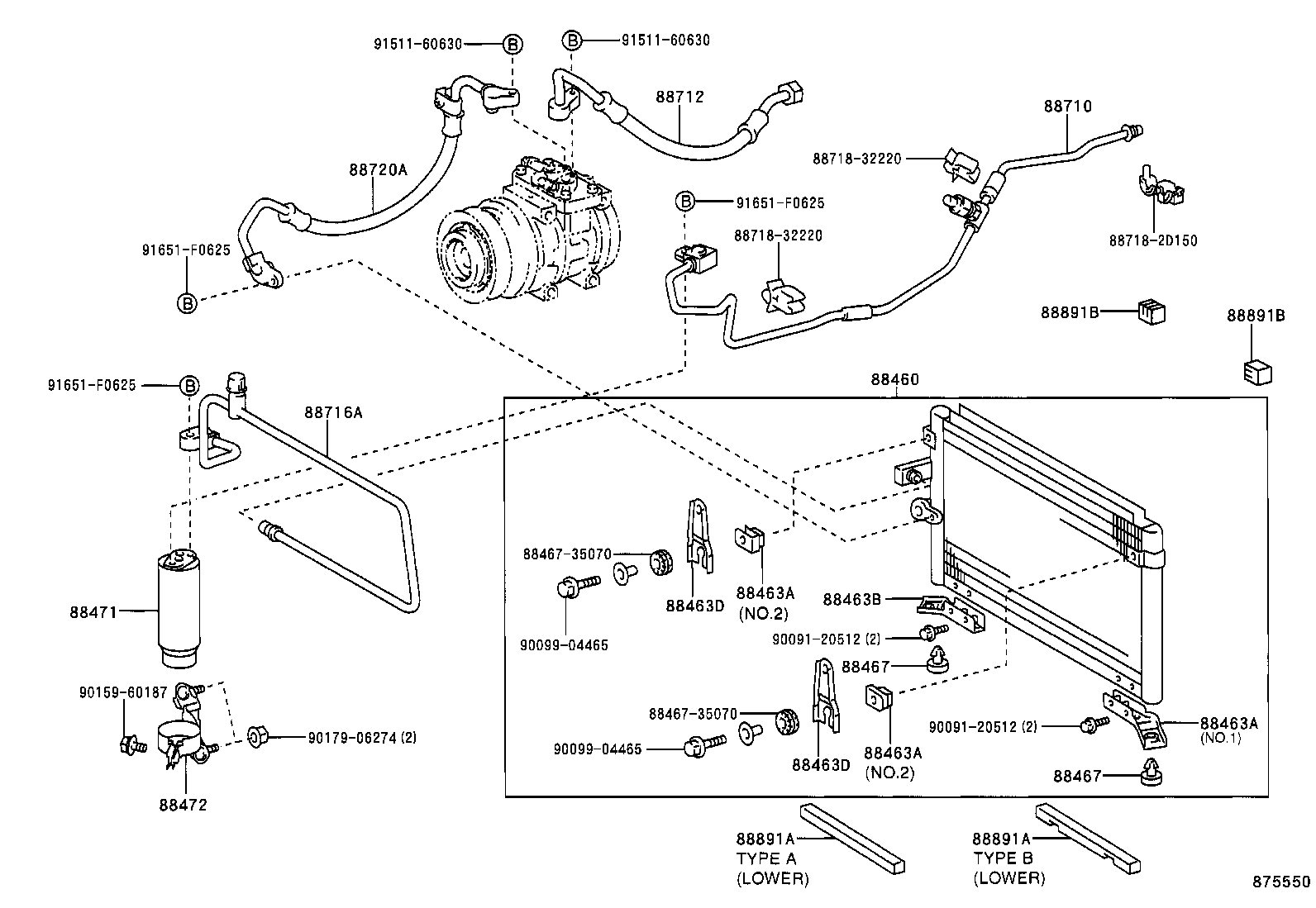

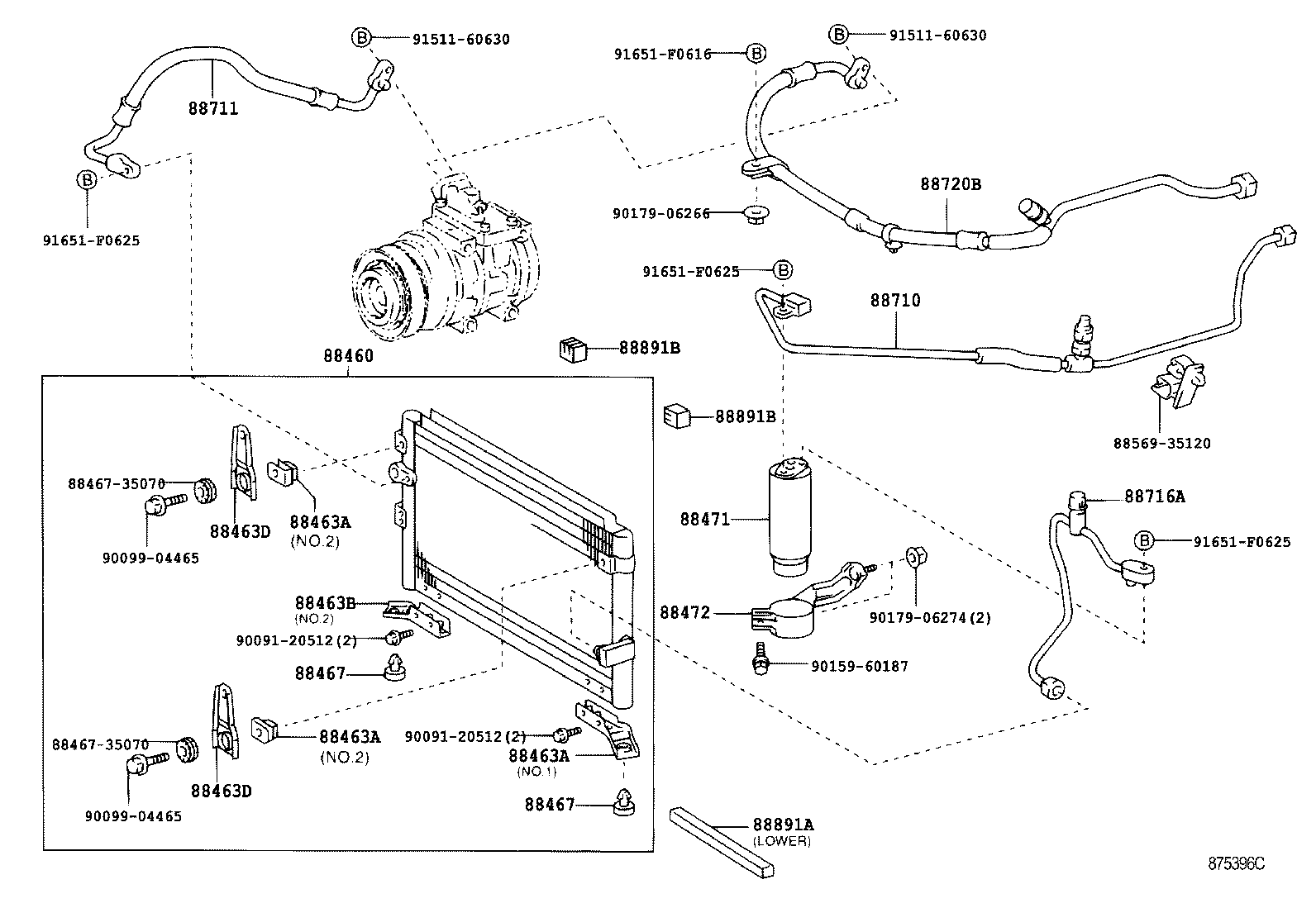

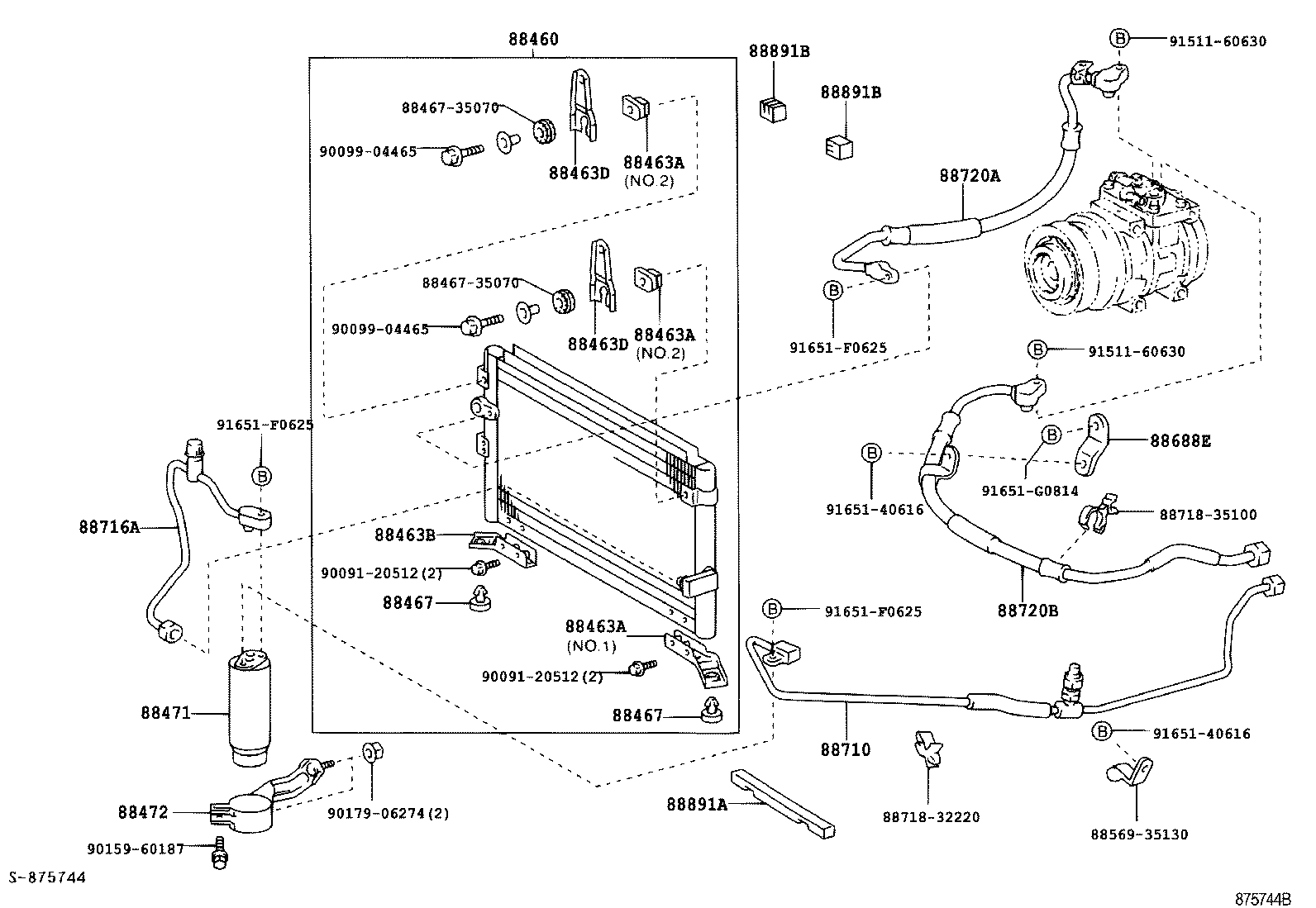

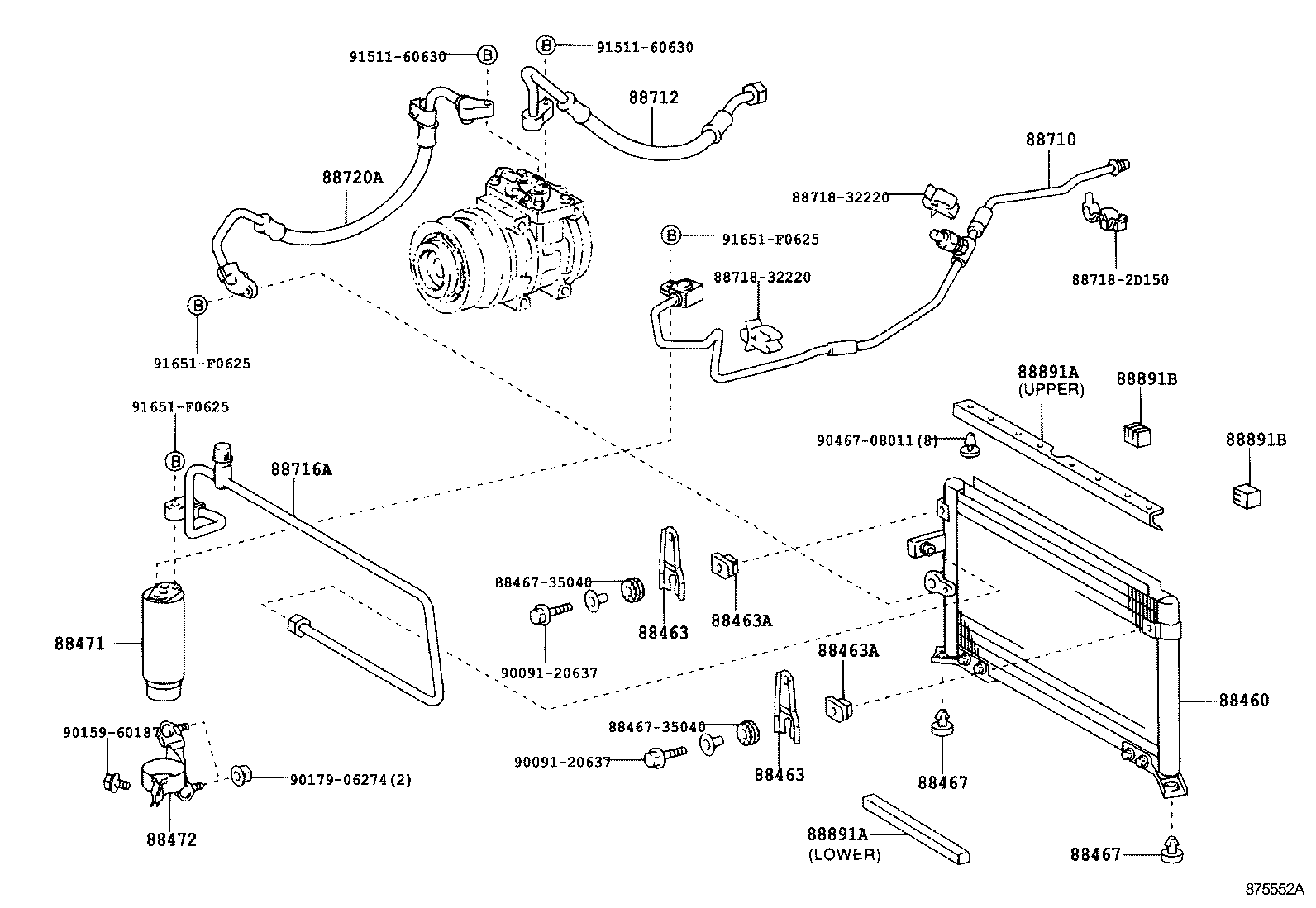

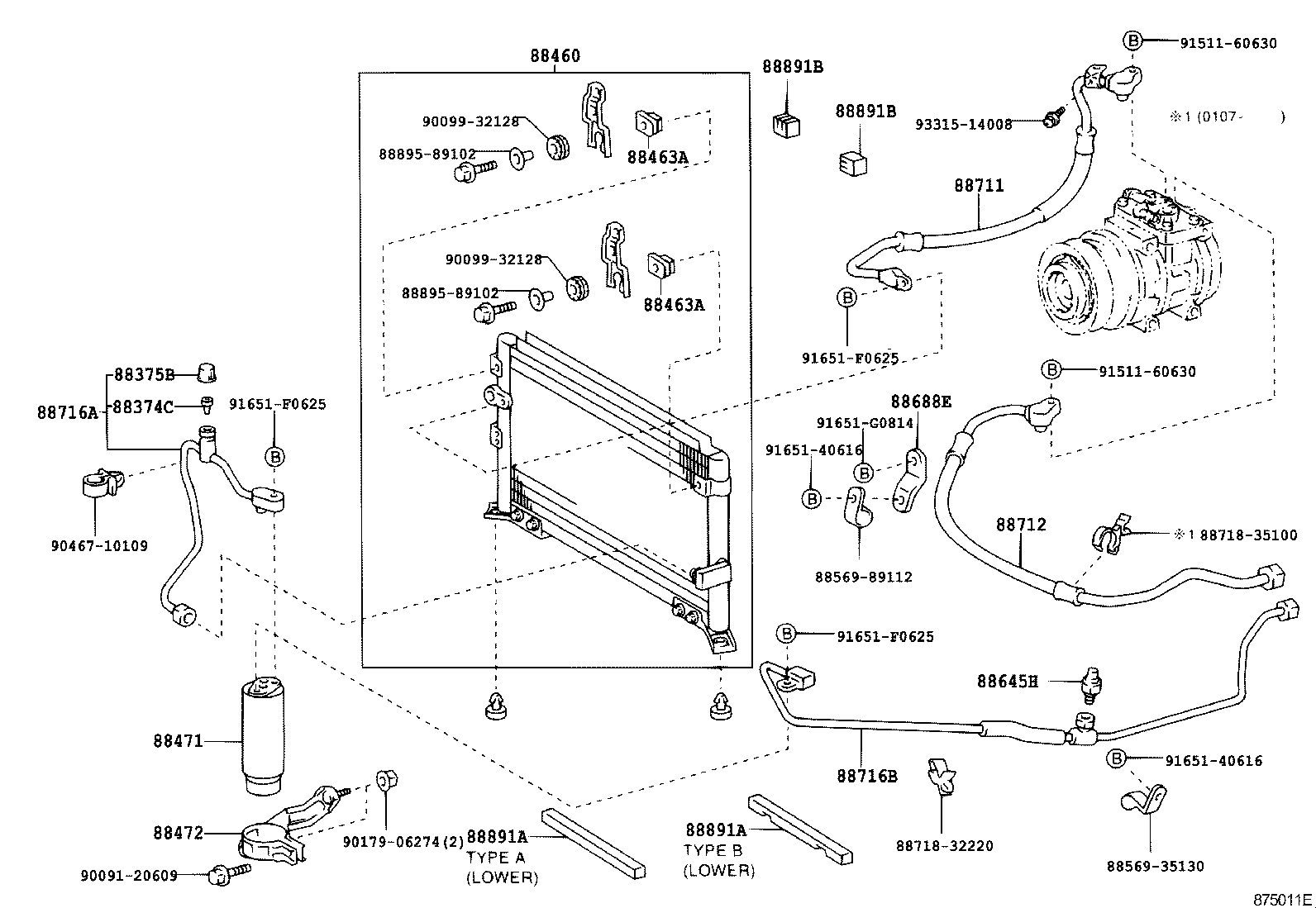

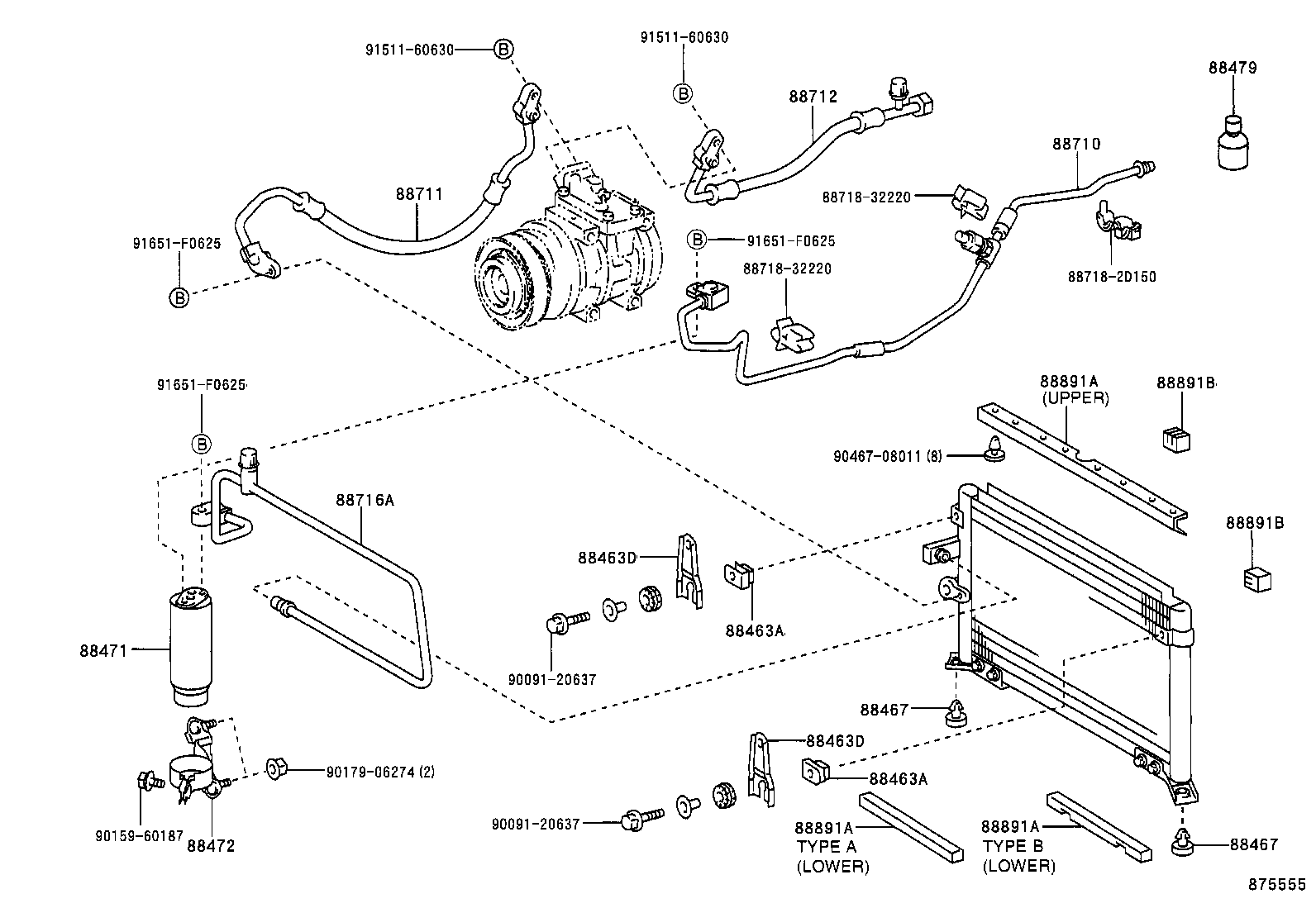

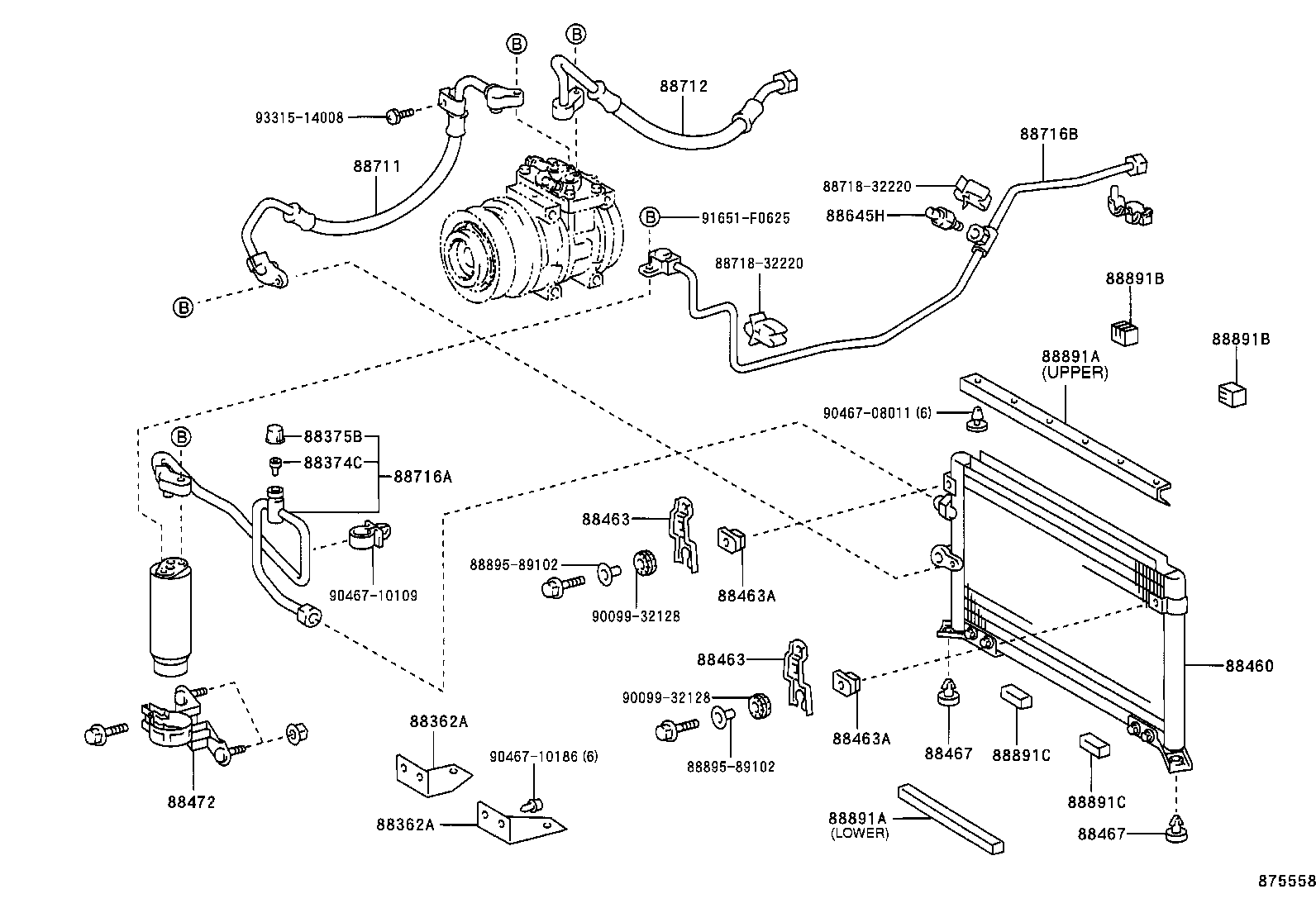

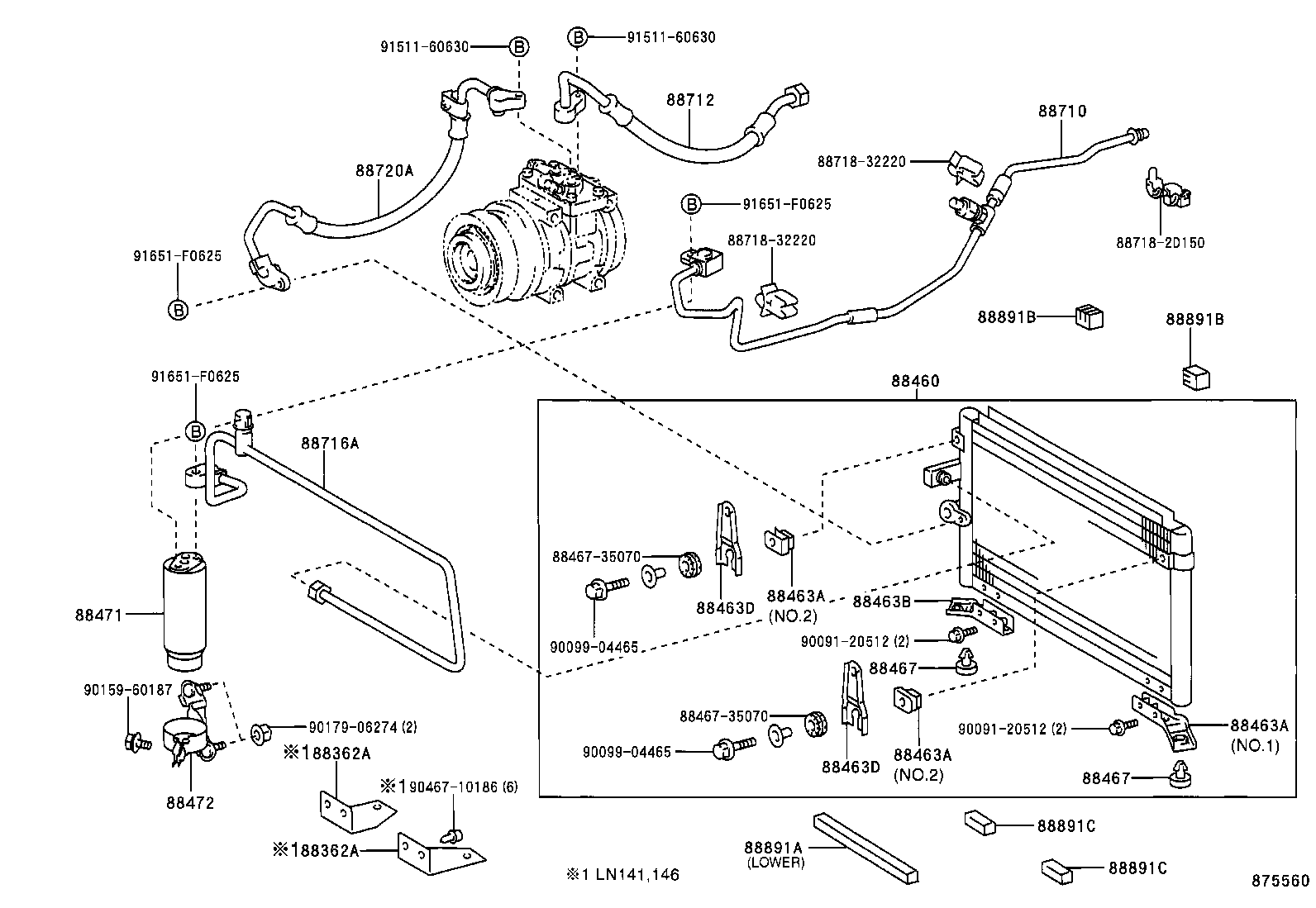

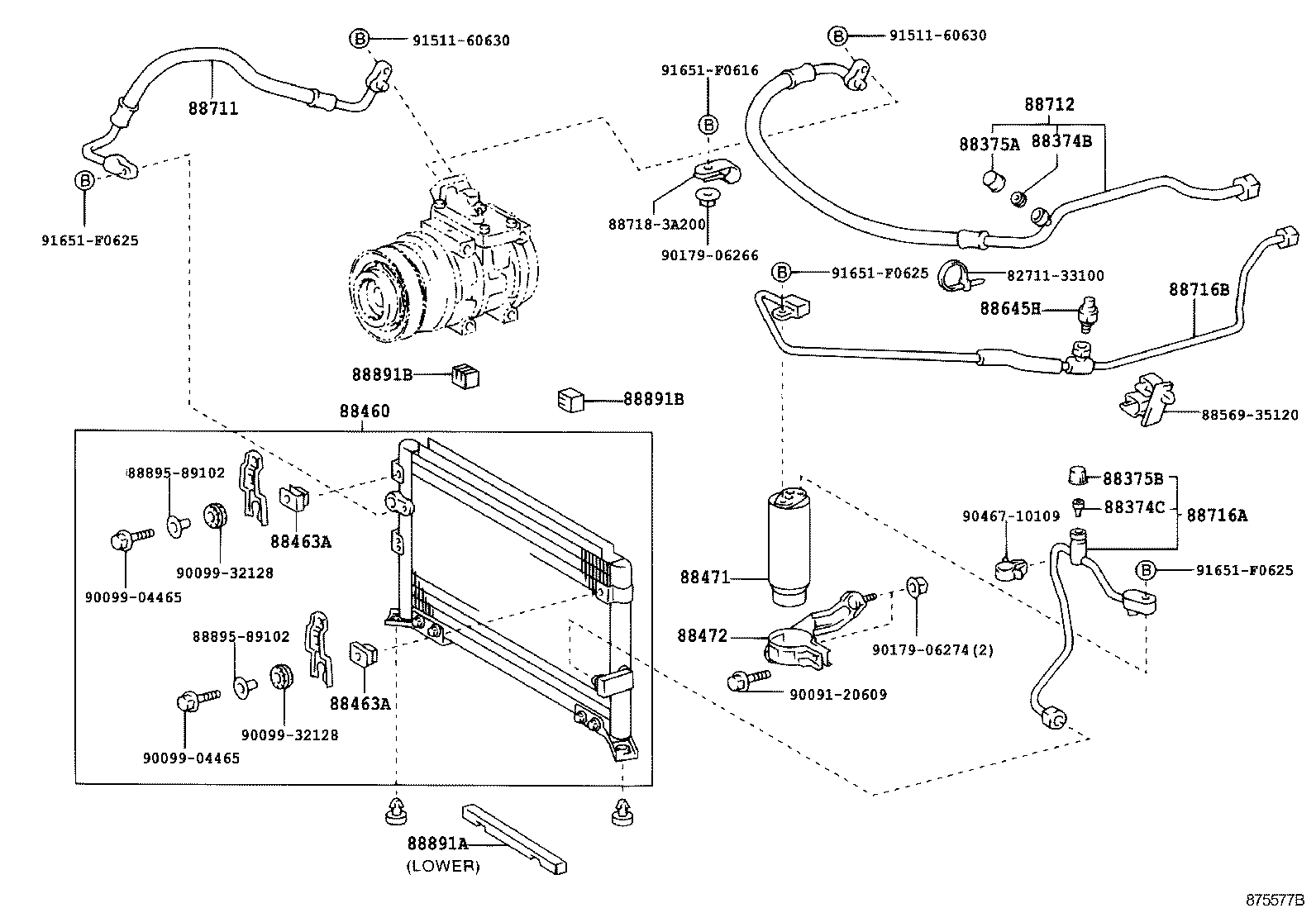

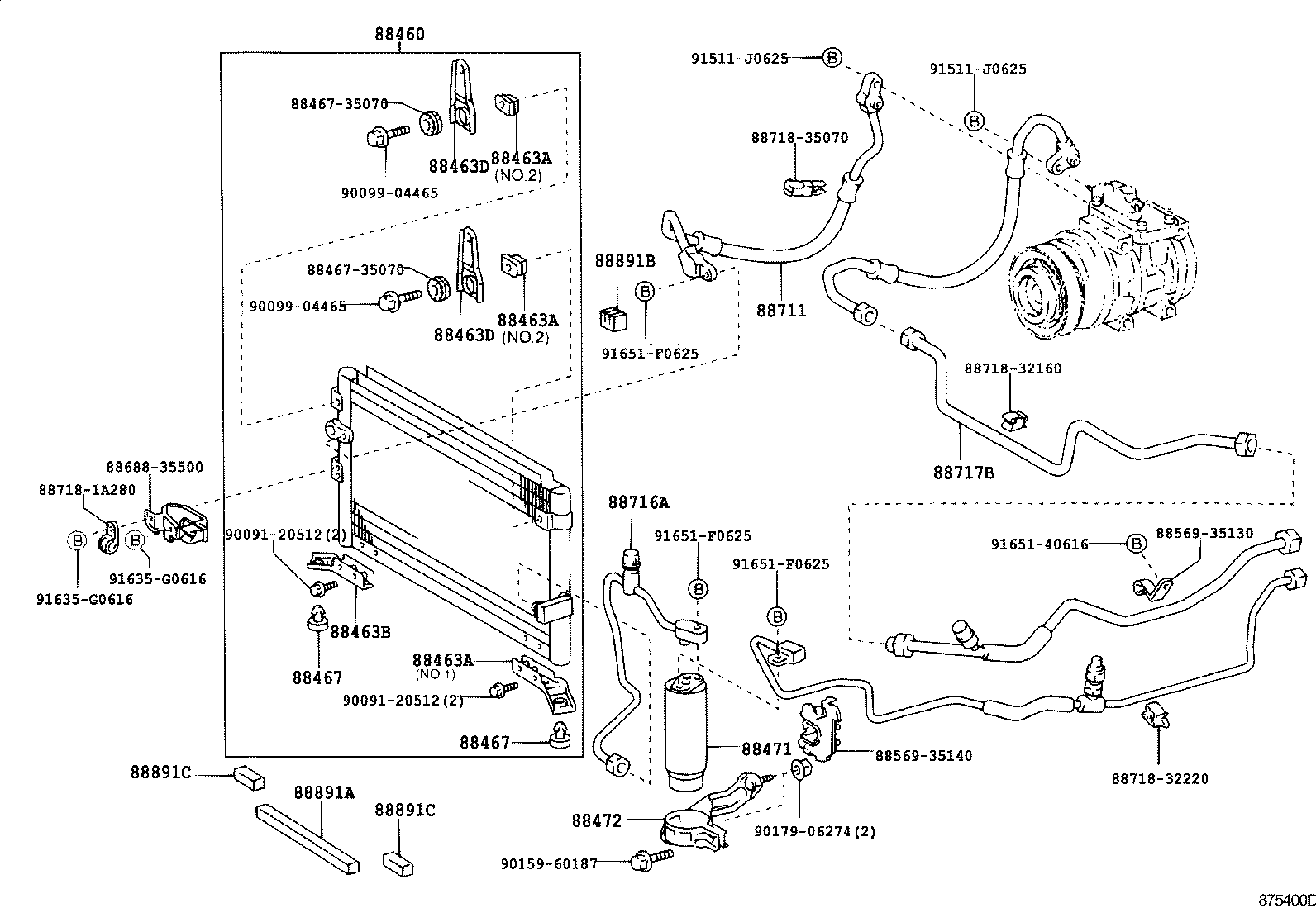

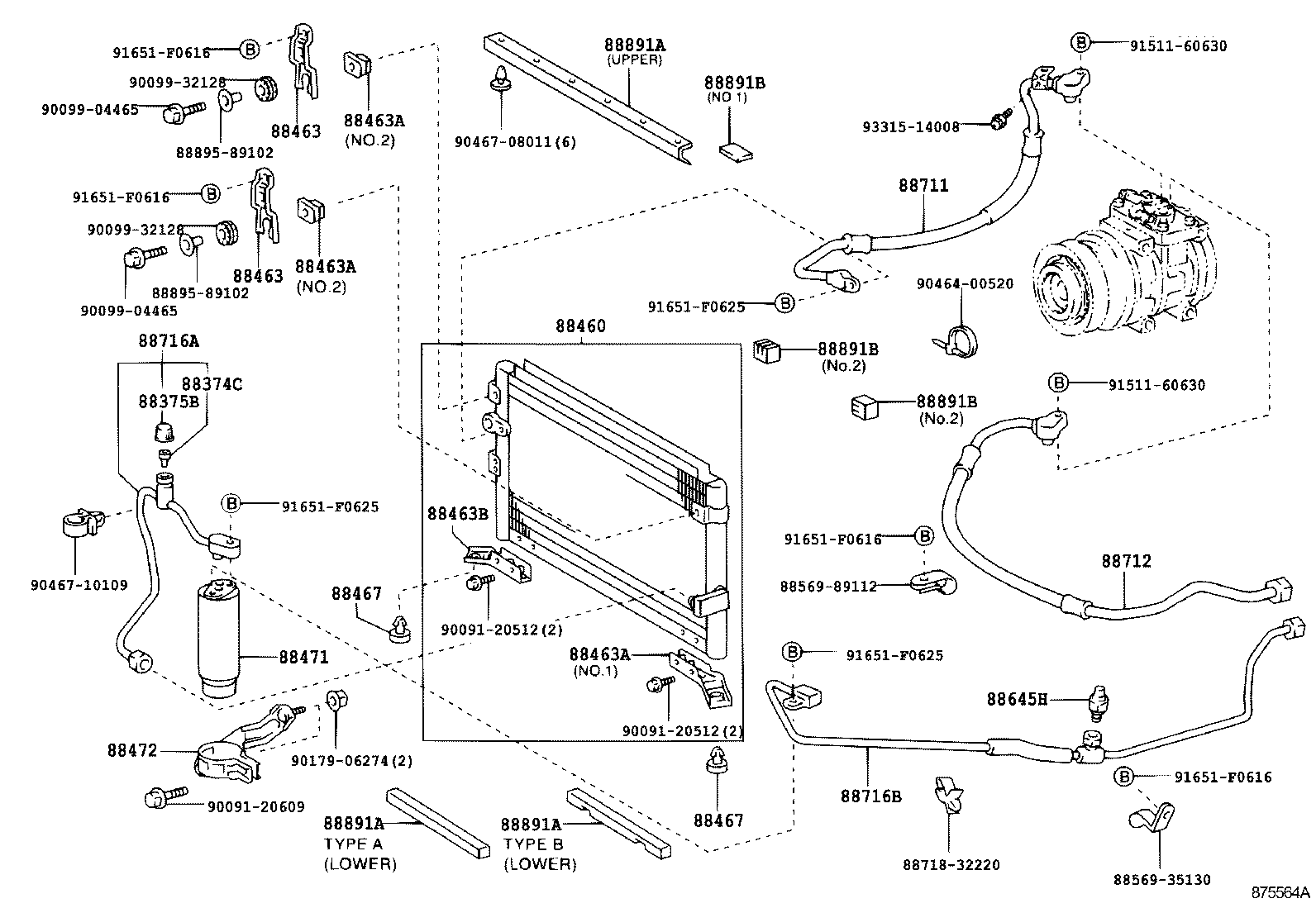

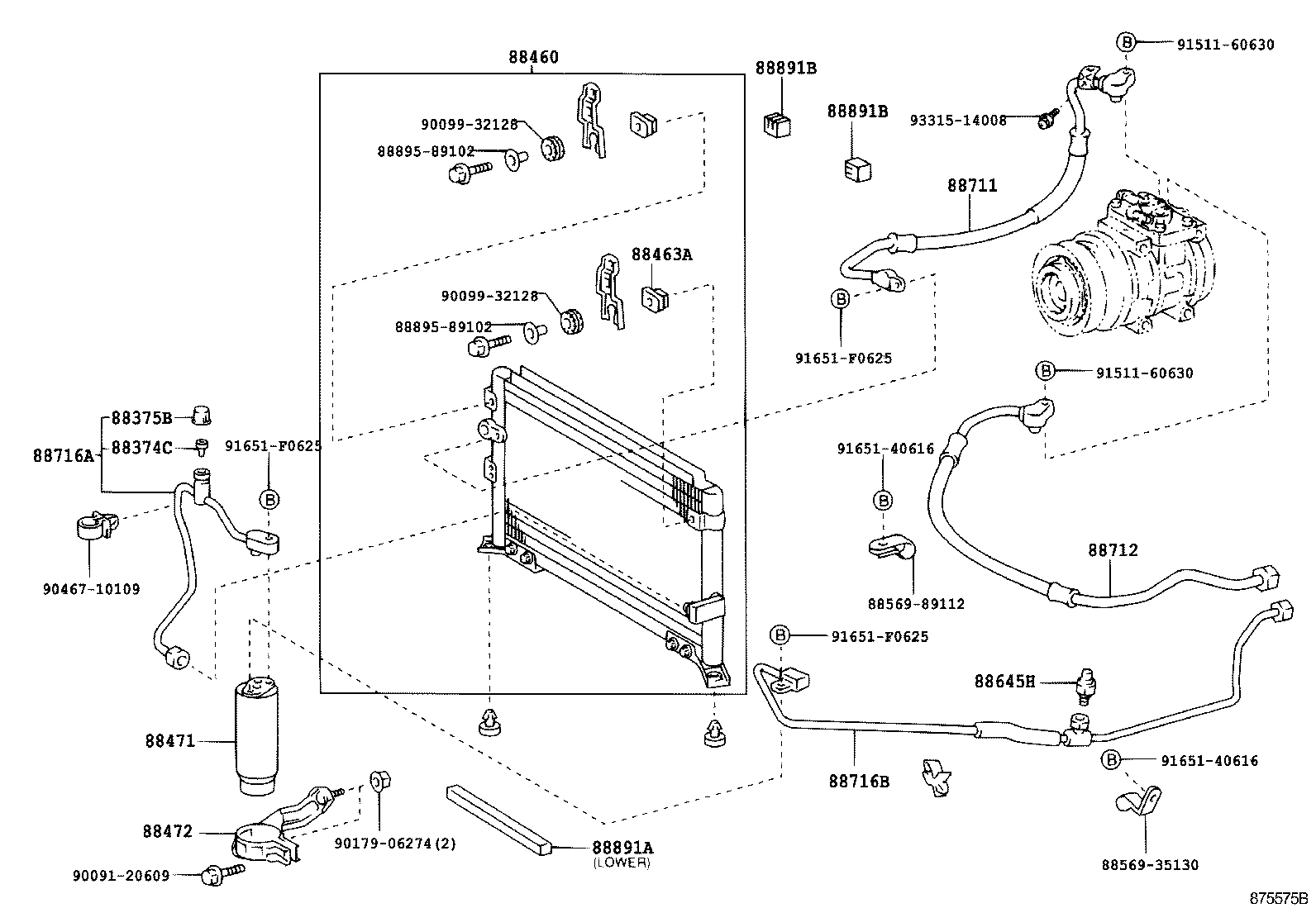

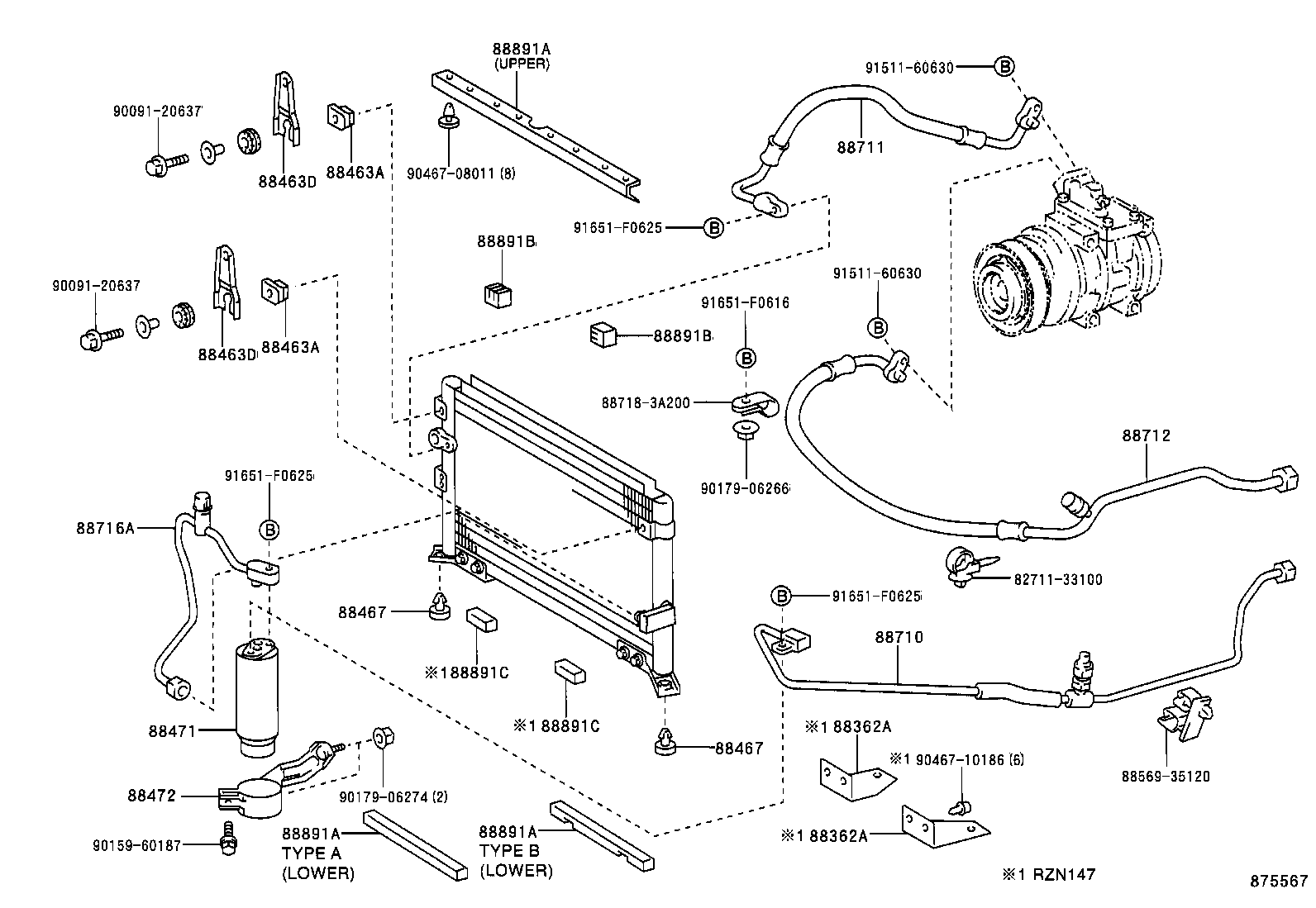

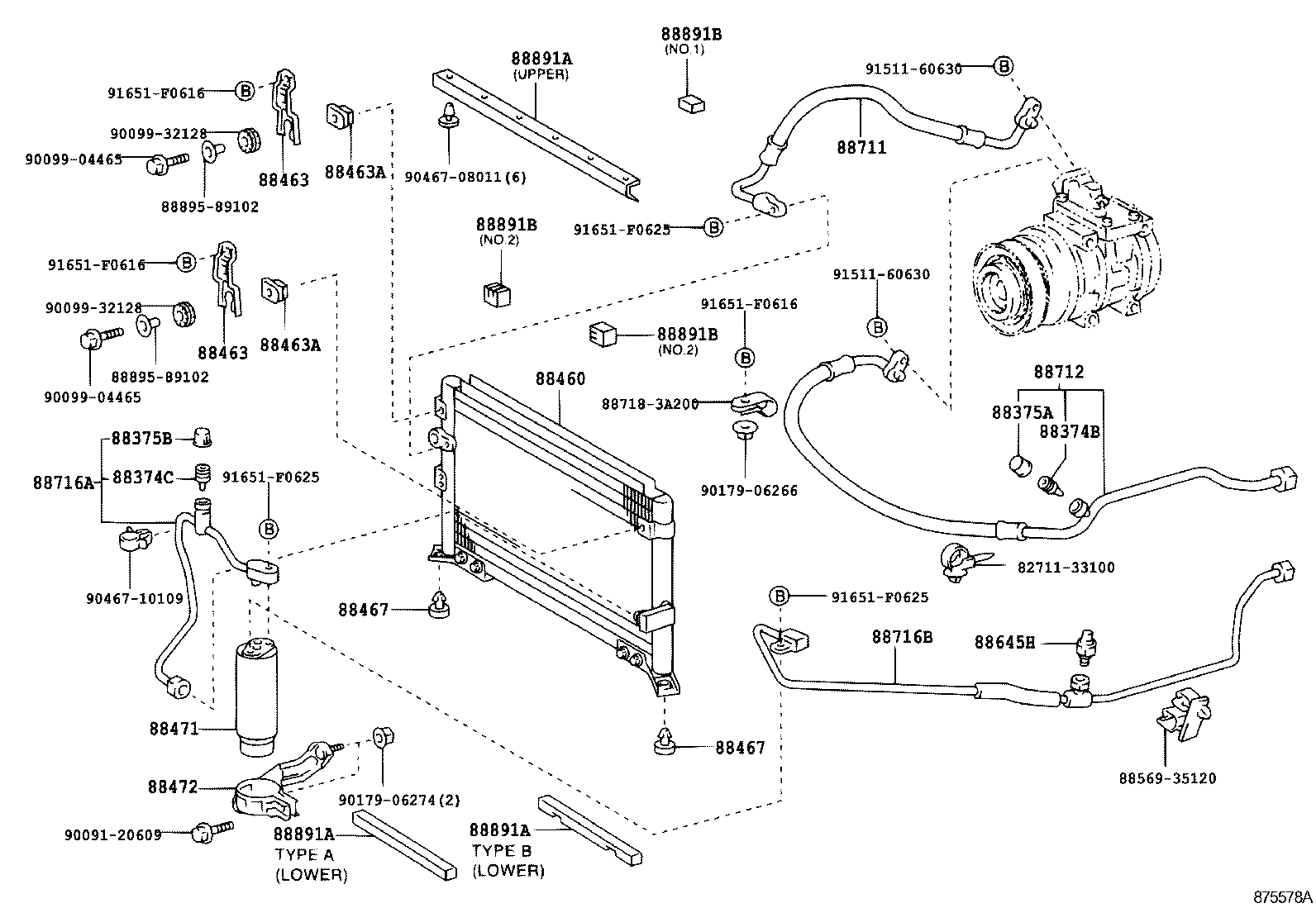

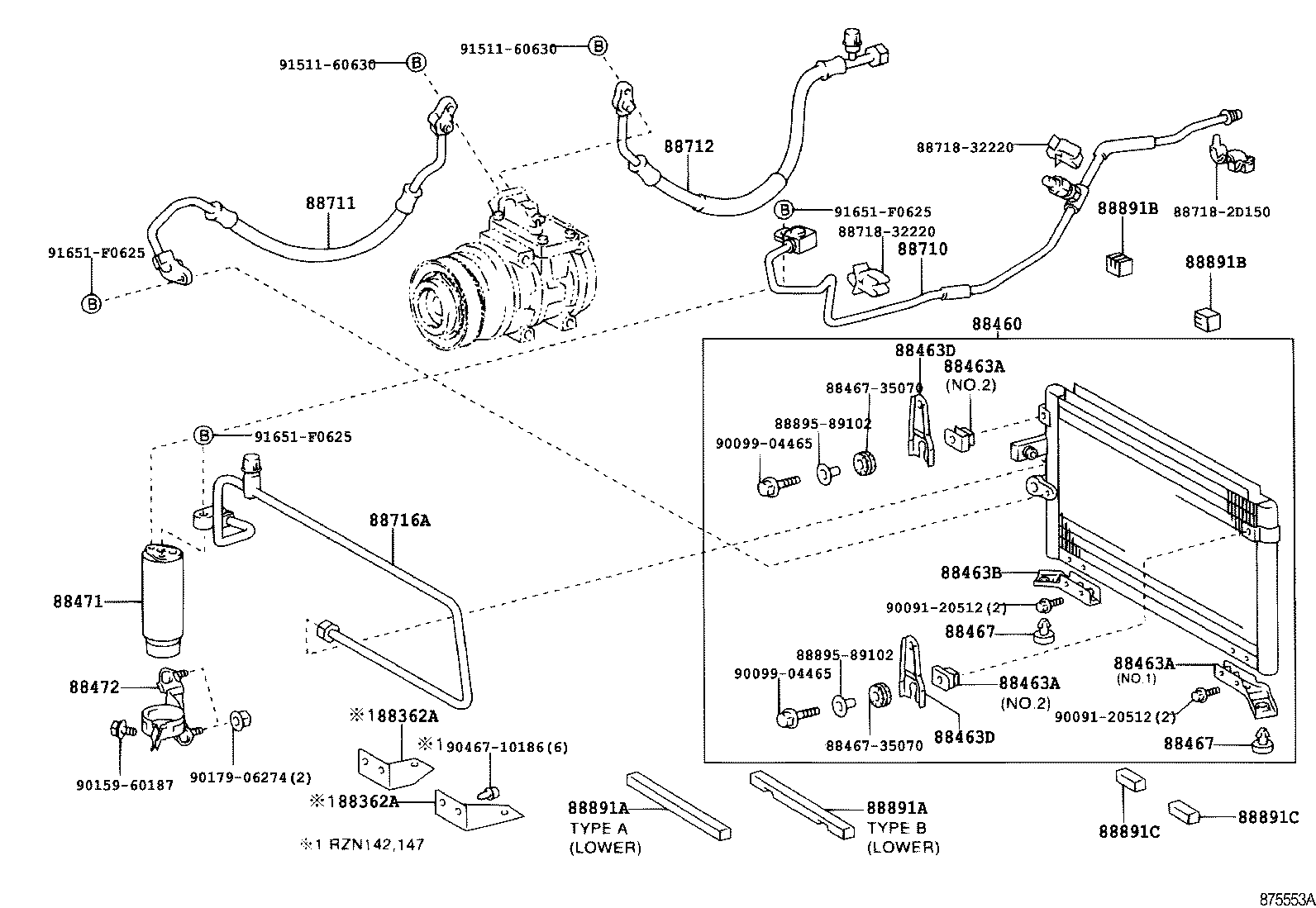

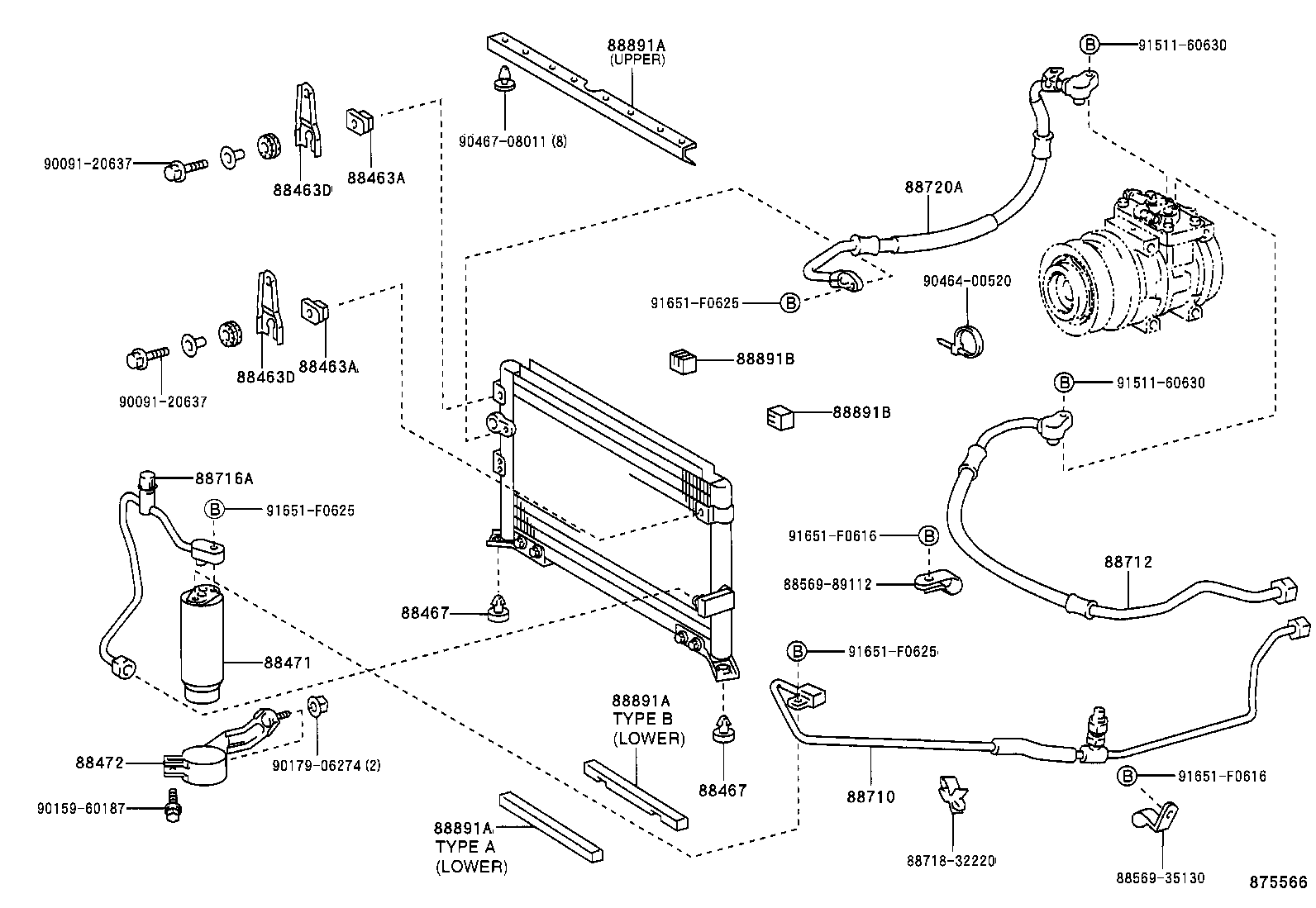

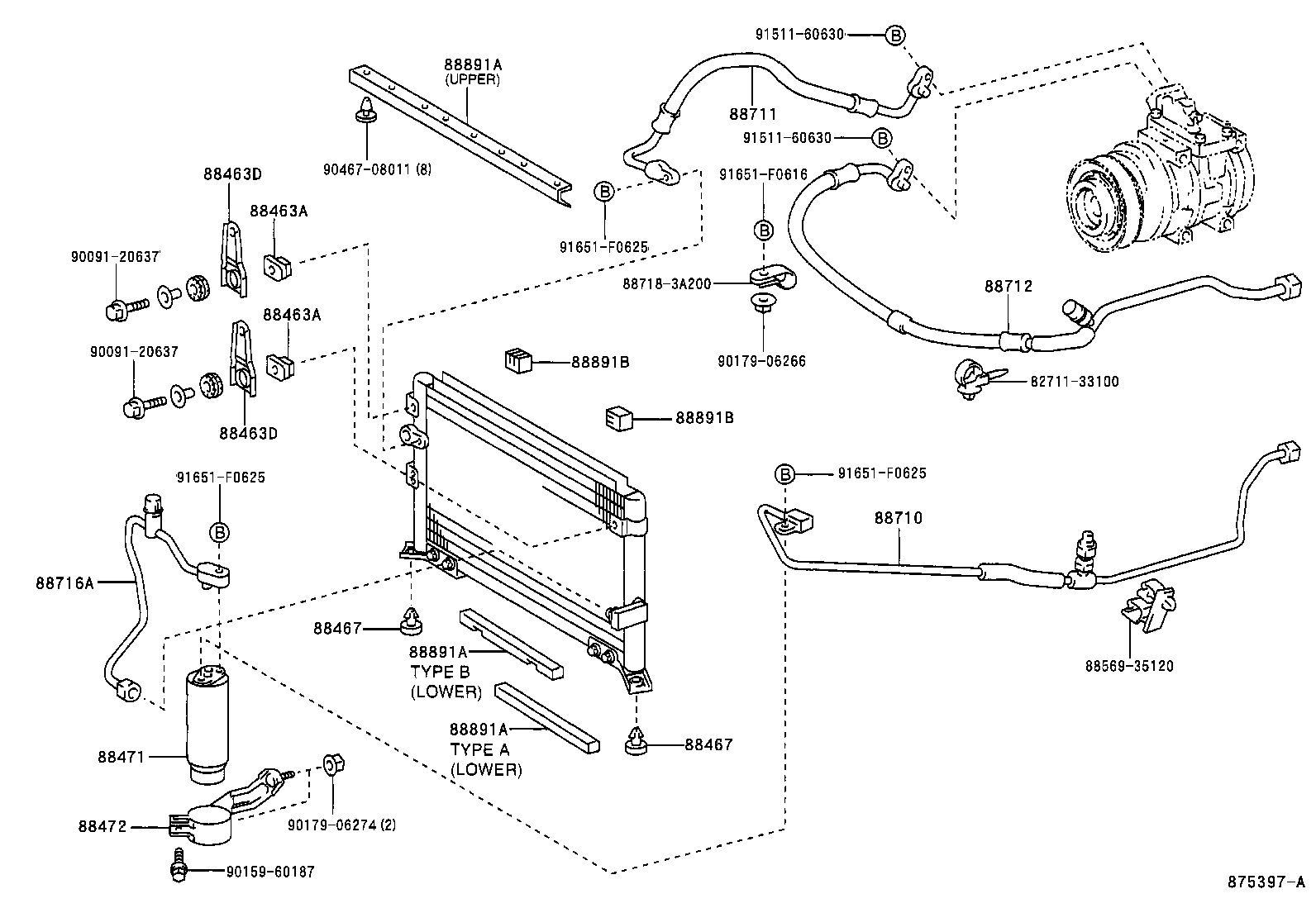

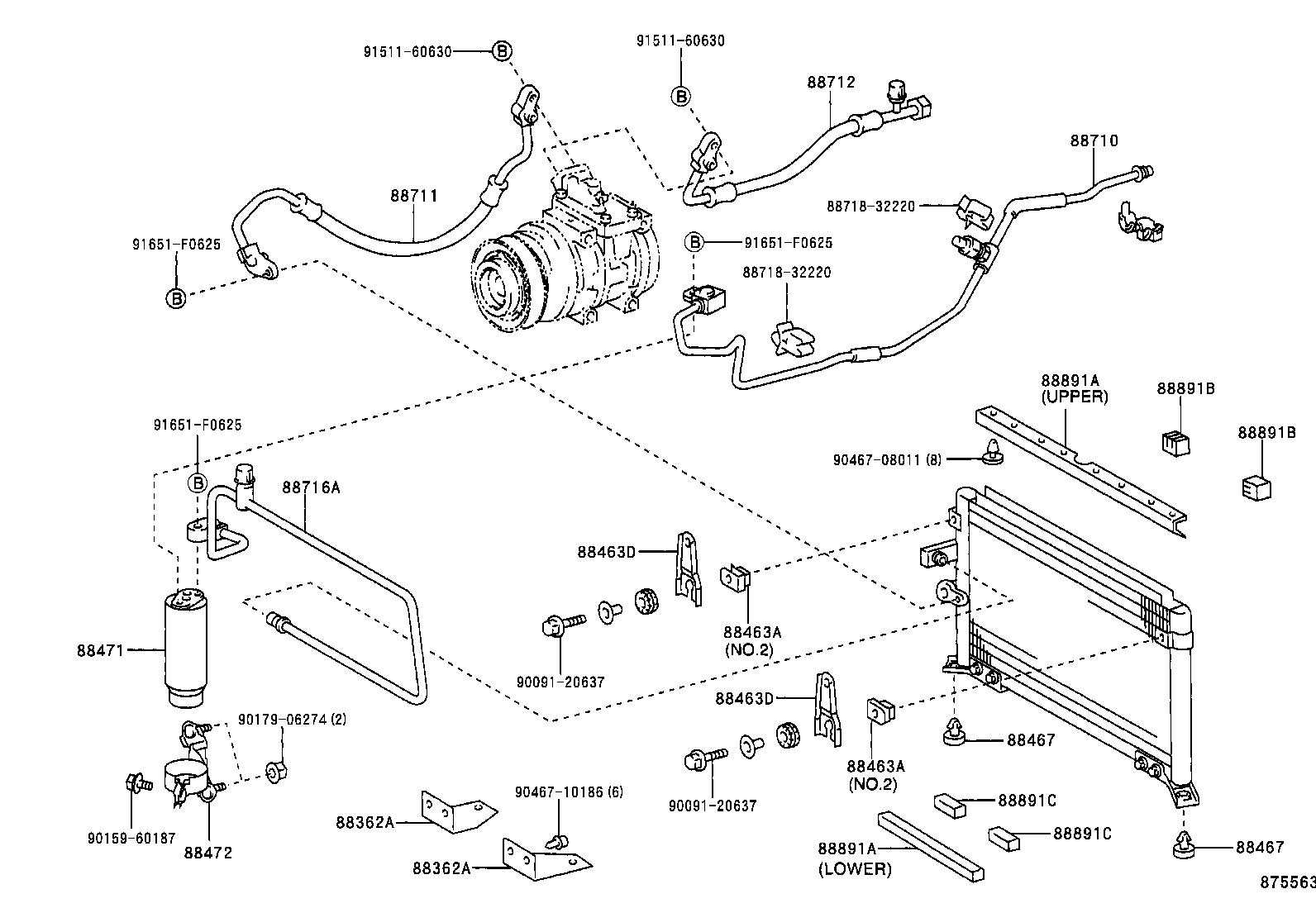

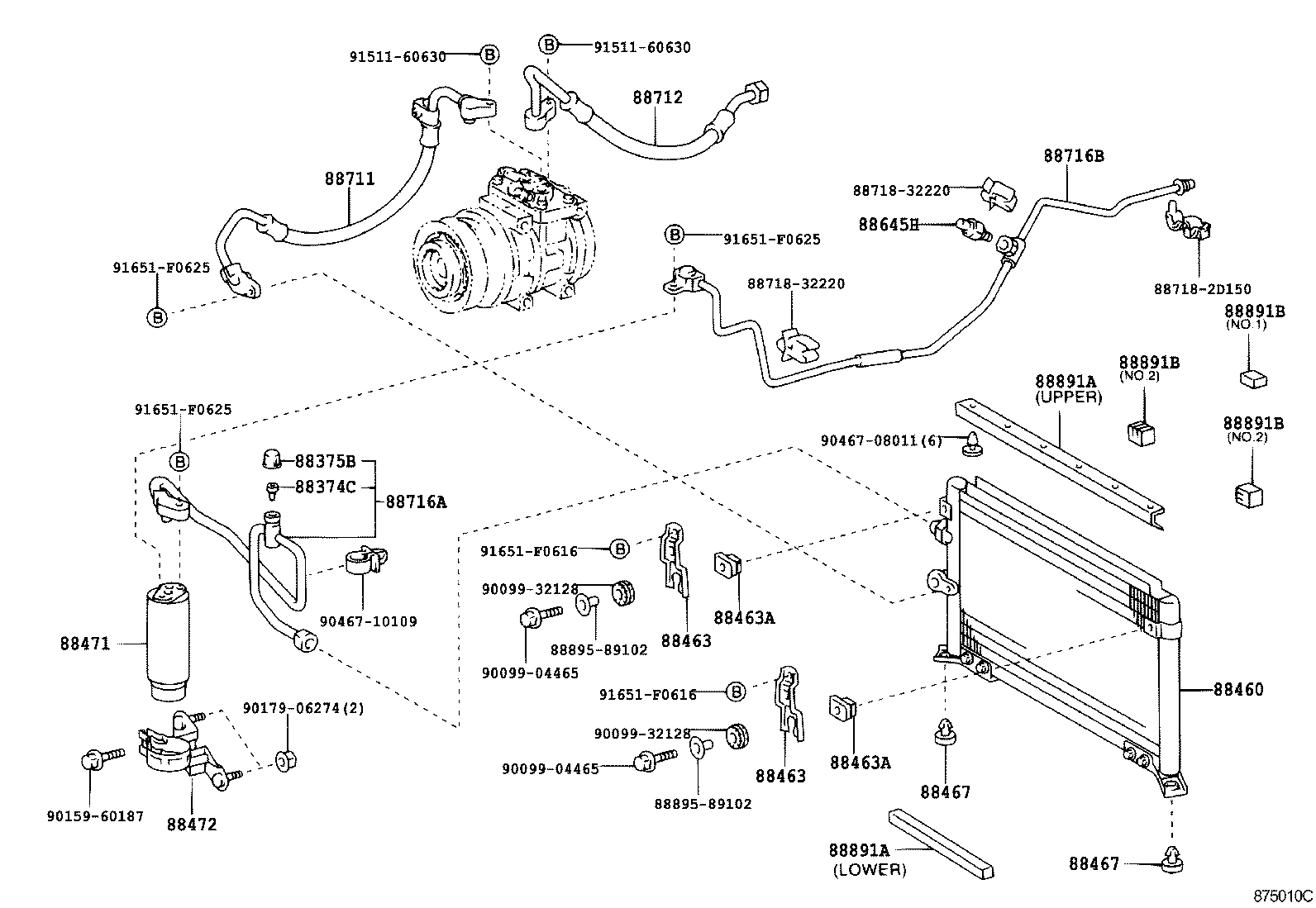

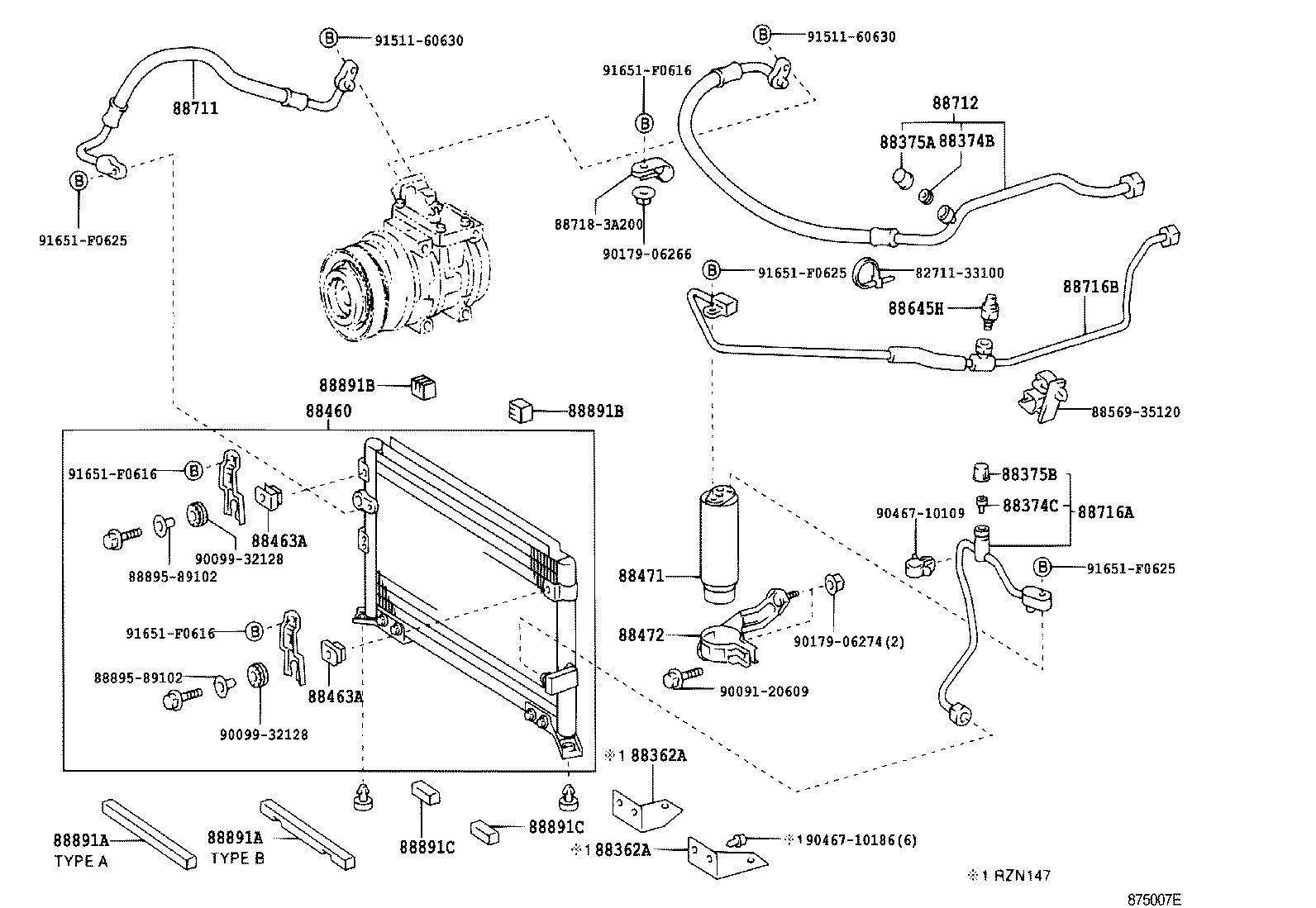

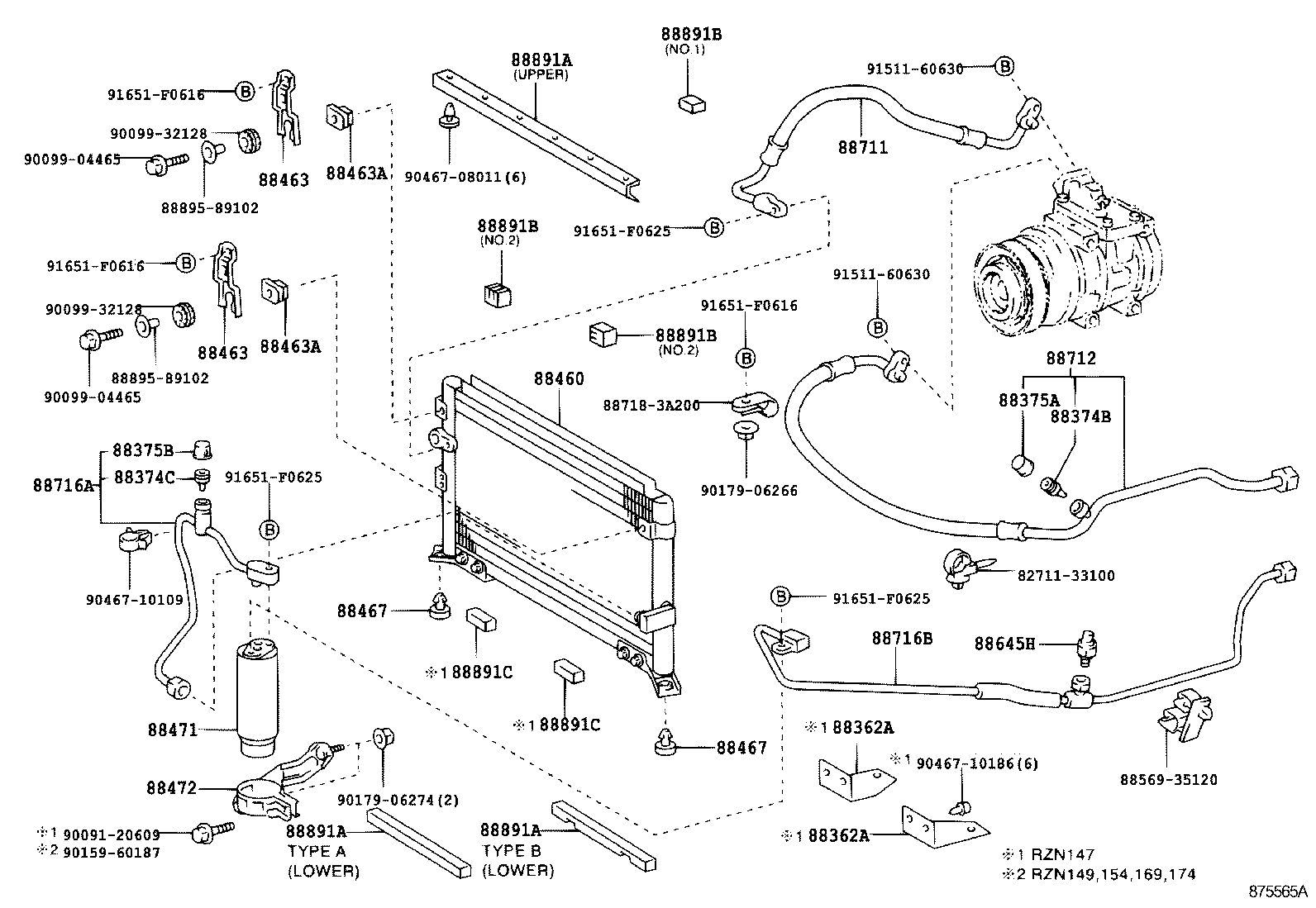

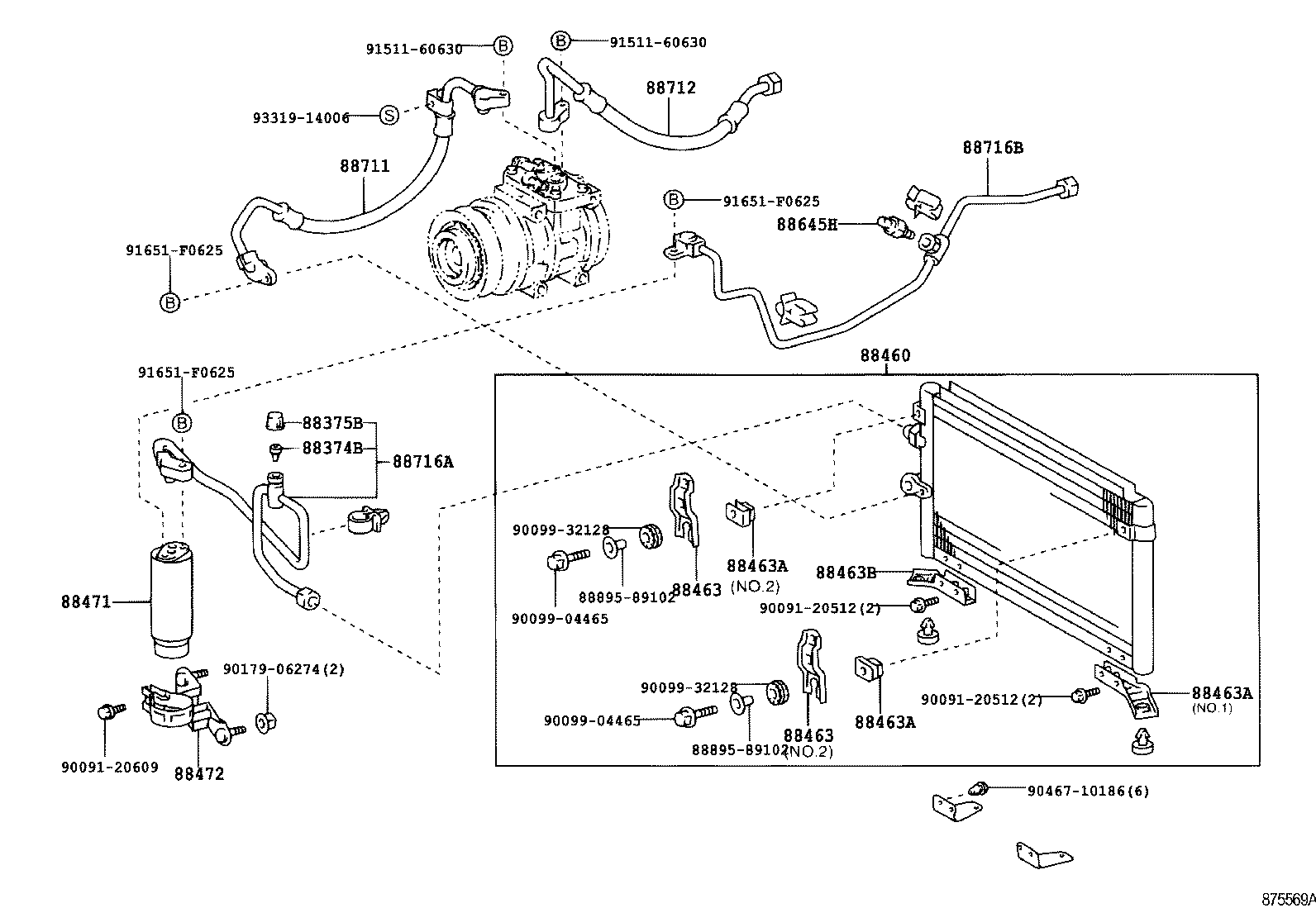

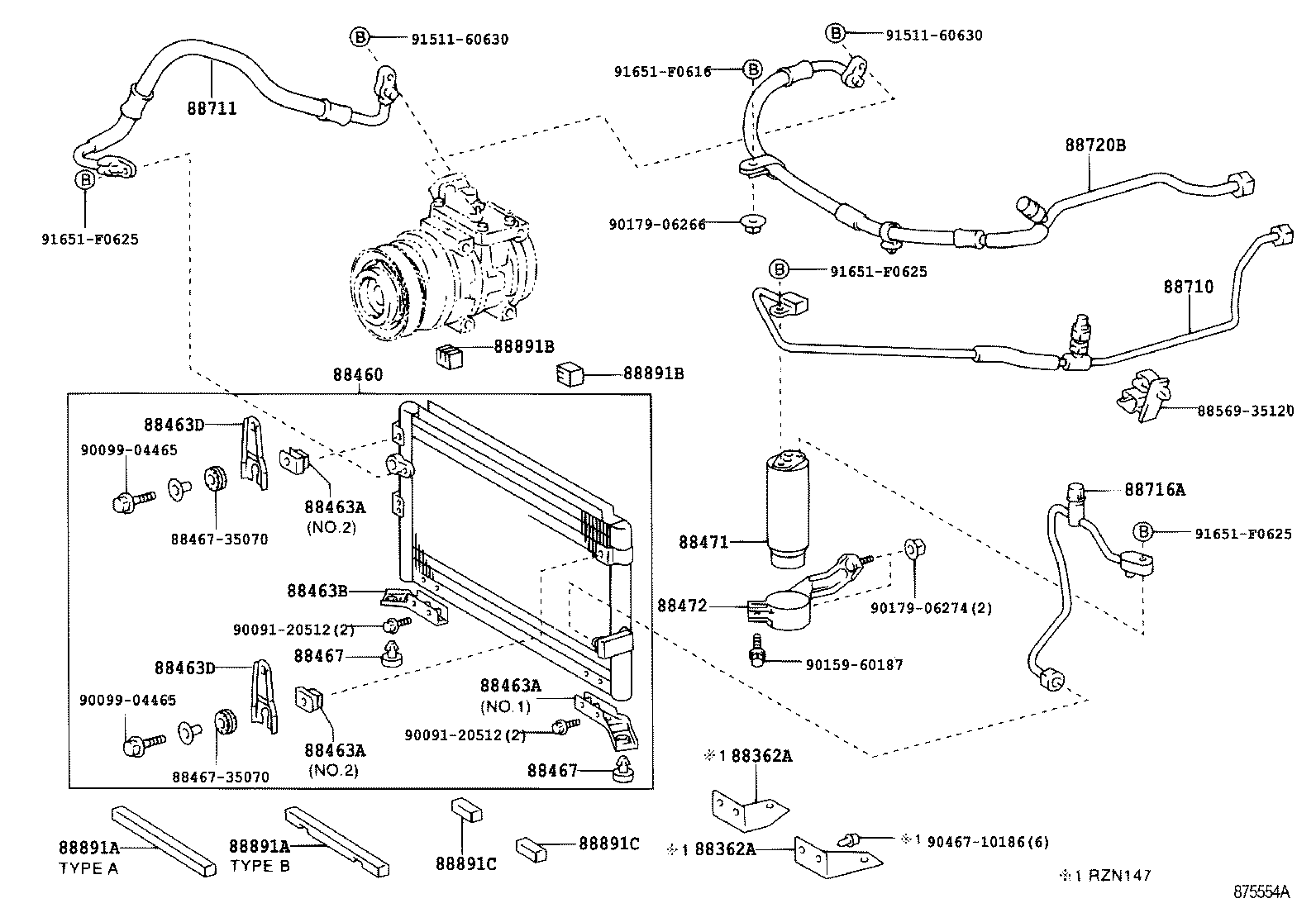

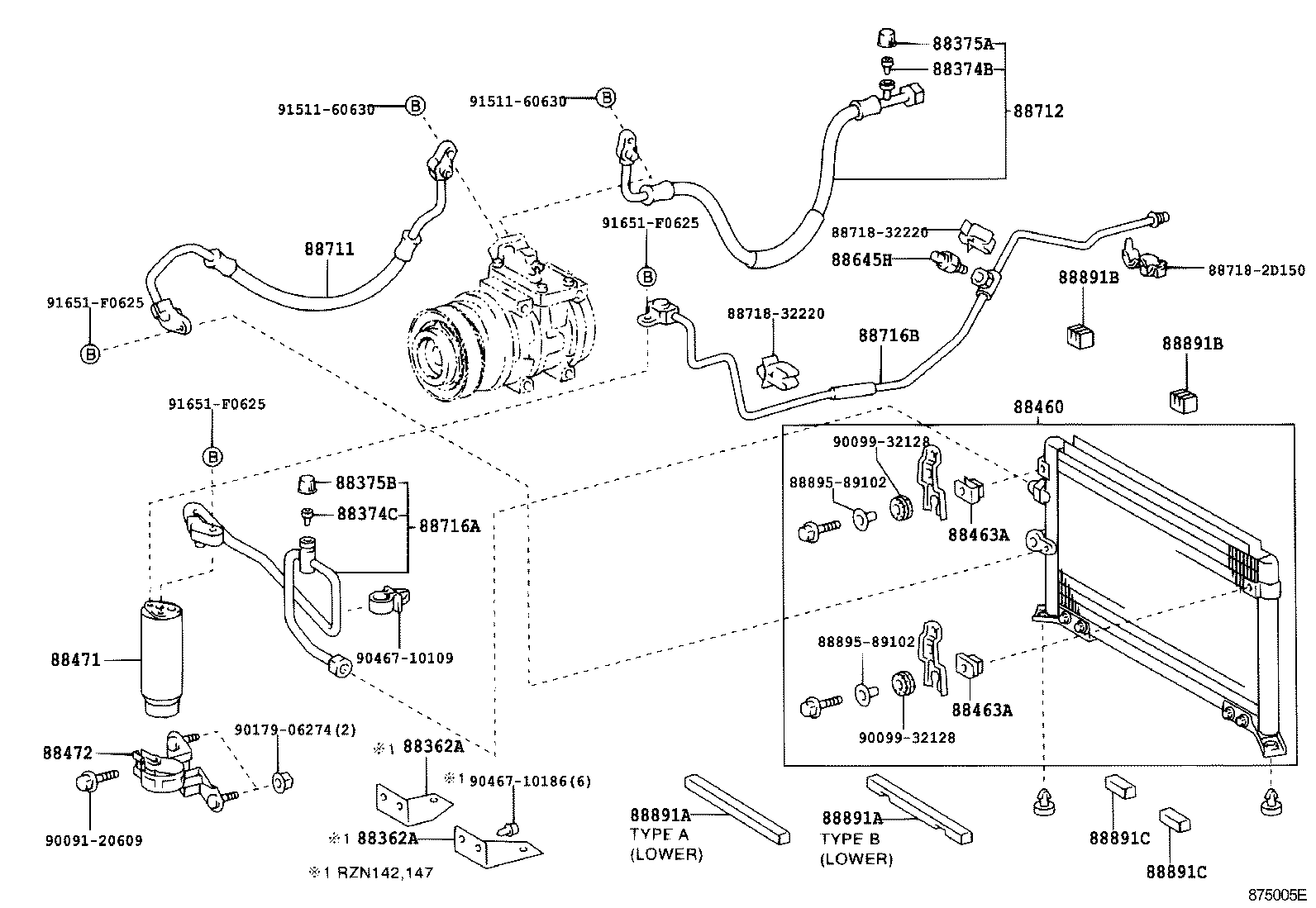

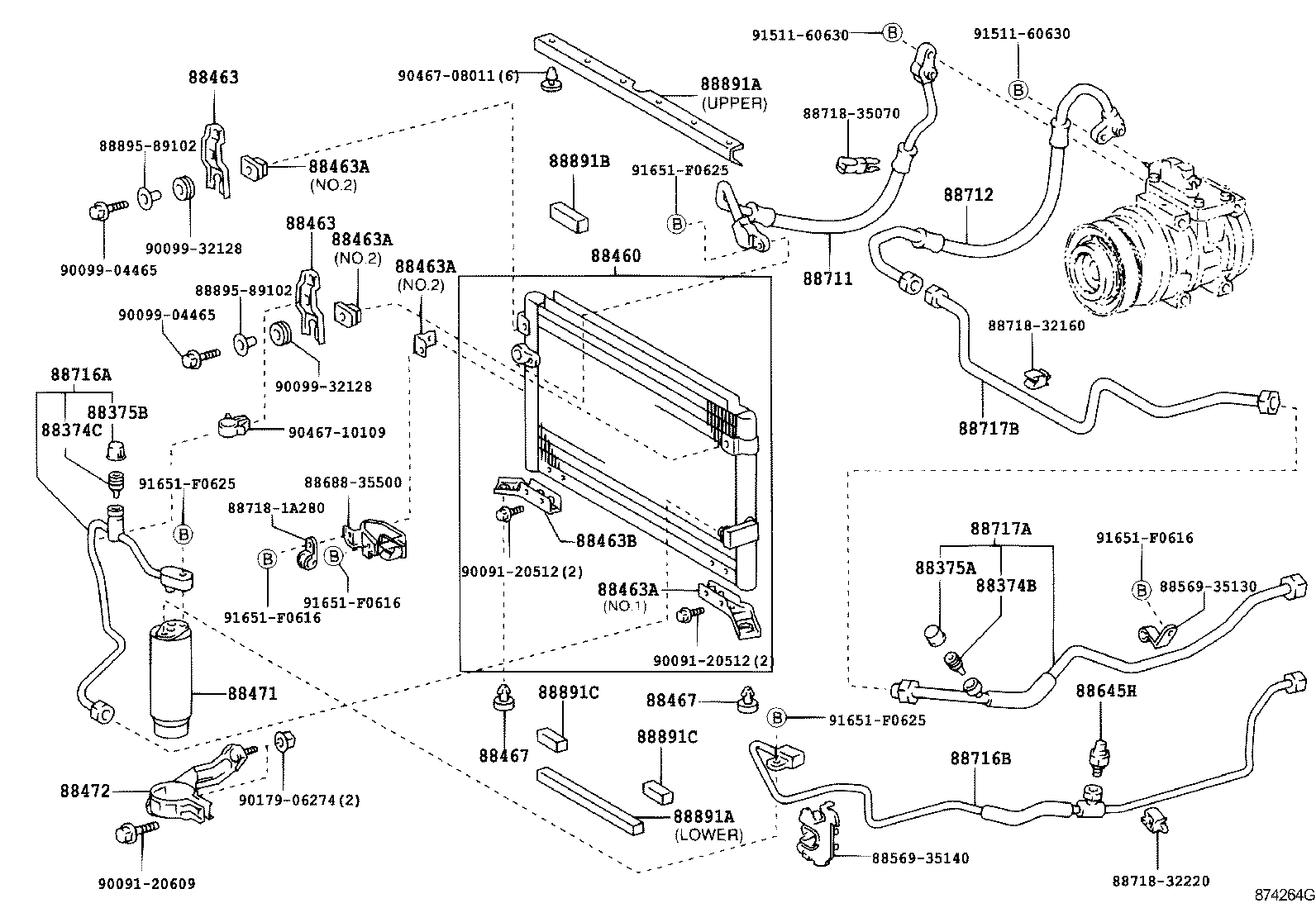

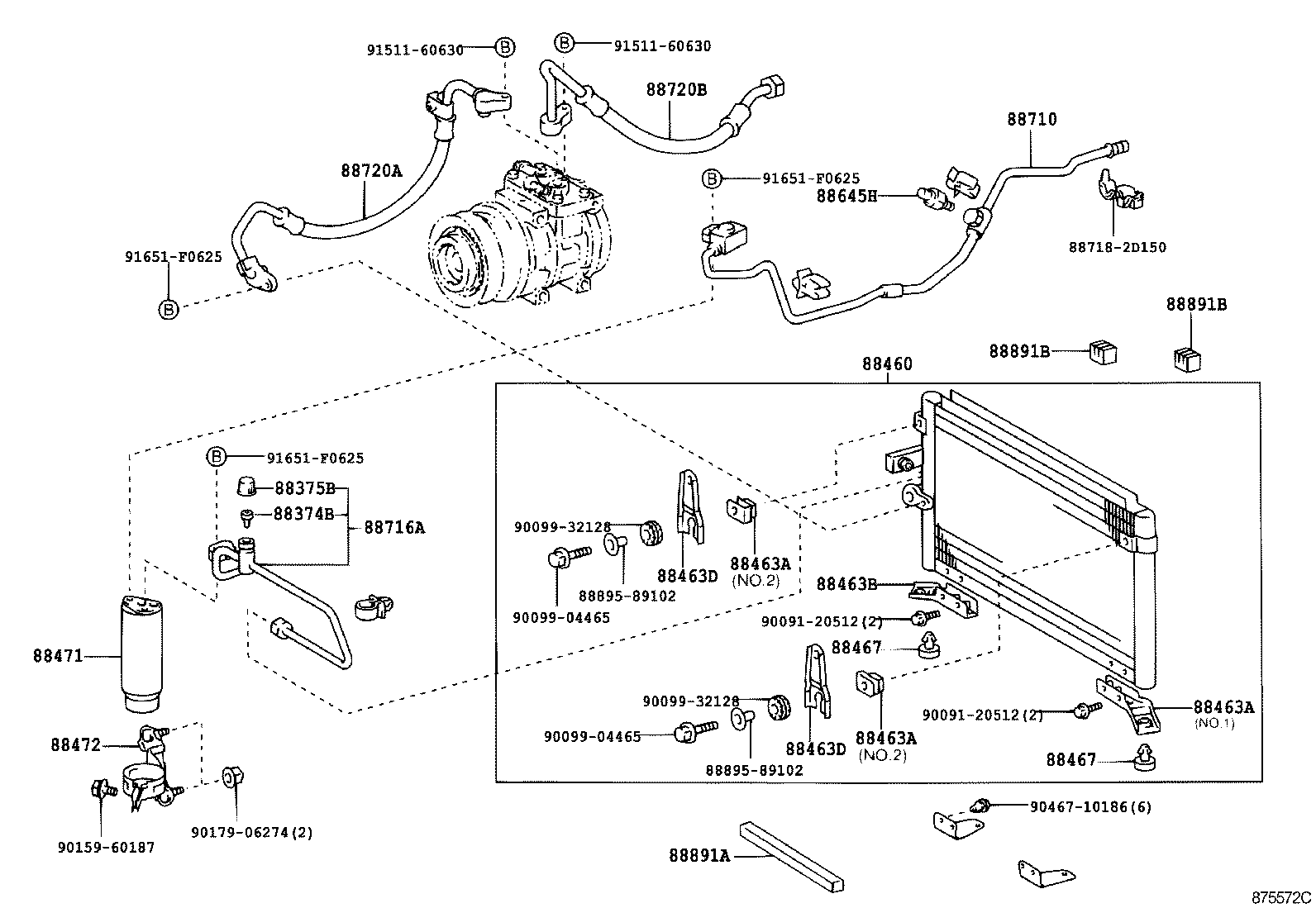

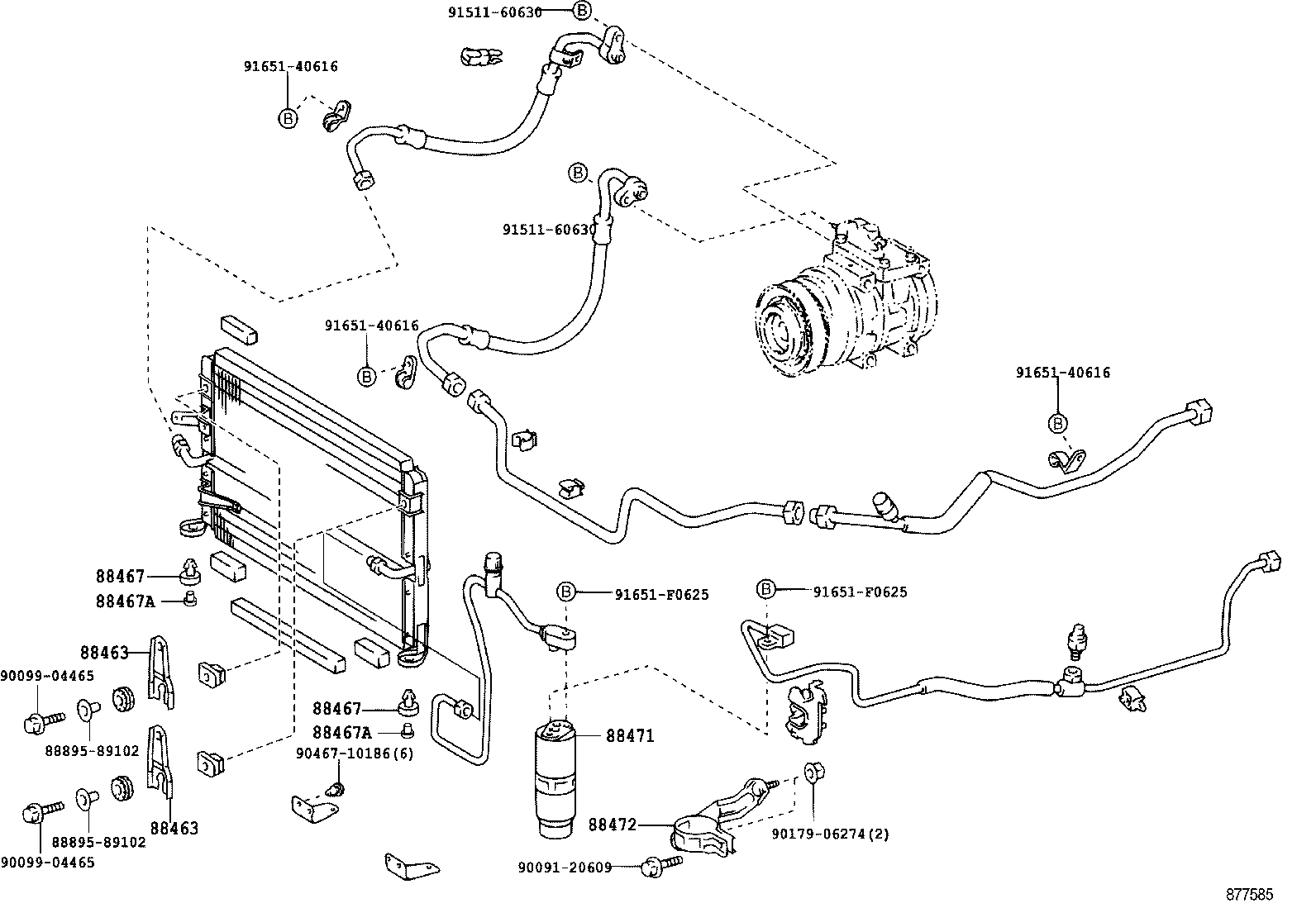

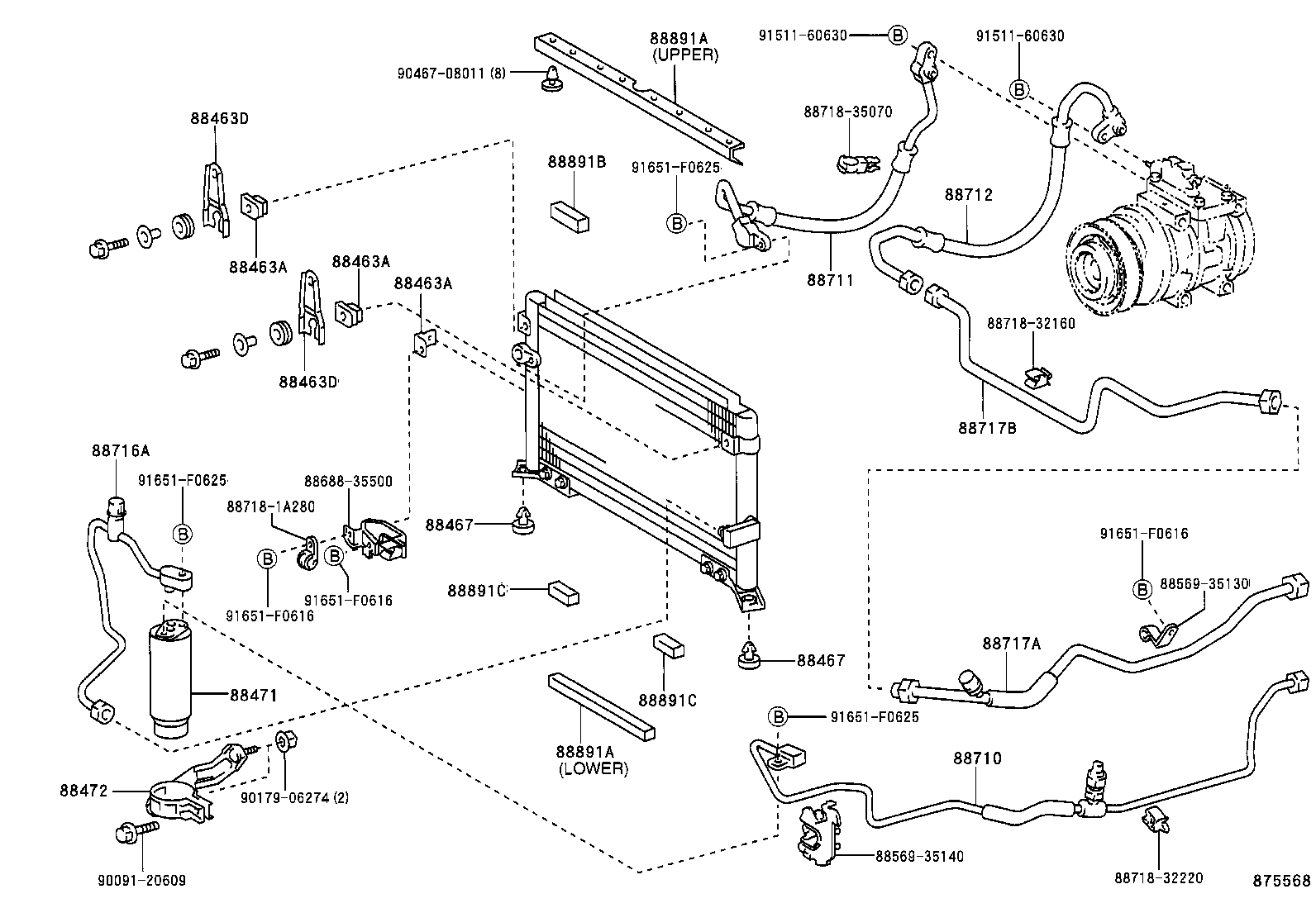

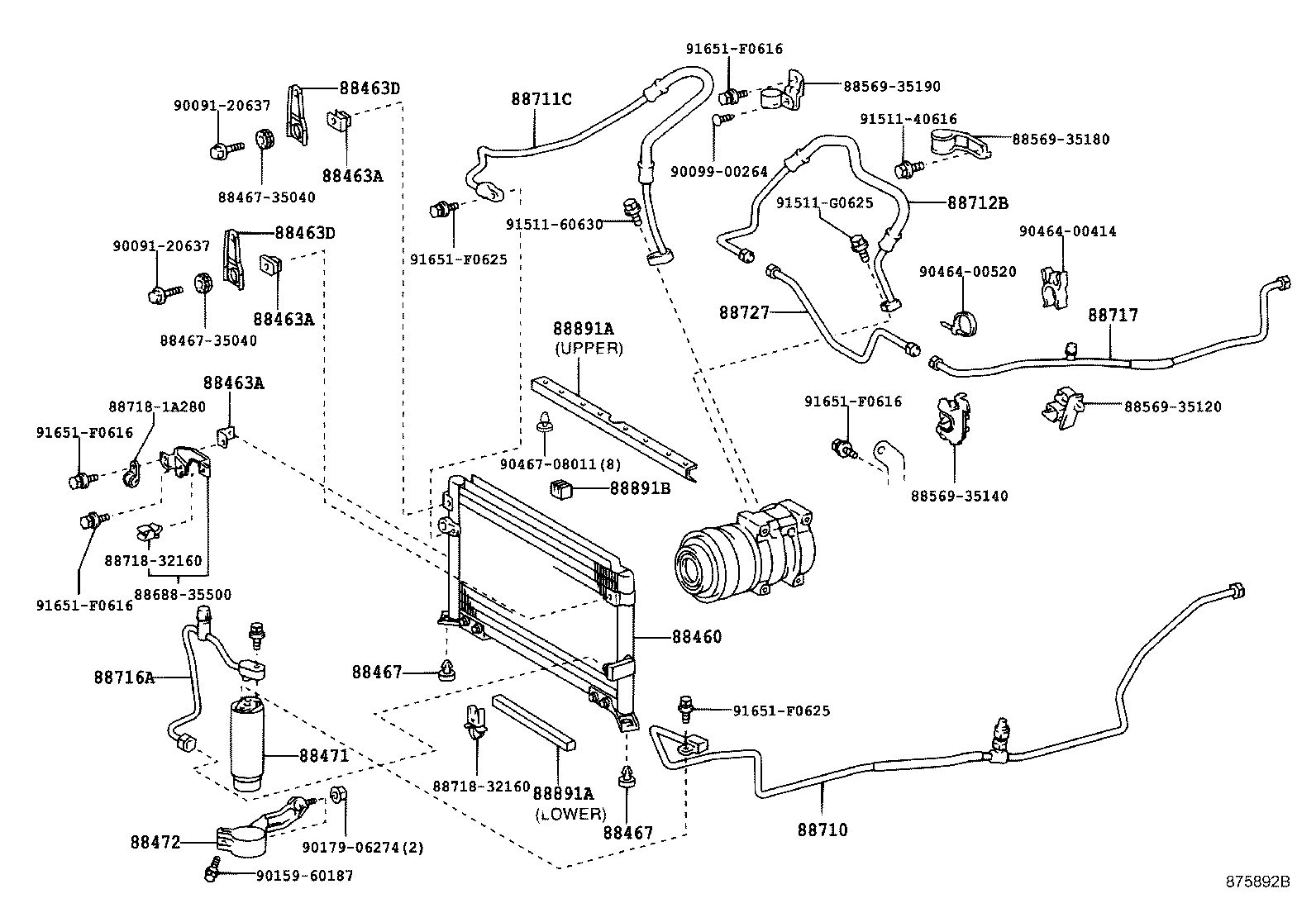

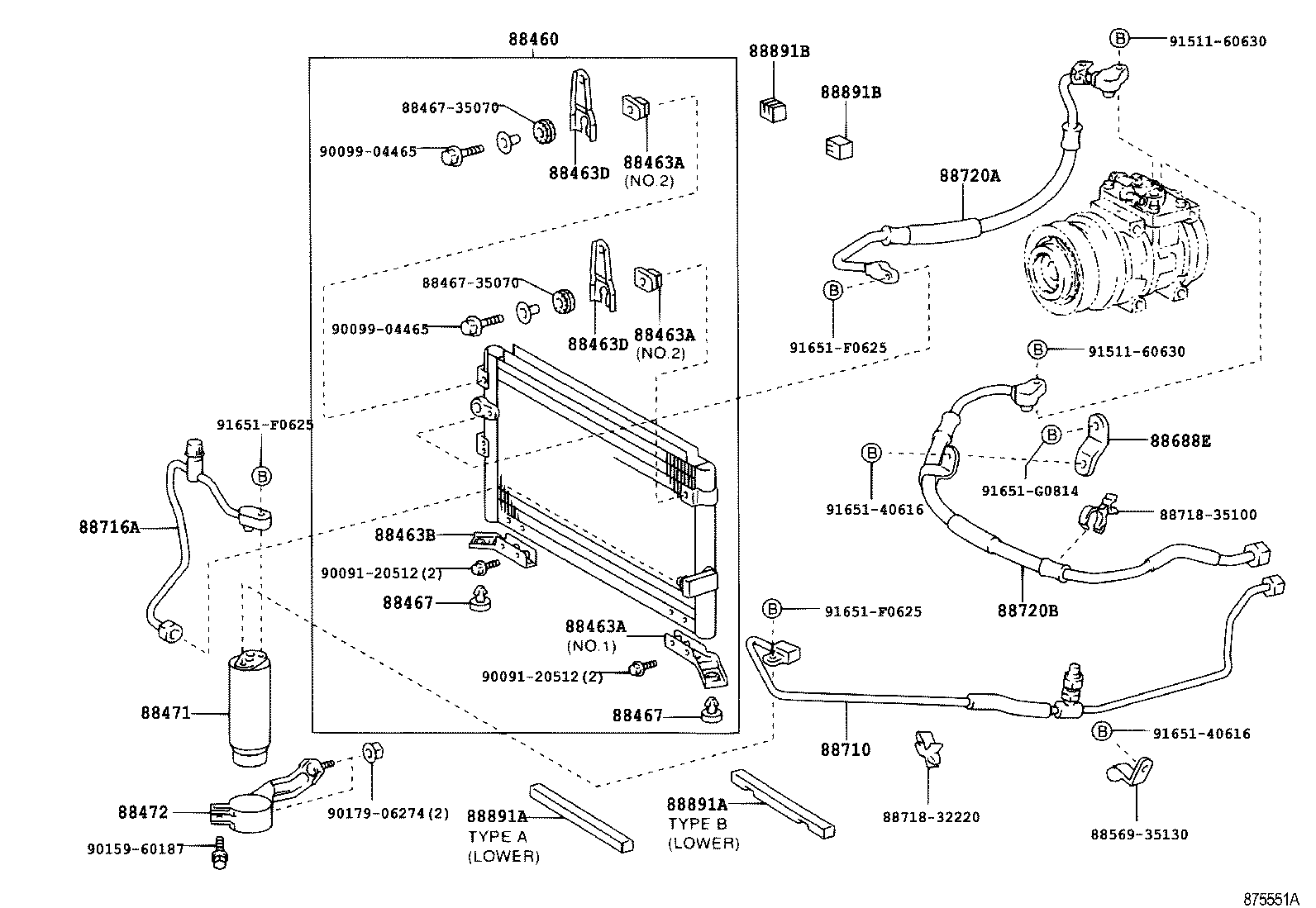

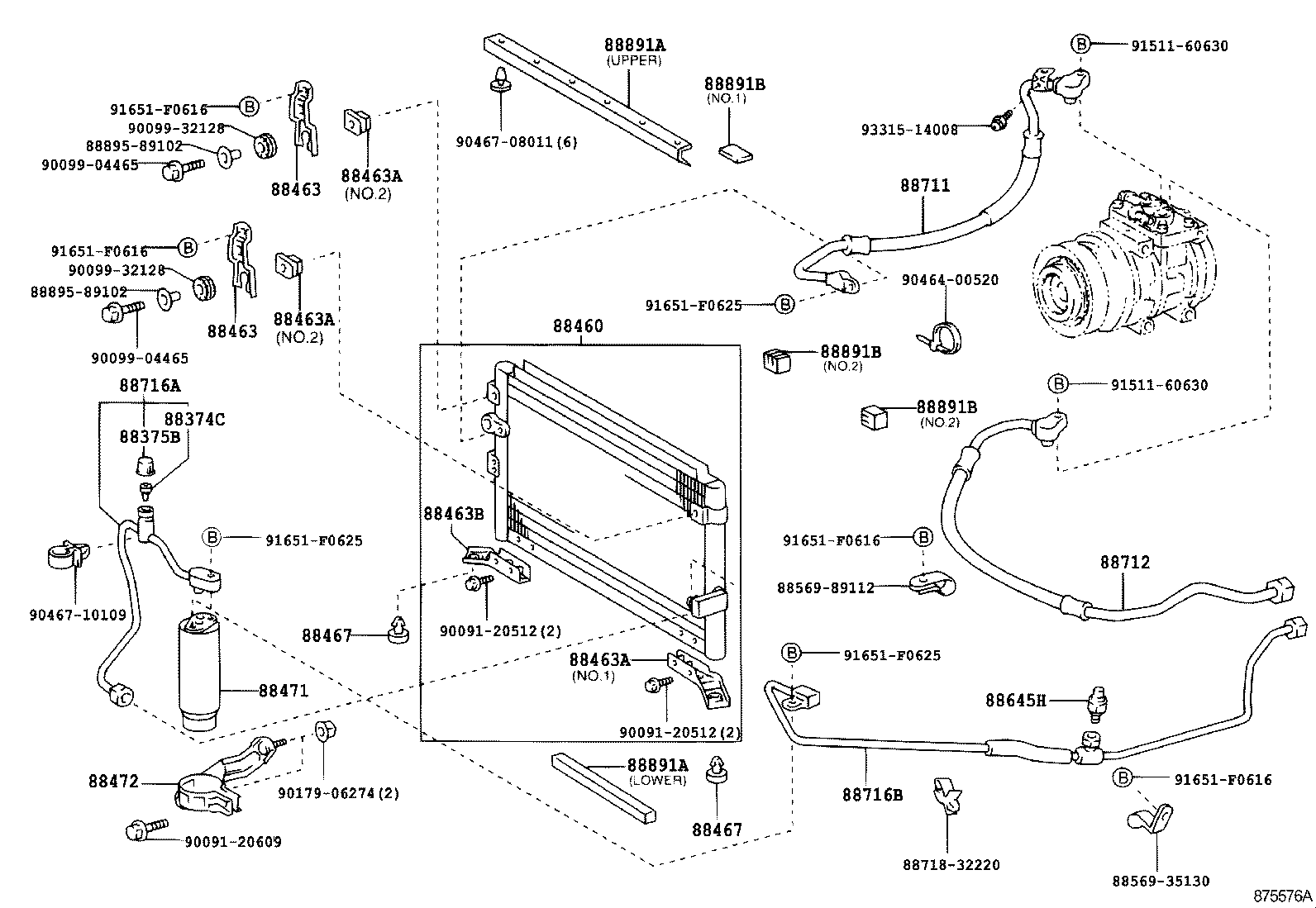

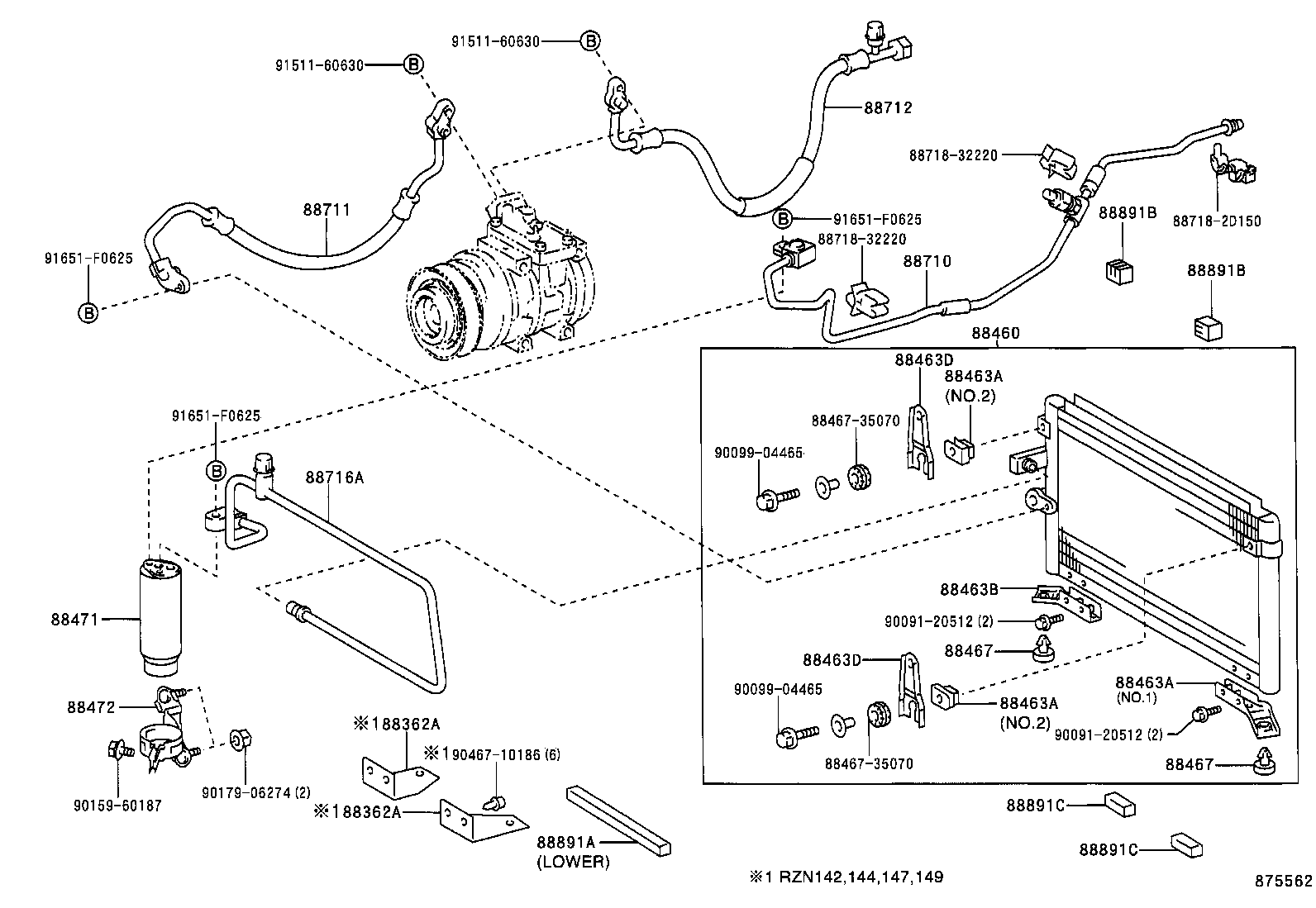

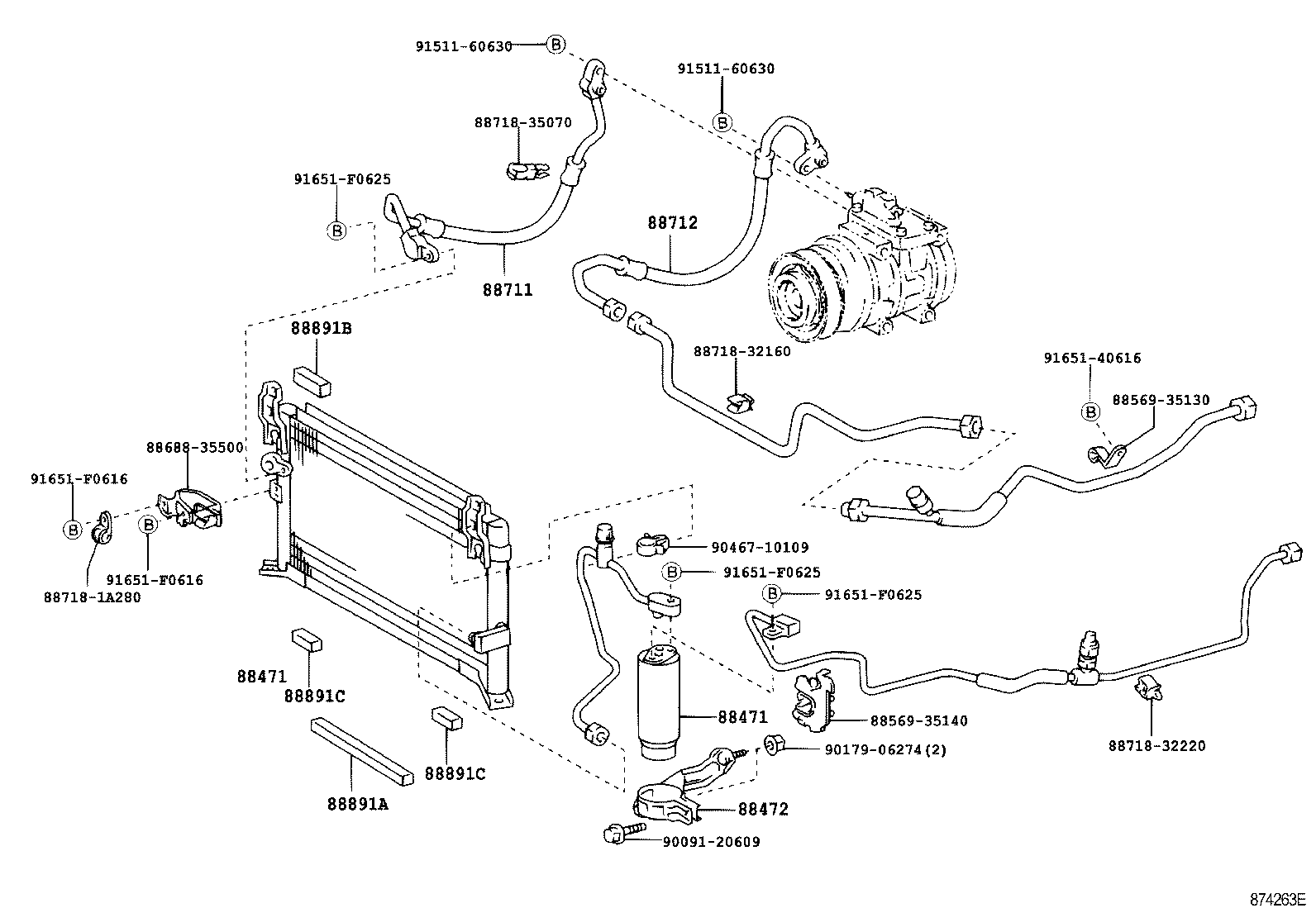

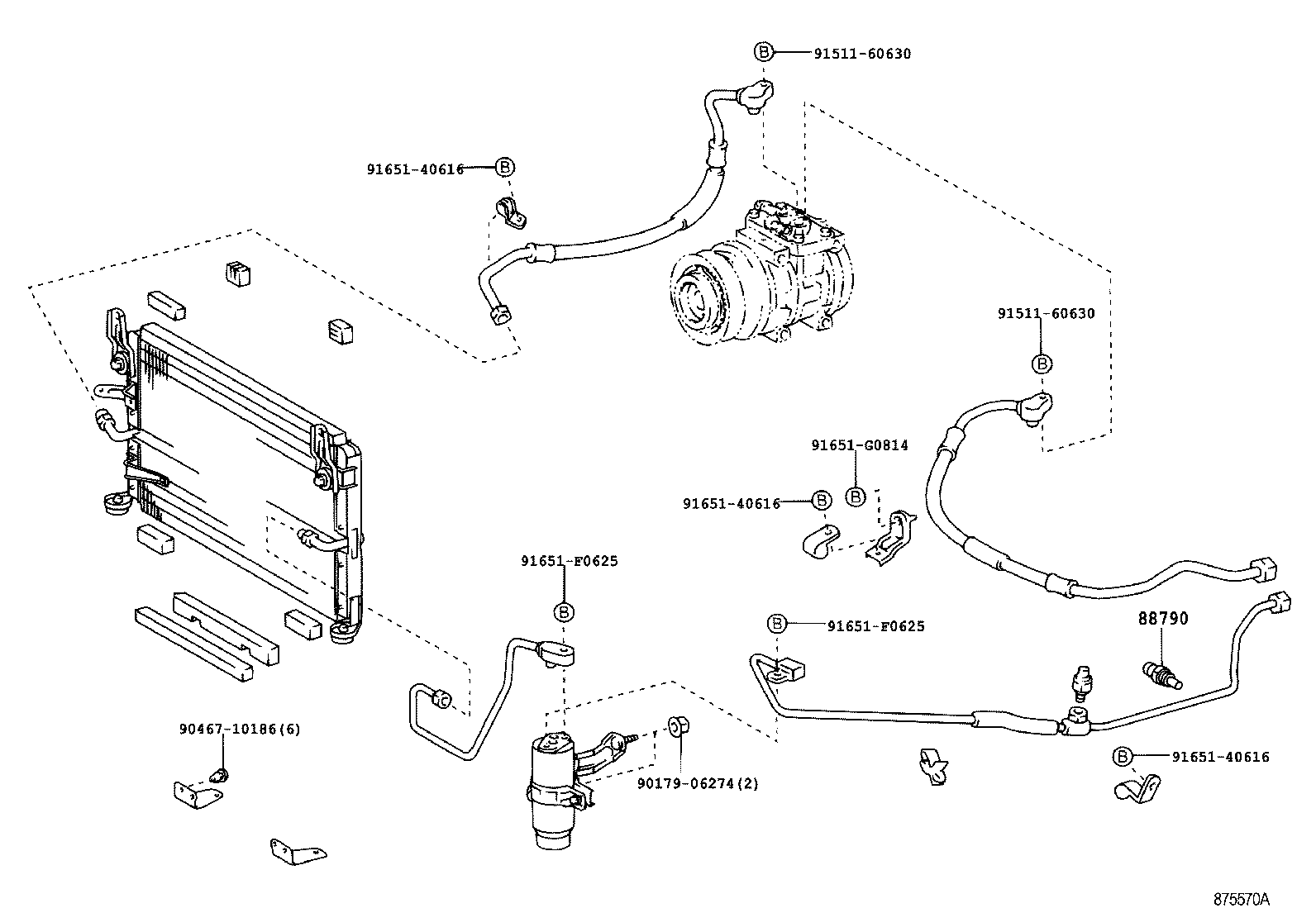

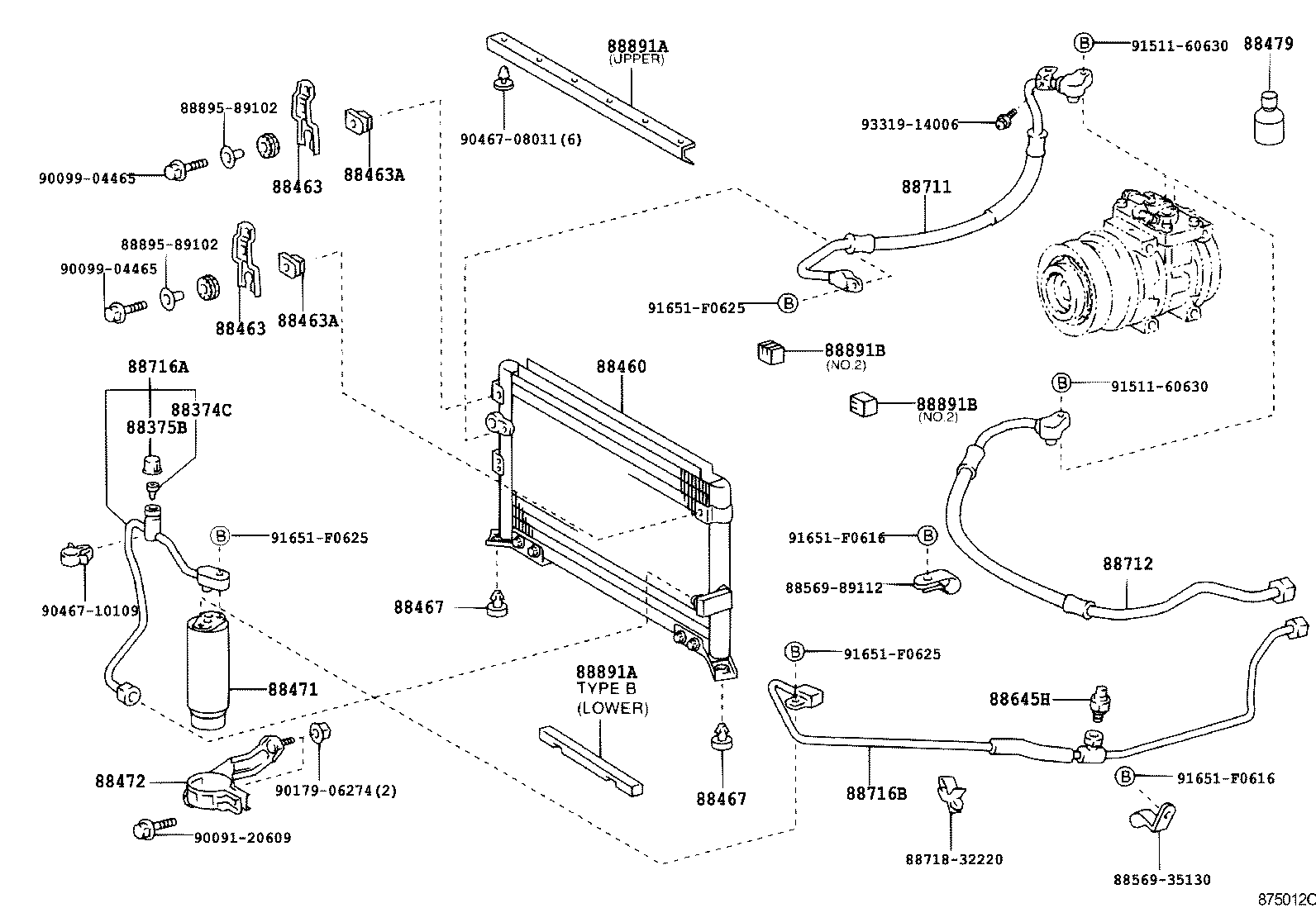

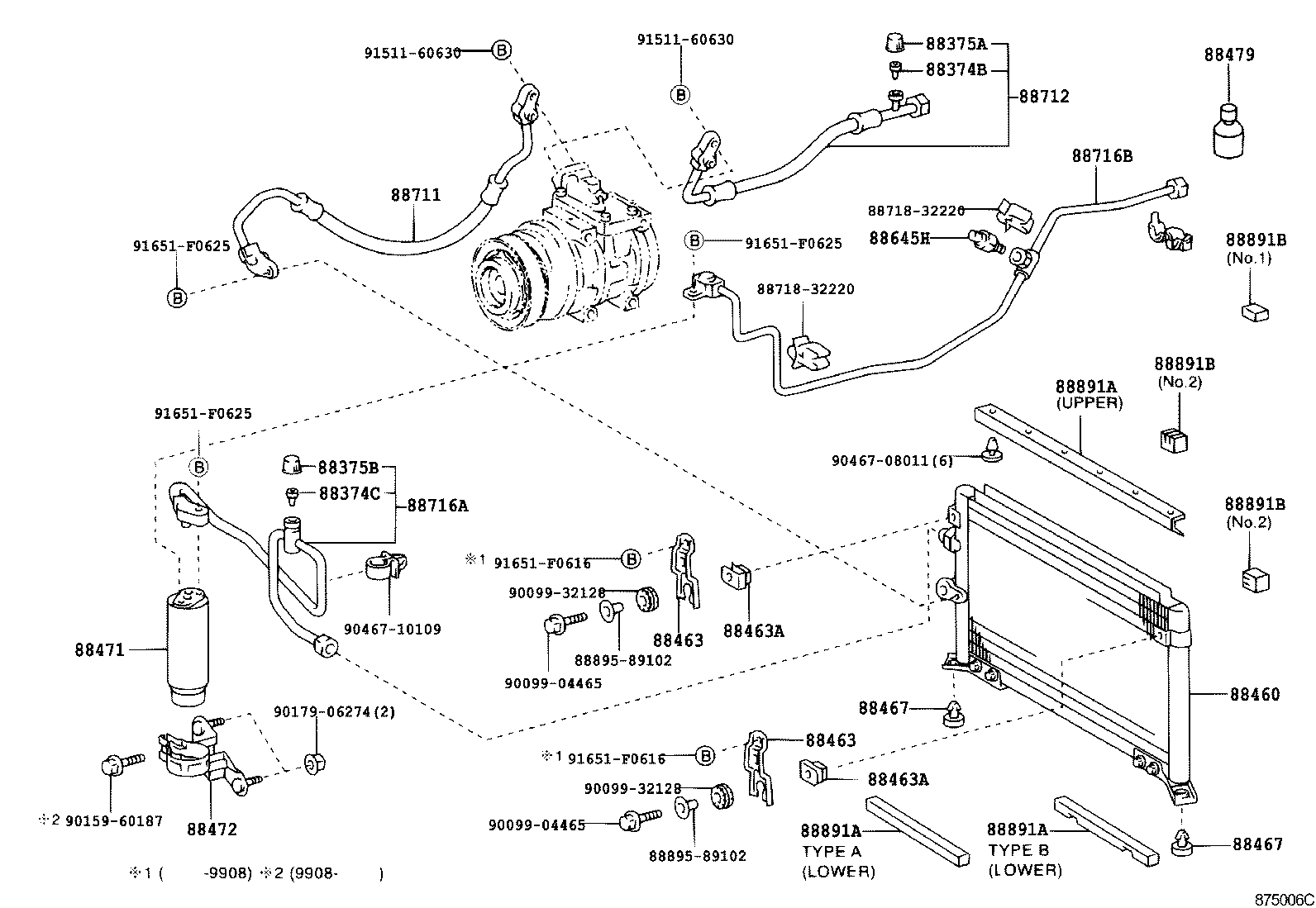

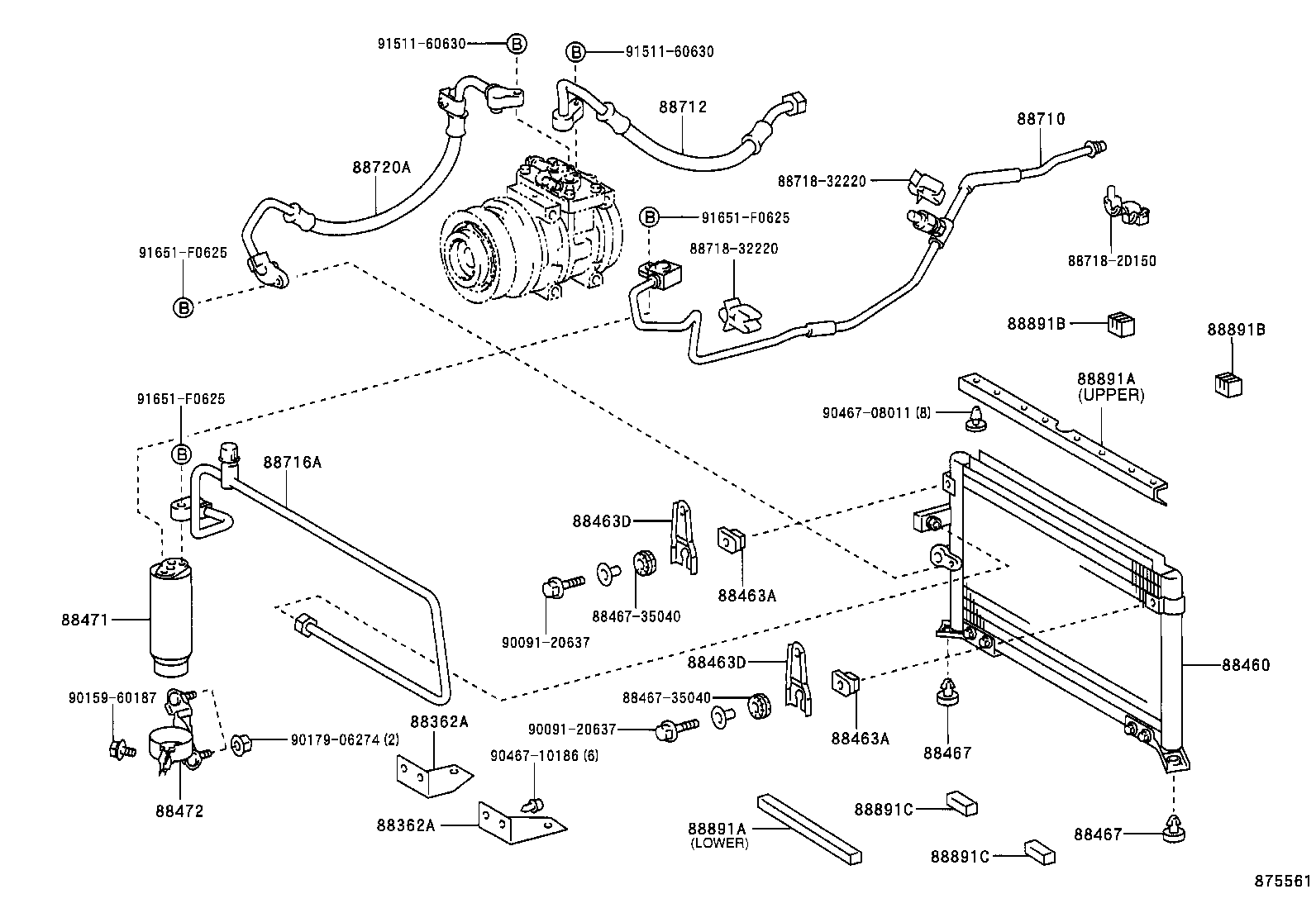

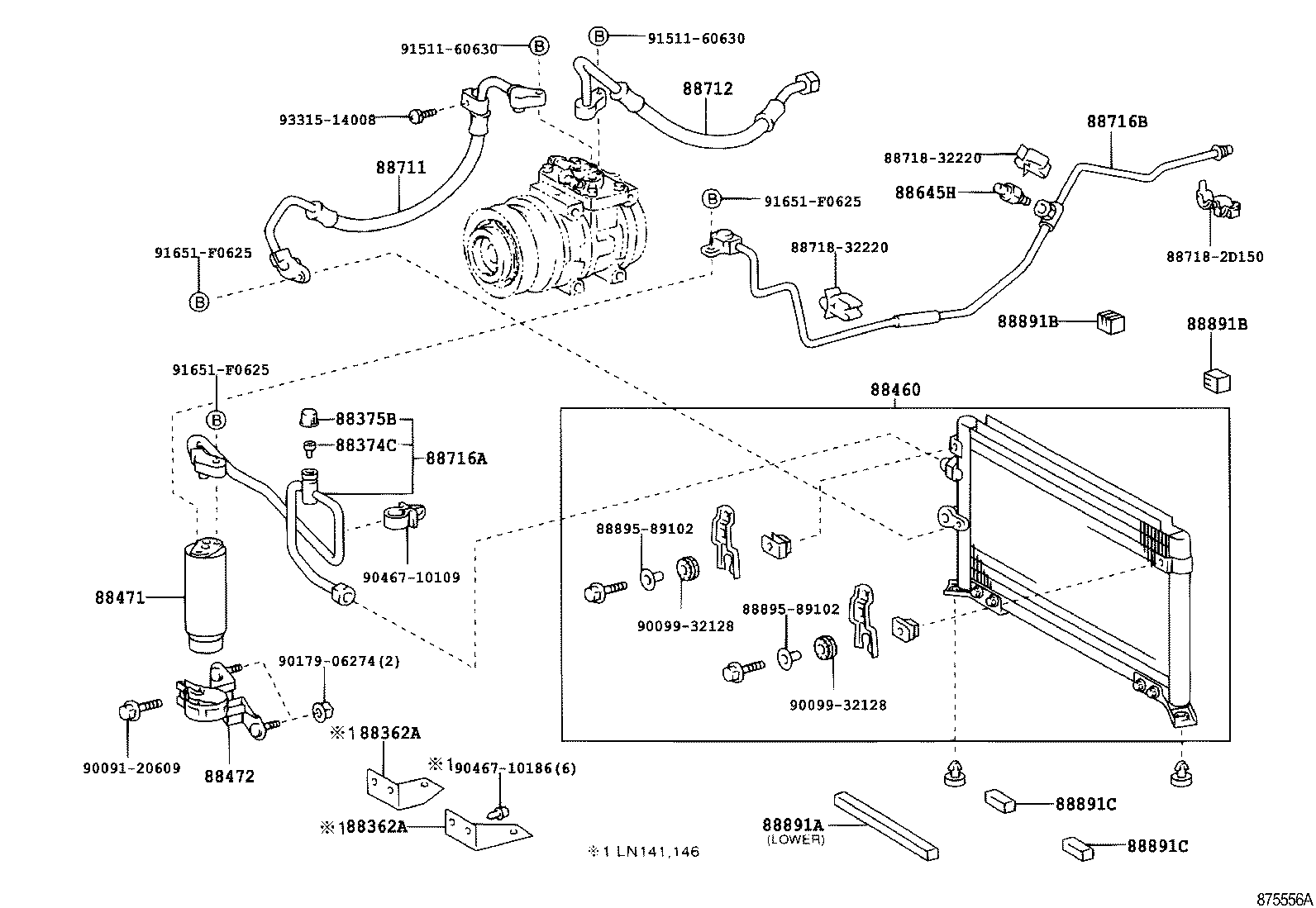

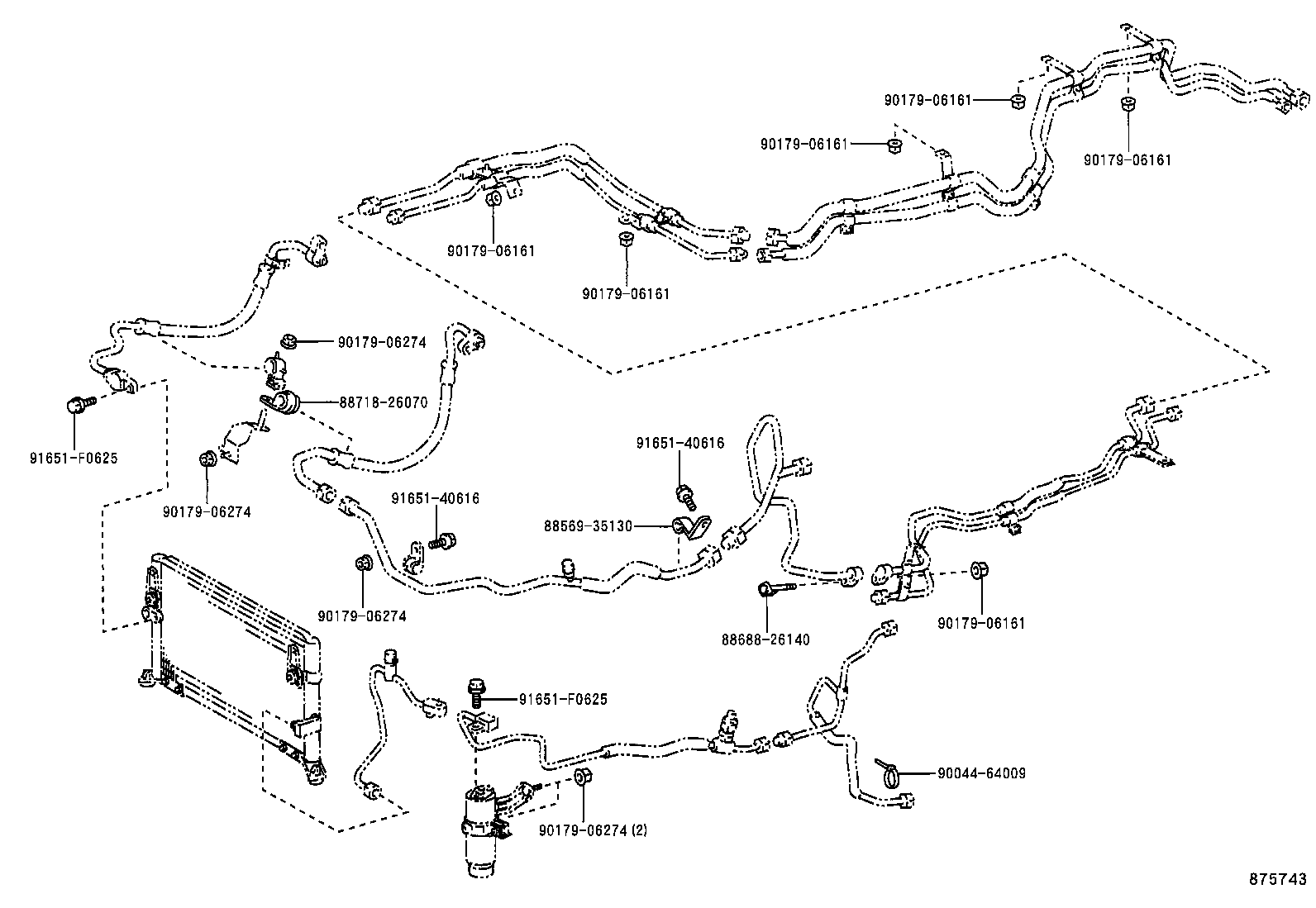

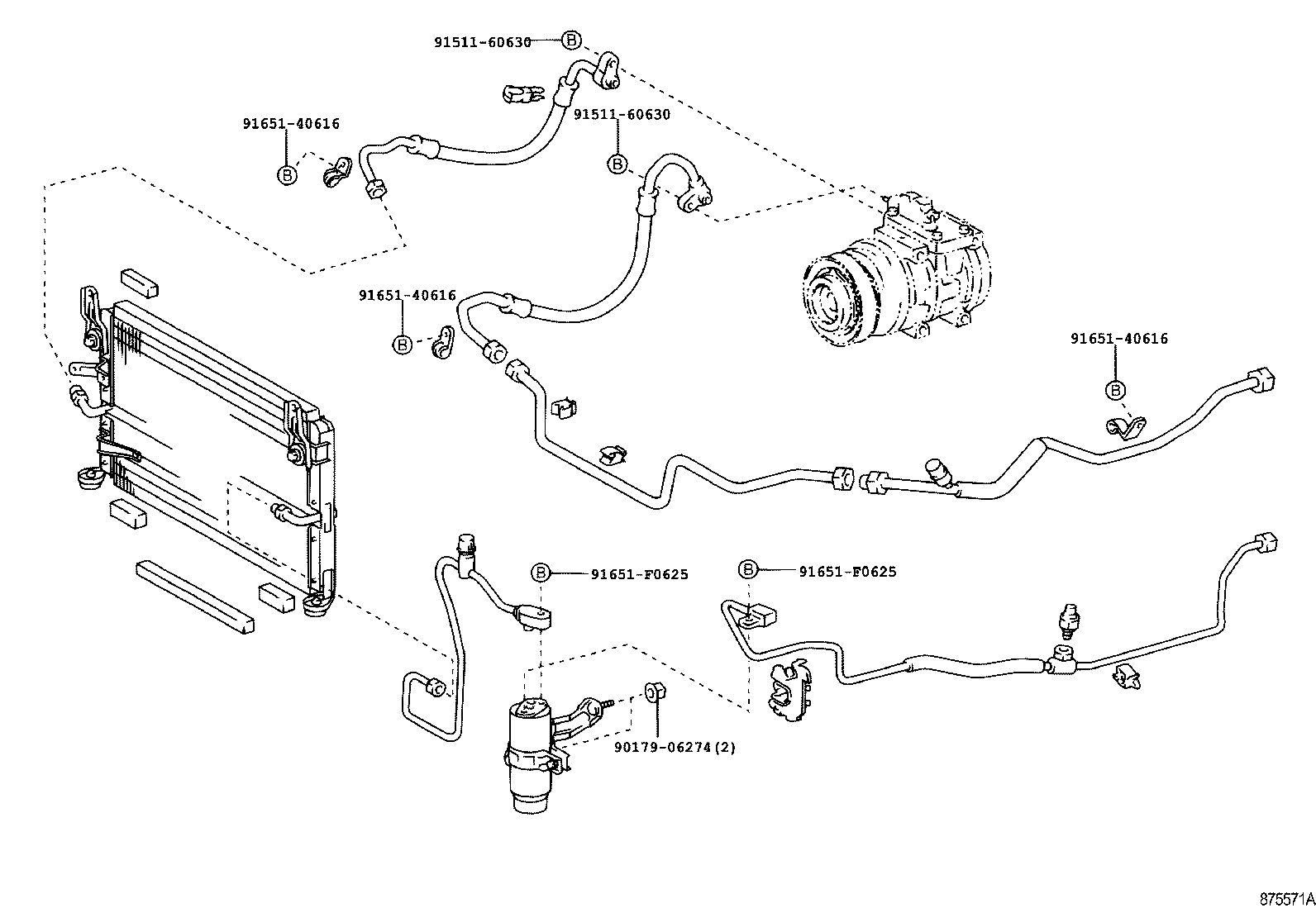

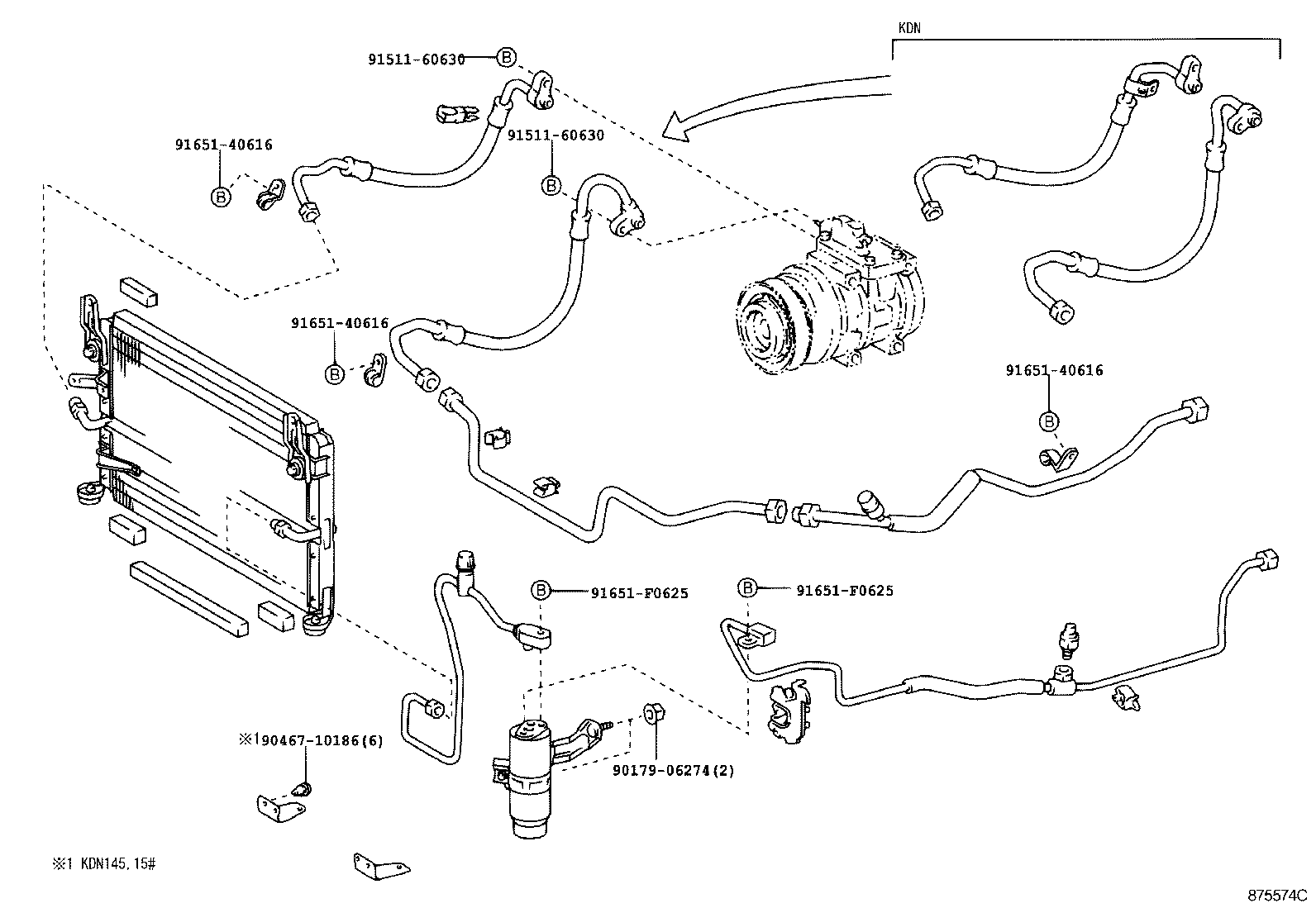

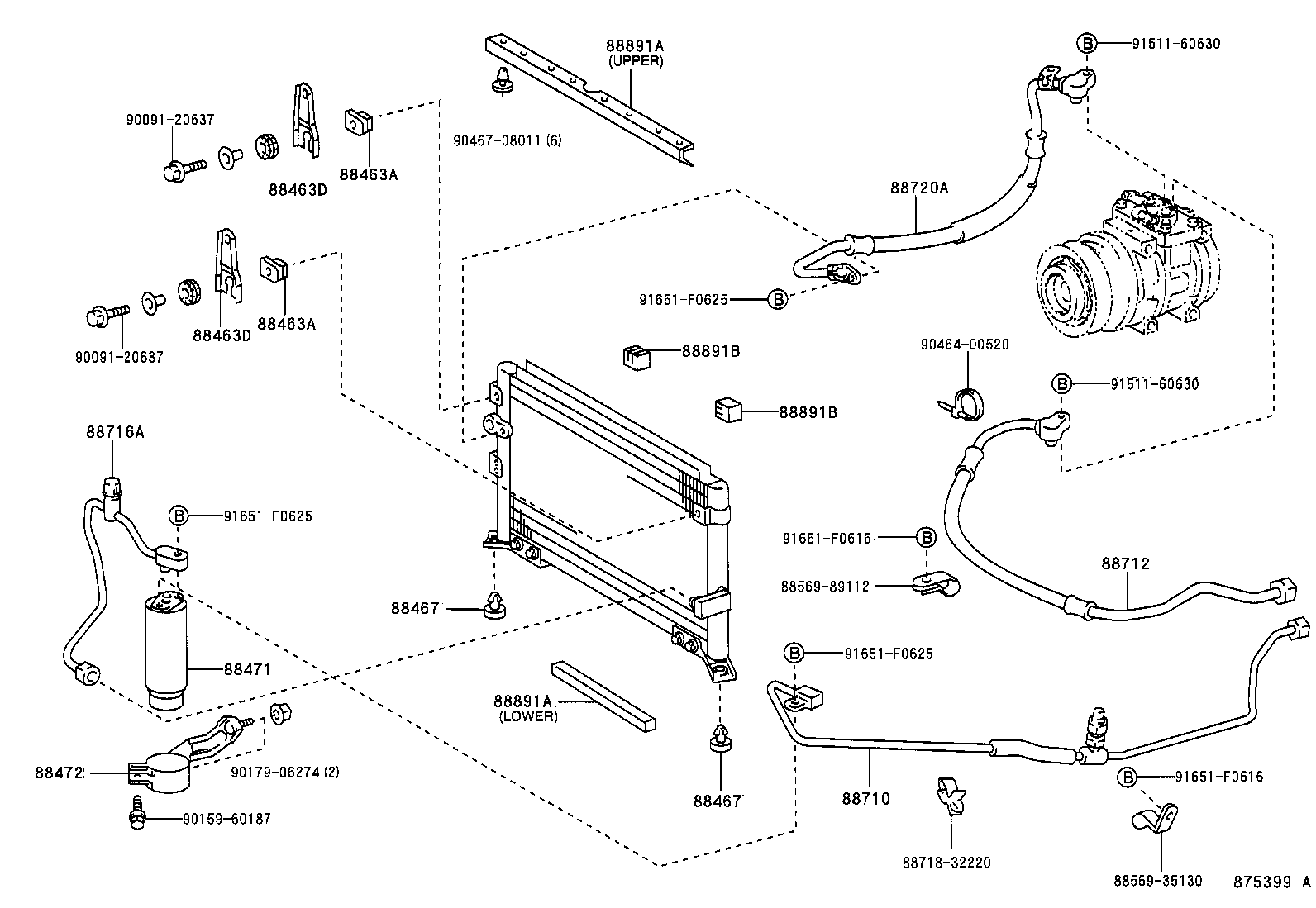

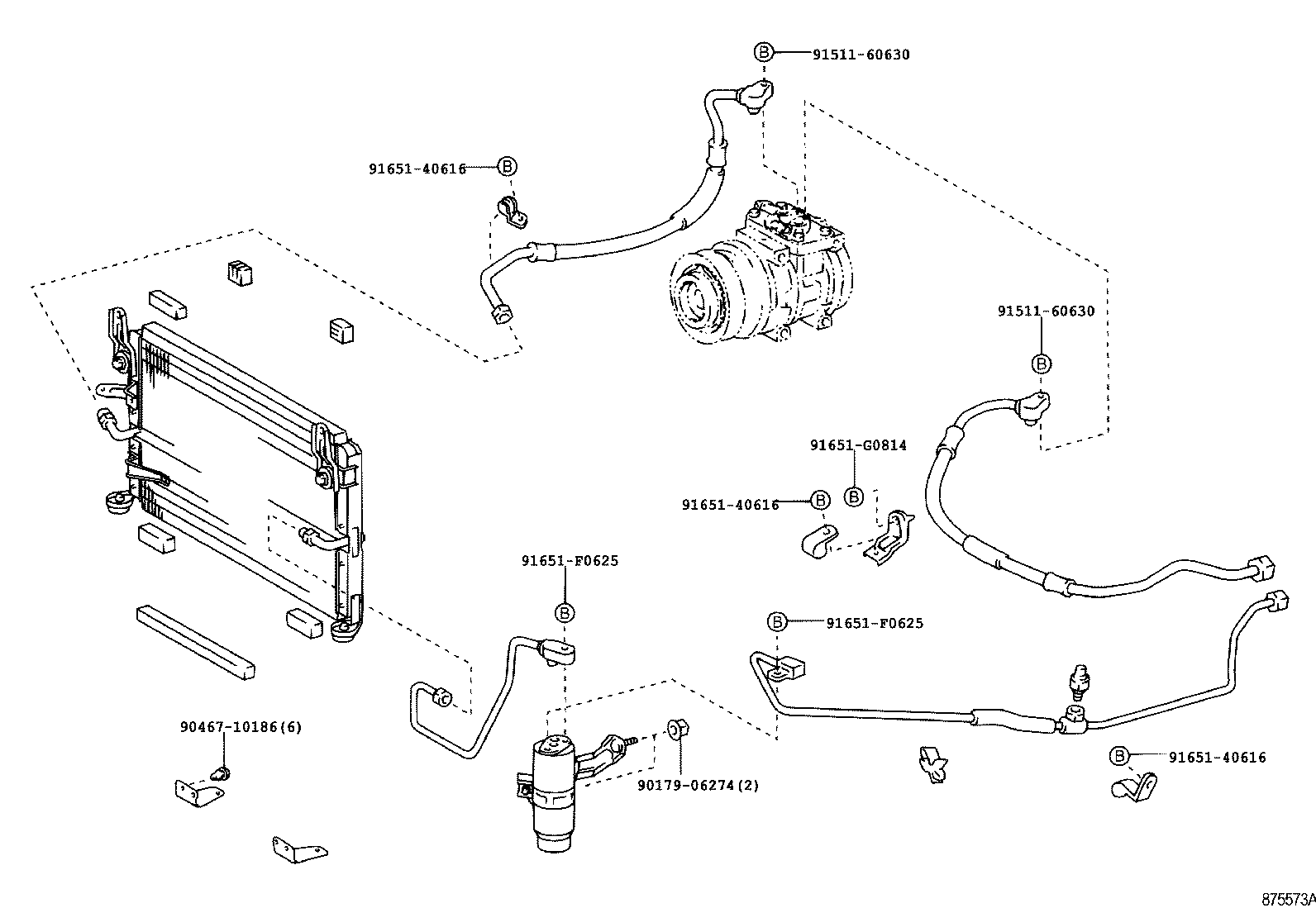

Figure 875009D 875009D 1997-08 → 2001-08 Figure 875011E 875011E 1997-08 → 2001-08 Figure 875011E 875011E 2001-08 → — Figure 875010C 875010C 1997-08 → 2001-08 Figure 875012C 875012C 1997-08 → 2001-08 Figure 875012C 875012C 2001-08 → — Figure 875005E 875005E 1997-08 → 2001-08 Figure 875005E 875005E 2001-08 → — Figure 875007E 875007E 1997-08 → 2001-08 Figure 875007E 875007E 2001-08 → — Figure 875006C 875006C 1997-08 → 2001-08 Figure 875006C 875006C 2001-08 → — Figure 875550 875550 2001-08 → — Figure 875551A 875551A 2001-08 → — Figure 875552A 875552A 2001-08 → — Figure 875553A 875553A 2001-08 → — Figure 875554A 875554A 2001-08 → — Figure 875555 875555 2001-08 → — Figure 875556A 875556A 1997-08 → 2001-08 Figure 875557A 875557A 1997-08 → 2001-08 Figure 875558 875558 2000-08 → 2001-08 Figure 875559 875559 2000-08 → 2001-08 Figure 875560 875560 2001-08 → — Figure 875561 875561 2001-08 → — Figure 875562 875562 2001-08 → — Figure 875563 875563 2001-08 → — Figure 875564A 875564A 1997-08 → 2001-09 Figure 875565A 875565A 1997-08 → 2001-09 Figure 874264G 874264G 1999-09 → 2001-09 Figure 875566 875566 2001-09 → — Figure 875567 875567 2001-09 → — Figure 875568 875568 2001-09 → — Figure 875892B 875892B 2002-03 → — Figure 875569A 875569A 1998-06 → 2001-09 Figure 875570A 875570A 1998-06 → 2001-09 Figure 875571A 875571A 2000-09 → 2001-09 Figure 875572C 875572C 2001-09 → — Figure 875573A 875573A 2001-09 → — Figure 875574C 875574C 2001-09 → — Figure 875743 875743 2002-08 → — Figure 875575B 875575B 1998-07 → 2002-03 Figure 875576A 875576A 1998-07 → 2002-03 Figure 875577B 875577B 1998-07 → 2002-03 Figure 875578A 875578A 1998-07 → 2002-03 Figure 874263E 874263E 2000-07 → 2002-03 Figure 875399A 875399A 2002-03 → — Figure 875396C 875396C 2002-03 → — Figure 875397A 875397A 2002-03 → — Figure 875400D 875400D 2002-03 → — Figure 875587A 875587A 2002-06 → — Figure 877585 877585 2003-03 → — Figure 875744B 875744B 2002-09 → — Figure 870233A 870233A 1997-08 → —

Part groups

PNCDescription
88362A Plate,Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463D Bracket, Cooler Condenser, NO.5
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711C Hose, Cooler Refrigerant Discharge, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88727 Tube, Suction, NO.2
88790 Valve Assy, Magnet
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
