Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

13 part groups · 4 illustrations

Illustrations

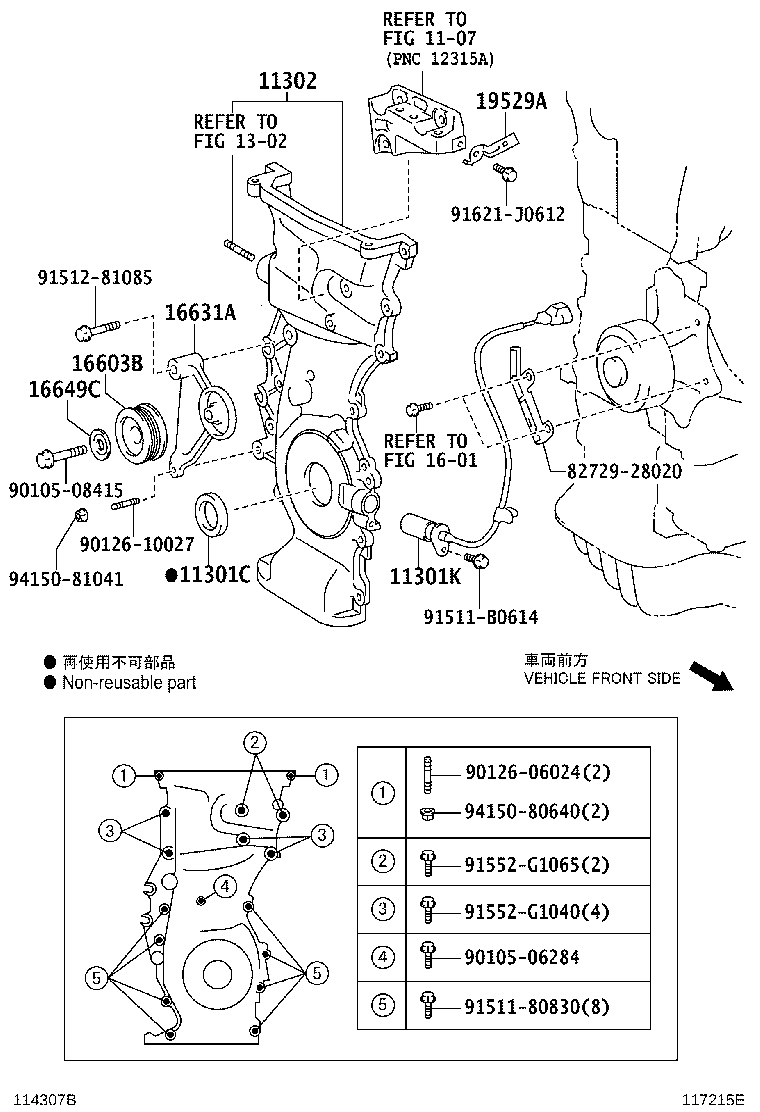

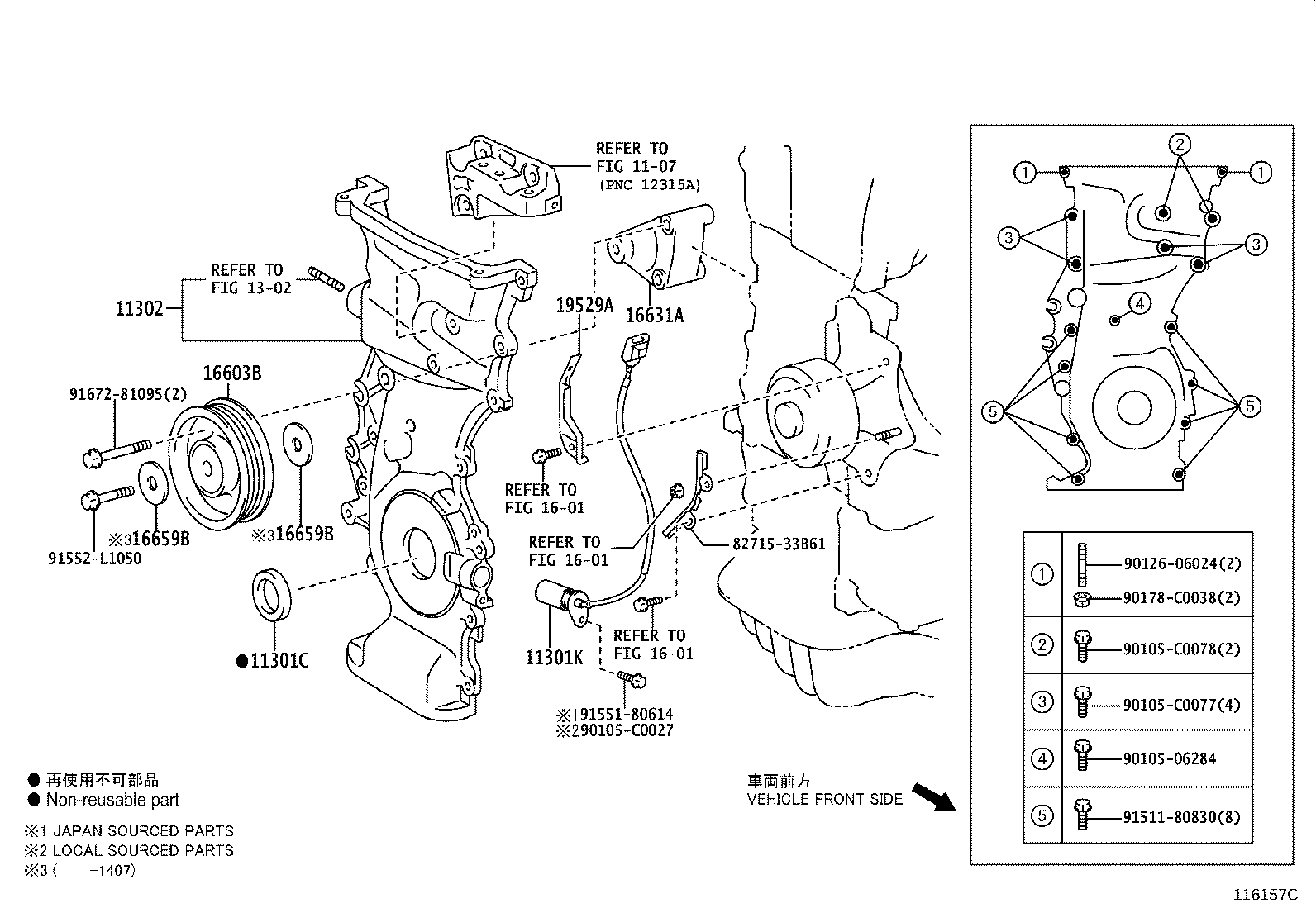

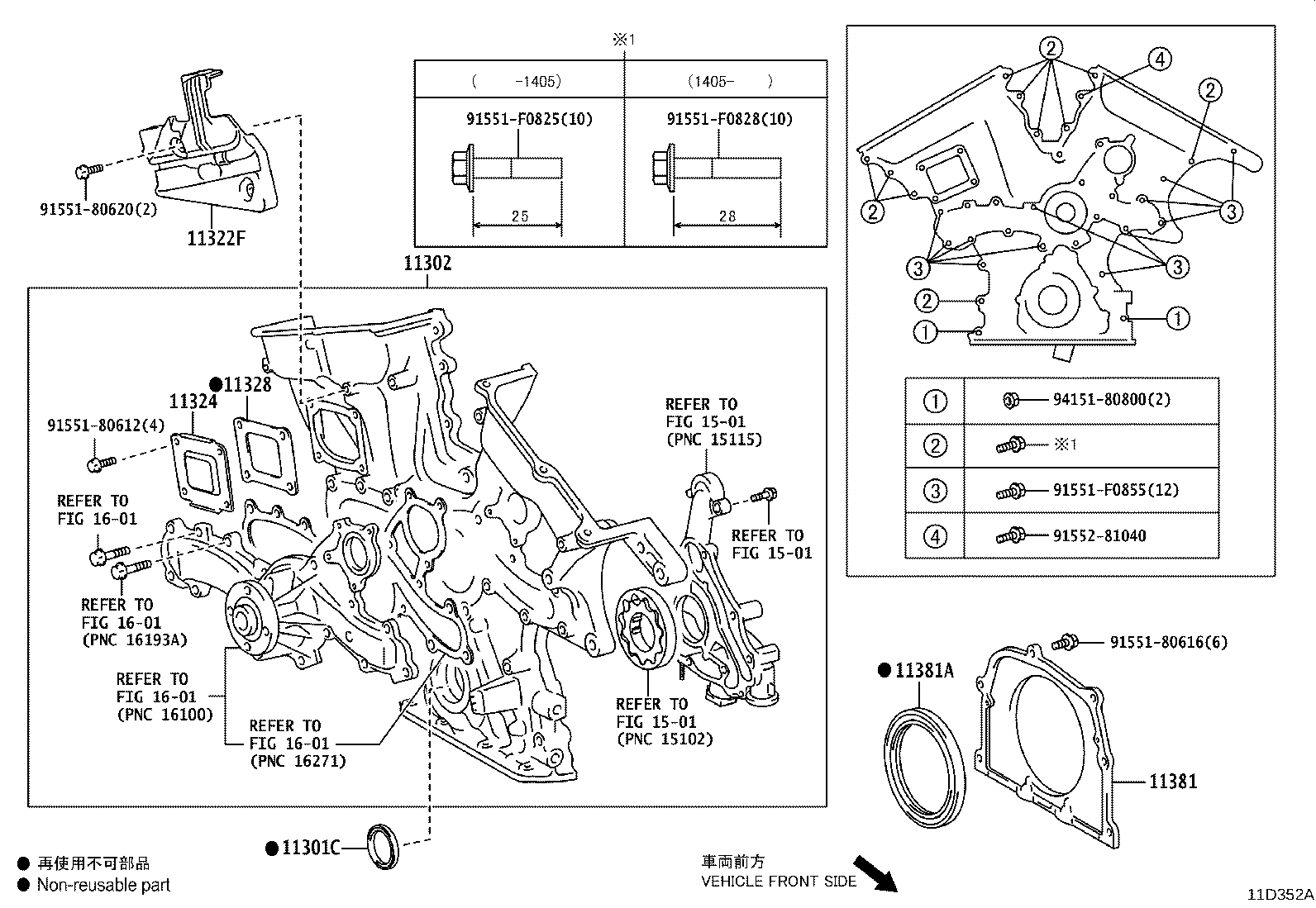

Figure 115391F 115391F 2009-06 → — Figure 116157C 116157C 2009-06 → — Figure 117215E 117215E 2011-12 → — Figure 11D352A 11D352A 2008-04 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
16603B Pulley Sub-assy, Idler
16631A Bracket, Idler Pulley
16649C Plate, Idler Pulley Cover
16659B Plate, Idler Pulley Cover, NO.2
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
