Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

27 part groups · 7 illustrations

Illustrations

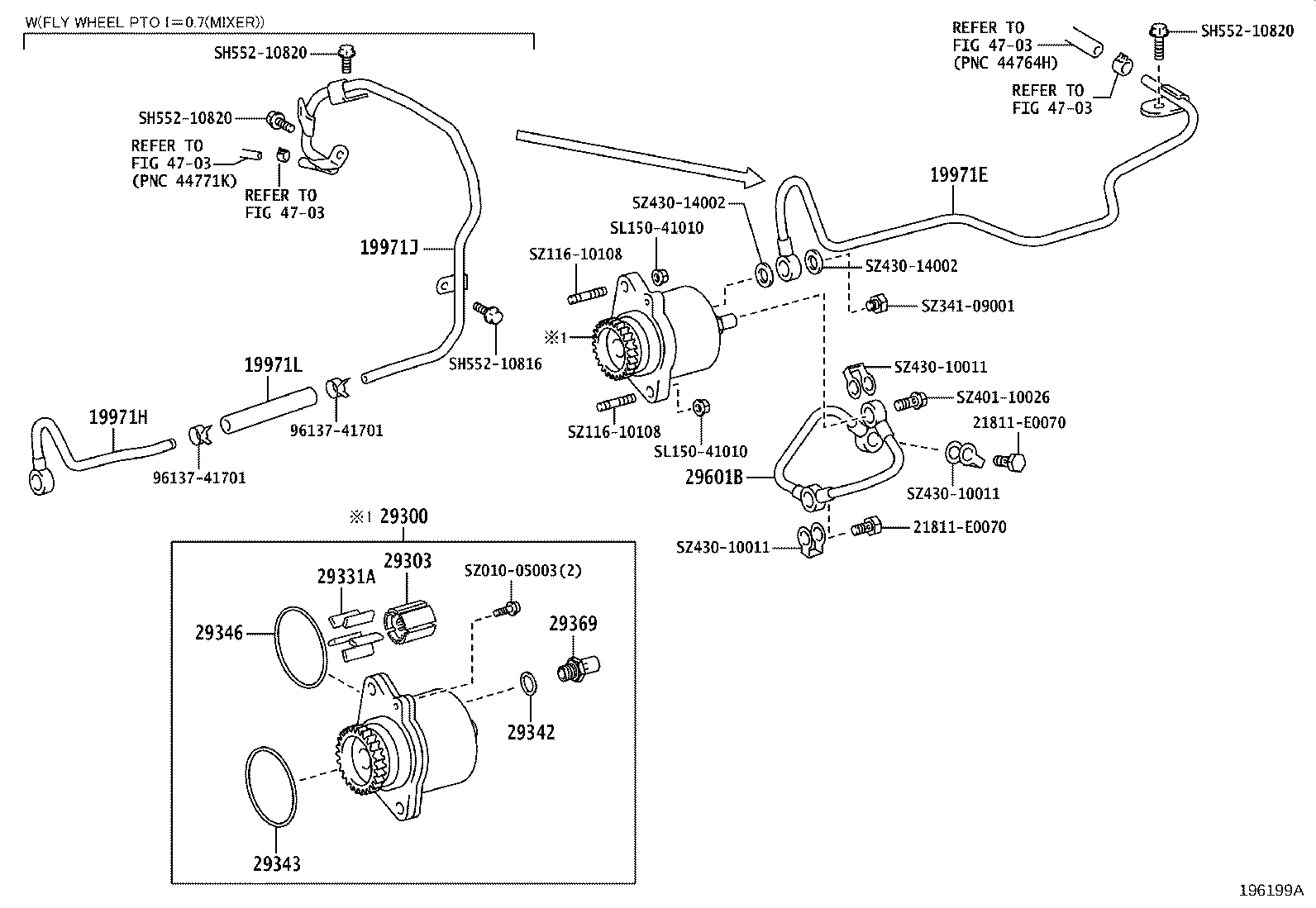

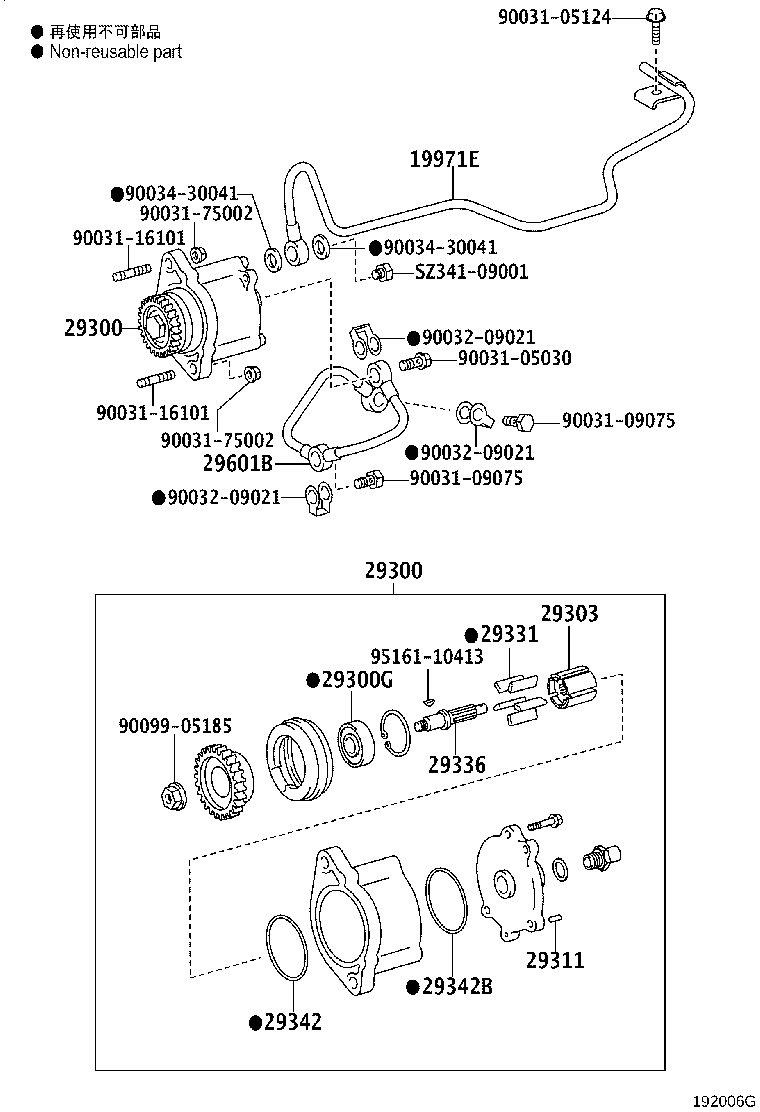

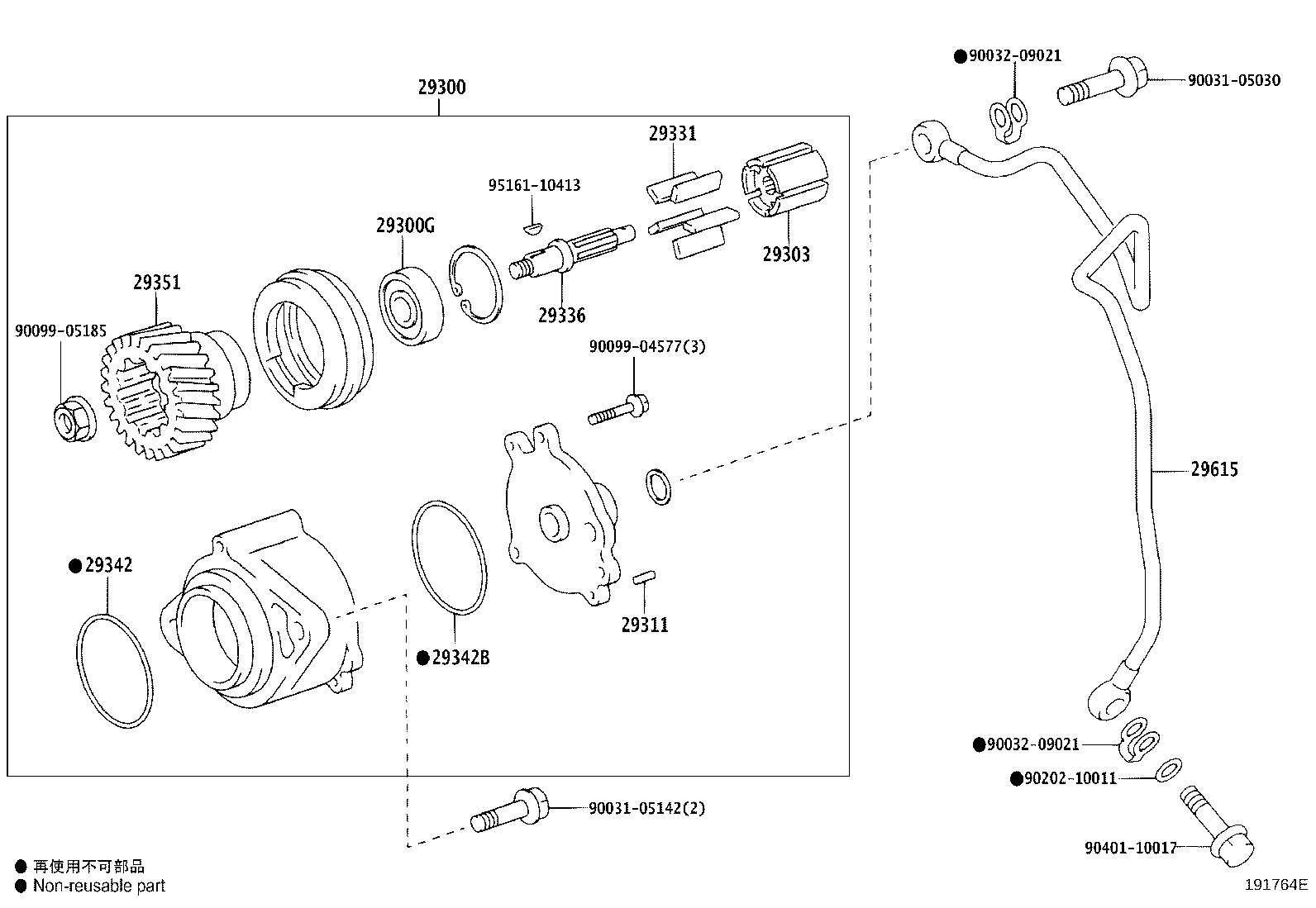

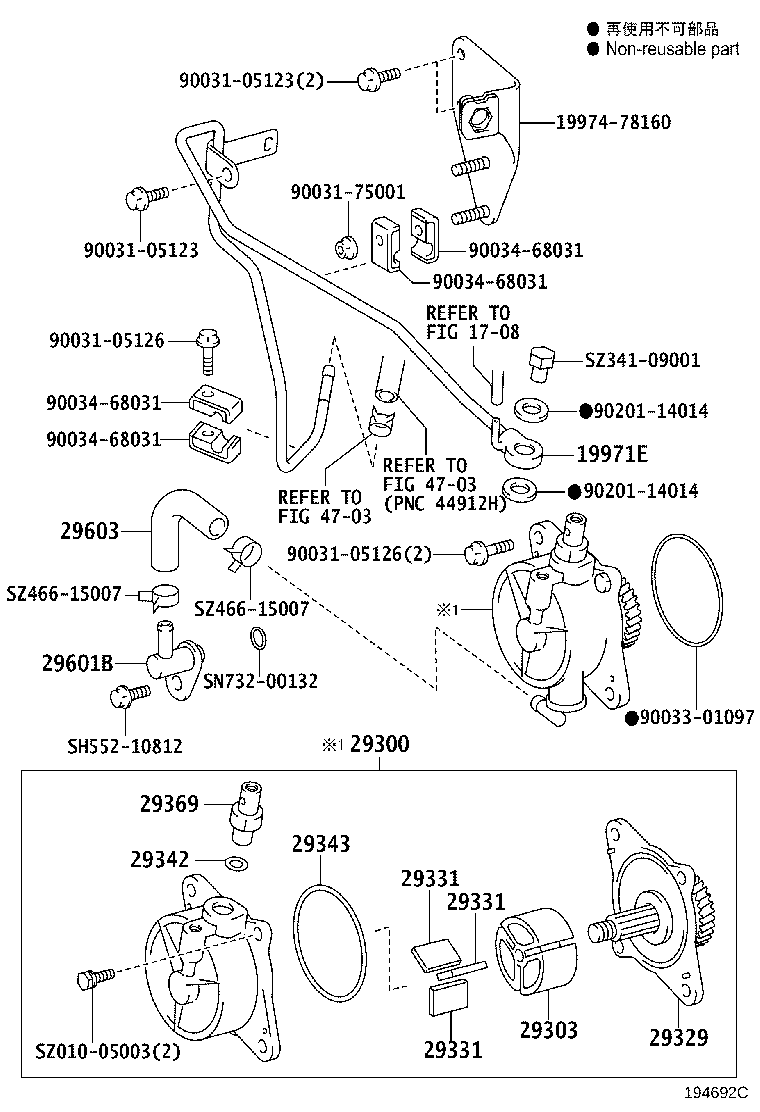

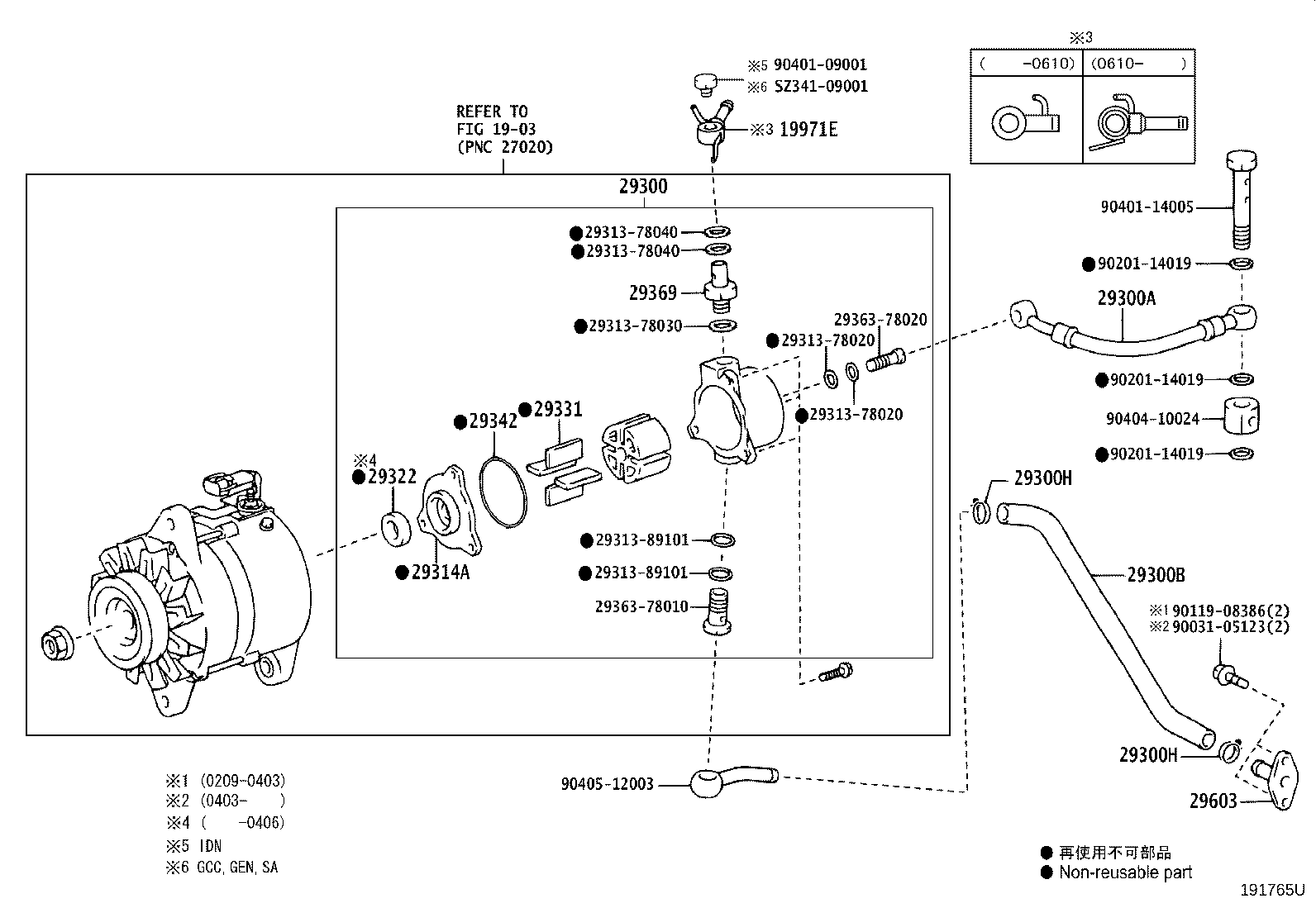

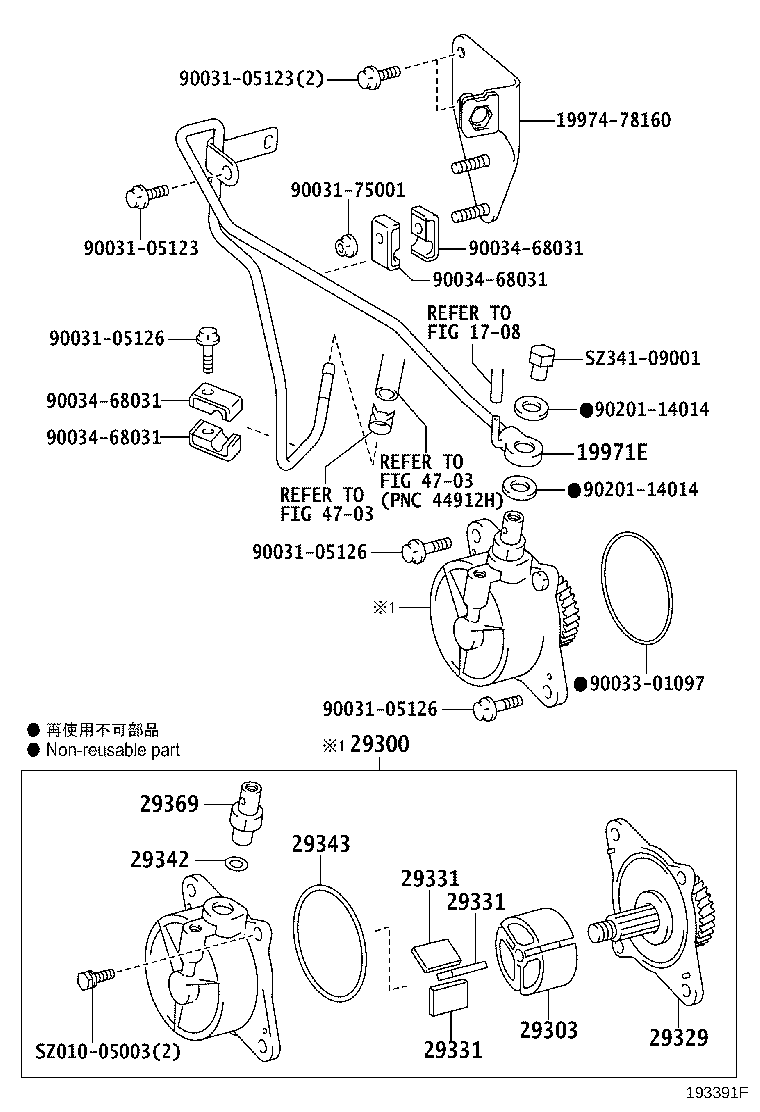

Figure 191763C 191763C 2002-09 → 2006-12 Figure 191764E 191764E 2002-09 → 2006-12 Figure 191765U 191765U 2002-09 → 2011-06 Figure 192006G 192006G 2003-12 → 2009-01 Figure 193391F 193391F 2009-12 → 2014-07 Figure 194692C 194692C 2014-07 → — Figure 196199A 196199A 2022-03 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
19971H Pipe Sub-assy, Vacuum, NO.1
19971J Pipe Sub-assy, Vacuum, NO.2
19971L Hose, Vacuum Brake
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300G Bearing, Ball
29300H Clamp(FOR VACUUM PUMP OIL HOSE)
29303 Rotor Sub-assy, Vacuum Pump
29311 Pin, Vacuum Pump Dowel, NO.1
29314A Cover, End
29322 Bush, Oil Seal, Vacuum Pump
29329 Cap, Vacuum Pump Vane
29331 Blade, Vacuum Pump, A
29331A Vane, Vacuum Pump
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29343 Ring, O Vacuum Pump, NO.1
29346 Ring, O Vacuum Pump Cover
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29369 Valve Sub-assy, Check
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
29603 Pipe, Vacuum Pump Oil Outlet
29615 Pipe, Vacuum Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
