Brake Booster & Vacuum Tube

53 part groups · 25 illustrations

Illustrations

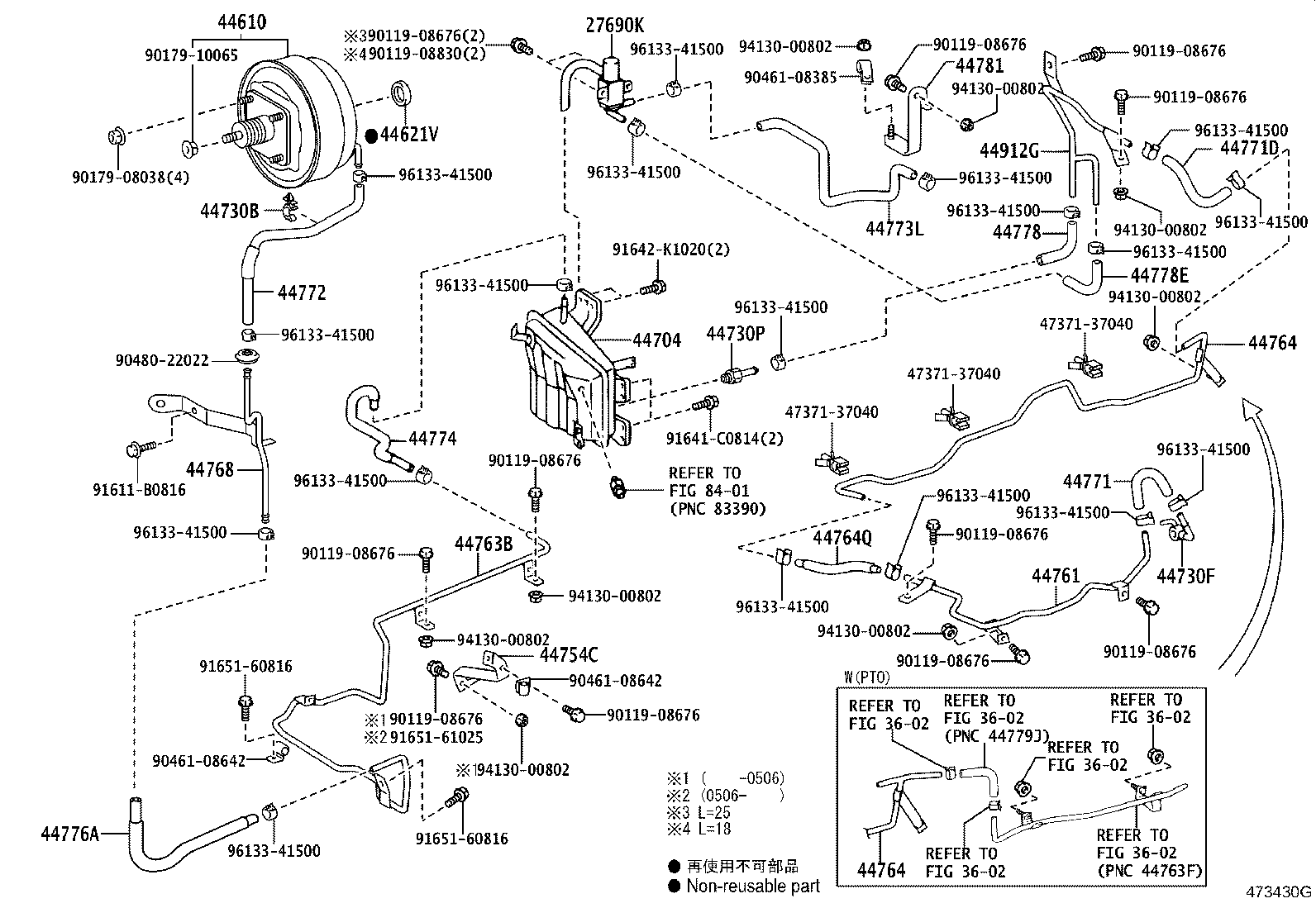

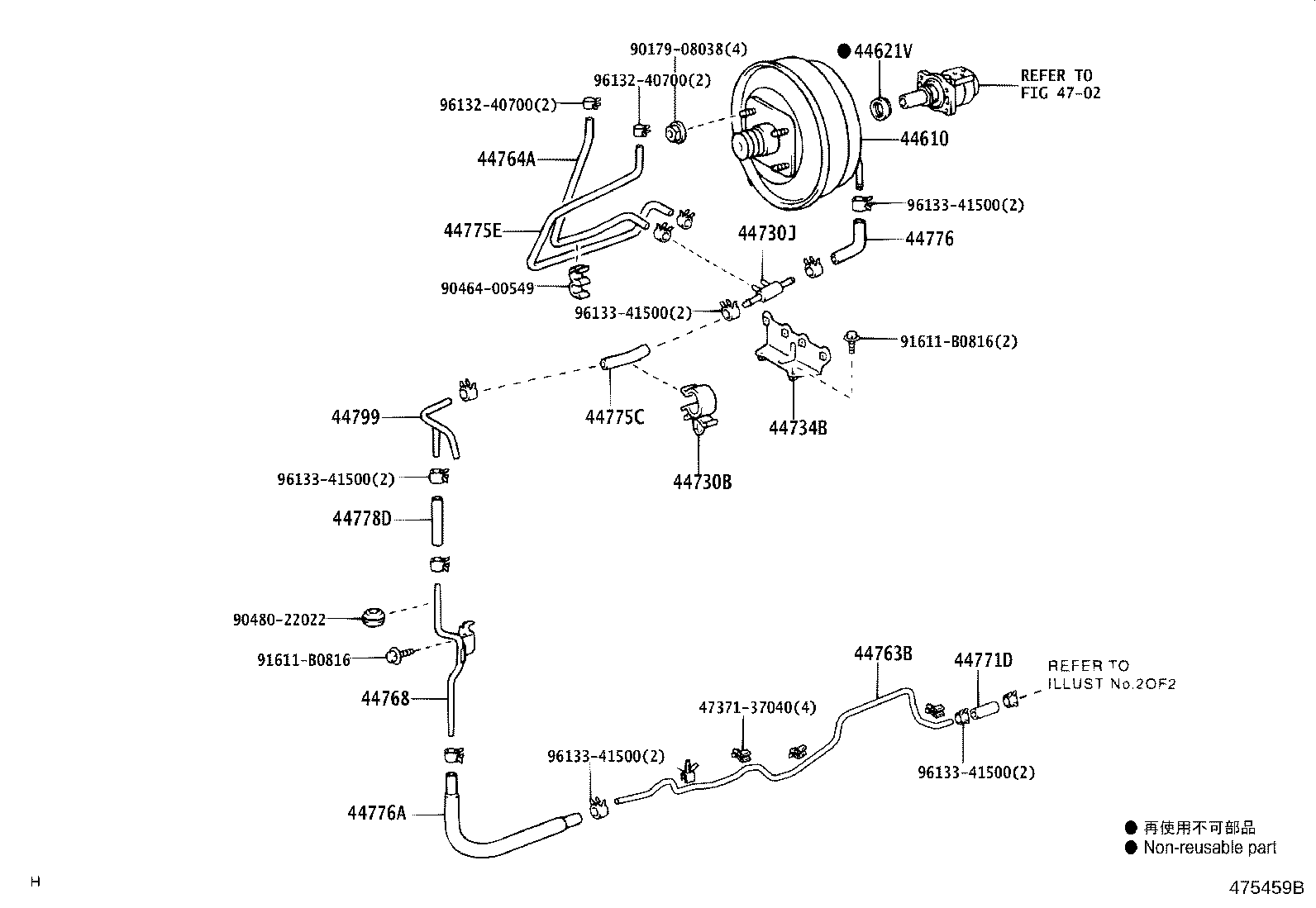

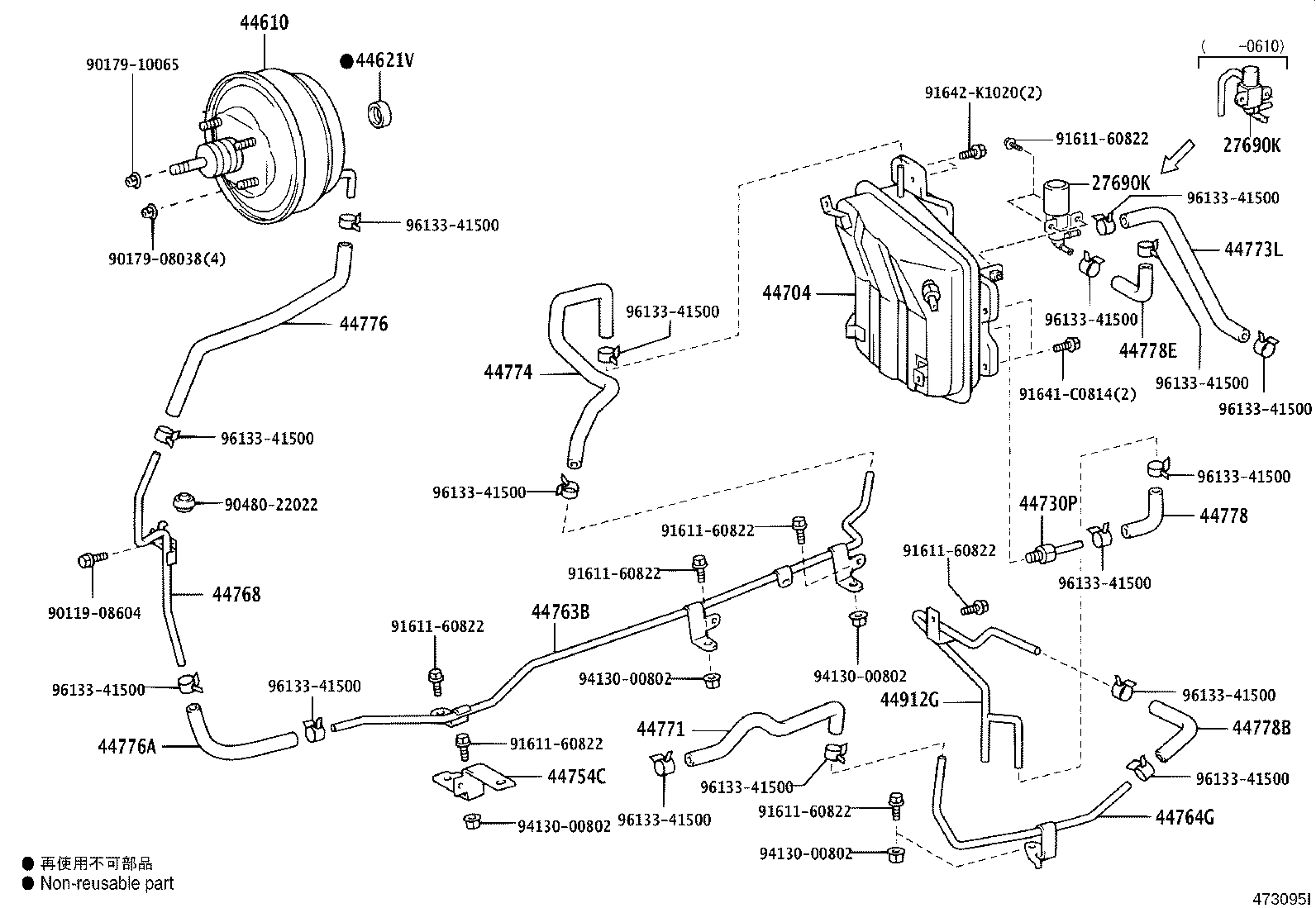

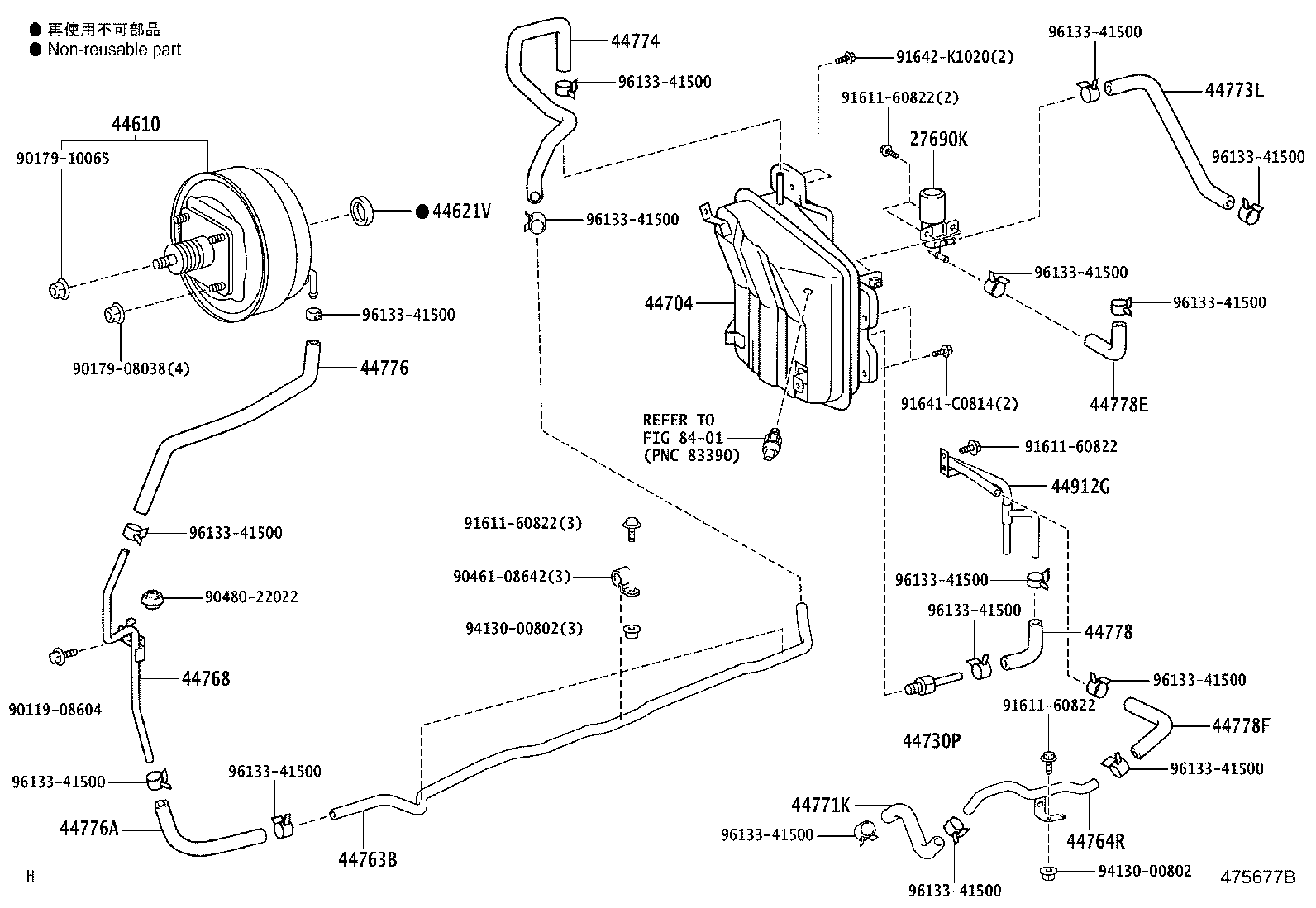

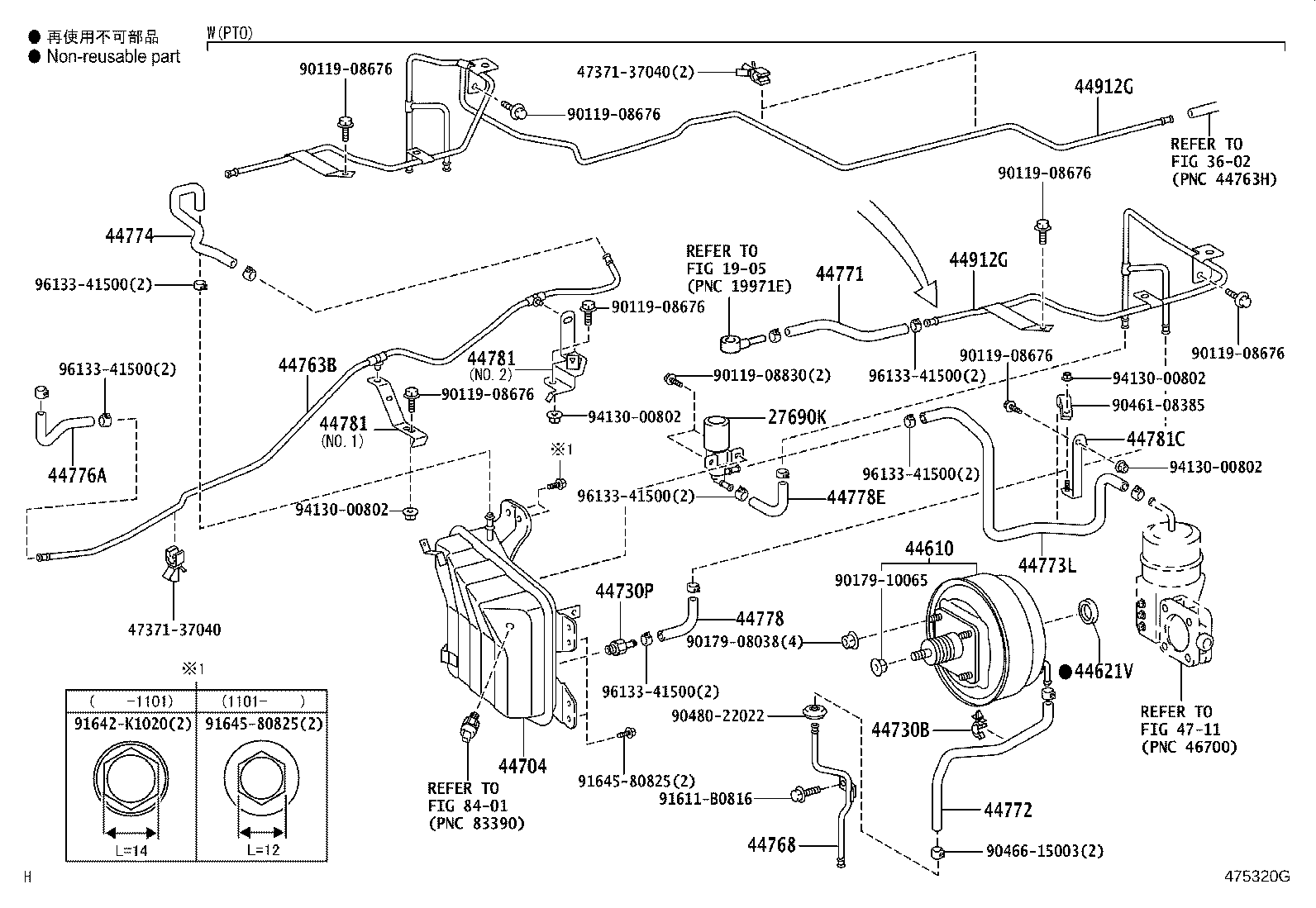

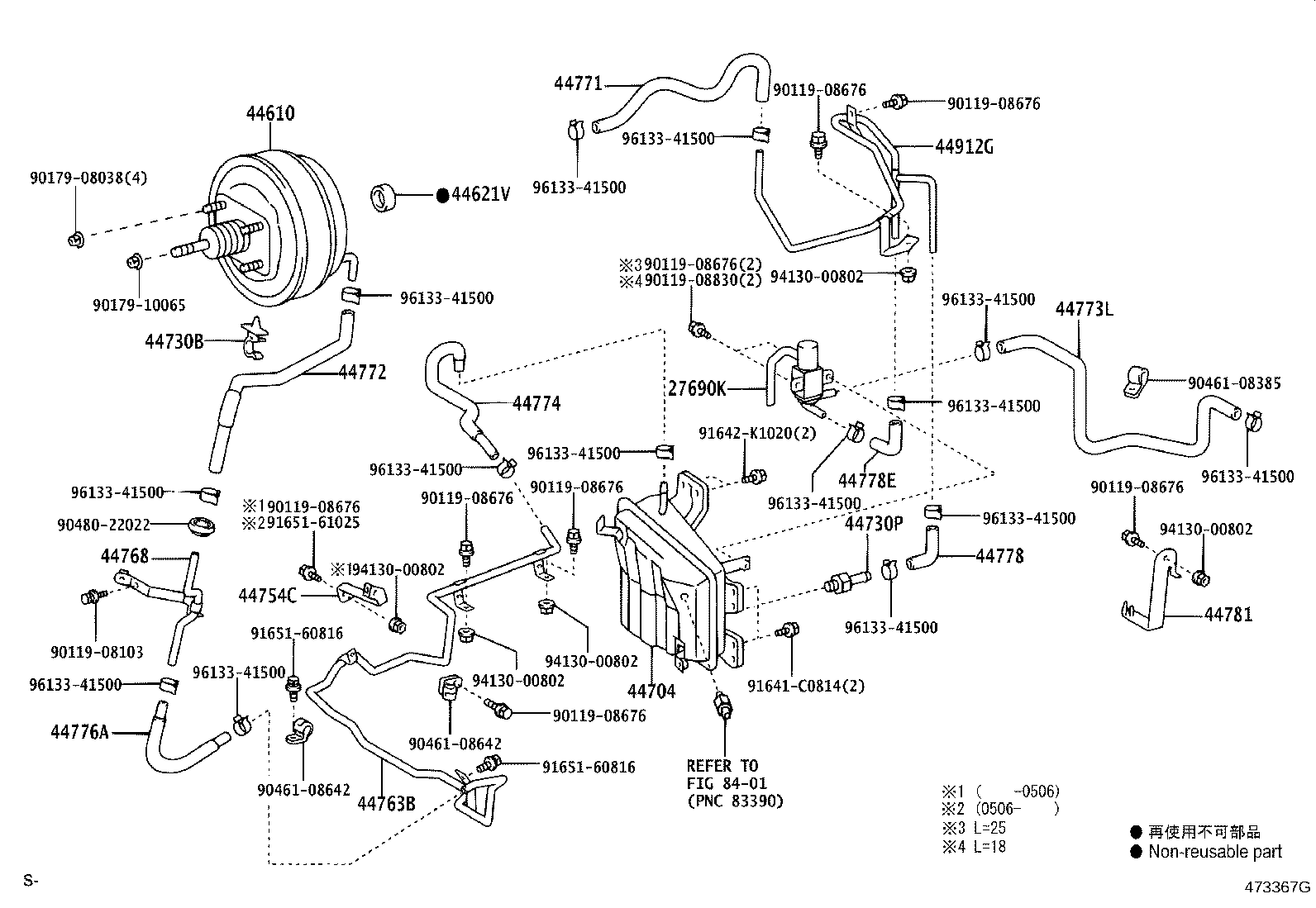

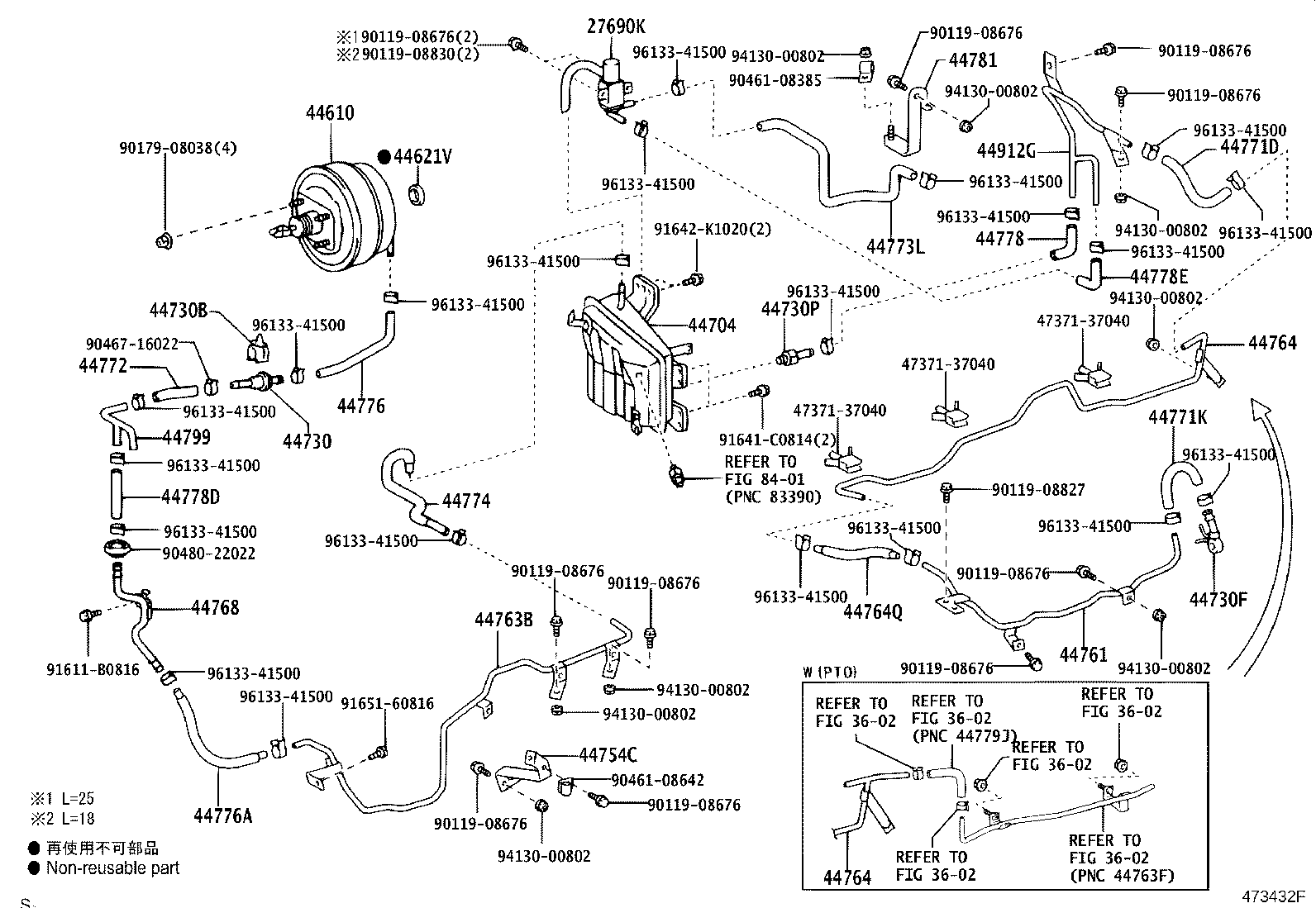

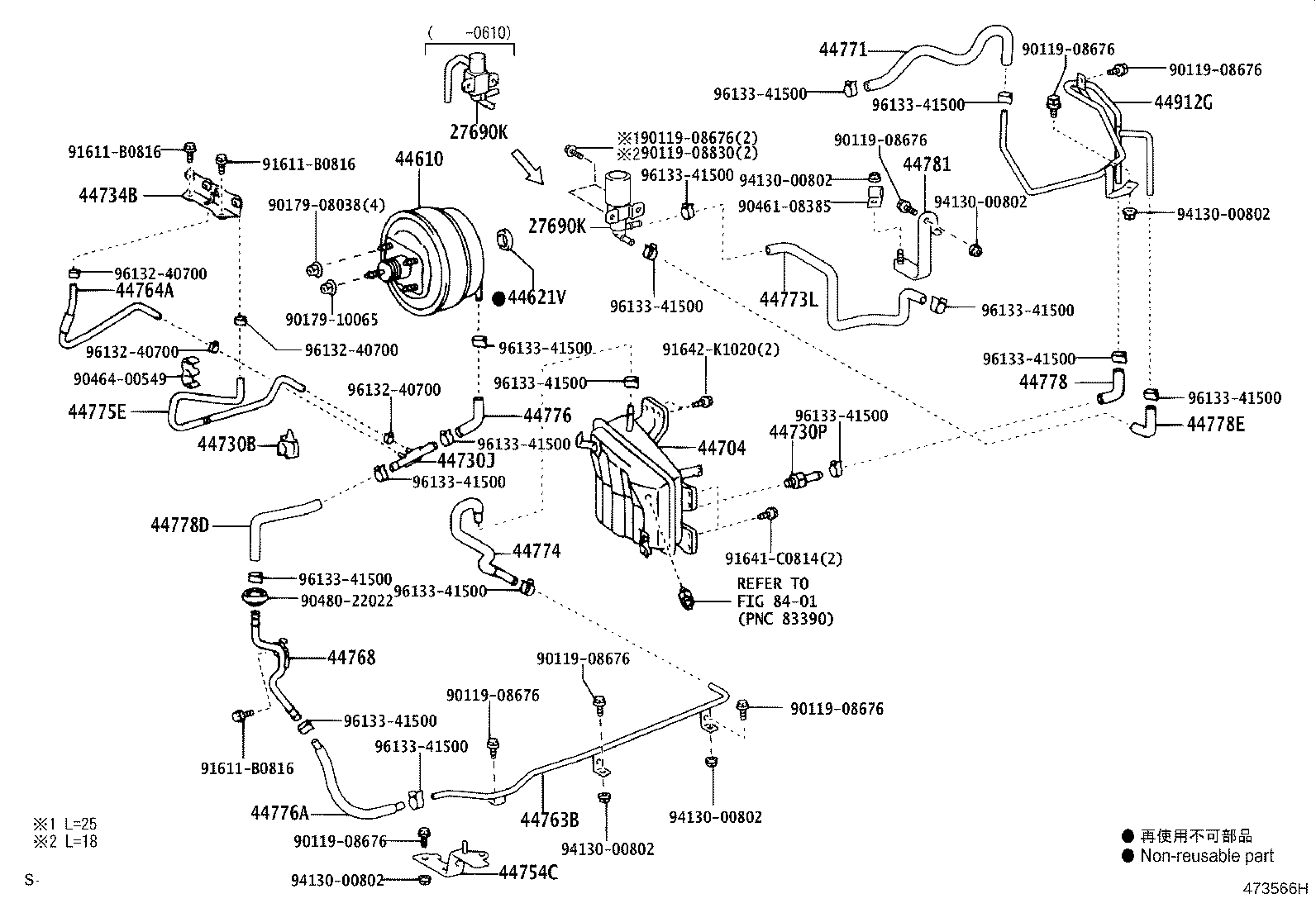

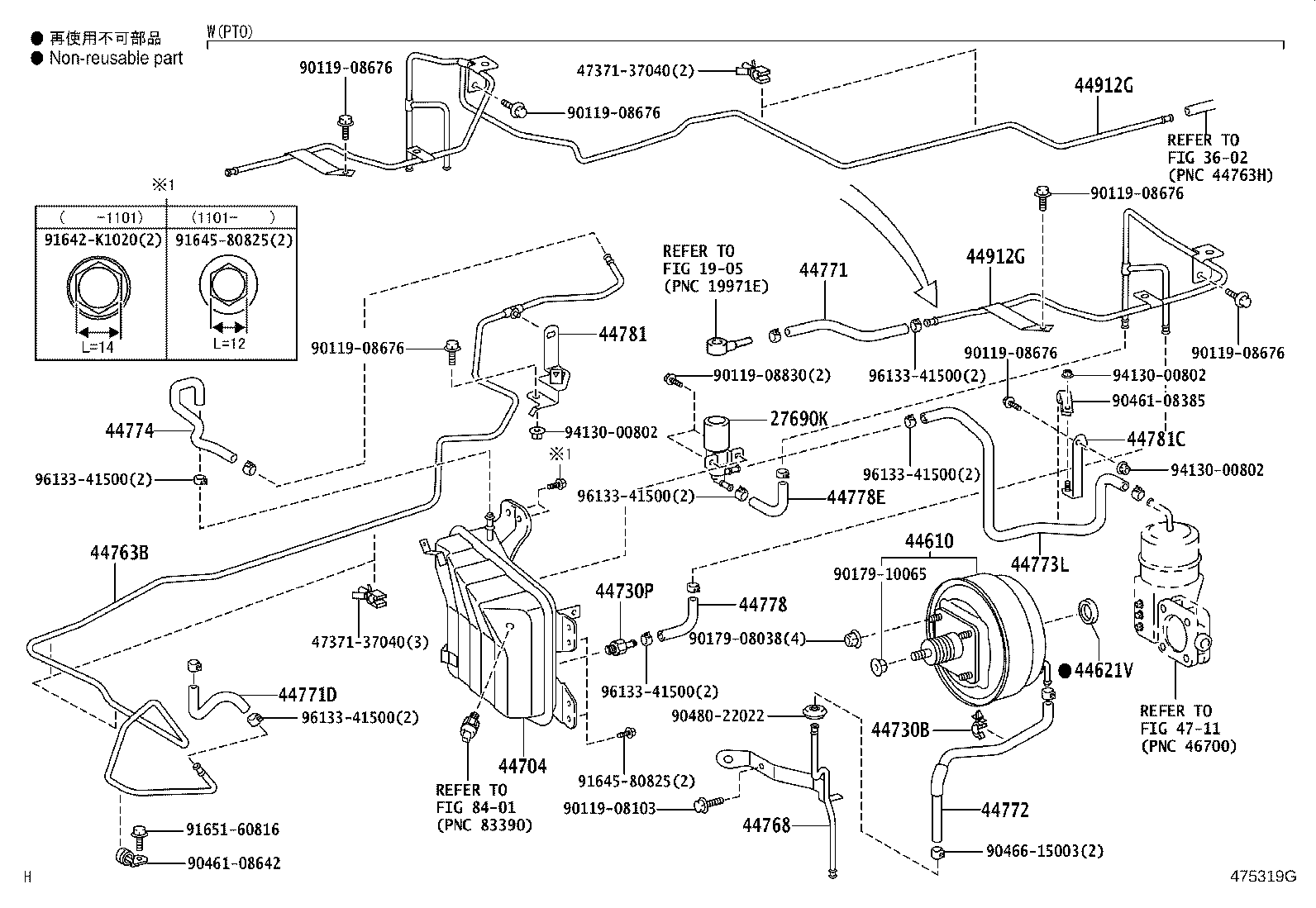

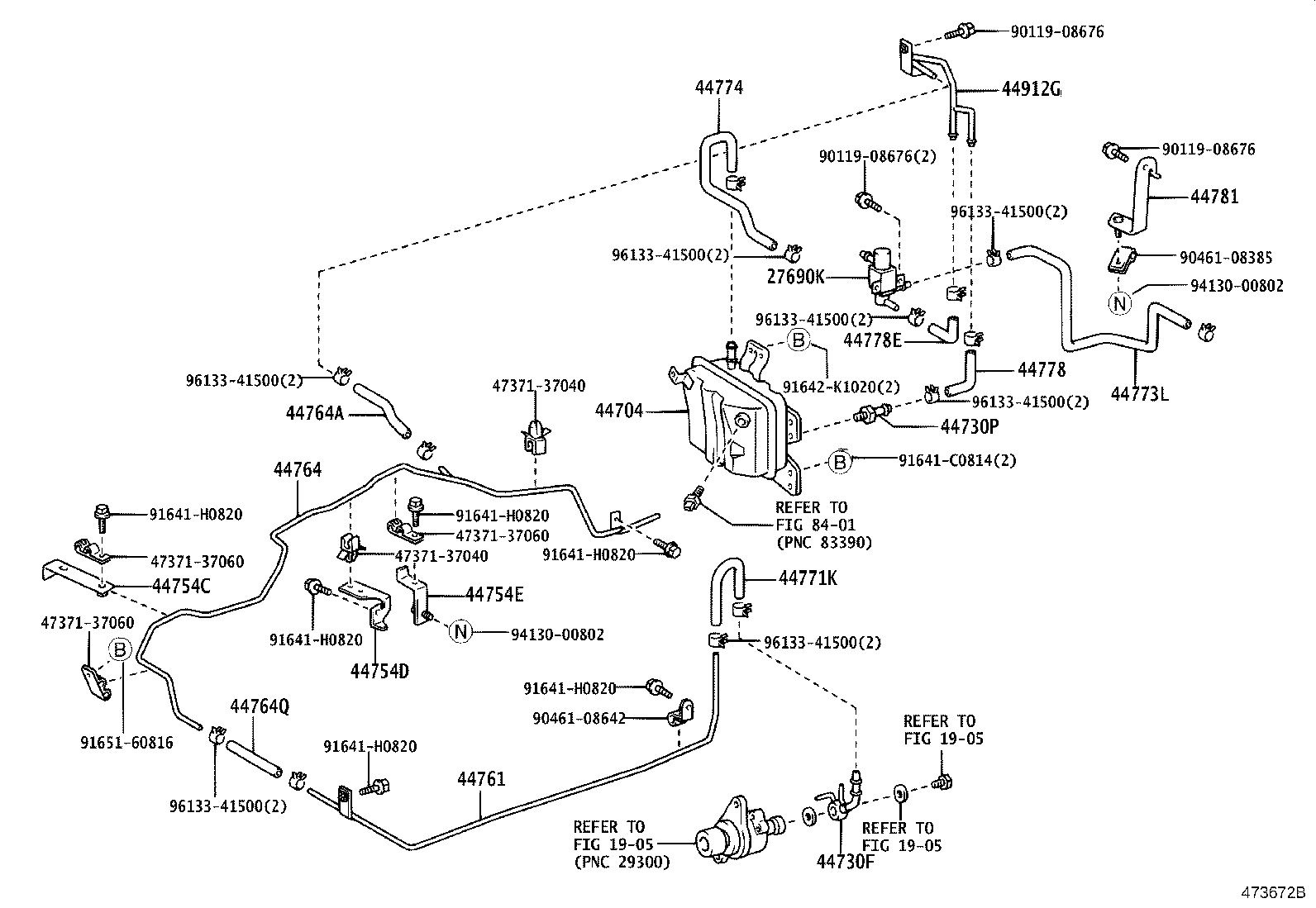

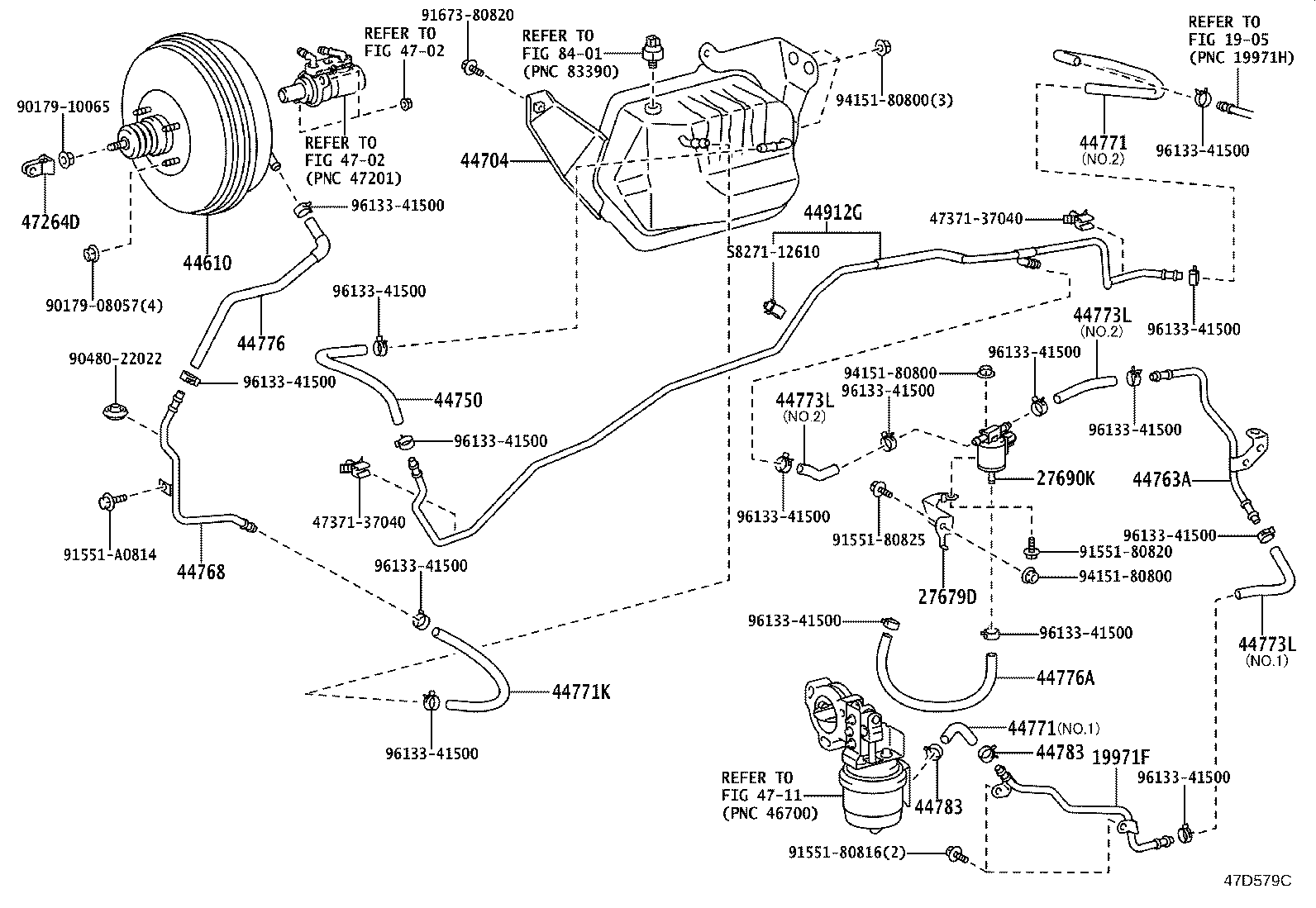

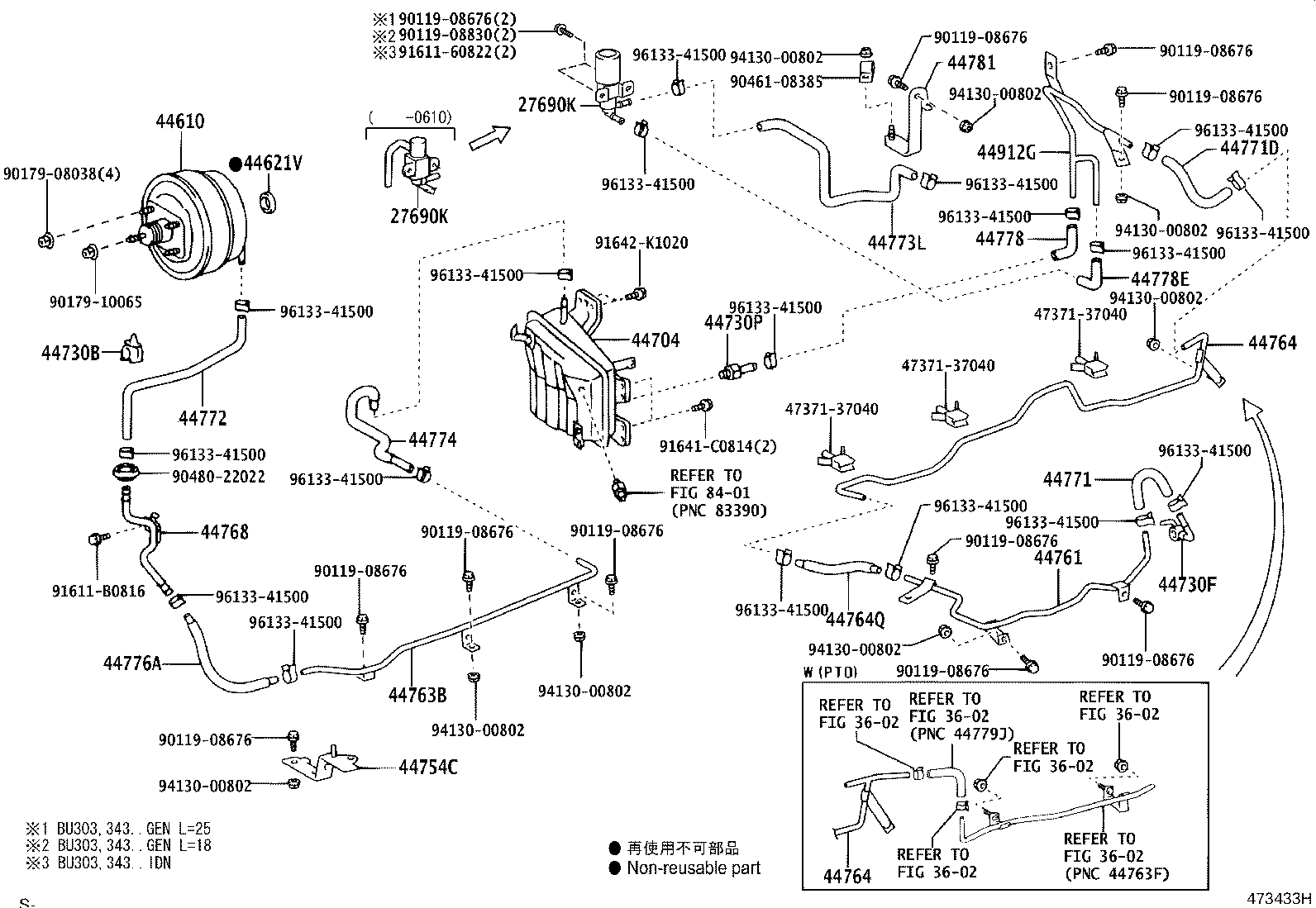

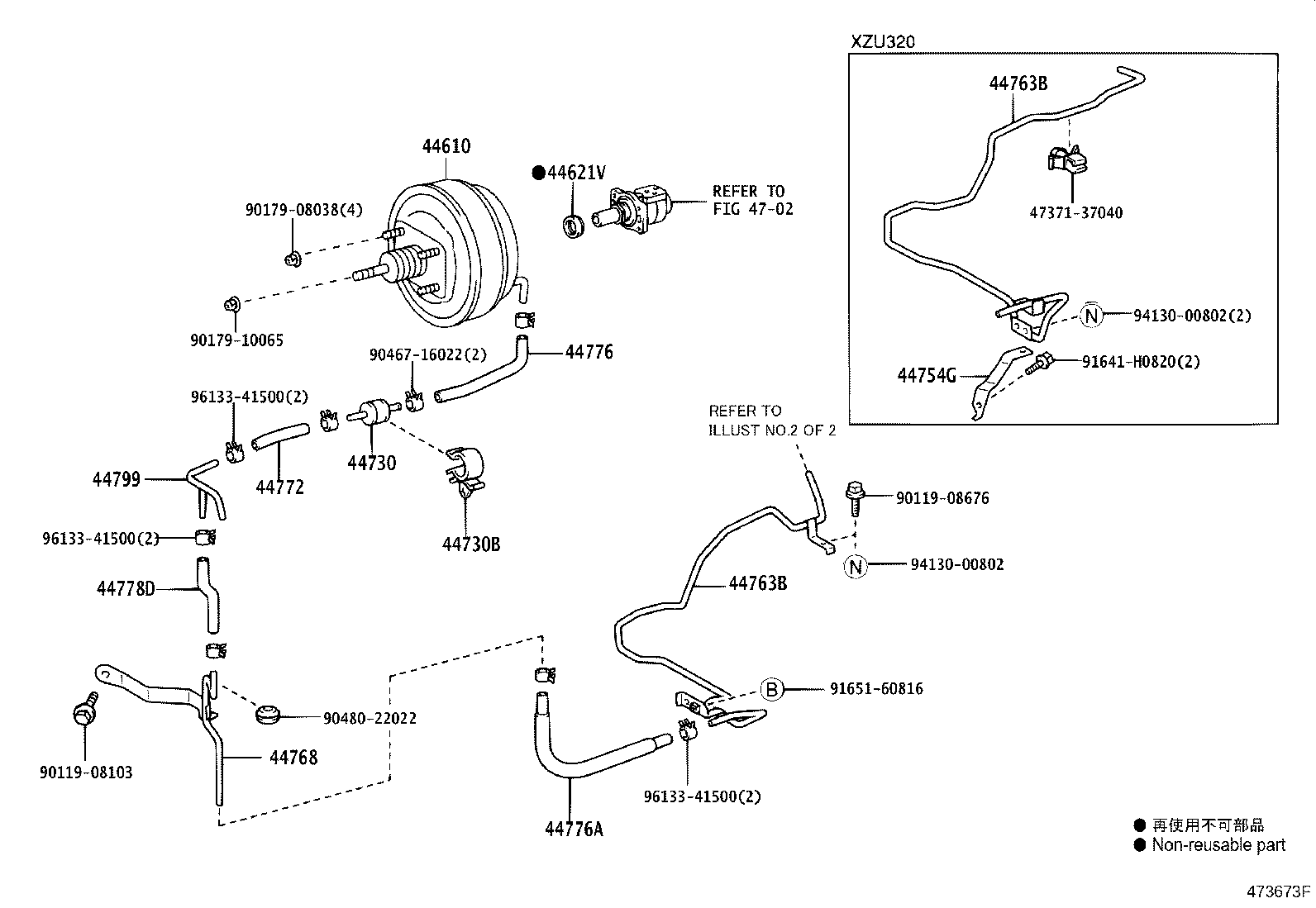

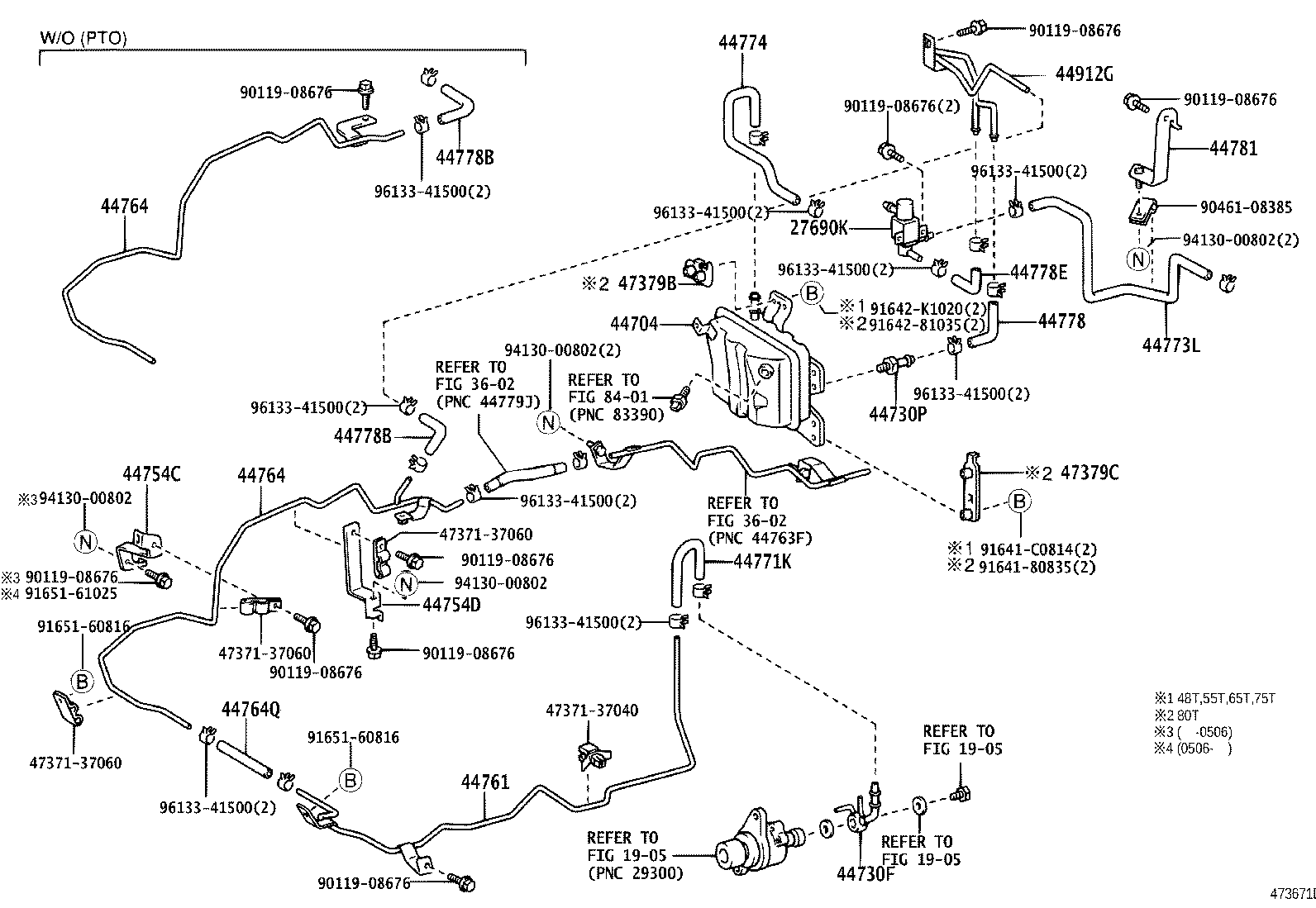

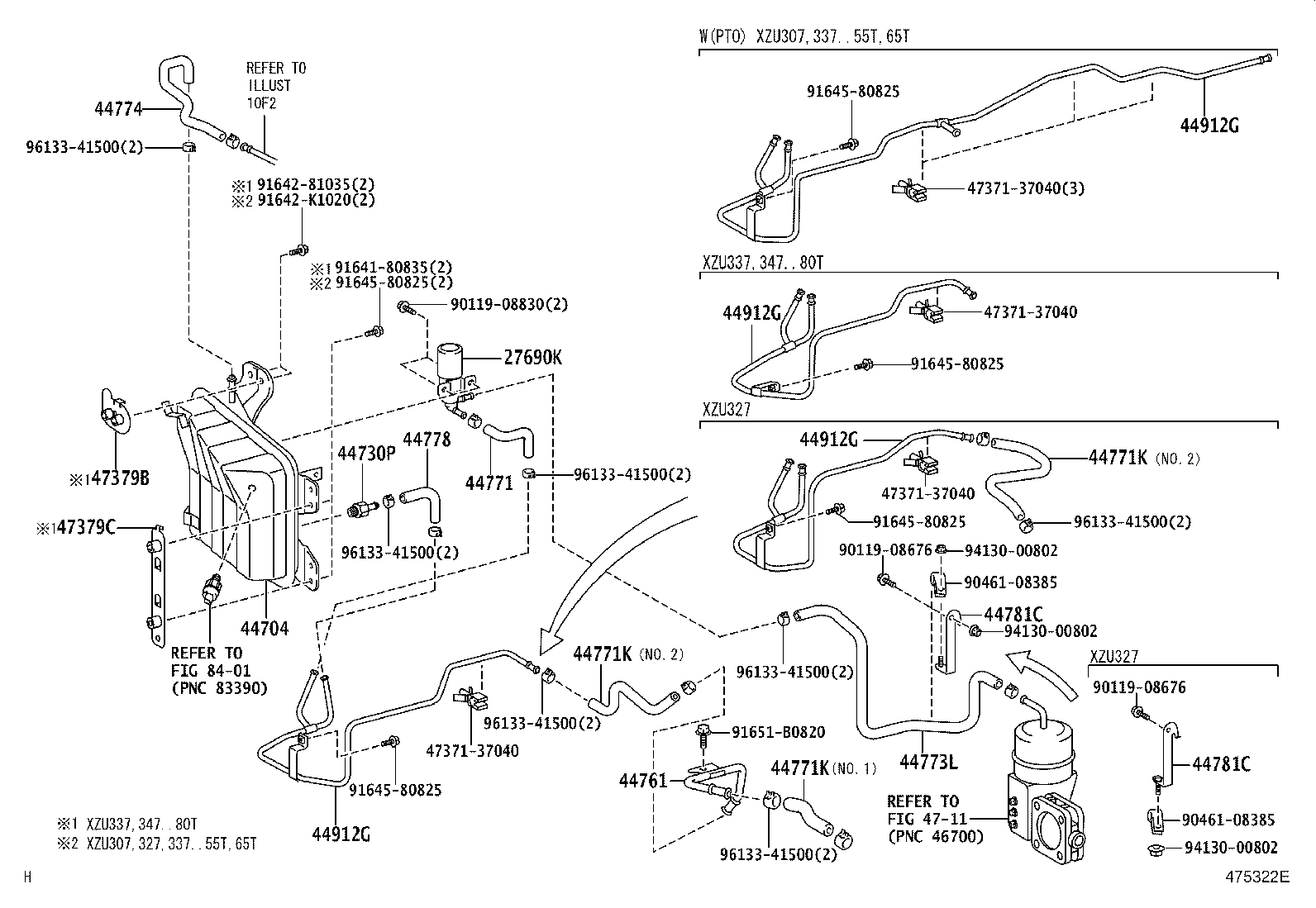

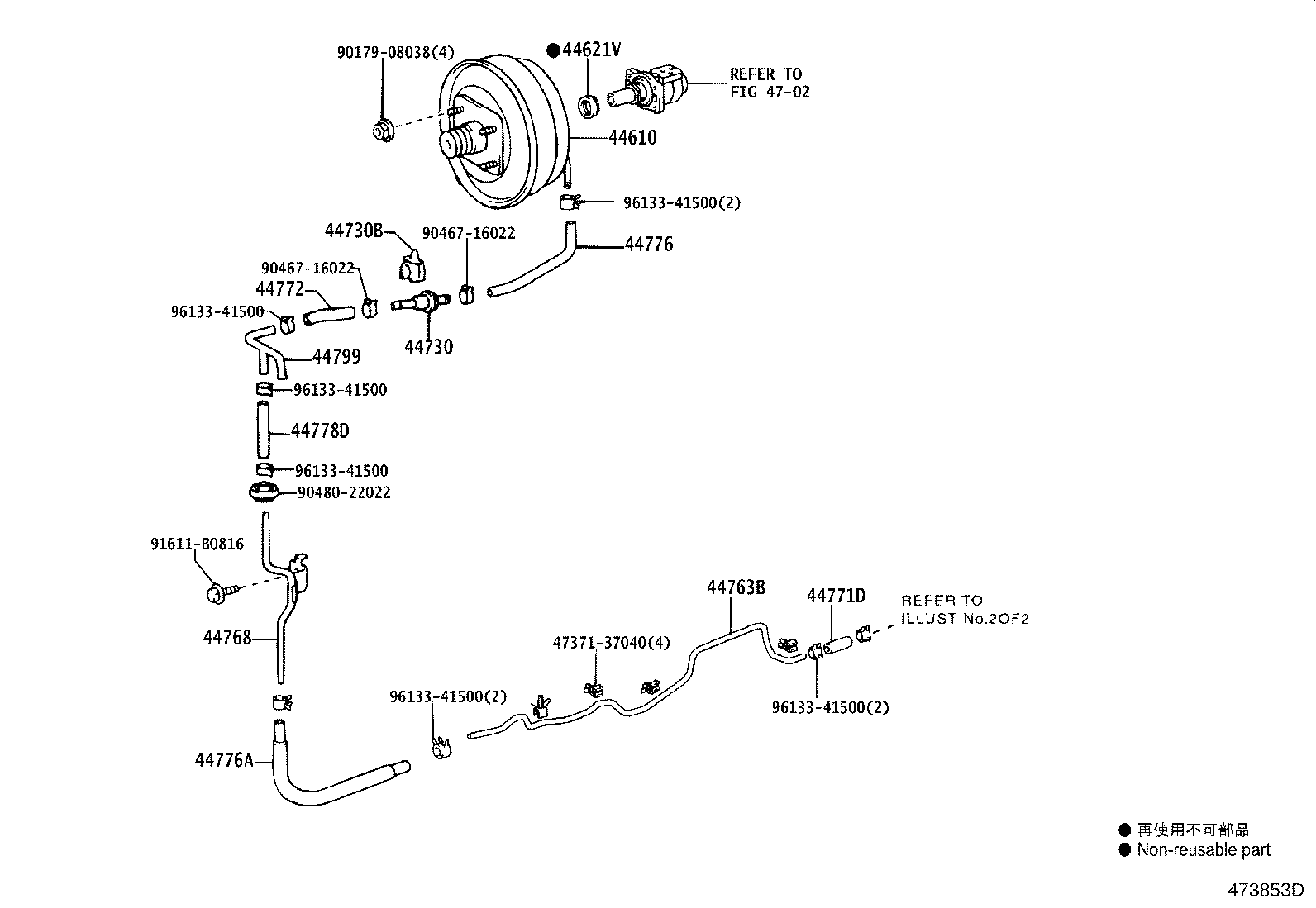

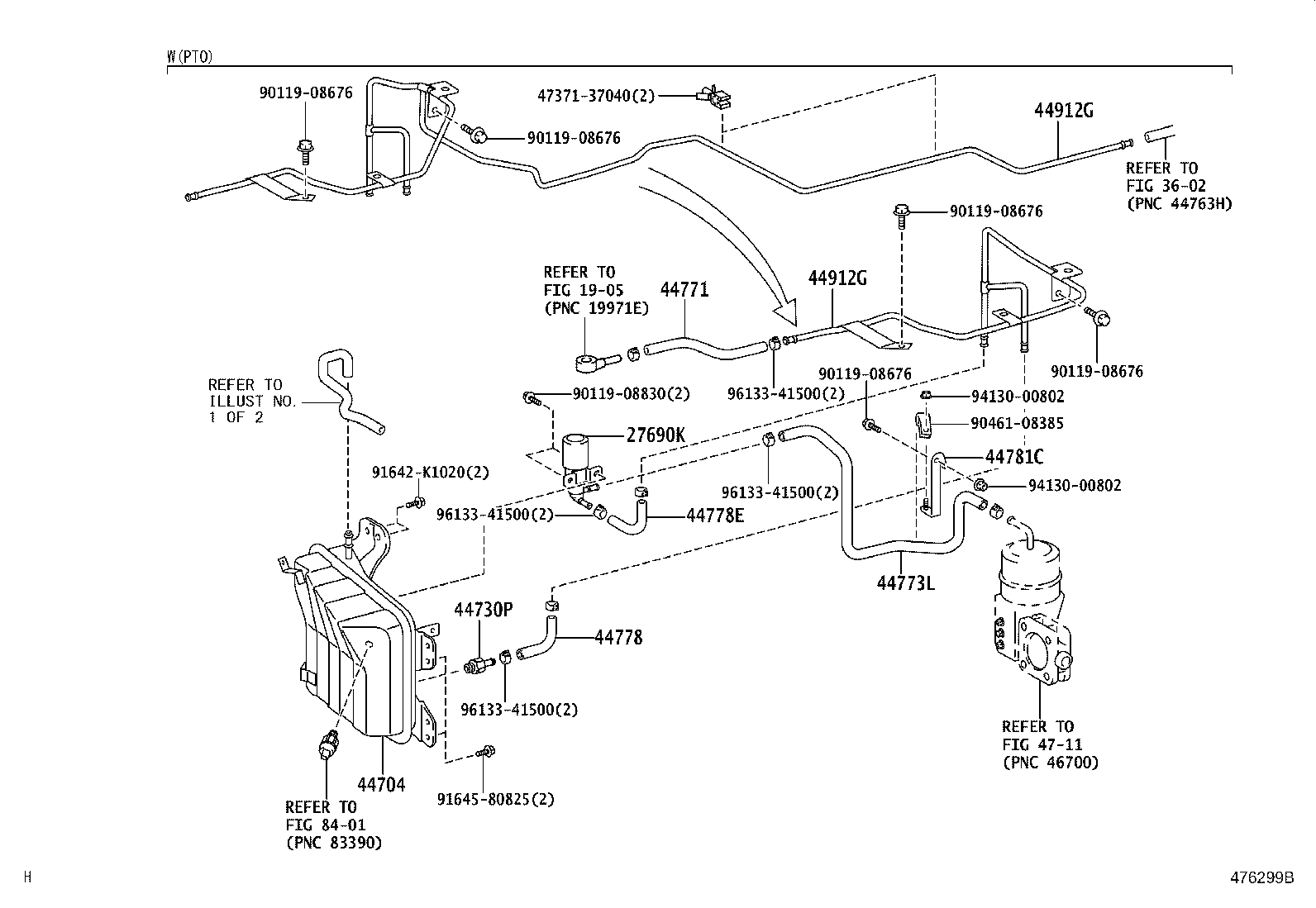

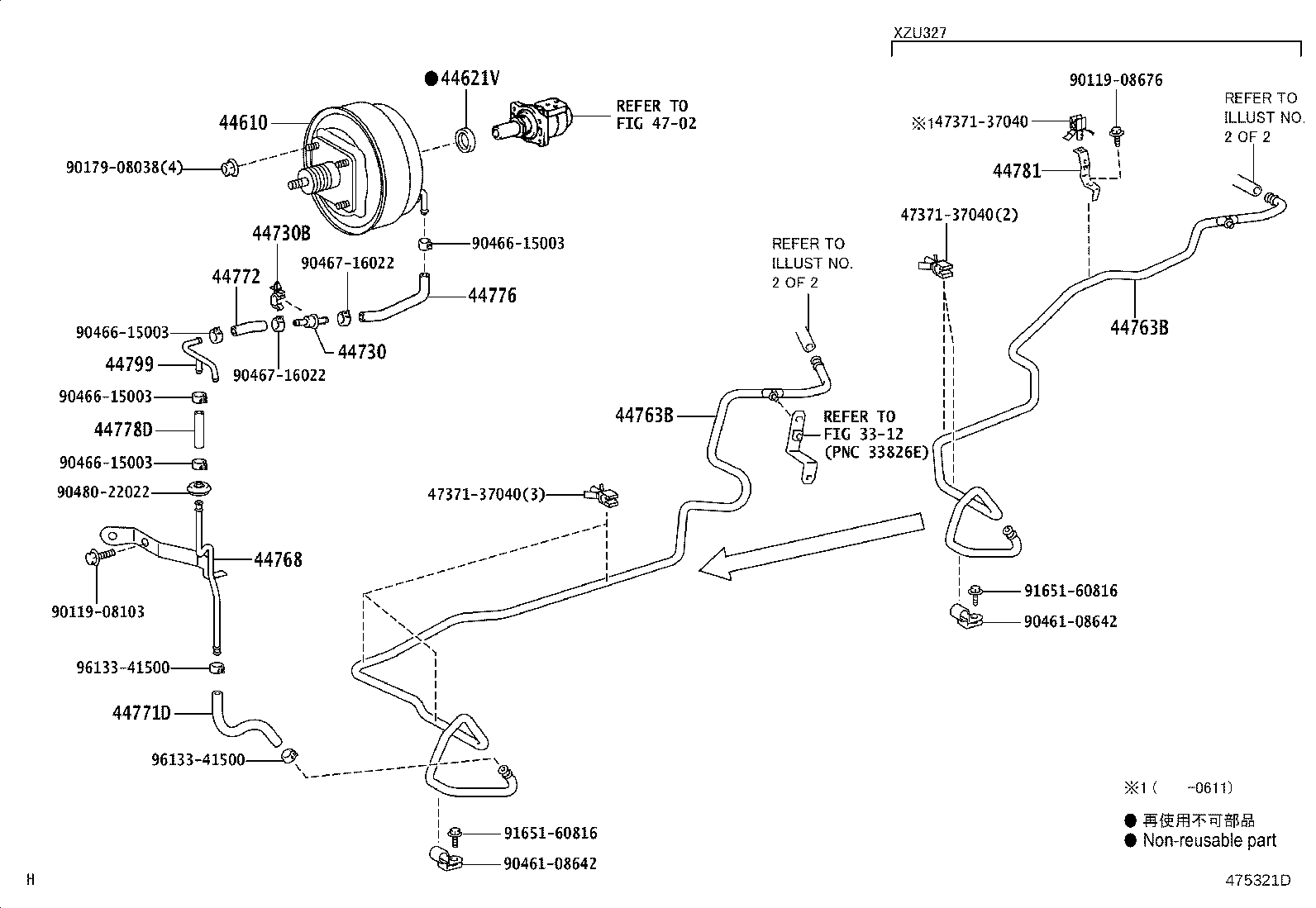

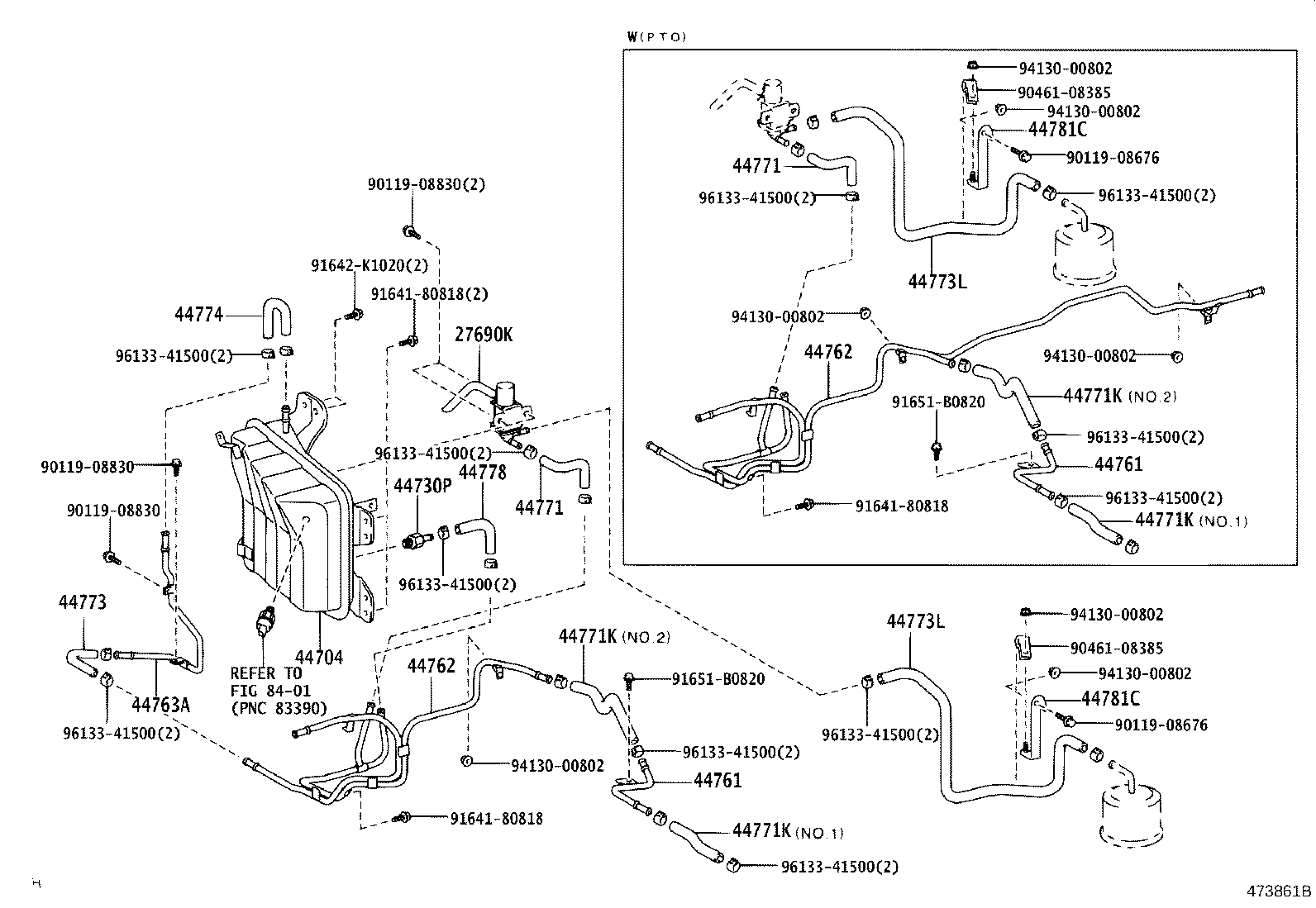

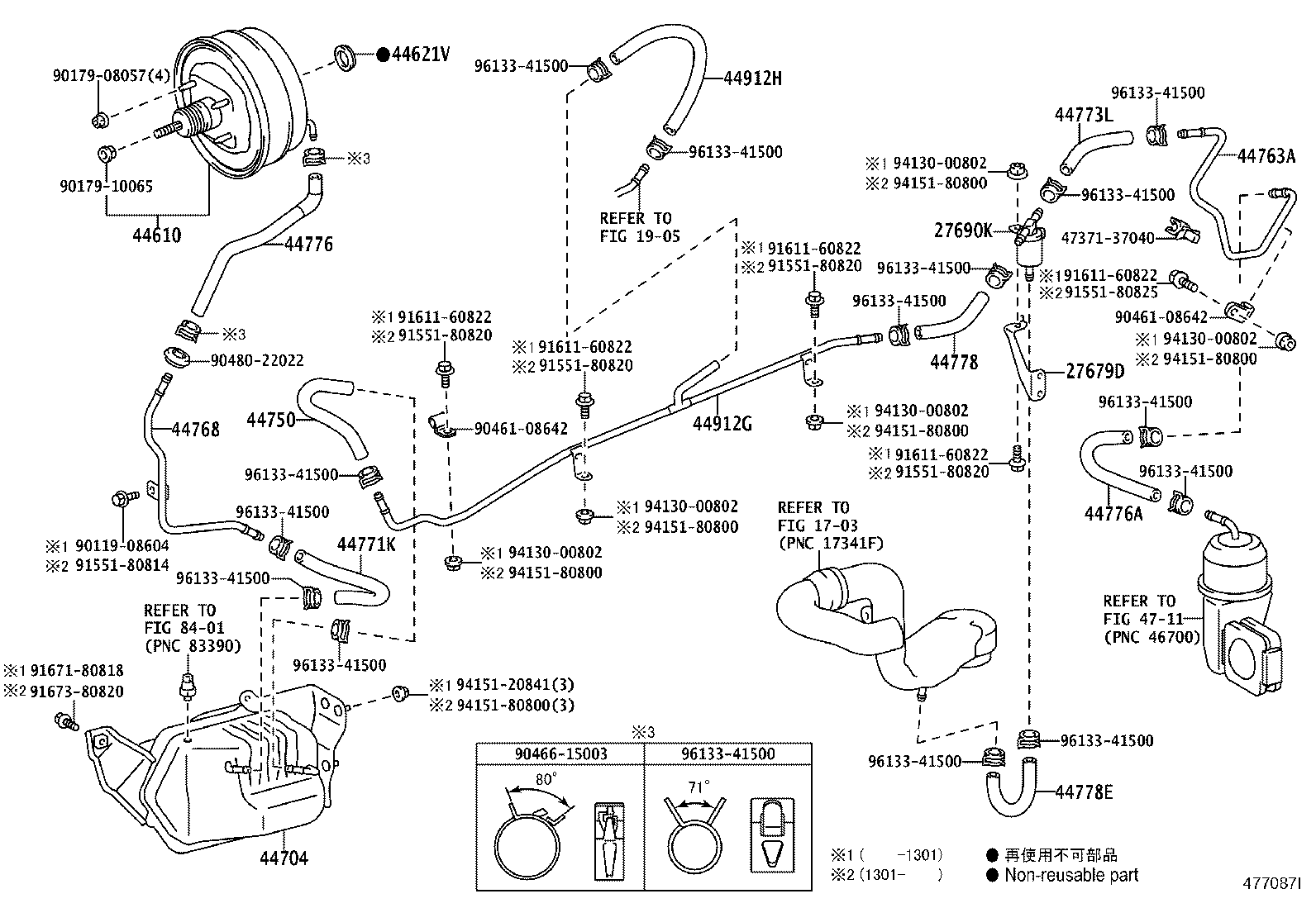

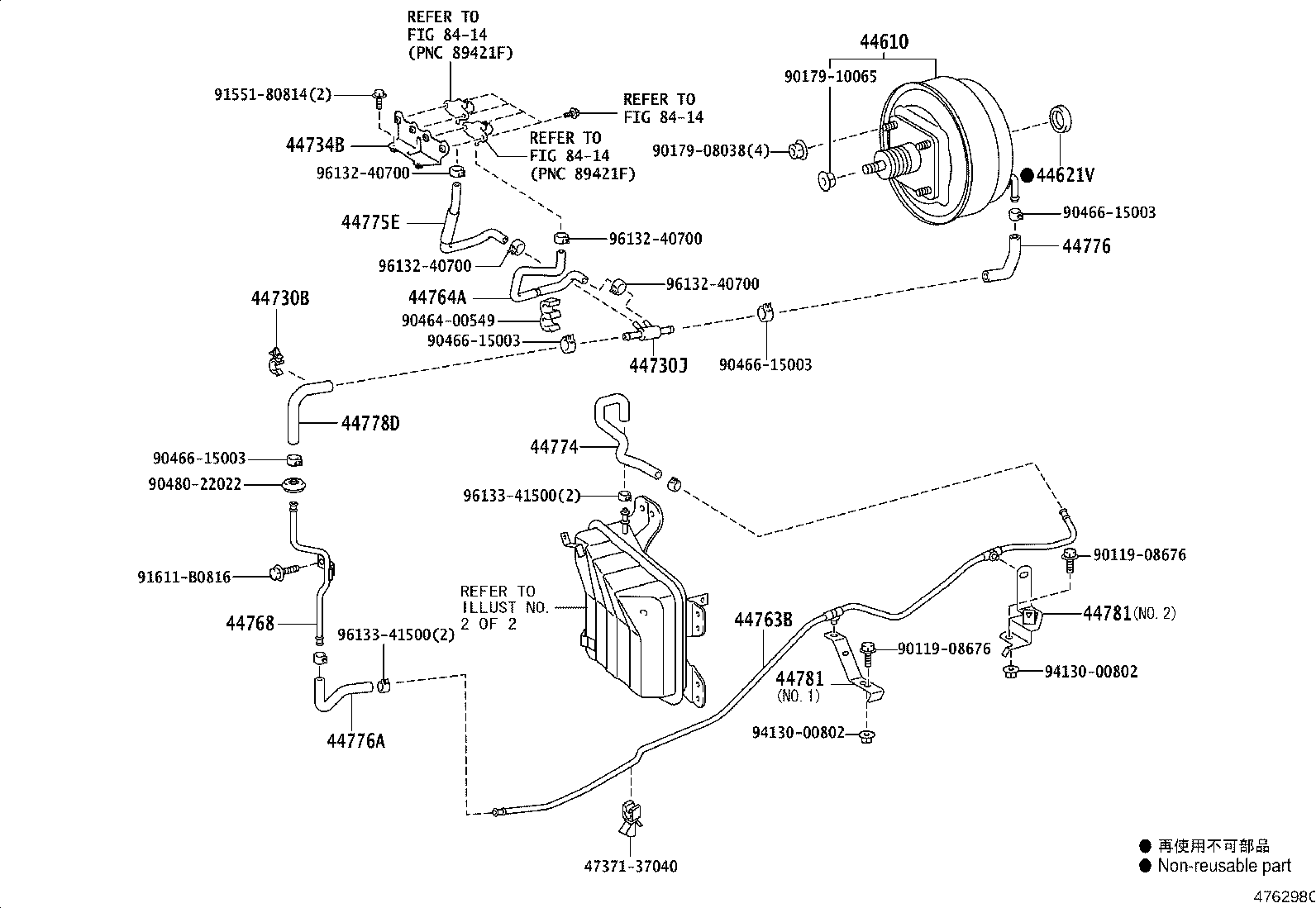

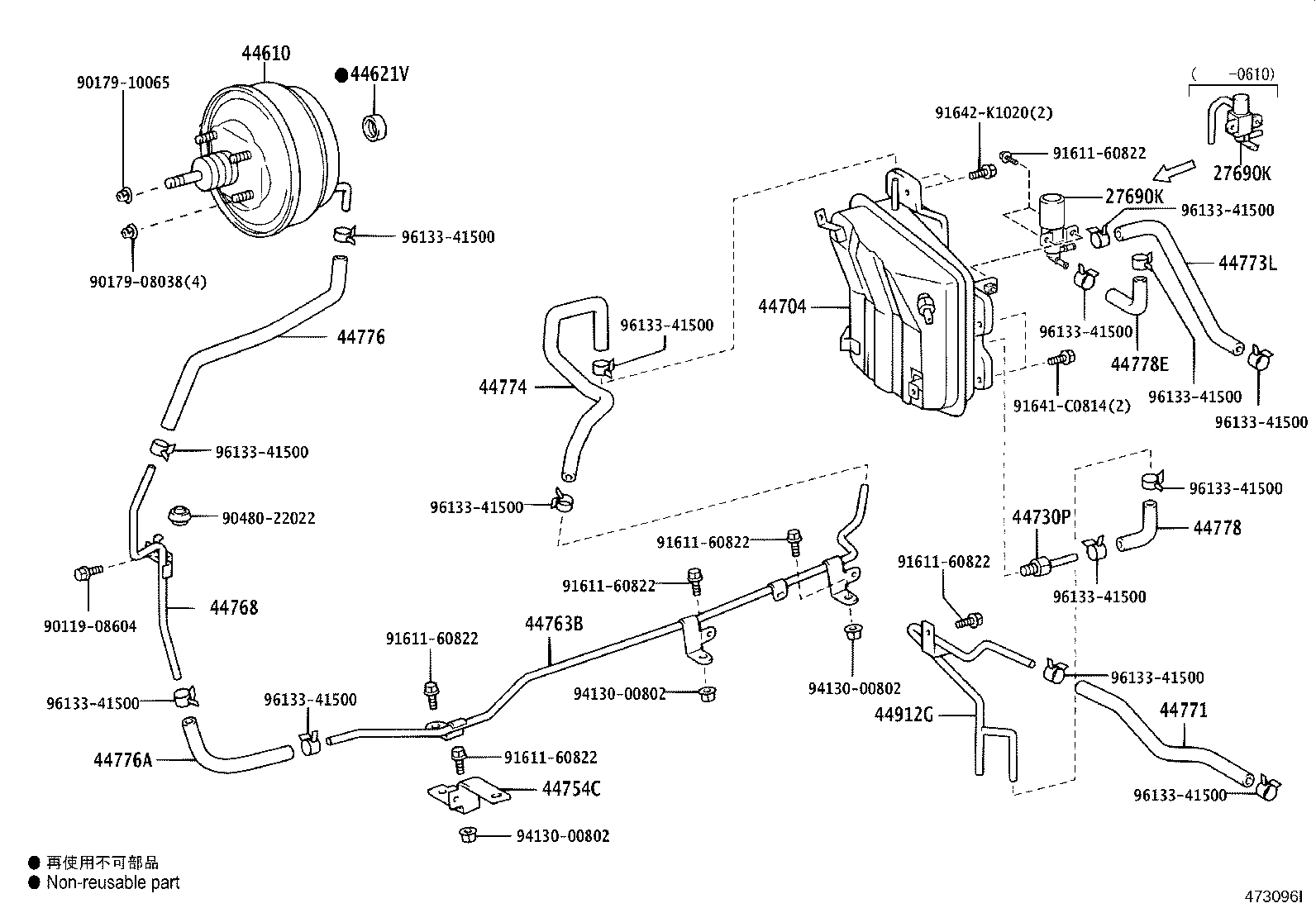

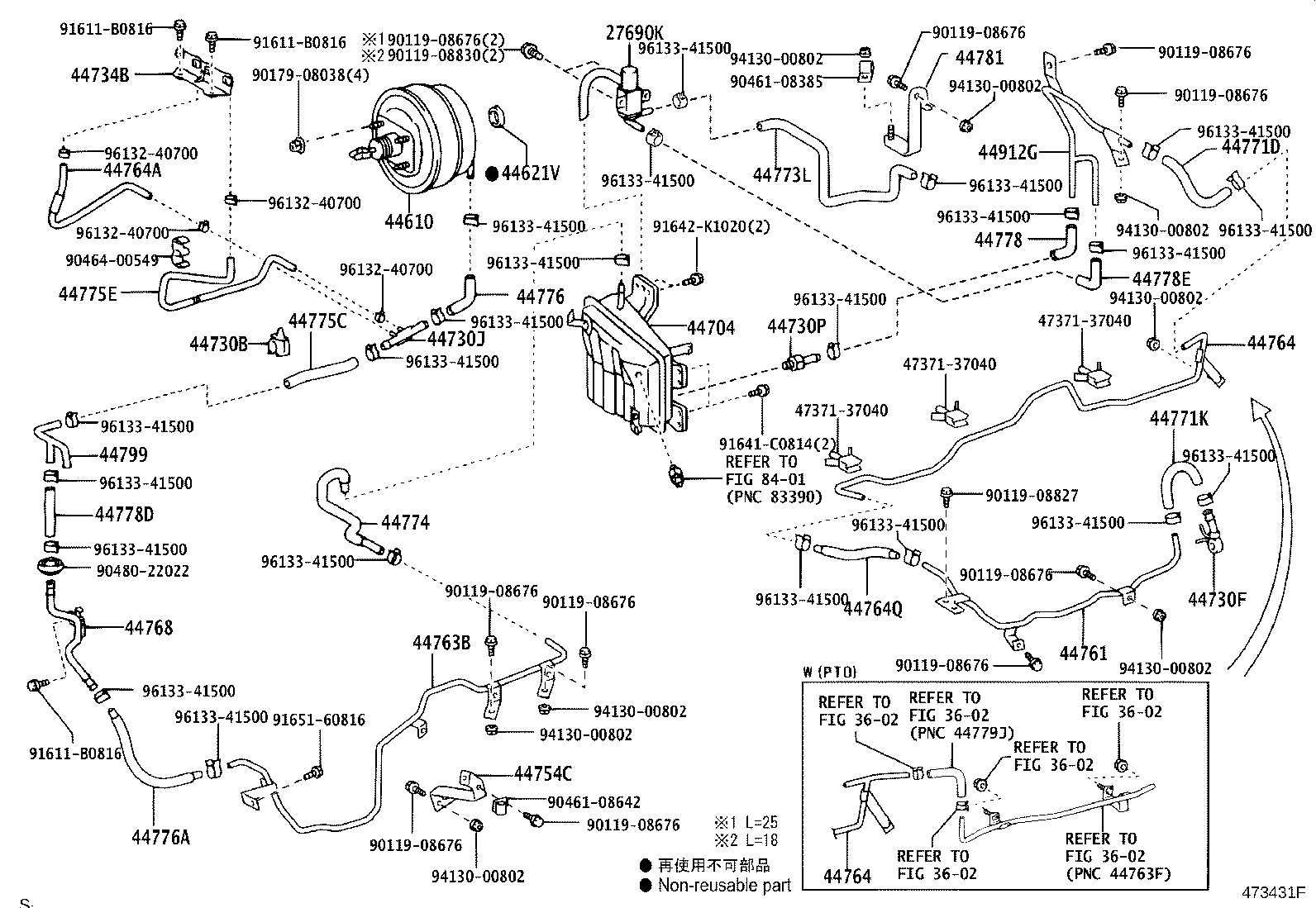

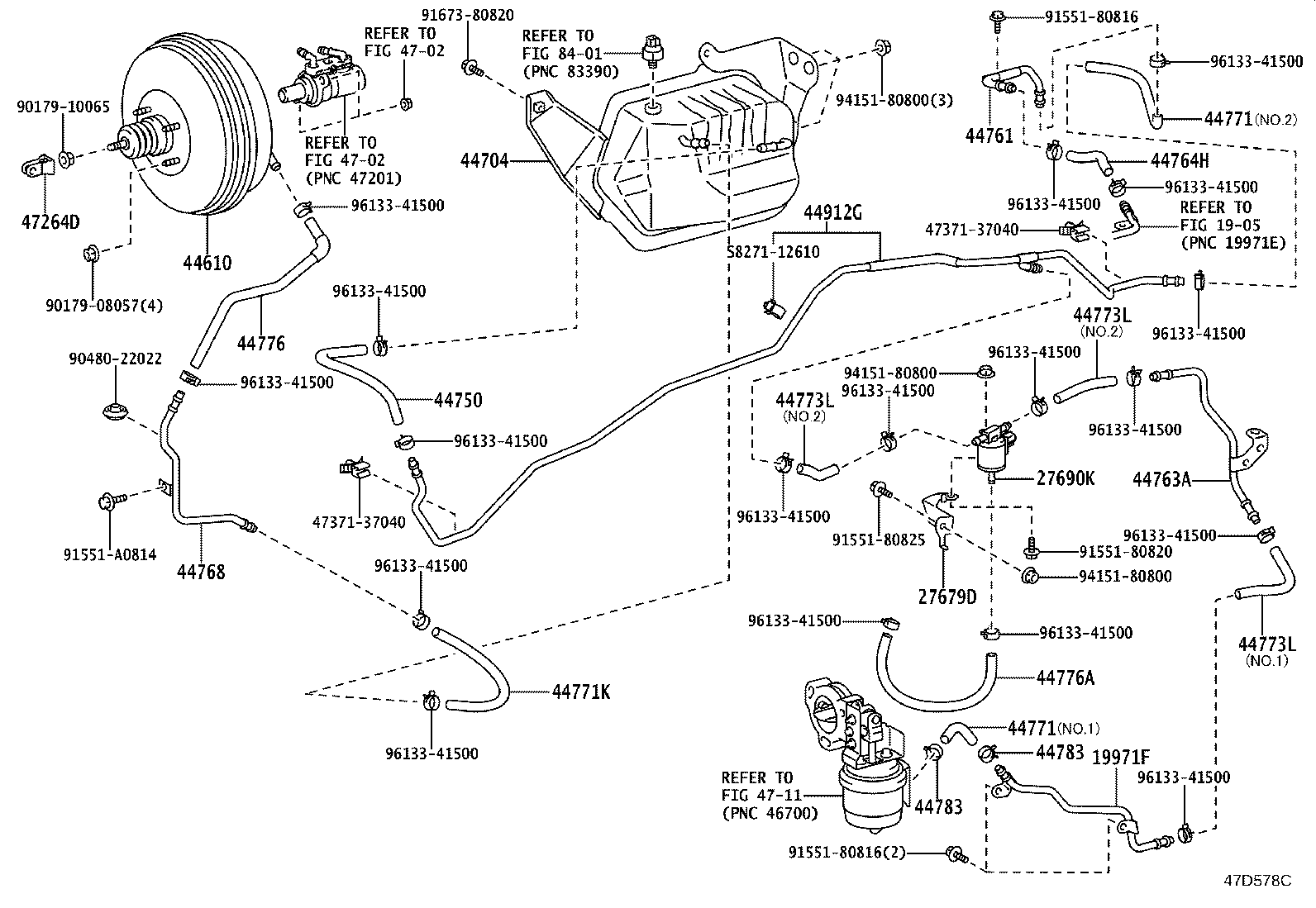

Figure 473216F 473216F 2002-09 → 2006-12 Figure 473095I 473095I 2002-09 → 2006-12 Figure 473096I 473096I 2002-09 → 2006-12 Figure 473430G 473430G 2002-12 → 2006-10 Figure 473367G 473367G 2002-12 → 2006-10 Figure 473431F 473431F 2002-12 → 2003-12 Figure 473432F 473432F 2002-12 → 2003-12 Figure 473433H 473433H 2002-12 → 2006-12 Figure 473566H 473566H 2003-04 → 2007-12 Figure 475319G 475319G 2006-10 → — Figure 475320G 475320G 2006-10 → — Figure 475677B 475677B 2006-12 → — Figure 473673F 473673F 2002-12 → 2006-10 Figure 473671D 473671D 2002-12 → 2006-10 Figure 473672B 473672B 2002-12 → 2006-10 Figure 473853D 473853D 2003-12 → 2006-10 Figure 475459B 475459B 2003-12 → 2006-10 Figure 475321D 475321D 2006-10 → — Figure 476298C 476298C 2008-02 → — Figure 473861B 473861B 2003-12 → 2006-10 Figure 475322E 475322E 2006-10 → — Figure 476299B 476299B 2008-02 → — Figure 477087I 477087I 2009-12 → — Figure 47D578C 47D578C 2022-03 → — Figure 47D579C 47D579C 2022-03 → —

Part groups

PNCDescription
19971F Pipe, Vacuum
27679D Bracket, Exhaust Brake Solenoid
27690K Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
44610 Booster Assy, Brake
44621V Seal, Booster Body
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44734B Bracket, Booster Support
44750 Hose Assy, Vacuum
44754C Bracket, Vacuum Tube, NO.1
44754D Bracket, Vacuum Tube, NO.2
44754E Bracket, Vacuum Tube, NO.3
44754G Bracket, Vacuum Tube, NO.5
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44762 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44763B Tube, Tube Connector TO Tube Connector
44764 Tube, Booster Vacuum
44764A Hose, Booster Vacuum
44764G Tube, Connector TO Brake Booster
44764H Hose(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
44764Q Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
44764R Tube, Connector TO Vacuum Reservoir
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44771K Hose, Vacuum Tube TO Vacuum Pump
44772 Hose, Check Valve TO Connector Tube
44773 Hose, Vacuum, NO.2
44773L Hose, Solenoid TO Exhaust Retarder
44774 Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44778 Hose, Connector TO Check Valve
44778B Hose, Way TO Check Valve
44778D Hose, Vacuum Tube TO Connector Tube
44778E Hose, Connector Tube TO Solenoid
44778F Hose, Vacuum Tube TO 3 Way
44781 Bracket, Hose
44781C Bracket, Hose Clamp, NO.2
44783 Clamp, Vacuum Hose
44799 Way, Brake Vacuum Hose
44912G Tube, 3 Way TO Magnetic Valve
44912H Hose(FOR 3 WAY TO MAGUNETIC VALVE TUBE)
47264D Clevis, Brake Master Cylinder Push Rod
47379B Spacer, Brake Tube, NO.1
47379C Spacer, Brake Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
