Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

53 part groups · 46 illustrations

Illustrations

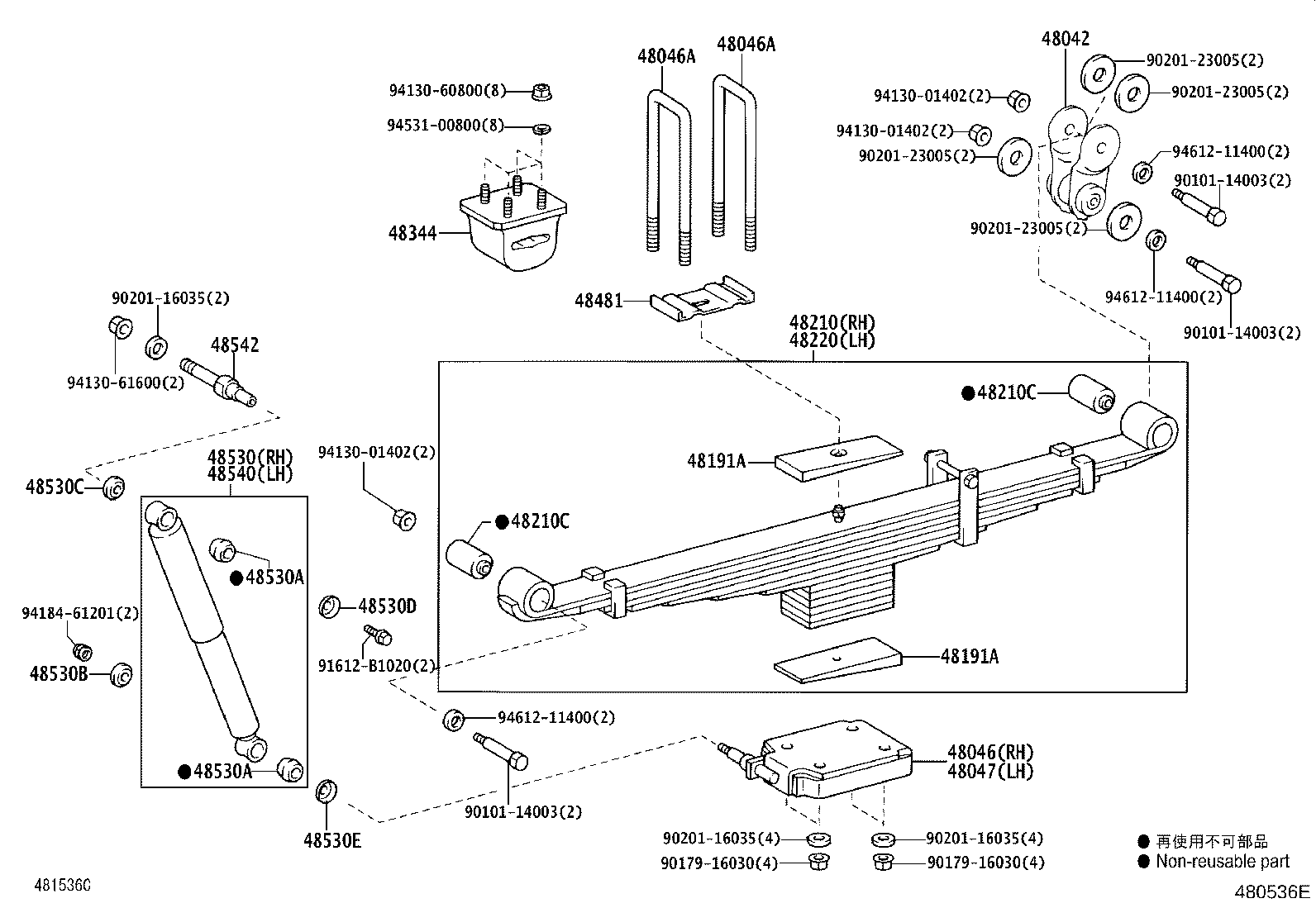

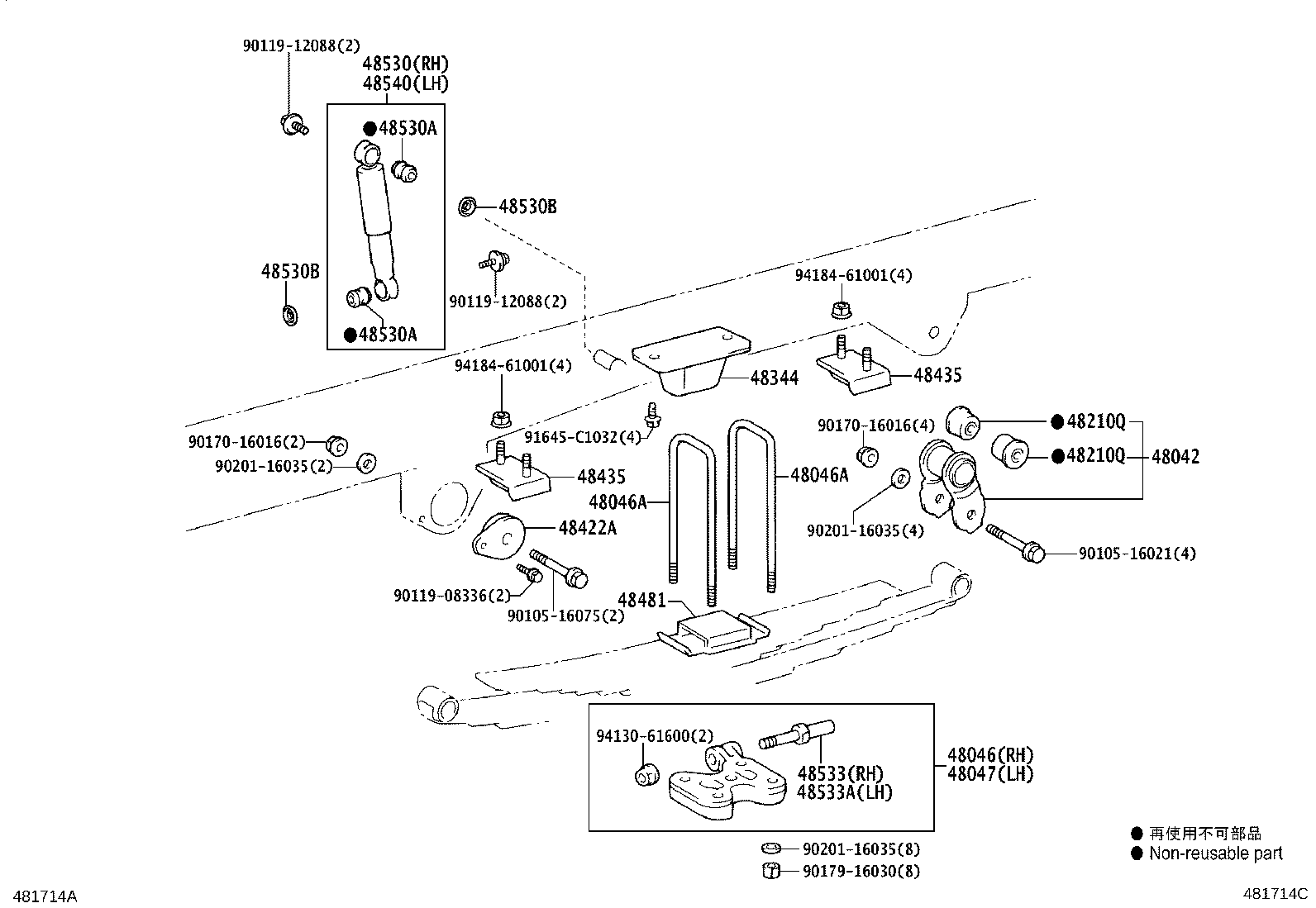

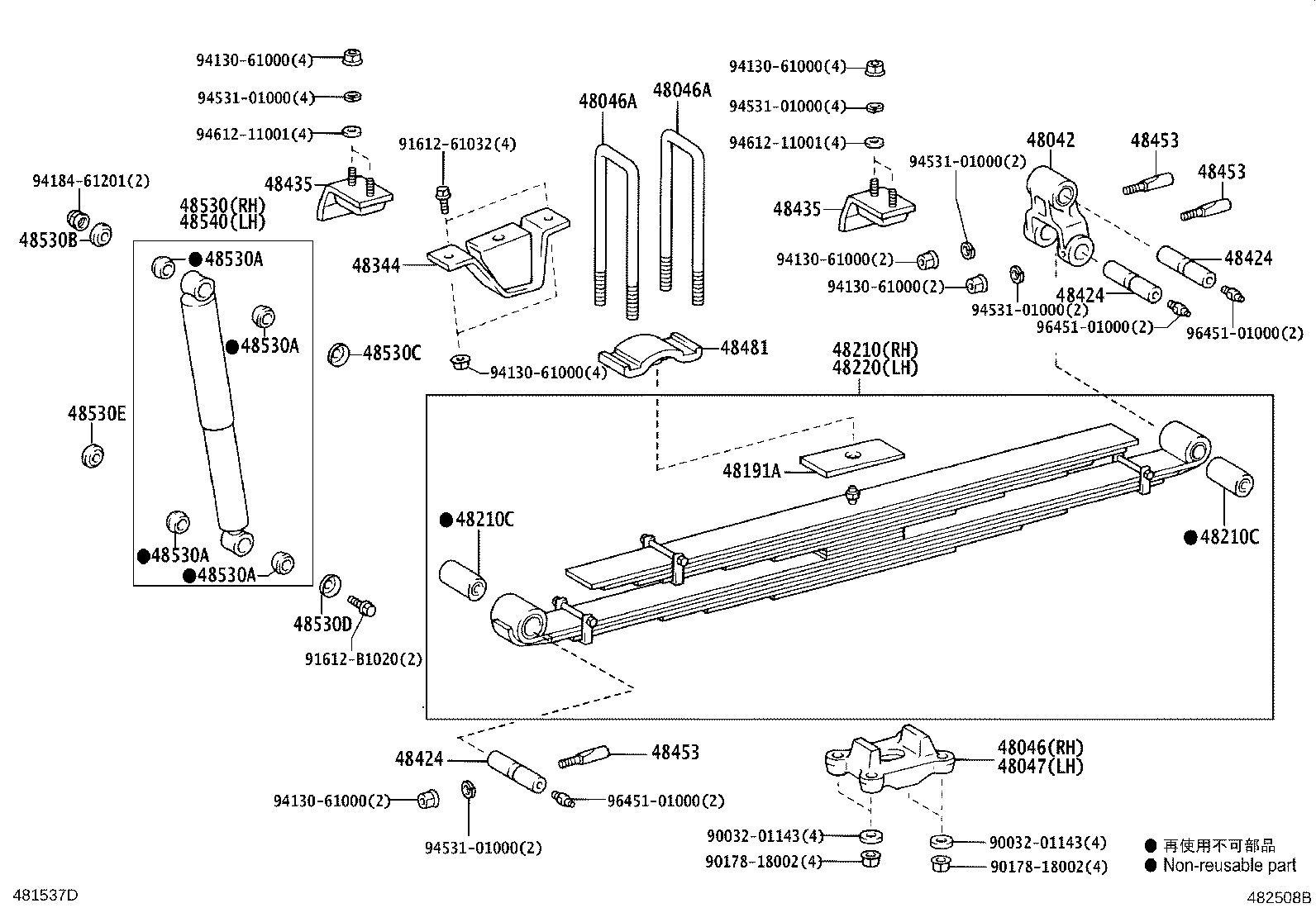

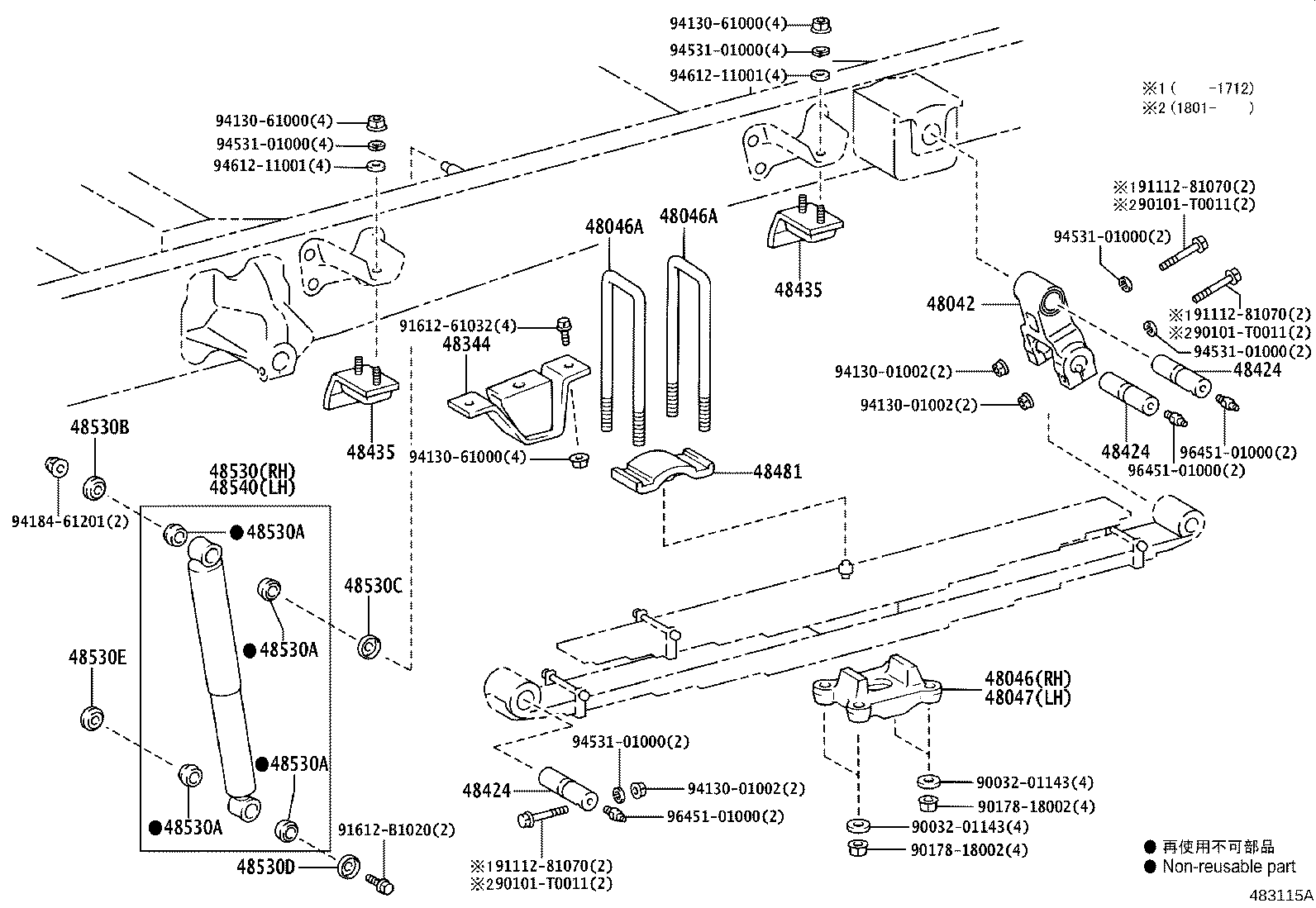

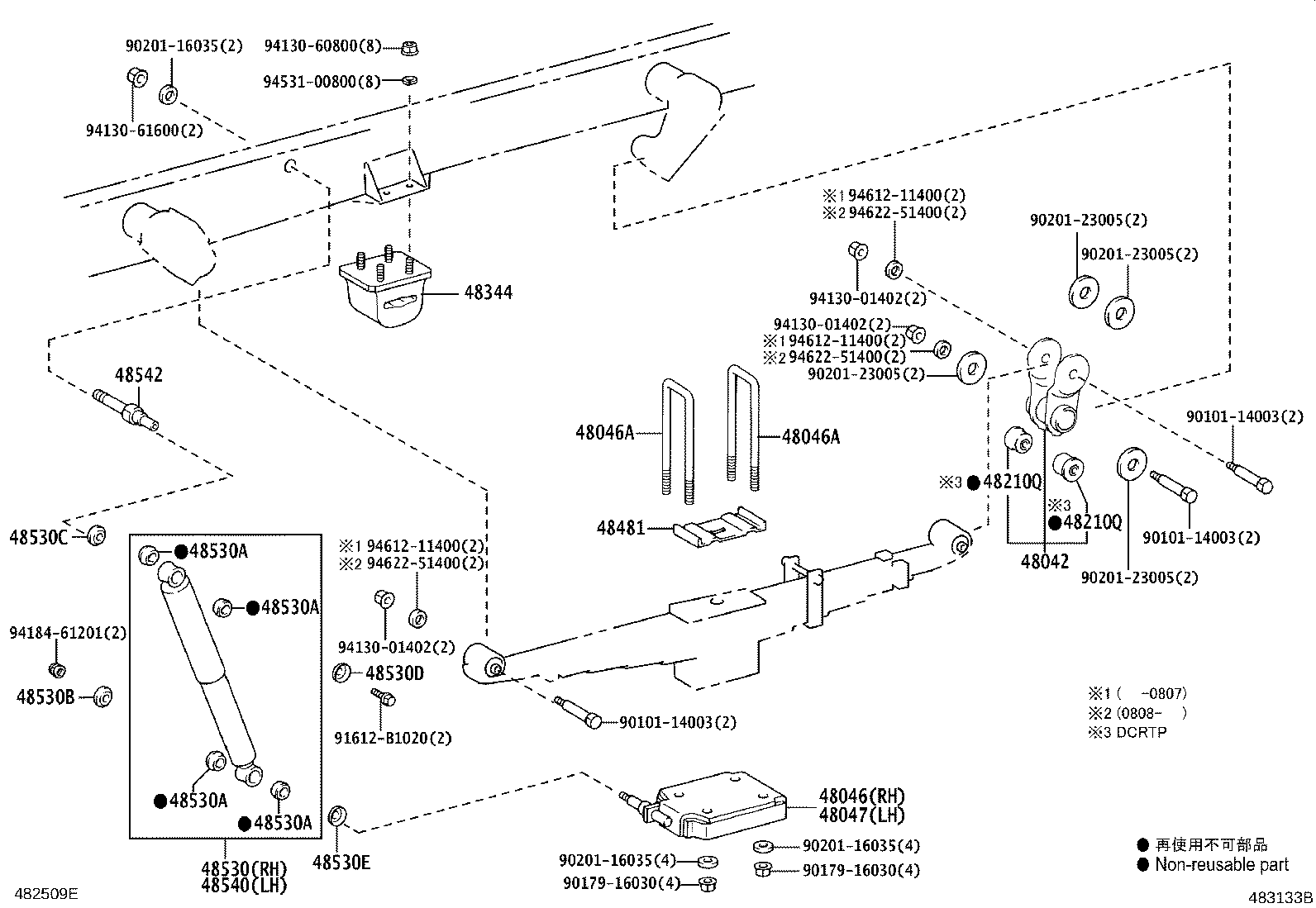

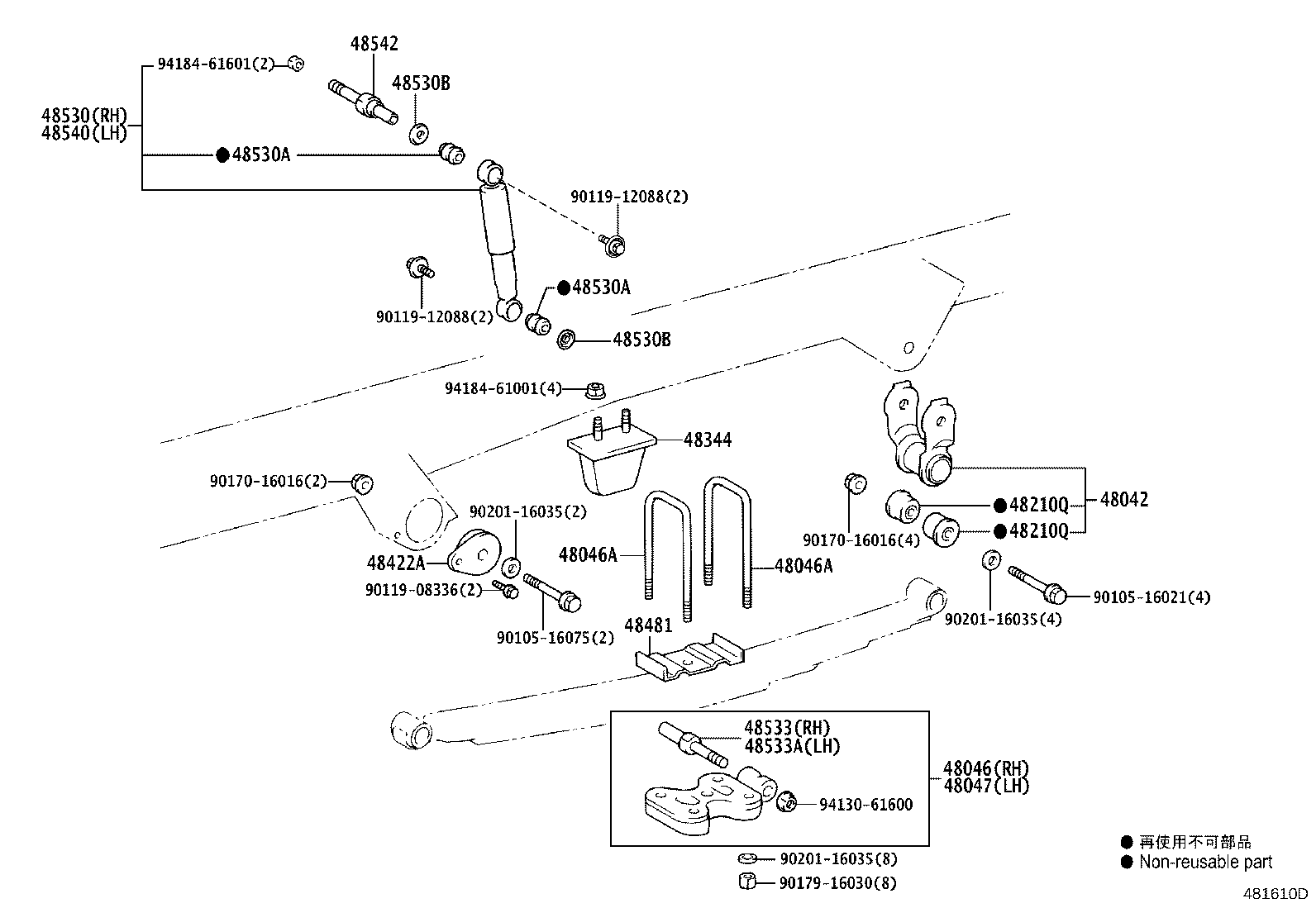

Figure 481537G 481537G 2002-09 → 2006-12 Figure 481536E 481536E 2002-09 → 2006-12 Figure 481610D 481610D 2002-12 → 2006-12 Figure 481610D 481610D 2002-12 → — Figure 481611J 481611J 2002-12 → 2006-10 Figure 481611J 481611J 2002-12 → — Figure 481713F 481713F 2002-12 → — Figure 481714C 481714C 2002-12 → — Figure 481712E 481712E 2002-12 → — Figure 483133B 483133B 2006-12 → — Figure 483133B 483133B 2022-03 → — Figure 483114C 483114C 2006-12 → — Figure 483114C 483114C 2009-12 → — Figure 483114C 483114C 2022-03 → — Figure 483112B 483112B 2009-12 → — Figure 483112B 483112B 2022-03 → — Figure 483115B 483115B 2009-12 → — Figure 482508B 482508B 2006-12 → — Figure 481634A 481634A 2002-12 → 2006-10 Figure 483082A 483082A 2006-12 → 2017-06 Figure 484507A 484507A 2017-07 → 2018-05 Figure 484725A 484725A 2018-05 → — Figure 484725A 484725A 2022-03 → — Figure 480973B 480973B 2002-12 → 2006-10 Figure 480973B 480973B 2006-10 → — Figure 480972B 480972B 2002-12 → — Figure 481607D 481607D 2002-12 → 2006-12 Figure 481607D 481607D 2002-12 → — Figure 481608C 481608C 2002-12 → 2006-10 Figure 481608C 481608C 2002-12 → — Figure 481608C 481608C 2006-10 → — Figure 481609E 481609E 2002-12 → 2006-10 Figure 481609E 481609E 2002-12 → — Figure 483113B 483113B 2009-12 → — Figure 483113B 483113B 2022-03 → — Figure 483117C 483117C 2009-12 → — Figure 483116F 483116F 2006-12 → — Figure 483116F 483116F 2009-12 → — Figure 483116F 483116F 2022-03 → — Figure 481715A 481715A 2002-12 → — Figure 484460B 484460B 2017-07 → — Figure 484461B 484461B 2017-07 → — Figure 484461B 484461B 2022-03 → — Figure 484462B 484462B 2017-07 → 2018-05 Figure 484727A 484727A 2018-05 → — Figure 484727A 484727A 2022-03 → —

Part groups

PNCDescription

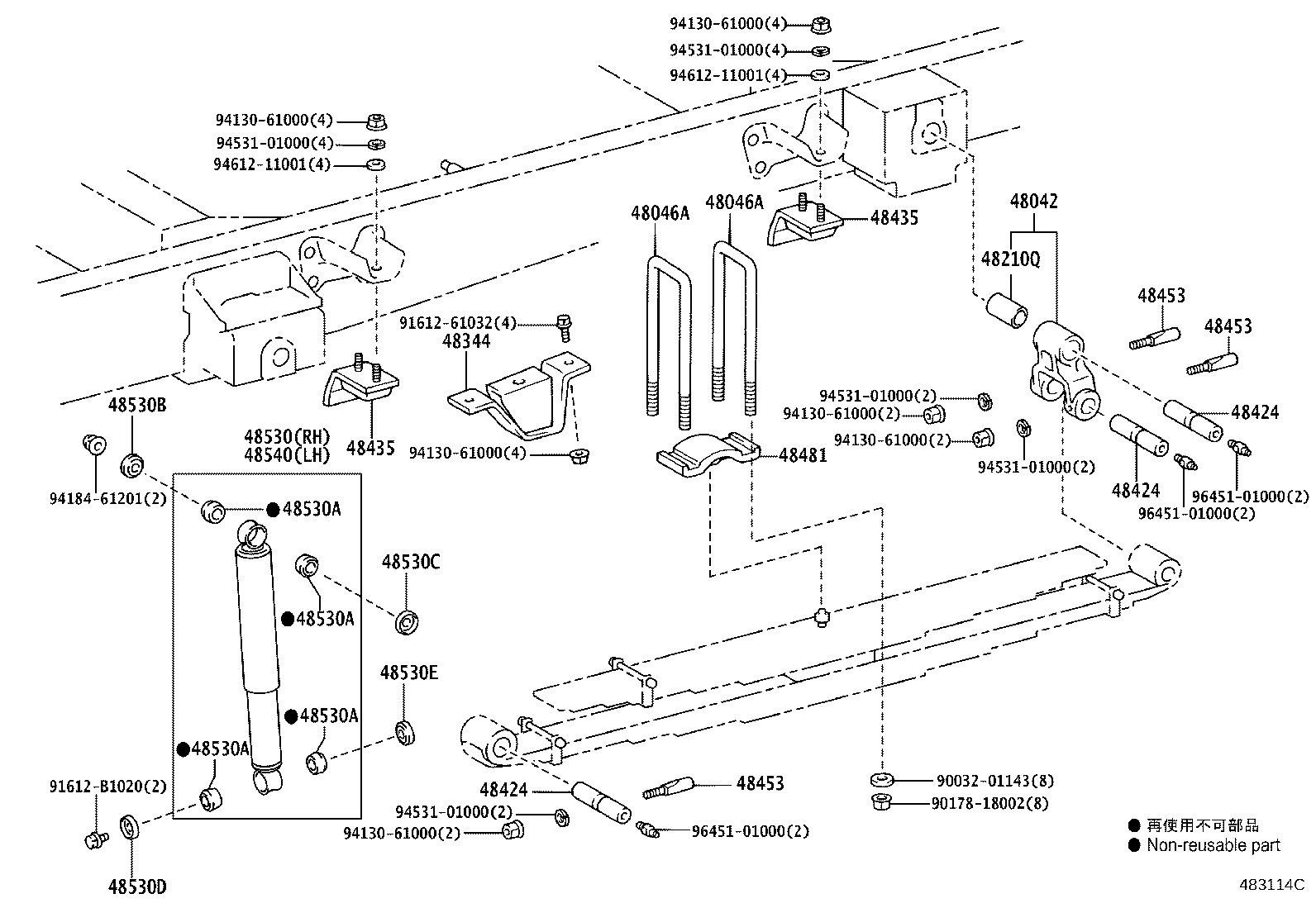

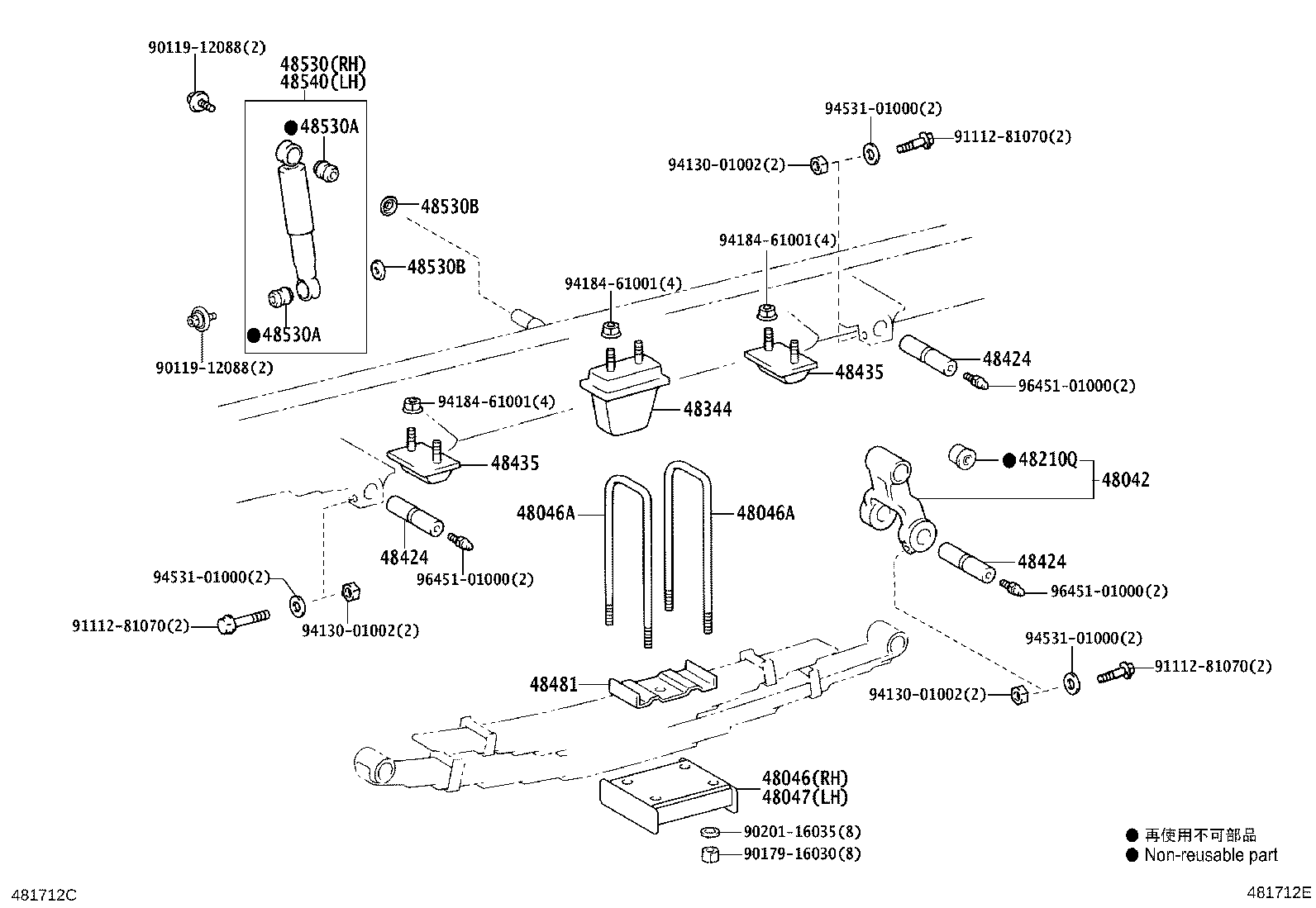

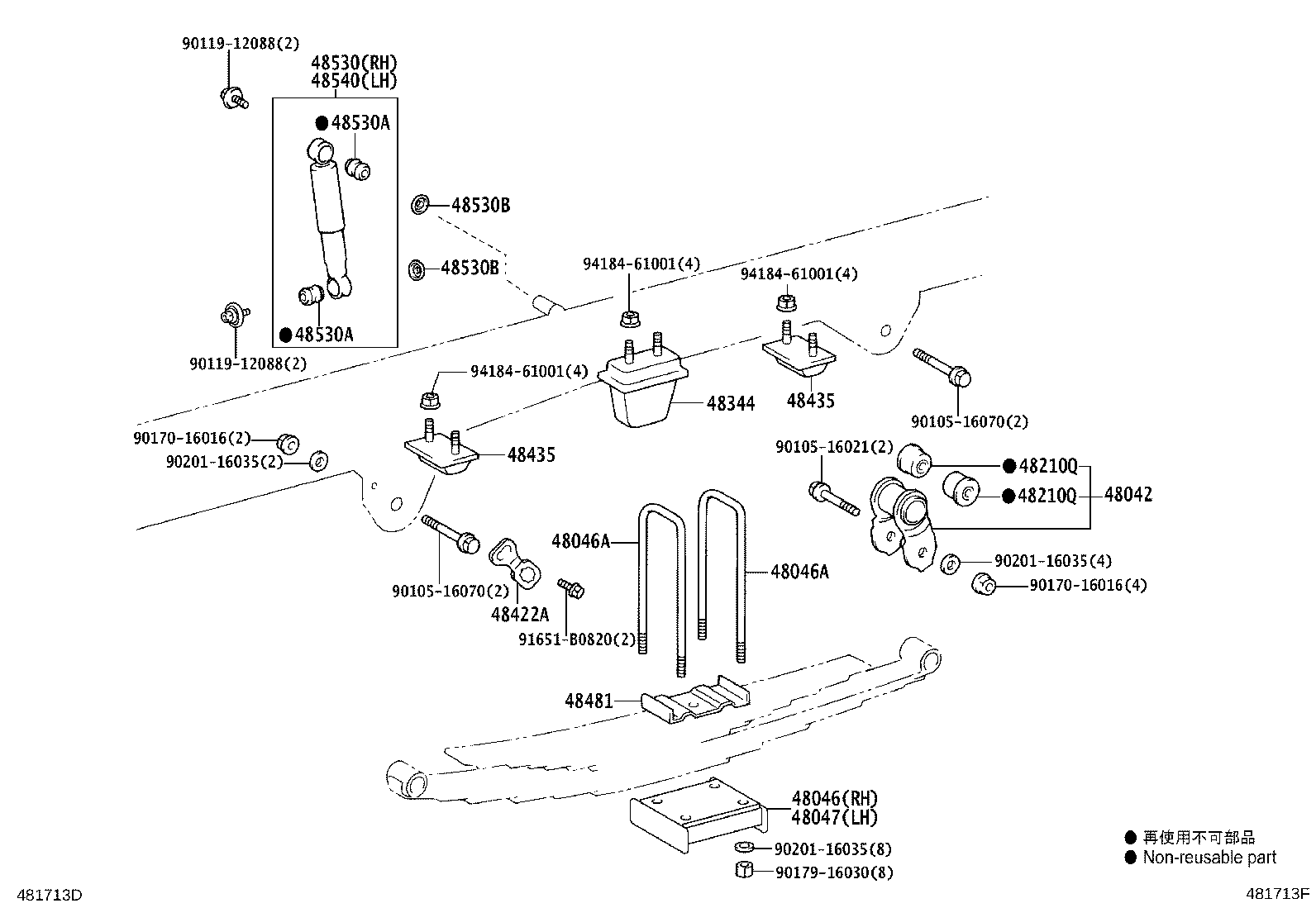

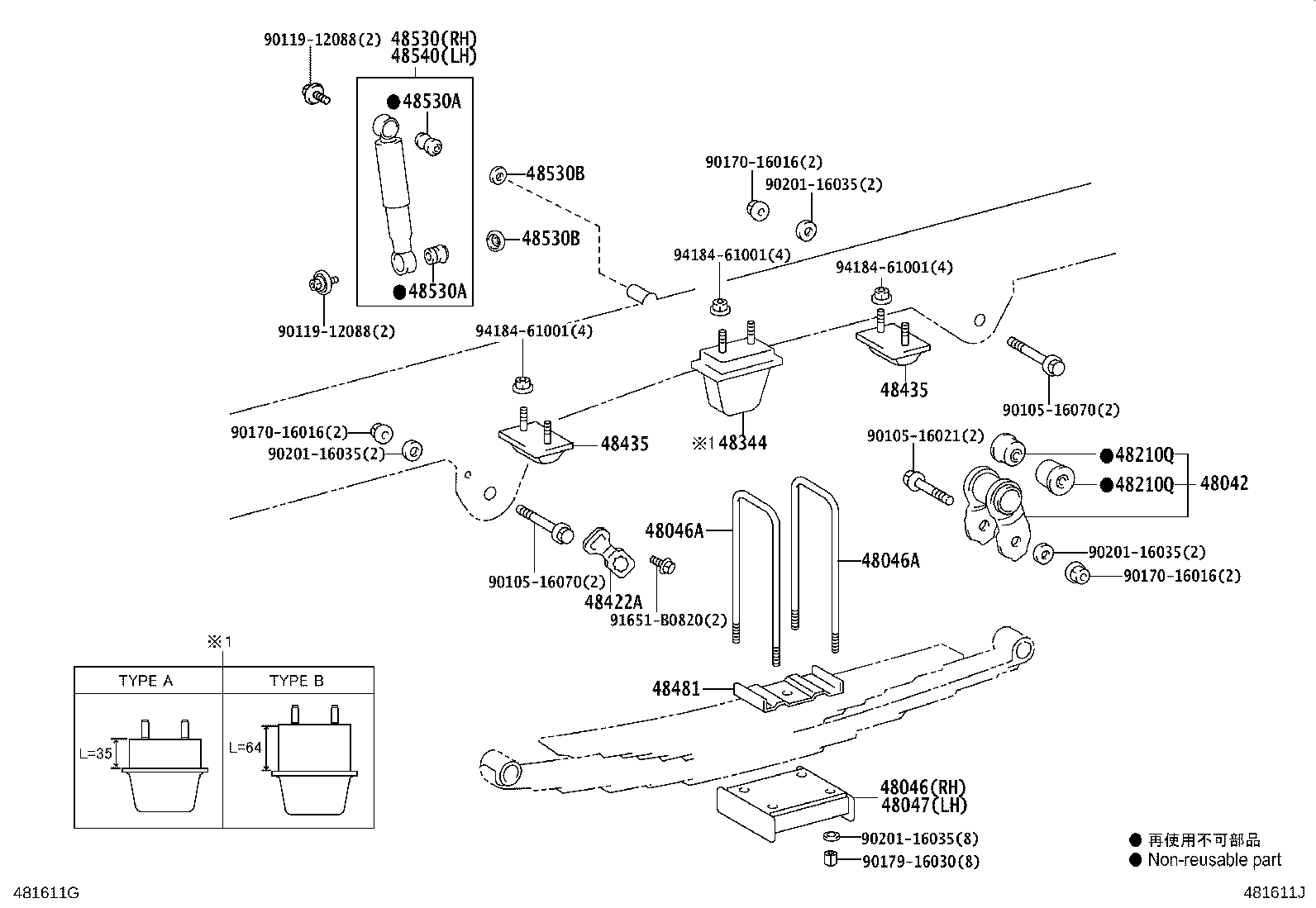

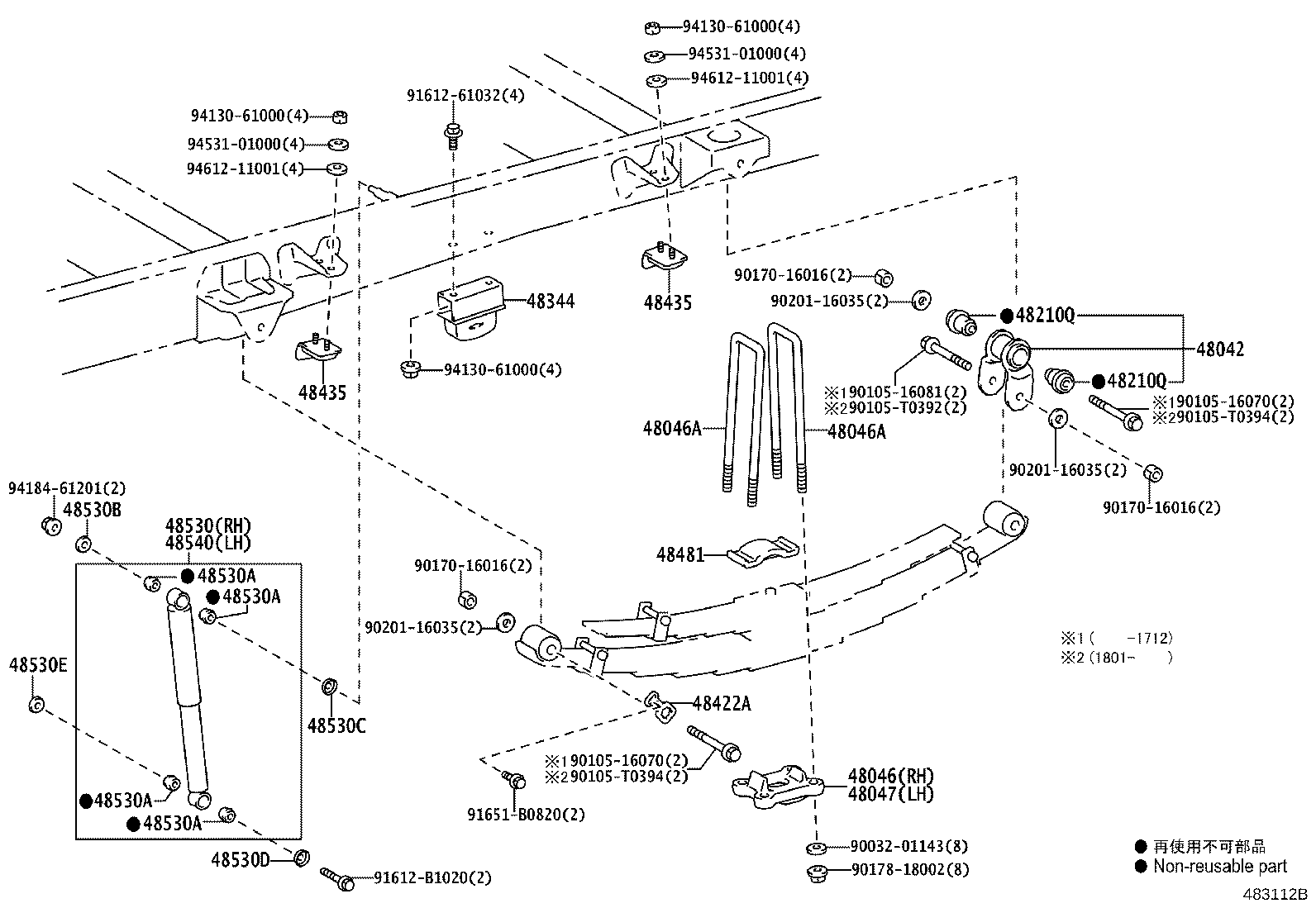

48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)

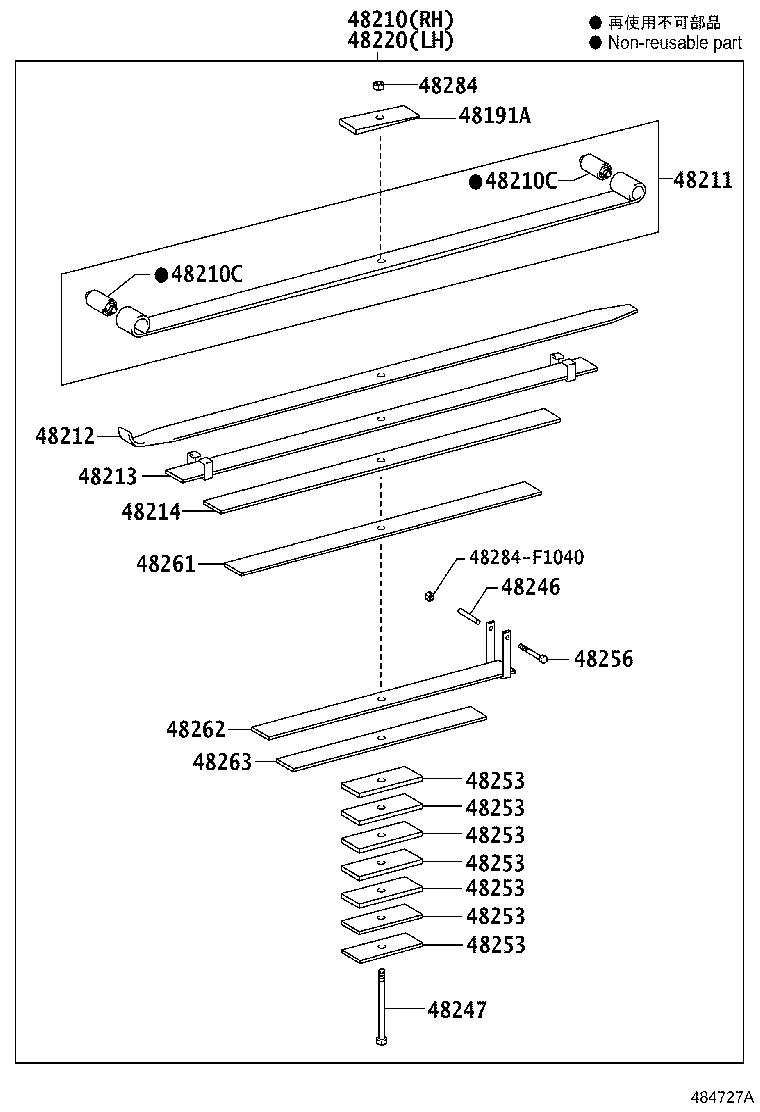

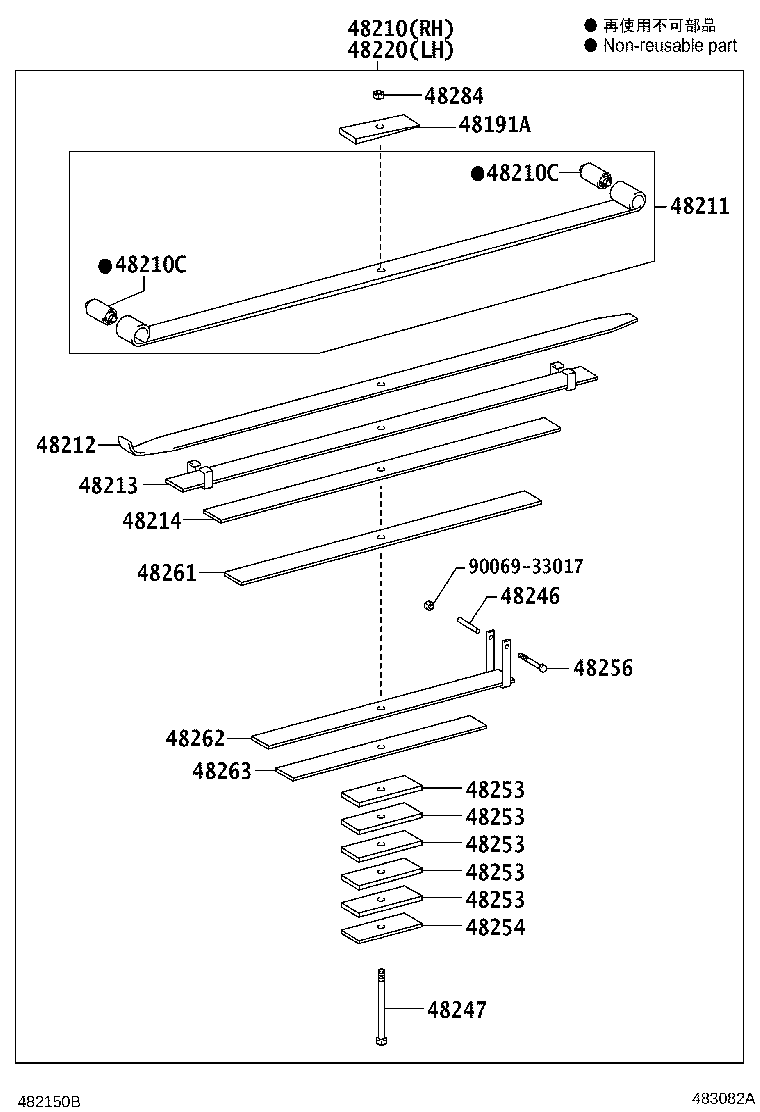

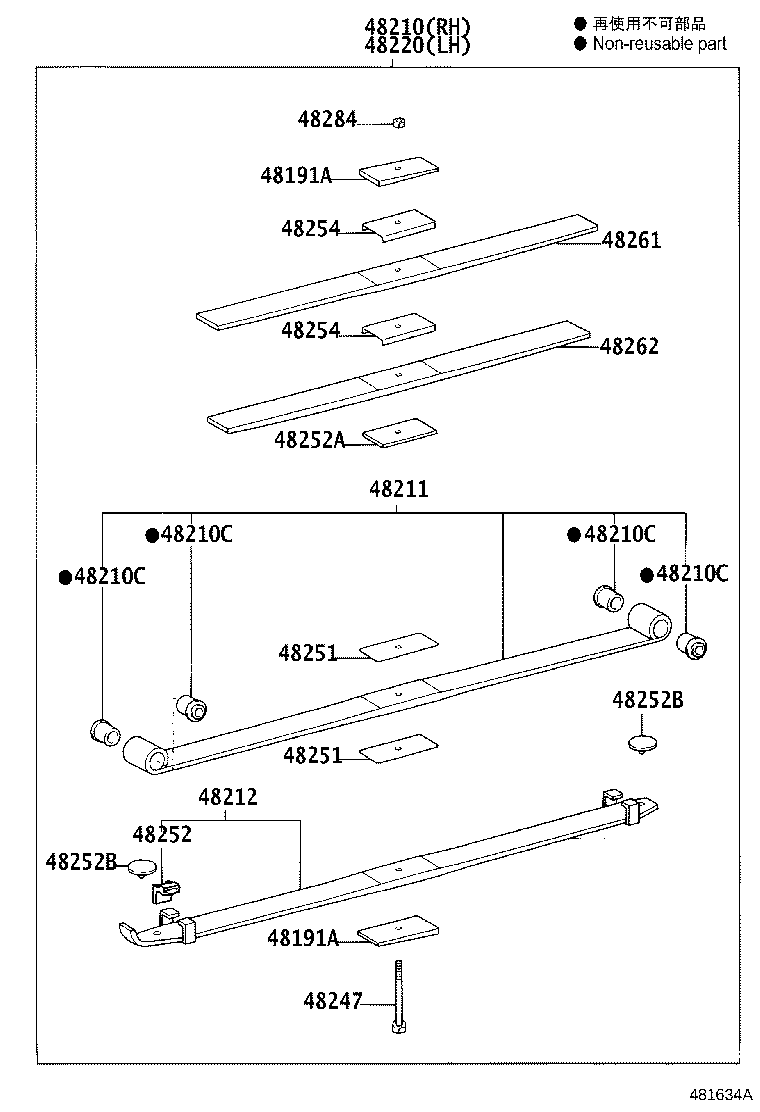

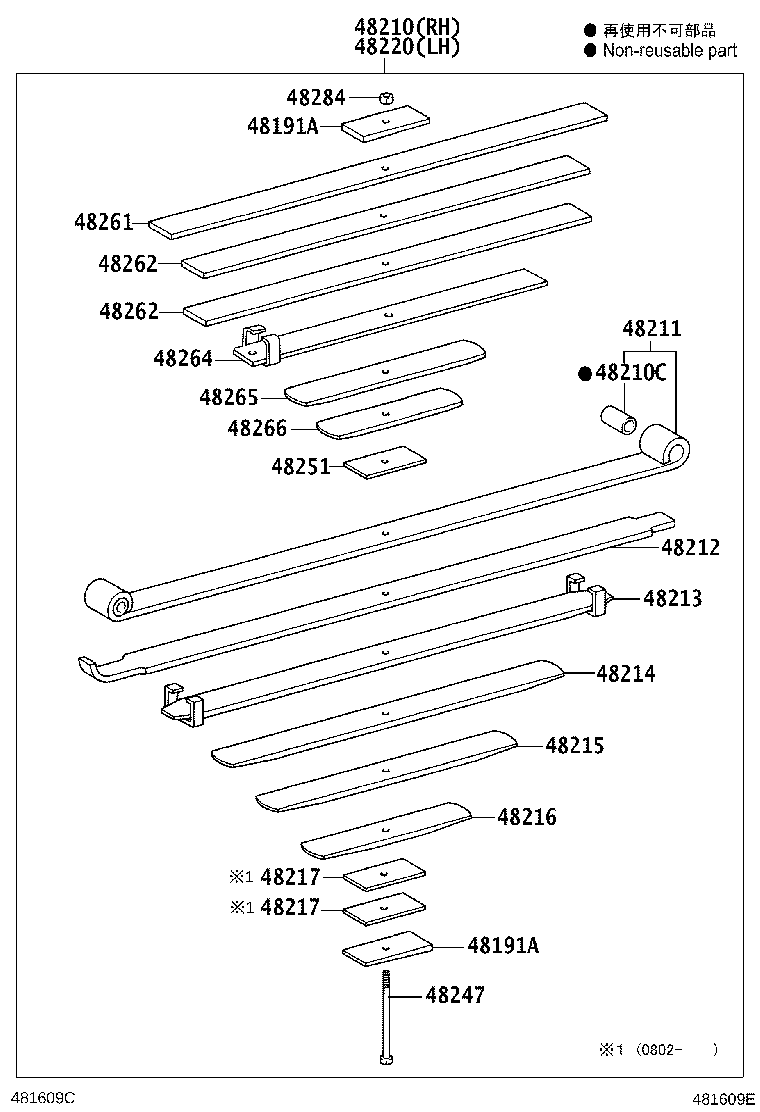

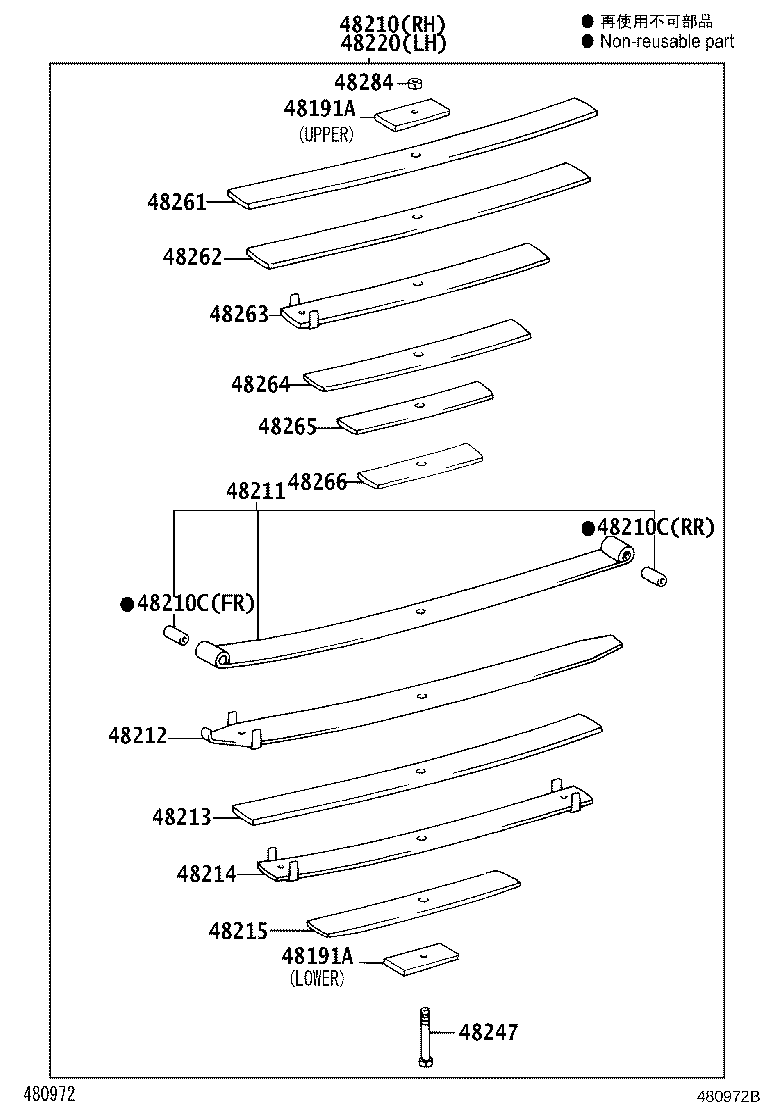

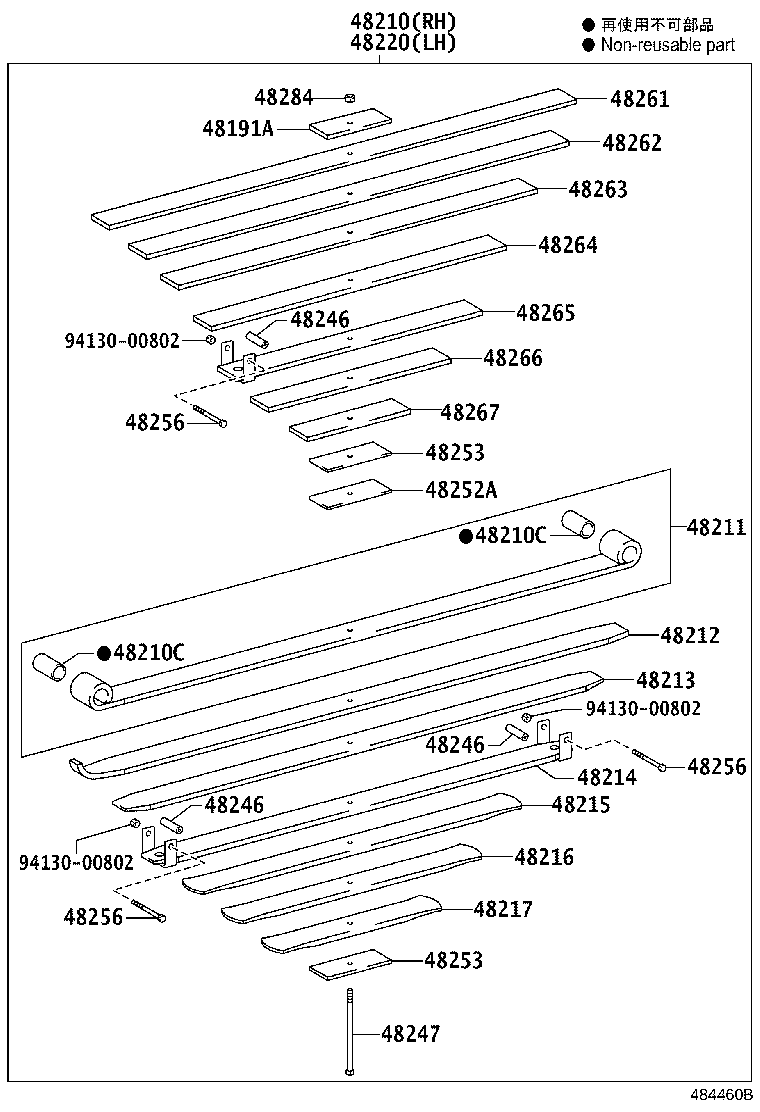

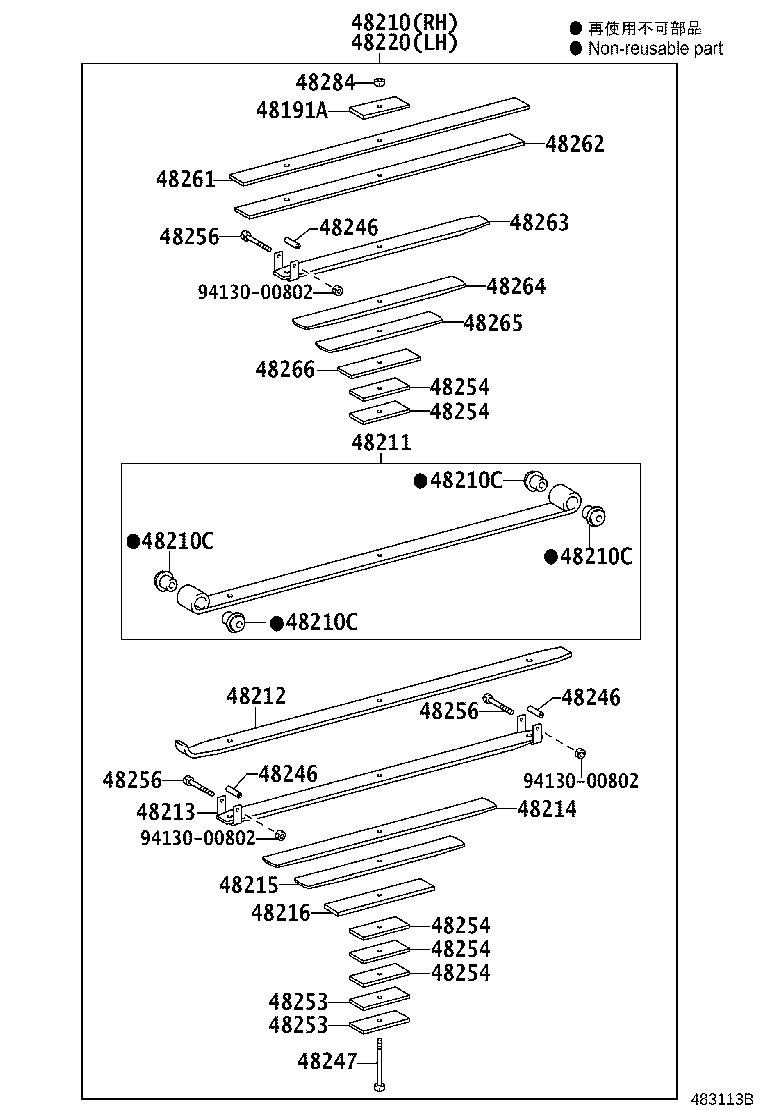

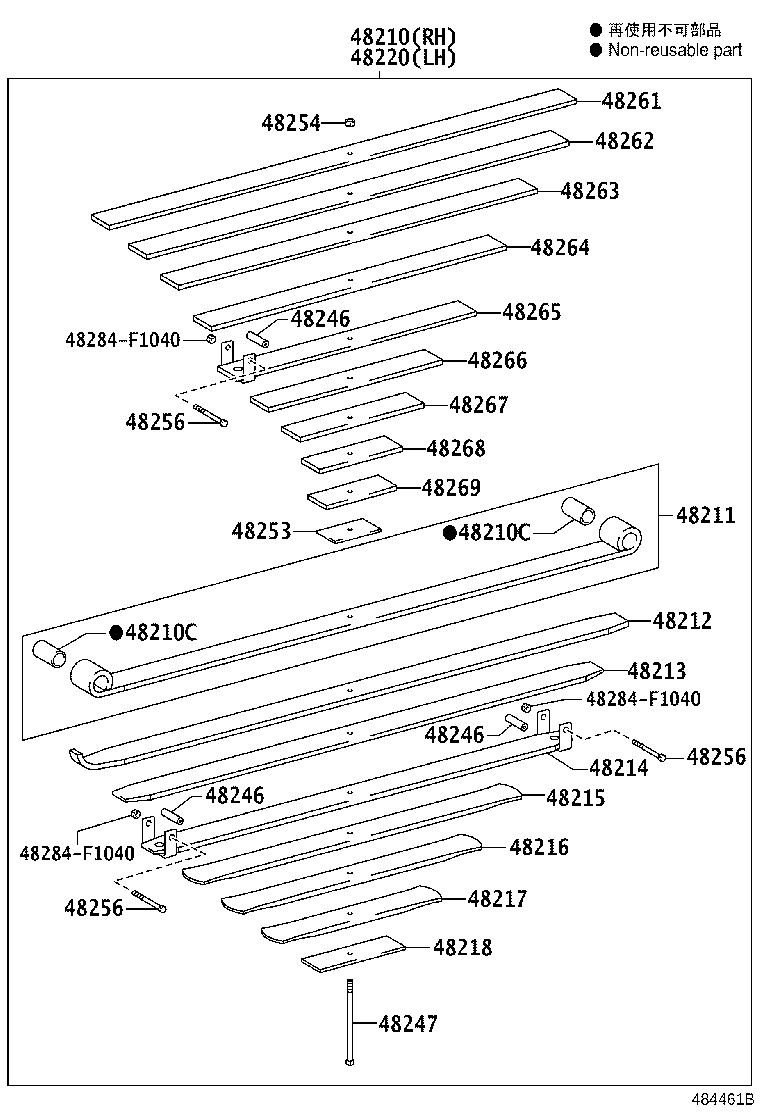

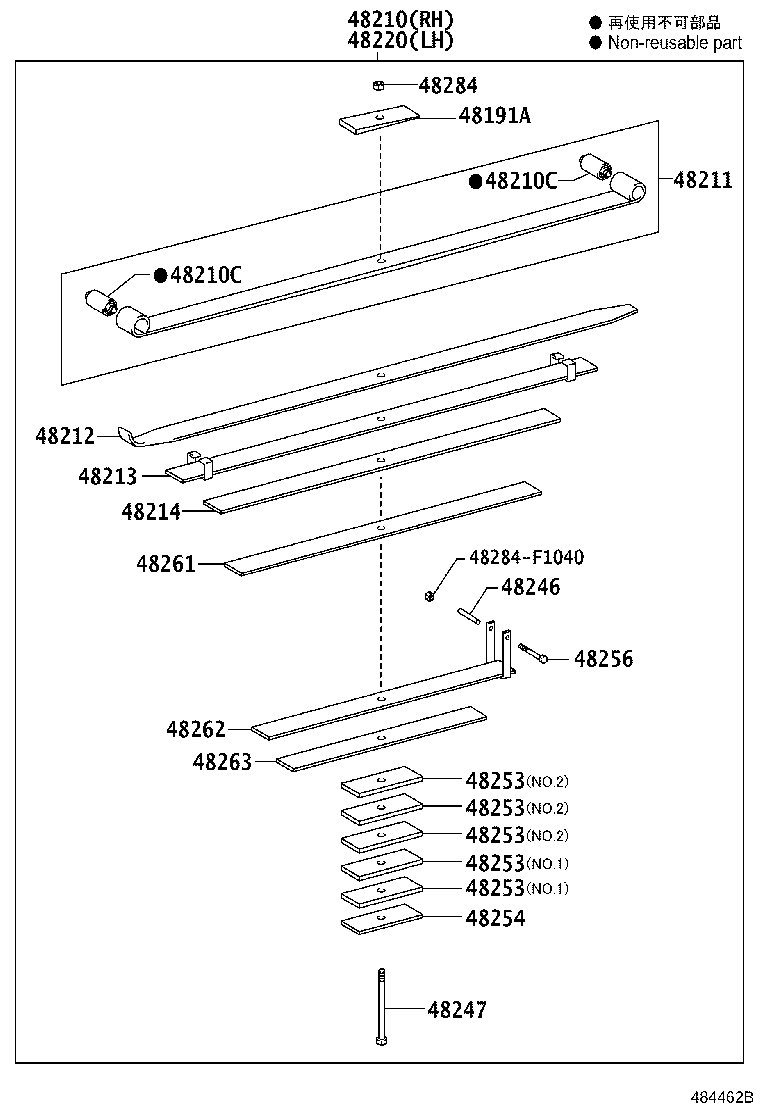

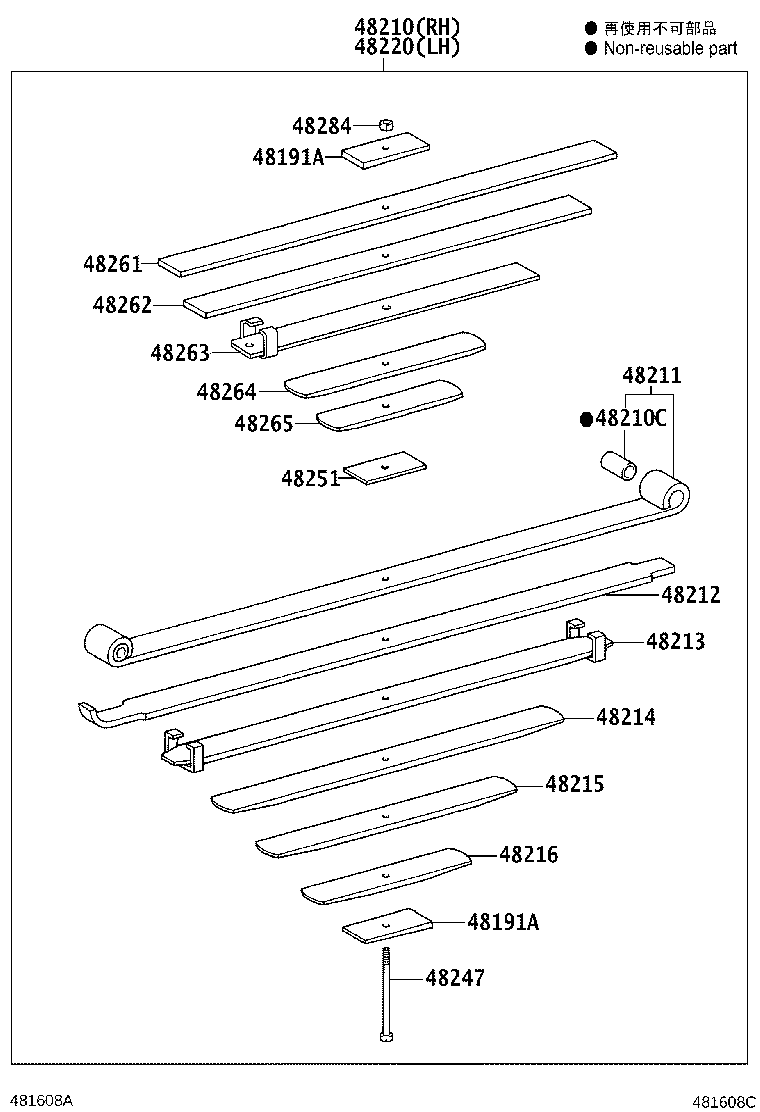

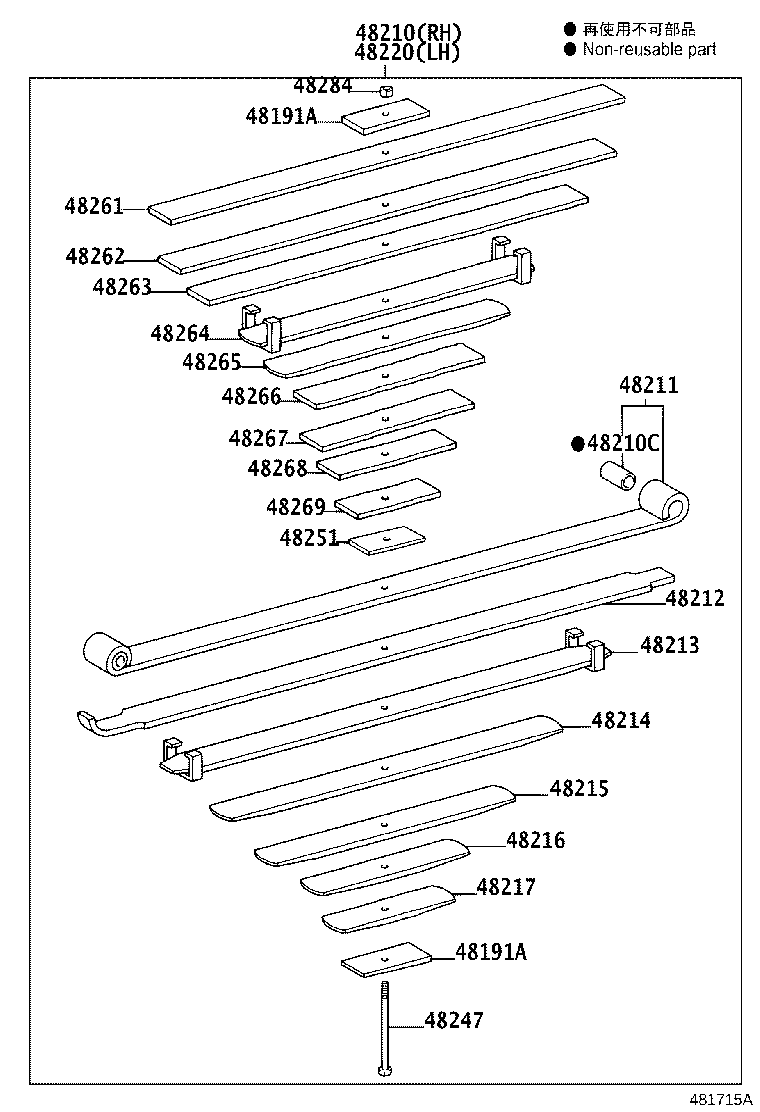

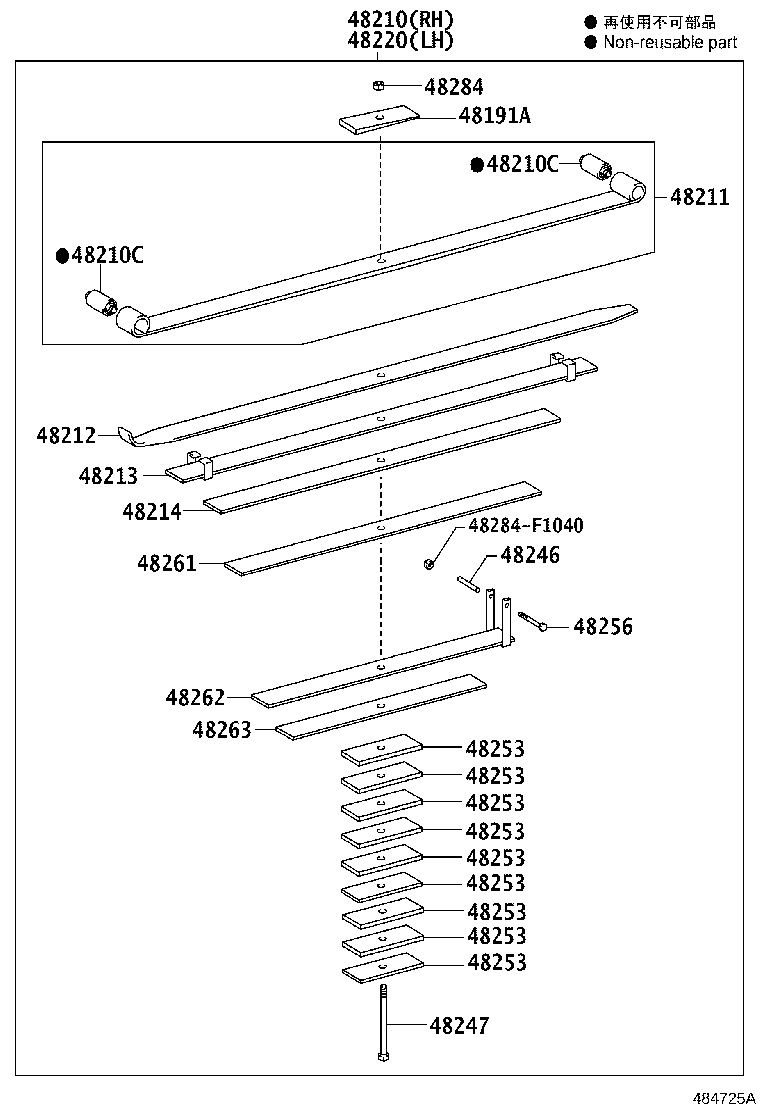

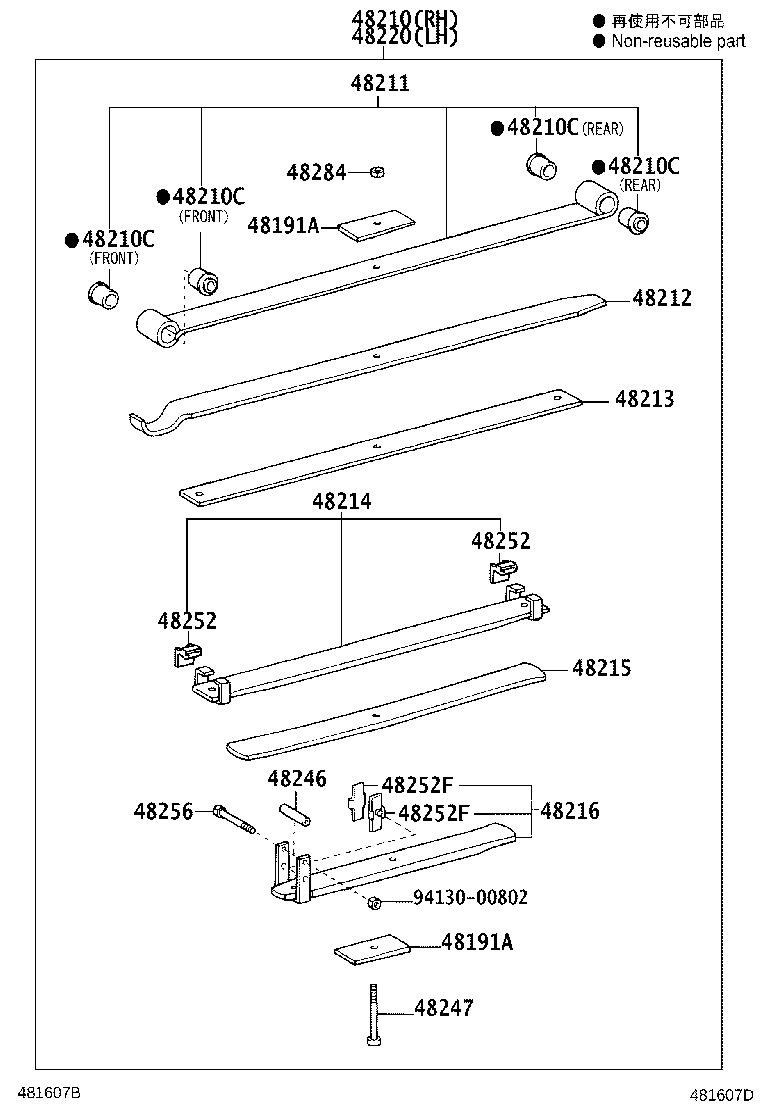

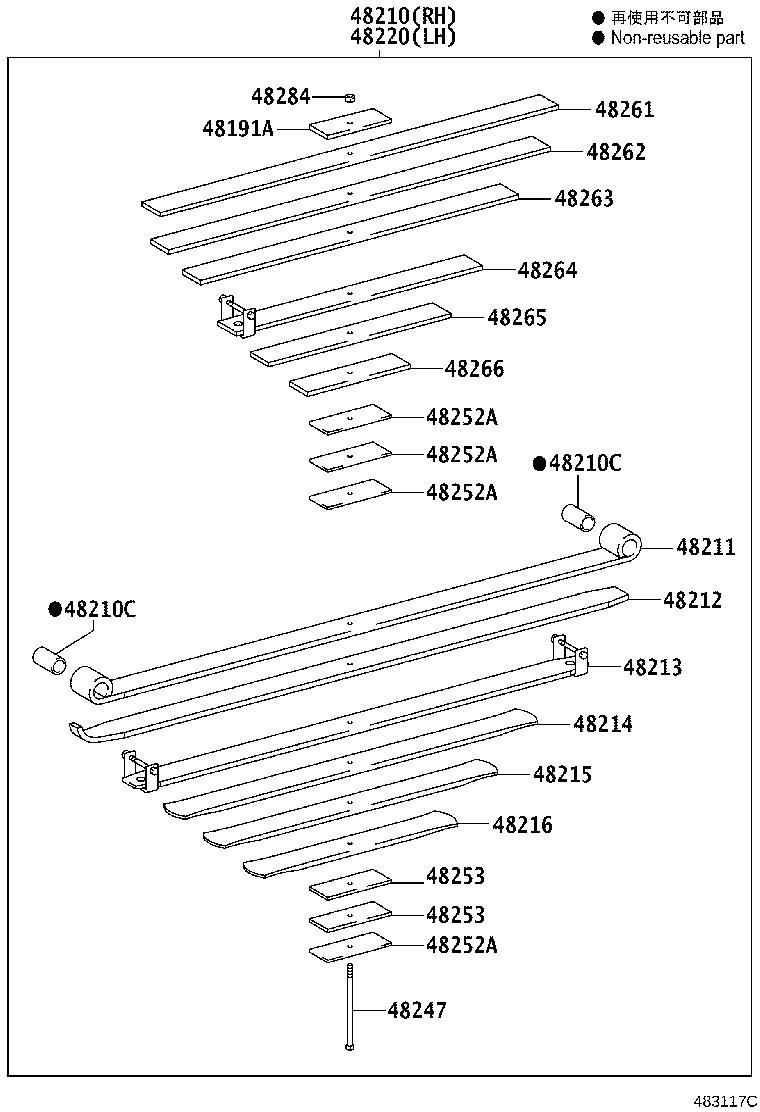

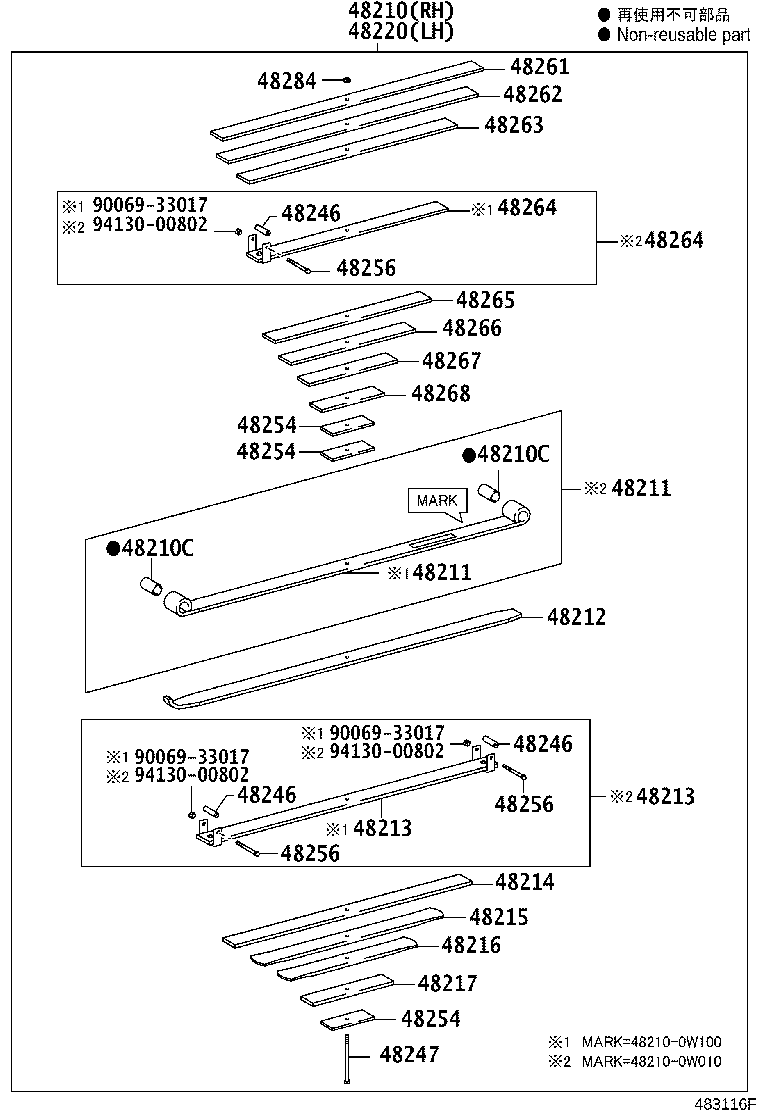

48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48269 Leaf, Rear Helper Spring, NO.9
48284 Nut, Rear Spring Center Bolt
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48424 Pin, Spring Bracket, NO.2
48435 Attachment, Helper Spring Bracket, NO.1
48453 Pin, Rear Spring Pin Lock
48481 Seat, Rear Spring, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
