Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 22 illustrations

Illustrations

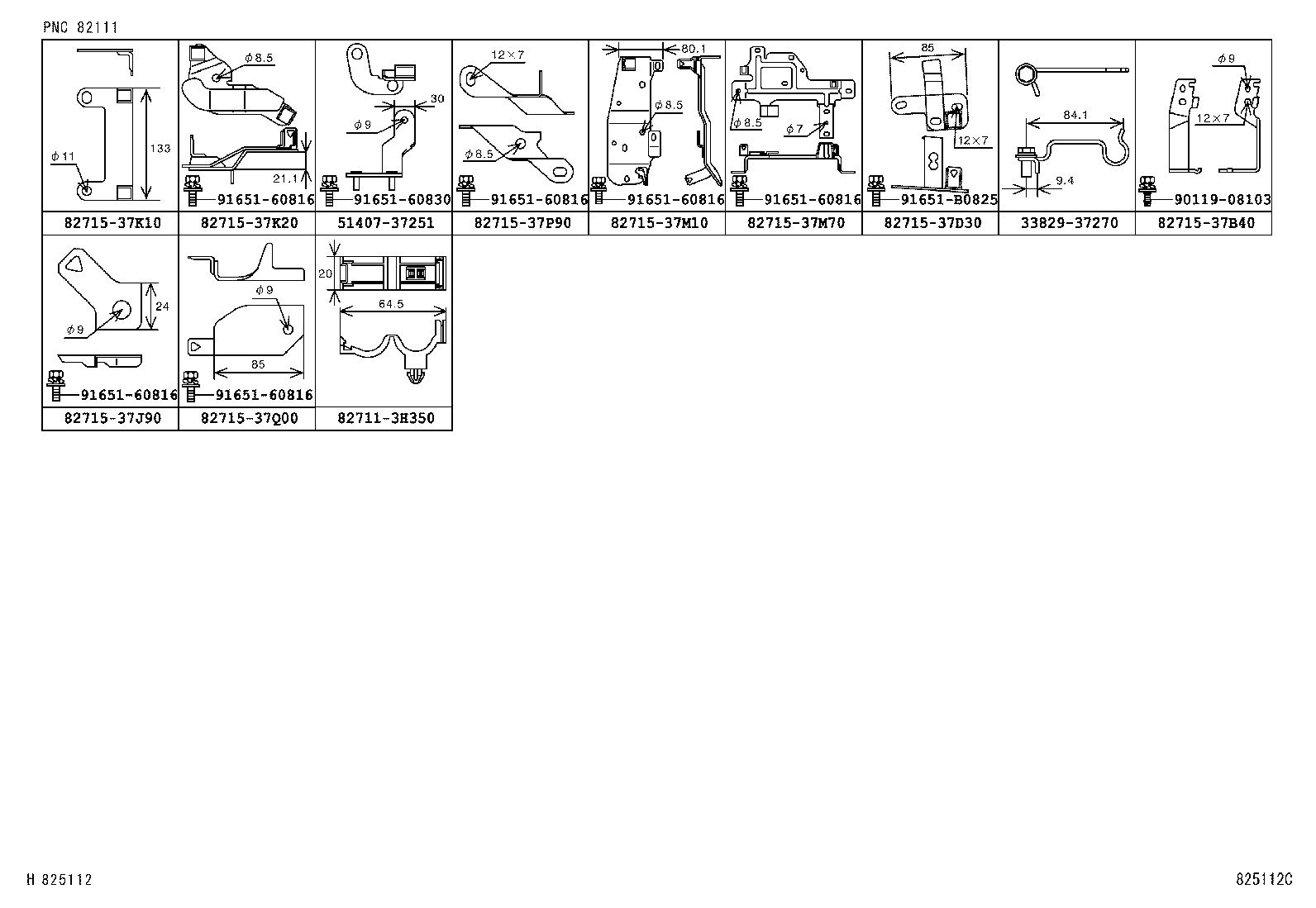

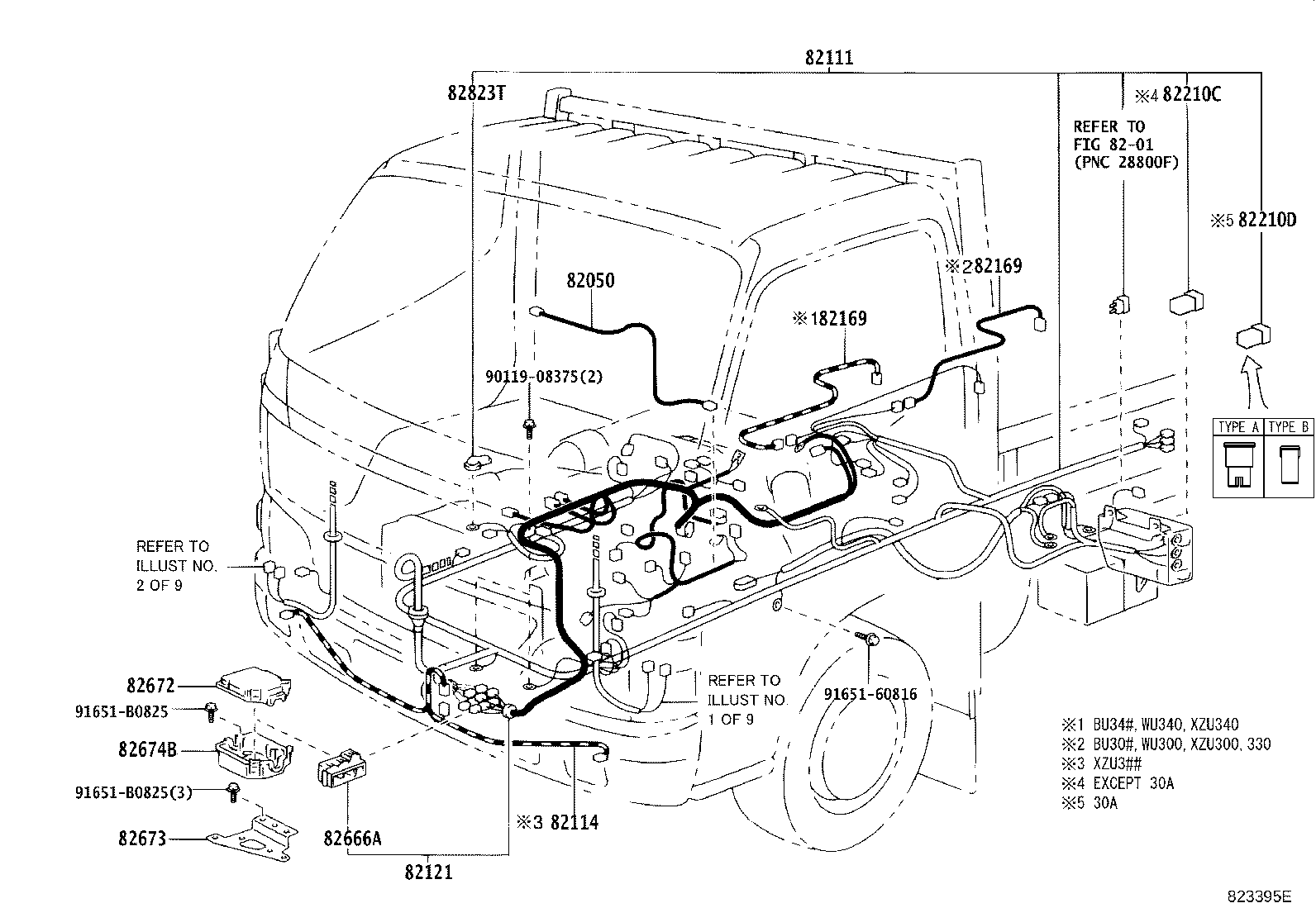

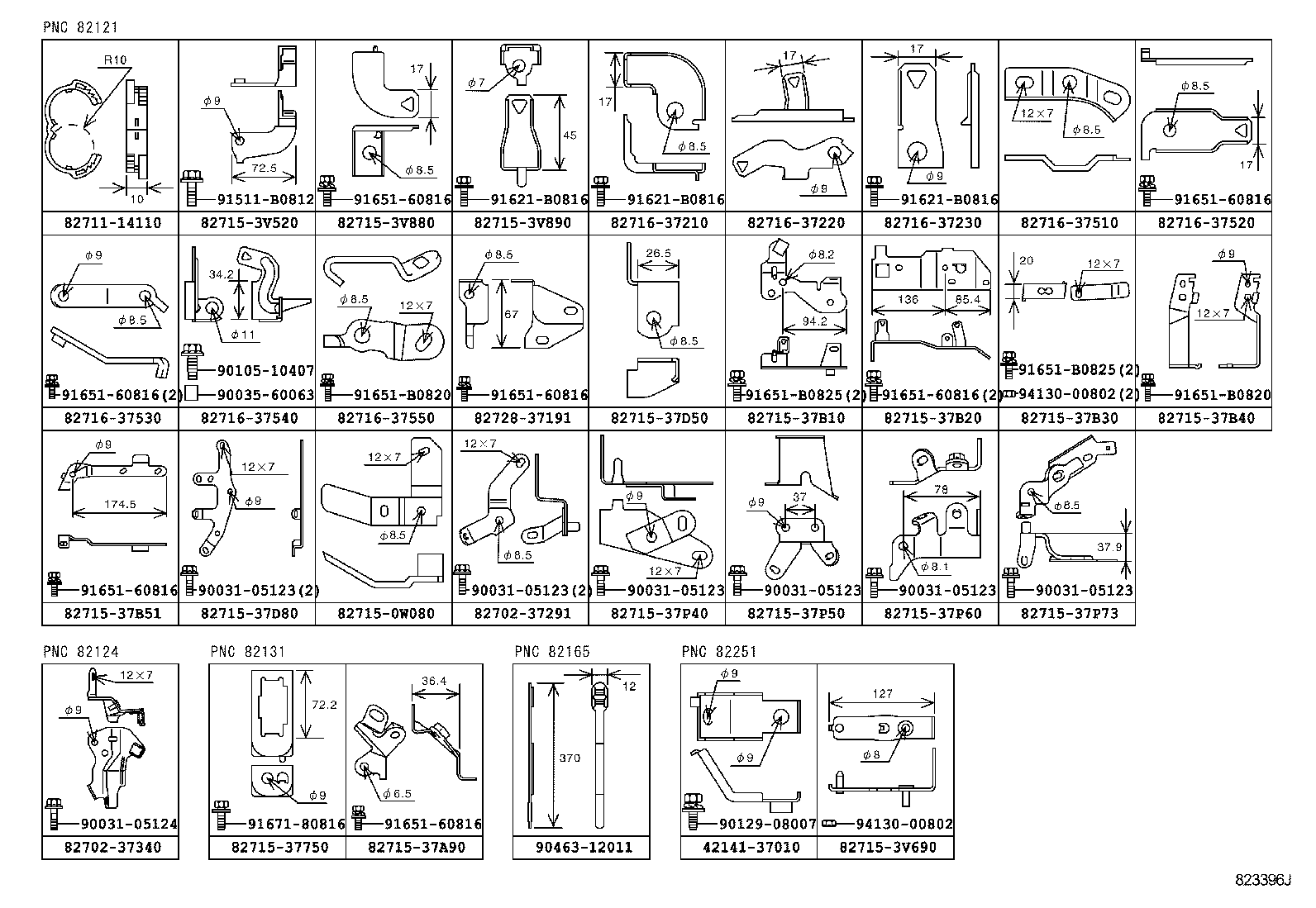

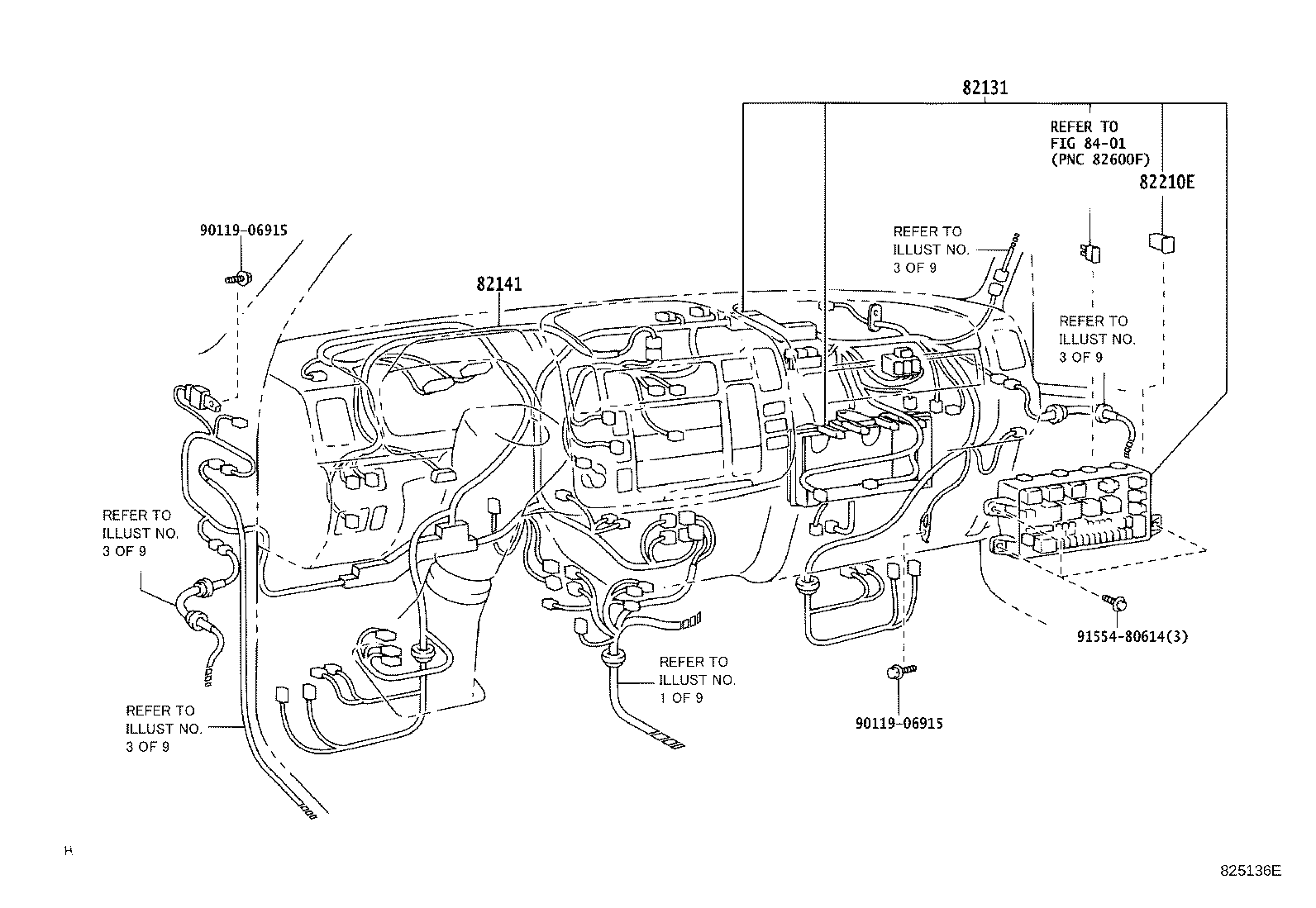

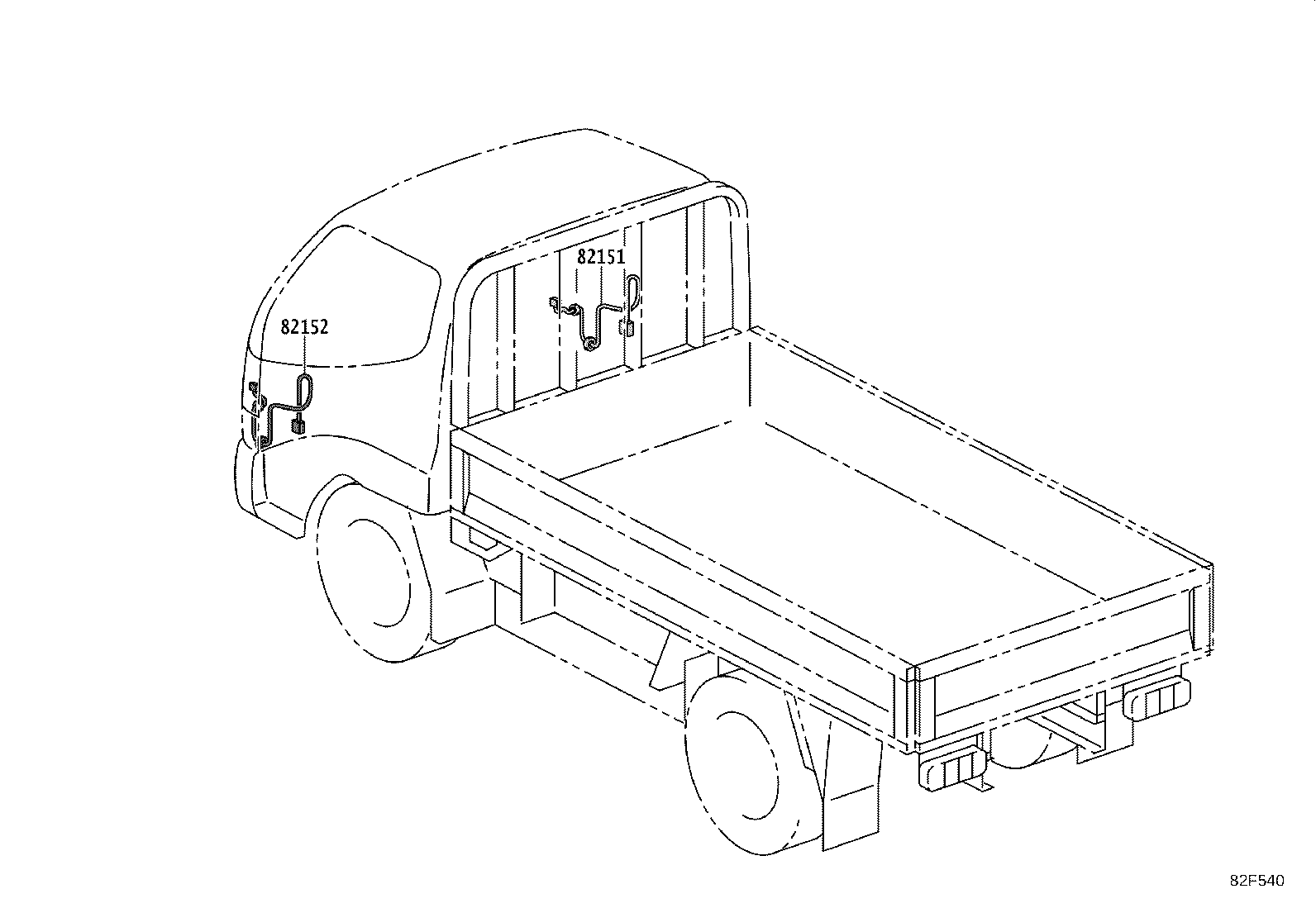

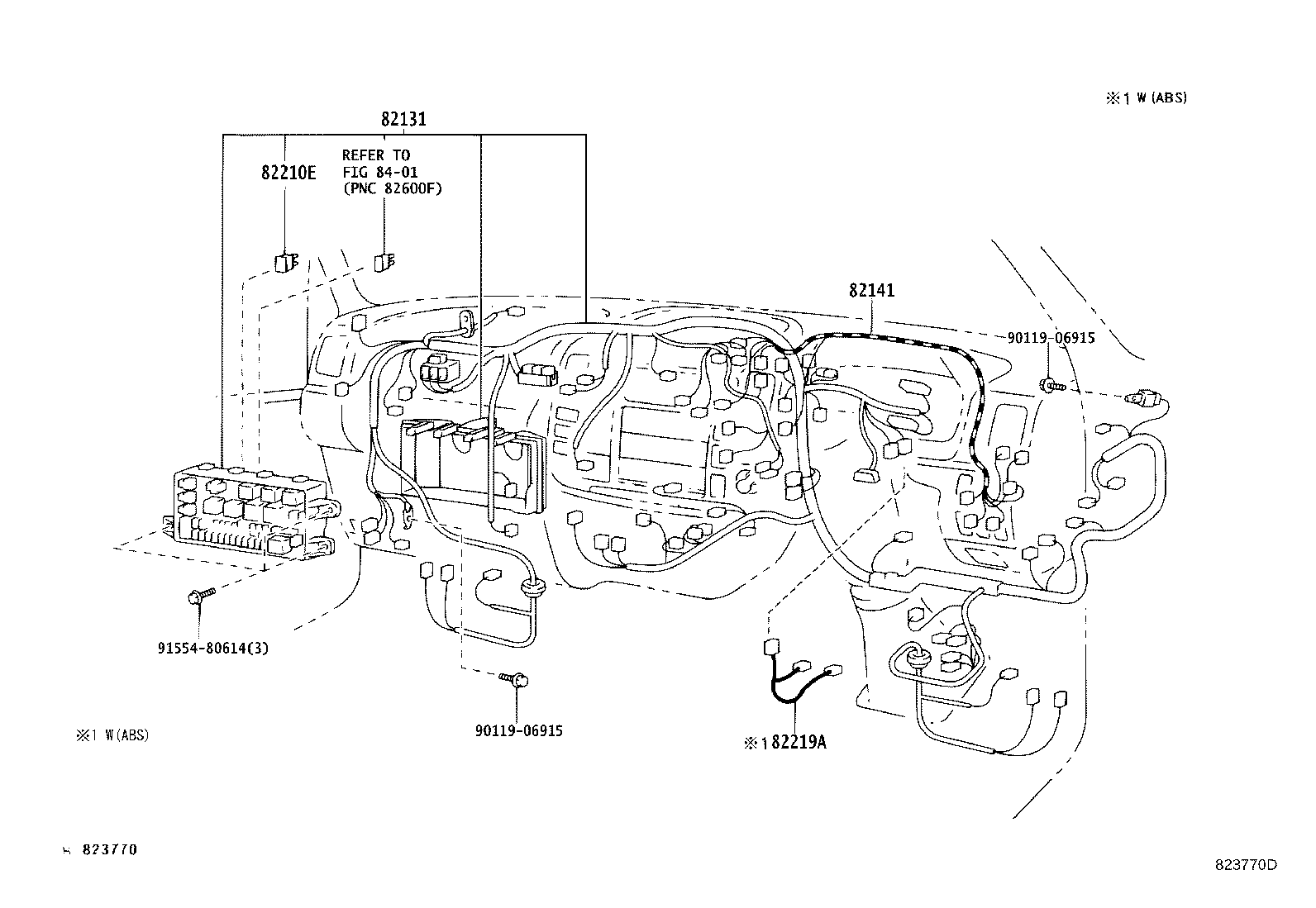

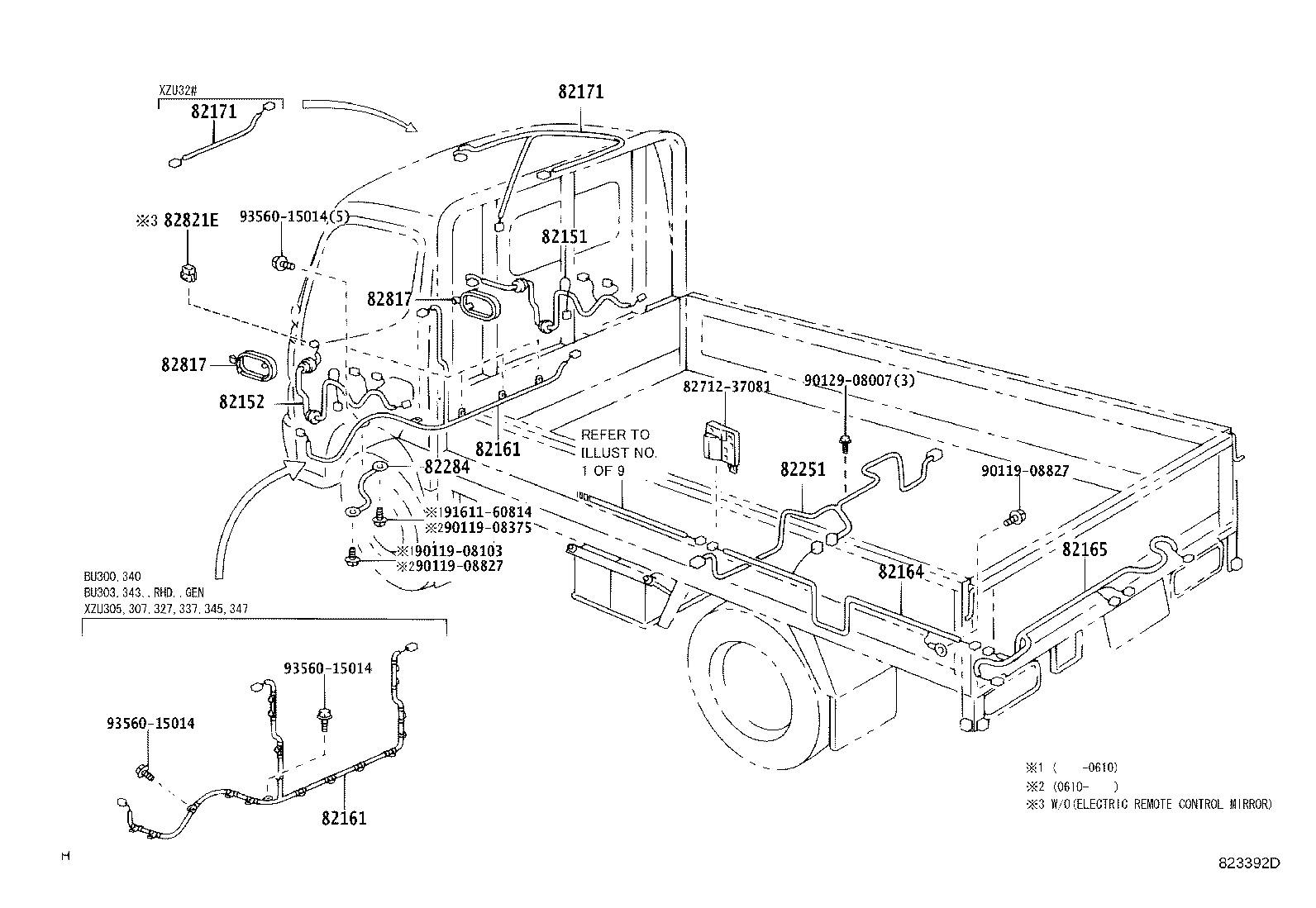

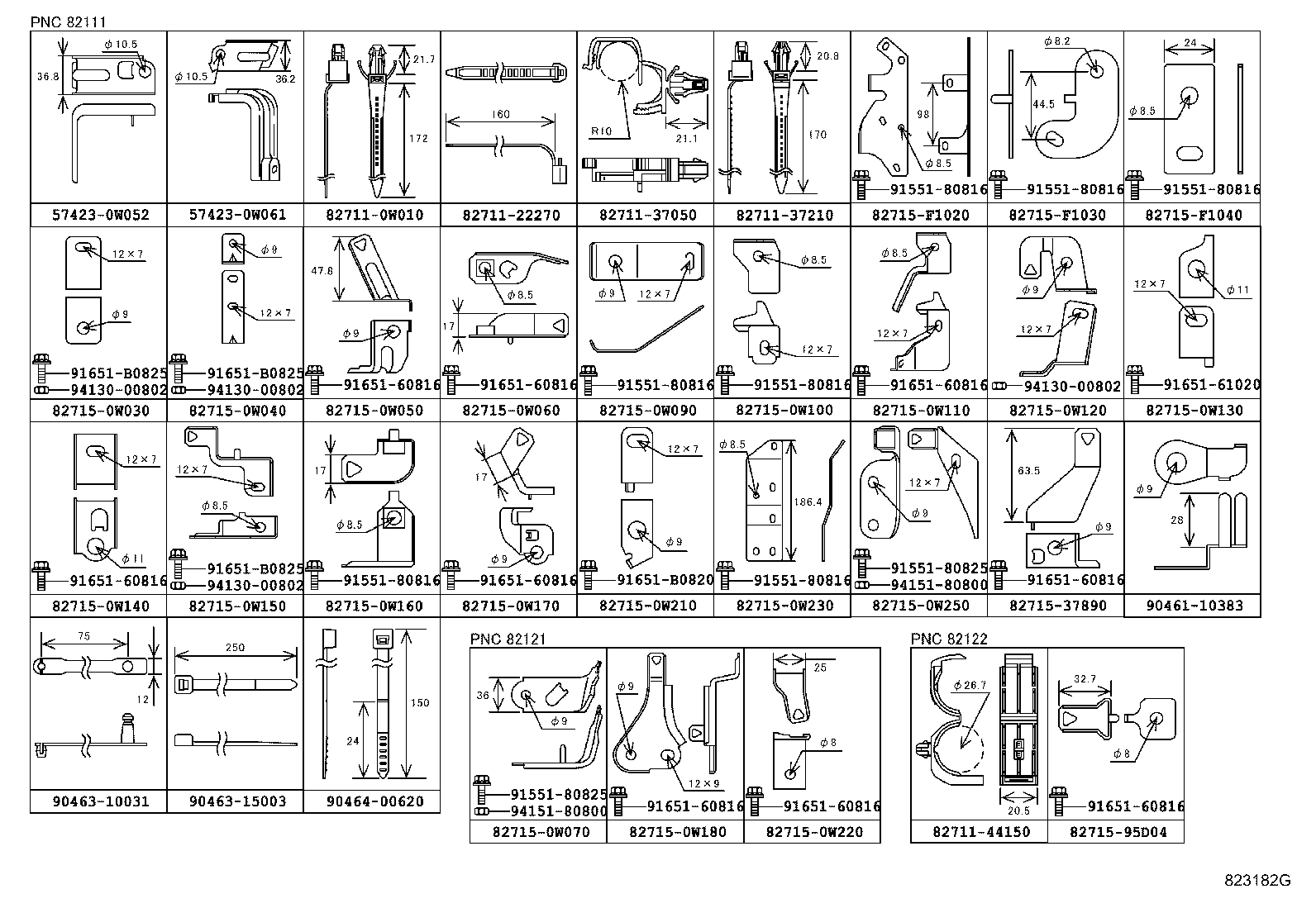

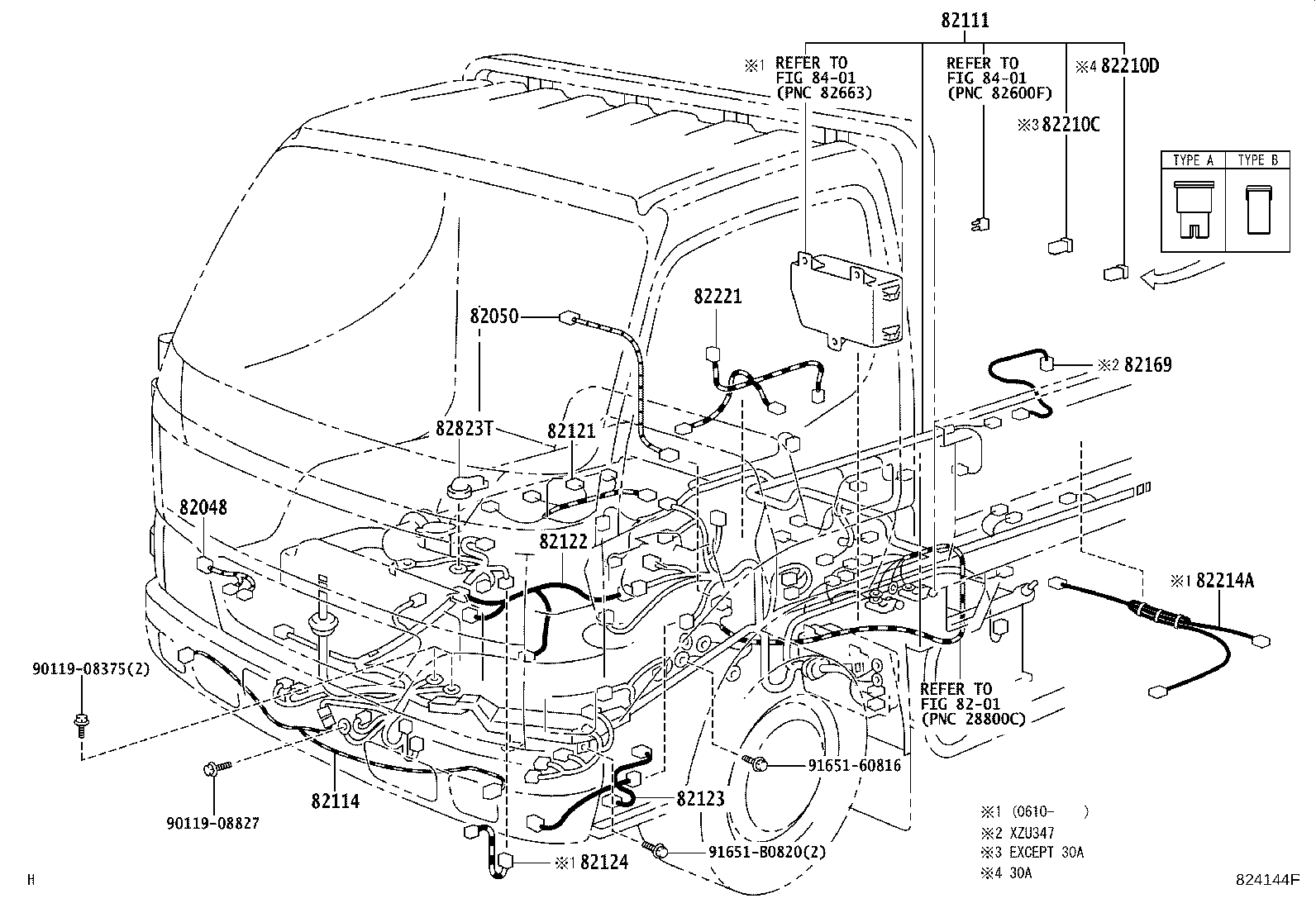

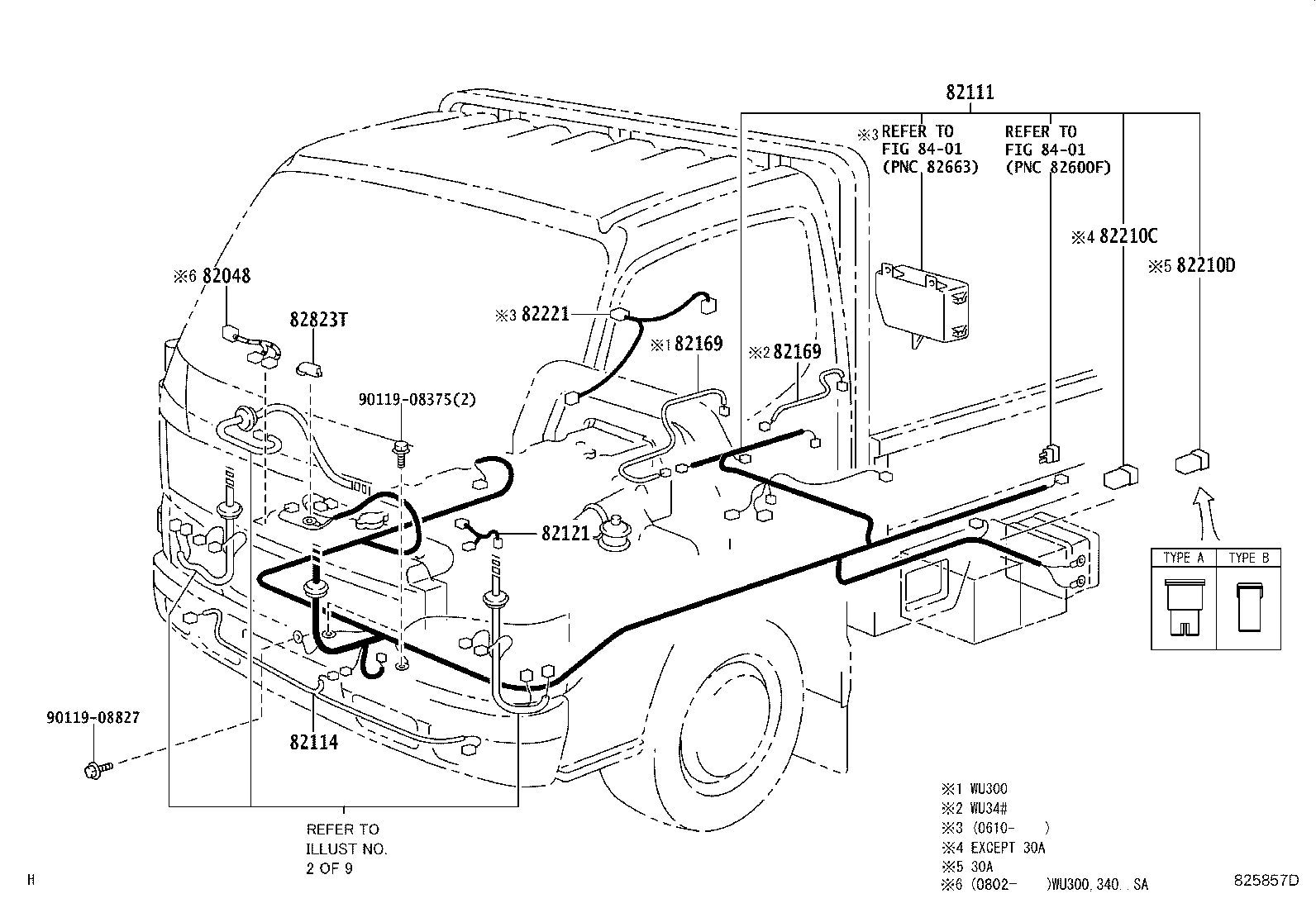

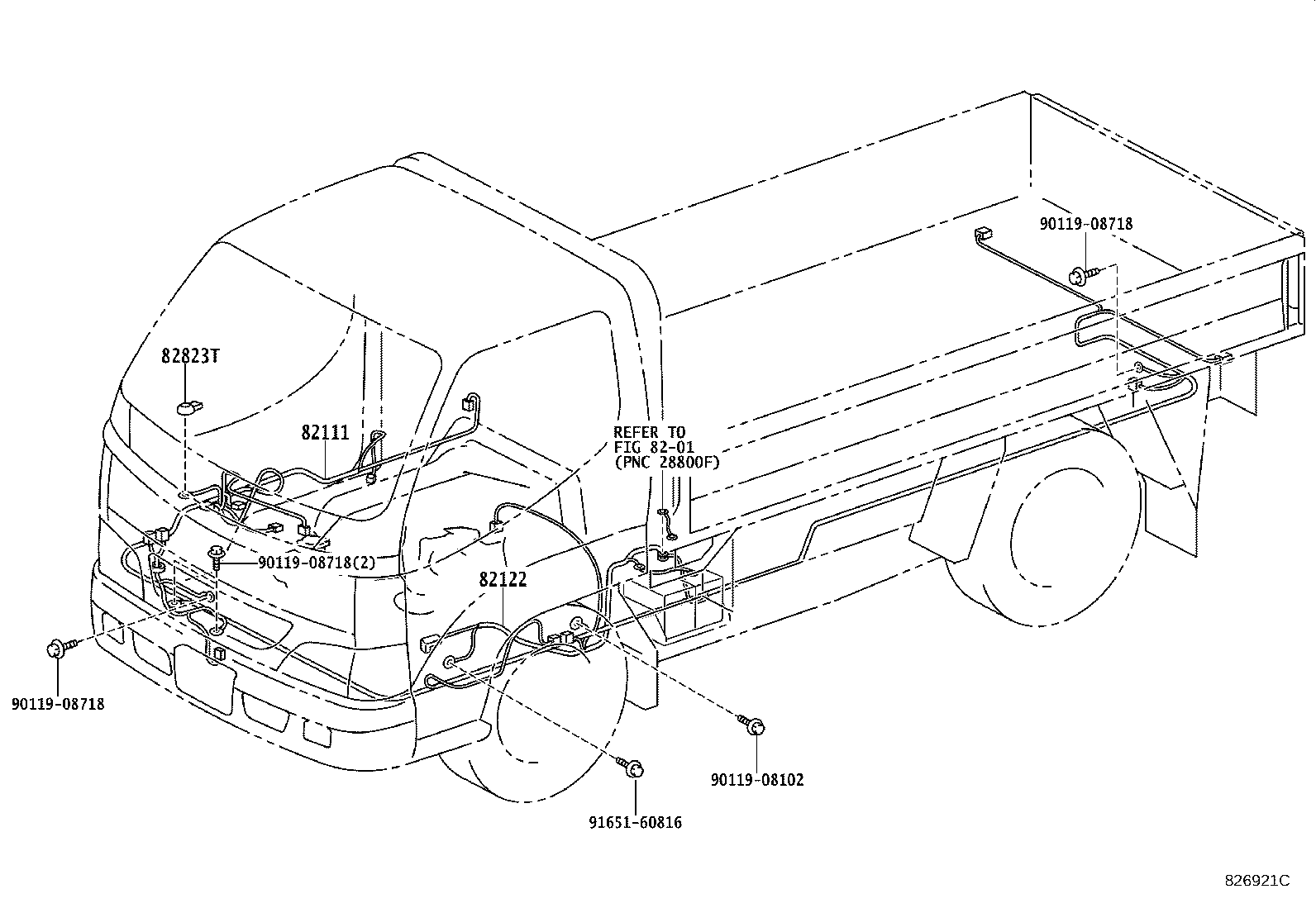

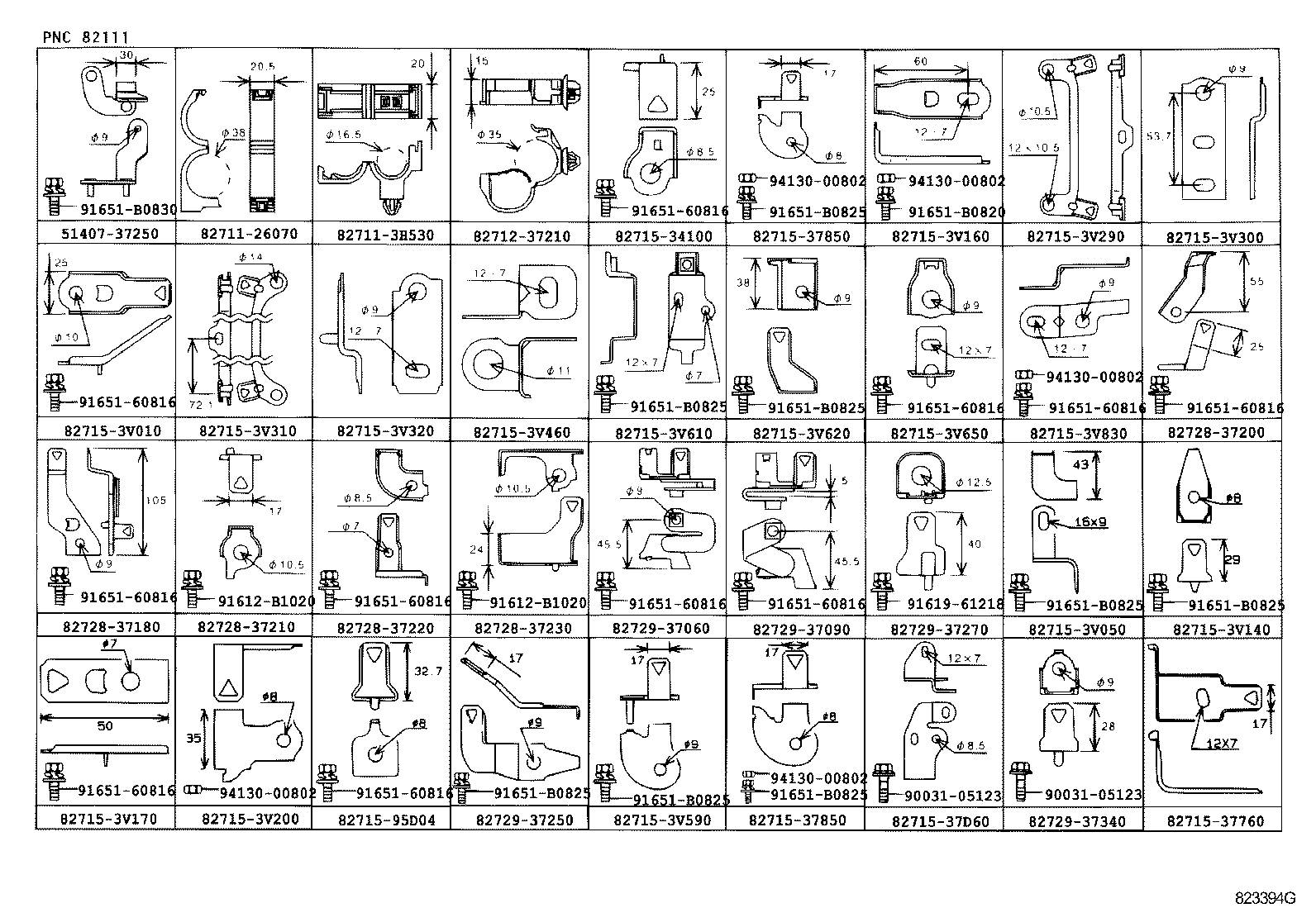

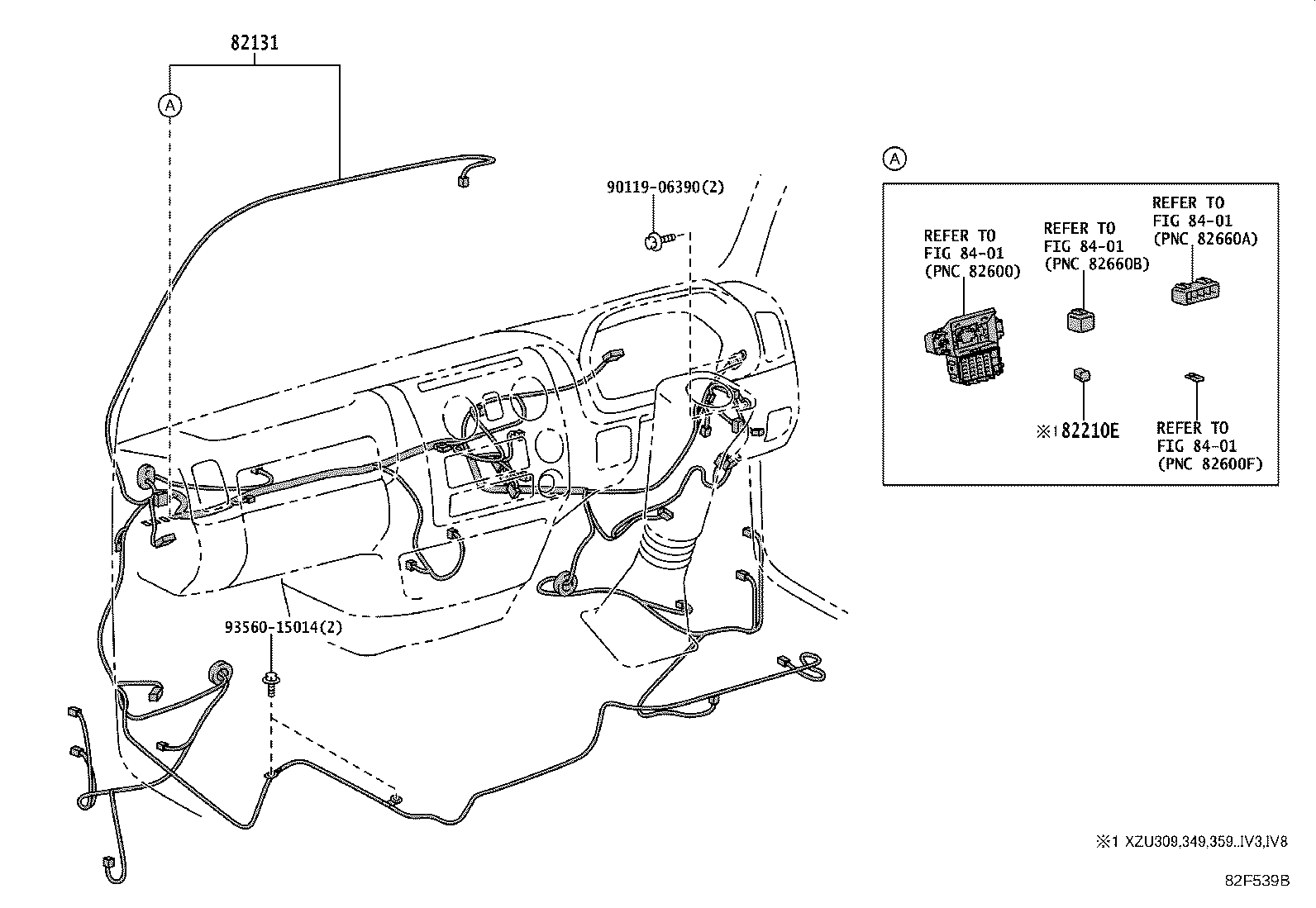

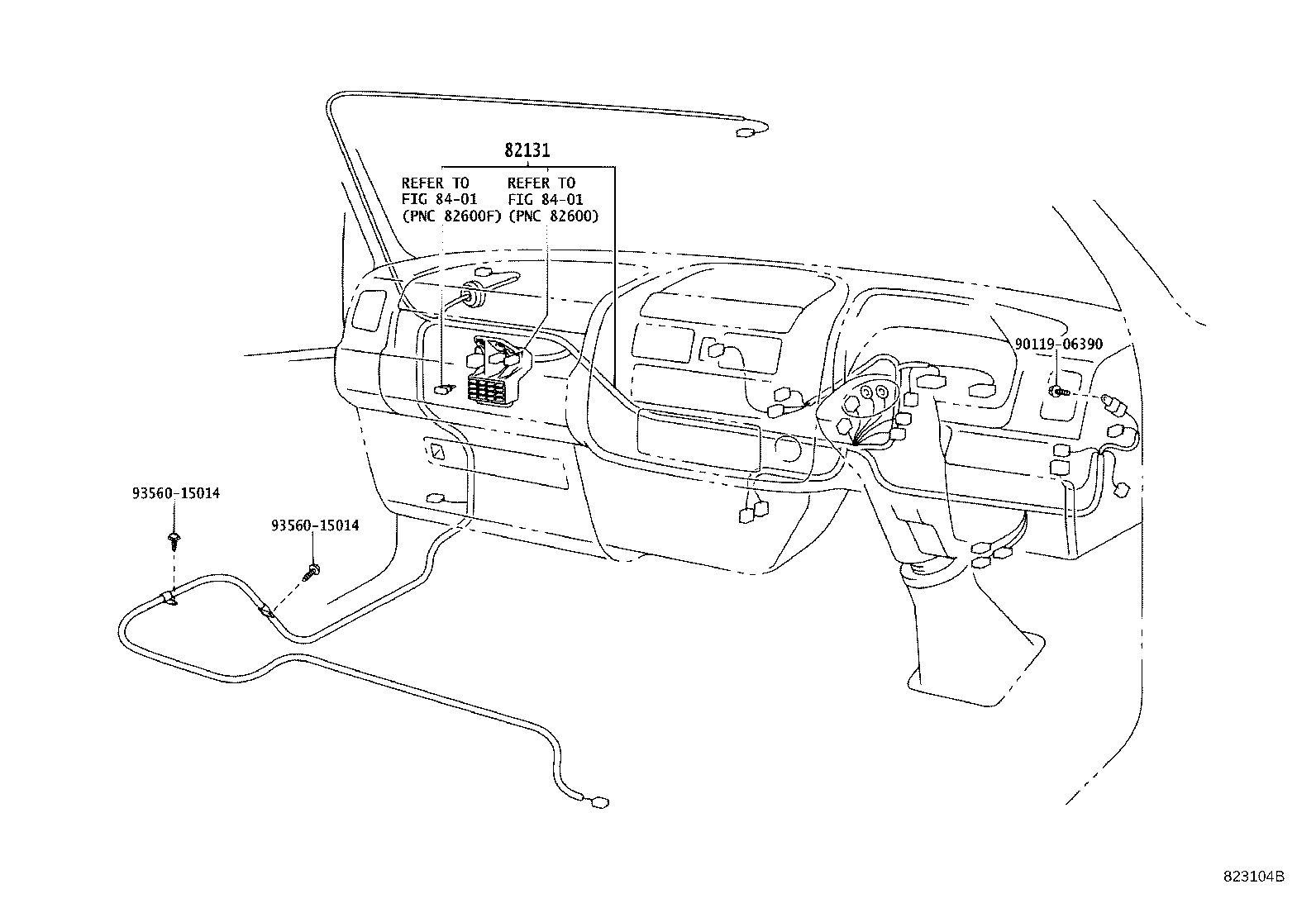

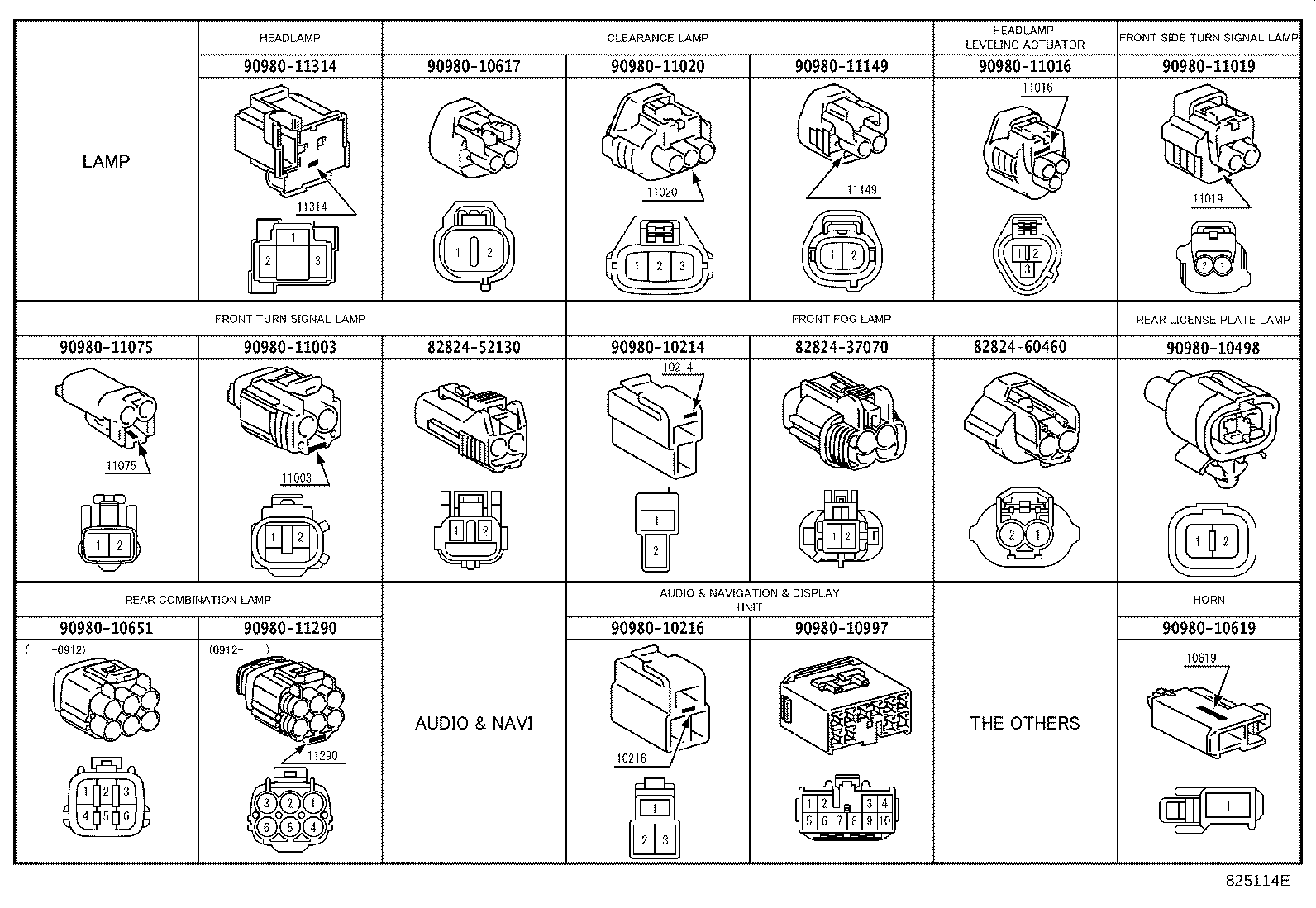

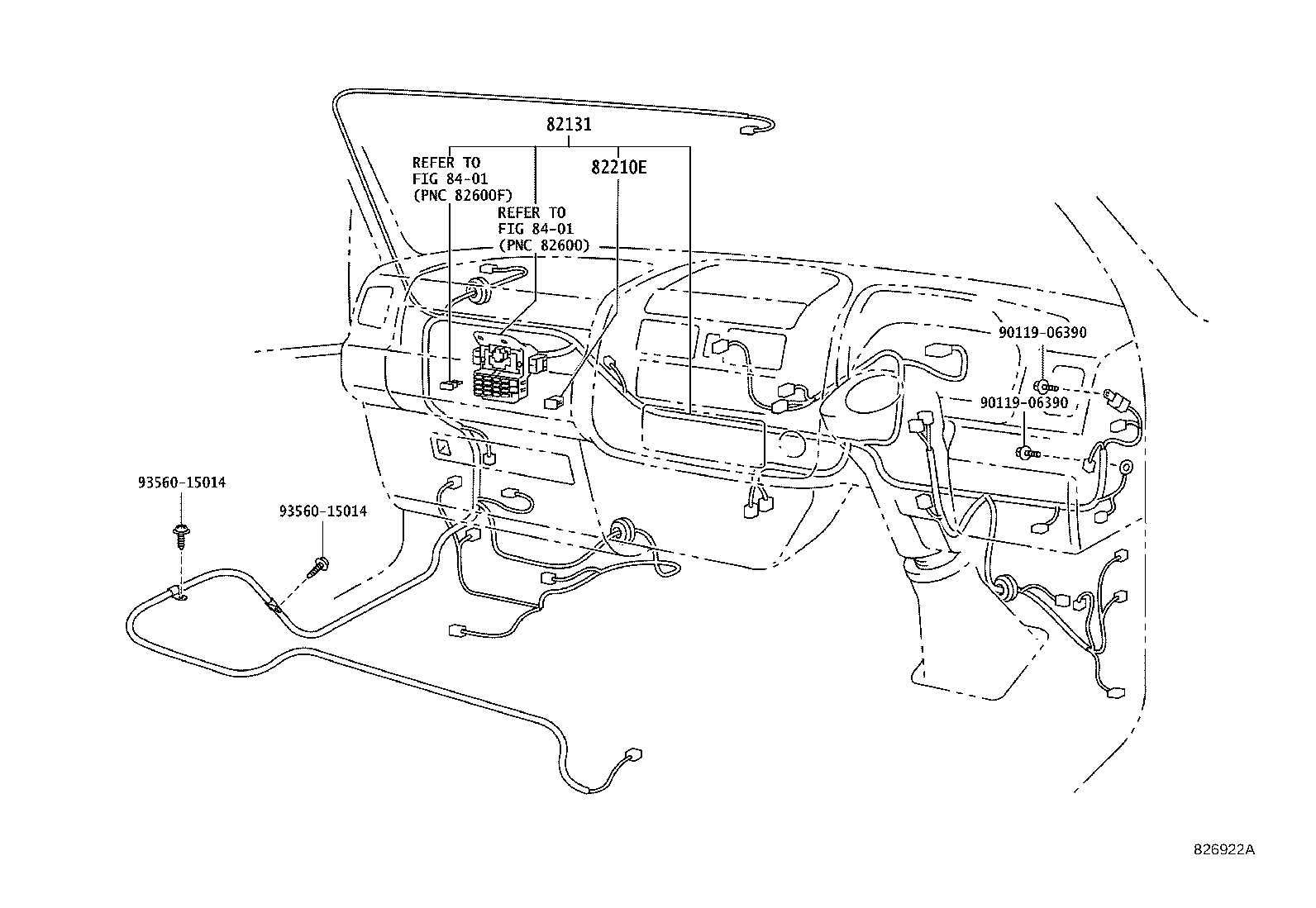

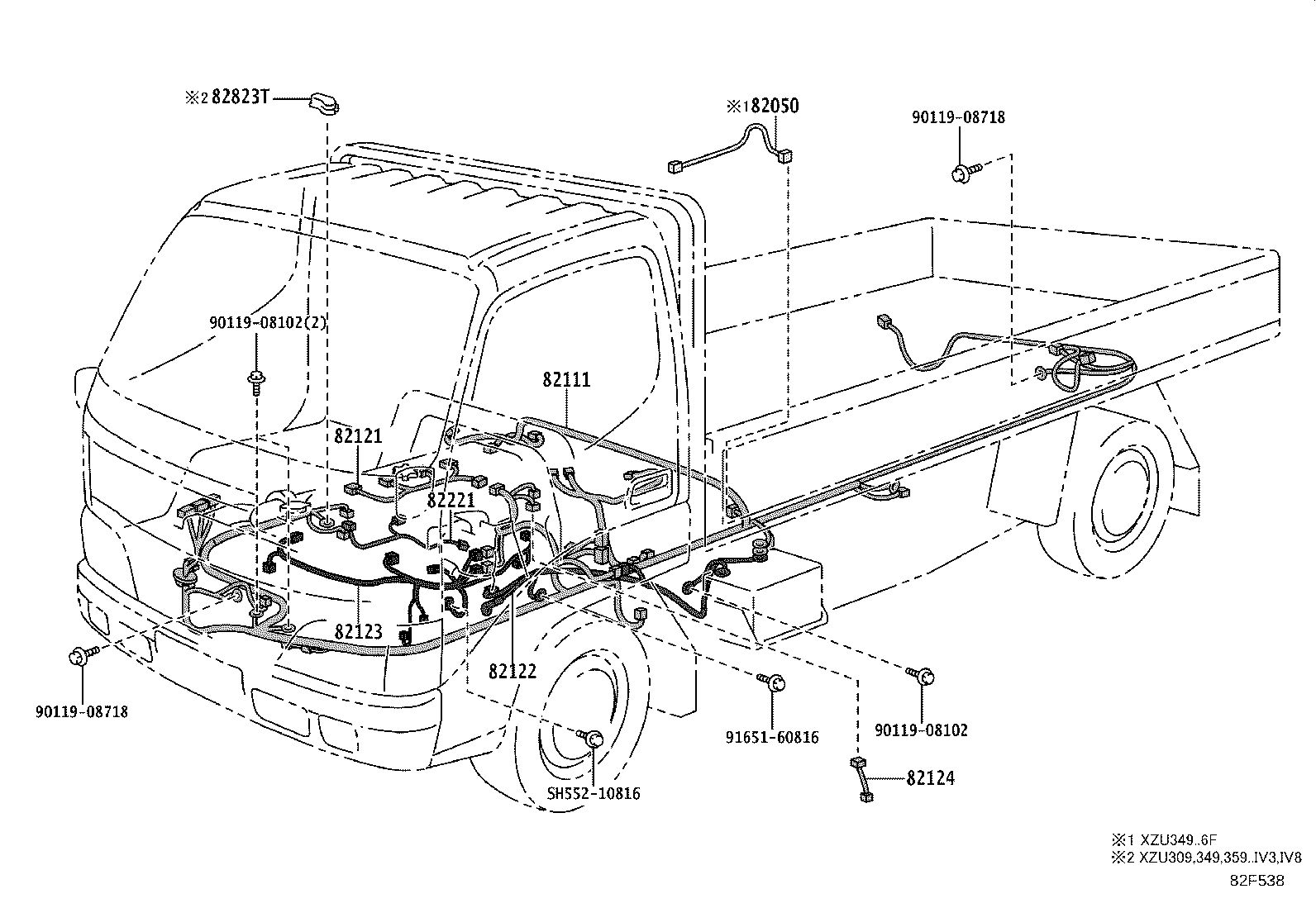

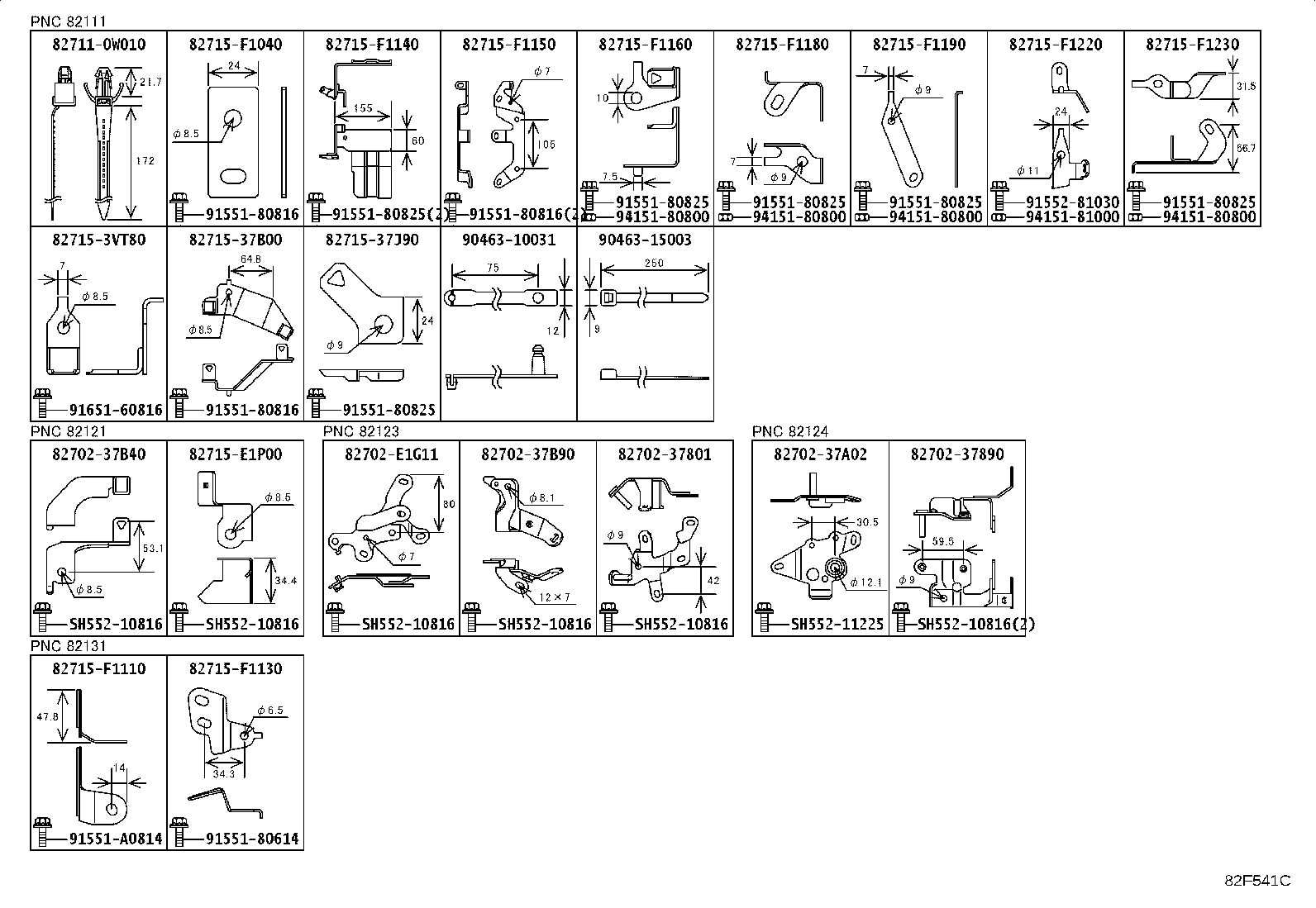

Figure 823102H 823102H 2002-09 → 2010-05 Figure 823395E 823395E 2002-12 → 2006-10 Figure 825857D 825857D 2002-12 → 2006-10 Figure 825857D 825857D 2006-10 → 2011-06 Figure 824144F 824144F 2003-12 → 2006-10 Figure 824144F 824144F 2006-10 → 2009-01 Figure 826921C 826921C 2009-12 → — Figure 82F538 82F538 2022-03 → — Figure 823104B 823104B 2002-09 → 2011-05 Figure 825136E 825136E 2002-12 → 2011-06 Figure 823770D 823770D 2002-12 → 2011-06 Figure 826922A 826922A 2009-12 → — Figure 82F539B 82F539B 2022-03 → — Figure 823392D 823392D 2002-12 → 2011-06 Figure 82F540 82F540 2009-12 → — Figure 82F540 82F540 2022-03 → — Figure 823182G 823182G 2002-09 → — Figure 823394G 823394G 2002-12 → 2011-06 Figure 823396J 823396J 2002-12 → 2011-06 Figure 825112C 825112C 2002-12 → 2011-06 Figure 82F541C 82F541C 2022-03 → — Figure 825114E 825114E 2006-10 → —

Part groups

PNCDescription
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82817 Protector, Wiring Harness, NO.1
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
