Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

81 part groups · 38 illustrations

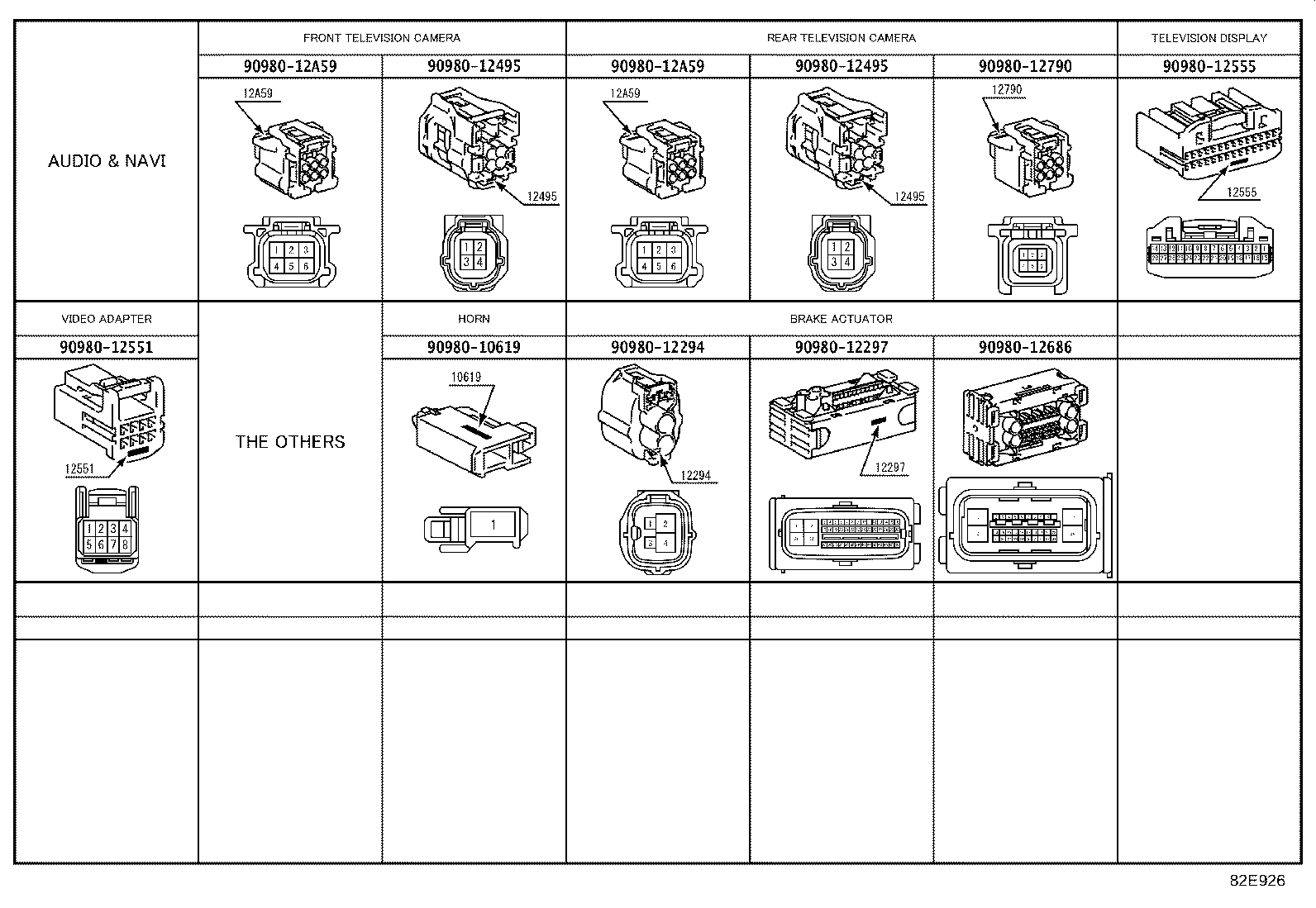

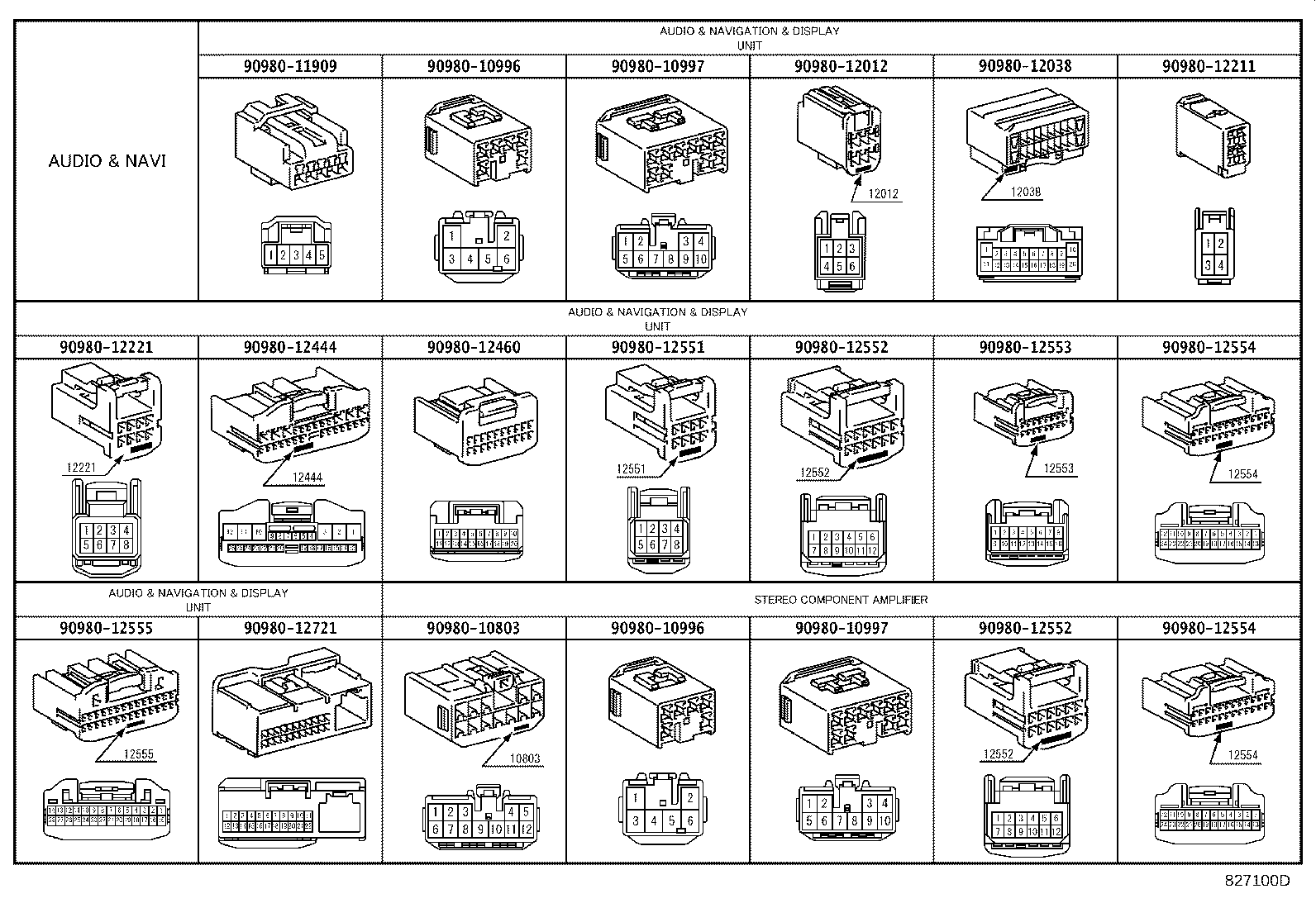

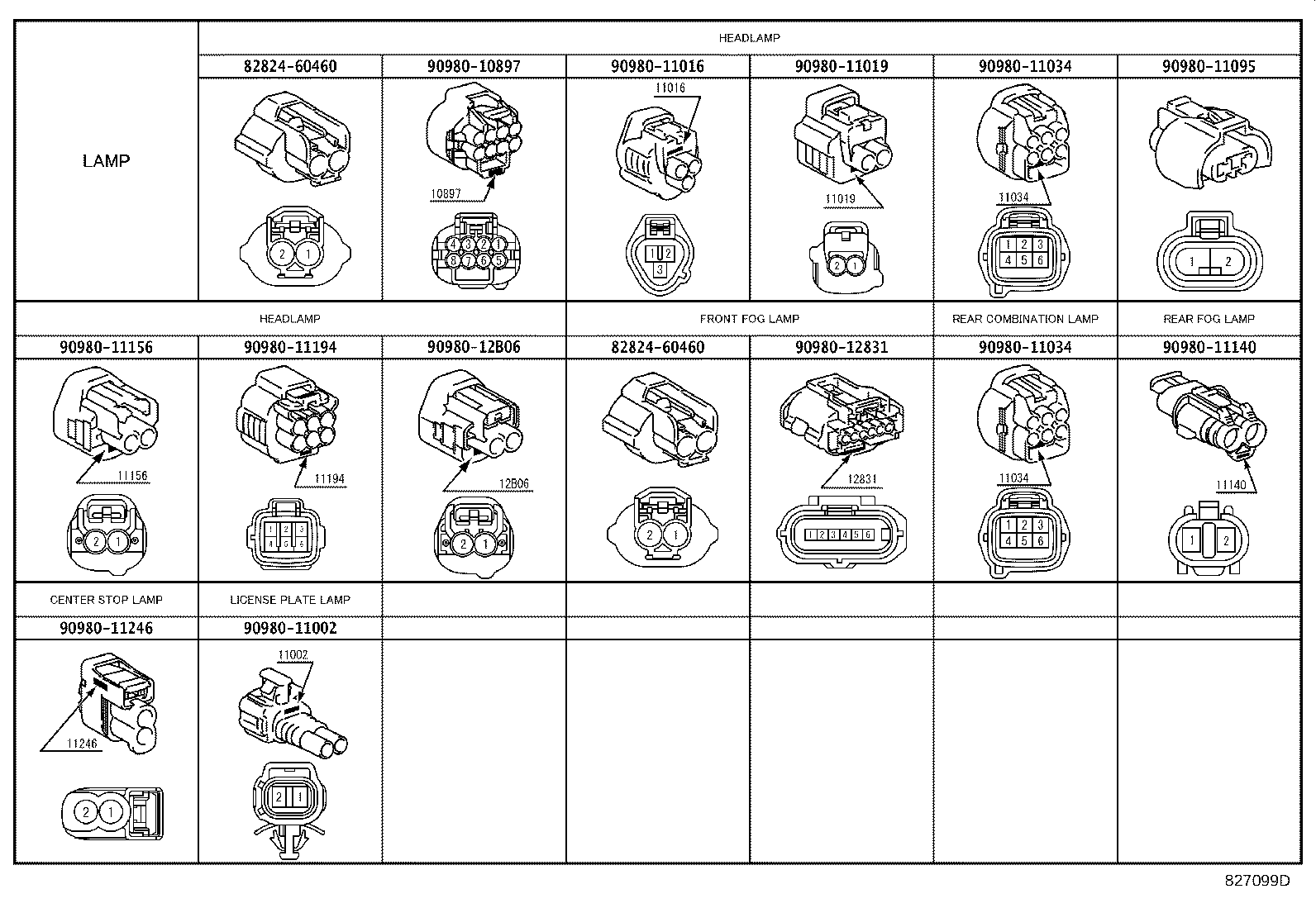

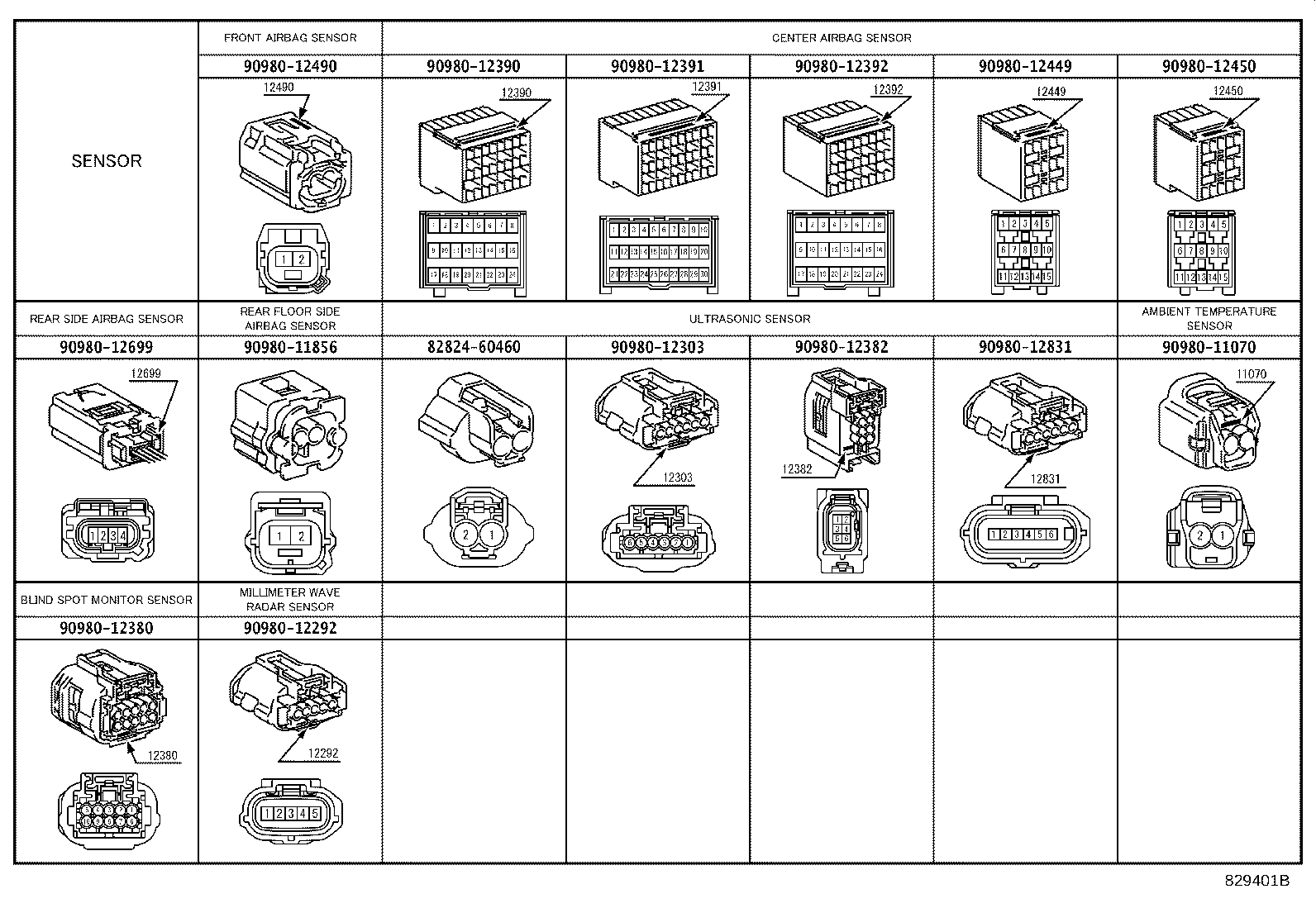

Illustrations

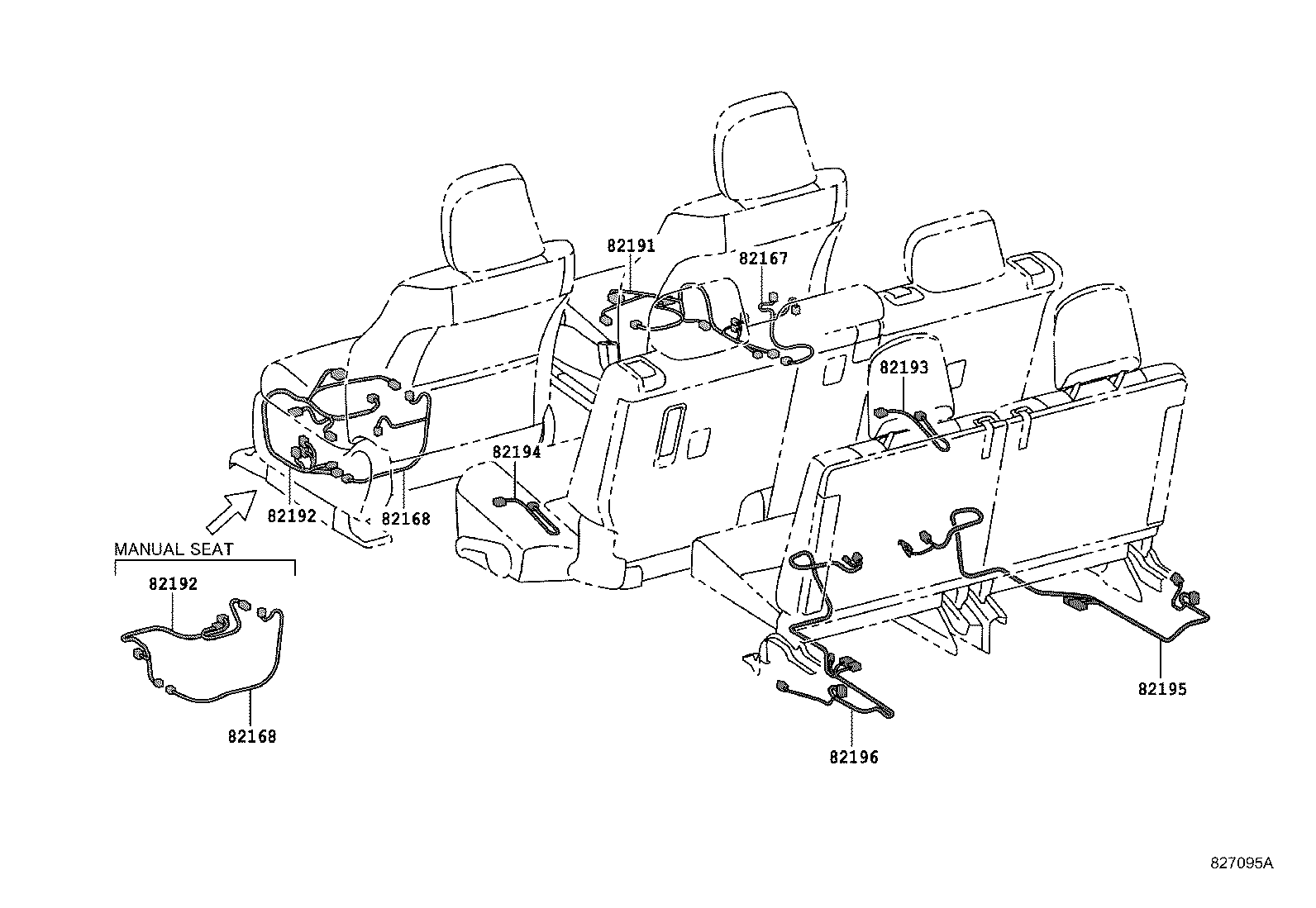

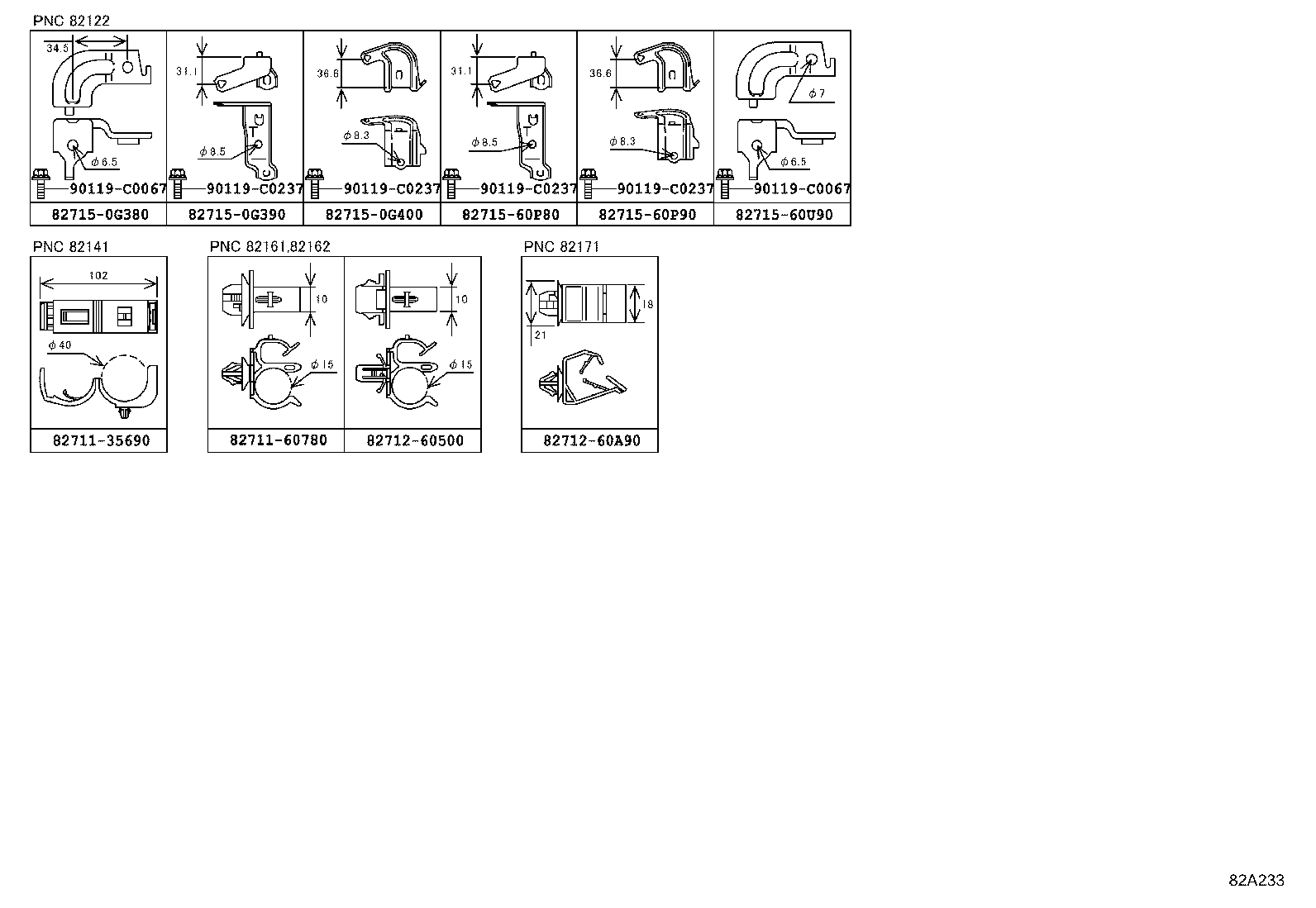

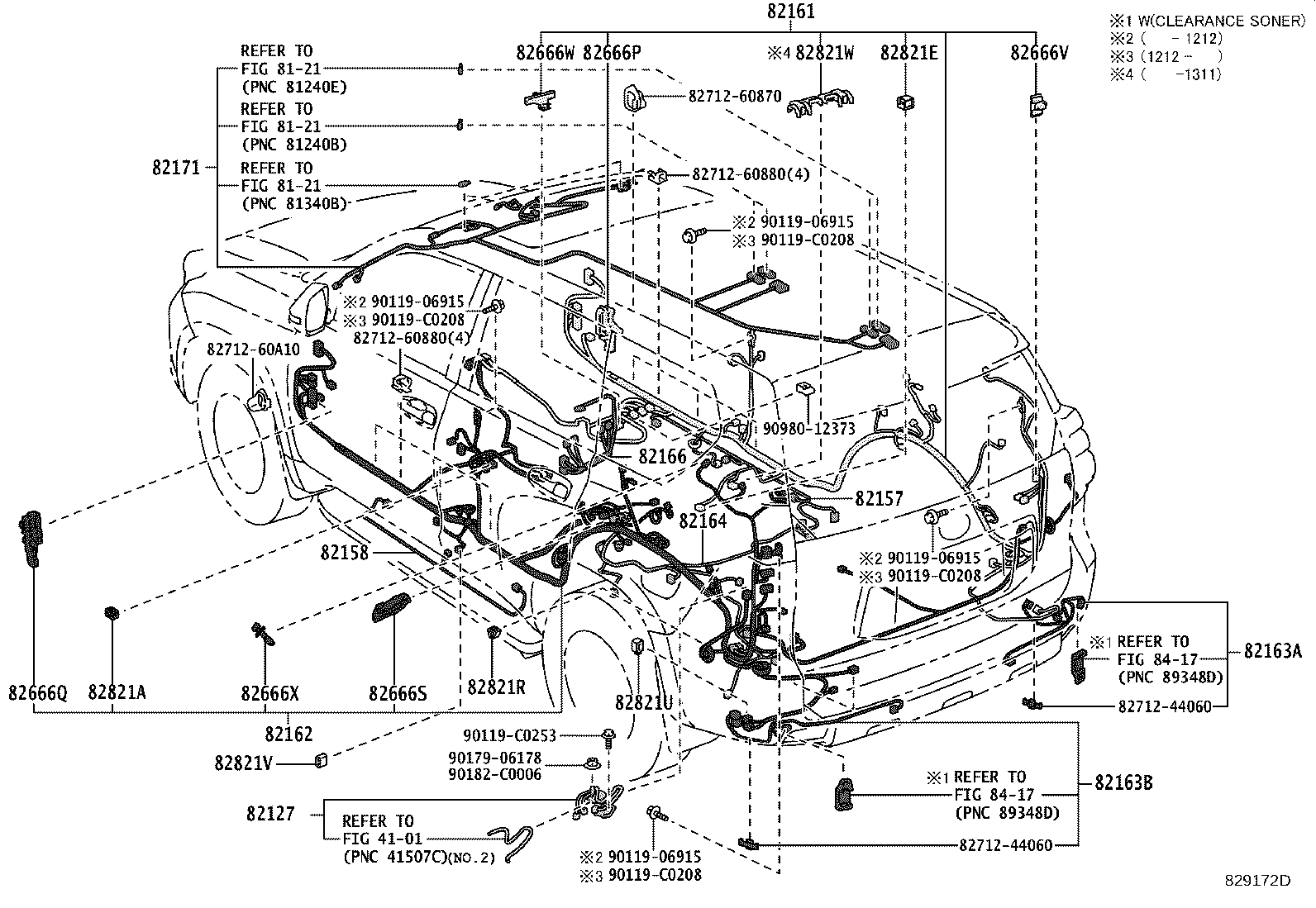

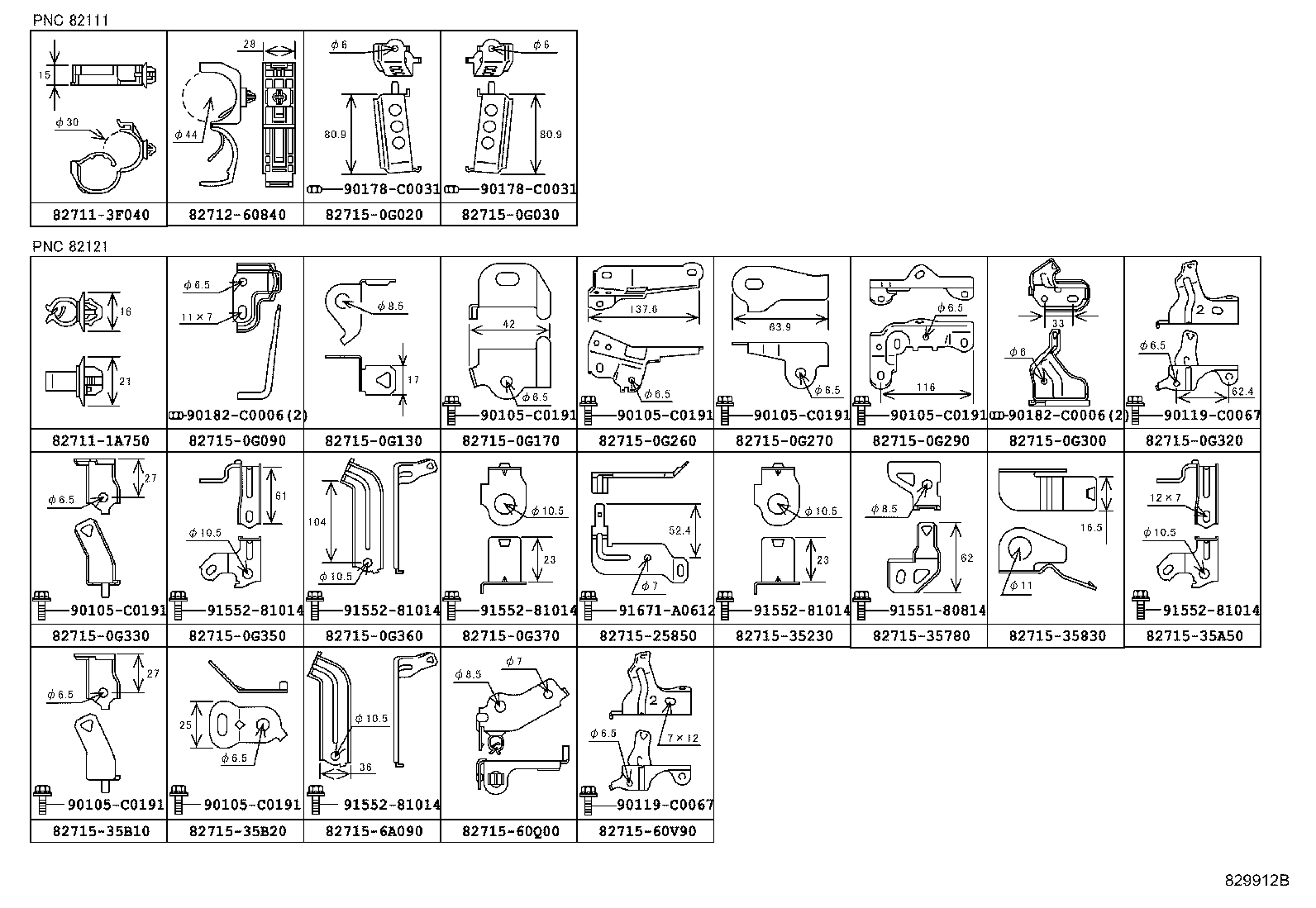

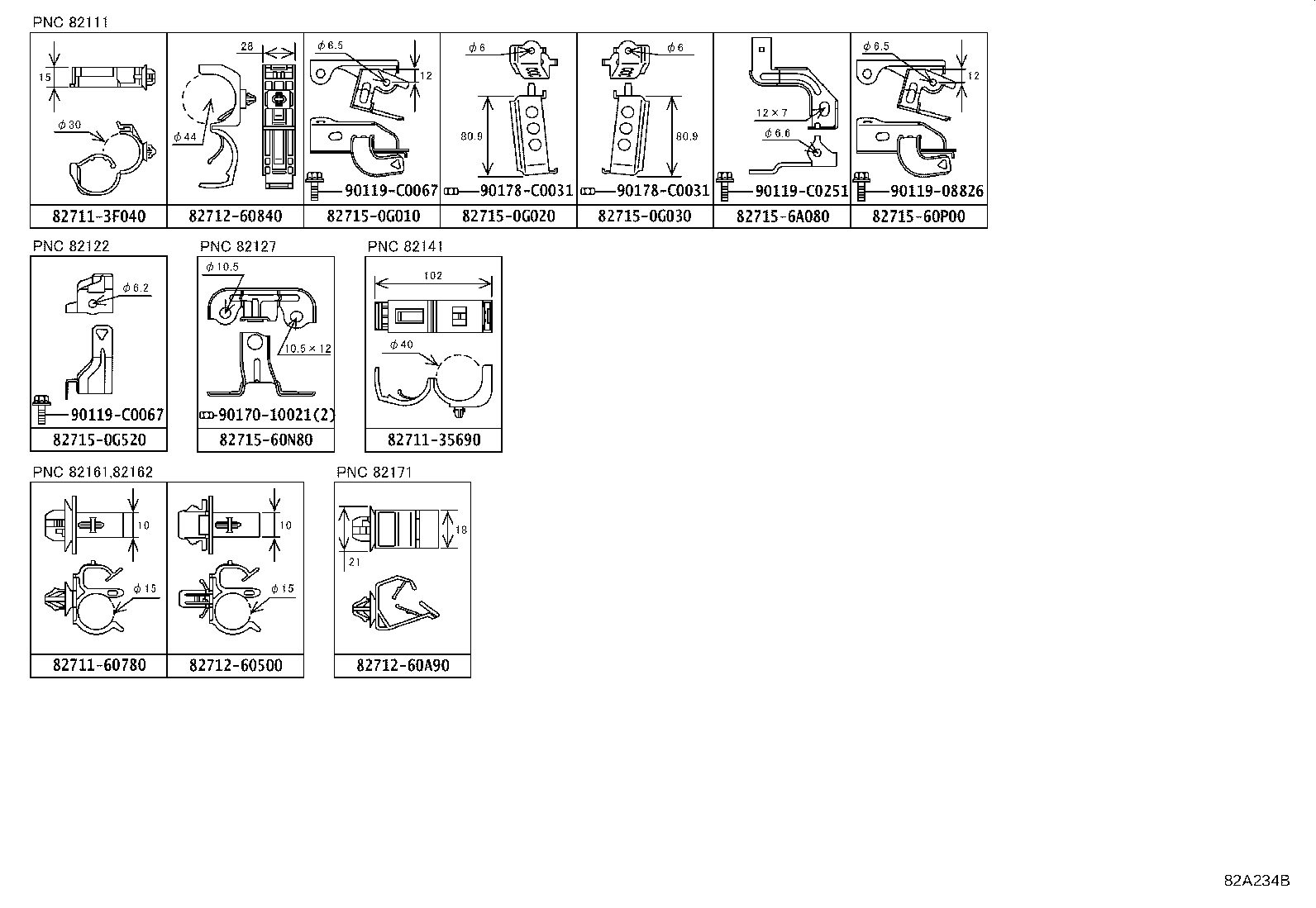

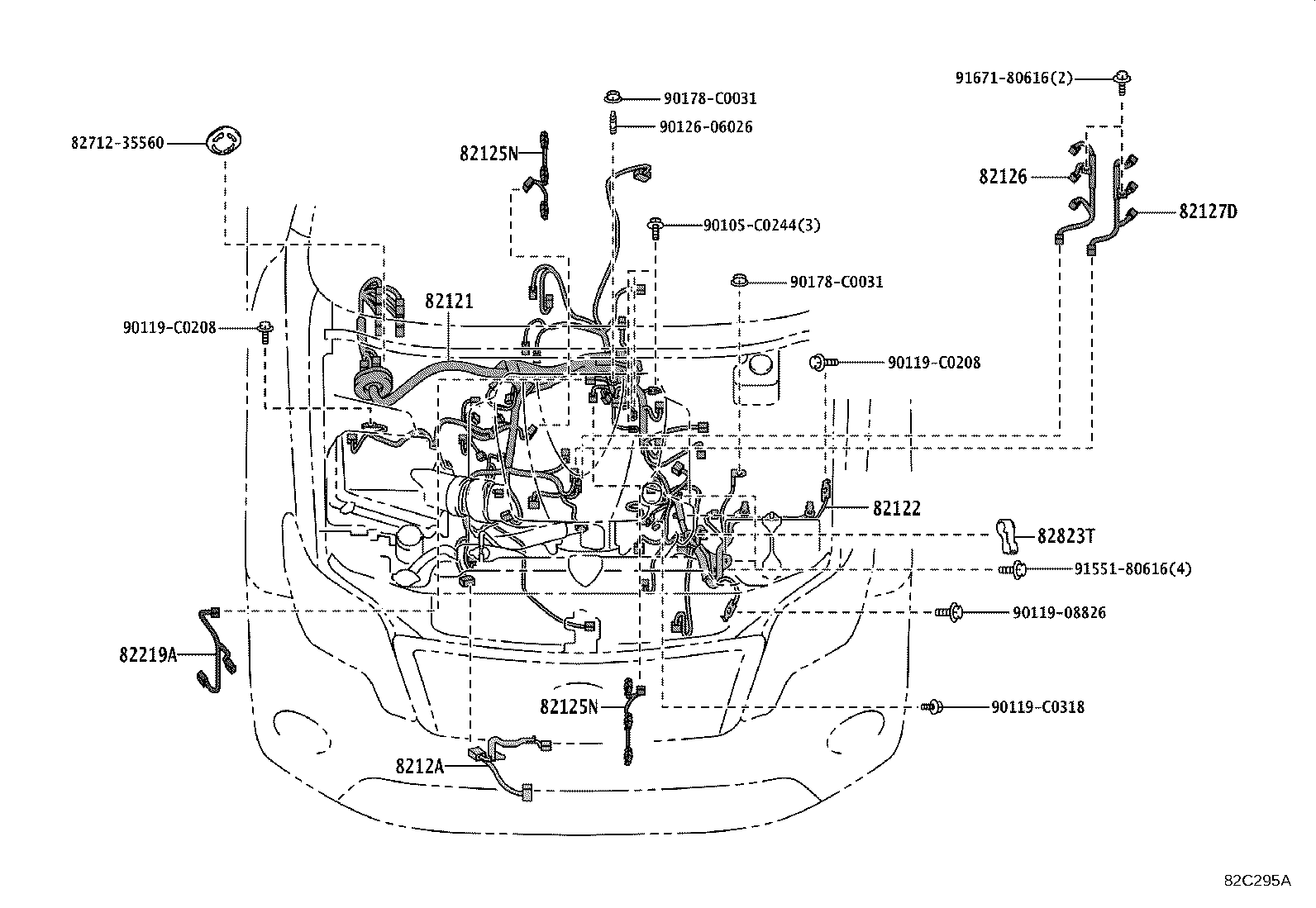

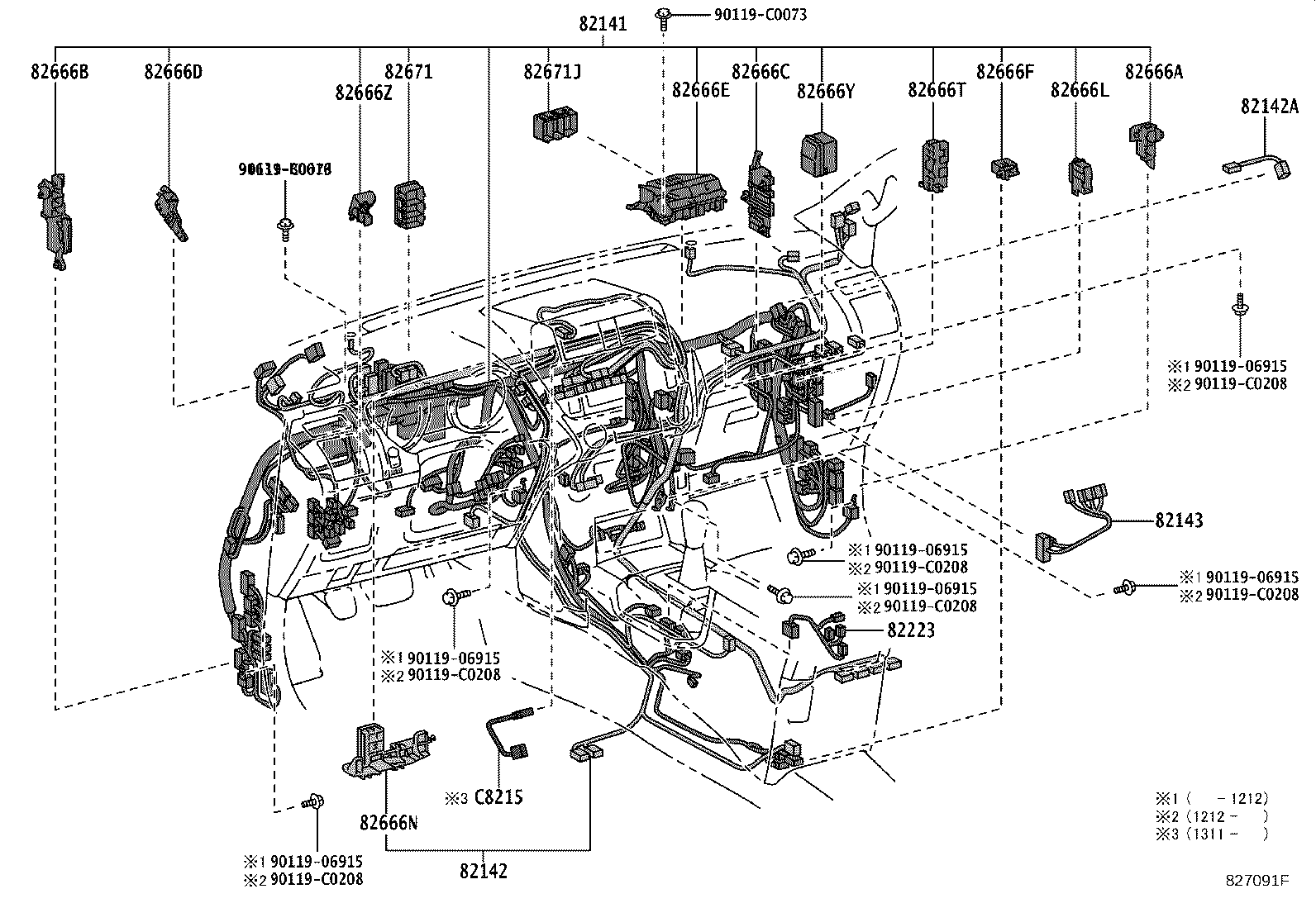

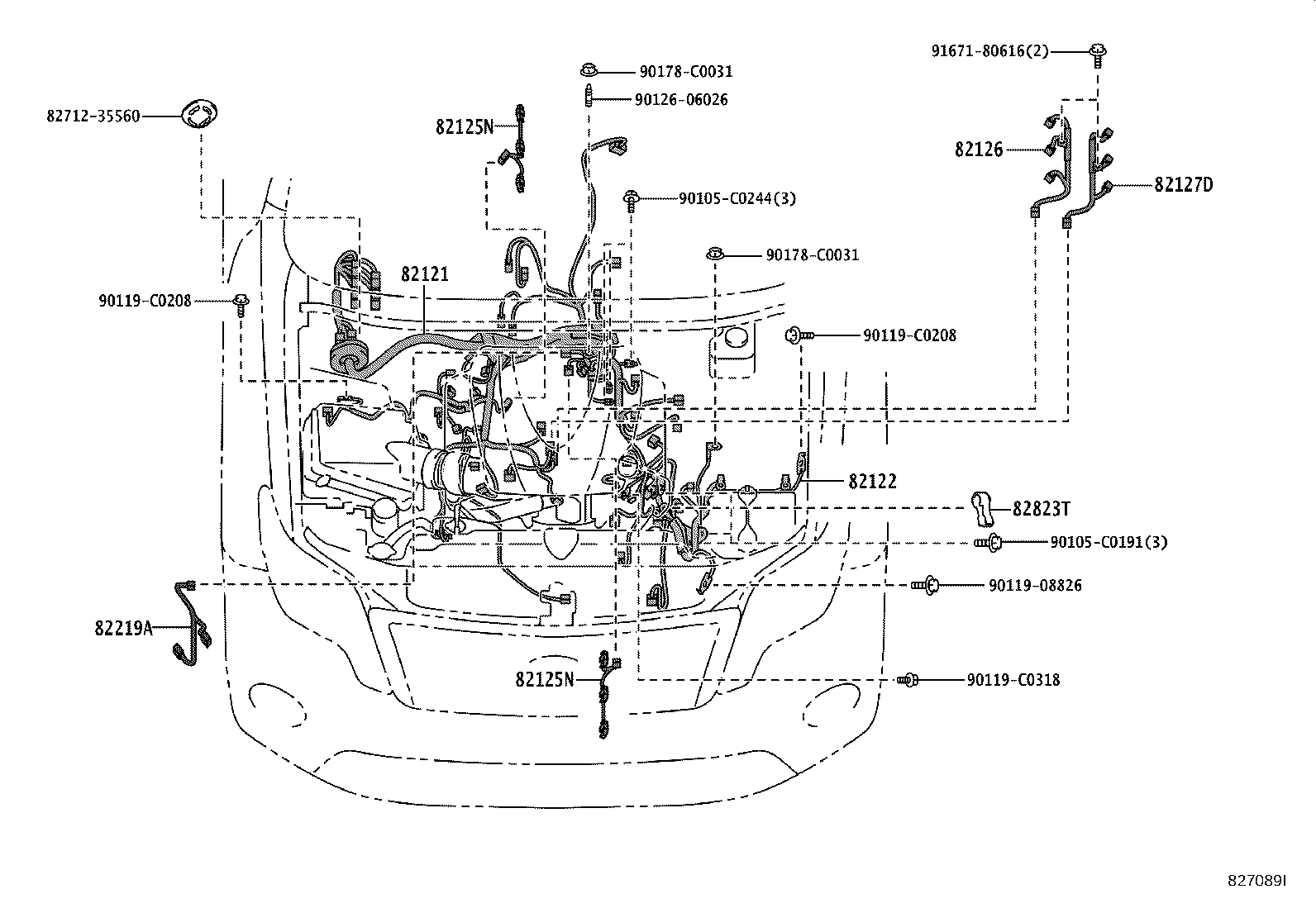

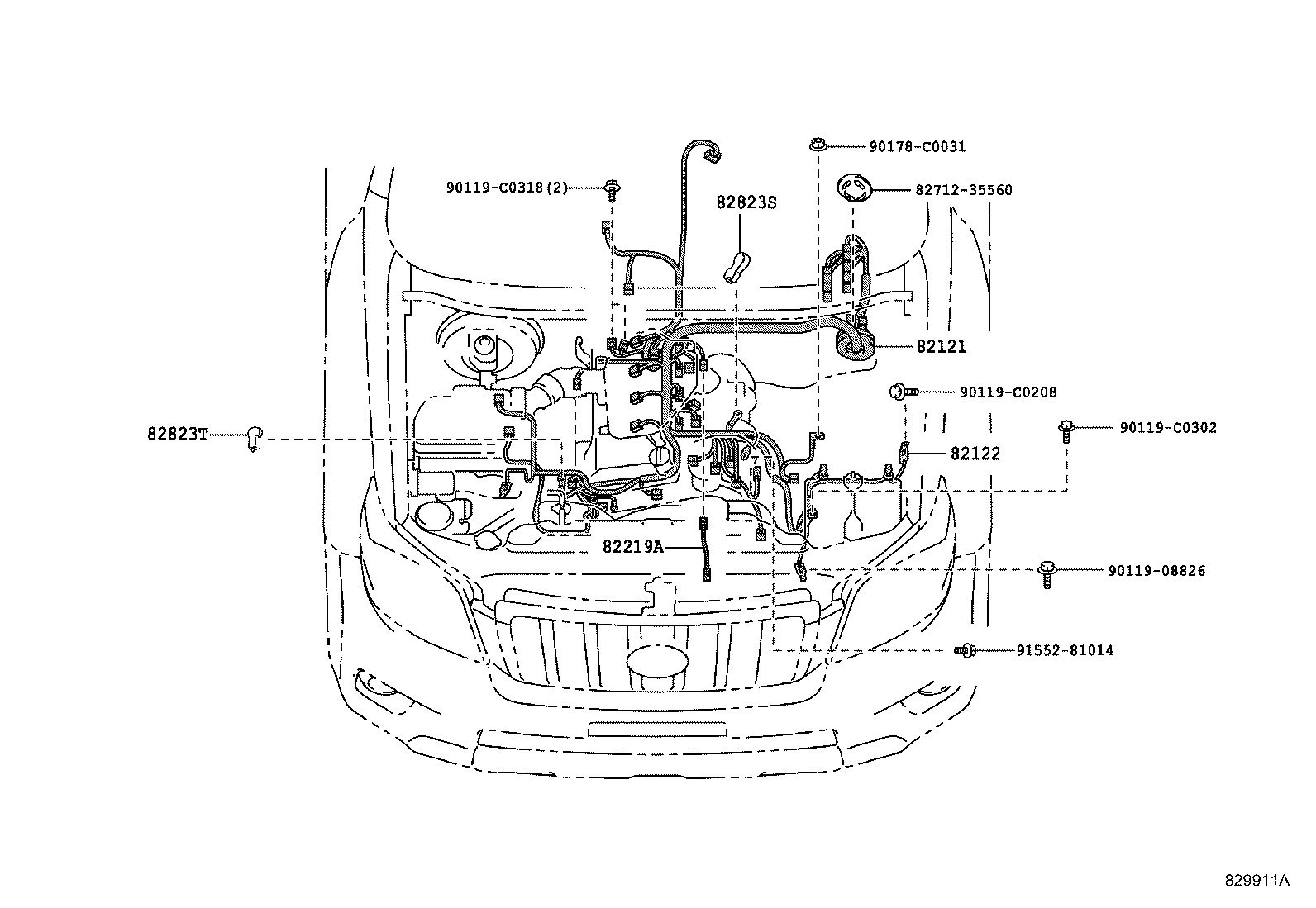

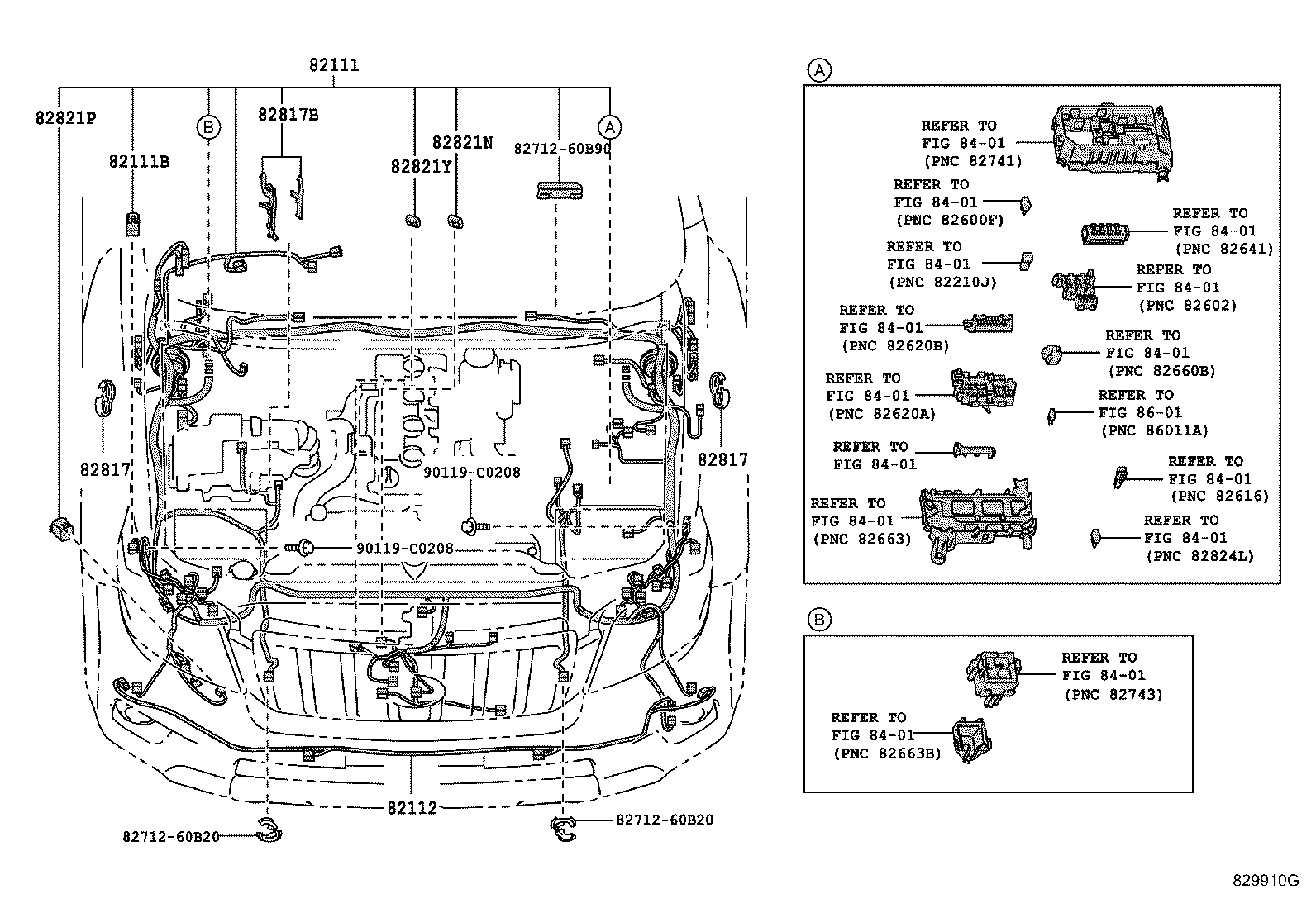

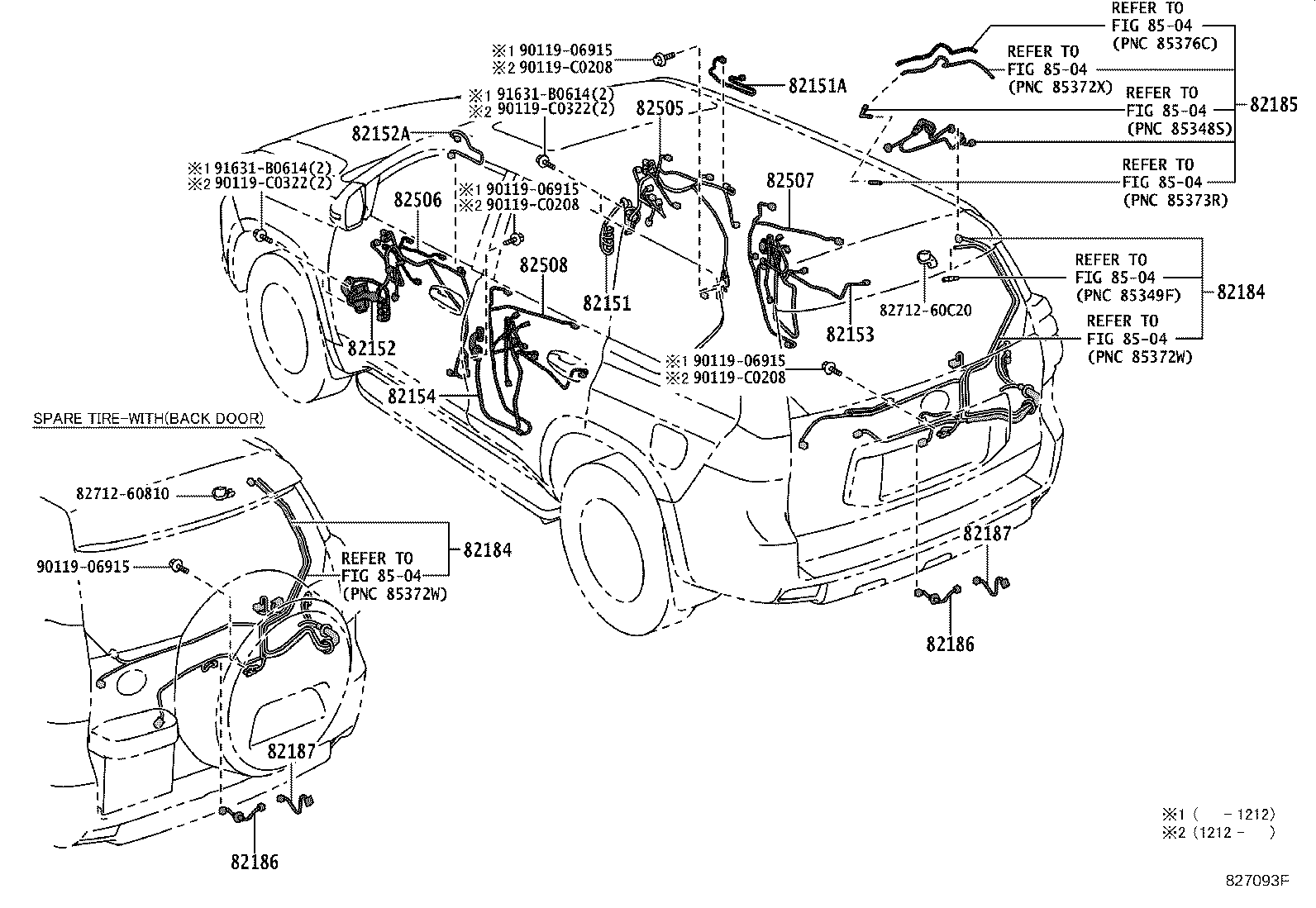

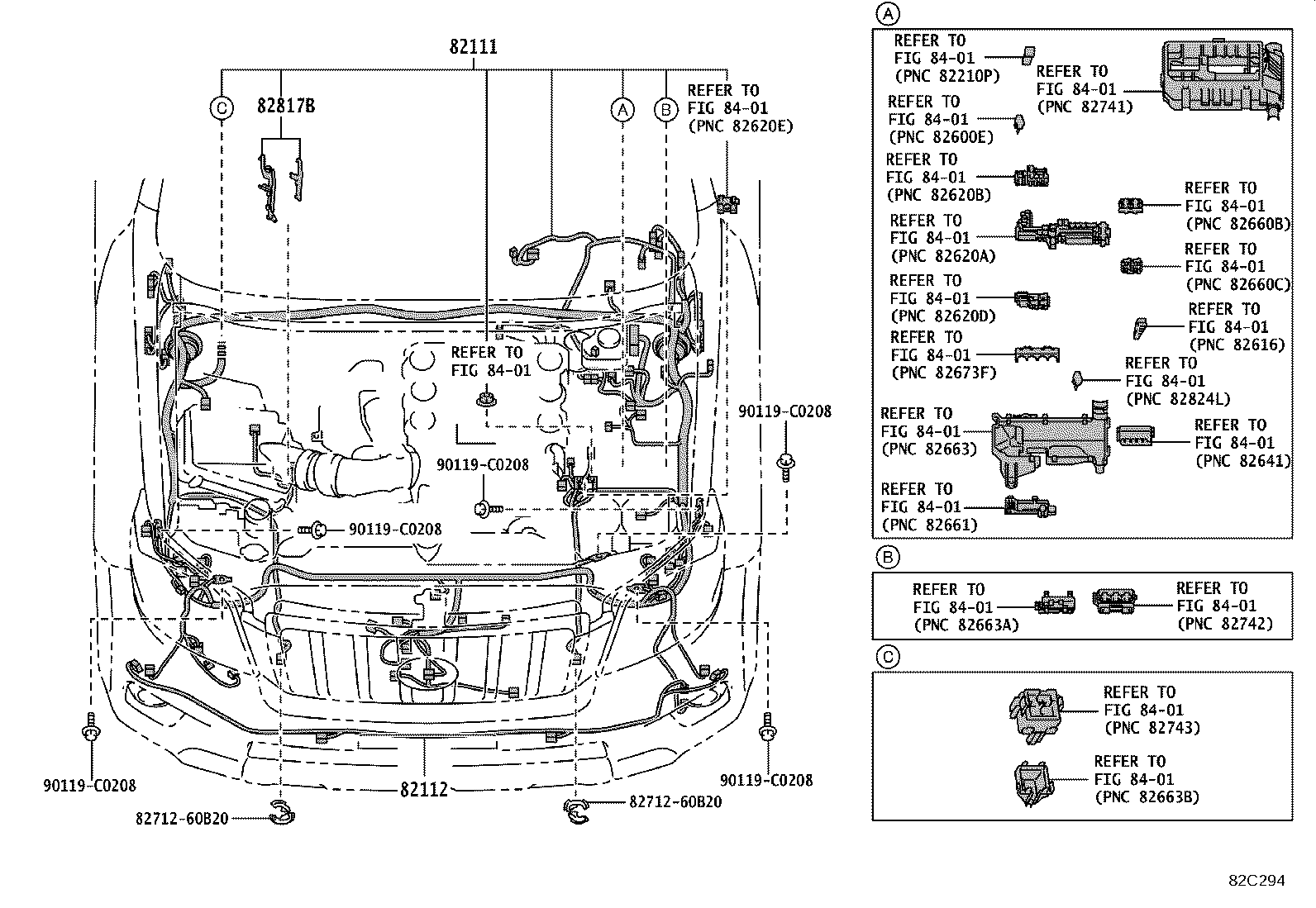

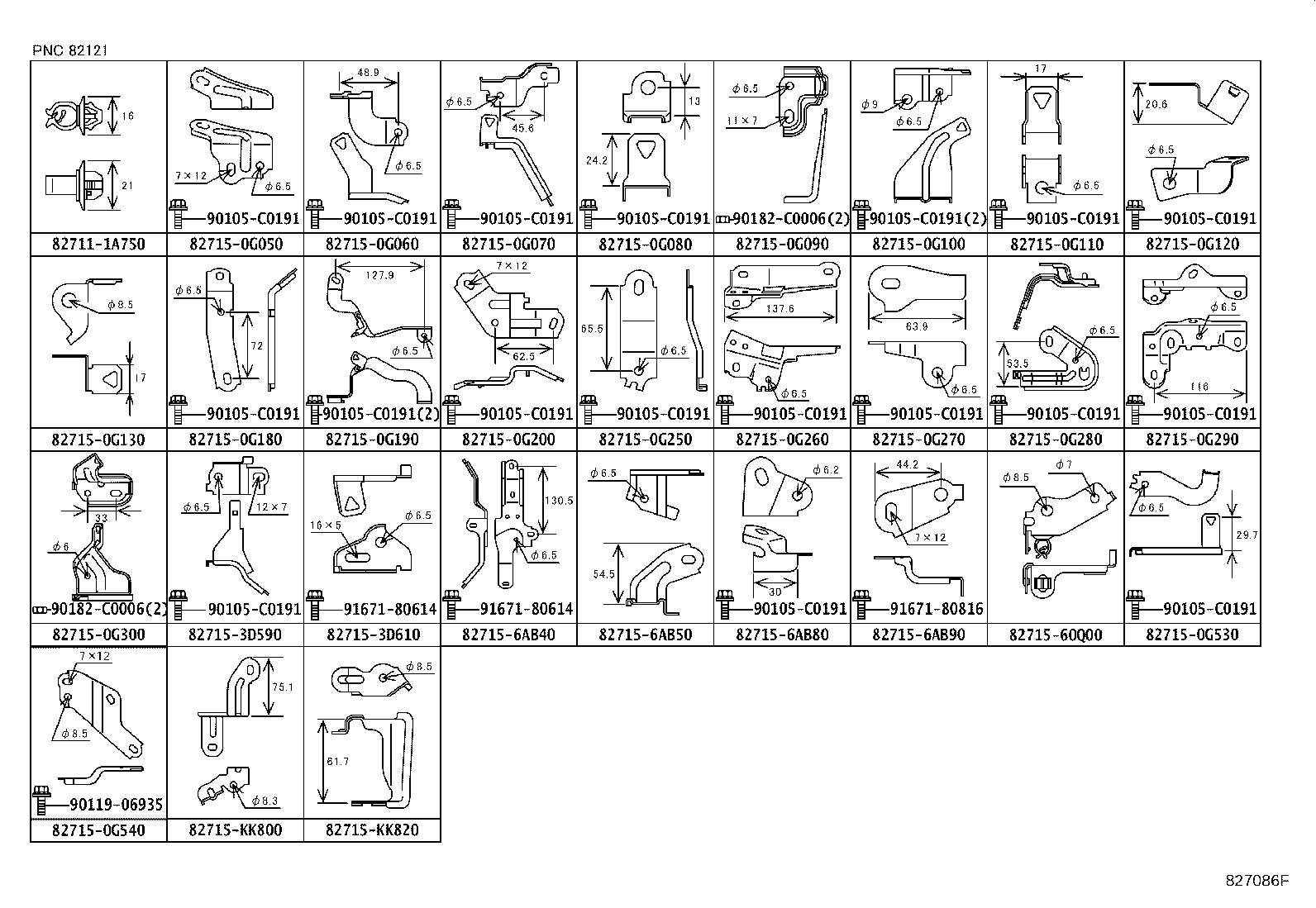

Figure 827092F 827092F 2010-05 → 2015-09 Figure 827092F 827092F 2015-09 → 2017-11 Figure 82C294 82C294 2017-11 → — Figure 829910G 829910G 2015-03 → — Figure 829910G 829910G 2015-09 → — Figure 827089I 827089I 2010-05 → 2015-09 Figure 827089I 827089I 2015-09 → 2017-11 Figure 82C295A 82C295A 2017-11 → — Figure 829911A 829911A 2015-03 → — Figure 829911A 829911A 2015-09 → — Figure 827091F 827091F 2010-05 → — Figure 827091F 827091F 2015-03 → — Figure 827091F 827091F 2015-09 → — Figure 827093F 827093F 2010-05 → — Figure 827093F 827093F 2015-03 → — Figure 827093F 827093F 2015-09 → — Figure 829172D 829172D 2010-05 → — Figure 829172D 829172D 2015-03 → — Figure 829172D 829172D 2015-09 → — Figure 827095A 827095A 2010-05 → — Figure 827095A 827095A 2015-03 → — Figure 827095A 827095A 2015-09 → — Figure 827086F 827086F 2010-05 → — Figure 827086F 827086F 2015-09 → — Figure 82A234B 82A234B 2010-05 → — Figure 82A234B 82A234B 2015-09 → — Figure 829912B 829912B 2015-03 → — Figure 829912B 829912B 2015-09 → — Figure 82A233 82A233 2015-03 → — Figure 82A233 82A233 2015-09 → — Figure 829913B 829913B 2015-03 → 2017-11 Figure 829913B 829913B 2015-09 → 2017-11 Figure 82A198A 82A198A 2015-09 → 2017-11 Figure 82C184 82C184 2017-11 → — Figure 827099D 827099D 2010-05 → — Figure 829401B 829401B 2010-05 → — Figure 827100D 827100D 2010-05 → — Figure 82E926 82E926 2010-05 → —

Part groups

PNCDescription
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82111B Condenser
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127 Wire, Differential
82127D Wire, Engine, NO.7
8212A Wire, Engine, NO.9
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82164 Wire, Frame
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82219A Wire, Sensor
82223 Wire, Switch
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82671 Block, Junction
82671J Block, Junction, NO.2
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821E Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821Y Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
C8215 Wire, Hazard Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
