Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

18 part groups · 2 illustrations

Illustrations

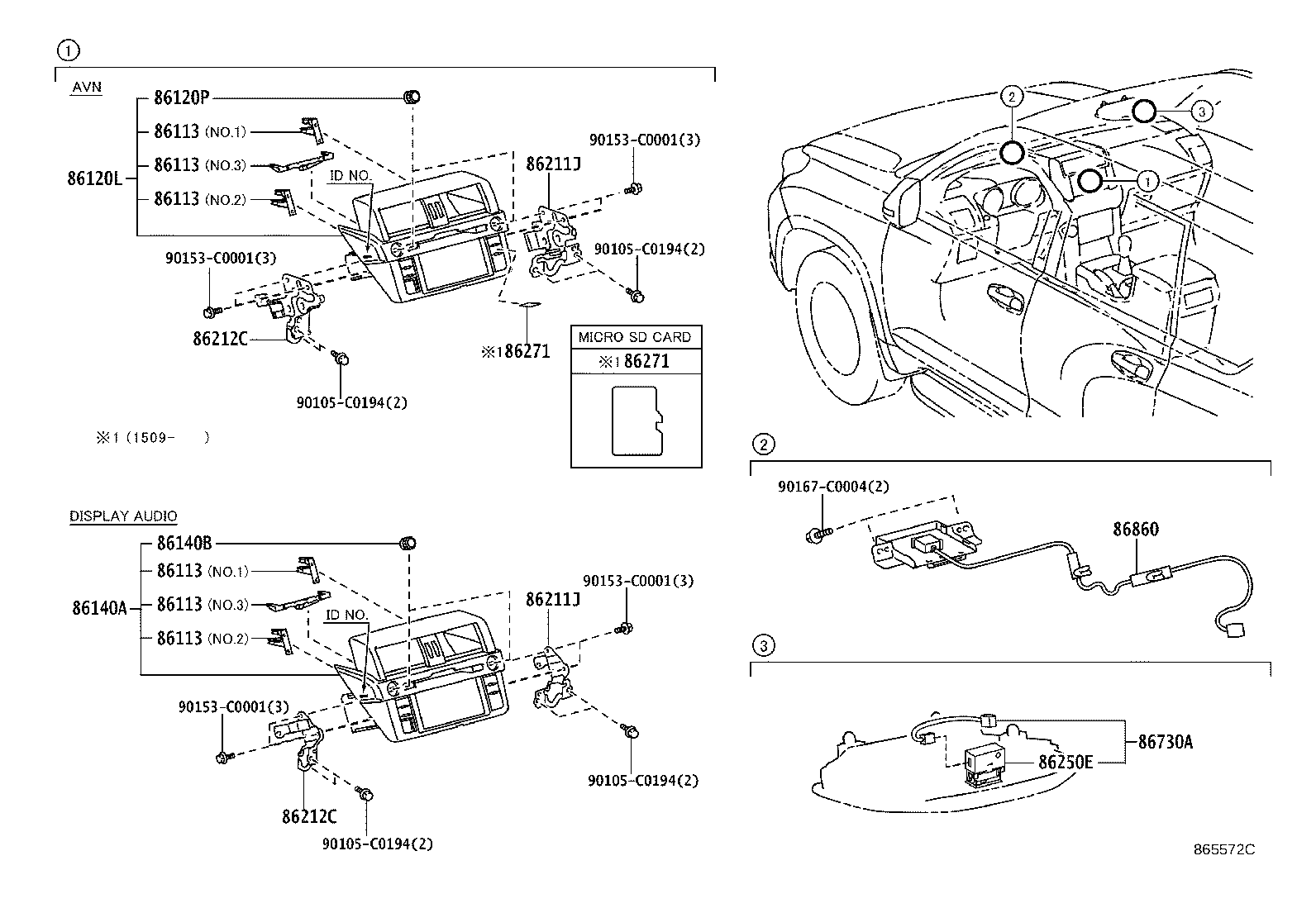

Figure 864254C 864254C 2010-05 → 2013-11 Figure 865572C 865572C 2013-11 → —

Part groups

PNCDescription
86113 Block, Multi-display Junction
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86274K Bracket, Disc Player, NO.4
86276B Cover, Disc Player
86421 Board, Navigation Module
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
