Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · General

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

16 part groups · 10 illustrations

Illustrations

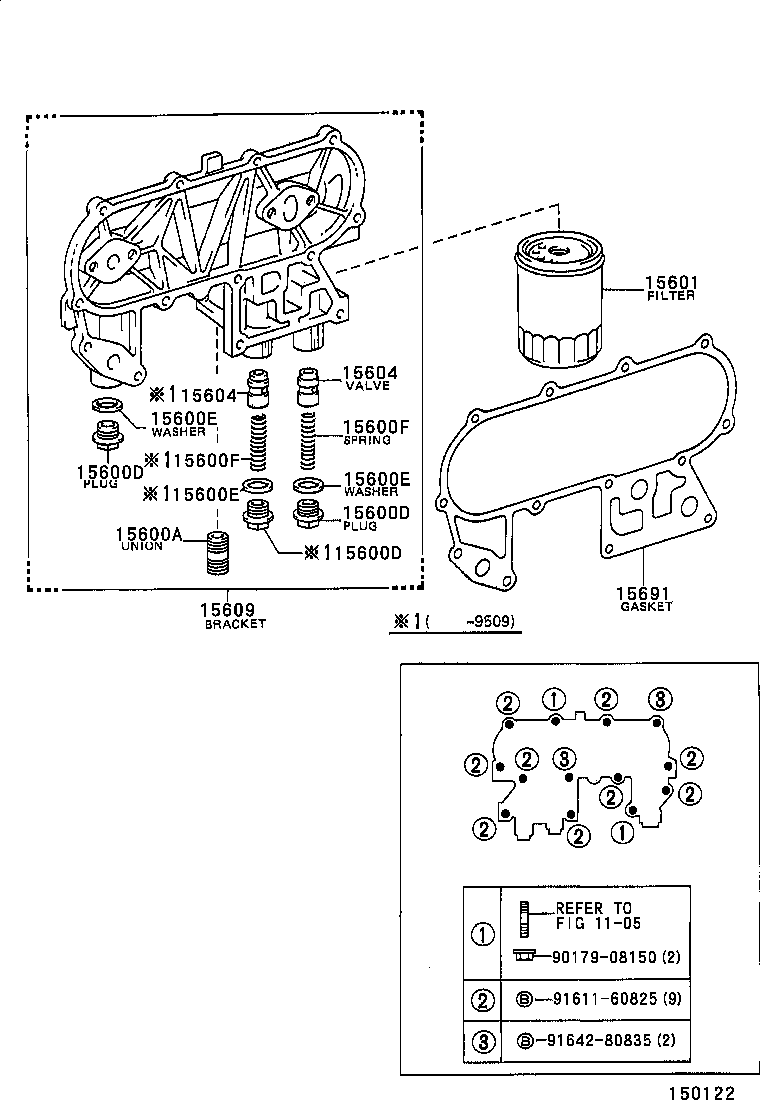

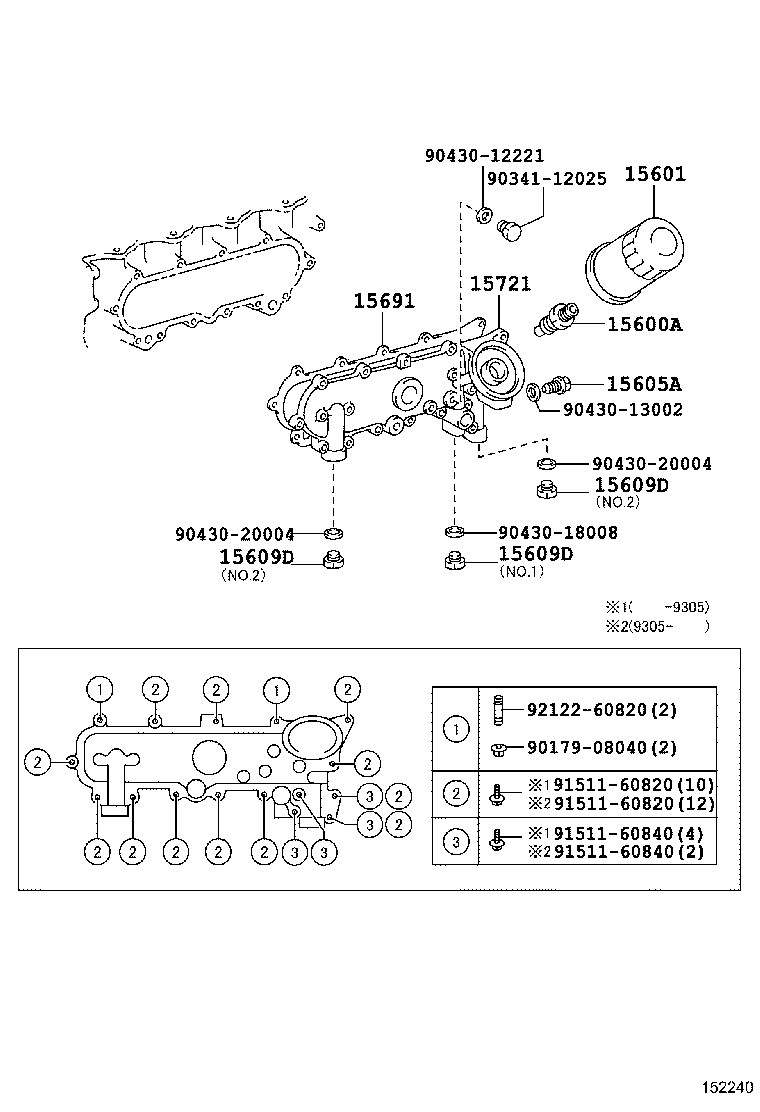

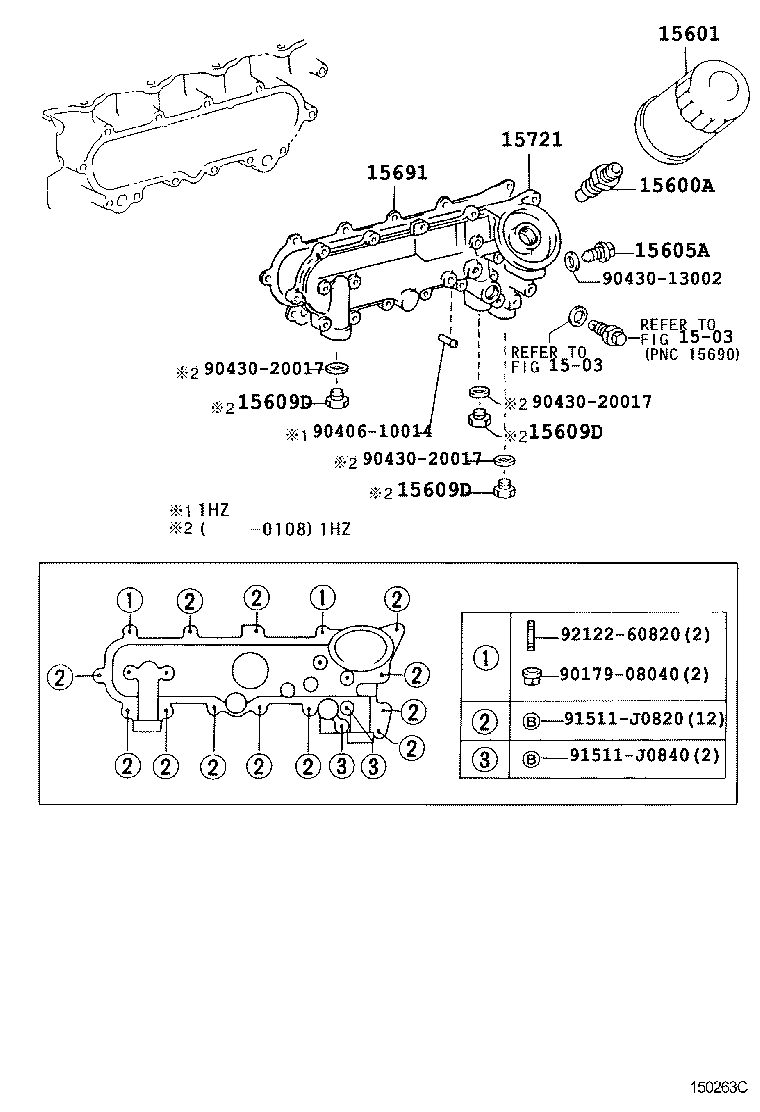

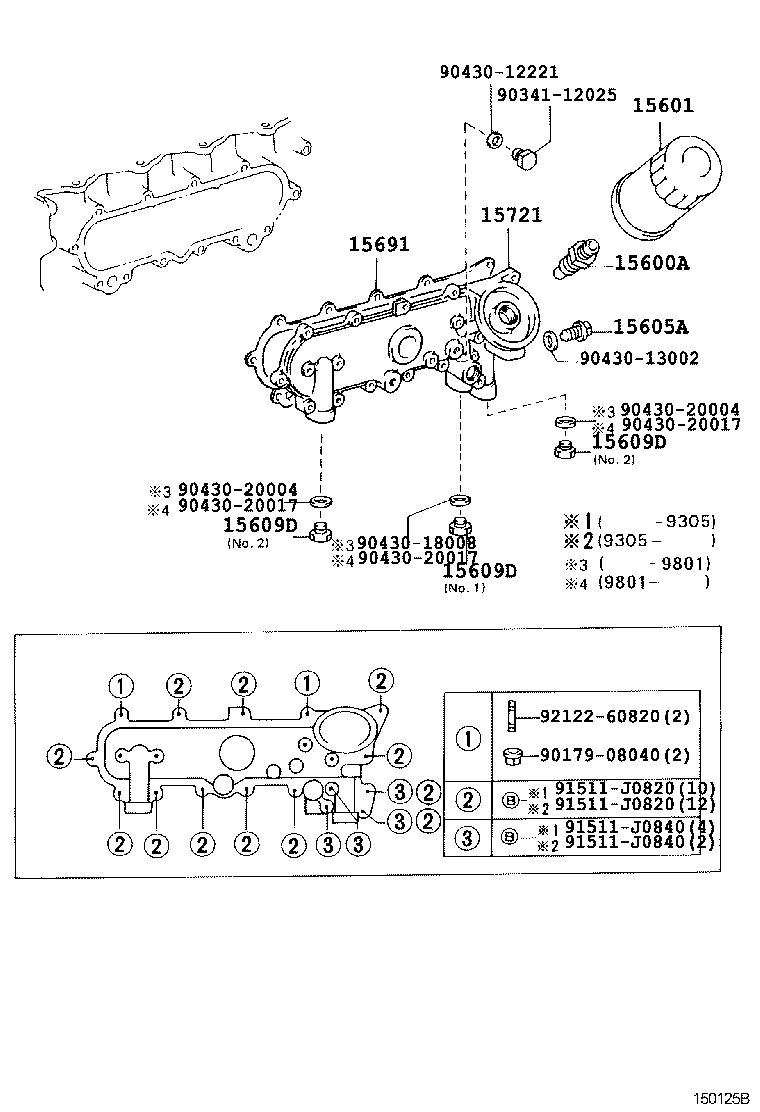

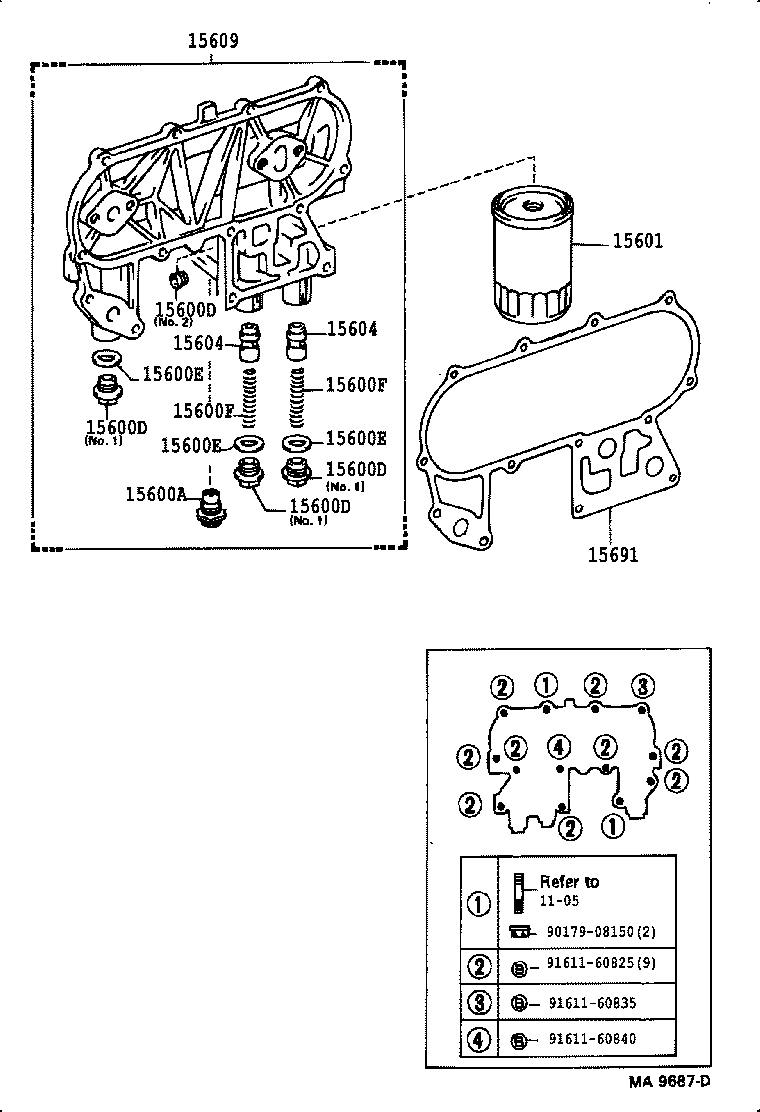

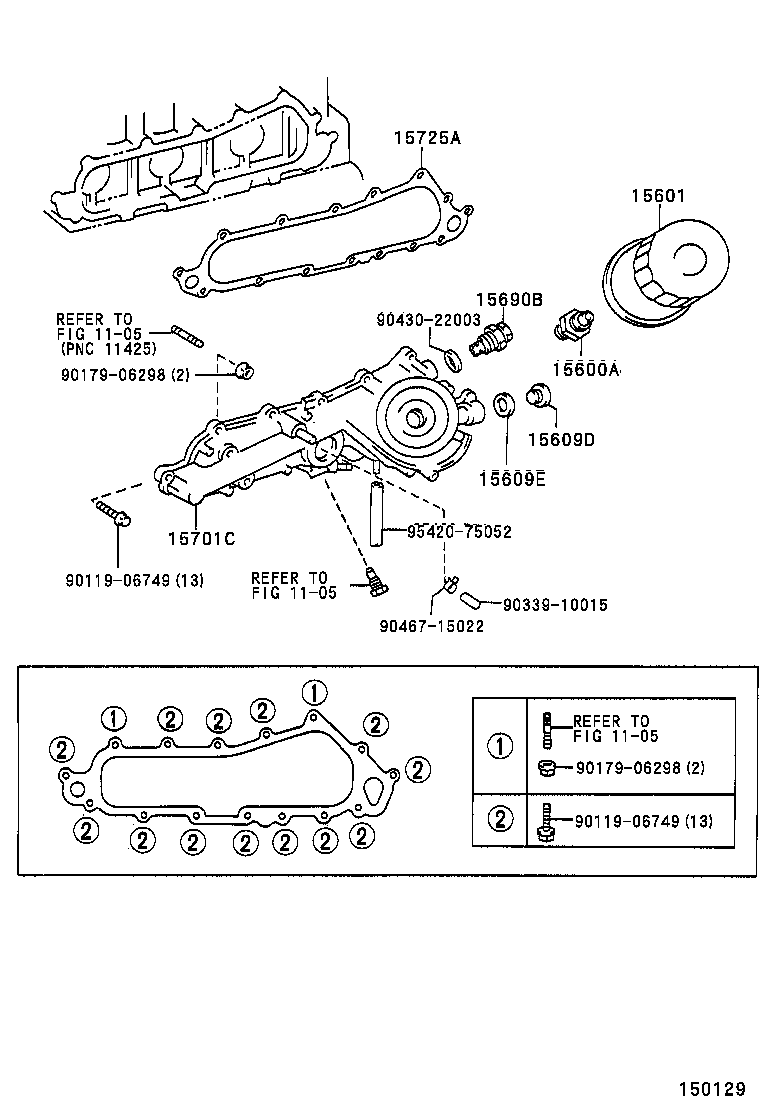

Figure MAD755 MAD755 1990-01 → 1992-08 Figure MAF498 MAF498 1992-01 → — Figure 150125B 150125B 1990-01 → 1998-05 Figure 150263C 150263C 1998-05 → — Figure 150129 150129 1993-05 → 1996-04 Figure MA9687D MA9687D 1990-01 → 1993-05 Figure MA9687D MA9687D 1990-04 → 1996-04 Figure 150122 150122 1990-04 → 1996-04 Figure 152240 152240 1990-01 → 1995-01 Figure MA6093A MA6093A 1990-01 → —

Part groups

PNCDescription
15600 Filter Assy, Oil
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15605A Valve Sub-assy, Oil Check
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15690B Valve Assy, Oil Cooler Relief
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15721 Cover, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
