Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10

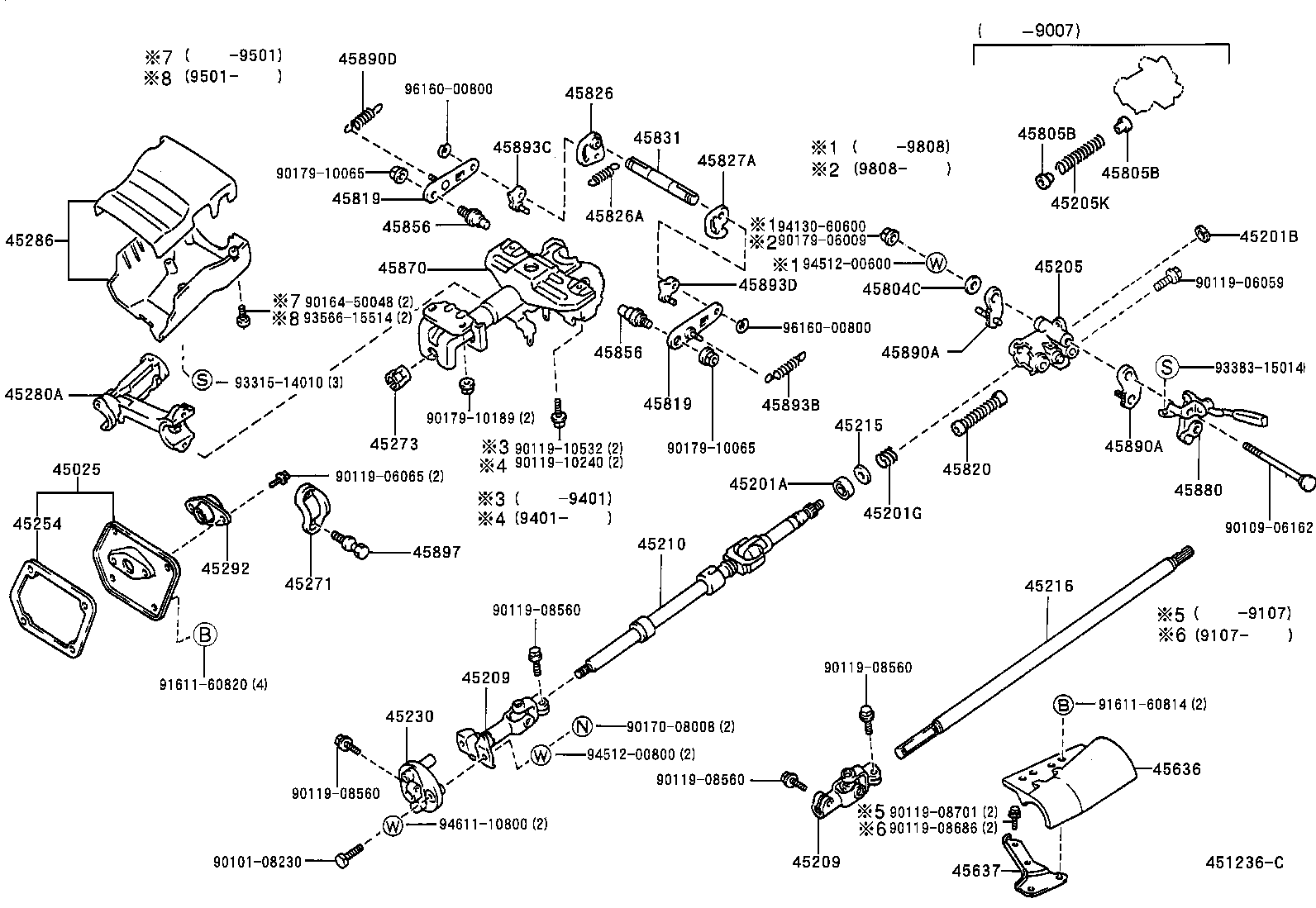

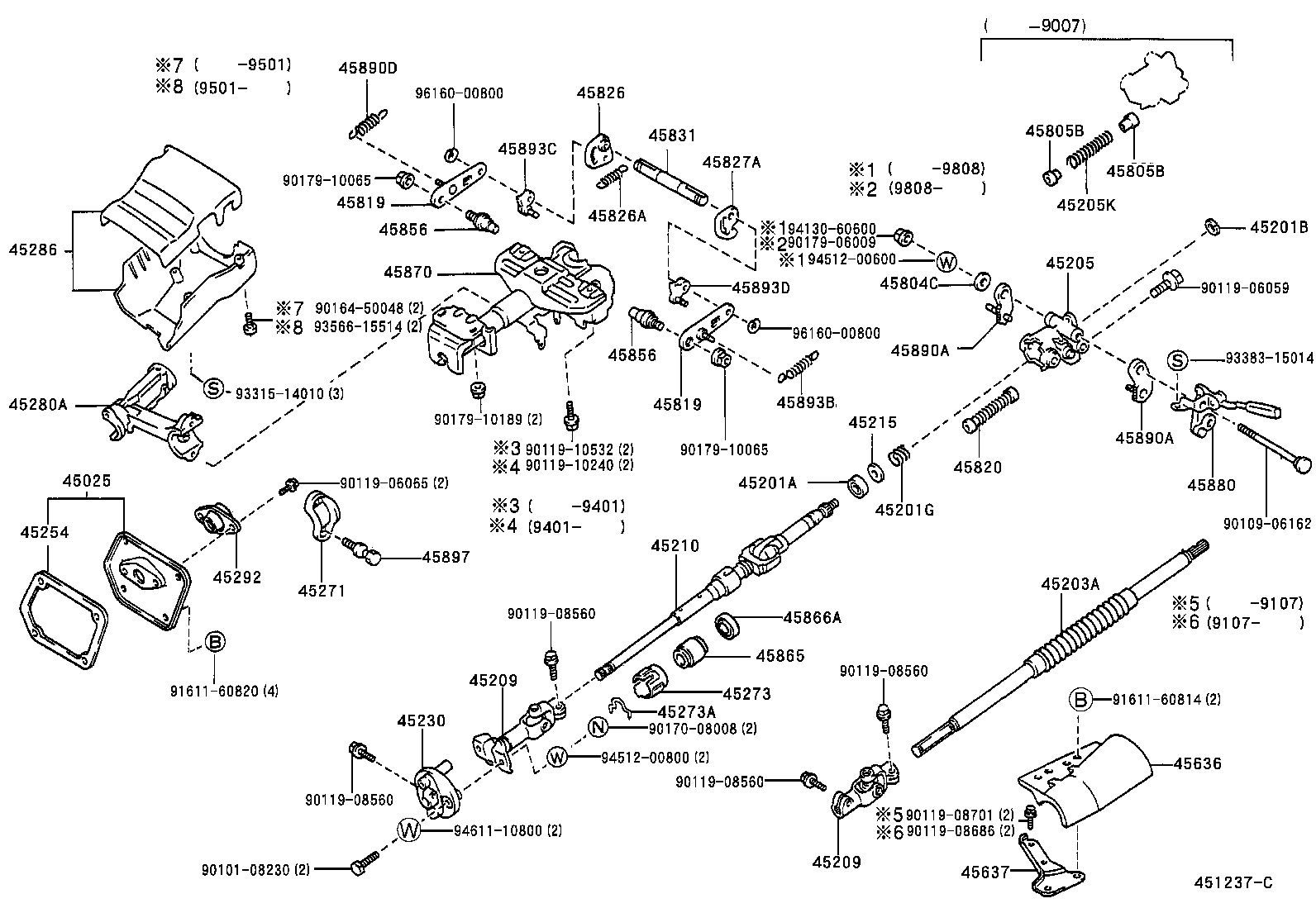

Steering Column & Shaft

41 part groups · 3 illustrations

PNC	Description
45025	Cover, Steering Intermediate Shaft
45201A	Bearing(FOR STEERING MAIN SHAFT)
45201B	Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D	Ring(FOR STEERING MAIN SHAFT)
45201G	Spring, Compression(FOR STEERING MAIN SHAFT)
45203A	Shaft, Steering Intermediate, NO.2
45205	Tube Sub-assy, Steering Column
45205K	Spring(FOR STEERING COLUMN TUBE)
45209	Yoke Sub-assy, Steering Sliding
45210	Shaft Assy, Steering Main
45215	Collar, Main Shaft Bearing Thrust
45216	Shaft, Steering Sliding
45230	Coupling Assy, Flexible
45254	Shield, Steering Column Hole
45271	Clamp, Steering Column, Upper
45273	Bush, Steering Main Shaft
45273A	Ring, Hole Snap(FOR STEERING MAIN SHAFT BUSH)
45280A	Bracket Assy, Steering Column, Upper
45286	Cover, Steering Column
45292	Seal, Main Shaft Lower Dust
45636	Protector, Intermediate Link Joint, Upper
45637	Protector, Inter Link Joint, Lwr NO.1
45804C	Washer, Plate(FOR STEERING TILT LEVER)
45805B	Bush(FOR TILT STEERING SUPPORT)
45819	Retainer, Tilt Lever
45820	Spring Assy, Tilt Steering Support
45826	Lever, Steering Tilt
45826A	Spring, Tension(FOR STEERING TILT LEVER)
45827A	Lever, Steering Tilt Sub
45831	Bolt, Tilt Lever Lock, NO.1
45856	Bolt, Tilt Steering, NO.2
45865	Collar, Steering Main Shaft
45866A	Stopper, Steering Main Shaft Bush
45870	Tube Assy, Steering Column
45880	Lever Assy, Steering Tilt
45890A	Pawl Assy, Tilt Steering
45890D	Spring, Tension(FOR TILT STEERING PAWL ASSY)
45893B	Spring, Tension(FOR TILT STEERING PAWL STOPPER)
45893C	Stopper, Steering Pawl, RH
45893D	Stopper, Steering Pawl, LH
45897	Bolt, Steering Lock Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
