Toyota Land Cruiser

1990-01 → 2006-12 · chassis FJ80,HDJ80,HZJ80,FZJ80 · catalogue 791340 · General

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

44 part groups · 24 illustrations

Illustrations

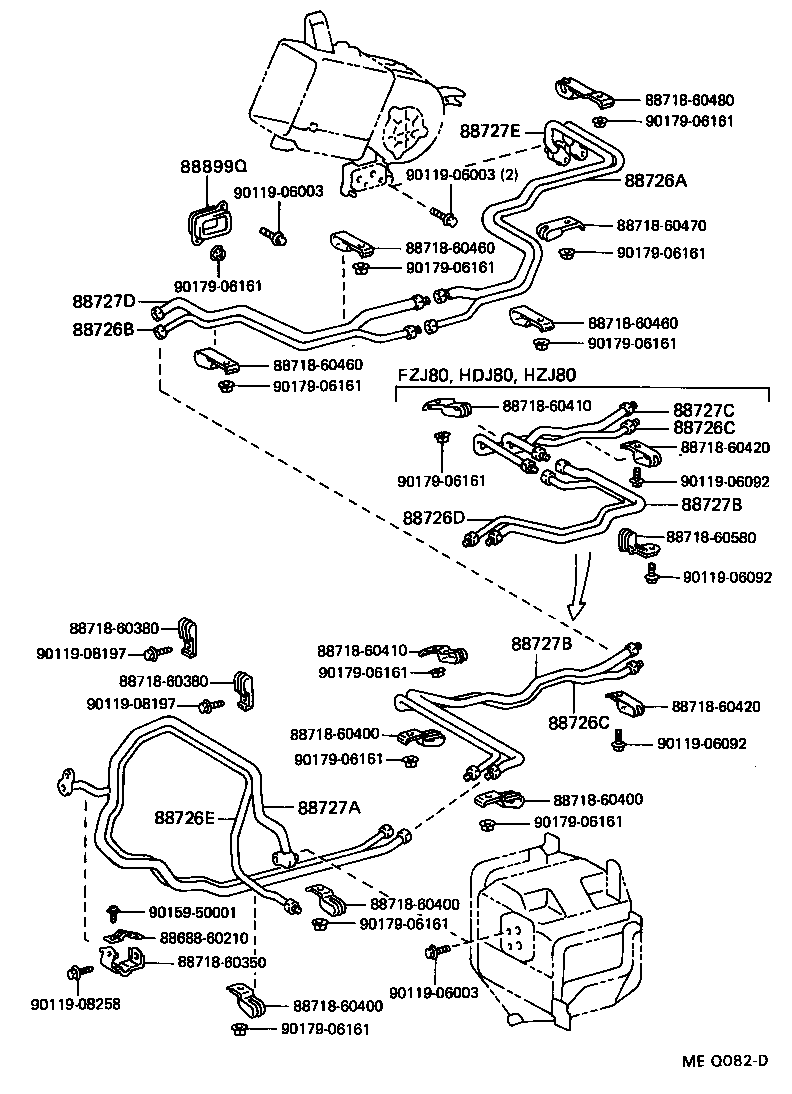

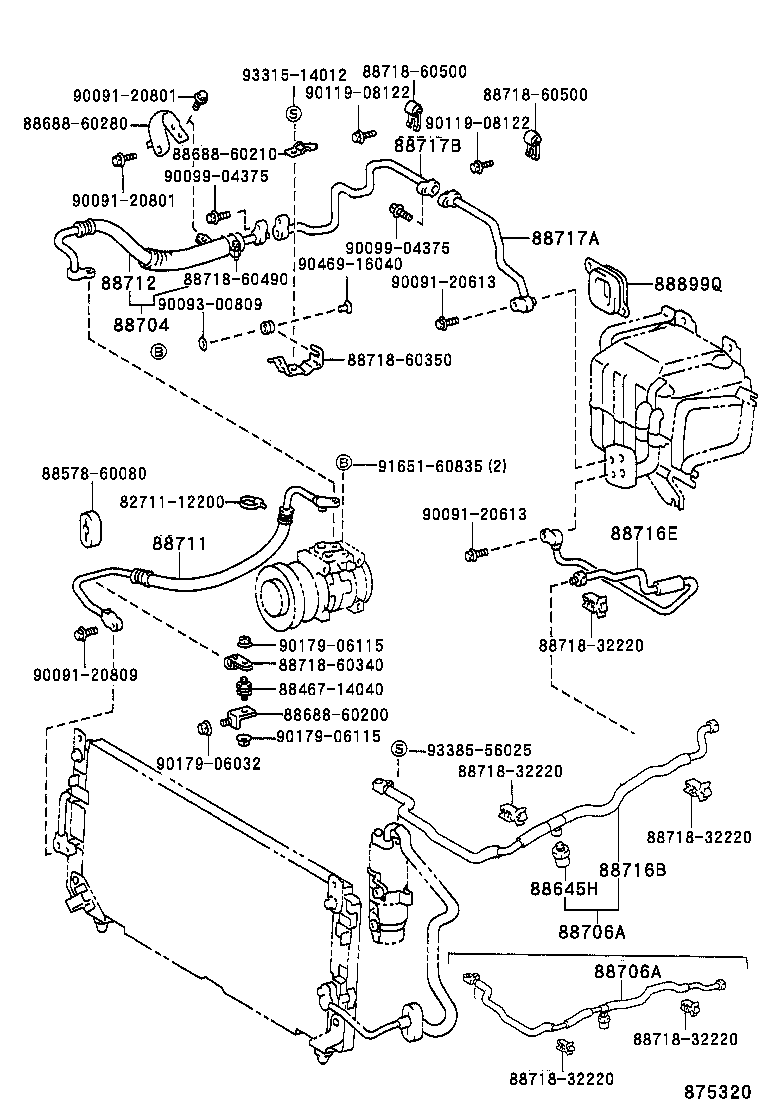

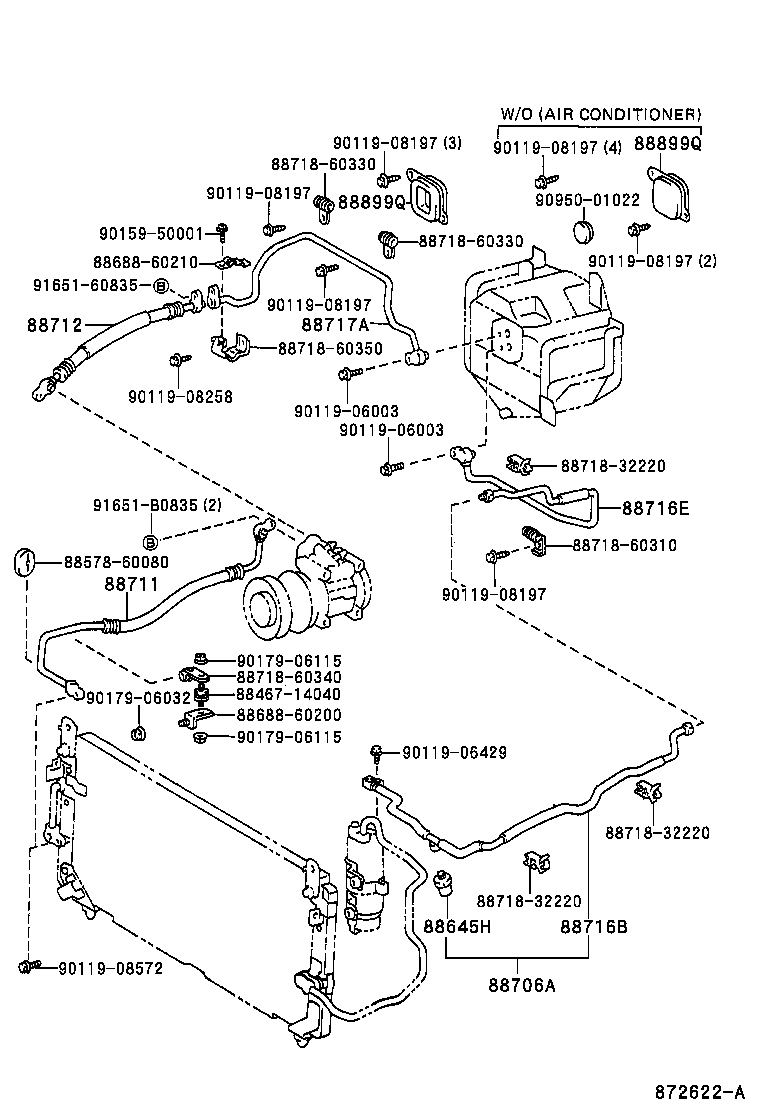

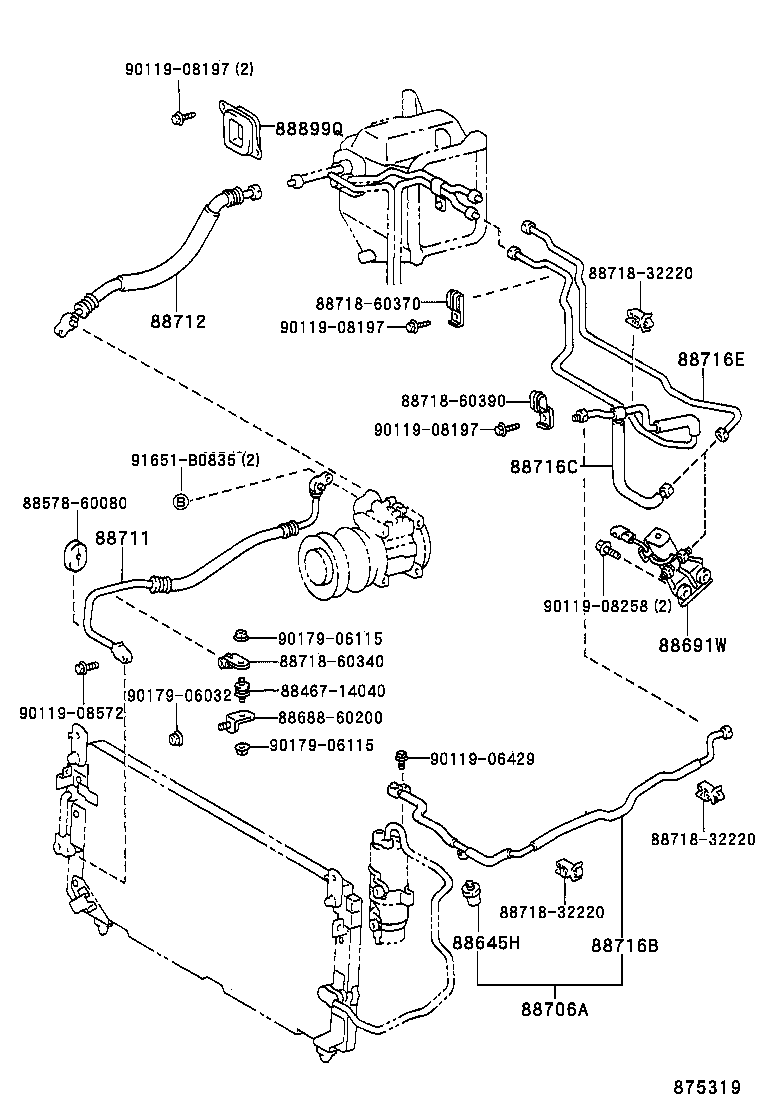

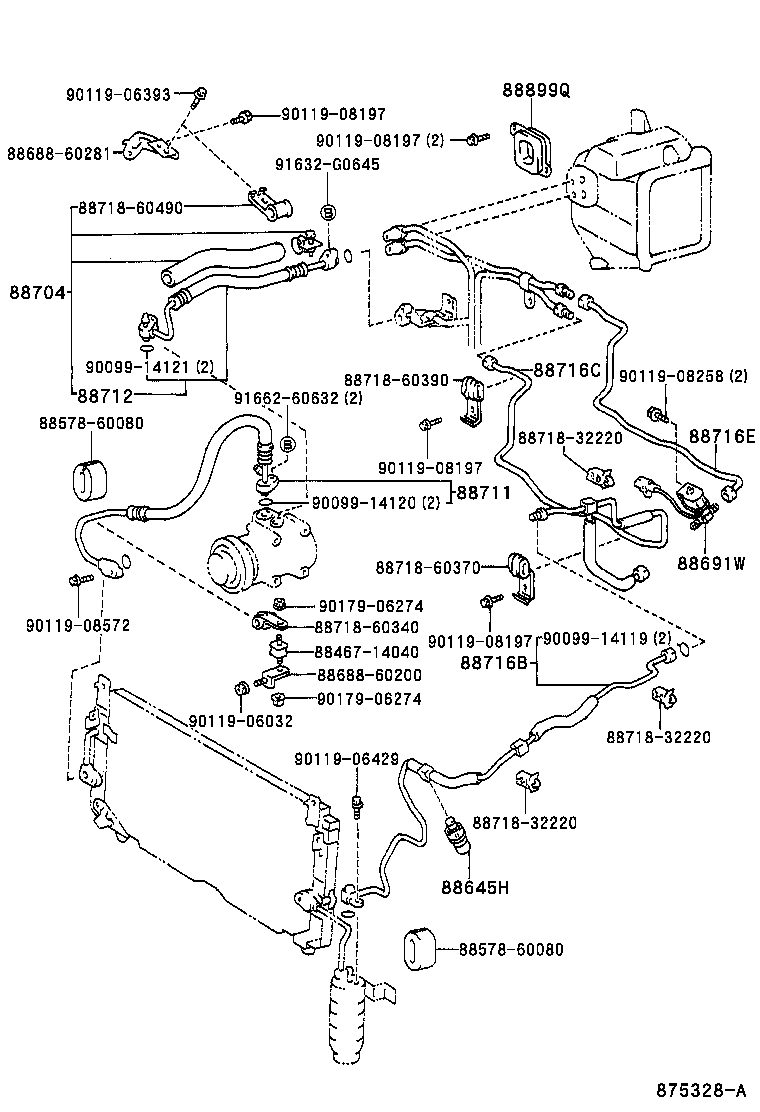

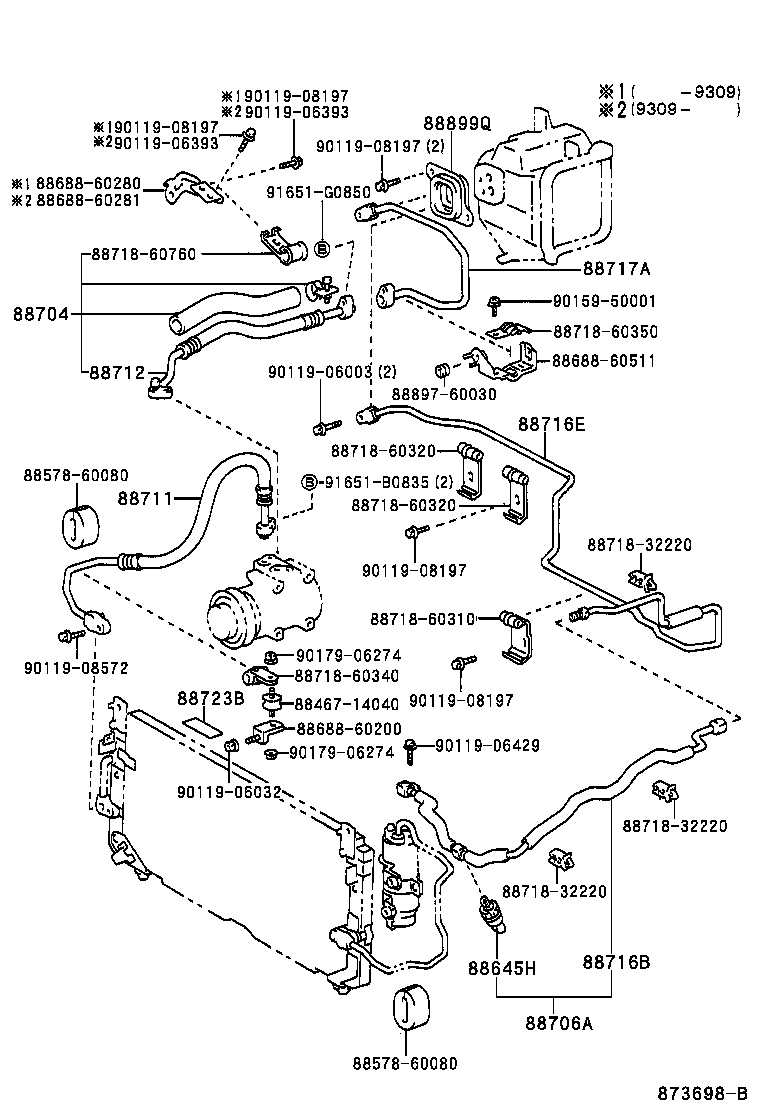

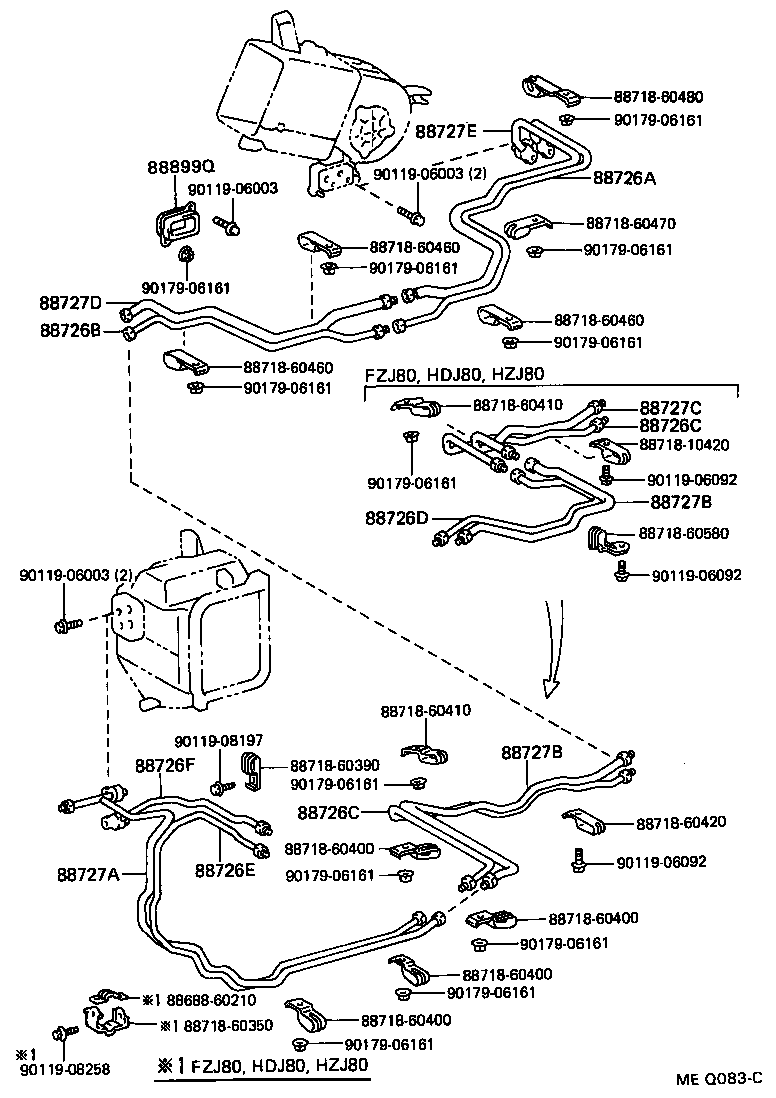

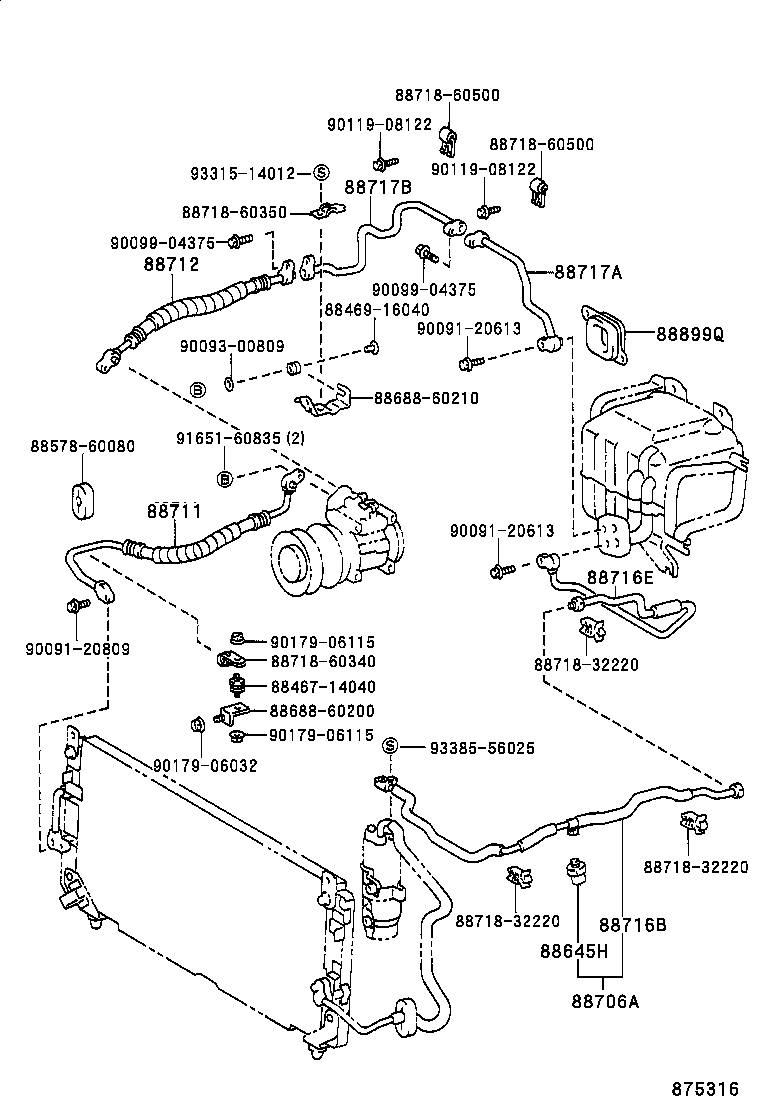

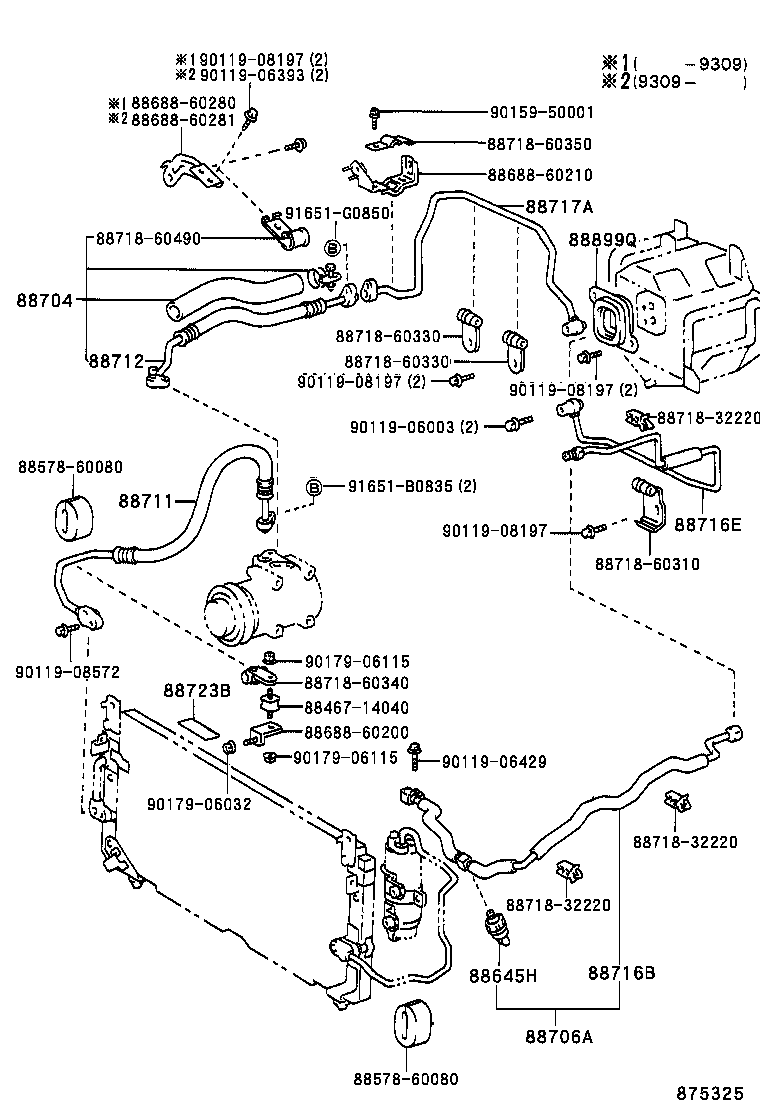

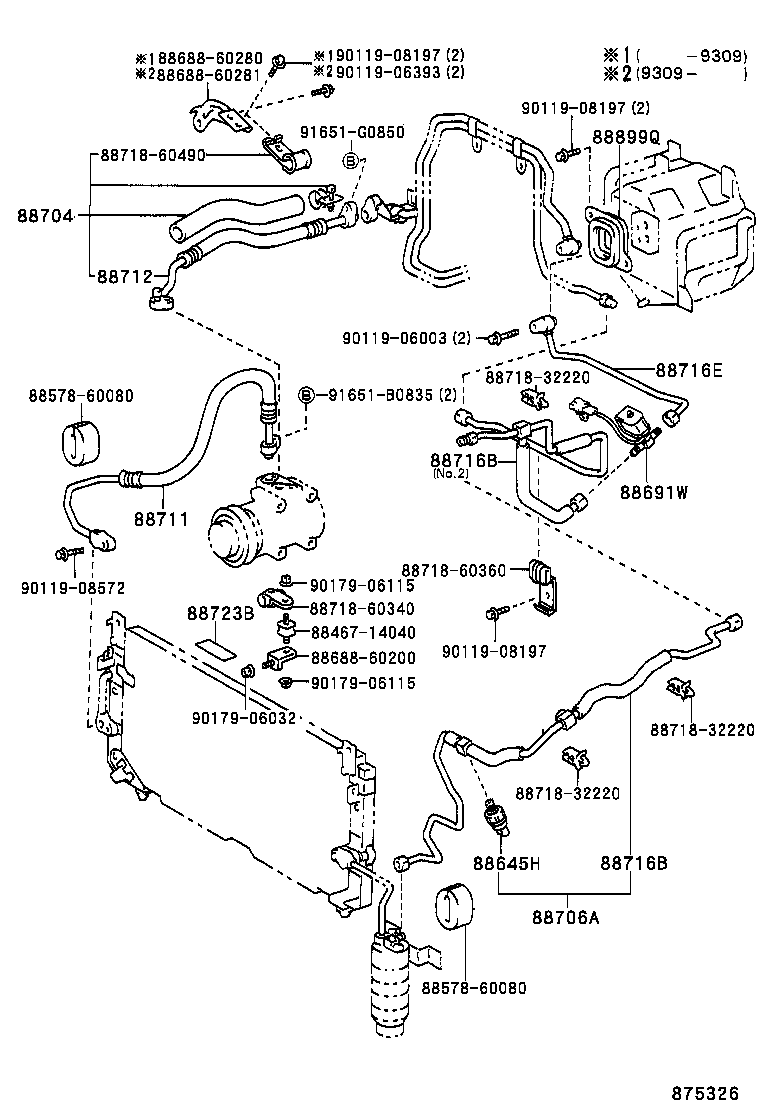

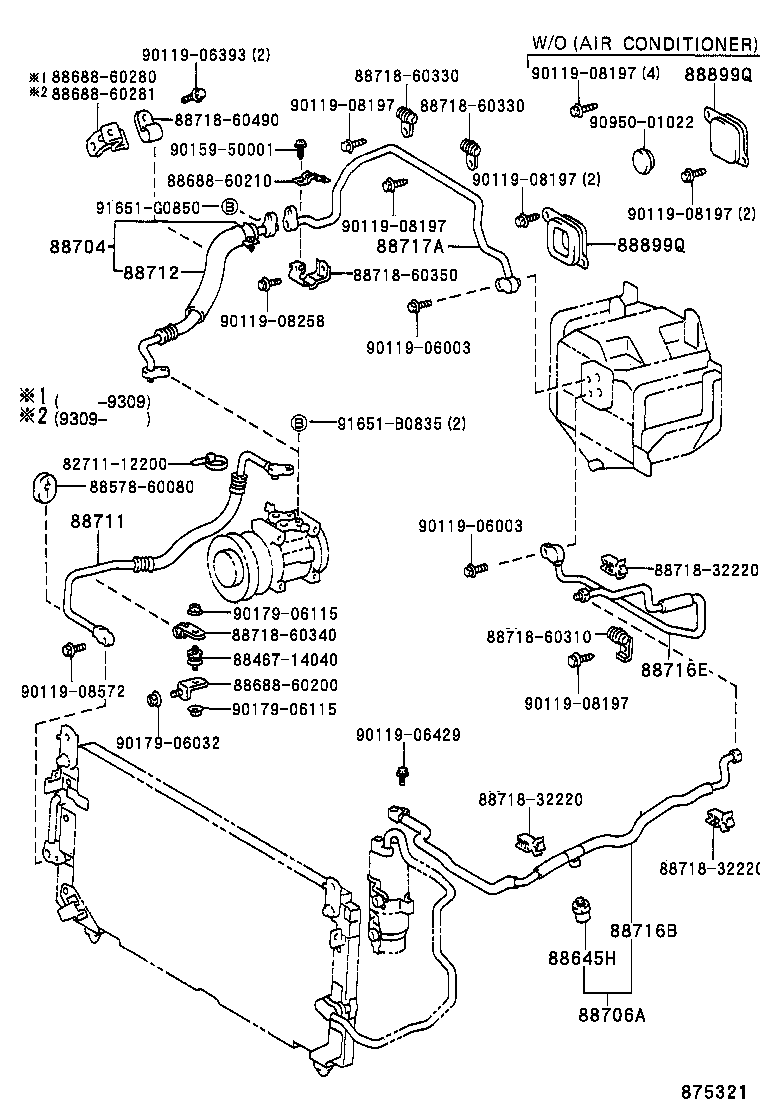

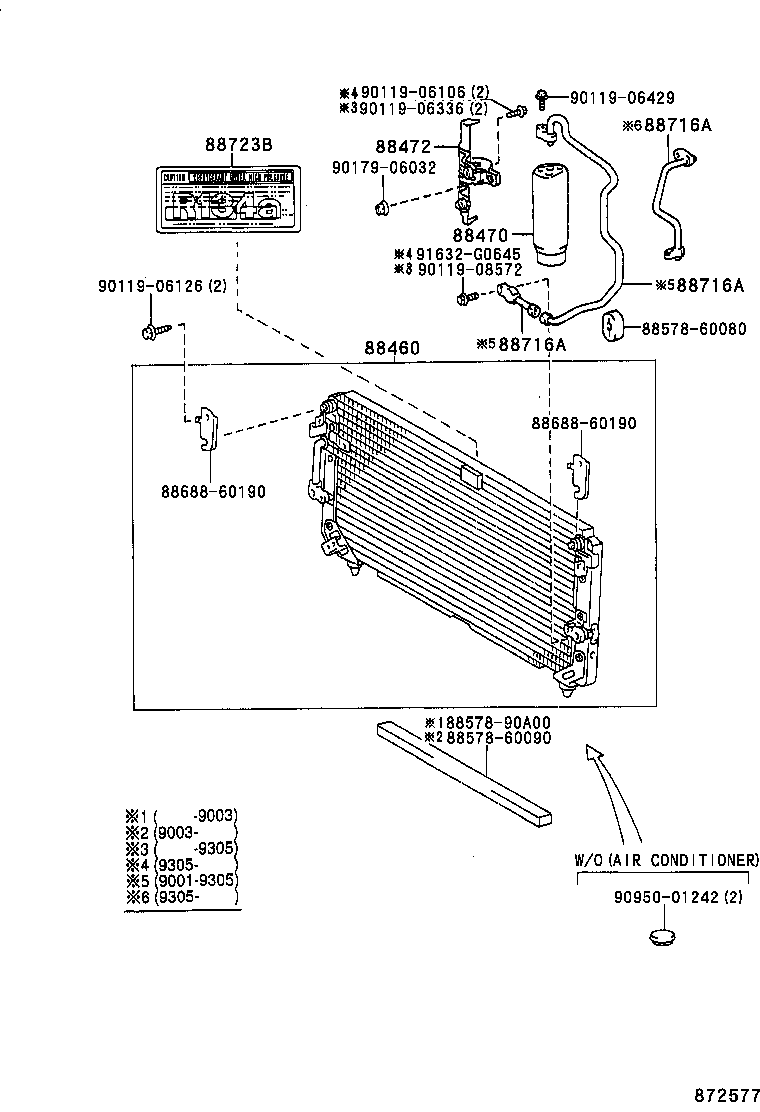

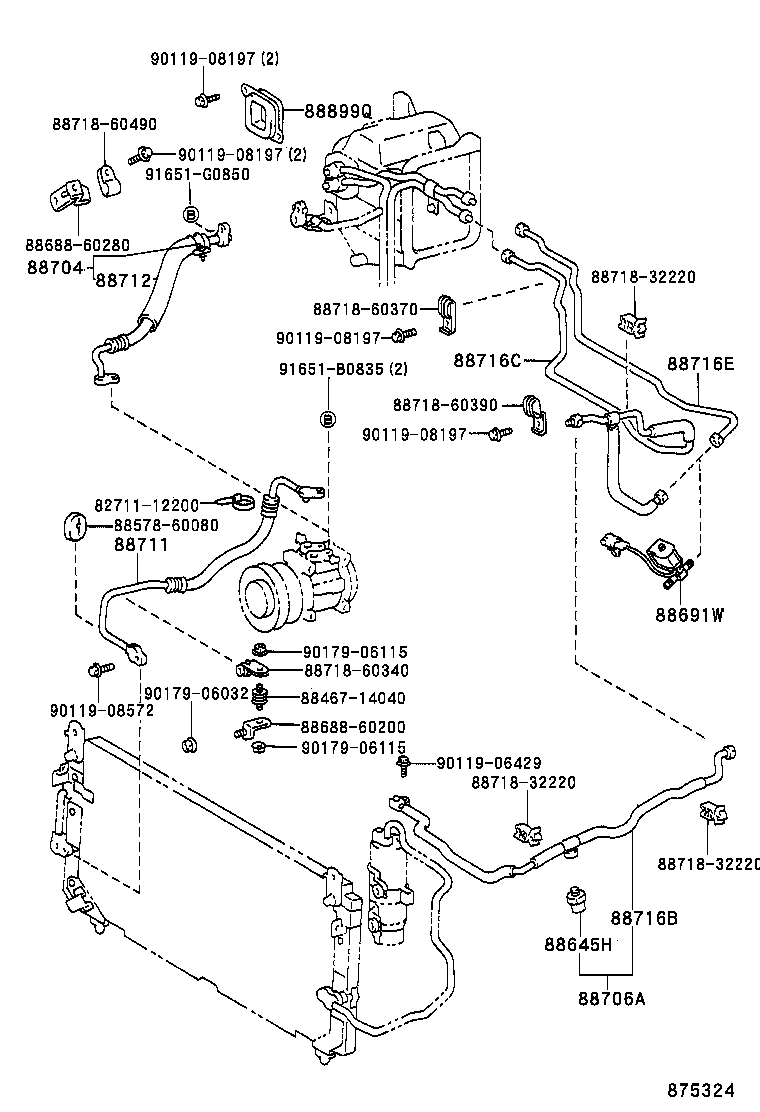

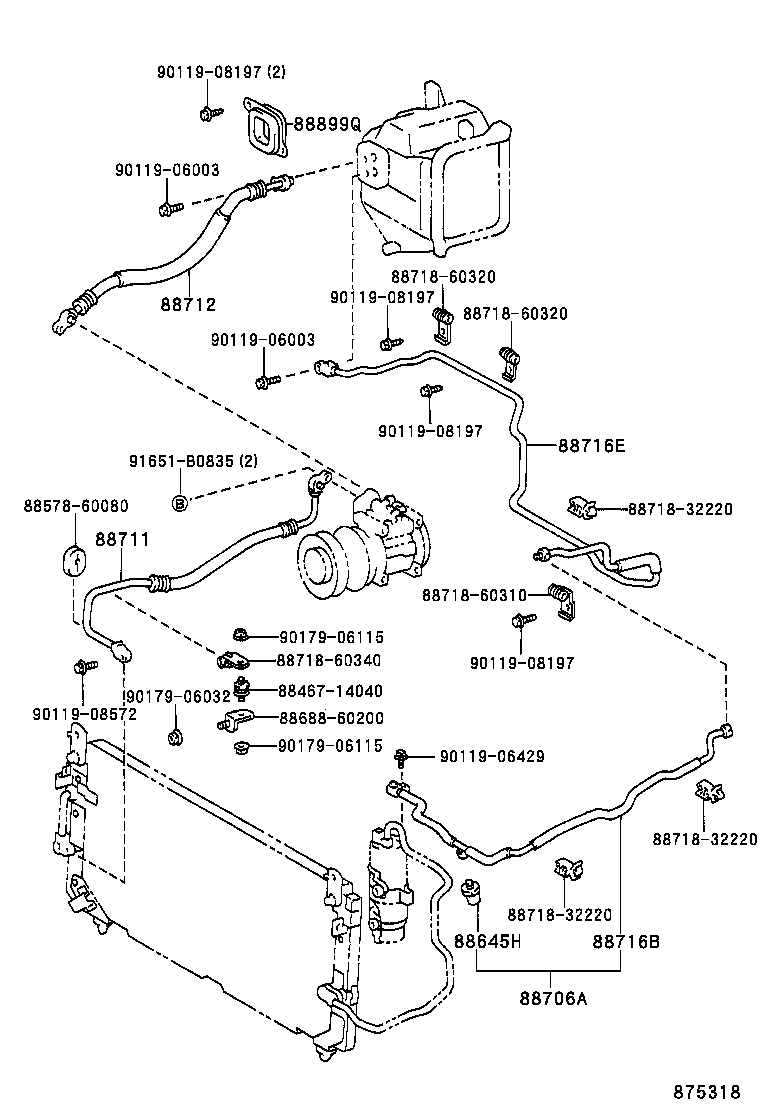

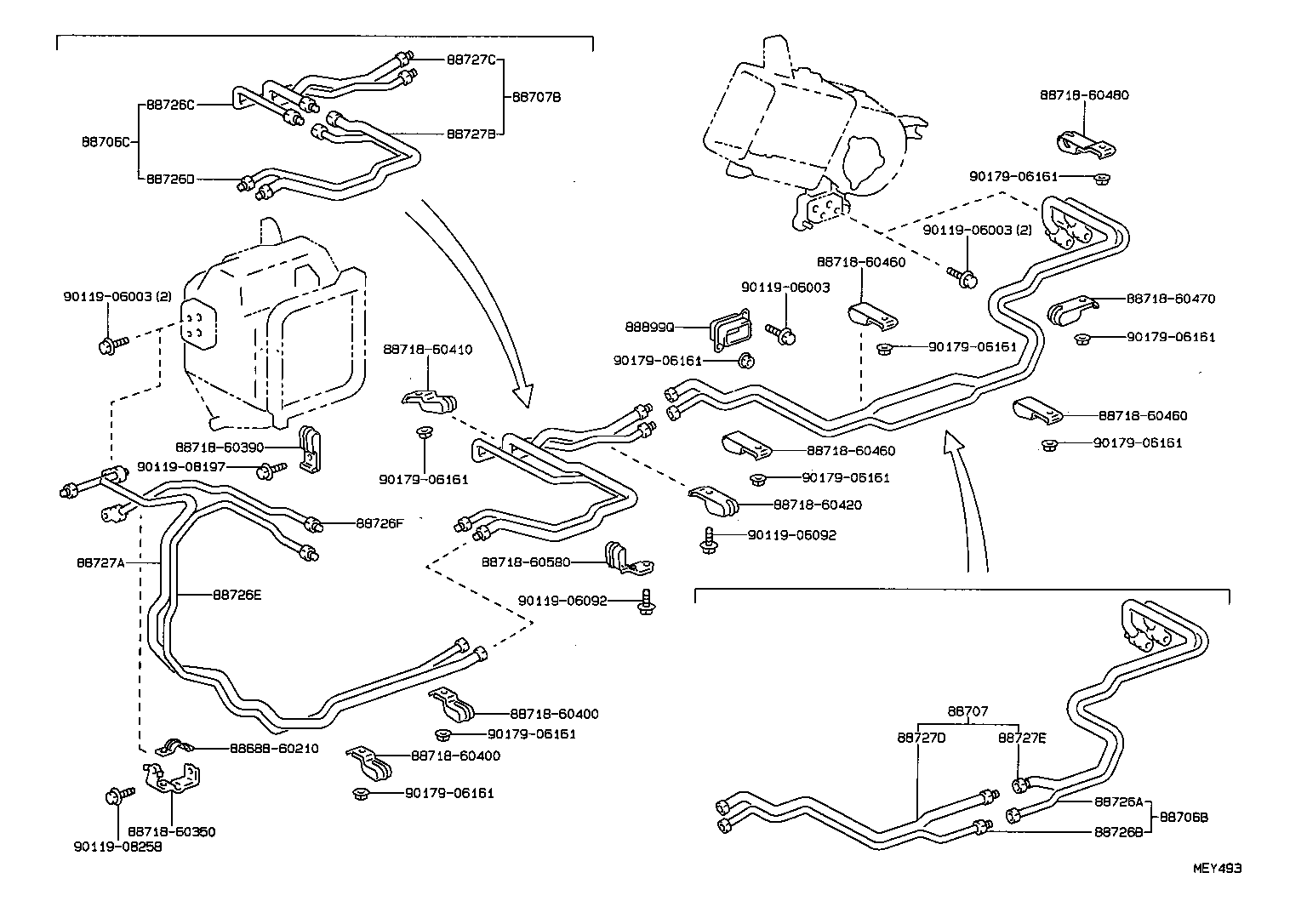

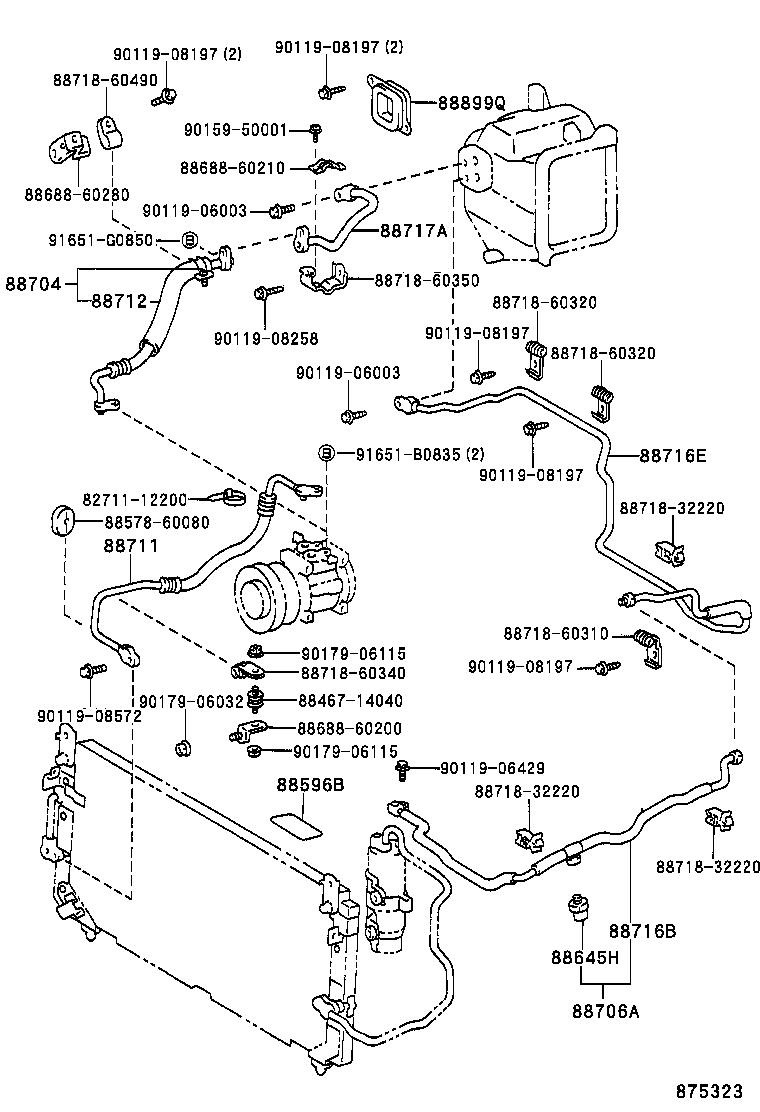

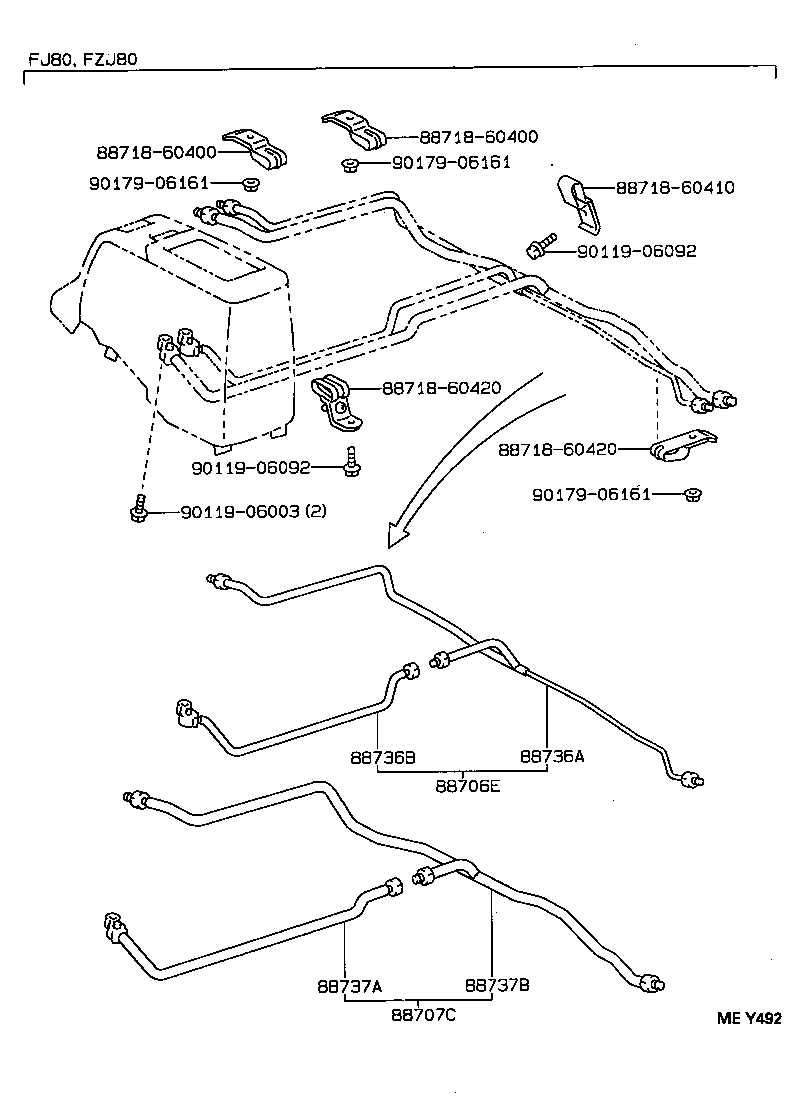

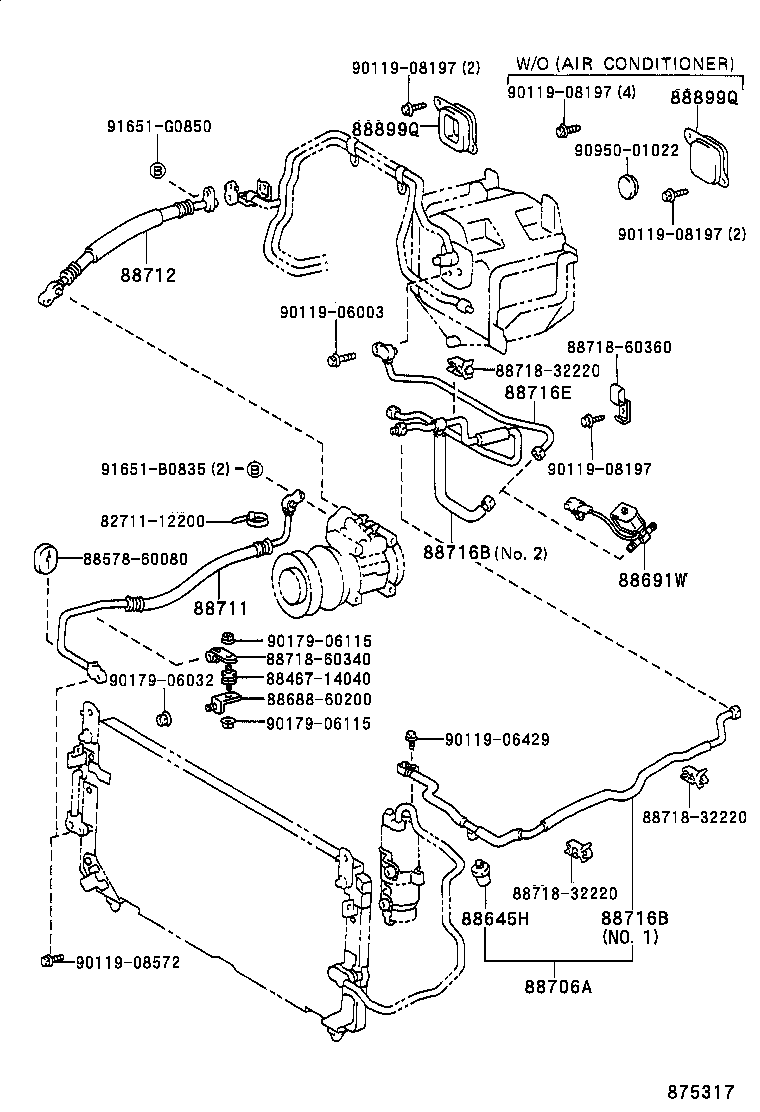

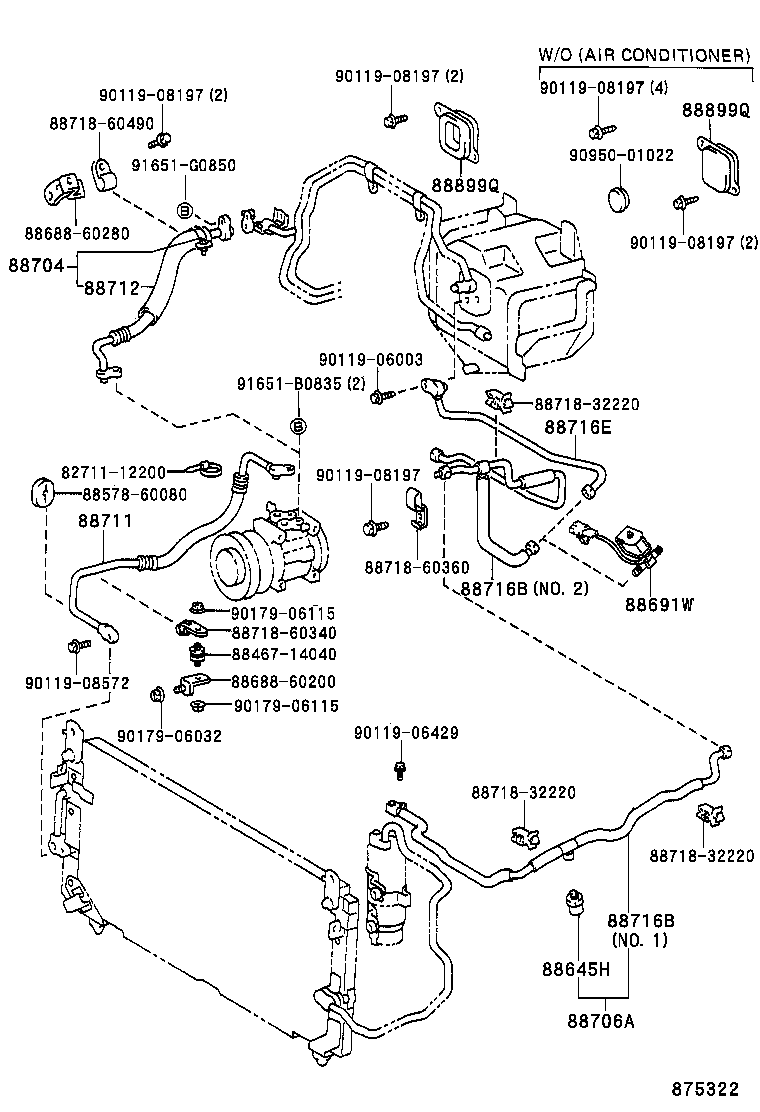

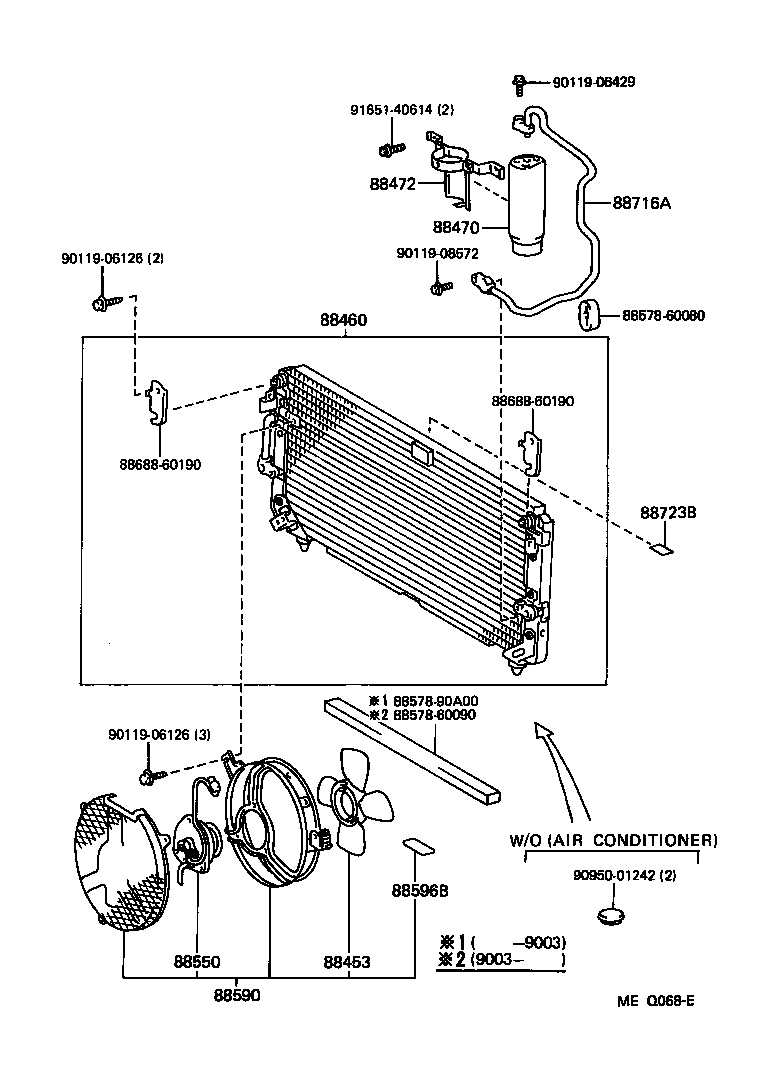

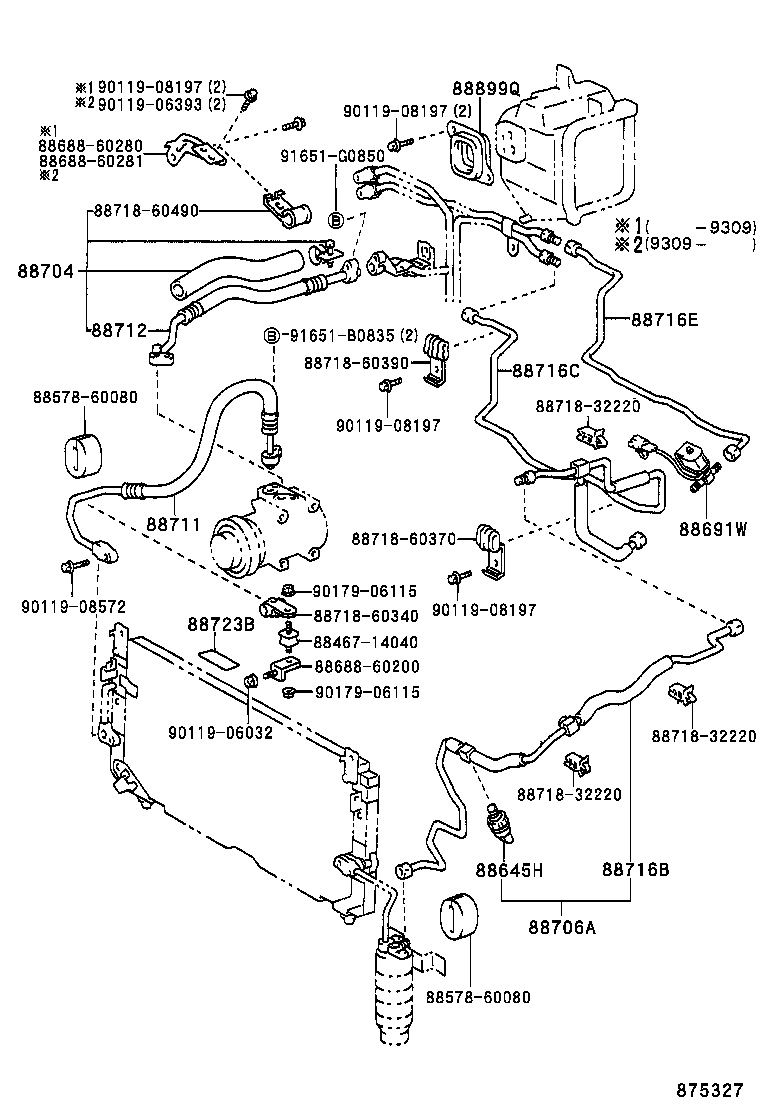

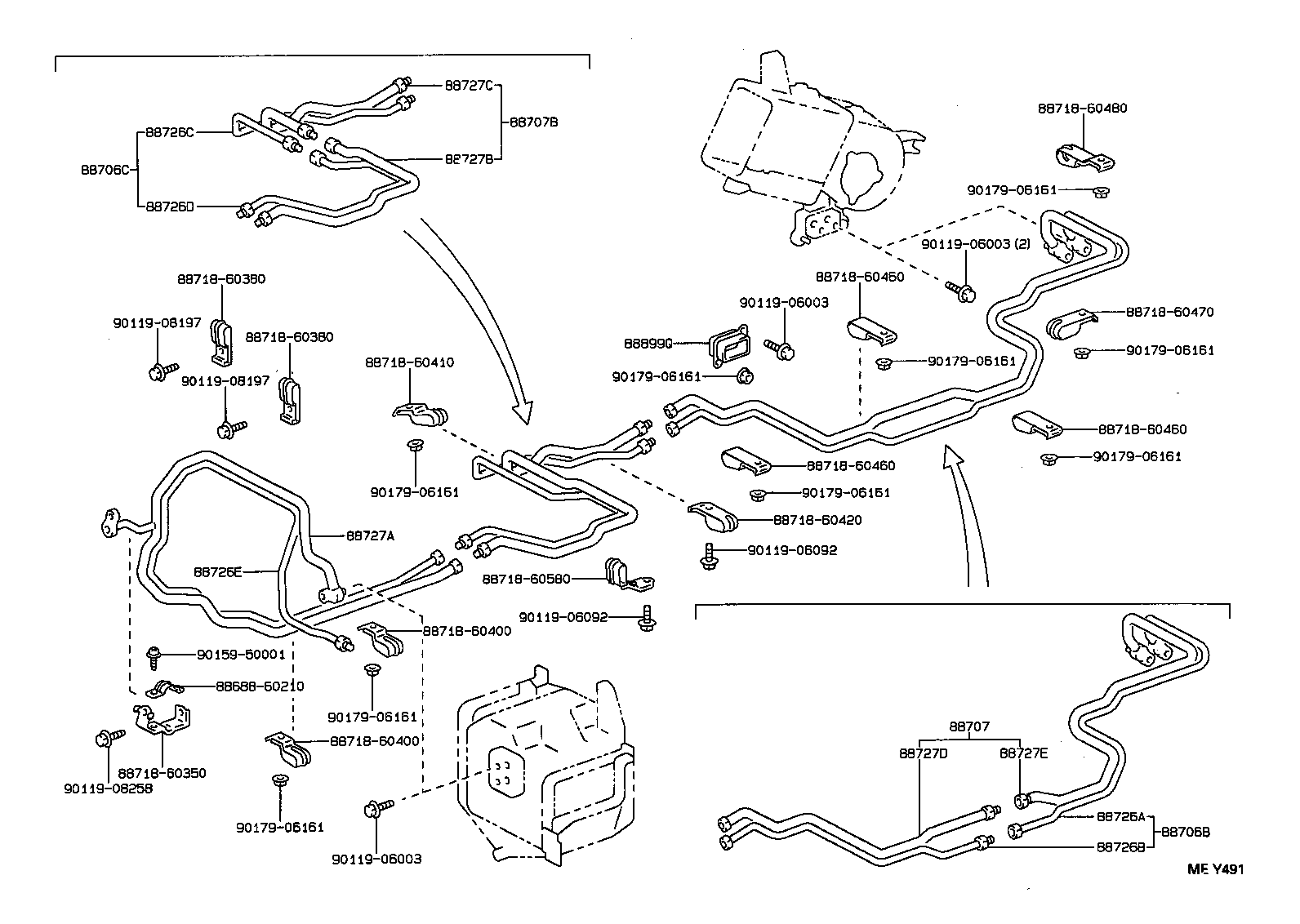

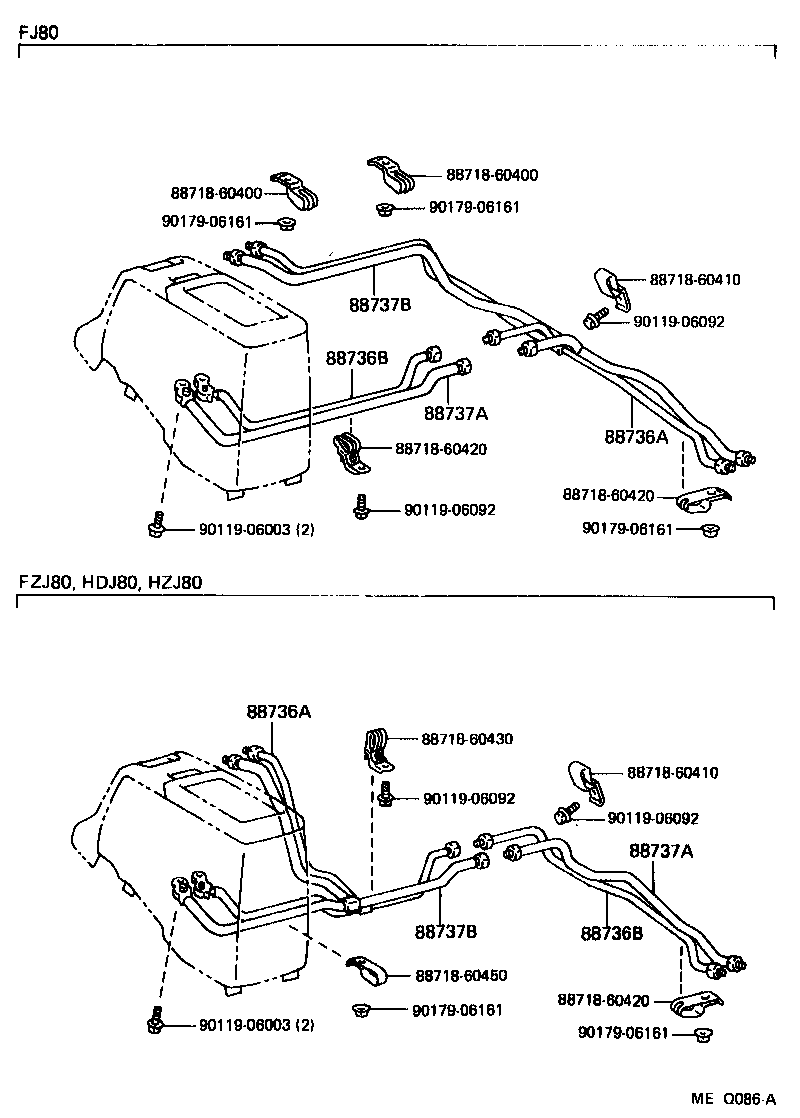

Figure MEY074 MEY074 1990-01 → — Figure 872577 872577 1990-01 → — Figure MEQ068E MEQ068E 1990-01 → — Figure 875316 875316 1990-01 → — Figure 872622A 872622A 1990-01 → — Figure 875317 875317 1990-01 → — Figure 875318 875318 1990-01 → 1992-01 Figure 875319 875319 1990-01 → 1992-01 Figure 875320 875320 1990-01 → — Figure 875321 875321 1990-01 → — Figure 875322 875322 1990-01 → — Figure 875323 875323 1990-01 → — Figure 875324 875324 1990-01 → — Figure 875325 875325 1992-01 → — Figure 875326 875326 1992-01 → — Figure 873698B 873698B 1992-01 → — Figure 875327 875327 1992-01 → 1995-01 Figure 875328A 875328A 1995-01 → — Figure MEQ082D MEQ082D 1990-01 → 1995-01 Figure MEY491 MEY491 1995-01 → — Figure MEQ083C MEQ083C 1990-01 → 1995-01 Figure MEY493 MEY493 1995-01 → — Figure MEQ086A MEQ086A 1990-01 → 1995-01 Figure MEY492 MEY492 1995-01 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88473A Holder, Receiver
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88726E Pipe, Cooler Refrigerant Liquid, E
88726F Pipe, Cooler Refrigerant Liquid, F
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88727E Pipe, Cooler Refrigerant Suction, E
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88737A Tube, Suction, A(FOR COOL BOX)
88737B Tube, Suction, B(FOR COOL BOX)
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
