Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · General
Discontinued model
Data version 2016-12

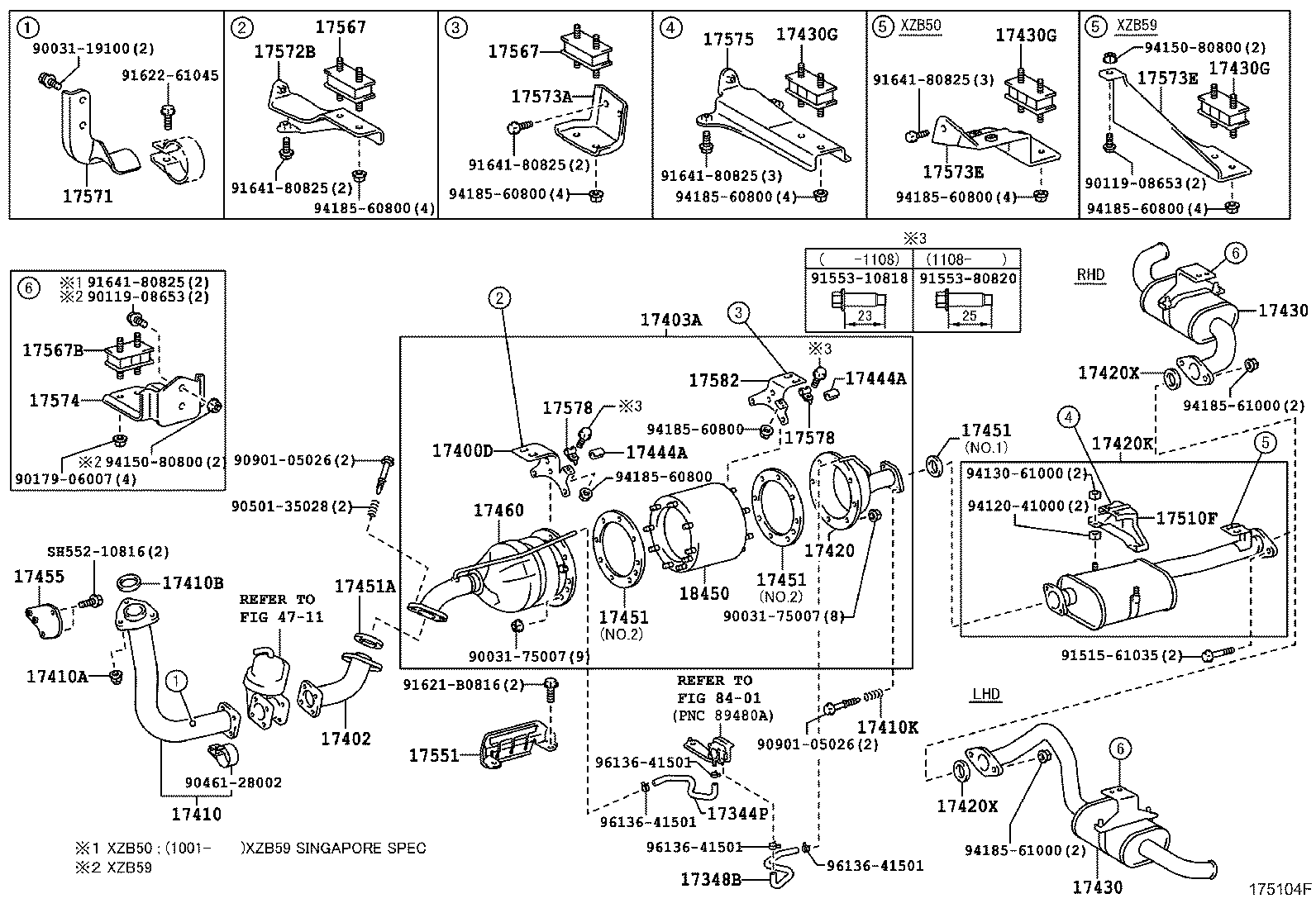

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17344P — Hose, Air, NO.4(FOR EXHAUST PIPE) | ||||
| 17344-78050 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17344-78050 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17344-78050 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 RHD +2 | — | |
| 17344-78050 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2013-11
ended
|
N04C XZB50 RHD IV | — | |
| 17344-78070 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2015-01
ended
|
N04C XZB50 TAIW | — | |
| 17344-78070 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2006-08 → 2013-11
ended
|
N04C XZB50 LHD IV | — | |
| 17344-78300 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2015-01 → —
|
N04C XZB40,5# RHD | — | |
| 17344-78310 |
Hose, Air, NO.4(FOR EXHAUST PIPE)
2015-01 → —
|
N04C XZB50 TAIW | — | |
| 17348B — Hose, Air, NO.8(FOR EXHAUST PIPE) | ||||
| 17348-78010 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17348-78010 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17348-78010 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2013-11
ended
|
N04C XZB50 RHD IV | — | |
| 17348-78010 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 RHD +2 | — | |
| 17348-78020 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2013-11
ended
|
N04C XZB50 LHD IV | — | |
| 17348-78020 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2006-08 → 2015-01
ended
|
N04C XZB50 TAIW | — | |
| 17348-78030 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2015-01 → —
|
N04C XZB40,5# RHD | — | |
| 17348-78040 |
Hose, Air, NO.8(FOR EXHAUST PIPE)
2015-01 → —
|
N04C XZB50 TAIW | — | |
| 17400D — Bracket, Catalytic Converter Support | ||||
| 17581-78010 |
Bracket, Catalytic Converter Support
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17581-78010 |
Bracket, Catalytic Converter Support
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17581-78010 |
Bracket, Catalytic Converter Support
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17581-78010 |
Bracket, Catalytic Converter Support
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17581-78010 |
Bracket, Catalytic Converter Support
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17402 — Pipe Sub-assy, Exhaust, Front NO.2 | ||||
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 | — | |
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
1999-07 → 2001-08
ended
|
15BFT F;1HZ BB50 HZB50 +18 | — | |
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
1999-07 → 2002-11
ended
|
1HZ WC;15BFT HZB50 BB50 +19 | — | |
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
2002-11 → 2004-08
ended
|
15BFT,1HZ BB50,HZB50 | — | |
| 17402-17050 |
Pipe Sub-assy, Exhaust, Front NO.2
2004-08 → 2009-07
ended
|
15BFT,1HZ BB50,HZB50 | — | |
| 17402-17051 |
Pipe Sub-assy, Exhaust, Front NO.2
2009-08 → 2015-01
ended
|
15BFT,1HZ BB50,HZB50 | — | |
| 17402-78040 |
Pipe Sub-assy, Exhaust, Front NO.2
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17402-78040 |
Pipe Sub-assy, Exhaust, Front NO.2
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17402-78040 |
Pipe Sub-assy, Exhaust, Front NO.2
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17402-78040 |
Pipe Sub-assy, Exhaust, Front NO.2
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17402-17051 |
Pipe Sub-assy, Exhaust, Front NO.2
2015-01 → —
|
1HZ HZB50 | — | |
| 17402-78040 |
Pipe Sub-assy, Exhaust, Front NO.2
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17403A — Pipe Sub-assy, Exhaust, Center NO.2 | ||||
| 17403-75020 |
Pipe Sub-assy, Exhaust, Center NO.2
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17403-58640 |
Pipe Sub-assy, Exhaust, Center NO.2
2004-08 → 2015-01
ended
|
14B BB42 GCC | — | |
| 17403-78A20 |
Pipe Sub-assy, Exhaust, Center NO.2
2006-08 → 2009-08
ended
|
N04C XZB40,5# | — | |
| 17403-78A70 |
Pipe Sub-assy, Exhaust, Center NO.2
2009-08 → 2009-09
ended
|
N04C XZB40,5# | — | |
| 17403-78A71 note |
Pipe Sub-assy, Exhaust, Center NO.2
2009-09 → 2015-01
ended
|
N04C XZB40,5# | — | |
| 17403-58640 |
Pipe Sub-assy, Exhaust, Center NO.2
2015-01 → —
|
14B BB42 GCC | — | |
| 17403-78A71 |
Pipe Sub-assy, Exhaust, Center NO.2
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17401-17110 |
Pipe Assy, Exhaust, Front
1993-01 → 1999-07
ended
|
1HZ HZB50 GCC,GEN,SCO | — | |
| 17401-17120 |
Pipe Assy, Exhaust, Front
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17401-17130 |
Pipe Assy, Exhaust, Front
1993-01 → 1999-07
ended
|
1HZ HZB50 ARL | — | |
| 17401-58270 |
Pipe Assy, Exhaust, Front
1993-01 → 1997-08
ended
|
14B,3B BB4# | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
1997-08 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17401-58310 |
Pipe Assy, Exhaust, Front
1996-05 → 1997-08
ended
|
15BFT BB5# | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
1997-08 → 1999-07
ended
|
15BFT BB43,5# | — | |
| 17401-75070 |
Pipe Assy, Exhaust, Front
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17401-17110 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17401-17110 |
Pipe Assy, Exhaust, Front
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17401-17130 |
Pipe Assy, Exhaust, Front
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17410-48020 |
Pipe Assy, Exhaust, Front
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17410-58270 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-05
ended
|
15BFTE BB58 | — | |
| 17410-58271 |
Pipe Assy, Exhaust, Front
2001-05 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17410-75240 |
Pipe Assy, Exhaust, Front
1999-07 → 2003-07
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17410-75240 |
Pipe Assy, Exhaust, Front
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17410-75240 |
Pipe Assy, Exhaust, Front
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 17410-75310 |
Pipe Assy, Exhaust, Front
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17410-75310 |
Pipe Assy, Exhaust, Front
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GCC | — | |
| 17401-17110 |
Pipe Assy, Exhaust, Front
2004-08 → 2005-04
ended
|
1HZ HZB50 | — | |
| 17401-17111 |
Pipe Assy, Exhaust, Front
2005-05 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17401-58311 |
Pipe Assy, Exhaust, Front
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17410-48020 |
Pipe Assy, Exhaust, Front
2004-08 → 2007-07
ended
|
1BZFPE BZB40,50 STD | — | |
| 17410-48020 |
Pipe Assy, Exhaust, Front
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17410-48021 |
Pipe Assy, Exhaust, Front
2007-08 → 2015-01
ended
|
1BZFPE BZB40,50 | — | |
| 17410-58271 |
Pipe Assy, Exhaust, Front
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17410-75240 |
Pipe Assy, Exhaust, Front
2004-08 → 2006-02
ended
|
3RZFE RZB40,50 GEN | — | |
| 17410-75241 |
Pipe Assy, Exhaust, Front
2006-03 → 2007-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 17410-75310 |
Pipe Assy, Exhaust, Front
2004-08 → 2006-02
ended
|
3RZFE RZB40,50 GCC | — | |
| 17410-75311 |
Pipe Assy, Exhaust, Front
2006-03 → 2007-08
ended
|
3RZFE RZB40,50 GCC | — | |
| 17410-75590 |
Pipe Assy, Exhaust, Front
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 GCC | — | |
| 17410-75600 |
Pipe Assy, Exhaust, Front
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 GEN | — | |
| 17410-78010 |
Pipe Assy, Exhaust, Front
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17410-78010 |
Pipe Assy, Exhaust, Front
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17410-78010 |
Pipe Assy, Exhaust, Front
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17410-78010 |
Pipe Assy, Exhaust, Front
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17401-17111 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
1HZ HZB50 | — | |
| 17401-58271 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
14B BB42 | — | |
| 17410-48021 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17410-75590 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
2TRFE TRB40,50 GCC | — | |
| 17410-75600 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
2TRFE TRB40,50 GEN | — | |
| 17410-78010 |
Pipe Assy, Exhaust, Front
2015-01 → —
|
N04C XZB40,5# | — | |
| 17410A — Nut, Exhaust Pipe Set Stud Bolt | ||||
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ#,3RZF BB4#,5#,HZB50,RZB40,50 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1999-07 → 2001-08
ended
|
15BFT 0S,22S) EN;14B,15BFT,3RZFE BB50 +23 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1999-07 → 2002-11
ended
|
15BFT,1HZ,3RZFE BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1999-07 → 2004-08
ended
|
14B RF Z (GCC,GEN);15BFTE,1BZFPE,3RZFE +33 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2015-01
ended
|
14B T,1BZFPE,1HZ BB42 BB50,BZB40,50,HZB50,XZB40 +8 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
2015-01 → —
|
N04C,14B,1BZFPE,1HZ BB42,BZB40,50,HZB50,XZB40,5# | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 90917-06059 |
Gasket, Exhaust Pipe
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ BB4#,5#,HZB50 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 90917-06068 |
Gasket, Exhaust Pipe
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
14B B ,1HZ BB42 +28 | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
14B ;1HZ 50 BB42 +22 | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
15BFTE,1BZFPE BB5#,BZB40,50 | — | |
| 17451-22070 |
Gasket, Exhaust Pipe
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +3 | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 90917-06061 |
Gasket, Exhaust Pipe
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
N04C XZB59;N04C XZB50 (20S,21S) +3 | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17451-22070 |
Gasket, Exhaust Pipe
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 90917-06059 |
Gasket, Exhaust Pipe
2015-01 → —
|
14B,1HZ BB42,HZB50 | — | |
| 90917-06067 |
Gasket, Exhaust Pipe
2015-01 → —
|
N04C,1BZFPE BZB40,50,XZB40,5# | — | |
| 17410K — Spring, Exhaust Pipe | ||||
| 90501-35035 |
Spring, Exhaust Pipe
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 90501-35028 |
Spring, Exhaust Pipe
2011-08 → 2015-01
ended
|
14B BB42 GCC;1BZFPE,2TRFE BZB40,50,TRB40,50 +1 | — | |
| 90501-35028 |
Spring, Exhaust Pipe
2011-08 → 2015-01
ended
|
2TRFE TRB40 GCC | — | |
| 90501-35028 note |
Spring, Exhaust Pipe
2011-08 → 2015-01
ended
|
2TRFE TRB50 GCC | — | |
| 90501-35028 |
Spring, Exhaust Pipe
2011-06 → 2015-01
ended
|
N04C XZB40 | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-02 → 2011-08
ended
|
14B BB42 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2007-08 → 2011-08
ended
|
1BZFPE,2TRFE BZB40,50,TRB40,50 GEN | — | |
| 90501-35035 note |
Spring, Exhaust Pipe
2007-08 → 2011-08
ended
|
2TRFE TRB50 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2007-08 → 2011-08
ended
|
2TRFE TRB40 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-02 → 2015-01
ended
|
1HZ HZB50 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-08 → 2015-01
ended
|
N04C XZB59;N04C XZB50 (20S,21S) +1 | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2004-08 → 2007-08
ended
|
1BZFPE BZB40,50 STD | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 90501-35035 note |
Spring, Exhaust Pipe
2011-08 → 2015-01
ended
|
2TRFE TRB50 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2004-08 → 2011-06
ended
|
N04C XZB40 | — | |
| 90501-35028 |
Spring, Exhaust Pipe
2015-01 → —
|
2TRFE TRB40 GCC | — | |
| 90501-35028 note |
Spring, Exhaust Pipe
2015-01 → —
|
2TRFE TRB50 GCC | — | |
| 90501-35028 |
Spring, Exhaust Pipe
2015-01 → —
|
14B .GEN BB42 GCC;N04C +3 | — | |
| 90501-35035 note |
Spring, Exhaust Pipe
2015-01 → —
|
2TRFE TRB50 GCC | — | |
| 90501-35035 |
Spring, Exhaust Pipe
2015-01 → —
|
1HZ HZB50 GCC;N04C XZB50 +2 | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17403-17110 |
Pipe Assy, Exhaust, Center
1993-01 → 1999-07
ended
|
1HZ HZB50 ARL;15BFT,1HZT BB5#,HZB50 | — | |
| 17403-17150 |
Pipe Assy, Exhaust, Center
1993-01 → 1999-07
ended
|
1HZ HZB50 GCC,GEN,SCO | — | |
| 17403-58400 |
Pipe Assy, Exhaust, Center
1993-01 → 1993-09
ended
|
14B,3B BB4# | — | |
| 17403-58401 |
Pipe Assy, Exhaust, Center
1993-09 → 1999-07
ended
|
14B,3B BB40,42 | — | |
| 17403-58480 |
Pipe Assy, Exhaust, Center
1998-02 → 1999-07
ended
|
15BFT BB43 | — | |
| 17403-75010 |
Pipe Assy, Exhaust, Center
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17403-17110 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17403-17110 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +6 | — | |
| 17403-17110 |
Pipe Assy, Exhaust, Center
1999-07 → 2004-08
ended
|
15BFT BB50 STD GEN +2 | — | |
| 17403-17110 |
Pipe Assy, Exhaust, Center
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 17403-17150 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD SRF;1HZ +8 | — | |
| 17403-17150 |
Pipe Assy, Exhaust, Center
1999-07 → 2003-07
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17403-17151 |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
1HZ HZB50 | — | |
| 17403-58401 |
Pipe Assy, Exhaust, Center
1999-07 → 2003-07
ended
|
14B WOC BB42 WC +11 | — | |
| 17403-58401 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17403-58402 |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
14B BB42 | — | |
| 17403-58480 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-08
ended
|
15BFT BB43 | — | |
| 17420-48010 |
Pipe Assy, Exhaust, Center
2002-11 → 2004-08
ended
|
1BZFPE BZB50 | — | |
| 17420-5C080 |
Pipe Assy, Exhaust, Center
1999-07 → 2001-05
ended
|
15BFTE BB58 | — | |
| 17420-5C081 |
Pipe Assy, Exhaust, Center
2001-05 → 2004-08
ended
|
15BFTE BB5# | — | |
| 17420-75210 note |
Pipe Assy, Exhaust, Center
1999-07 → 2001-08
ended
|
3RZFE RZB40,50 GCC,GEN | — | |
| 17420-75210 note |
Pipe Assy, Exhaust, Center
2001-08 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 17420-75210 |
Pipe Assy, Exhaust, Center
2001-08 → 2003-07
ended
|
3RZFE RZB40 GCC,GEN | — | |
| 17420-75210 note |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 17420-75210 |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
3RZFE RZB40 GEN | — | |
| 17420-75220 note |
Pipe Assy, Exhaust, Center
1999-07 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 17420-75220 note |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 17420-75280 |
Pipe Assy, Exhaust, Center
2000-12 → 2002-11
ended
|
3RZFE RZB50 CHI | — | |
| 17420-75281 |
Pipe Assy, Exhaust, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GCC | — | |
| 17403-17110 |
Pipe Assy, Exhaust, Center
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 17403-17151 |
Pipe Assy, Exhaust, Center
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17403-58402 |
Pipe Assy, Exhaust, Center
2004-08 → 2006-02
ended
|
14B BB42 GCC | — | |
| 17403-58402 |
Pipe Assy, Exhaust, Center
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +3 | — | |
| 17403-58402 |
Pipe Assy, Exhaust, Center
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17403-75280 |
Pipe Assy, Exhaust, Center
2007-08 → 2015-01
ended
|
2TRFE TRB40 GCC | — | |
| 17404-78012 |
Pipe Assy, Exhaust, Center
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17404-78012 |
Pipe Assy, Exhaust, Center
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17404-78012 |
Pipe Assy, Exhaust, Center
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17404-78012 |
Pipe Assy, Exhaust, Center
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17420-48010 |
Pipe Assy, Exhaust, Center
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17420-48010 |
Pipe Assy, Exhaust, Center
2004-08 → 2007-08
ended
|
1BZFPE BZB50 STD | — | |
| 17420-5C081 |
Pipe Assy, Exhaust, Center
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17420-75210 |
Pipe Assy, Exhaust, Center
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 17420-75220 note |
Pipe Assy, Exhaust, Center
2004-08 → 2007-08
ended
|
3RZFE RZB50 GEN | — | |
| 17420-75281 |
Pipe Assy, Exhaust, Center
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC | — | |
| 17420-75550 |
Pipe Assy, Exhaust, Center
2007-08 → 2015-01
ended
|
2TRFE TRB50 GCC | — | |
| 17420-75560 |
Pipe Assy, Exhaust, Center
2007-08 → 2015-01
ended
|
2TRFE TRB40,50 GEN | — | |
| 17403-17151 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
1HZ HZB50 | — | |
| 17403-58402 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
14B BB42 GEN | — | |
| 17403-75280 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
2TRFE TRB40 GCC | — | |
| 17404-78012 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17420-75550 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
2TRFE TRB50 GCC | — | |
| 17420-75560 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
2TRFE TRB40,50 GEN | — | |
| 17420-78B60 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
N04C XZB50 STD GEN | — | |
| 17420-78B70 |
Pipe Assy, Exhaust, Center
2015-01 → —
|
N04C XZB40 26S | — | |
| 17420K — Pipe Assy, Exhaust, Center NO.2 | ||||
| 17420-78330 |
Pipe Assy, Exhaust, Center NO.2
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17420-78330 |
Pipe Assy, Exhaust, Center NO.2
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17420-78330 |
Pipe Assy, Exhaust, Center NO.2
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17420-78330 |
Pipe Assy, Exhaust, Center NO.2
2006-08 → 2015-01
ended
|
N04C XZB50 (20S,21S) WC;N04C,2TRFE +2 | — | |
| 17420-78330 |
Pipe Assy, Exhaust, Center NO.2
2015-01 → —
|
N04C XZB50 20S,21S;N04C,2TRFE TRB50,XZB59 +1 | — | |
| 17420-78B90 |
Pipe Assy, Exhaust, Center NO.2
2015-01 → —
|
N04C XZB50 STD GEN | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 90917-06042 |
Gasket, Exhaust Pipe, Center
1993-01 → 1993-07
ended
|
14B,3B BB4# | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 | — | |
| 90917-06062 note |
Gasket, Exhaust Pipe, Center
1993-07 → 1999-07
ended
|
14B,15BFT,3B,3RZF BB4#,RZB40 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe, Center
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2003-07 → 2004-08
ended
|
14B BB42;3RZFE RZB40 GEN | — | |
| 90917-06045 note |
Gasket, Exhaust Pipe, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 90917-06045 note |
Gasket, Exhaust Pipe, Center
2001-08 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2001-08 → 2003-07
ended
|
14B,3RZFE BB42,RZB40 GCC,GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GCC;15B#,1BZFPE,1HZ BB5#,BZB50,HZB50 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2001-08 → 2003-07
ended
|
1HZ HZB50 GCC,GEN;15B#,1BZFPE BB5#,BZB50 +1 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
2001-08 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2001-08 → 2002-11
ended
|
15BFT,1HZ,3RZFE BB50,HZB50,RZB50 ARL,CHI | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
1999-07 → 2001-08
ended
|
15BFT HZB50,RZB50 BB50 EX;15BFT +7 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90917-06062 note |
Gasket, Exhaust Pipe, Center
1999-07 → 2001-08
ended
|
14B,15BFT,3RZFE BB4#,RZB40,50 GCC,GEN | — | |
| 17451-74040 |
Gasket, Exhaust Pipe, Center
2007-08 → 2015-01
ended
|
2TRFE TRB40 GEN | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2004-08 → 2006-02
ended
|
14B BB42 GCC | — | |
| 90917-06045 note |
Gasket, Exhaust Pipe, Center
2004-08 → 2007-08
ended
|
3RZFE RZB50 GEN | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2004-08 → 2007-08
ended
|
3RZFE RZB40 GEN | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +3 | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2006-02
ended
|
3RZFE RZB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2010-07 → 2015-01
ended
|
1HZ HZB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2007-08 → 2015-01
ended
|
2TRFE TRB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2006-02 → 2015-01
ended
|
14B,2TRFE BB42,TRB40 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2015-01
ended
|
N04C XZB50 (20S,21S) WC;N04C,15BFT,2TRFE +2 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2006-02 → 2010-07
ended
|
1HZ HZB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2007-08
ended
|
1BZFPE BZB50 STD | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe, Center
2004-08 → 2007-08
ended
|
3RZFE RZB50 GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17451-74040 |
Gasket, Exhaust Pipe, Center
2015-01 → —
|
N04C,2TRFE TRB40,XZB40,50 LHD GEN | — | |
| 90917-06045 |
Gasket, Exhaust Pipe, Center
2015-01 → —
|
14B BB42 GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2015-01 → —
|
N04C XZB50 20S,21S;14B,2TRFE BB42,TRB40 +3 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2015-01 → —
|
1HZ HZB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe, Center
2015-01 → —
|
1HZ HZB50 GEN;2TRFE TRB50 +1 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17405-17140 |
Pipe Assy, Exhaust, Tail
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB50,HZB50 RHD | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 LHD | — | |
| 17405-17201 |
Pipe Assy, Exhaust, Tail
1998-02 → 1999-07
ended
|
15BFT BB43 | — | |
| 17405-58490 |
Pipe Assy, Exhaust, Tail
1993-01 → 1993-09
ended
|
3B BB40 | — | |
| 17405-58491 |
Pipe Assy, Exhaust, Tail
1993-09 → 1999-07
ended
|
3B BB40 | — | |
| 17405-58500 |
Pipe Assy, Exhaust, Tail
1993-01 → 1993-09
ended
|
14B BB42 LHD | — | |
| 17405-58501 |
Pipe Assy, Exhaust, Tail
1993-09 → 1999-07
ended
|
14B BB42 LHD | — | |
| 17405-58560 |
Pipe Assy, Exhaust, Tail
1993-01 → 1993-09
ended
|
14B BB42 RHD | — | |
| 17405-58561 |
Pipe Assy, Exhaust, Tail
1993-09 → 1999-07
ended
|
14B BB42 RHD | — | |
| 17405-75160 |
Pipe Assy, Exhaust, Tail
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17405-75170 |
Pipe Assy, Exhaust, Tail
1993-09 → 1999-07
ended
|
3RZF RZB40 | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-05
ended
|
15BFT BB50 RHD 6F | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-08
ended
|
15BFT D BB50 (20S,22S) +12 | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
1999-07 → 2004-08
ended
|
1HZ HZB50 RHD HRF +4 | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +5 | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
1999-07 → 2004-08
ended
|
15BFT,1HZ BB50,HZB50 LHD (GCC,GEN) +2 | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFT +3 | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17405-17201 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-08
ended
|
15BFT BB43 | — | |
| 17405-58501 |
Pipe Assy, Exhaust, Tail
1999-07 → 2000-12
ended
|
14B BB42 LHD | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2000-12 → 2004-08
ended
|
14B BB42 WC GCC;14B +4 | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2000-12 → 2001-08
ended
|
14B BB42 22S;14B BB42 +2 | — | |
| 17405-58561 |
Pipe Assy, Exhaust, Tail
1999-07 → 2000-12
ended
|
14B BB42 RHD | — | |
| 17405-58562 |
Pipe Assy, Exhaust, Tail
2000-12 → 2004-08
ended
|
14B BB42 RHD WC;14B +3 | — | |
| 17405-58562 |
Pipe Assy, Exhaust, Tail
2000-12 → 2001-08
ended
|
14B BB42 RHD HRF +1 | — | |
| 17430-48040 |
Pipe Assy, Exhaust, Tail
2001-08 → 2004-08
ended
|
1BZFPE BZB40 | — | |
| 17430-58740 |
Pipe Assy, Exhaust, Tail
1999-07 → 2001-05
ended
|
15BFTE BB58 | — | |
| 17430-58741 |
Pipe Assy, Exhaust, Tail
2001-05 → 2004-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2001-05 → 2004-08
ended
|
15BFTE,1BZFPE BB50,59,BZB50 RHD | — | |
| 17430-75470 |
Pipe Assy, Exhaust, Tail
1999-07 → 2000-12
ended
|
3RZFE RZB50 | — | |
| 17430-75471 |
Pipe Assy, Exhaust, Tail
2000-12 → 2002-11
ended
|
3RZFE RZB50 CHI | — | |
| 17430-75471 |
Pipe Assy, Exhaust, Tail
2000-12 → 2004-08
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 17430-75480 |
Pipe Assy, Exhaust, Tail
1999-07 → 2000-12
ended
|
3RZFE RZB40 | — | |
| 17430-75481 |
Pipe Assy, Exhaust, Tail
2000-12 → 2003-07
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17430-75481 |
Pipe Assy, Exhaust, Tail
2003-07 → 2004-08
ended
|
3RZFE RZB40 GEN | — | |
| 17430-75481 |
Pipe Assy, Exhaust, Tail
2000-12 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17430-75590 |
Pipe Assy, Exhaust, Tail
2000-12 → 2002-11
ended
|
3RZFE RZB40 CHI | — | |
| 17430-75591 |
Pipe Assy, Exhaust, Tail
2003-07 → 2004-08
ended
|
3RZFE RZB40 GCC | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
1HZ HZB50 RHD | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
2004-08 → 2006-02
ended
|
1HZ HZB50 GCC | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
15BFT,1HZ BB50,HZB50 LHD GEN | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
14B BB42 LHD SRF +1 | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2004-08 → 2006-02
ended
|
14B BB42 GCC | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17405-58562 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
14B BB42 RHD | — | |
| 17405-58710 |
Pipe Assy, Exhaust, Tail
2006-02 → 2015-01
ended
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17430-48040 |
Pipe Assy, Exhaust, Tail
2004-08 → 2007-07
ended
|
1BZFPE BZB40 | — | |
| 17430-48041 |
Pipe Assy, Exhaust, Tail
2007-08 → 2015-01
ended
|
1BZFPE BZB40,50 | — | |
| 17430-58741 |
Pipe Assy, Exhaust, Tail
2004-08 → 2006-08
ended
|
15BFTE BB50,58 LHD | — | |
| 17430-58741 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
N04C XZB50 TAIW | — | |
| 17430-58741 |
Pipe Assy, Exhaust, Tail
2004-08 → 2013-11
ended
|
N04C XZB50 LHD IV | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2015-01
ended
|
N04C XZB59;N04C XZB50 RHD +2 | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2013-11
ended
|
N04C XZB50 RHD IV | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX;15BFTE BB50,59 +1 | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2004-08 → 2007-08
ended
|
1BZFPE BZB50 STD | — | |
| 17430-75471 |
Pipe Assy, Exhaust, Tail
2004-08 → 2007-08
ended
|
3RZFE RZB50 | — | |
| 17430-75481 |
Pipe Assy, Exhaust, Tail
2004-08 → 2007-08
ended
|
3RZFE RZB40 GEN | — | |
| 17430-75591 |
Pipe Assy, Exhaust, Tail
2004-08 → 2007-08
ended
|
3RZFE RZB40 SRF GCC | — | |
| 17430-75591 |
Pipe Assy, Exhaust, Tail
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17430-75840 |
Pipe Assy, Exhaust, Tail
2007-08 → 2015-01
ended
|
2TRFE TRB40 GEN | — | |
| 17430-75850 |
Pipe Assy, Exhaust, Tail
2007-08 → 2015-01
ended
|
2TRFE TRB50 GEN | — | |
| 17430-78021 |
Pipe Assy, Exhaust, Tail
2008-03 → 2015-01
ended
|
N04C XZB40 | — | |
| 17405-17140 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
1HZ HZB50 RHD | — | |
| 17405-17150 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
1HZ HZB50 LHD GEN | — | |
| 17405-58502 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
14B BB42 LHD GEN | — | |
| 17405-58562 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
14B BB42 RHD | — | |
| 17405-58710 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17430-48041 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 17430-58741 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
N04C XZB50 TAIW | — | |
| 17430-58840 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
N04C XZB5# RHD | — | |
| 17430-75840 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
N04C,2TRFE TRB40,XZB40 26S GEN | — | |
| 17430-75850 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
2TRFE TRB50 GEN | — | |
| 17430-78021 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
N04C XZB40 17S | — | |
| 17430-78070 |
Pipe Assy, Exhaust, Tail
2015-01 → —
|
N04C XZB50 STD GEN | — | |
| 17430G — Cushion, Exhaust Tailpipe(FOR CENTER) | ||||
| 17567-17010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1993-09 → 1999-07
ended
|
14B BB42 LHD | — | |
| 17567-17010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1993-01 → 1993-09
ended
|
14B BB42 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1993-01 → 1999-07
ended
|
15BFT,3B,1HZ#,3RZF BB40,43,5#,HZB50,RZB40 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17567-17010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +2 | — | |
| 17567-17010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2004-08
ended
|
14B BB42 WC GCC;14B +4 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2003-07 → 2004-08
ended
|
3RZFE RZB40 GEN;15B#,1BZFPE,1HZ BB5#,BZB40,HZB50 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2003-07 → 2004-08
ended
|
1BZFPE,3RZFE BZB50,RZB50 GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2003-07
ended
|
1BZFPE,3RZFE BZB50,RZB50 GCC,GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2003-07
ended
|
1HZ .BB50 B40 HZB50 +21 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2001-08
ended
|
15BFT HD ,RZB40 BB50 +22 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17567-17020 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2015-01
ended
|
14B BB42 LHD SRF +1 | — | |
| 17567-17020 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2010-07
ended
|
14B BB42 GCC | — | |
| 17567-17020 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2007-08 → 2015-01
ended
|
1BZFPE BZB50 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2006-02 → 2015-01
ended
|
1HZ HZB50 GCC | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2015-01
ended
|
N04C XZB50 (20S,21S) WC;N04C,2TRFE +2 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2015-01
ended
|
N04C,15BFT,1BZFPE,1HZ,2TRFE BB50,BZB40,HZB50,TRB40,XZB40 GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2006-02
ended
|
1HZ HZB50 GCC | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2007-08
ended
|
1BZFPE,3RZFE BZB50,RZB50 STD GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2004-08 → 2007-08
ended
|
3RZFE RZB40 GEN | — | |
| 17567-17020 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2015-01 → —
|
14B BB42 LHD GEN | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2015-01 → —
|
2TRFE TRB40 GEN;N04C,1BZFPE,1HZ BZB40,50,HZB50,XZB40 | — | |
| 17567-58010 |
Cushion, Exhaust Tailpipe(FOR CENTER)
2015-01 → —
|
N04C XZB50 20S,21S;N04C,2TRFE TRB50,XZB59 +1 | — | |
| 17444A — Spacer, Exhaust Front Pipe | ||||
| 17404-58030 note |
Spacer, Exhaust Front Pipe
1993-01 → 1997-05
ended
|
1HZ HZB50 SCO | — | |
| 17404-58030 |
Spacer, Exhaust Front Pipe
1993-01 → 1999-07
ended
|
1HZ HZB50 30S 4FC;1HZ +3 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
1993-01 → 1999-07
ended
|
14B,3B BB40,42 ARL,GCC,GEN | — | |
| 17404-58030 |
Spacer, Exhaust Front Pipe
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD EX;1HZ +7 | — | |
| 17404-58030 |
Spacer, Exhaust Front Pipe
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 17404-58030 |
Spacer, Exhaust Front Pipe
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17444-78020 |
Spacer, Exhaust Front Pipe
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17444-78020 |
Spacer, Exhaust Front Pipe
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17444-78020 |
Spacer, Exhaust Front Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17444-78020 |
Spacer, Exhaust Front Pipe
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17404-58030 |
Spacer, Exhaust Front Pipe
2015-01 → —
|
1HZ HZB50 | — | |
| 17444-58010 |
Spacer, Exhaust Front Pipe
2015-01 → —
|
14B BB42 | — | |
| 17444-78020 |
Spacer, Exhaust Front Pipe
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 46759-36030 |
Gasket, Exhaust Pipe
1993-01 → 1999-07
ended
|
14B,3B BB40,42 ARL,GCC,GEN | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
1993-01 → 1999-07
ended
|
1HZ HZB50 30S 4FC;1HZ +3 | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
1993-01 → 1997-05
ended
|
1HZ HZB50 SCO | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
1993-01 → 1997-05
ended
|
1HZ HZB50 SCO | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
1993-01 → 1999-07
ended
|
1HZ HZB50 30S 4FC;1HZ +3 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
1993-01 → 1999-07
ended
|
1HZ HZB50 SCO;1HZ HZB50 +3 | — | |
| 90917-06062 note |
Gasket, Exhaust Pipe
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
1993-09 → 1999-07
ended
|
3RZF RZB40 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17451-67010 note |
Gasket, Exhaust Pipe
2000-12 → 2003-07
ended
|
1BZFPE BZB40,50 | — | |
| 17451-67010 note |
Gasket, Exhaust Pipe
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2003-07 → 2004-08
ended
|
1BZFPE BZB40,50;3RZFE RZB40,50 GCC | — | |
| 46759-36030 |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
14B WOC BB42 WC +11 | — | |
| 46759-36030 |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
14B BB42 22S;14B BB42 +6 | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD EX;1HZ +7 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
2000-08 → 2001-08
ended
|
15BFTE BB50;15BFT BB50 CHI;15BFT +3 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
2001-08 → 2004-08
ended
|
15BFTE BB5#;15BFT BB50 WOC | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
2001-08 → 2004-08
ended
|
1HZ HZB50 GCC,GEN | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
2001-08 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
2001-08 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
15BFT BB50 WOC 5F;15BFTE,1HZ +4 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
N04C D XZB59;N04C XZB50 +4 | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2004-08 → 2006-02
ended
|
3RZFE RZB40 GCC | — | |
| 17451-78020 note |
Gasket, Exhaust Pipe
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17451-78020 note |
Gasket, Exhaust Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17451-78020 note |
Gasket, Exhaust Pipe
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17451-78020 note |
Gasket, Exhaust Pipe
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 46759-36030 |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +2 | — | |
| 46759-36030 |
Gasket, Exhaust Pipe
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 46759-36040 |
Gasket, Exhaust Pipe
2006-02 → 2015-01
ended
|
1HZ HZB50 GCC | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
1HZ HZB50 GEN | — | |
| 46759-36040 note |
Gasket, Exhaust Pipe
2004-08 → 2006-02
ended
|
1HZ HZB50 GCC | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
2004-08 → 2006-02
ended
|
1HZ HZB50 GCC | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 90917-06054 |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
15BFT BB50 | — | |
| 90917-06054 note |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
1HZ HZB50 GEN | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
2007-08 → 2015-01
ended
|
2TRFE TRB50 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
2007-08 → 2015-01
ended
|
2TRFE TRB40 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2004-08 → 2015-01
ended
|
1BZFPE BZB40,50 STD | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17451-74040 |
Gasket, Exhaust Pipe
2015-01 → —
|
N04C XZB50 STD GEN | — | |
| 17451-74040 note |
Gasket, Exhaust Pipe
2015-01 → —
|
N04C XZB50 20S,21S;N04C,1BZFPE BZB40,50,XZB40,59 +1 | — | |
| 17451-78020 note |
Gasket, Exhaust Pipe
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 46759-36030 |
Gasket, Exhaust Pipe
2015-01 → —
|
14B BB42 | — | |
| 46759-36040 |
Gasket, Exhaust Pipe
2015-01 → —
|
1HZ HZB50 | — | |
| 90917-06073 note |
Gasket, Exhaust Pipe
2015-01 → —
|
1BZFPE BZB40,50 | — | |
| 90917-06073 |
Gasket, Exhaust Pipe
2015-01 → —
|
2TRFE TRB40,50 | — | |
| 17451A — Gasket, Exhaust Pipe, NO.2 | ||||
| 17451-67010 |
Gasket, Exhaust Pipe, NO.2
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17451-67010 |
Gasket, Exhaust Pipe, NO.2
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17451-67010 |
Gasket, Exhaust Pipe, NO.2
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17451-67010 |
Gasket, Exhaust Pipe, NO.2
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17451-74040 |
Gasket, Exhaust Pipe, NO.2
2006-02 → 2015-01
ended
|
14B,1HZ BB42,HZB50 GCC | — | |
| 17451-67010 |
Gasket, Exhaust Pipe, NO.2
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17451-74040 |
Gasket, Exhaust Pipe, NO.2
2015-01 → —
|
2TRFE TRB50 GEN;14B,1HZ BB42,HZB50 +1 | — | |
| 17455 — Bracket, Exhaust Pipe | ||||
| 17455-78180 |
Bracket, Exhaust Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17455-78180 |
Bracket, Exhaust Pipe
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17455-78180 |
Bracket, Exhaust Pipe
2006-08 → 2011-06
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| S1745-82940 |
Bracket, Exhaust Pipe
2011-06 → 2013-11
ended
|
N04C XZB50 IV | — | |
| S1745-82940 |
Bracket, Exhaust Pipe
2011-06 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| S1745-82940 |
Bracket, Exhaust Pipe
2015-01 → —
|
N04C XZB40,5# | — | |
| 17460 — Converter Assy, Catalytic W/Pipe | ||||
| 17460-48010 |
Converter Assy, Catalytic W/Pipe
2001-08 → 2004-08
ended
|
1BZFPE BZB40,50 | — | |
| 17460-58030 |
Converter Assy, Catalytic W/Pipe
1999-07 → 2004-08
ended
|
15BFTE BB58 | — | |
| 17460-58060 |
Converter Assy, Catalytic W/Pipe
2001-05 → 2004-08
ended
|
15BFTE BB50,59 | — | |
| 17460-75021 |
Converter Assy, Catalytic W/Pipe
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17460-75021 |
Converter Assy, Catalytic W/Pipe
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GCC | — | |
| 17460-48010 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2007-08
ended
|
1BZFPE BZB40,50 STD | — | |
| 17460-48010 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17460-58030 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2006-08
ended
|
15BFTE BB58 | — | |
| 17460-58060 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2006-08
ended
|
15BFTE BB50,59 | — | |
| 17460-75021 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 17460-75021 |
Converter Assy, Catalytic W/Pipe
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17460-75070 |
Converter Assy, Catalytic W/Pipe
2007-08 → 2015-01
ended
|
1BZFPE BZB40,50;2TRFE TRB40,50 GCC | — | |
| 17460-78020 note |
Converter Assy, Catalytic W/Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17460-78020 note |
Converter Assy, Catalytic W/Pipe
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 17460-78030 note |
Converter Assy, Catalytic W/Pipe
2009-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17460-78030 note |
Converter Assy, Catalytic W/Pipe
2009-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17460-75070 |
Converter Assy, Catalytic W/Pipe
2015-01 → —
|
1BZFPE BZB40,50;2TRFE TRB40,50 GCC | — | |
| 17460-78030 note |
Converter Assy, Catalytic W/Pipe
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17510F — Bracket, Muffler, Rear | ||||
| 17576-56040 |
Bracket, Muffler, Rear
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17576-56040 |
Bracket, Muffler, Rear
2006-08 → 2015-01
ended
|
N04C XZB50 (20S,21S) WC;N04C,2TRFE +2 | — | |
| 17576-56040 |
Bracket, Muffler, Rear
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17576-56040 |
Bracket, Muffler, Rear
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17576-56040 |
Bracket, Muffler, Rear
2015-01 → —
|
N04C XZB50 20S,21S;N04C,2TRFE TRB50,XZB59 +1 | — | |
| 17551 — Insulator, Exhaust Pipe Heat, NO.1 | ||||
| 17551-17010 |
Insulator, Exhaust Pipe Heat, NO.1
1993-01 → 1993-09
ended
|
14B,3B,1HZ# BB4#,HZB50 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
1993-09 → 1999-07
ended
|
14B,15BFT,3B,1HZ#,3RZF BB4#,5#,HZB50,RZB40,50 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
1999-07 → 2004-08
ended
|
14B RF Z (GCC,GEN);15BFTE,1BZFPE,3RZFE +33 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
1999-07 → 2001-08
ended
|
15BFT 0S,22S) EN;14B,15BFT,3RZFE BB50 +23 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
1999-07 → 2002-11
ended
|
15BFT,1HZ,3RZFE BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2004-08 → 2015-01
ended
|
14B 40,50 BB42 STD +5 | — | |
| 17551-78050 |
Insulator, Exhaust Pipe Heat, NO.1
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17551-78050 |
Insulator, Exhaust Pipe Heat, NO.1
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17551-78050 |
Insulator, Exhaust Pipe Heat, NO.1
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17551-78050 |
Insulator, Exhaust Pipe Heat, NO.1
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17551-17011 |
Insulator, Exhaust Pipe Heat, NO.1
2015-01 → —
|
14B,1BZFPE,1HZ,2TRFE BB42,BZB40,50,HZB50,TRB40,50 | — | |
| 17551-78050 |
Insulator, Exhaust Pipe Heat, NO.1
2015-01 → —
|
N04C XZB40,5# | — | |
| 17567 — Cushion, Exhaust Pipe Support | ||||
| 17567-58010 |
Cushion, Exhaust Pipe Support
1993-01 → 1999-07
ended
|
14B,15BFT,3B,3RZF BB4#,RZB40,50 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GEN;14B,1BZFPE BB42,BZB40,50 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2004-08
ended
|
15BFTE HZB50 BB5#;1HZ LHD +17 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2003-07
ended
|
14B .WC;14B C BB42 +19 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2001-08
ended
|
15BFT F;1HZ BB50 HZB50 +18 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2001-08
ended
|
14B 40 BB42 (17S,22S) +8 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GCC | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2015-01
ended
|
15BFT,1HZ BB50,HZB50 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +5 | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2004-08 → 2015-01
ended
|
2TRFE TRB40,50 GCC | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2015-01 → —
|
2TRFE TRB40,50 GEN;14B,1BZFPE BB42,BZB40,50 | — | |
| 17567-58010 |
Cushion, Exhaust Pipe Support
2015-01 → —
|
1HZ HZB50 | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17567-75050 |
Cushion, Exhaust Pipe Support
2015-01 → —
|
2TRFE TRB40,50 GCC;N04C XZB40,50 +2 | — | |
| 17567B — Cushion, Exhaust Pipe Support, NO.3 | ||||
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2003-07 → 2004-08
ended
|
3RZFE RZB40,50 GCC | — | |
| 17567-17020 |
Cushion, Exhaust Pipe Support, NO.3
2006-02 → 2015-01
ended
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17567-17020 |
Cushion, Exhaust Pipe Support, NO.3
2015-01 → —
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17567-75060 |
Cushion, Exhaust Pipe Support, NO.3
2015-01 → —
|
N04C XZB40,5# HRF | — | |
| 17571 — Bracket, Exhaust Pipe Support, NO.1 | ||||
| 17571-17060 |
Bracket, Exhaust Pipe Support, NO.1
1993-01 → 1996-05
ended
|
1HZT HZB50 | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
1993-01 → 1999-07
ended
|
1HZ HZB50 5F | — | |
| 17571-17090 |
Bracket, Exhaust Pipe Support, NO.1
1993-01 → 1999-07
ended
|
1HZ HZB50 4FC | — | |
| 17571-58300 |
Bracket, Exhaust Pipe Support, NO.1
1993-01 → 1997-08
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
1997-08 → 1999-07
ended
|
14B,15BFT,3B BB4#,5# | — | |
| 17571-75030 |
Bracket, Exhaust Pipe Support, NO.1
1993-09 → 1999-07
ended
|
3RZF RZB40,50 | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2002-11
ended
|
1HZ HZB50 ARL | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2004-08
ended
|
1HZ .SRF HZB50 WC +11 | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-08
ended
|
1HZ HZB50 RHD EX;1HZ +7 | — | |
| 17571-17090 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-08
ended
|
1HZ HZB50 4FC | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2004-08
ended
|
14B WOC;15BFT BB42 BB50 +18 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 STD WC +2 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2002-11
ended
|
15BFT BB50 CHI | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-08
ended
|
14B .WOC;14B,15BFT BB42 BB4# +12 | — | |
| 17571-58400 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-05
ended
|
15BFT BB50 IV 6F | — | |
| 17571-58400 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-08
ended
|
15BFT BB50 CBU 6F | — | |
| 17571-58400 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2004-08
ended
|
15BFTE BB50,58 6F | — | |
| 17571-75200 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2001-08
ended
|
3RZFE RZB40 WOC GCC;3RZFE +3 | — | |
| 17571-75200 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17571-75200 |
Bracket, Exhaust Pipe Support, NO.1
1999-07 → 2004-08
ended
|
3RZFE RZB40 WOC GEN;3RZFE +4 | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2015-01
ended
|
1HZ HZB50 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX;15BFTE BB50,59 +1 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17571-58400 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2006-08
ended
|
15BFTE BB50,58 6F | — | |
| 17571-75200 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17571-75200 |
Bracket, Exhaust Pipe Support, NO.1
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17571-78110 |
Bracket, Exhaust Pipe Support, NO.1
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17571-78110 |
Bracket, Exhaust Pipe Support, NO.1
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17571-78110 |
Bracket, Exhaust Pipe Support, NO.1
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17571-78110 |
Bracket, Exhaust Pipe Support, NO.1
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17571-17080 |
Bracket, Exhaust Pipe Support, NO.1
2015-01 → —
|
1HZ HZB50 | — | |
| 17571-58301 |
Bracket, Exhaust Pipe Support, NO.1
2015-01 → —
|
14B,1BZFPE BB42,BZB40,50 | — | |
| 17571-78110 |
Bracket, Exhaust Pipe Support, NO.1
2015-01 → —
|
N04C XZB40,5# | — | |
| 17572B — Bracket, Exhaust Pipe Support, NO.2 | ||||
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1993-01 → 1999-07
ended
|
14B,15BFT,3B,3RZF BB4#,RZB40,50 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2001-08
ended
|
14B 40 BB42 (17S,22S) +8 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2001-08
ended
|
15BFT F;1HZ BB50 HZB50 +18 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2002-11
ended
|
15BFT,1HZ BB50,HZB50 ARL,CHI | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2003-07
ended
|
14B .WC;14B BB42 BB42 +18 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
1999-07 → 2004-08
ended
|
15BFTE HZB50 BB5#;1HZ LHD +17 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2003-07 → 2004-08
ended
|
14B BB42;3RZFE RZB40,50 GEN | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2000-12 → 2003-07
ended
|
1BZFPE BZB40,50 | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2003-07 → 2004-08
ended
|
1BZFPE BZB40,50;3RZFE RZB40,50 GCC | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2000-12 → 2003-07
ended
|
1BZFPE BZB40,50 | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2003-07 → 2004-08
ended
|
1BZFPE BZB40,50;3RZFE RZB40,50 GCC | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2000-12 → 2002-11
ended
|
3RZFE RZB40,50 CHI | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2015-01
ended
|
15BFT,1HZ BB50,HZB50 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2006-08
ended
|
15BFTE BB5# | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2015-01
ended
|
14B BB42 RHD;14B BB42 +4 | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2007-08
ended
|
3RZFE RZB40,50 GEN | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2015-01
ended
|
2TRFE TRB40,50 GCC;1BZFPE BZB40,50 +1 | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;3RZFE RZB40 +2 | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2010-07 → 2015-01
ended
|
2TRFE TRB40 GCC | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2015-01
ended
|
2TRFE TRB50 GCC;1BZFPE BZB40,50 +1 | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2006-08
ended
|
1BZFPE BZB50 EX | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC | — | |
| 17572-78270 |
Bracket, Exhaust Pipe Support, NO.2
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17572-78270 |
Bracket, Exhaust Pipe Support, NO.2
2006-08 → 2011-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +3 | — | |
| 17572-78270 |
Bracket, Exhaust Pipe Support, NO.2
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17572-78271 |
Bracket, Exhaust Pipe Support, NO.2
2011-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17572-78271 |
Bracket, Exhaust Pipe Support, NO.2
2011-08 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → 2016-12
ended
|
14B BB42;2TRFE TRB40,50 GEN | — | |
| 17572-17030 |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → —
|
1HZ HZB50 | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → —
|
N04C XZB50 STD GEN | — | |
| 17572-75220 note |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → —
|
N04C XZB40 26S;2TRFE TRB40,50 +4 | — | |
| 17572-75260 note |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → —
|
1BZFPE BZB40,50;2TRFE TRB40,50 GCC | — | |
| 17572-78271 |
Bracket, Exhaust Pipe Support, NO.2
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17573A — Bracket, Exhaust Pipe Support, NO.3 | ||||
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
1993-01 → 1993-09
ended
|
14B,3B BB4# | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
1993-09 → 1999-07
ended
|
14B BB42 LHD;15BFT,3B,3RZF BB40,43,RZB40 | — | |
| 17572-58090 note |
Bracket, Exhaust Pipe Support, NO.3
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
1993-01 → 1999-07
ended
|
15BFT,1HZ# BB5#,HZB50 | — | |
| 17573-17010 note |
Bracket, Exhaust Pipe Support, NO.3
1993-09 → 1999-07
ended
|
3RZF RZB50 | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2001-08
ended
|
14B,3RZFE BB42,RZB40 WOC GCC;14B,15BFT,3RZFE +3 | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2003-07 → 2004-08
ended
|
14B BB42 LHD;3RZFE RZB40 +1 | — | |
| 17572-58090 note |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2003-07
ended
|
14B 17S,26S) BB42 WC +12 | — | |
| 17572-58090 note |
Bracket, Exhaust Pipe Support, NO.3
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 17573-17010 note |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2003-07
ended
|
3RZFE RZB50 GCC,GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2003-07 → 2004-08
ended
|
3RZFE RZB50 GCC;15B#,1BZFPE,1HZ BB50,58,BZB50,HZB50 | — | |
| 17573-17010 note |
Bracket, Exhaust Pipe Support, NO.3
2003-07 → 2004-08
ended
|
3RZFE RZB50 GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2003-07
ended
|
1HZ .SRF HZB50 WC;15BFTE,1BZFPE +17 | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2002-11
ended
|
15BFT,1HZ,3RZFE BB50,HZB50,RZB50 ARL,CHI | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2001-08
ended
|
15BFT 19S,20S) BB50 GEN;1HZ +15 | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17573-17030 |
Bracket, Exhaust Pipe Support, NO.3
2001-04 → 2004-08
ended
|
15BFTE BB59 | — | |
| 17573-17030 |
Bracket, Exhaust Pipe Support, NO.3
2001-04 → 2001-08
ended
|
15BFT BB50 EX IV | — | |
| 17572-58090 note |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2007-08
ended
|
3RZFE RZB50 GEN | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2015-01
ended
|
14B BB42 LHD SRF +1 | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2010-07
ended
|
14B BB42 GCC | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2007-08
ended
|
3RZFE RZB40 GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2007-08
ended
|
3RZFE RZB50 GCC;1BZFPE BZB50 +1 | — | |
| 17573-17010 note |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2007-08
ended
|
3RZFE RZB50 GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2015-01
ended
|
2TRFE TRB50 GCC;15BFT,1HZ BB50,HZB50 | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2006-08
ended
|
15BFTE BB50,58;1BZFPE BZB50 EX | — | |
| 17573-17030 |
Bracket, Exhaust Pipe Support, NO.3
2004-08 → 2006-08
ended
|
15BFTE BB59 | — | |
| 17573-78290 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17573-78290 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17573-78290 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17573-78290 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17572-58090 |
Bracket, Exhaust Pipe Support, NO.3
2015-01 → —
|
14B BB42 LHD GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2015-01 → —
|
1HZ HZB50;2TRFE TRB50 GCC | — | |
| 17573-78290 |
Bracket, Exhaust Pipe Support, NO.3
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17573E — Bracket, Exhaust Pipe Support, NO.3 | ||||
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2006-08 → 2015-01
ended
|
N04C,2TRFE TRB50,XZB50 (20S,21S,30S) WC +1 | — | |
| 17573-17030 |
Bracket, Exhaust Pipe Support, NO.3
2006-09 → 2015-01
ended
|
N04C XZB59 | — | |
| 17573-17010 |
Bracket, Exhaust Pipe Support, NO.3
2015-01 → —
|
N04C,2TRFE TRB50,XZB50 ARL,GEN,TAIW | — | |
| 17573-17030 |
Bracket, Exhaust Pipe Support, NO.3
2015-01 → —
|
N04C XZB59 | — | |
| 17574 — Bracket, Exhaust Pipe Support, NO.4 | ||||
| 17574-17010 |
Bracket, Exhaust Pipe Support, NO.4
1993-01 → 1999-07
ended
|
14B,15BFT,3B,1HZ#,3RZF BB4#,5#,HZB50,RZB40,50 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
1999-07 → 2001-05
ended
|
15BFT BB50 WOC 6F;15BFT +4 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
1999-07 → 2001-08
ended
|
15BFT 0S,22S) EN;14B,15BFT,3RZFE BB50 +23 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
1999-07 → 2002-11
ended
|
15BFT,1HZ,3RZFE BB50,HZB50,RZB40,50 ARL,CHI | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
1999-07 → 2004-08
ended
|
14B RF Z (GCC,GEN);15BFTE,1BZFPE,3RZFE +33 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2015-01
ended
|
14B ,15BFT,1BZFPE,1HZ,2TRFE BB42 BB50,BZB40,50,HZB50,TRB40,50,XZB40 +10 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2011-08
ended
|
14B BB42 LHD HRF | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2007-08
ended
|
3RZFE RZB50;3RZFE RZB40 GEN;3RZFE +3 | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2006-08
ended
|
15BFTE BB5#;1BZFPE BZB50 EX | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2004-08 → 2006-02
ended
|
3RZFE RZB40 HRF GCC;14B,1HZ +2 | — | |
| 17574-75040 |
Bracket, Exhaust Pipe Support, NO.4
2006-02 → 2015-01
ended
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17574-58170 |
Bracket, Exhaust Pipe Support, NO.4
2015-01 → —
|
N04C,14B,1BZFPE,1HZ,2TRFE BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# ARL,GEN,TAIW | — | |
| 17574-75040 |
Bracket, Exhaust Pipe Support, NO.4
2015-01 → —
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17575 — Bracket, Exhaust Pipe Support, NO.5 | ||||
| 17574-78120 |
Bracket, Exhaust Pipe Support, NO.5
2006-08 → 2015-01
ended
|
N04C XZB50 (20S,21S) WC;N04C,2TRFE +2 | — | |
| 17574-78120 |
Bracket, Exhaust Pipe Support, NO.5
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17574-78120 |
Bracket, Exhaust Pipe Support, NO.5
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17574-78120 |
Bracket, Exhaust Pipe Support, NO.5
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17575-75080 |
Bracket, Exhaust Pipe Support, NO.5
2006-02 → 2015-01
ended
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17574-78120 |
Bracket, Exhaust Pipe Support, NO.5
2015-01 → —
|
N04C XZB50 20S,21S;N04C,2TRFE TRB40,50,XZB40,59 +1 | — | |
| 17575-75080 |
Bracket, Exhaust Pipe Support, NO.5
2015-01 → —
|
14B,1HZ,2TRFE BB42,HZB50,TRB40,50 GCC | — | |
| 17578 — Clamp, Pipe | ||||
| 17578-78170 |
Clamp, Pipe
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17578-78170 |
Clamp, Pipe
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17578-78170 |
Clamp, Pipe
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17578-78170 |
Clamp, Pipe
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17578-78170 |
Clamp, Pipe
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 17582 — Bracket, Catalytic Converter Support, Upper | ||||
| 17582-78010 |
Bracket, Catalytic Converter Support, Upper
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 17582-78010 |
Bracket, Catalytic Converter Support, Upper
2006-08 → 2015-01
ended
|
N04C XZB40,59;N04C XZB50 (20S,21S) +1 | — | |
| 17582-78010 |
Bracket, Catalytic Converter Support, Upper
2006-08 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 17582-78010 |
Bracket, Catalytic Converter Support, Upper
2006-08 → 2009-08
ended
|
N04C XZB50 WOC CBU | — | |
| 17582-78010 |
Bracket, Catalytic Converter Support, Upper
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
| 18450 — Converter Assy, Monolithic | ||||
| 18450-78161 note |
Converter Assy, Monolithic
2006-08 → 2008-03
ended
|
N04C XZB50 STD GEN | — | |
| 18450-78161 note |
Converter Assy, Monolithic
2006-08 → 2009-08
ended
|
N04C XZB40,59;N04C XZB50 IV;N04C +2 | — | |
| 18450-78270 note |
Converter Assy, Monolithic
2009-08 → 2009-09
ended
|
N04C XZB40,5# | — | |
| 18450-78271 note |
Converter Assy, Monolithic
2009-09 → 2013-11
ended
|
N04C XZB50 IV | — | |
| 18450-78271 note |
Converter Assy, Monolithic
2009-09 → 2015-01
ended
|
N04C XZB40,5# ARL,GEN,TAIW | — | |
| 18450-78271 note |
Converter Assy, Monolithic
2015-01 → —
|
N04C XZB40,59 HRF;N04C XZB50 +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
