Toyota Coaster
2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General
Supported model
Data version 2025-01
Side Member
311 part groups · 30 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 52133H | Bracket, Front Bumper, RH |
| 52134H | Bracket, Front Bumper, LH |
| 52143C | Bracket, Front Bumper Side, RH |
| 52144C | Bracket, Front Bumper Side, LH |
| 53257A | Bracket, Front End Panel Mounting, RH |
| 53258A | Bracket, Front End Panel Mounting, LH |
| 53354 | Gusset, Hood Reinforcement, LH |
| 53355 | Gusset, Hood Reinforcement, RH |
| 53357A | Reinforcement, Hood Panel, RH |
| 53827G | Protector, Front Fender Side Panel, RH |
| 53828H | Protector, Front Fender Side Panel, LH |
| 53837C | Bracket, Front Side Panel, NO.2 RH |
| 53838B | Extension, Front Fender Rear, RH |
| 53838E | Bracket, Front Side Panel, NO.2 LH |
| 53839C | Extension, Front Fender Rear, LH |
| 53994A | Retainer, Air Cleaner Inlet Pipe, RH |
| 53994B | Retainer, Air Cleaner Inlet Pipe, LH |
| 55173J | Bracket, Electrical Part |
| 59202 | Lock Sub-assy, Inspection Hole Cover |
| 59401 | Cover Sub-assy, Cooler Condenser |

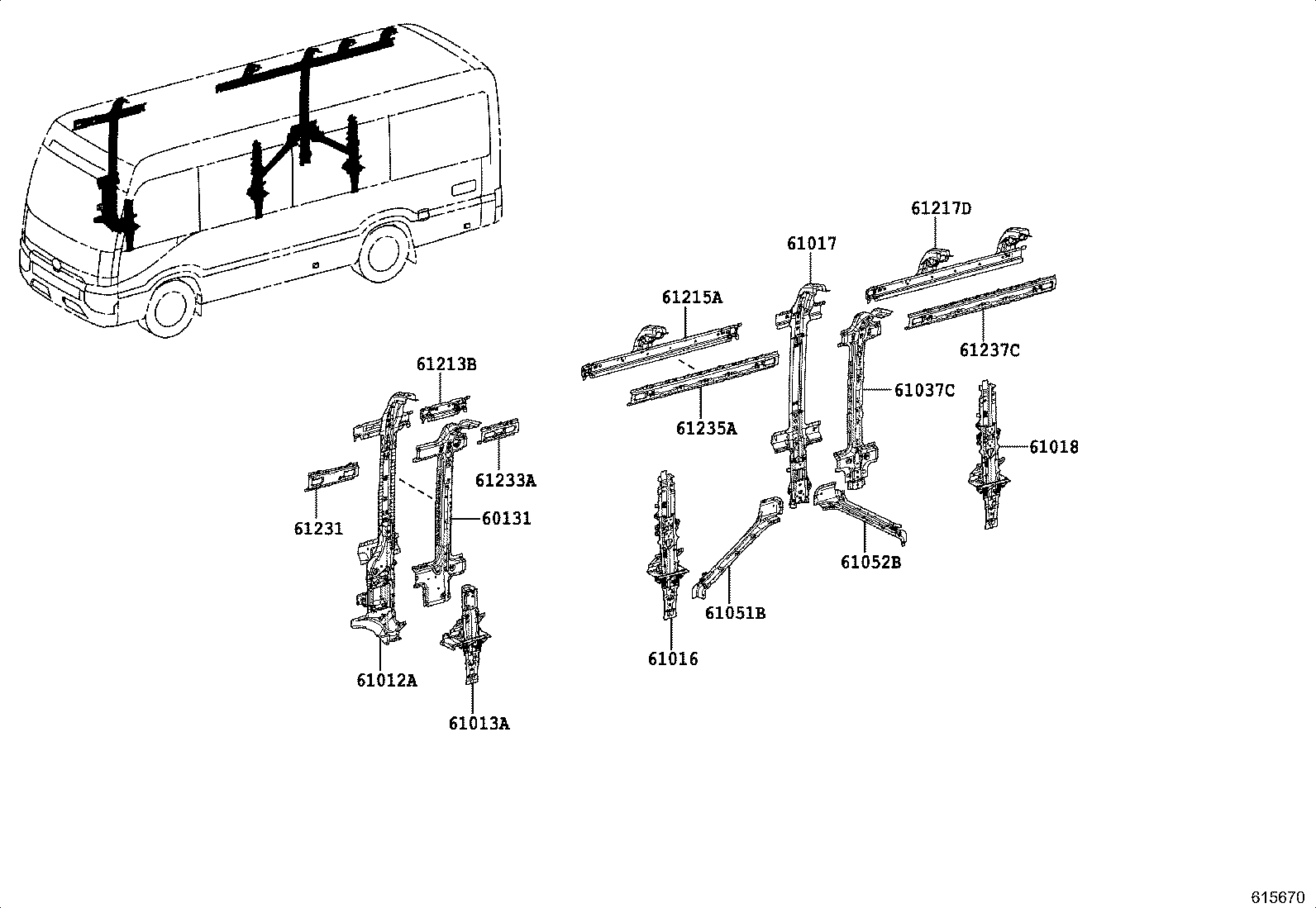

| 60131 | Pillar Sub-assy, Center Body, NO.2 RH |
| 60132 | Pillar Sub-assy, Center Body, NO.2 LH |
| 61012A | Pillar Sub-assy, NO.2 RH |
| 61013A | Pillar Sub-assy, NO.3 RH |
| 61014A | Pillar Sub-assy, NO.4 RH |
| 61015A | Pillar Sub-assy, NO.5 RH |
| 61016 | Pillar Sub-assy, NO.6 RH |
| 61017 | Pillar Sub-assy, NO.7 RH |
| 61018 | Pillar Sub-assy, NO.8 RH |
| 61019 | Pillar Sub-assy, NO.10 RH |
| 61019A | Pillar Sub-assy, NO.9 RH |
| 61022A | Pillar Sub-assy, NO.2 LH |
| 61023A | Pillar Sub-assy, NO.3 LH |
| 61024A | Pillar Sub-assy, NO.4 LH |
| 61025A | Pillar Sub-assy, NO.5 LH |
| 61026A | Pillar Sub-assy, NO.6 LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61027B | Pillar Sub-assy, NO.7, LH |
| 61028 | Pillar Sub-assy, Rear Inner, RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61028B | Pillar Sub-assy, NO.8 LH |
| 61029 | Pillar Sub-assy, Rear Inner, LH |
| 61029A | Pillar Sub-assy, NO.9 LH |
| 61029B | Pillar Sub-assy, NO.10 LH |
| 61031A | Pillar Sub-assy, NO.10 RH |
| 61032A | Pillar Sub-assy, NO.1 Inner, RH |
| 61033B | Pillar Sub-assy, NO.2 Inner, RH |
| 61036B | Pillar Sub-assy, NO.5 Inner, RH |
| 61037C | Pillar Sub-assy, NO.7 Inner, RH |
| 61038 | Pillar Sub-assy, NO.9 Inner, RH |
| 61039A | Step Sub-assy, Emergency |
| 61041A | Pillar Sub-assy, NO.10, LH |
| 61042A | Pillar Sub-assy, NO.1 Inner, LH |
| 61043 | Pillar Sub-assy, NO.2 Inner, LH |
| 61046A | Pillar Sub-assy, NO.5 Inner, LH |
| 61047C | Pillar Sub-assy, NO.7 Inner, LH |
| 61048 | Pillar Sub-assy, NO.9 Inner, LH |
| 61051 | Panel, Roof Side Outer Front, RH |
| 61051B | Brace Sub-assy, Rear Wheel, Upper Front RH |
| 61052 | Panel, Roof Side Outer Front, LH |
| 61052B | Brace Sub-assy, Rear Wheel, Upper Rear RH |
| 61053A | Rail Sub-assy, NO.1 Center, Inner |
| 61055A | Rail, Sub-aasy, NO.2 Center, Inner, RH |
| 61055B | Rail Sub-assy, NO.2 Center, Inner, LH |
| 61057B | Rail Sub-assy, Rear Side, RH |
| 61058B | Rail Sub-assy, NO.3 Center, Inner, RH |
| 61058C | Rail Sub-assy, NO.3 Center, Inner, LH |
| 61059A | Rail Sub-assy, NO.4 Center, Inner, RH |
| 61059B | Rail Sub-assy, NO.4 Center, Inner, LH |
| 61061B | Brace Sub-assy, Rear Wheel, Upper Front LH |
| 61062B | Brace Sub-assy, Rear Wheel, Upper Rear LH |
| 61063D | Rail Sub-assy, NO.1 Center, Inner LH |
| 61067D | Rail Sub-assy, Rear Side, LH |
| 61086 | Bracket Sub-assy, Fuel Inlet Pipe |
| 61091 | Rail Sub-assy, NO.2 Lower Inner, RH |
| 61092 | Rail Sub-assy, NO.3 Lower Inner, RH |
| 61093 | Rail Sub-assy, NO.2 Lower Inner, LH |
| 61094 | Rail Sub-assy, NO.3 Lower Inner, LH |
| 61098A | Stiffener Sub-assy, Pillar NO.10, Inner RH |
| 61099 | Stiffener Sub-assy, Pillar NO.10, Inner LH |

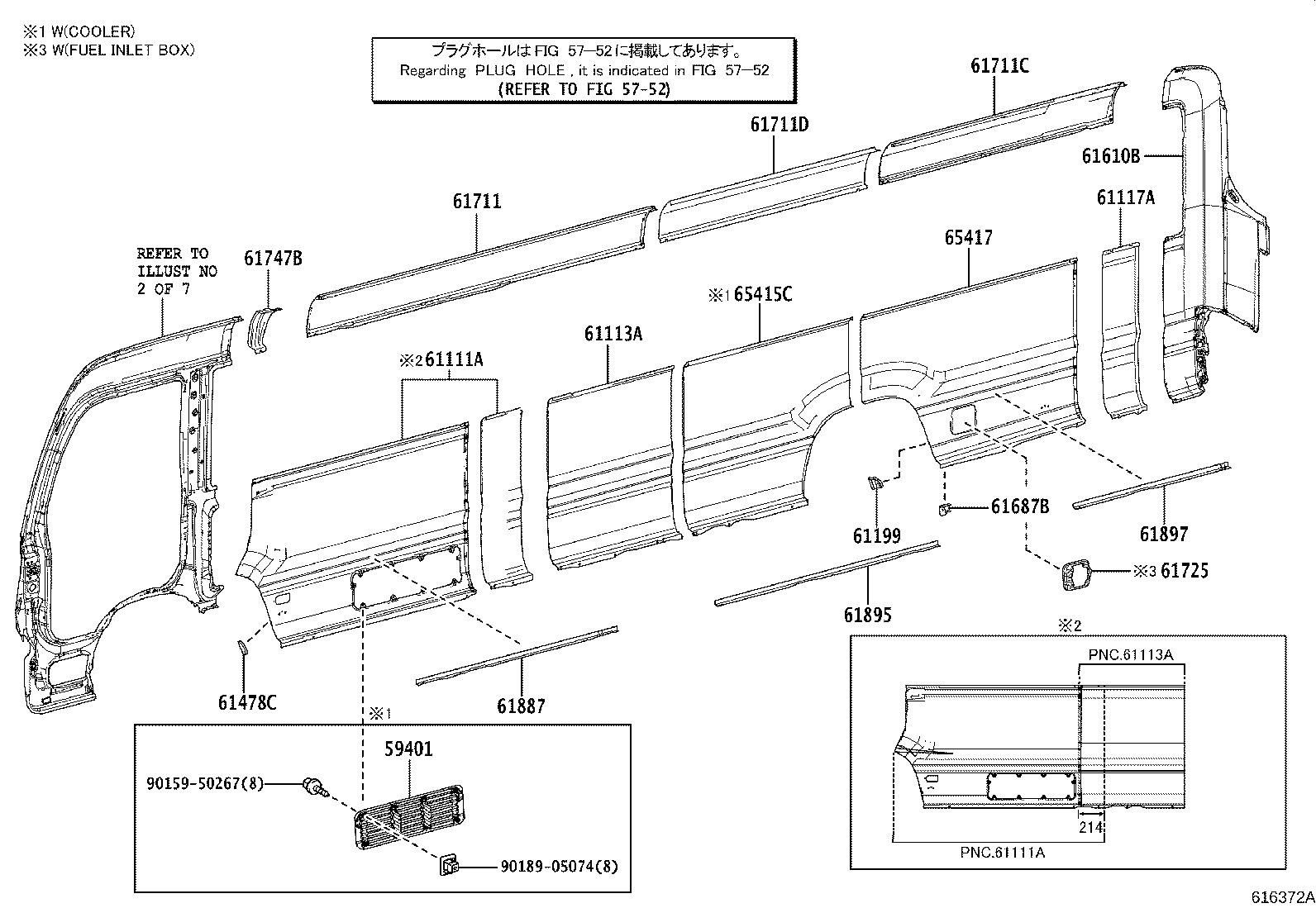

| 61111A | Panel, Front Side, Outer RH |
| 61111B | Panel, NO.1 Side, RH |
| 61112A | Panel, Front Side, Outer LH |
| 61113A | Panel, Side, Outer NO.2 RH |
| 61117A | Gusset, Side Panel Relief, NO.1 |
| 61119A | Panel, Center Door Orening, Lower Inner Front |
| 61121B | Panel, NO.1 Side, LH |
| 61122B | Panel, NO.2 Side, LH |
| 61127A | Gusset, Side Panel Relief, NO.4 |
| 61129C | Panel, Center Door Opening, Lower Inner Rear |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61131C | Pillar, Front Body, Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61132B | Pillar, Front Body, Outer LH |
| 61133C | Pillar, Front Body, Lower Outer RH |
| 61134C | Pillar, Front Body, Lower Outer LH |
| 61135A | Reinforcement, Front Body Pillar, Outer |
| 61136B | Reinforcement, Front Body Pillar, Outer |
| 61145B | Gusset, Front Body Pillar, Lower RH |
| 61146B | Gusset, Front Body Pillar, Lower LH |
| 61153C | Retainer, Front Body Pillar Lower Hinge, RH |
| 61161C | Stiffener, Side Panel, NO.1 RH |
| 61162C | Stiffener, Side Panel, NO.2 RH |
| 61163C | Stiffener, Side Panel, NO.3 RH |
| 61164B | Stiffener, Side Panel, NO.4 RH |
| 61166B | Stiffener, Side Panel, Upper NO.6 |
| 61167D | Brace, Front Body Pillar, Inner RH |
| 61168B | Brace, Front Body Pillar, Inner LH |
| 61171C | Stiffener, Side Panel, NO.1 |
| 61172 | Stiffener, Side Panel, NO.2 |
| 61172C | Stiffener, Side Panel, NO.2 |
| 61173C | Stiffener, Side Panel, NO.3 LH |
| 61174C | Stiffener, Side Panel, NO.4 LH |
| 61176C | Reinforcement, NO.1 Pillar, Upper RH |
| 61177B | Bracket, Door Check Arm |
| 61178A | Reinforcement, NO.1 Pillar, Lower RH |
| 61179A | Reinforcement, NO.2 Pillar, Center RH |
| 61186F | Reinforcement, NO.1 Pillar, Upper LH |
| 61188C | Reinforcement, NO.1 Pillar, Lower LH |
| 61189A | Reinforcement, NO.2 Pillar, Center LH |
| 61191A | Reinforcement, Side Lower Window |
| 61191C | Reinforcement, Side Lower Window, LH |
| 61199 | Bracket, Side Panel TO Rear Mudguard |
| 61199A | Bracket, Side Panel TO Rear Mudguard, LH |
| 61212A | Pillar, NO.1 Outer, Lower RH |
| 61213 | Rail, Roof Side, Outer Rear RH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214 | Rail, Roof Side, Outer Rear LH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61215A | Rail, Roof Side, Outer NO.3 RH |
| 61216B | Pillar, NO.3 |
| 61216C | Rail, Roof Side, Outer NO.3 LH |
| 61217C | Pillar, NO.4 |
| 61217D | Rail, Roof Side, Outer NO.4 RH |
| 61218C | Rail, Roof Side, Outer NO.4 LH |
| 61222 | Pillar, NO.1 Outer, Lower LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61235A | Rail, Roof Side, Inner NO.3 RH |
| 61236A | Rail, Roof Side, Inner NO.3 LH |
| 61237C | Rail, Roof Side, Inner NO.4 RH |
| 61238C | Rail, Roof Side, Inner NO.4 LH |
| 61245B | Bracket, Assist Grip, NO.3 RH |
| 61246B | Bracket, Assist Grip, NO.3 LH |

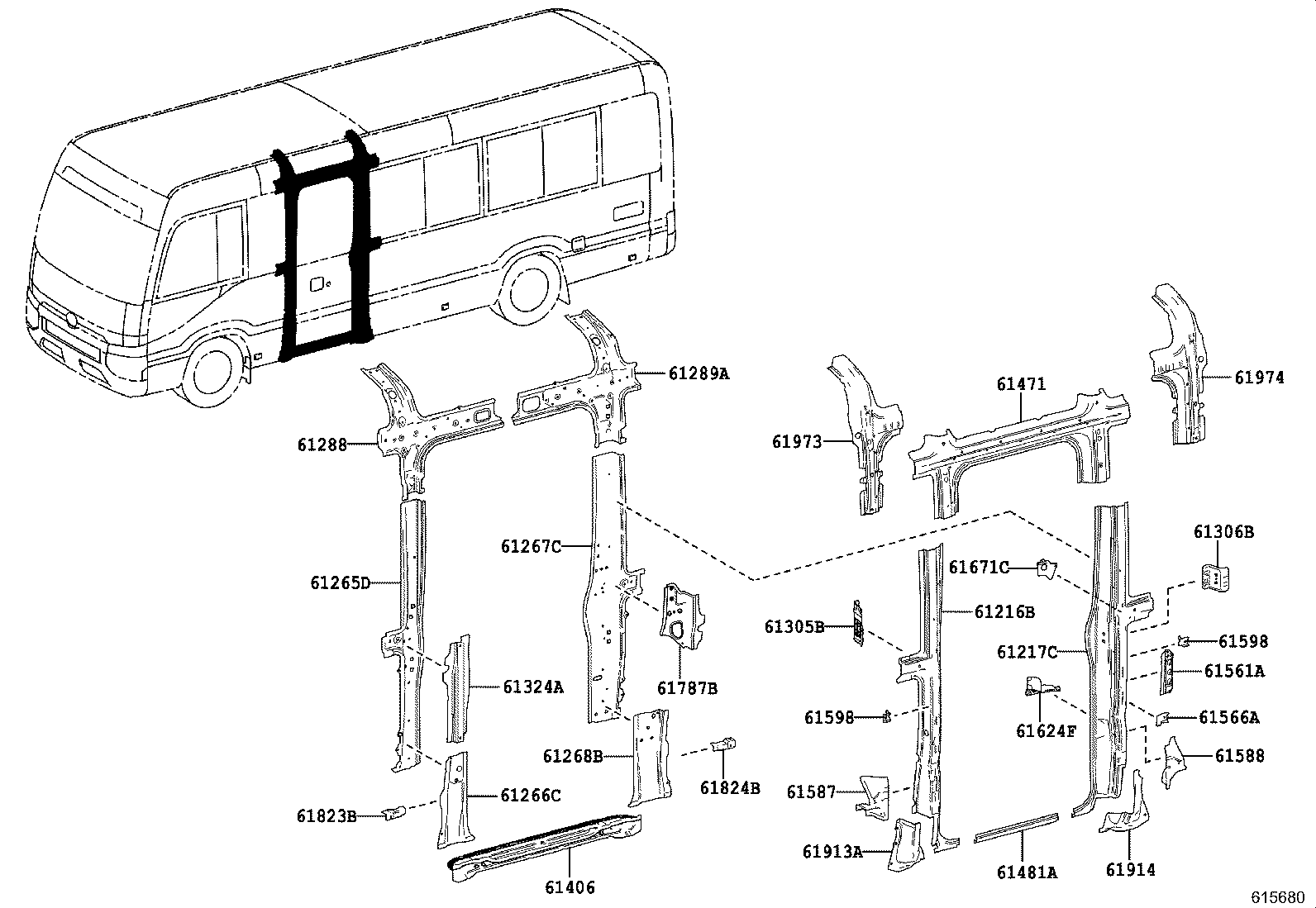

| 61265D | Pillar, NO.3 Inner, Upper LH |
| 61265E | Pillar, NO.3 Inner, Upper RH |
| 61266C | Pillar, NO.3 Inner, Lower LH |
| 61266D | Pillar, NO.3 Inner, Lower RH |
| 61267C | Pillar, NO.4 Inner, Upper LH |
| 61267D | Pillar, NO.4 Inner, Upper RH |
| 61268B | Pillar, NO.4 Inner, Lower LH |
| 61268D | Pillar, NO.4 Inner, Lower RH |
| 61274 | Pillar, NO.10 Inner, RH |
| 61284B | Pillar, NO.10 Inner, LH |
| 61288 | Pillar, NO.3 Corner, LH |
| 61288A | Pillar, NO.3 Corner, RH |
| 61289A | Pillar, NO.4 Corner, LH |
| 61289B | Pillar, NO.4 Corner, RH |
| 61305B | Reinforce Sub-assy, Center Body Piller, Lower Front |
| 61306B | Reinforce Sub-assy, Center Body Pillar, Lower Rear |

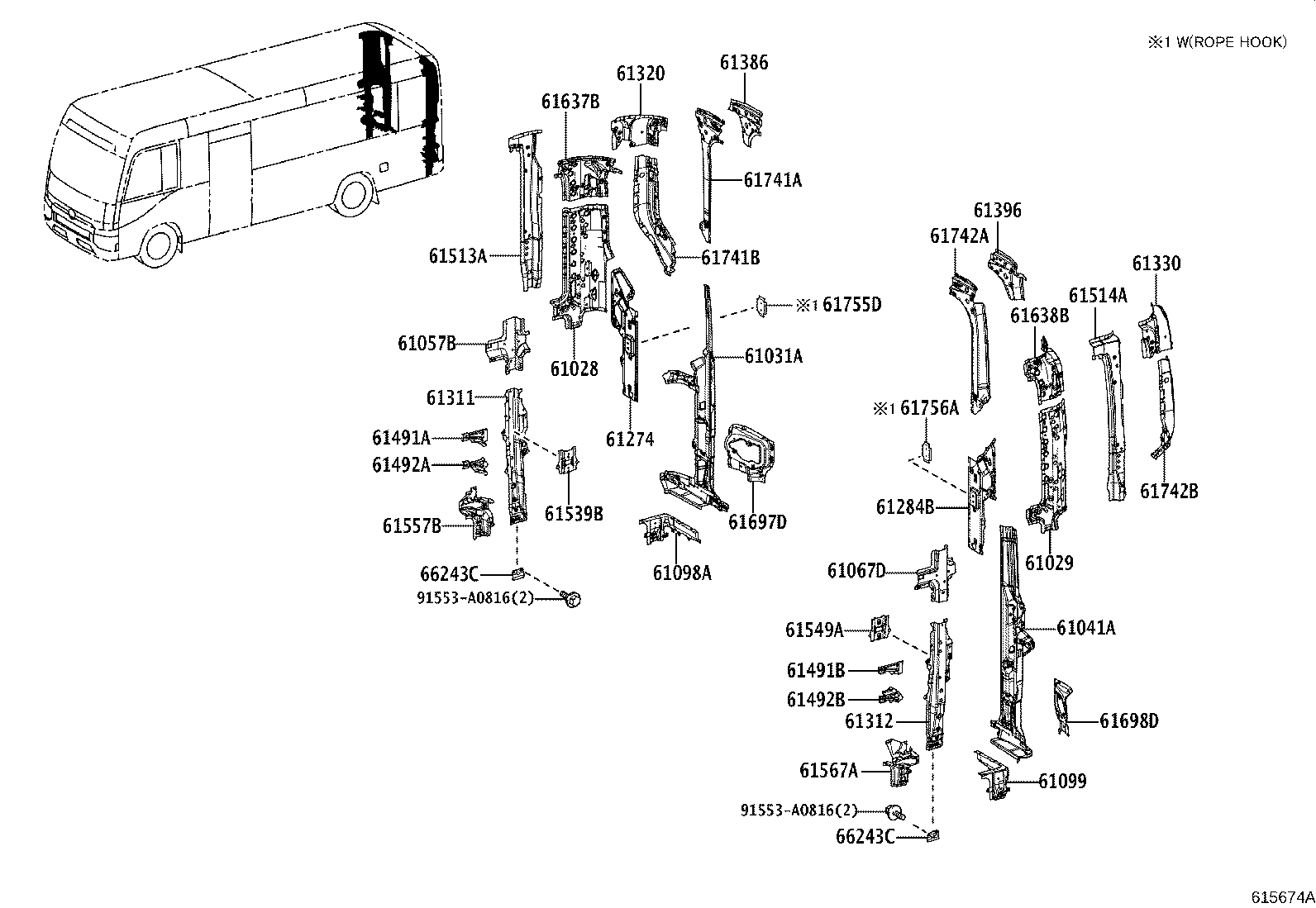

| 61311 | Pillar, Rear RH |
| 61311A | Rail, NO.1 Upper Outer, RH |
| 61312 | Pillar, Rear LH |
| 61319B | Plate, Center Body Pillar, Outer RH |
| 61320 | Panel, Rear Body Front Side, RH |
| 61321A | Rail, NO.1 Upper Outer, LH |
| 61323A | Reinforcement, Center Body Pillar, Lower RH |
| 61324A | Reinforcement, Center Body Pillar, Lower LH |
| 61329 | Plate, Center Body Pillar, Outer LH |
| 61330 | Panel, Rear Body Front Side, LH |
| 61336A | Rail, NO.5 Upper Inner, RH |
| 61337 | Patch, Center Body Pillar |
| 61346A | Rail, NO.5 Upper Inner, LH |
| 61351D | Rail, NO.1 Center Outer, RH |
| 61352A | Rail, NO.2 Center Outer, RH |
| 61353B | Rail, NO.3 Center Outer, RH |
| 61354 | Rail, NO.4 Center Outer, RH |
| 61361A | Rail, NO.1 Center Outer, LH |
| 61362A | Rail, NO.2 Center Outer, LH |
| 61363A | Rail, NO.3 Center Outer, LH |
| 61364C | Rail, NO.4 Center Outer, LH |
| 61367C | Channel, Roof Drip Side, Center NO.1 |
| 61374 | Bracket, Rear Side Panel, Upper |
| 61386 | Panel, Rear Side, Upper RH |
| 61395C | Base, Emergency Step |
| 61396 | Panel, Rear Side, Upper LH |
| 61405 | Rail Sub-assy, NO.7 Lower Inner, Lower RH |
| 61406 | Rail Sub-assy, NO.7 Lower Inner, Lower LH |

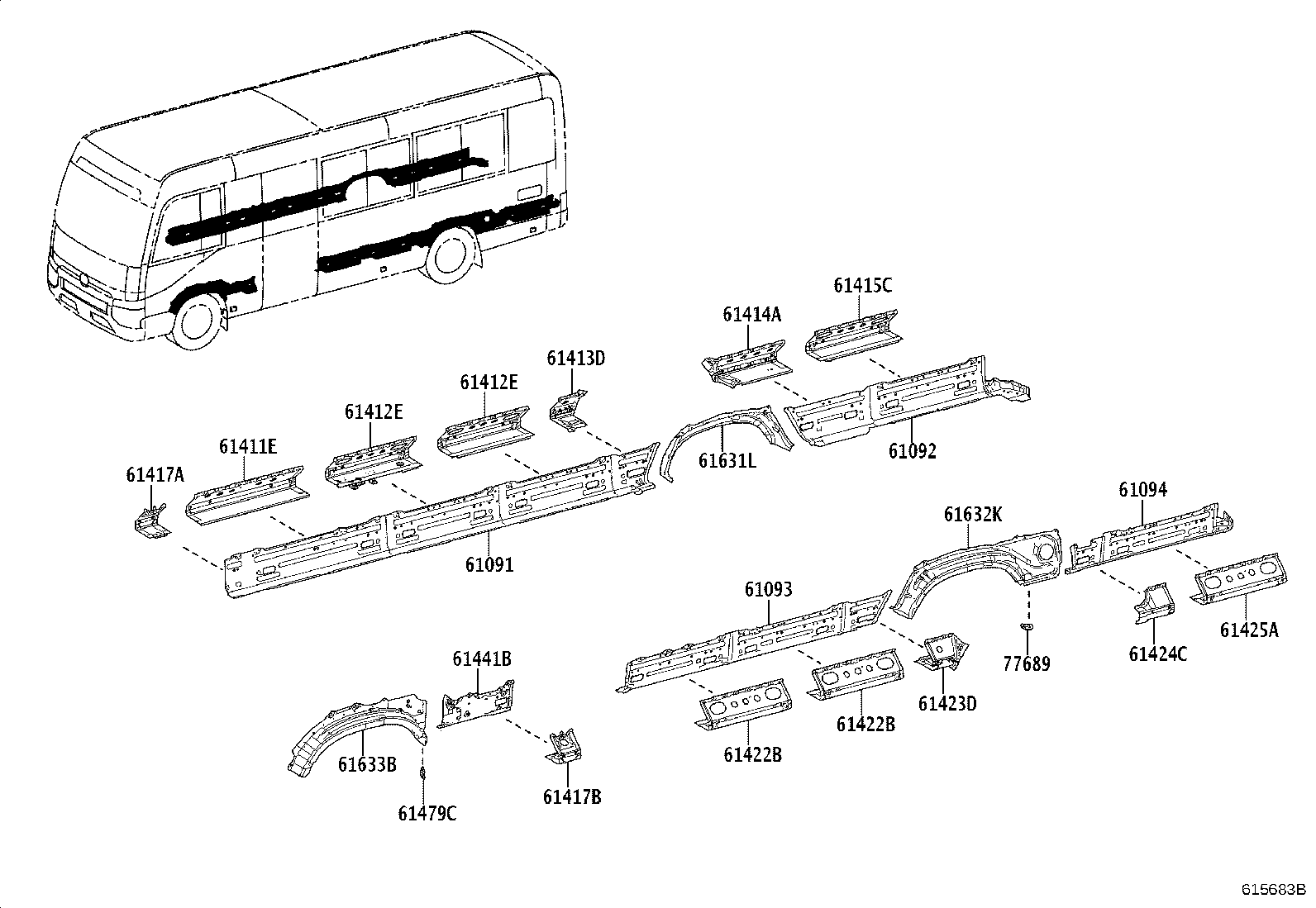

| 61411E | Rail, NO.1 Lower Outer, RH |
| 61412E | Rail, NO.2 Lower Outer, RH |
| 61412F | Rail, NO.2 Lower Outer, RH |
| 61412G | Rail, NO.2 Lower Outer, RH |
| 61413D | Rail, NO.3 Lower Outer, RH |
| 61414A | Rail,NO.4 Lower Outer, RH |
| 61415C | Rail, NO.5 Lower Outer, RH |
| 61417A | Rail, NO.7 Lower Outer, RH |
| 61417B | Rail, NO.7 Lower Outer, LH |
| 61421A | Panel, Fender, Inner RH |
| 61421B | Rail, NO.1 Lower Outer, LH |
| 61422 | Rail, NO.2 Lower Outer, LH |
| 61422A | Panel, Fender, Inner LH |
| 61422B | Rail, NO.2 Lower Outer, LH |
| 61423D | Rail, NO.3 Lower Outer, LH |
| 61424C | Rail, NO.4 Lower Outer, LH |
| 61425A | Rail, NO.5 Lower Outer, LH |
| 61431A | Rail, NO.1 Lower Inner, RH |
| 61441B | Rail, NO.1 Lower Inner, LH |
| 61471 | Rail, Center Door, Outer |
| 61476 | Patch, Front Door Pillar, RH |
| 61477 | Patch, Front Door Pillar, LH |
| 61478C | Bracket, Mudguard, Front RH |
| 61479C | Bracket, Front Mudguard |
| 61481A | Rail, Center Door, Lower Outer |
| 61488C | Bracket, Mudguard, Front LH |
| 61491A | Bracket, Side Panel Strength, NO.1 |
| 61491B | Bracket, Side Panel Strength, NO.1 LH |
| 61492A | Bracket, Side Panel Strength, NO.2 RH |
| 61492B | Bracket, Side Panel Strength, NO.2 LH |
| 61501E | Rail Sub-assy, Seat Anchor, RH |
| 61501F | Rail Sub-assy, Seat Anchor, LH |
| 61502B | Rail Sub-assy, NO.2 Seat Anchor, RH |
| 61502E | Rail Sub-assy, NO.2 Seat Anchor, LH |
| 61513A | Pillar, Rear Upper Side Panel, RH |
| 61514A | Pillar, Rear Upper Side Panel, LH |
| 61539B | Gusset, Seat Anchor, NO.9 |
| 61549A | Gusset, Seat Anchor, LH |
| 61556 | Gusset, Pillar TO Rail, NO.1 |
| 61557B | Gusset, Pillar TO Rail, NO.2 |
| 61561A | Gusset, Rear Seat |
| 61566A | Gusset, Pillar TO Rail, NO.1 LH |
| 61567A | Gusset, Pillar TO Rail, NO.2 LH |
| 61587 | Gusset, Center Door Pillar, Front LH |
| 61587A | Gusset, Center Door Pillar, Front RH |
| 61588 | Gusset, Center Door Pillar, Rear LH |
| 61588A | Gusset, Center Door Pillar, Rear RH |
| 61598 | Bracket, Stiffener, NO.5 |
| 61599 | Bracket, Stiffener, NO.6, RH |
| 61599A | Bracket, Stiffener, NO.6, LH |
| 61599B | Bracket, Stiffener, NO.6, RH |
| 61599C | Bracket, Stiffener, NO.6, LH |
| 61610B | Panel Sub-assy, Rear Body Corner, RH |
| 61620B | Panel Sub-assy, Rear Body Corner, LH |
| 61624F | Plate, Center Door Piller Dust Proof, Rear LH |
| 61624H | Plate, Center Door Pillar Dust Proof, Front RH |
| 61631L | Panel, Rear Wheel House, Outer RH |

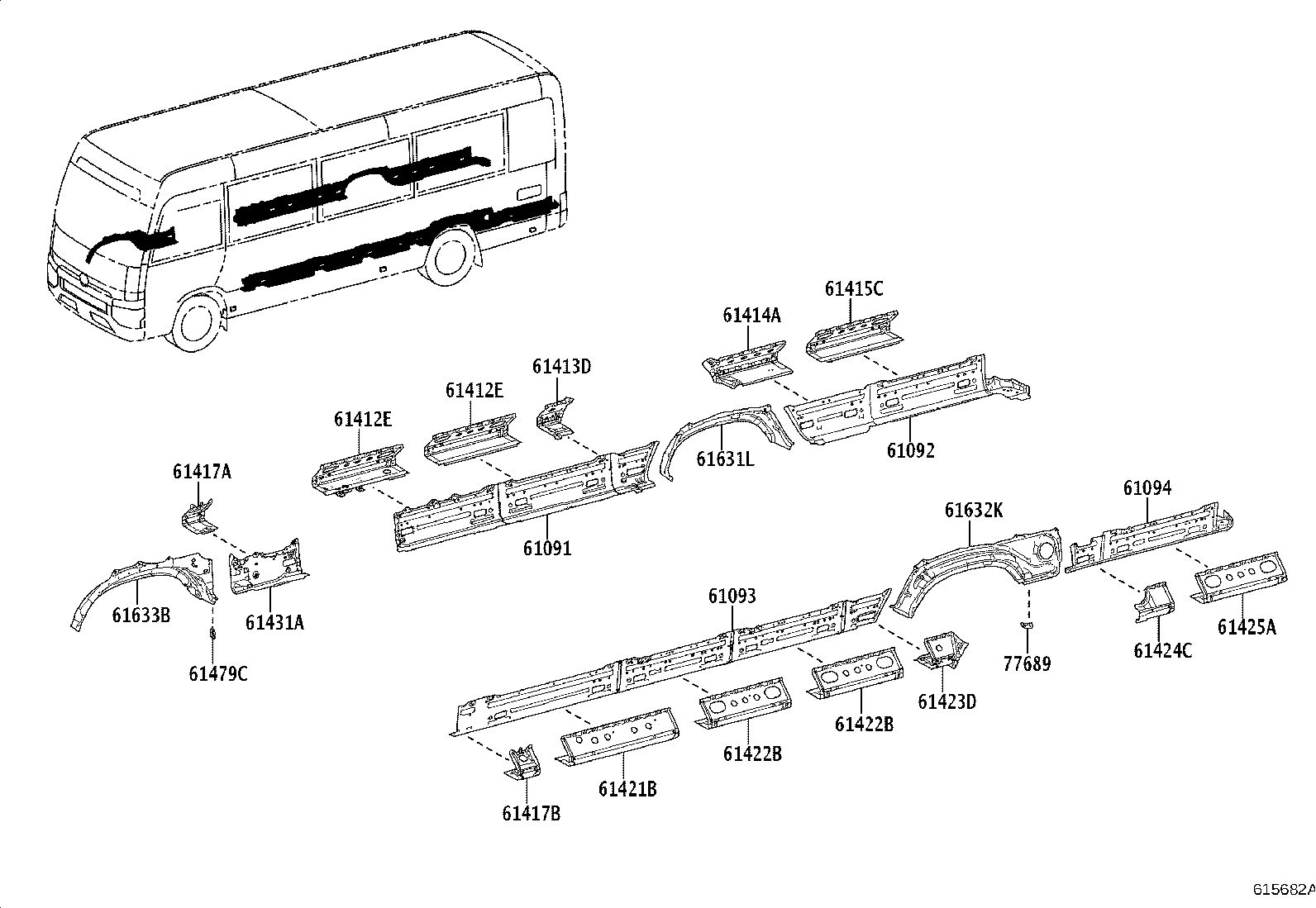

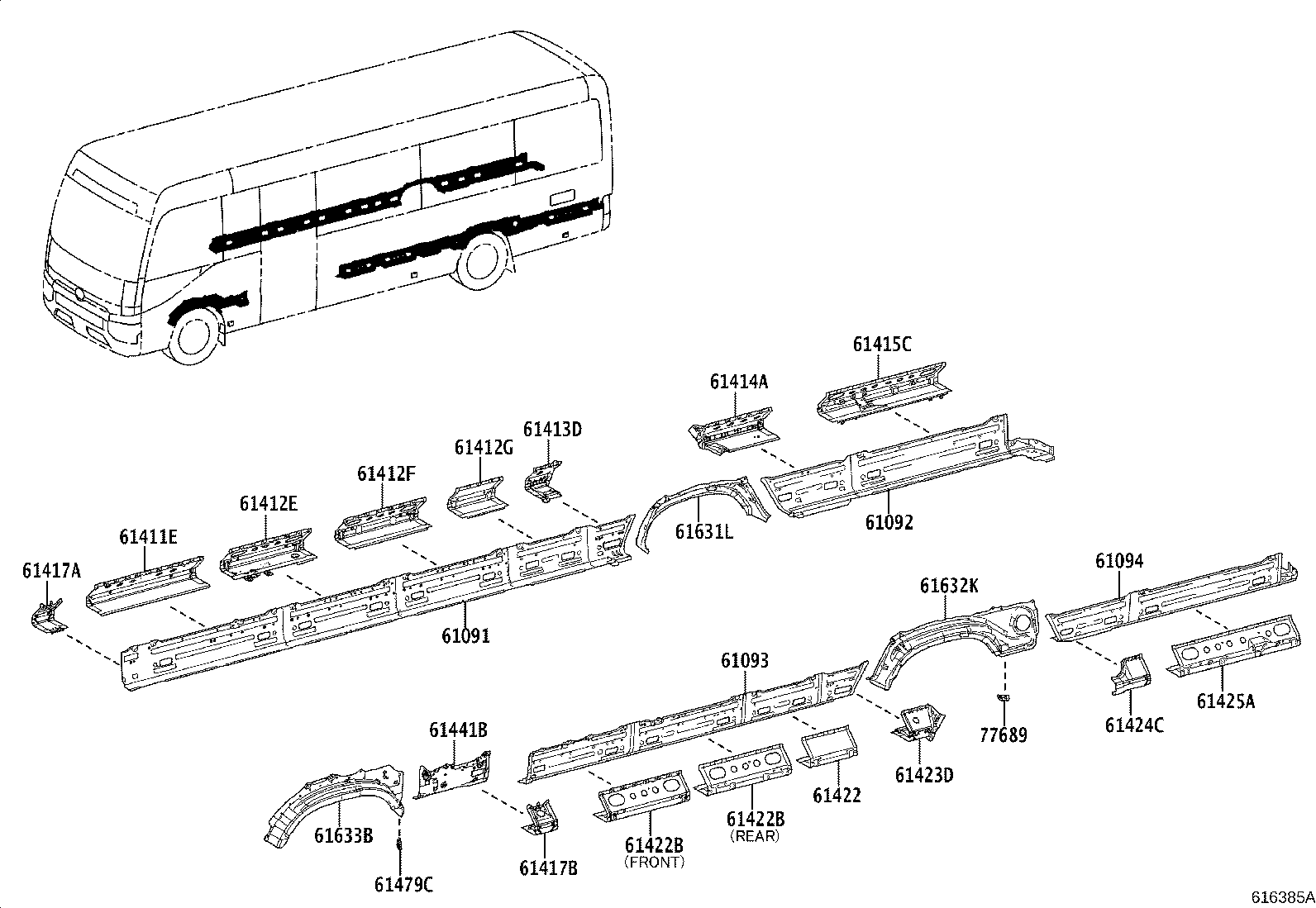

| 61632K | Panel, Rear Wheel House, Outer LH |
| 61633B | Panel, Wheel House |

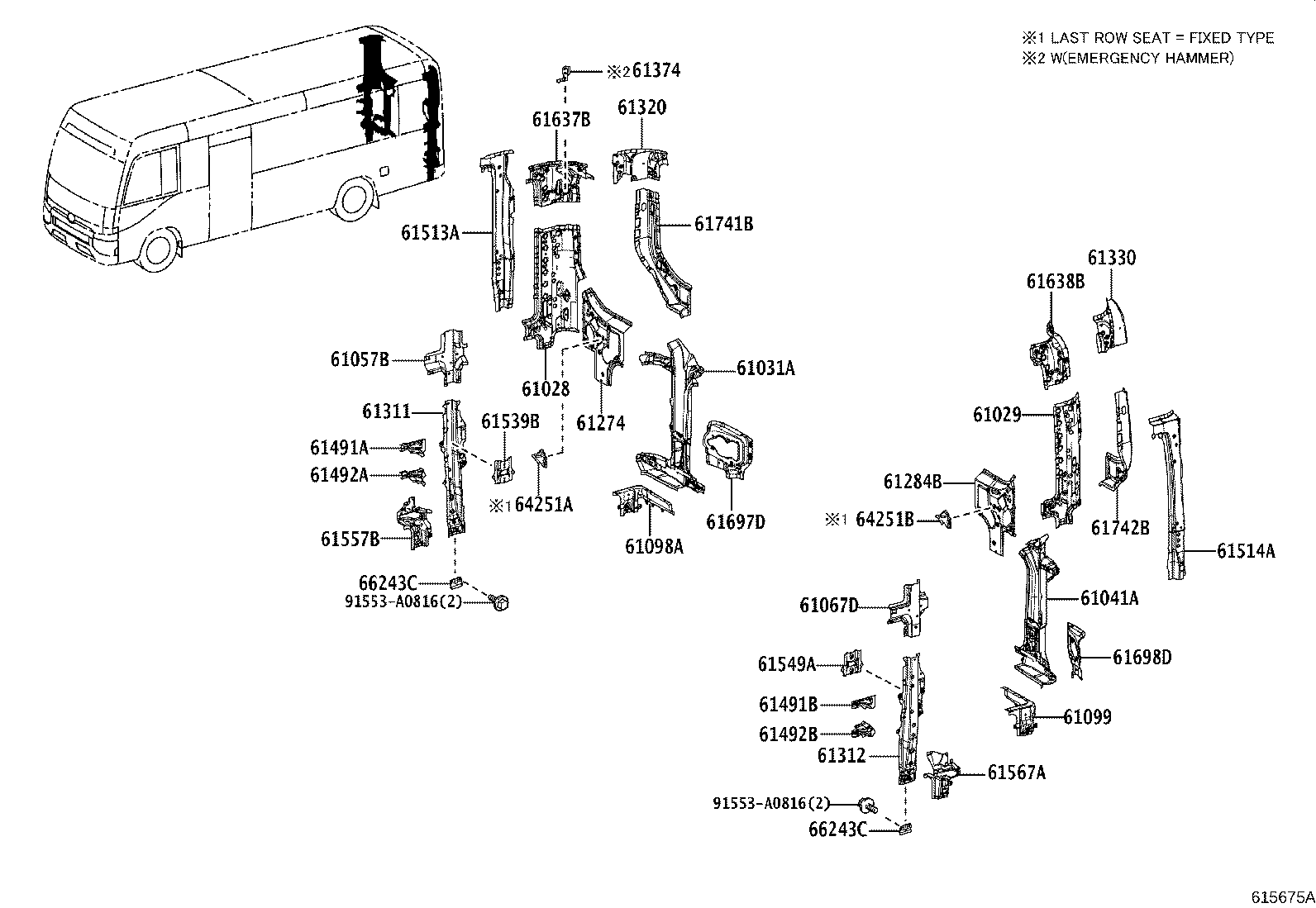

| 61637B | Reinforcement, Rear Pillar, Inner Upper RH |
| 61638B | Reinforcement, Rear Pillar, Inner Upper LH |
| 61651A | Gusset, Pillar Shear, NO.1 RH |
| 61661E | Gusset, Pillar Shear, NO.1 LH |
| 61671C | Palte, Quarter Panel, Upper NO.1 |
| 61671F | Plate, Quarter Panel, Upper NO.1 |
| 61687B | Bracket, Mudguard, Rear RH |
| 61688C | Bracket, Mudguard, Rear LH |
| 61697D | Housing, Quarter Panel End, RH |
| 61698D | Housing, Quarter Panel End, LH |
| 61705S | Cover Sub-assy, Cooler Condenser Air Intake |

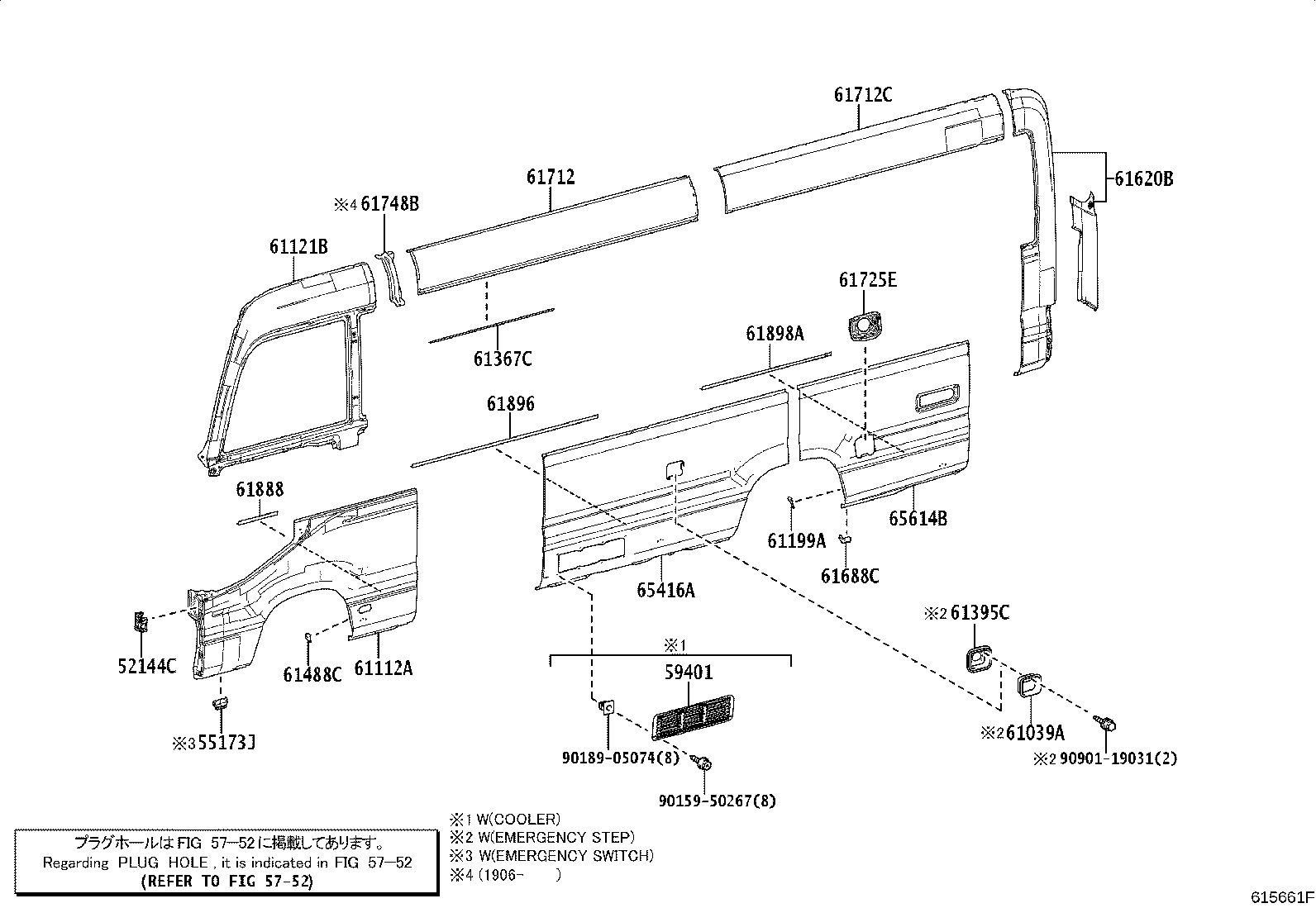

| 61711 | Panel, Roof Side, Outer RH |
| 61711C | Panel, Roof Side, Outer RH, NO.2 |
| 61711D | Panel, Roof Side, Outer RH, NO.3 |
| 61712 | Panel, Roof Side, Outer LH |
| 61712C | Panel, Roof Side, Outer LH, NO.2 |
| 61712D | Panel, Roof Side, Outer LH, NO.3 |
| 61713B | Reinforce, Roof Side, Outer RH |
| 61714B | Reinforce, Roof Side, Outer LH |
| 61725 | Box, Fuel Inlet |
| 61725E | Box, Fuel Inlet |

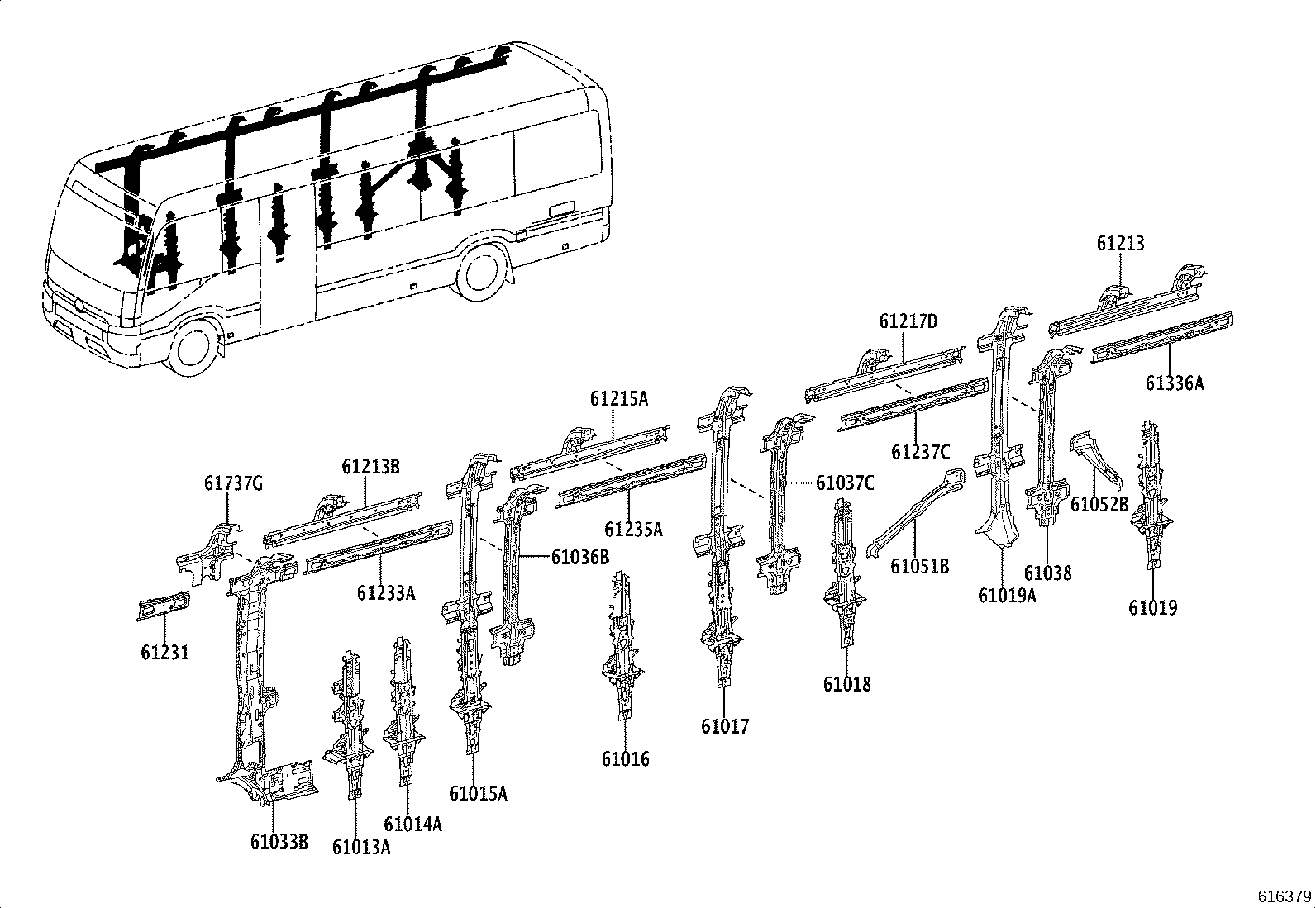

| 61737G | Reinforcement, Roof Side, Inner RH |
| 61738H | Reinforcement, Roof Side, Inner LH |
| 61741A | Reinforcement, Back Door Opening, Upper RH |
| 61741B | Reinforcement, Back Window Opening, RH |
| 61742A | Reinforcement, Back Door Opening, Upper LH |
| 61742B | Reinforcement, Back Window Opening, LH |
| 61747B | Reinforcement, Roof Side, Inner Rear, RH |
| 61748B | Reinforcement, Roof Side, Inner Rear, LH |
| 61755D | Retainer, Deck Side Trim, Upper |
| 61756A | Retainer, Deck Side Trim, Upper LH |
| 61787B | Retainer, Slide Door Arm, Upper Rear |
| 61813A | Plate, Dustproof, NO.1 RH |
| 61814A | Plate, Dust Proof, NO.2 RH |
| 61823B | Plate, Dust Proof, NO.1 LH |
| 61824B | Plate, Dust Ploof, NO.2 LH |
| 61859 | Cover, Front Door Step, RH |
| 61869 | Cover, Front Door Step, LH |
| 61887 | Rail, Side Panel Dust Proof, NO.1 RH |
| 61888 | Rail, Side Panel Dust Proof, NO.1 LH |
| 61889 | Retainer, Side Panel |
| 61895 | Rail, Side Panel Dust Proof, NO.2 RH |
| 61896 | Rail, Side Panel Dust Proof, NO.2 LH |
| 61897 | Rail, Side Panel Dust Proof, NO.3 RH |
| 61898A | Rail, Side Panel Dust Proof, NO.3 LH |
| 61913A | Plate, Lower Rail, Inner NO.3 |
| 61914 | Plate, Lower Rail, Inner NO.4 |
| 61937B | Retainer, Outer Side Mirror, RH |
| 61938A | Retainer, Outer Side Mirror, LH |
| 61973 | Reinforcement, Center Pillar, NO.3 |
| 61974 | Reinforcement, Center Pillar, NO.4 |
| 64251A | Bracket, Rear Seatback Stop |
| 64251B | Bracket, Rear Seatback Stop, LH |
| 65104E | Bracket Sub-assy, Mounting, LH |
| 65415C | Panel, Rear Body, Front RH |
| 65416A | Panel, Rear Body, Front LH |
| 65417 | Panel, Rear Body, Rear RH |
| 65614B | Panel, Rear Body, Rear LH |
| 66243C | Protector, Rear Body, NO.1 |

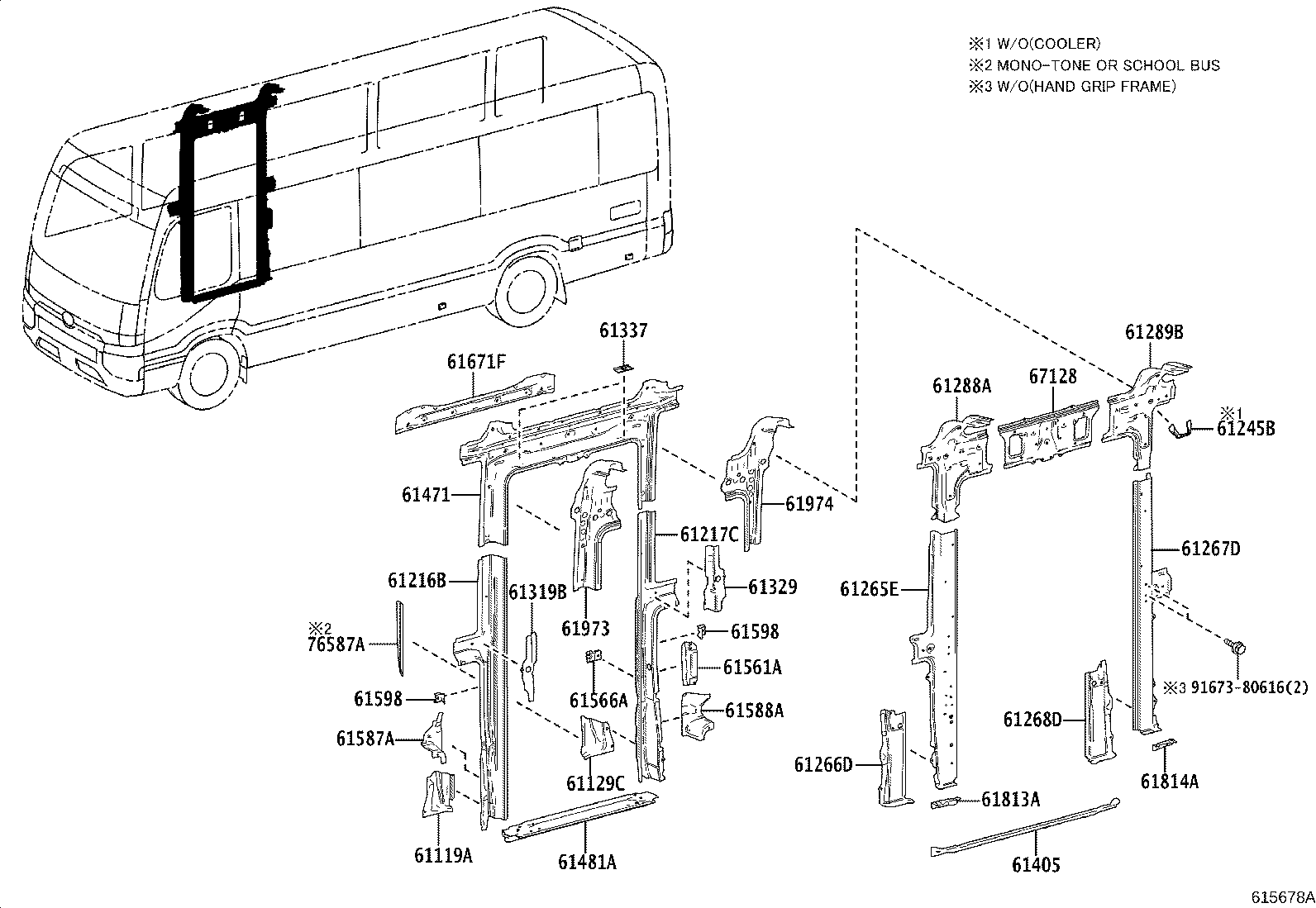

| 67128 | Plate, Center Door Panel |
| 76587A | Protector, Center Pillar Outer |
| 77689 | Bracket, Fuel Tank Filler Pipe Protector, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
