Toyota Coaster

2017-01 → present · chassis BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 · catalogue 811240 · General

Supported model Data version 2025-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

79 part groups · 26 illustrations

Illustrations

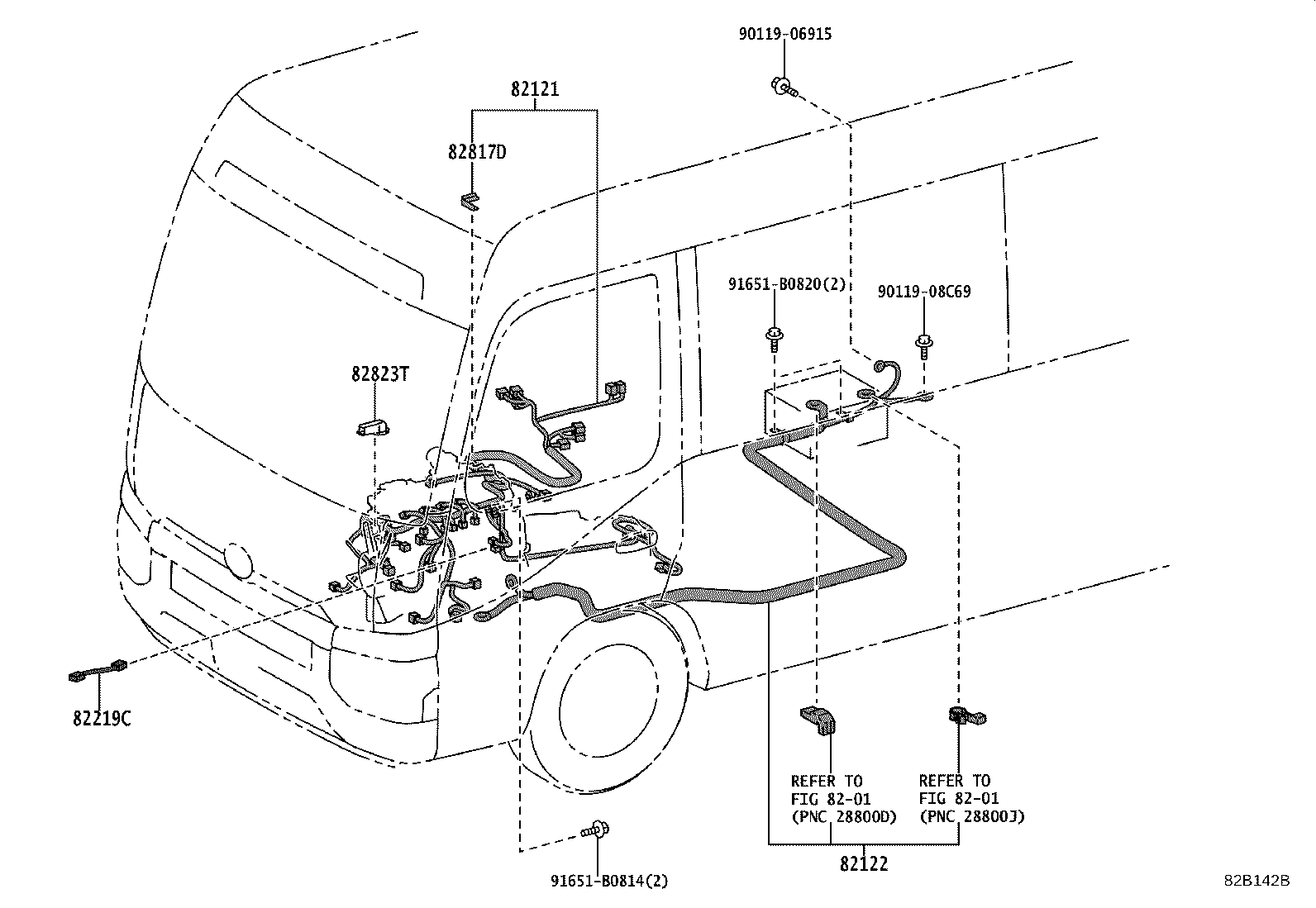

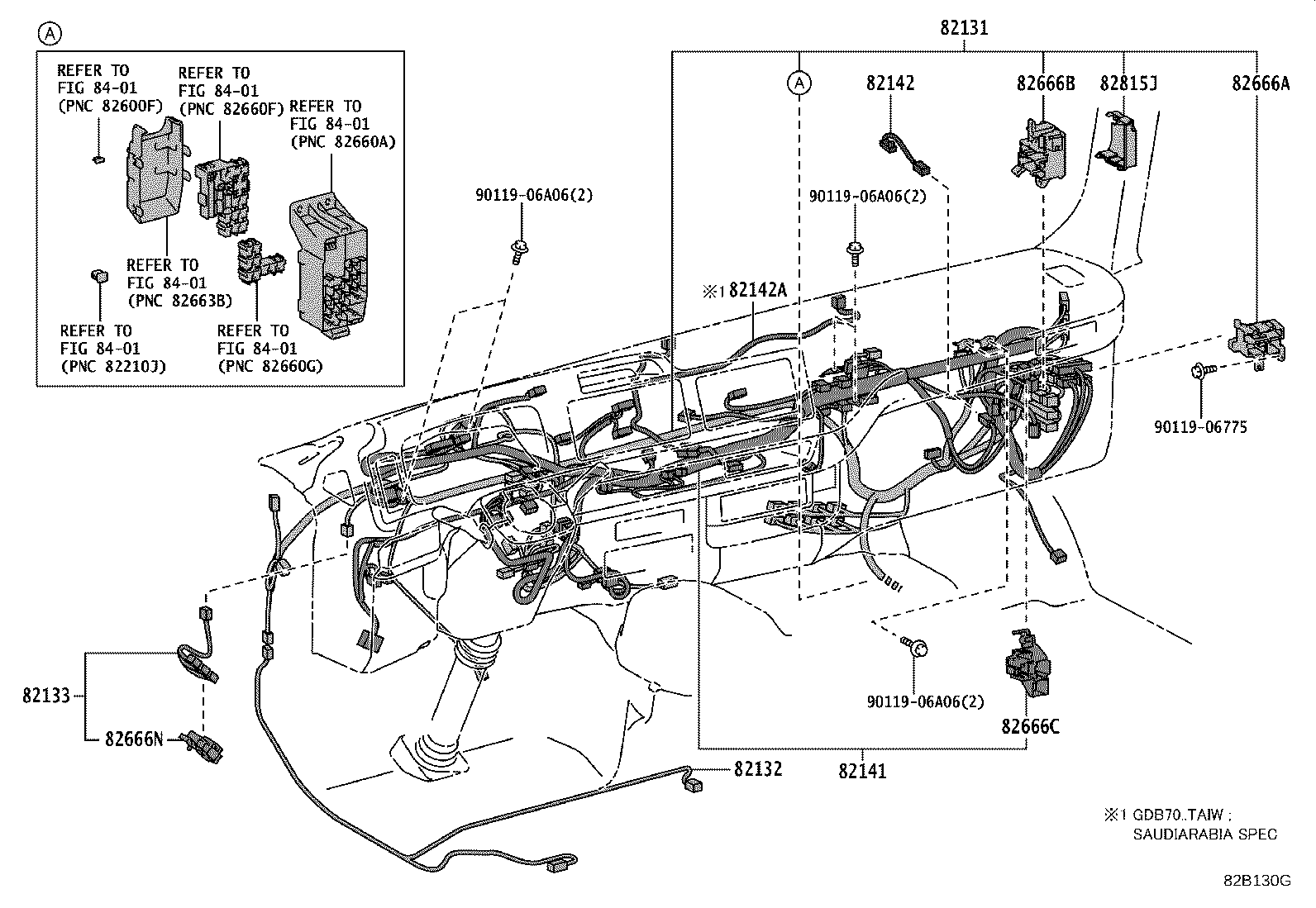

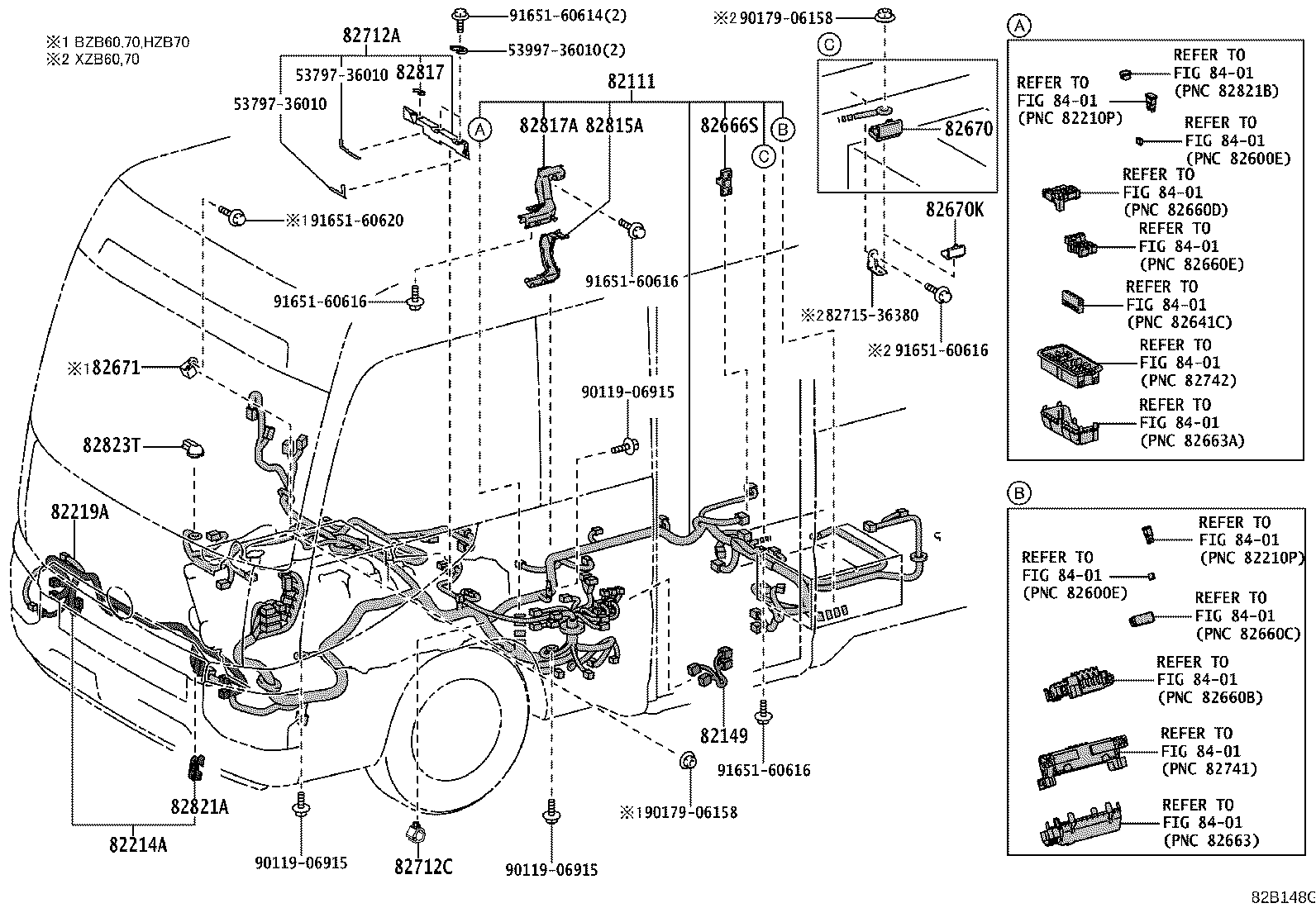

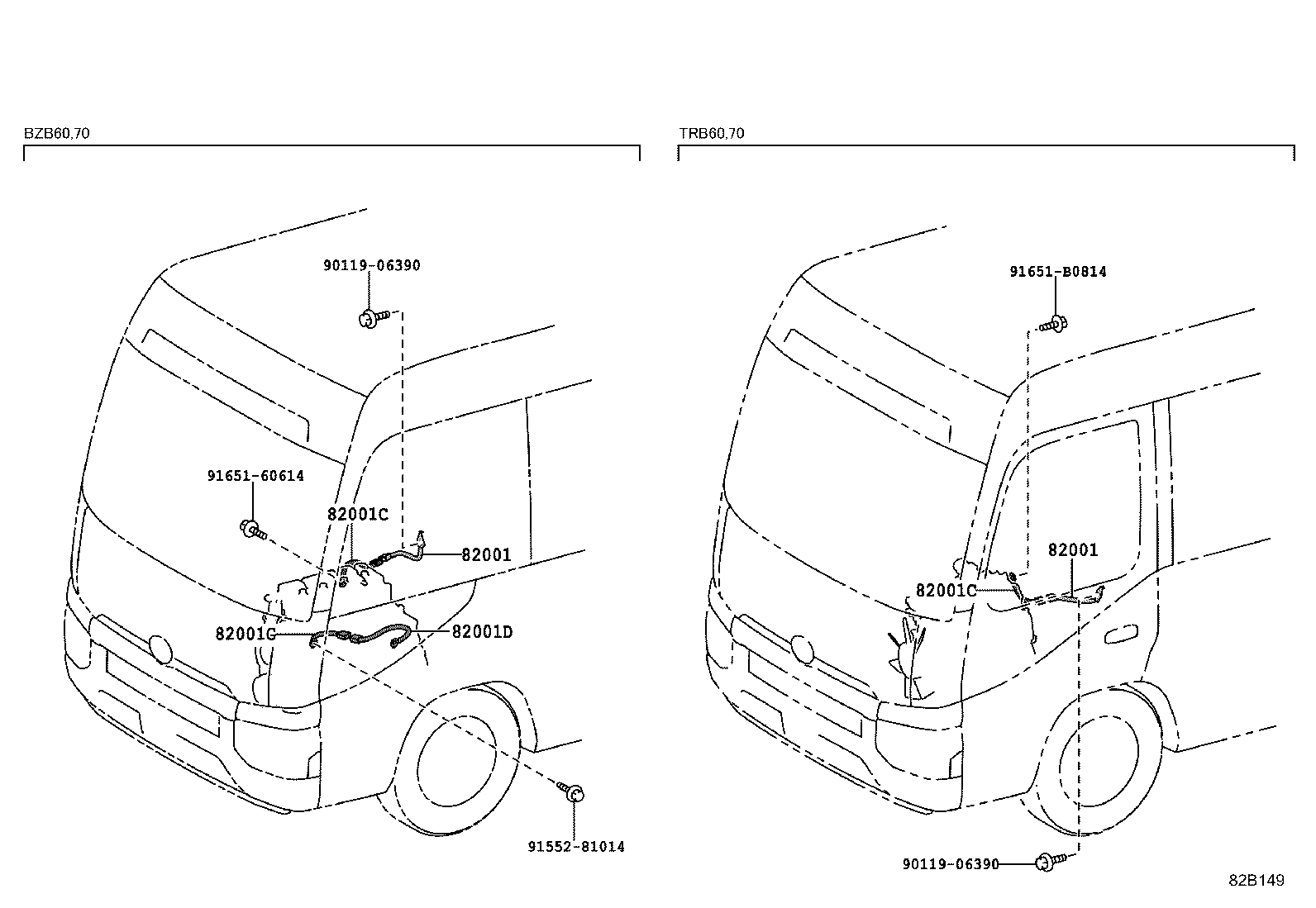

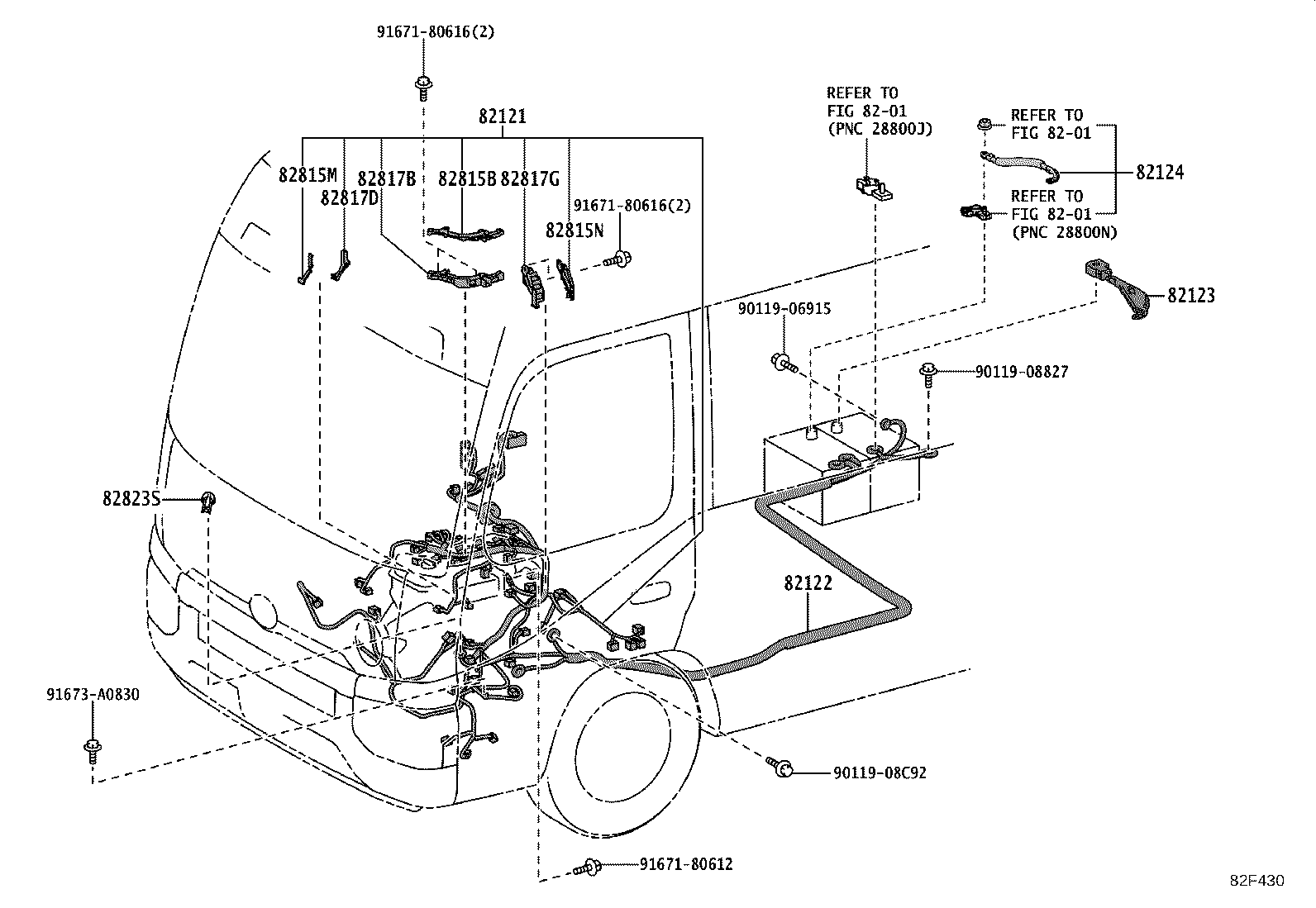

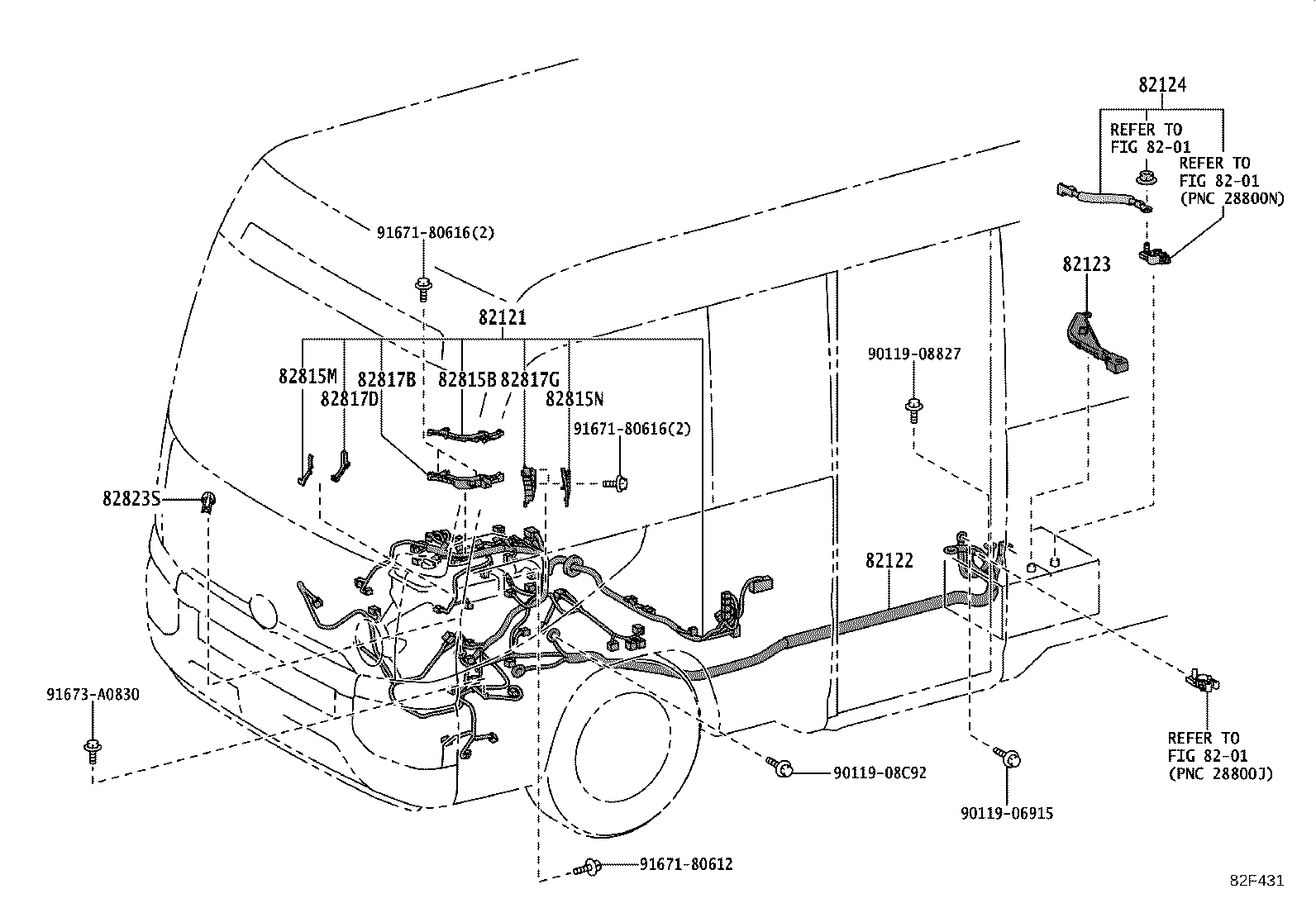

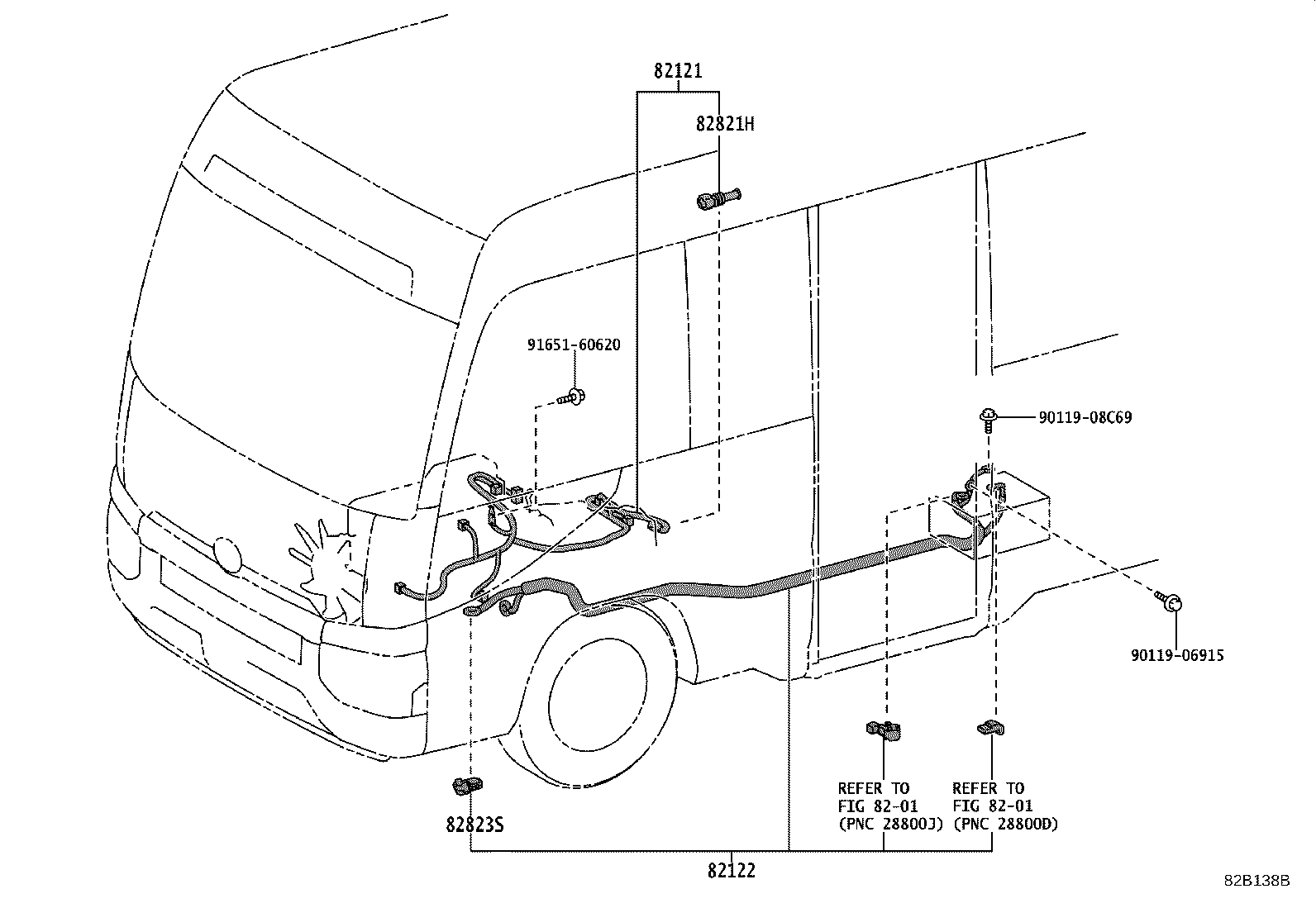

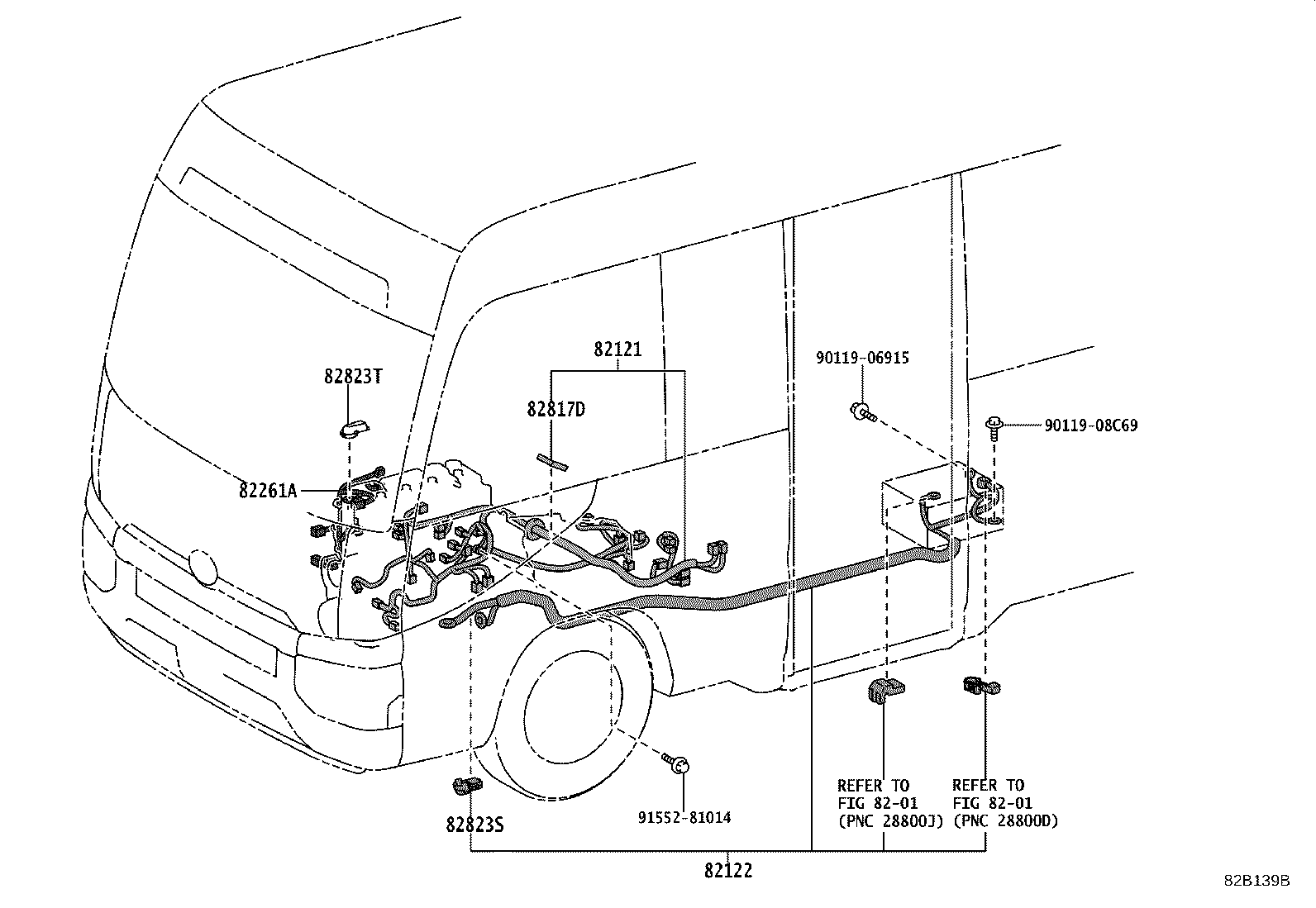

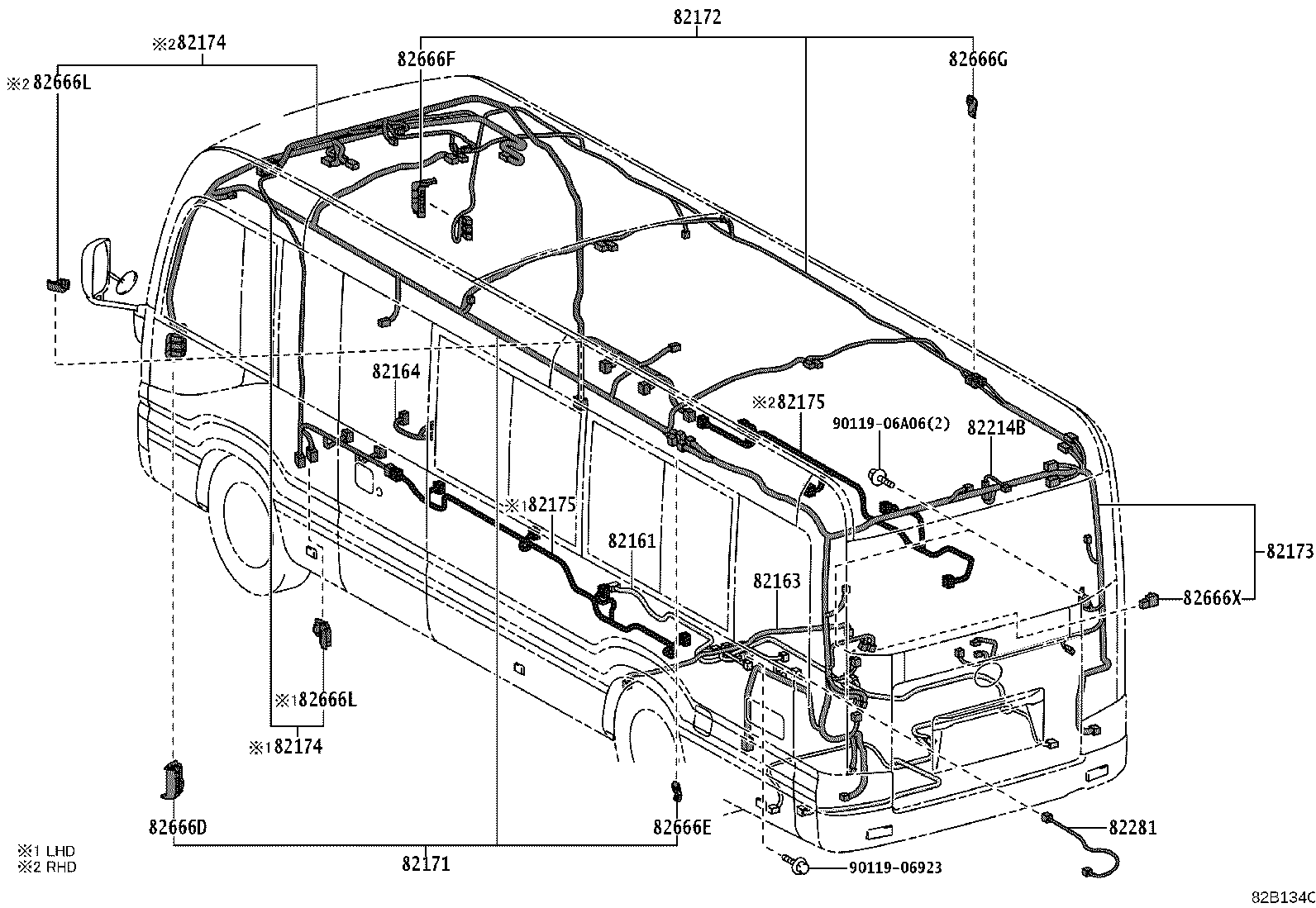

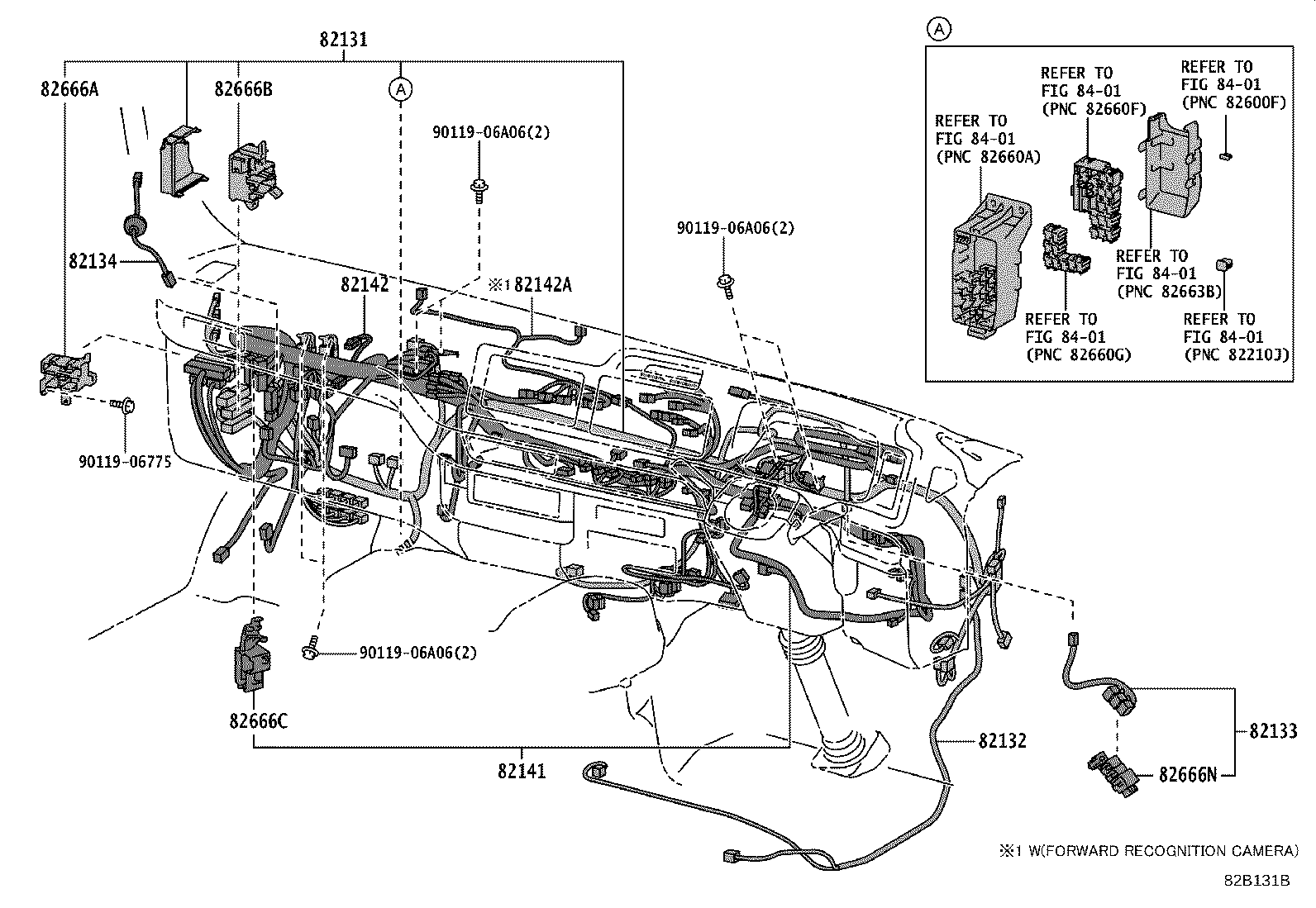

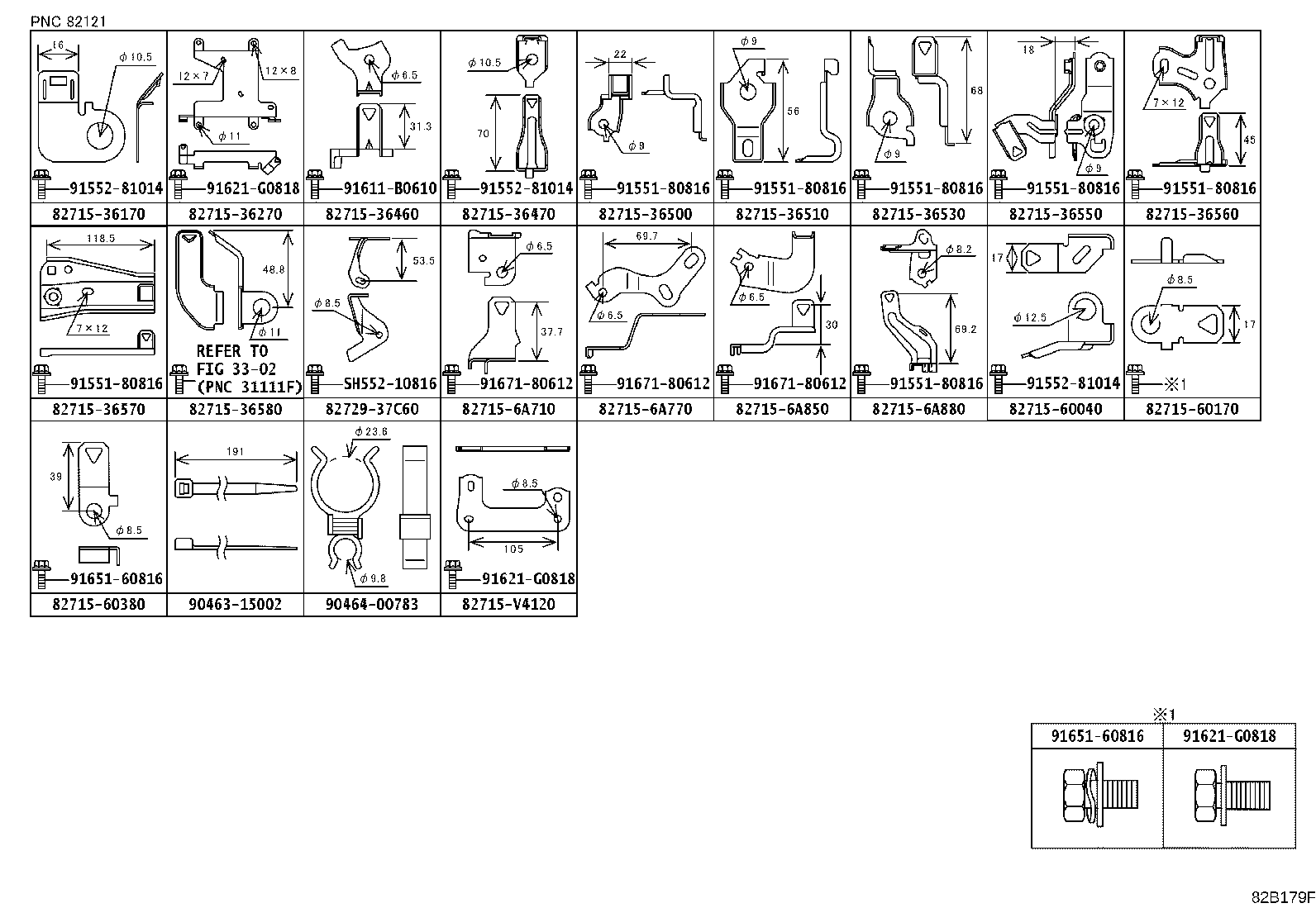

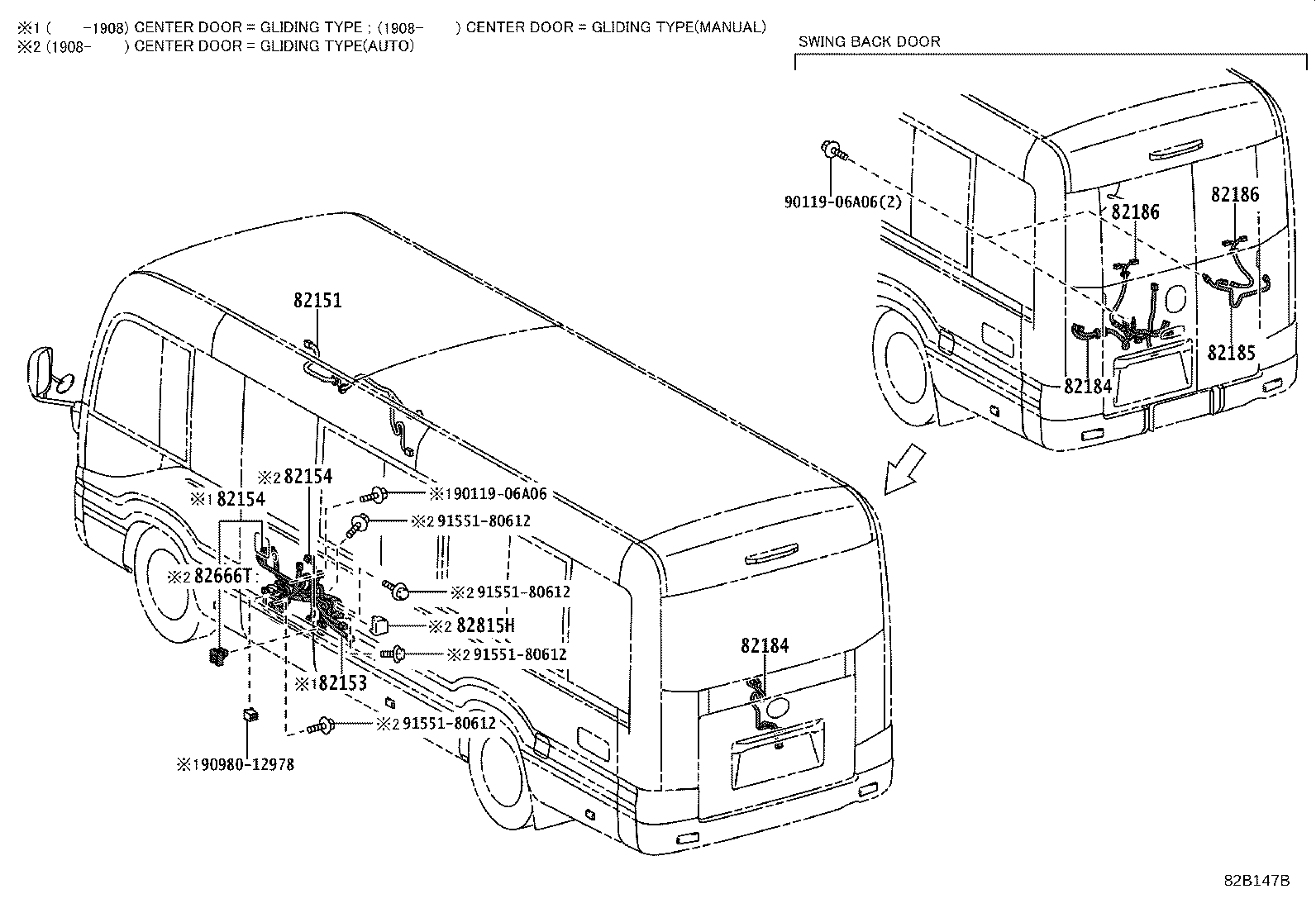

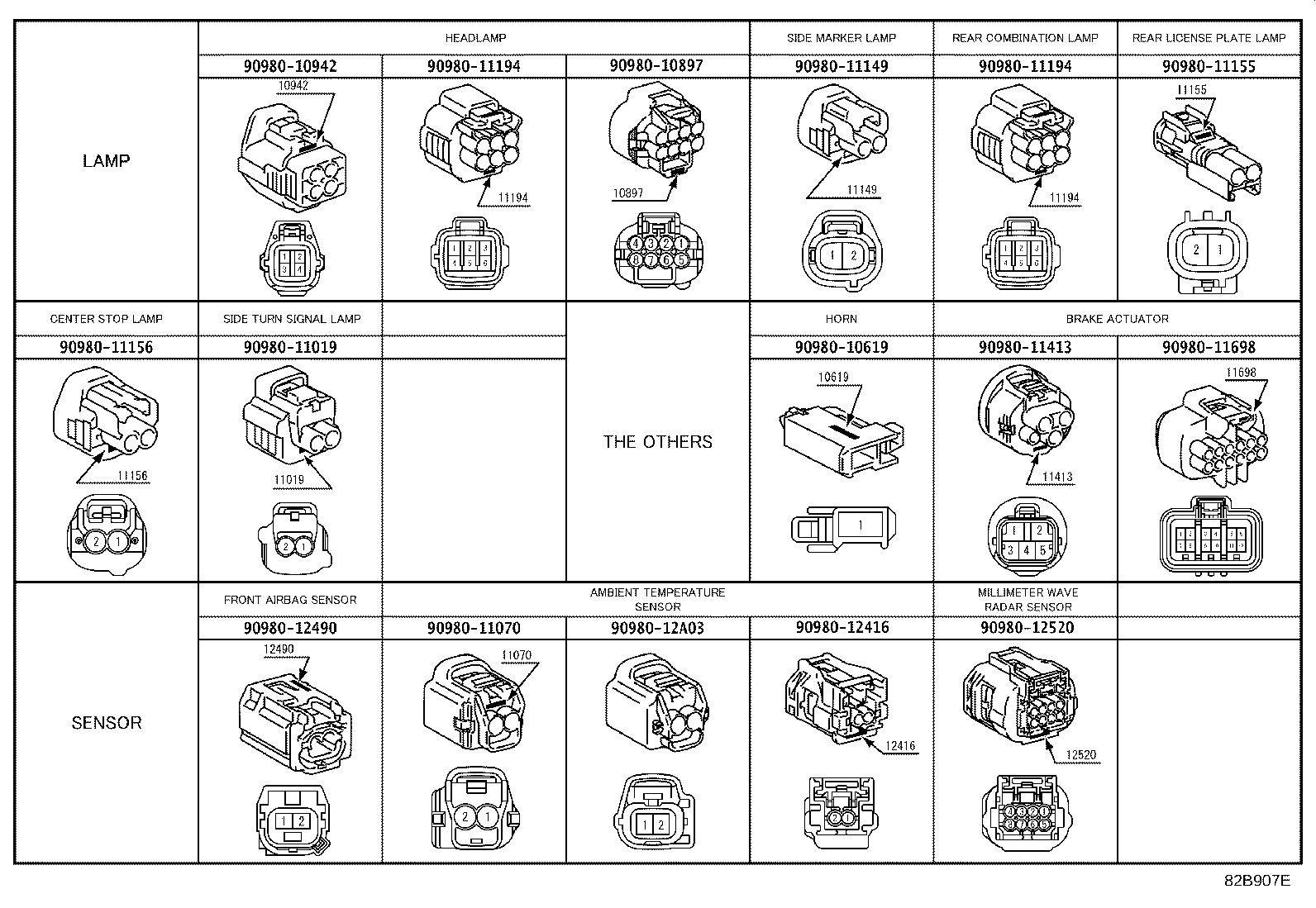

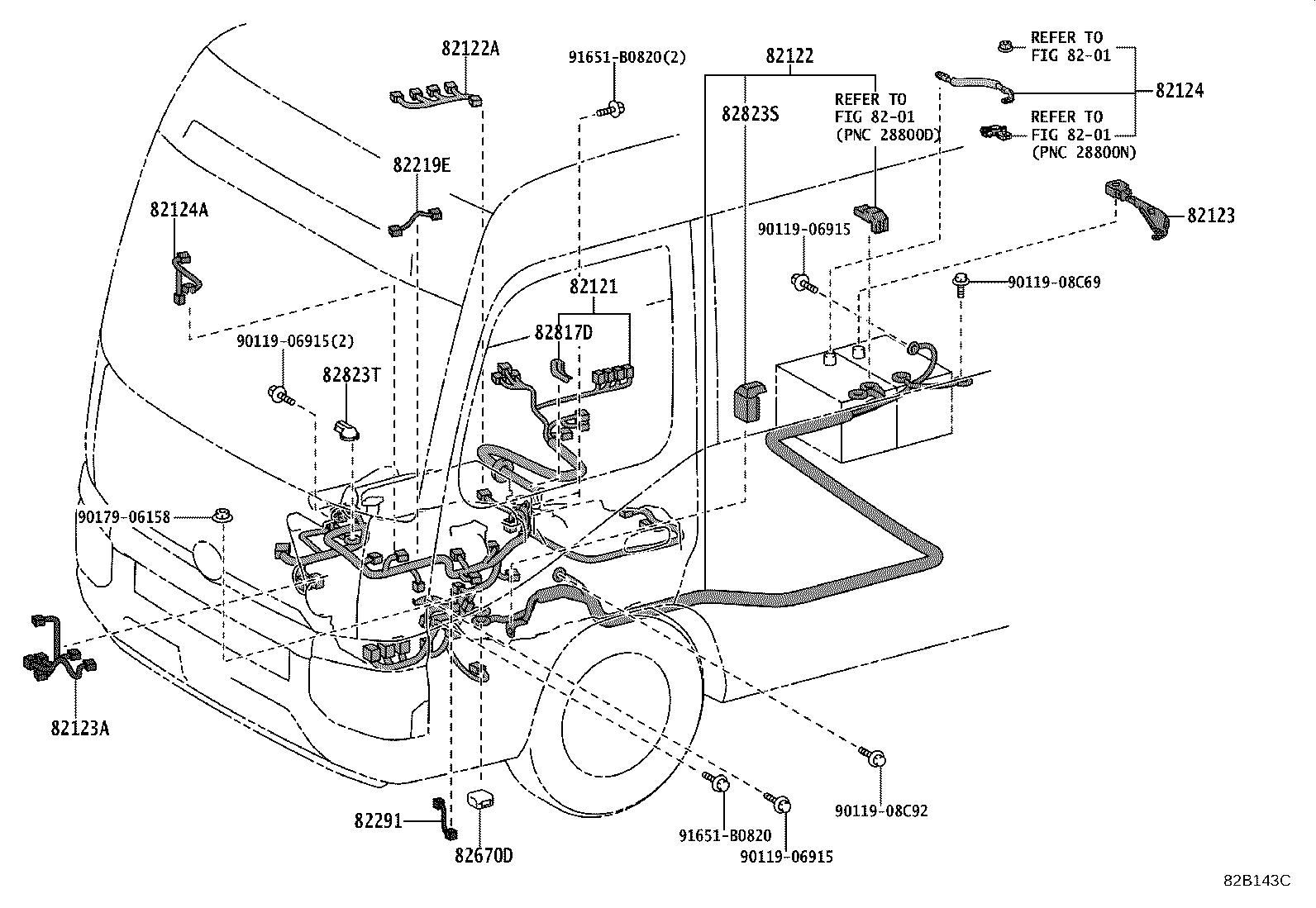

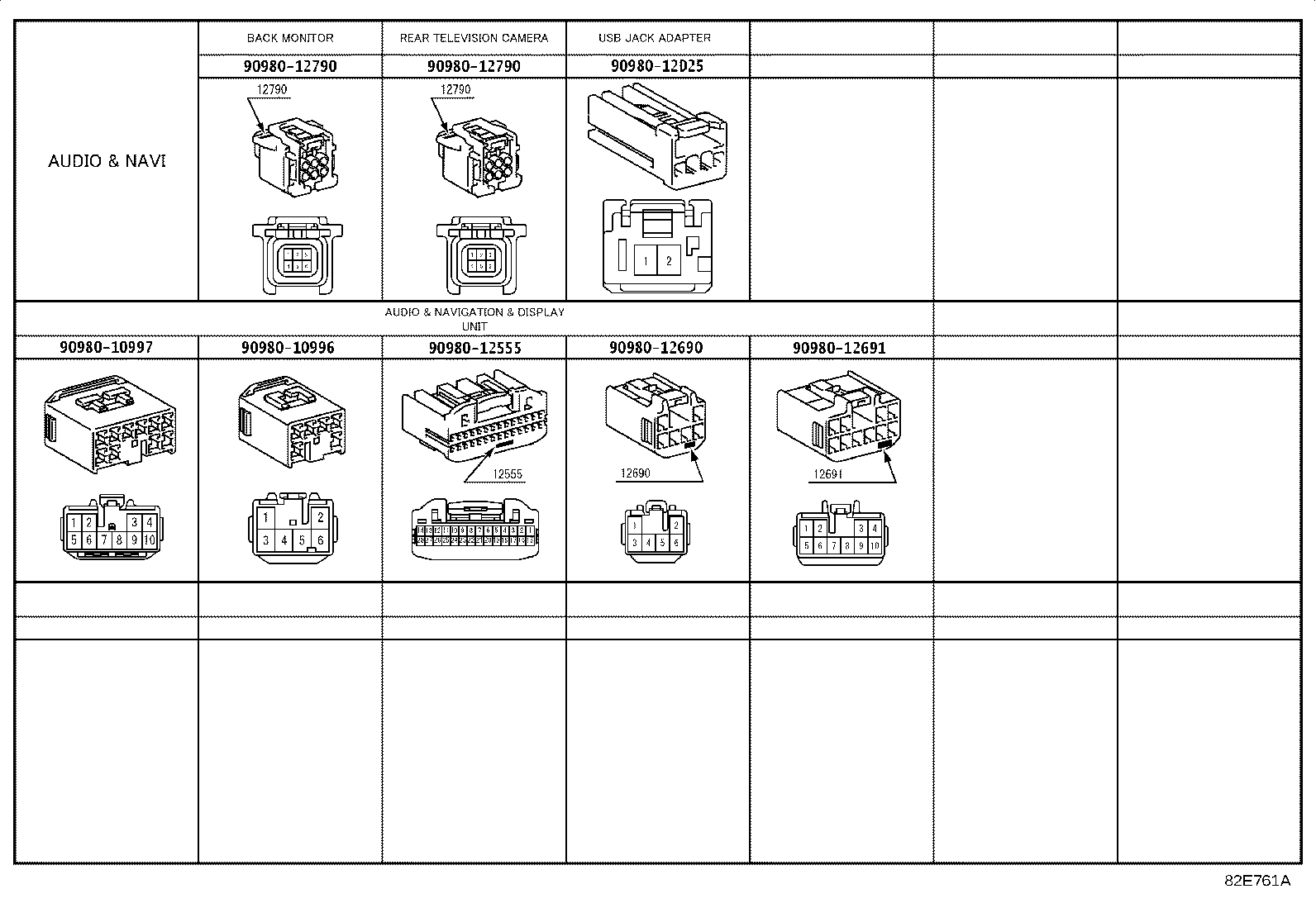

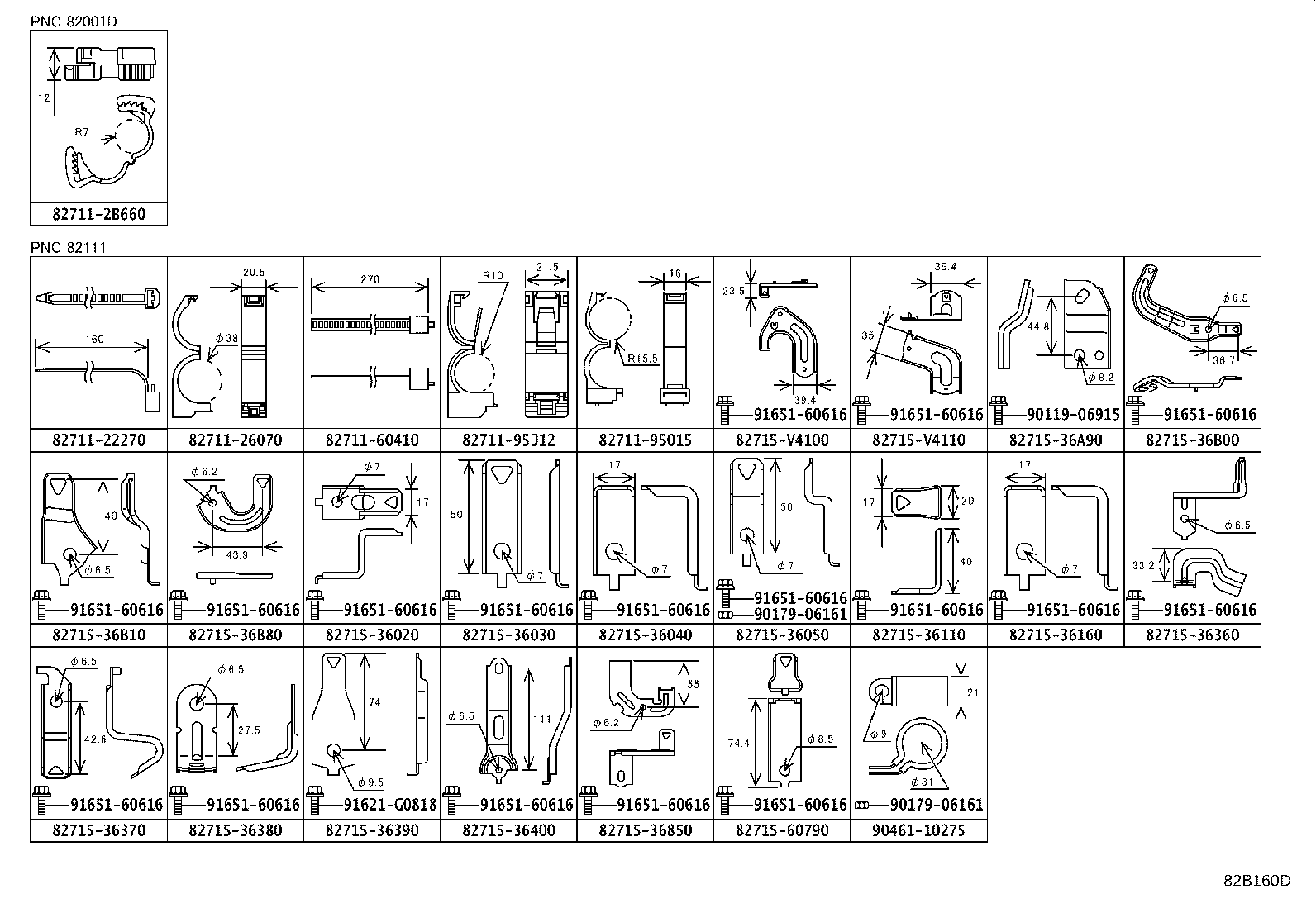

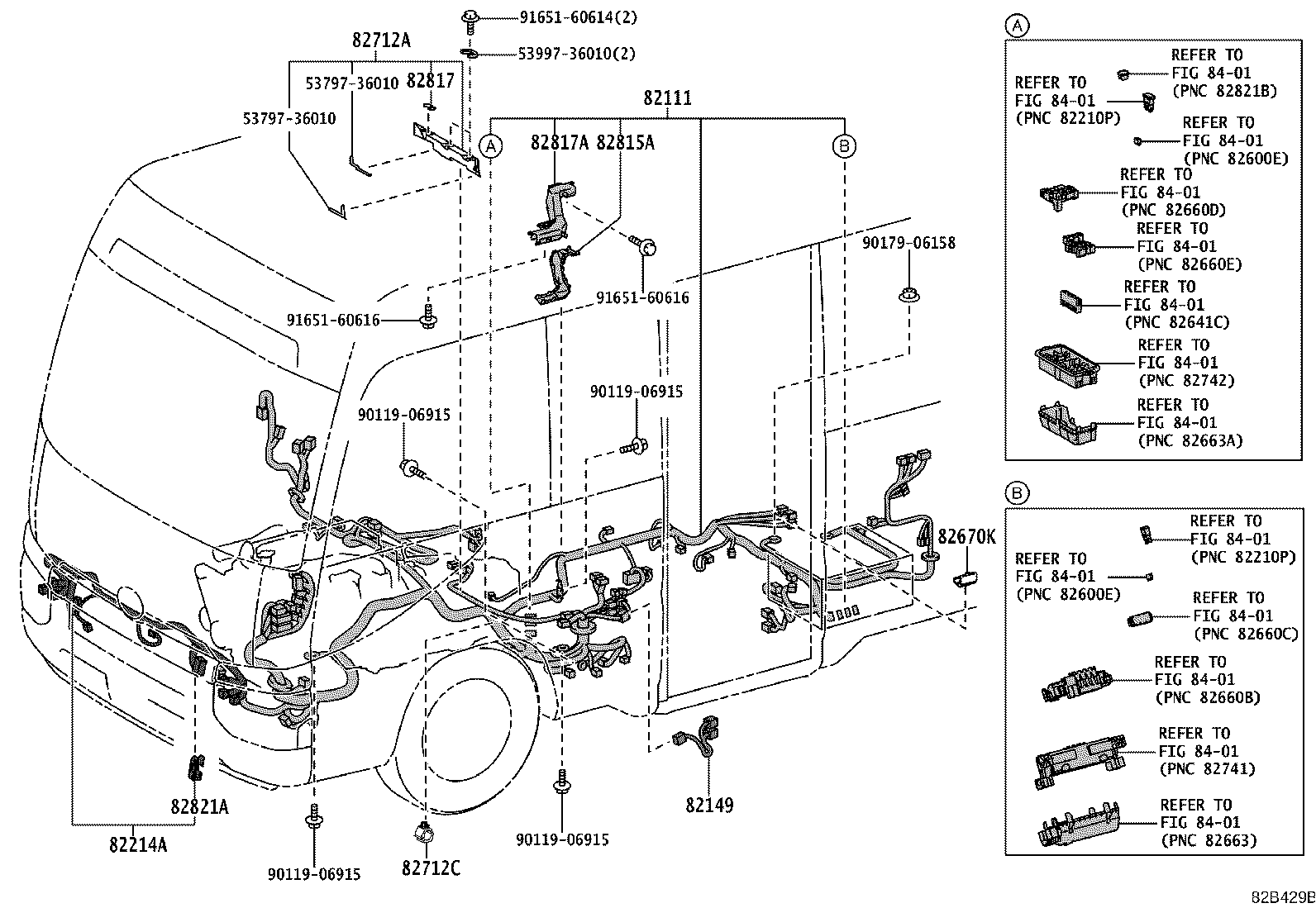

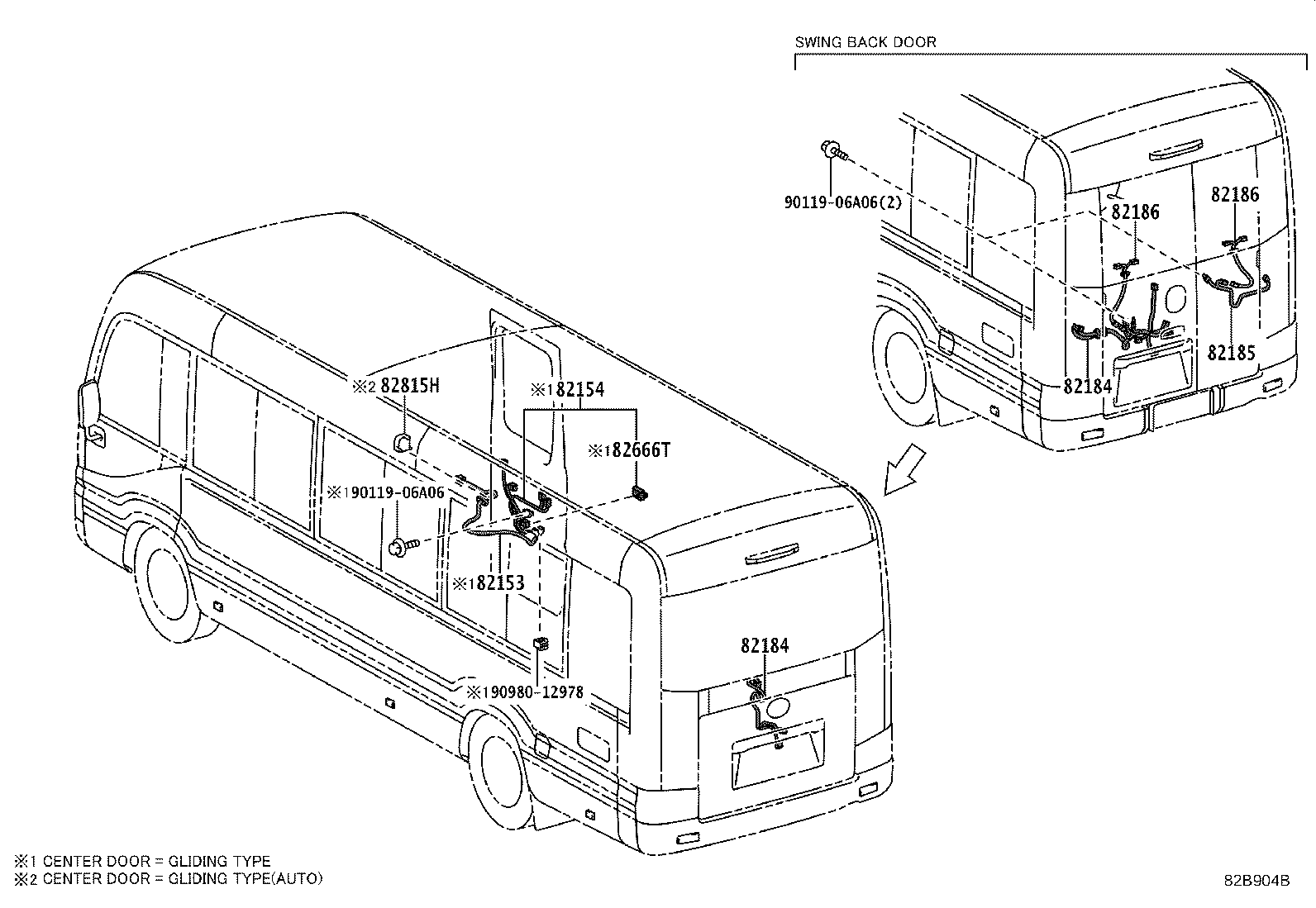

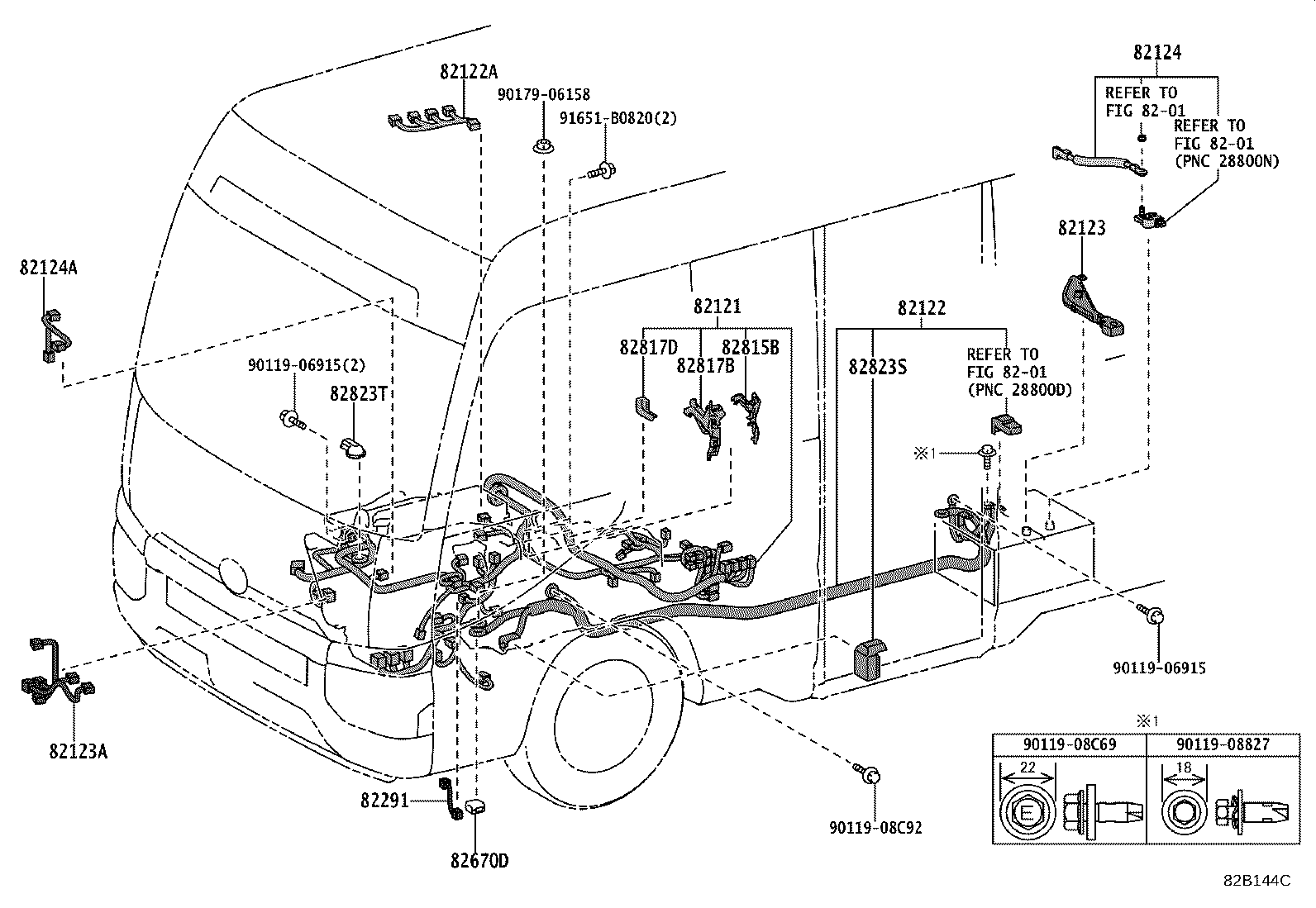

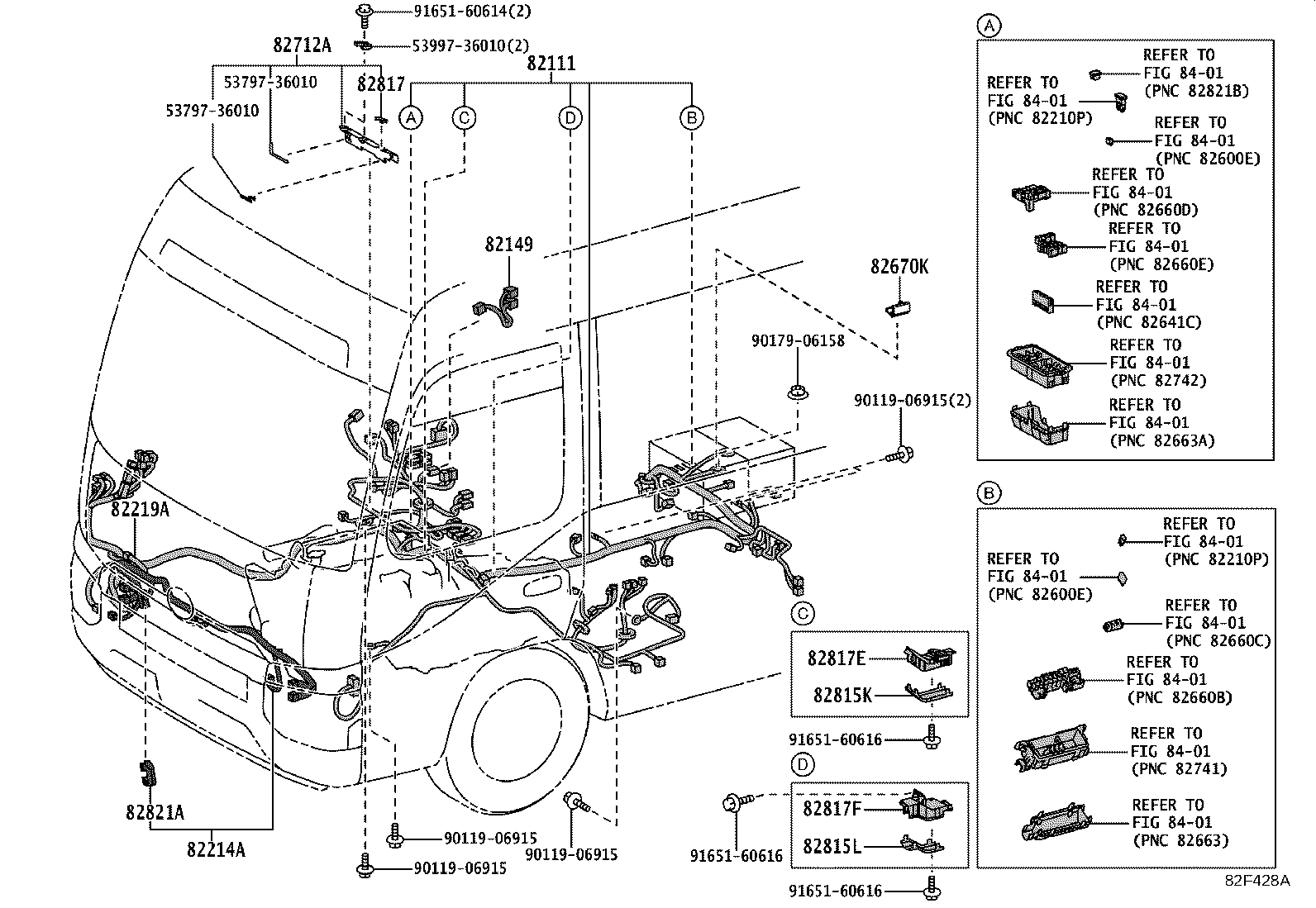

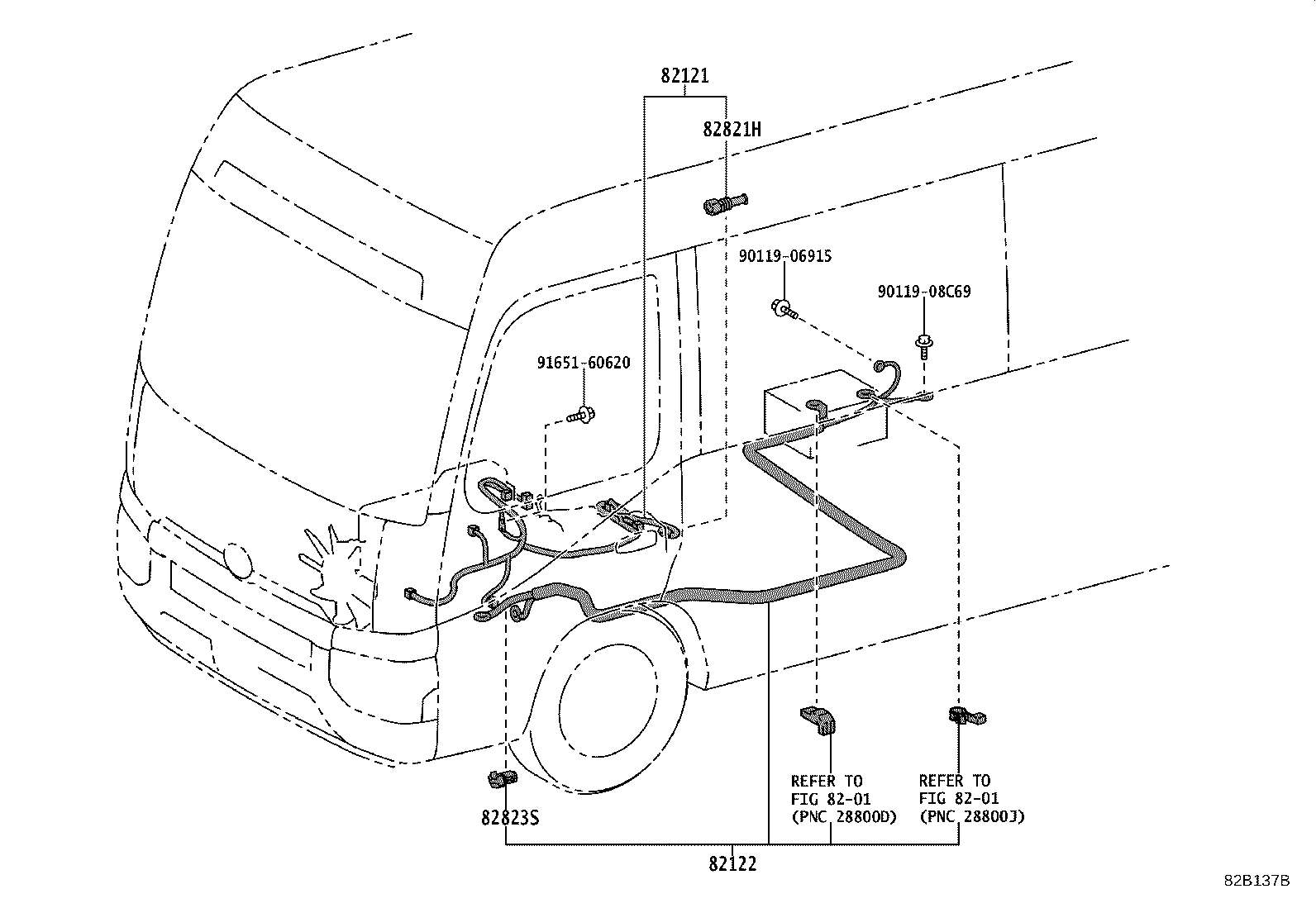

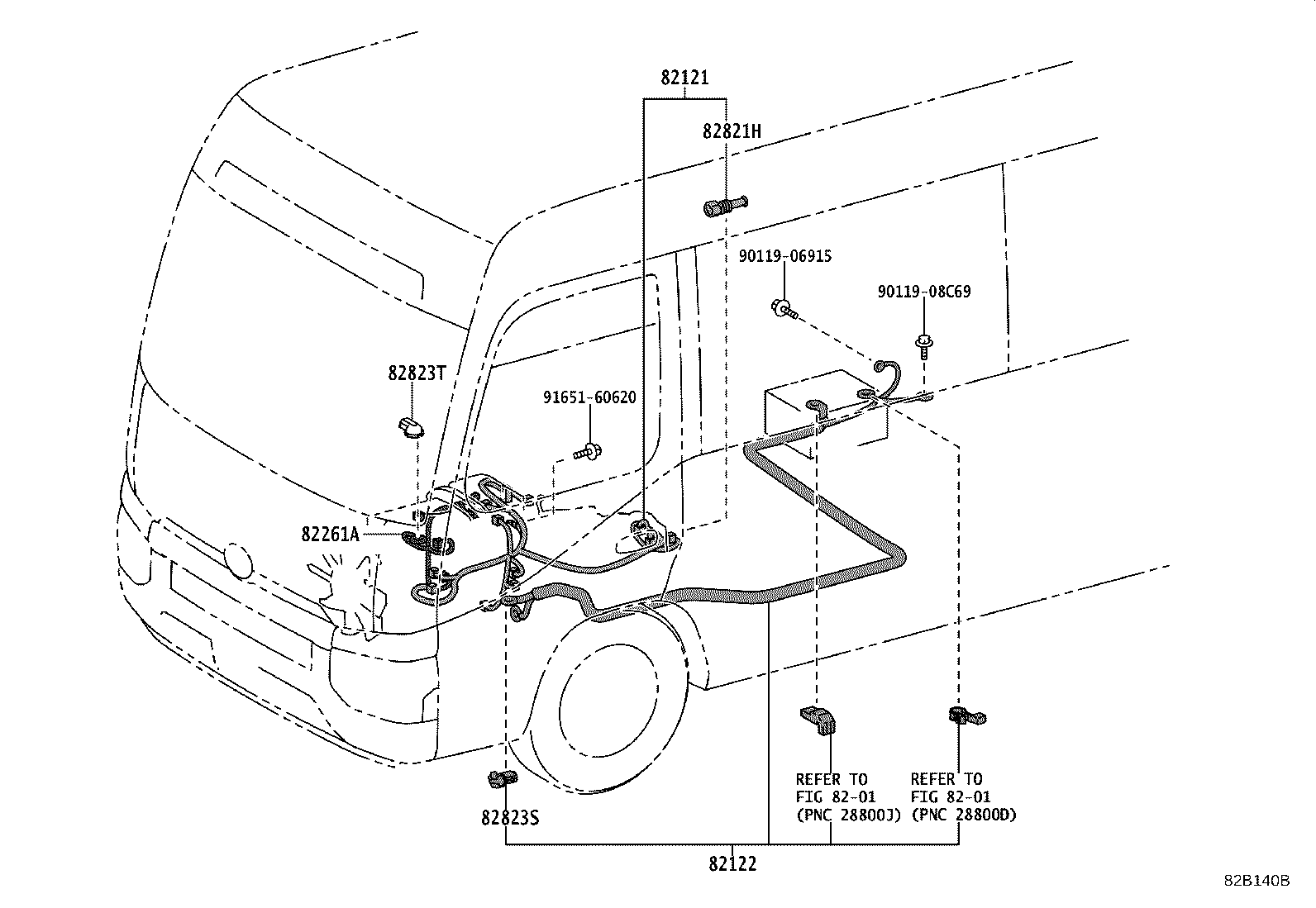

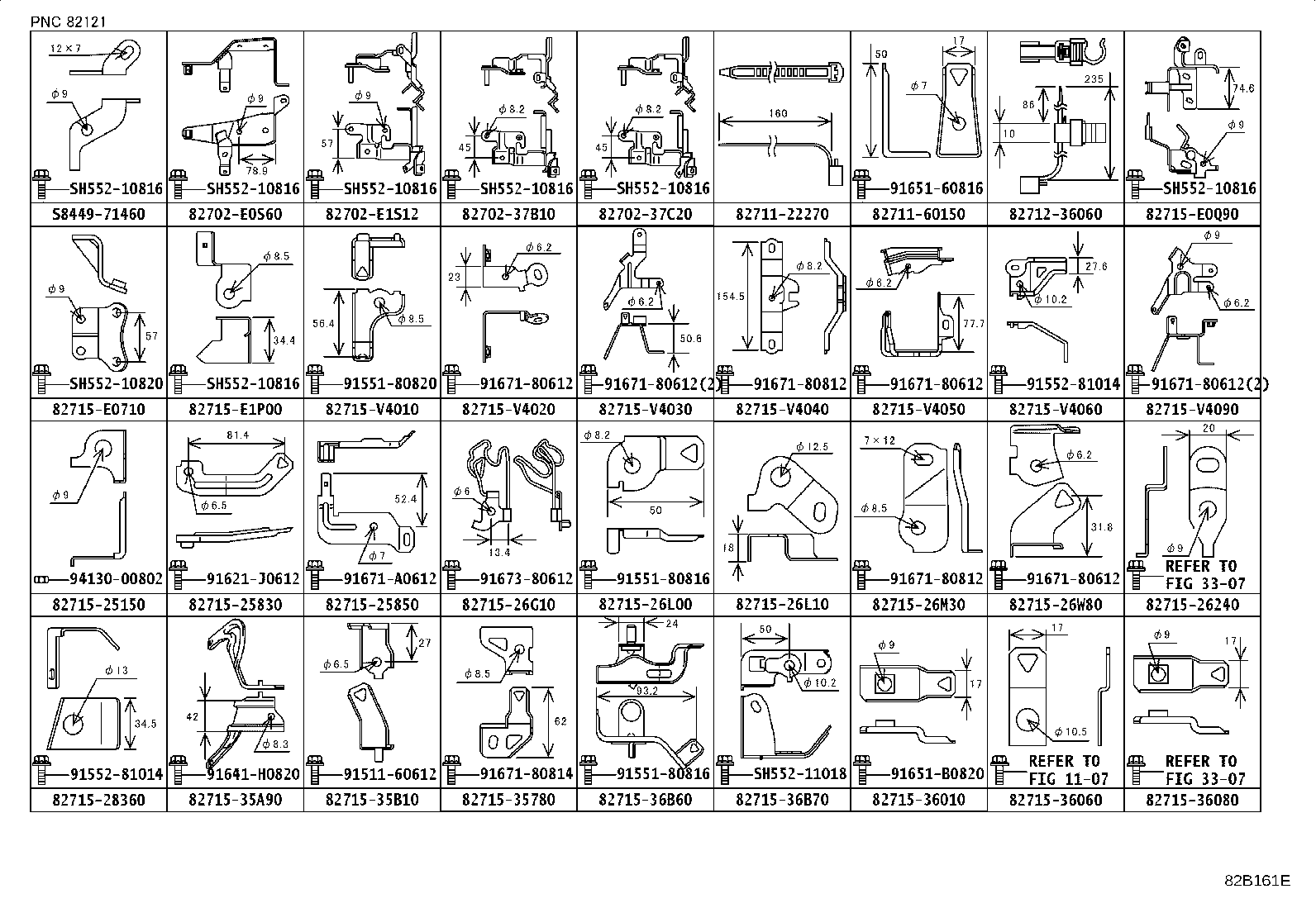

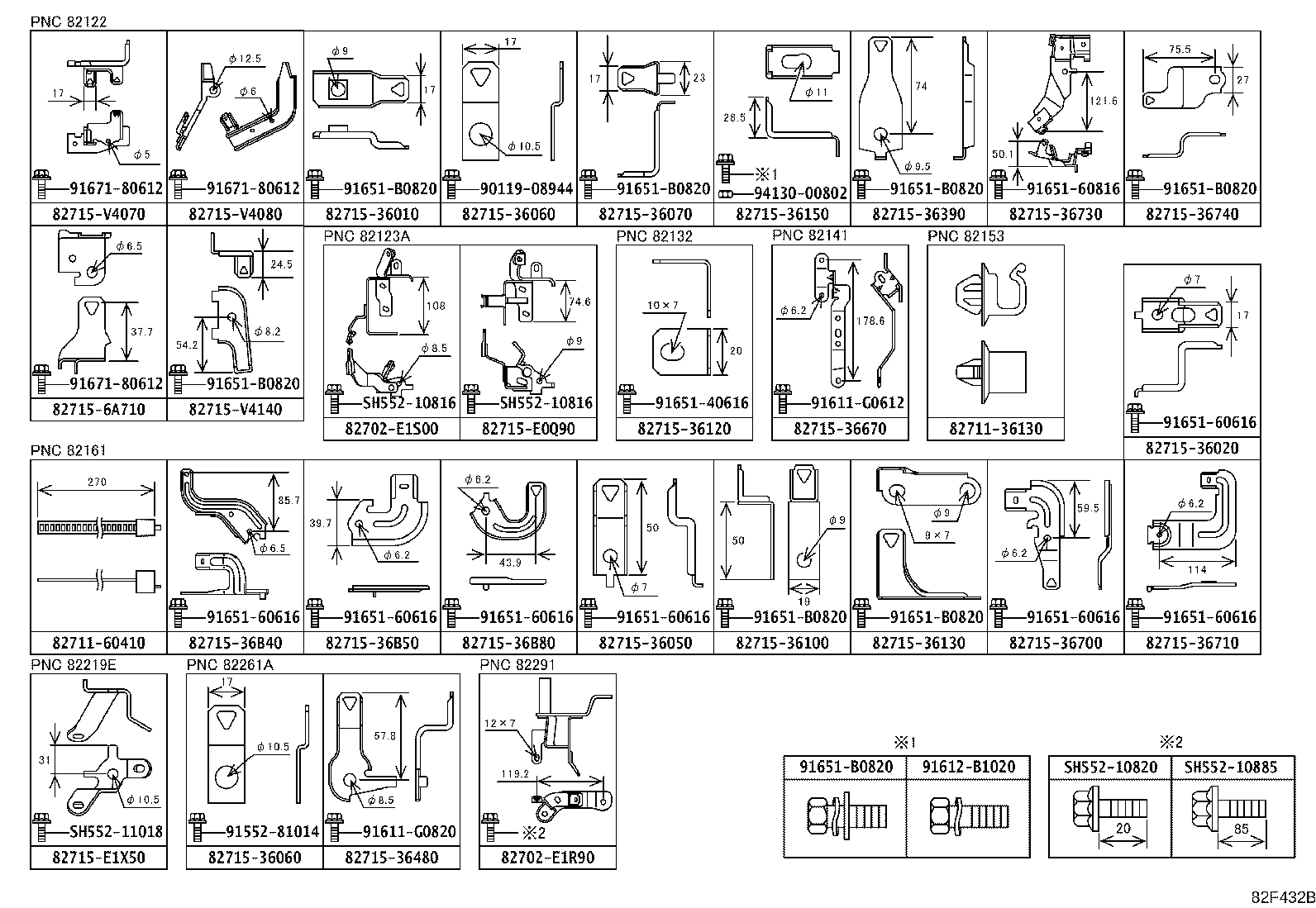

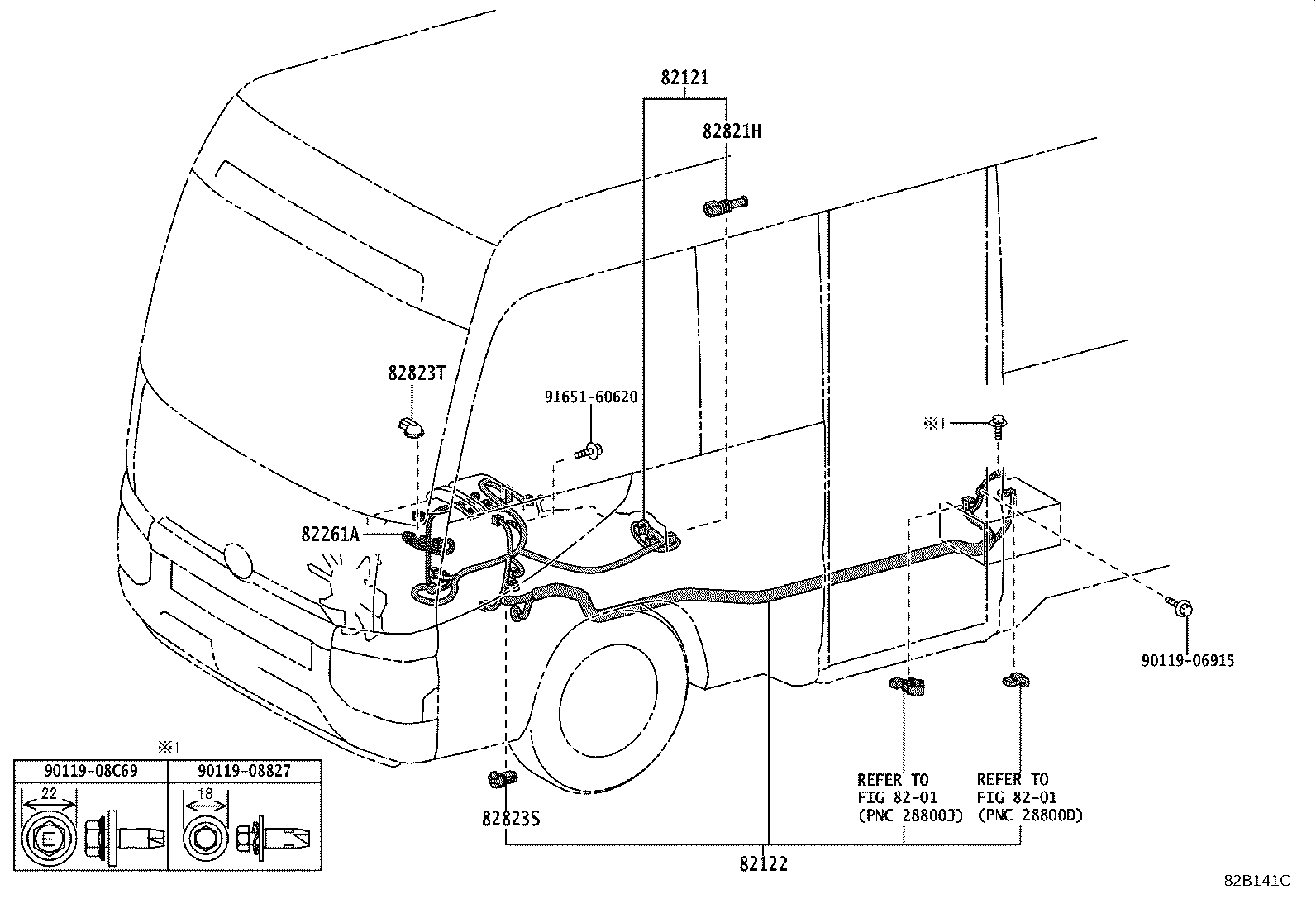

Figure 82B145H 82B145H 2017-01 → — Figure 82B148G 82B148G 2017-01 → — Figure 82F428A 82F428A 2022-01 → — Figure 82F429B 82F429B 2022-01 → — Figure 82B137B 82B137B 2017-01 → — Figure 82B138B 82B138B 2017-01 → — Figure 82B139B 82B139B 2017-01 → — Figure 82B140B 82B140B 2017-01 → — Figure 82B141C 82B141C 2017-01 → — Figure 82B142B 82B142B 2017-01 → — Figure 82B143C 82B143C 2017-01 → — Figure 82B144C 82B144C 2017-01 → — Figure 82F430 82F430 2022-01 → — Figure 82F431 82F431 2022-01 → — Figure 82B130G 82B130G 2017-01 → — Figure 82B131B 82B131B 2017-01 → — Figure 82B904B 82B904B 2017-01 → — Figure 82B147B 82B147B 2017-01 → — Figure 82B134C 82B134C 2017-01 → — Figure 82B160D 82B160D 2017-01 → — Figure 82B161E 82B161E 2017-01 → — Figure 82B179F 82B179F 2017-01 → — Figure 82F432B 82F432B 2017-01 → — Figure 82B149 82B149 2017-01 → — Figure 82B907E 82B907E 2017-01 → — Figure 82E761A 82E761A 2017-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82122A Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82149 Wire, Pillar, NO.3
82151 Wire, Front Door, RH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82175 Wire, Roof, NO.5
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82261A Wire, Alternator
82281 Wire, Gage
82291 Wiring, TO Solenoid
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666X Holder, Connector NO.17
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82670K Block Assy, Junction,NO.3
82671 Block, Junction
82712A Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
