Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

18 part groups · 4 illustrations

Illustrations

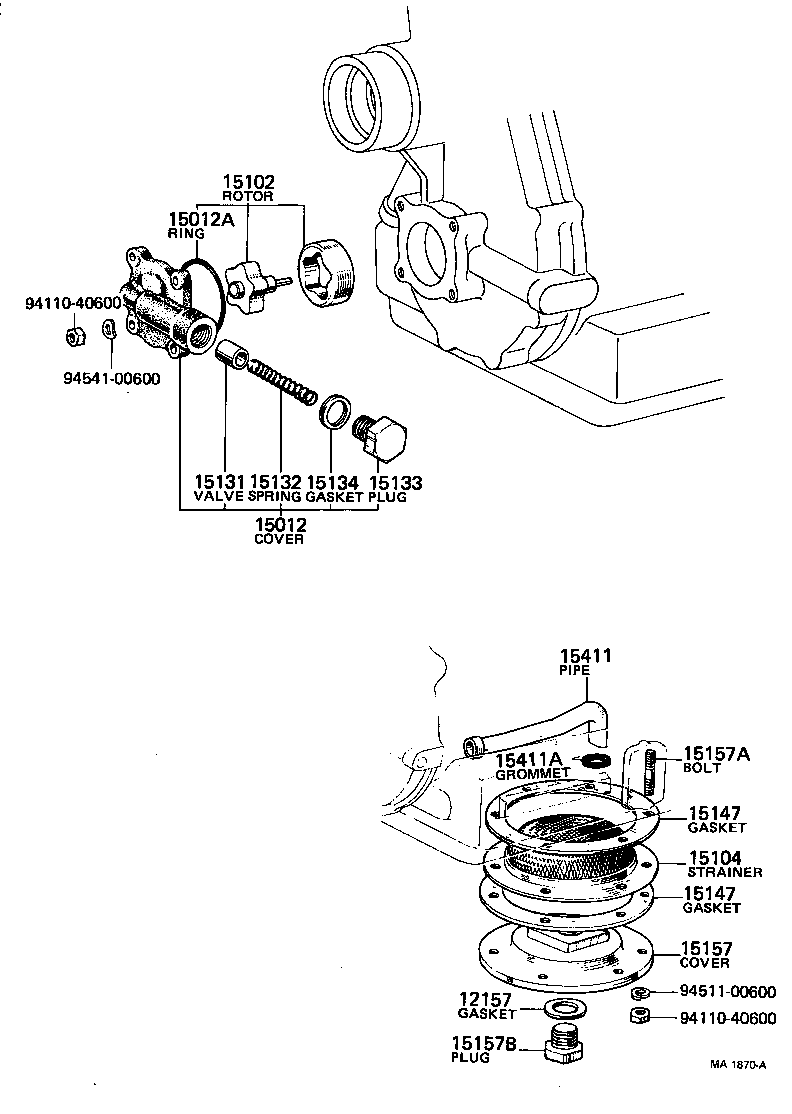

Figure MA2067 MA2067 1969-04 → 1977-05 Figure MA3003B MA3003B 1977-05 → 1985-09 Figure MA8254 MA8254 1985-09 → — Figure MA1870A MA1870A 1969-04 → 1971-12

Part groups

PNCDescription
12157 Gasket, Drain Plug(FOR OIL STRAINER COVER)
15012 Cover Sub-assy, Oil Pump
15012A Ring, O(FOR OIL PUMP COVER)
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15157 Cover, Oil Strainer
15157A Bolt, Stud(FOR OIL STRAINER COVER)
15157B Plug, W/Head Straight Screw
15411 Pipe, Oil Pump Inlet
15411A Grommet(FOR OIL PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
