Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

20 part groups · 7 illustrations

Illustrations

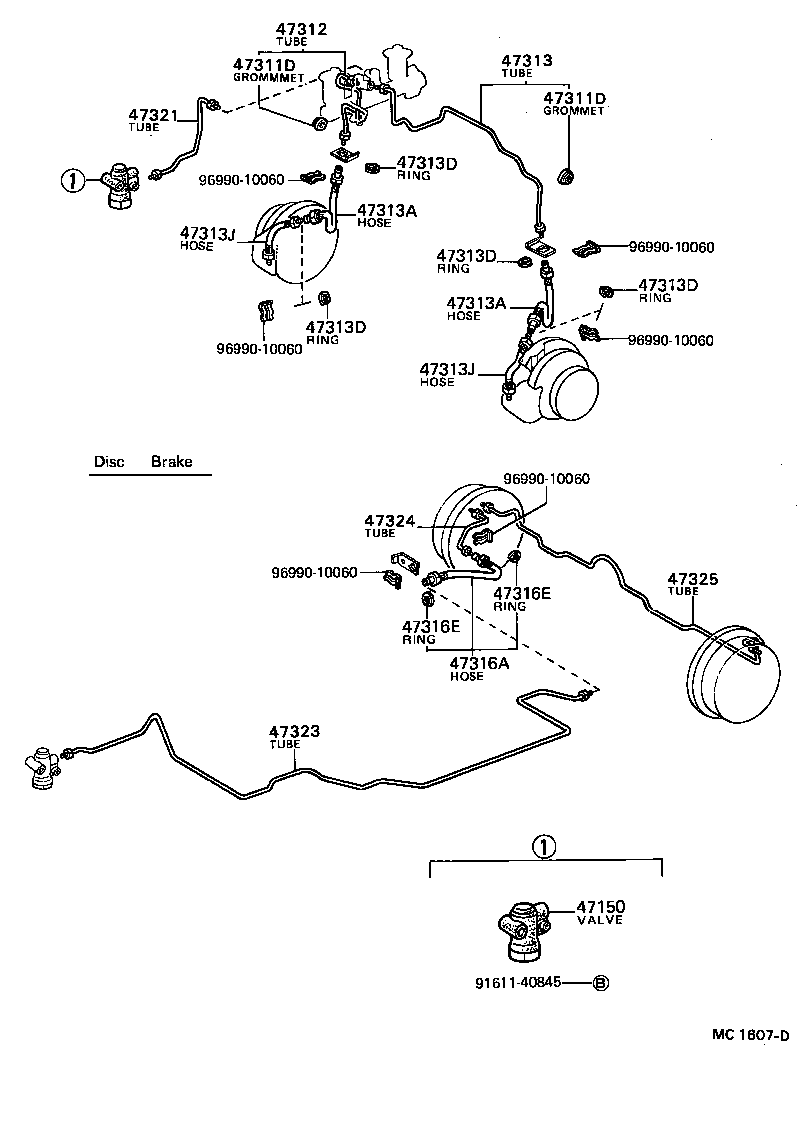

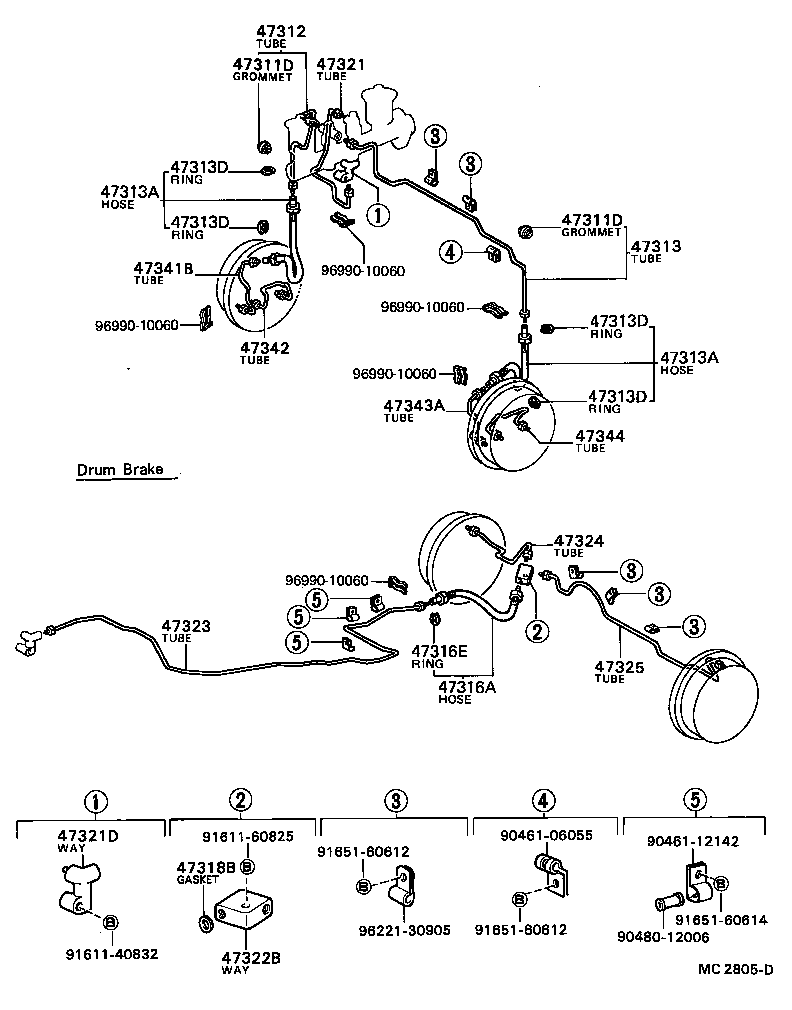

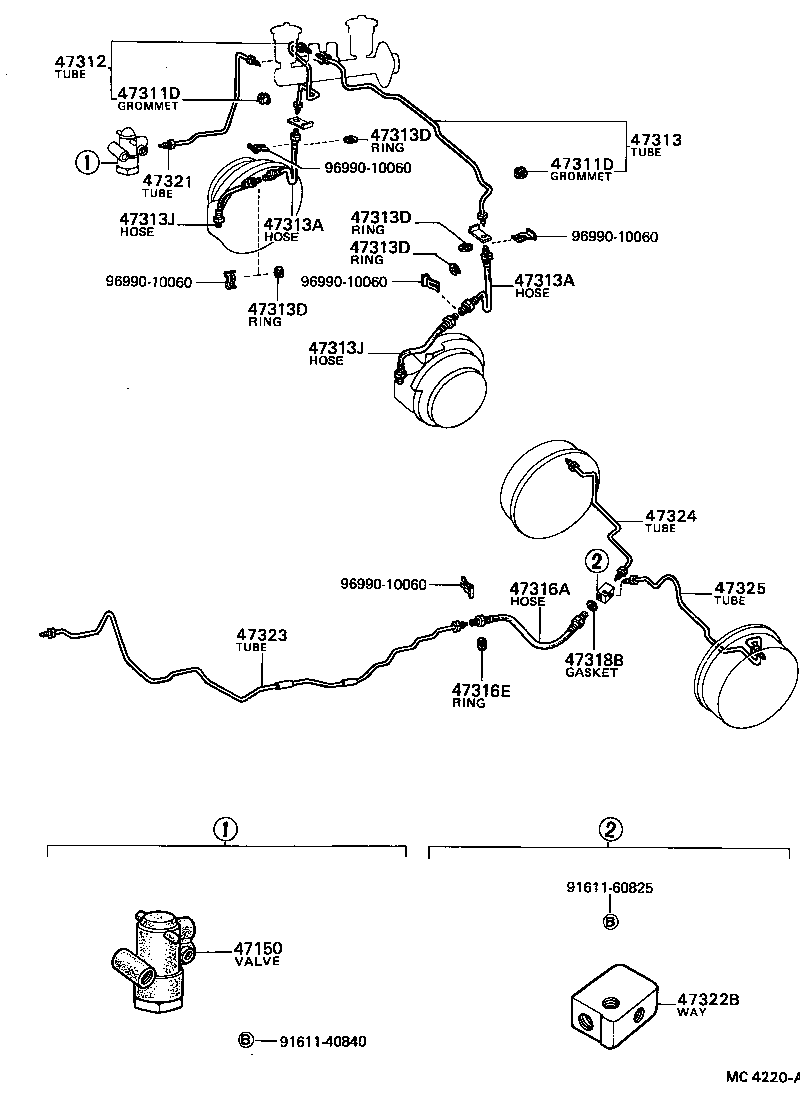

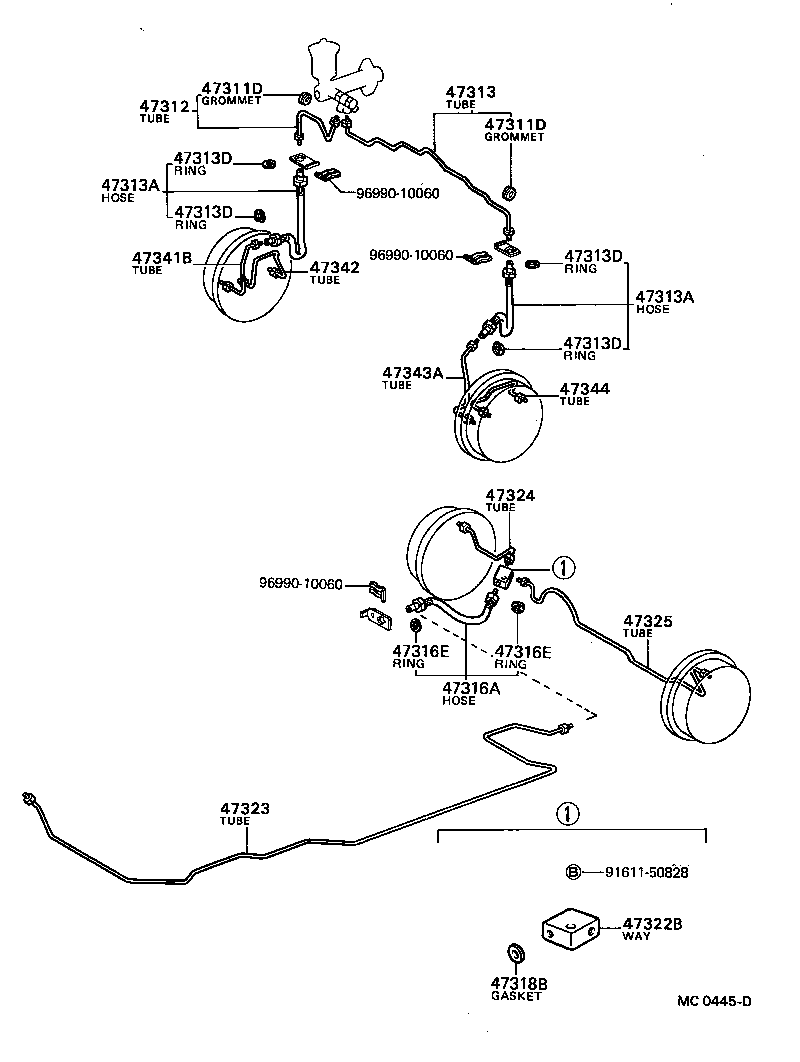

Figure MC1606C MC1606C 1969-04 → 1970-04 Figure MC1606C MC1606C 1970-04 → 1973-10 Figure MC0445D MC0445D 1970-04 → 1973-10 Figure MC2805D MC2805D 1973-10 → — Figure MC1607D MC1607D 1972-01 → 1973-10 Figure MC4220A MC4220A 1973-10 → 1975-11 Figure MC4220A MC4220A 1975-11 → 1979-07

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47311D Grommet(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47316E Ring, E(FOR REAR FLEXIBLE HOSE)
47318B Gasket(FOR REAR RH BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
