Toyota Publica

1969-04 → 1988-08 · chassis UP3#,KP3#,50 · catalogue 111110 · Japan

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

20 part groups · 10 illustrations

Illustrations

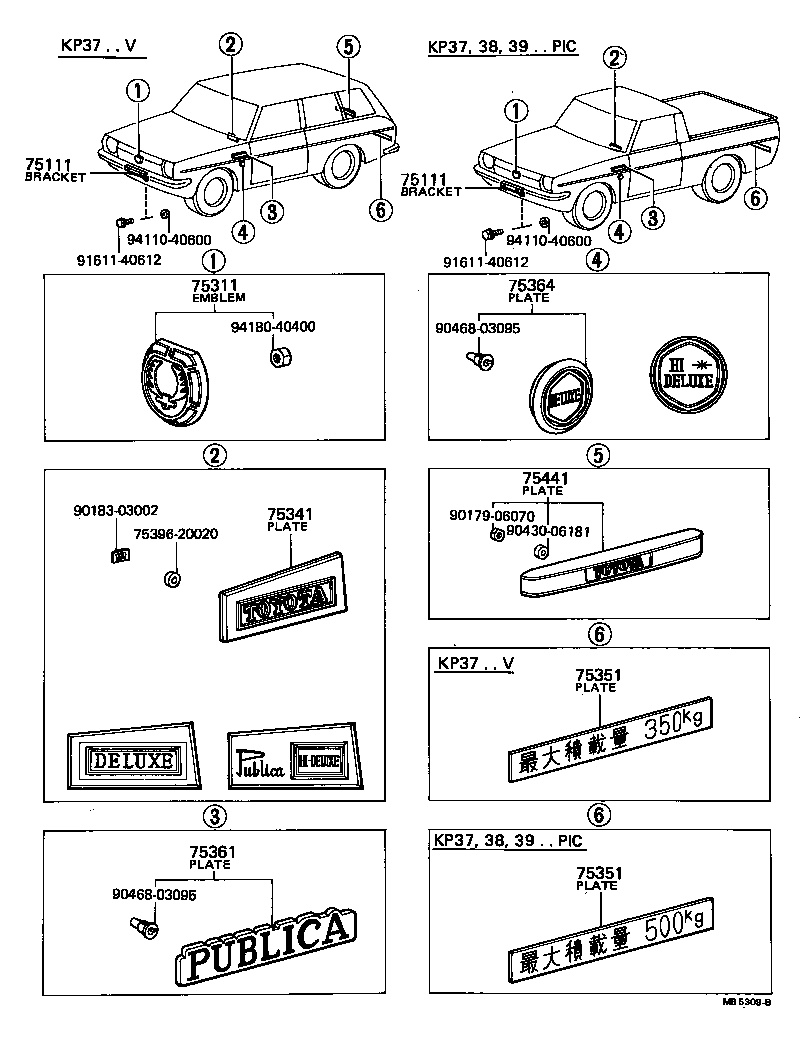

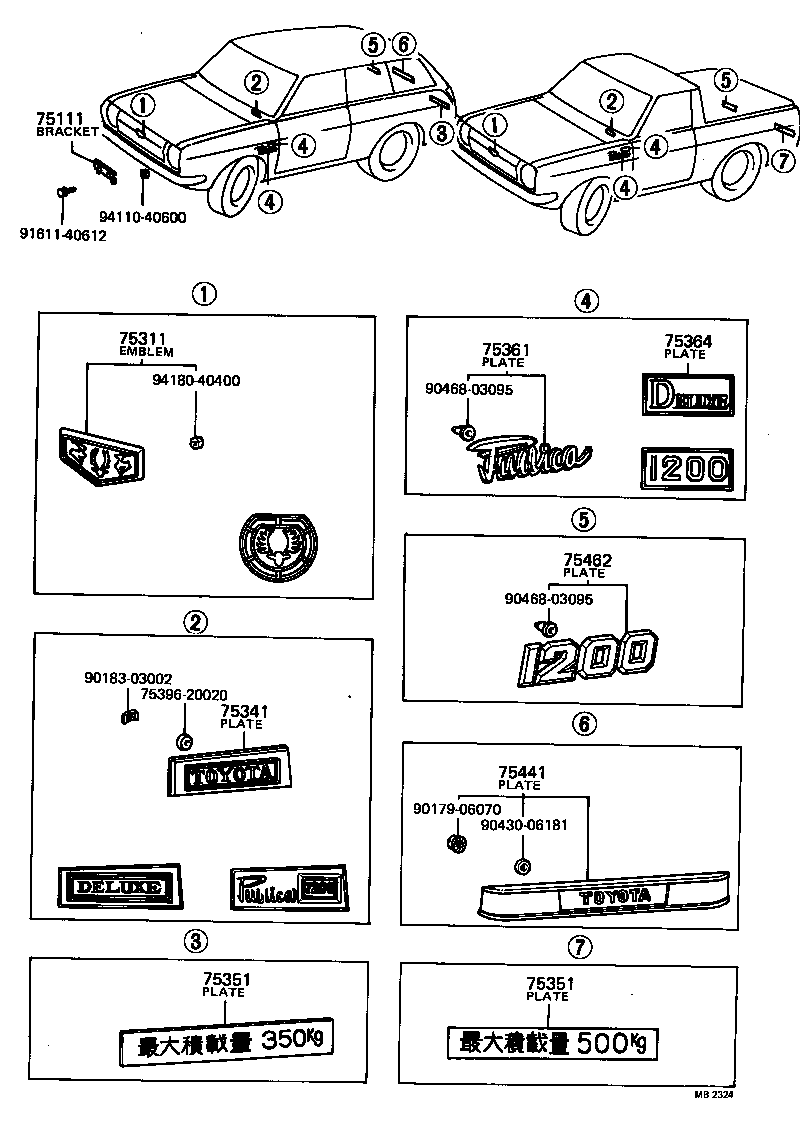

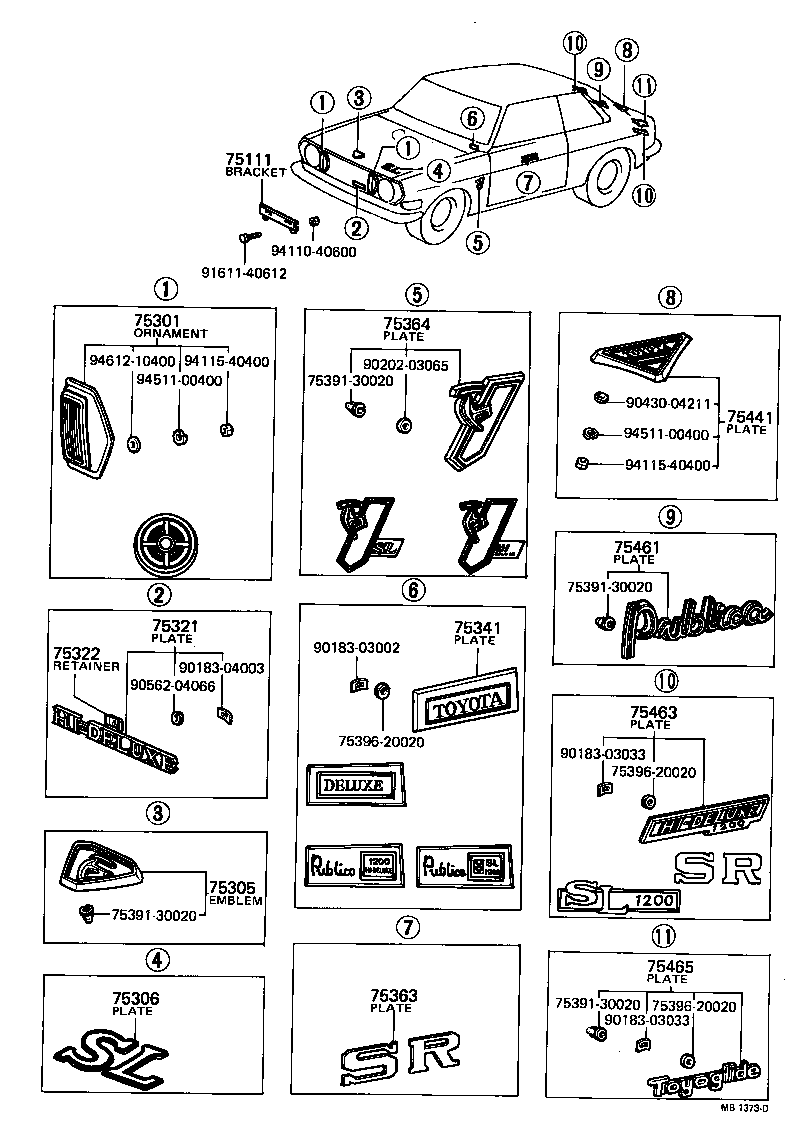

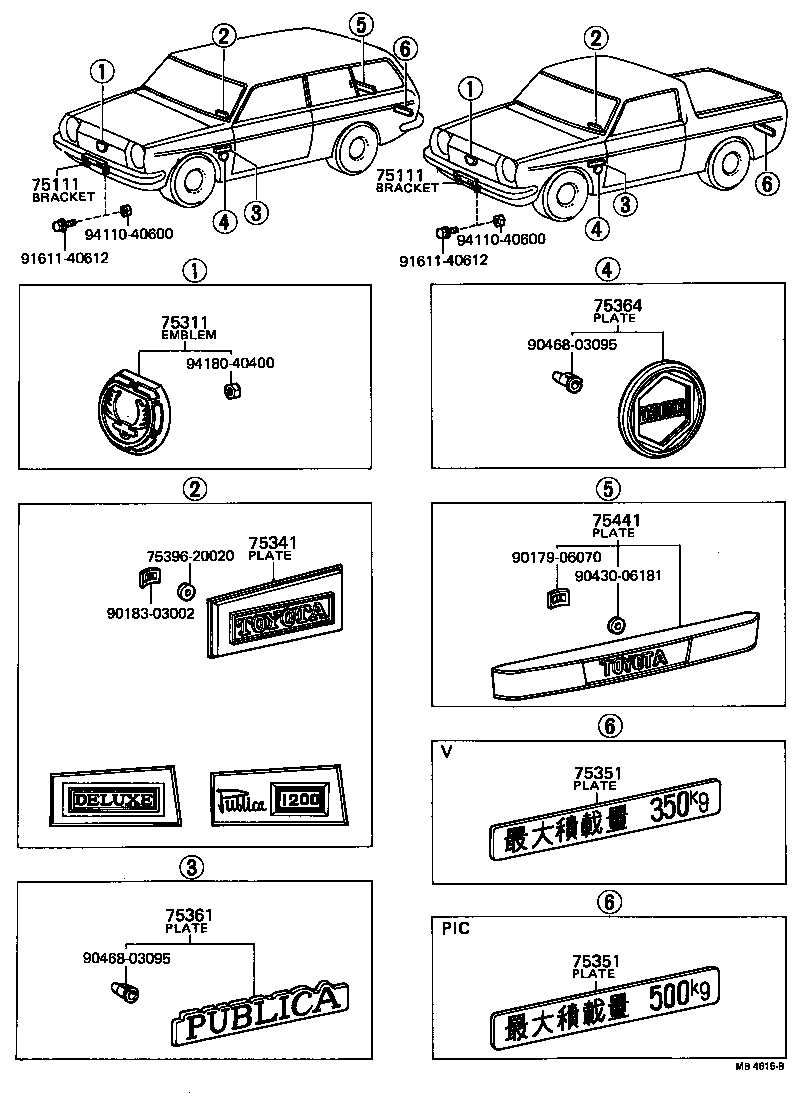

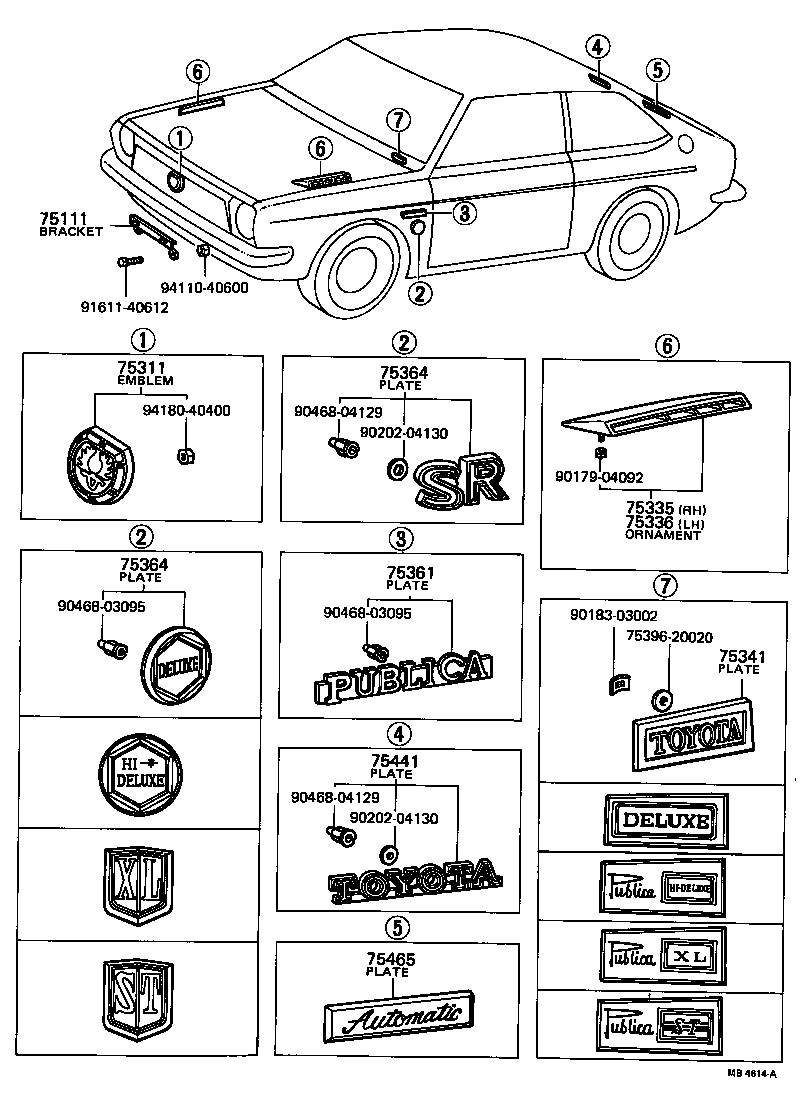

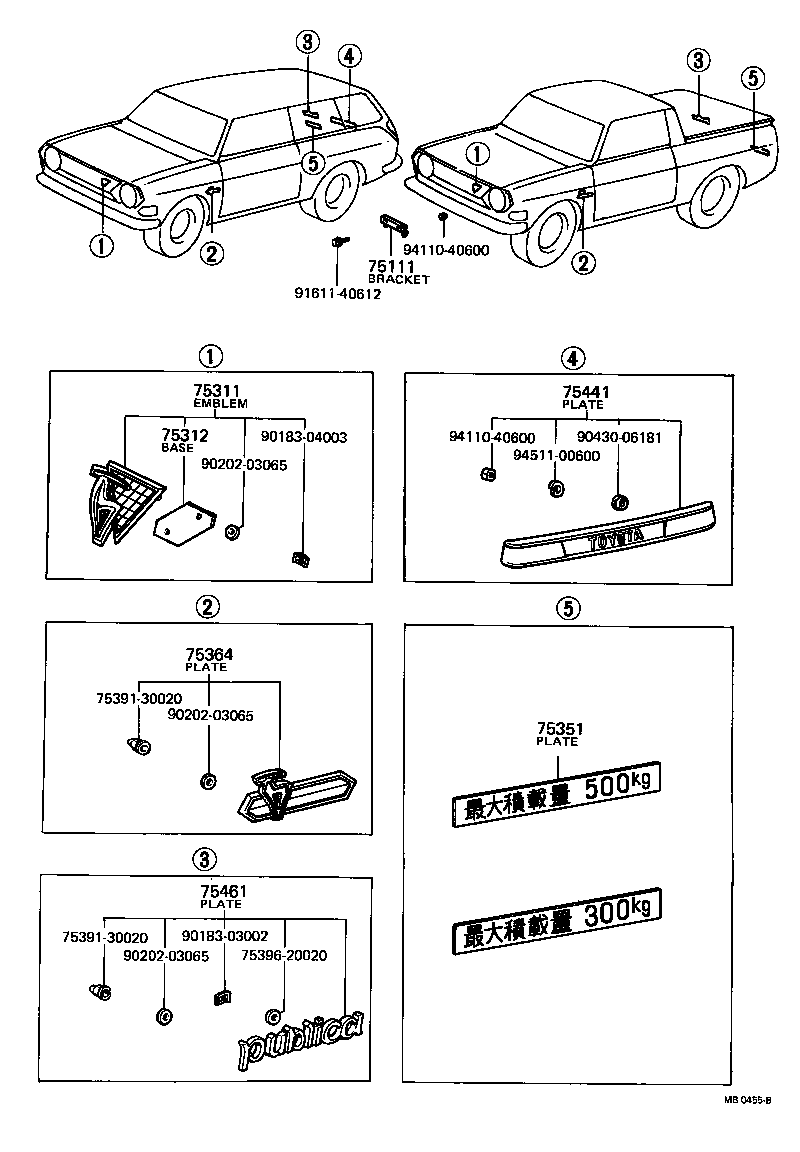

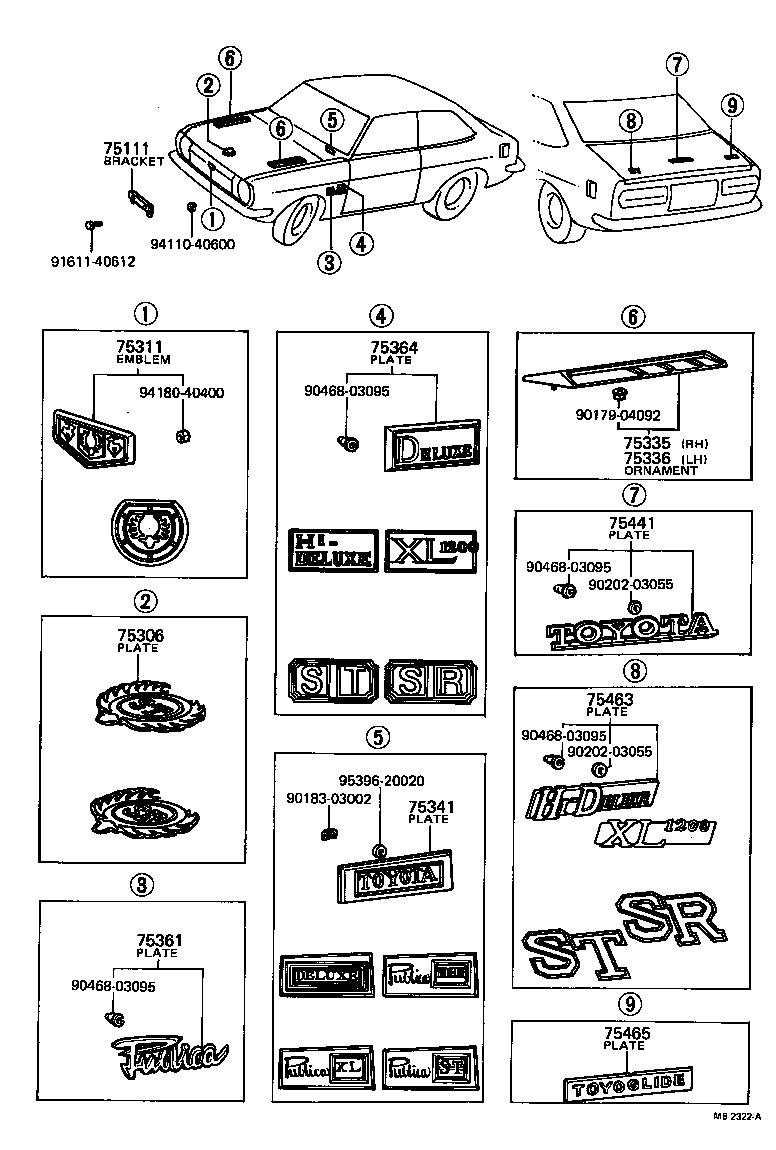

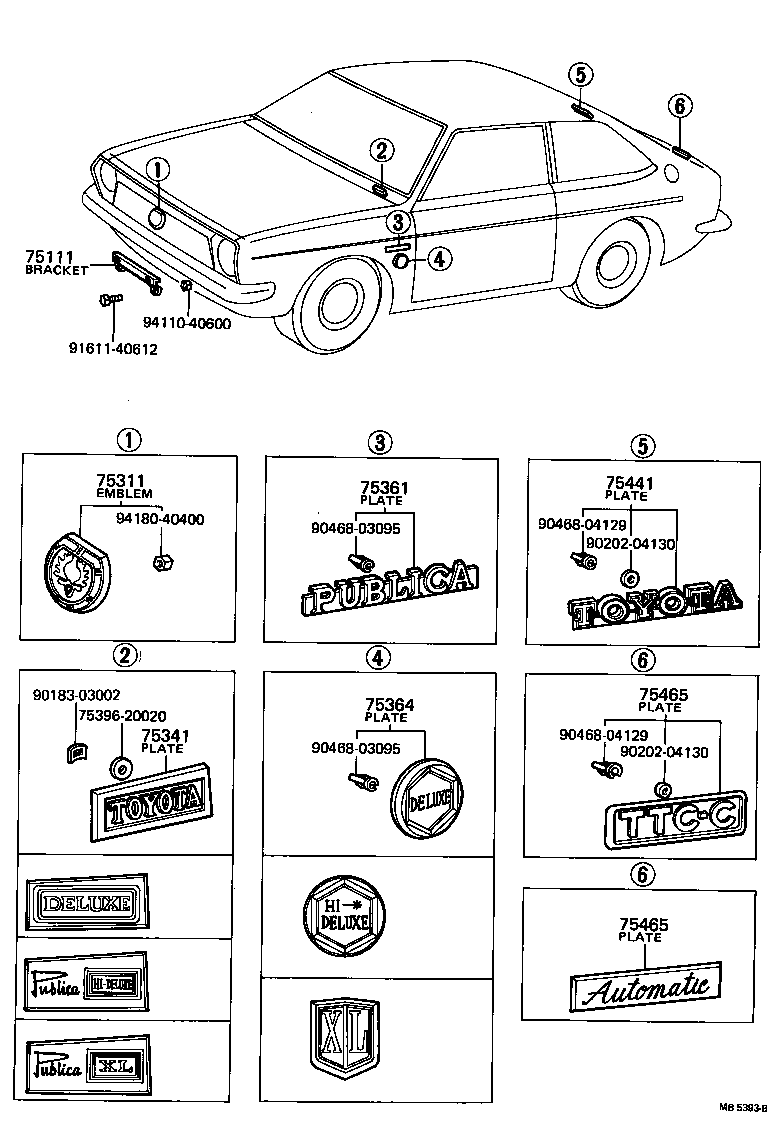

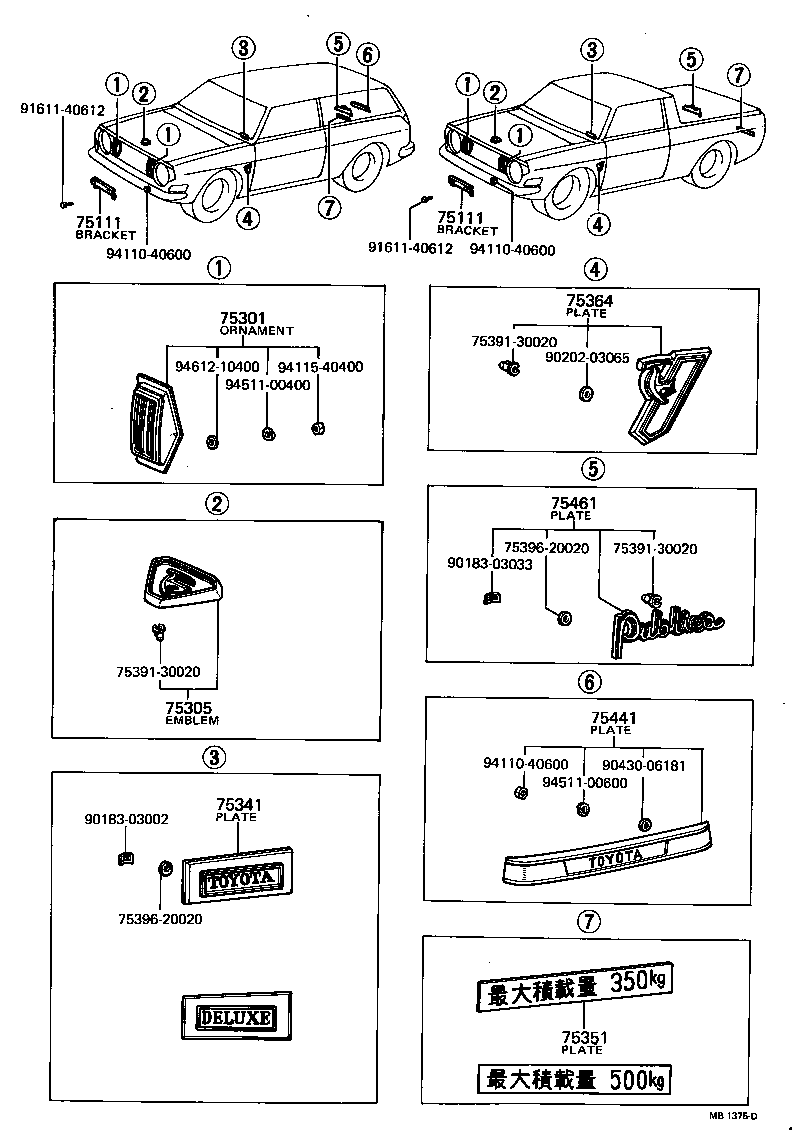

Figure MB0454B MB0454B 1969-04 → 1970-10 Figure MB1373D MB1373D 1970-10 → 1971-12 Figure MB2322A MB2322A 1972-01 → 1974-10 Figure MB4614A MB4614A 1974-10 → 1975-11 Figure MB5393B MB5393B 1976-01 → 1978-02 Figure MB0455B MB0455B 1969-04 → 1970-10 Figure MB1375D MB1375D 1970-10 → 1971-12 Figure MB2324 MB2324 1972-01 → 1974-10 Figure MB4615B MB4615B 1974-10 → 1975-11 Figure MB5309B MB5309B 1975-11 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75305 Emblem, Hood
75306 Plate, Hood Name
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75335 Ornament, Hood Relief, RH
75336 Ornament, Hood Relief, LH
75341 Plate, Instrument Panel Name, NO.1
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75363 Plate, Door Name
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
