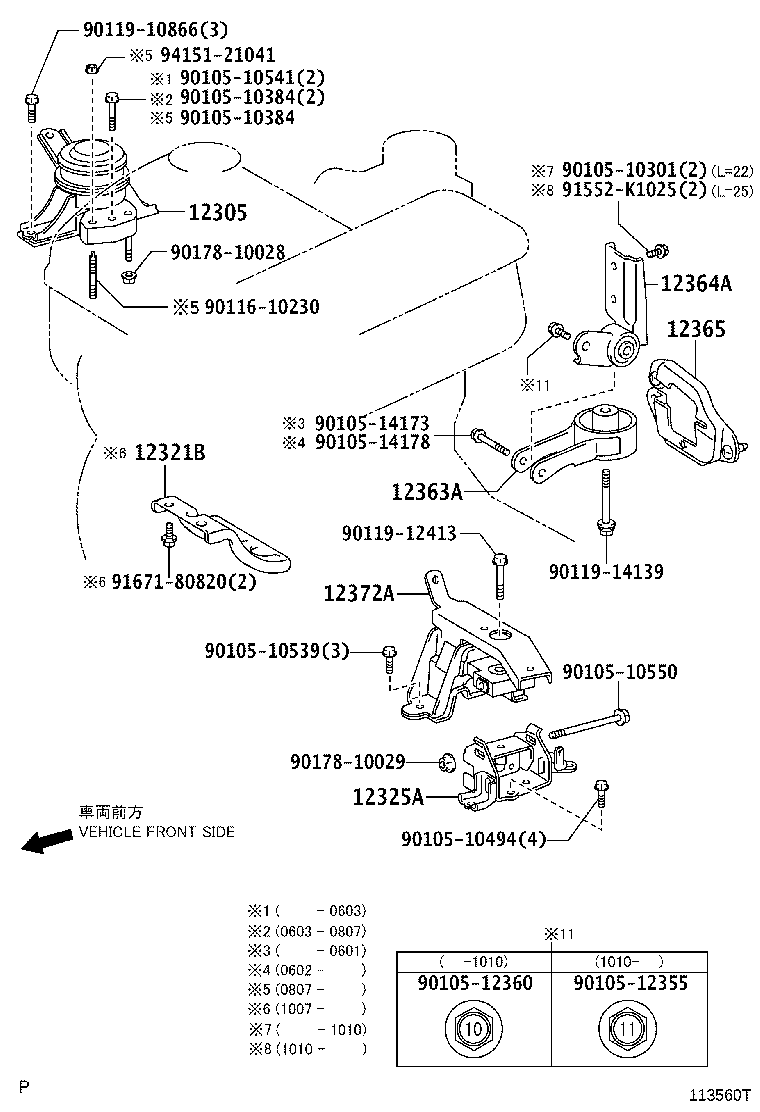

Exploded illustration 113560T 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (17 parts) 12364A — ROD, ENGINE LATERAL CONTROL (14 parts) 12363A — ROD, ENGINE MOVING CONTROL (17 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (18 parts) 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (18 parts) 9011910866 — not listed in this catalogue 9010510541 — not listed in this catalogue 9017810028 — not listed in this catalogue 9010514173 — not listed in this catalogue 9011914139 — not listed in this catalogue 9011912413 — not listed in this catalogue 9010510550 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510494 — not listed in this catalogue 9017810029 — not listed in this catalogue 12365 — COVER, ENGINE MOVING CONTROL ROD (14 parts) 9010510384 — not listed in this catalogue 9010514178 — not listed in this catalogue 9010510384 — not listed in this catalogue 9415121041 — not listed in this catalogue 9011610230 — not listed in this catalogue 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (10 parts) 9167180820 — not listed in this catalogue 9010510301 — not listed in this catalogue 91552K1025 — not listed in this catalogue 9010512360 — not listed in this catalogue 9010512355 — not listed in this catalogue
113560T · 7 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-21200 Insulator Sub-assy, Engine Mounting, RH
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# 4FC,5F ¥11,600
12305-21210 Insulator Sub-assy, Engine Mounting, RH
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥18,500
12305-23060 Insulator Sub-assy, Engine Mounting, RH
2005-01 → 2007-08 ended
2SZFE SCP90 ¥19,400
12305-40010 Insulator Sub-assy, Engine Mounting, RH
2005-01 → 2006-03 ended
1KRFE KSP90 ¥16,800
12305-40060 Insulator Sub-assy, Engine Mounting, RH
2006-03 → 2007-08 ended
1KRFE KSP90 ¥16,900
12305-21200 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-08 ended
2NZFE NCP95 ¥11,600
12305-21200 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-09 ended
1NZFE NCP91 5F ¥11,600
12305-21210 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥18,500
12305-21210 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC RS ¥18,500
12305-23060 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥19,400
12305-23060 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥19,400
12305-40060 Insulator Sub-assy, Engine Mounting, RH
2007-08 → 2008-08 ended
1KRFE KSP90 ¥16,900
12305-21200 Insulator Sub-assy, Engine Mounting, RH
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# 4FC,5F ¥11,600
12305-21210 Insulator Sub-assy, Engine Mounting, RH
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥18,500
12305-23060 Insulator Sub-assy, Engine Mounting, RH
2008-08 → 2010-12 ended
2SZFE SCP90 ¥19,400
12305-40060 Insulator Sub-assy, Engine Mounting, RH
2008-08 → 2010-10 ended
1KRFE KSP90 ¥16,900
12305-40110 Insulator Sub-assy, Engine Mounting, RH
2010-11 → 2010-12 ended
1KRFE KSP90 ¥16,900
12321B — Insulator Sub-assy, Drive Shaft Heat
43409-52020 Insulator Sub-assy, Drive Shaft Heat
2005-01 → 2007-08 ended
1NZFE NCP91 ¥1,400
43498-52030 Insulator Sub-assy, Drive Shaft Heat
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,950
43409-52020 Insulator Sub-assy, Drive Shaft Heat
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥1,400
43409-52020 Insulator Sub-assy, Drive Shaft Heat
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,400
43498-52030 Insulator Sub-assy, Drive Shaft Heat
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,950
43498-52030 Insulator Sub-assy, Drive Shaft Heat
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,950
43409-52020 Insulator Sub-assy, Drive Shaft Heat
2008-08 → 2010-07 ended
1NZFE NCP91 5F ¥1,400
43409-52020 Insulator Sub-assy, Drive Shaft Heat
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥1,400
43498-52030 Insulator Sub-assy, Drive Shaft Heat
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,950
43498-52080 Insulator Sub-assy, Drive Shaft Heat
2010-07 → 2010-12 ended
1KRFE KSP90 ¥1,040
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-21160 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2005-08 ended
1NZFE NCP91 5F ¥4,570
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥2,150
12325-21180 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
2NZFE NCP95 ¥4,410
12325-21230 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-08 → 2007-08 ended
1NZFE NCP91 5F ¥3,100
12325-23060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥3,420
12325-40020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥3,480
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥2,150
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC RS ¥2,150
12325-21180 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
2NZFE NCP95 ¥4,410
12325-21230 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
1NZFE NCP91 5F ¥3,100
12325-23060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥3,420
12325-23060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥3,420
12325-40020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥3,480
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥2,150
12325-21180 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
2NZFE NCP95 ¥4,410
12325-21230 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-09 → 2010-08 ended
1NZFE NCP91 5F ¥3,100
12325-23060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥3,420
12325-40020 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥3,480
12363A — Rod, Engine Moving Control
12363-21040 Rod, Engine Moving Control
2005-01 → 2007-08 ended
1NZFE NCP91 5F ¥4,820
12363-21050 Rod, Engine Moving Control
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥7,200
12363-21080 Rod, Engine Moving Control
2005-01 → 2007-08 ended
2NZFE NCP95 ¥7,200
12363-23010 Rod, Engine Moving Control
2005-01 → 2007-08 ended
2SZFE SCP90 ¥6,000
12363-40020 Rod, Engine Moving Control
2005-01 → 2007-08 ended
1KRFE KSP90 ¥7,200
12363-21040 Rod, Engine Moving Control
2007-08 → 2008-09 ended
1NZFE NCP91 5F ¥4,820
12363-21050 Rod, Engine Moving Control
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥7,200
12363-21050 Rod, Engine Moving Control
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC RS ¥7,200
12363-21080 Rod, Engine Moving Control
2007-08 → 2008-08 ended
2NZFE NCP95 ¥7,200
12363-23010 Rod, Engine Moving Control
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥6,000
12363-23010 Rod, Engine Moving Control
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥6,000
12363-40020 Rod, Engine Moving Control
2007-08 → 2008-08 ended
1KRFE KSP90 ¥7,200
12363-21040 Rod, Engine Moving Control
2008-09 → 2010-08 ended
1NZFE NCP91 5F ¥4,820
12363-21050 Rod, Engine Moving Control
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥7,200
12363-21080 Rod, Engine Moving Control
2008-08 → 2010-12 ended
2NZFE NCP95 ¥7,200
12363-23010 Rod, Engine Moving Control
2008-08 → 2010-12 ended
2SZFE SCP90 ¥6,000
12363-40020 Rod, Engine Moving Control
2008-08 → 2010-12 ended
1KRFE KSP90 ¥7,200
12364A — Rod, Engine Lateral Control
12364-21010 Rod, Engine Lateral Control
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥7,400
12364-21040 Rod, Engine Lateral Control
2005-01 → 2007-08 ended
2NZFE NCP95 ¥8,700
12364-40010 Rod, Engine Lateral Control
2005-01 → 2007-08 ended
2SZFE SCP90 ¥5,900
12364-40010 Rod, Engine Lateral Control
2005-01 → 2007-08 ended
1KRFE KSP90 ¥5,900
12364-21010 Rod, Engine Lateral Control
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥7,400
12364-21010 Rod, Engine Lateral Control
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC RS ¥7,400
12364-21040 Rod, Engine Lateral Control
2007-08 → 2008-08 ended
2NZFE NCP95 ¥8,700
12364-40010 Rod, Engine Lateral Control
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥5,900
12364-40010 Rod, Engine Lateral Control
2007-08 → 2008-08 ended
1KRFE KSP90 ¥5,900
12364-40010 Rod, Engine Lateral Control
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥5,900
12364-21010 Rod, Engine Lateral Control
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥7,400
12364-21040 Rod, Engine Lateral Control
2008-08 → 2010-12 ended
2NZFE NCP95 ¥8,700
12364-40010 Rod, Engine Lateral Control
2008-08 → 2010-12 ended
1KRFE KSP90 ¥5,900
12364-40010 Rod, Engine Lateral Control
2008-08 → 2010-12 ended
2SZFE SCP90 ¥5,900
12365 — Cover, Engine Moving Control Rod
12365-40010 note Cover, Engine Moving Control Rod
2005-04 → 2007-08 ended
1KRFE KSP90 B,F ¥660
12365-40010 note Cover, Engine Moving Control Rod
2005-01 → 2007-08 ended
1KRFE KSP90 ¥660
12365-40010 note Cover, Engine Moving Control Rod
2005-01 → 2007-08 ended
2SZFE SCP90 ¥660
12365-40010 note Cover, Engine Moving Control Rod
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-08 ended
1KRFE KSP90 B,F ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-08 ended
1KRFE KSP90 ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥660
12365-40010 note Cover, Engine Moving Control Rod
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥660
12365-40010 note Cover, Engine Moving Control Rod
2008-08 → 2010-07 ended
1KRFE KSP90 B,F ¥660
12365-40010 note Cover, Engine Moving Control Rod
2008-08 → 2010-12 ended
1KRFE KSP90 ¥660
12365-40010 note Cover, Engine Moving Control Rod
2008-08 → 2010-12 ended
2SZFE SCP90 ¥660
12365-40010 note Cover, Engine Moving Control Rod
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥660
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-21130 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
1NZFE NCP91 5F ¥11,700
12372-21140 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
1NZFE NCP91 CVFC ¥11,700
12372-21150 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
2NZFE NCP95 ¥9,800
12372-23080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥11,700
12372-40020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥9,100
12372-21130 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
1NZFE NCP91 5F ¥11,700
12372-21140 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥11,700
12372-21140 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
1NZFE NCP91 CVFC RS ¥11,700
12372-21150 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
2NZFE NCP95 ¥9,800
12372-23080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥11,700
12372-23080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥11,700
12372-40020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥9,100
12372-21130 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-09 → 2009-01 ended
1NZFE NCP91 5F ¥11,700
12372-21131 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-02 → 2010-08 ended
1NZFE NCP91 5F ¥9,800
12372-21140 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
1NZFE NCP91 CVFC ¥11,700
12372-21150 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
2NZFE NCP95 ¥9,800
12372-23080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥11,700
12372-40020 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥9,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
