Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

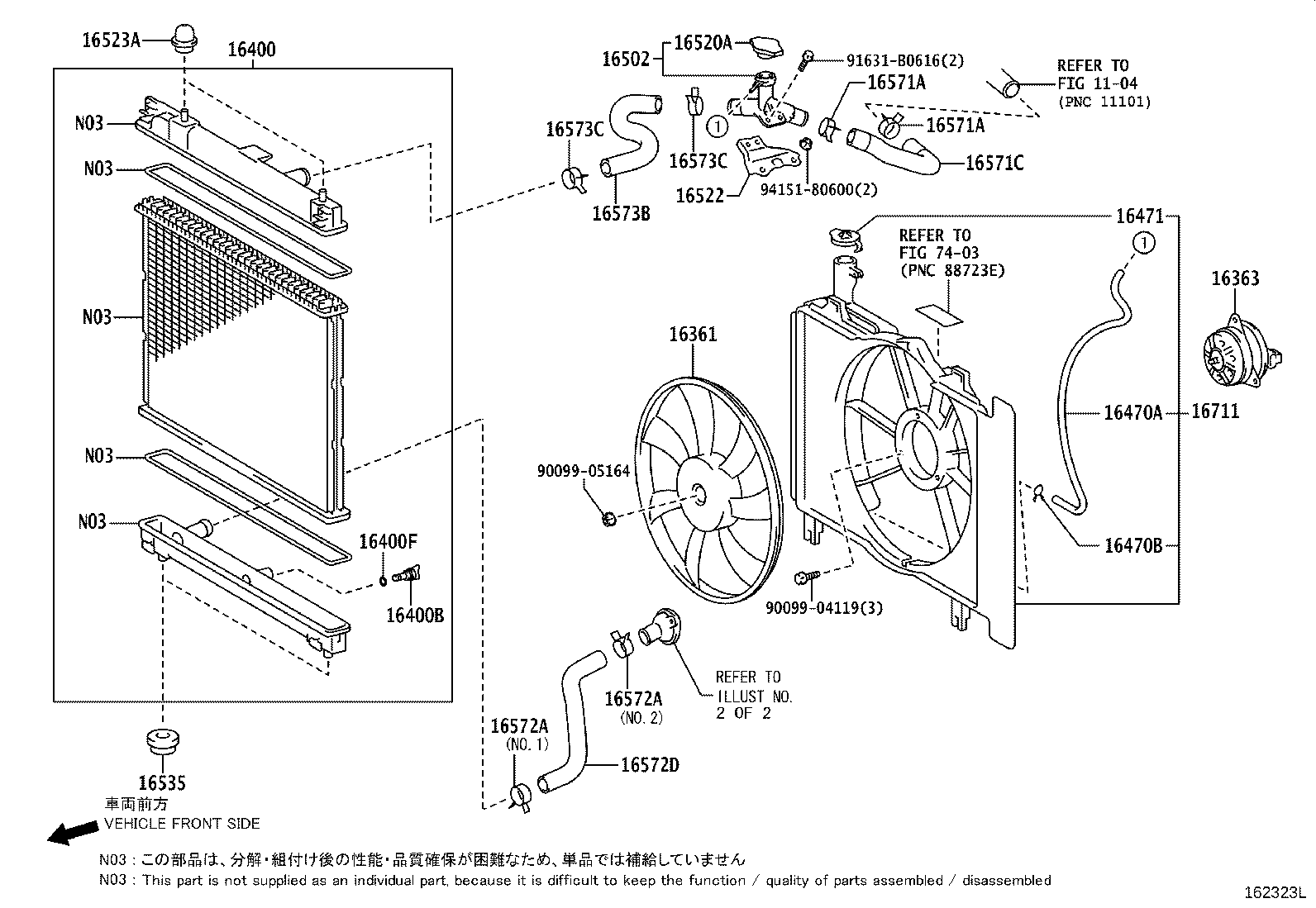

Exploded illustration 162323L 9009905164 — not listed in this catalogue 16400 — RADIATOR ASSY (12 parts) 16535 — SUPPORT, RADIATOR, LOWER (11 parts) 16523A — CUSHION, RADIATOR SUPPORT (11 parts) 16361 — FAN (15 parts) 16573C — CLAMP OR CLIP, RADIATOR HOSE, NO.3 (8 parts) 16573C — CLAMP OR CLIP, RADIATOR HOSE, NO.3 (8 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (7 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (7 parts) 16571C — HOSE, RADIATOR, NO.1 (11 parts) 16522 — BRACKET, WATER FILLER (4 parts) 16520A — CAP SUB-ASSY, WATER FILLER (15 parts) 16573B — HOSE, RADIATOR, NO.3 (14 parts) 16572D — HOSE, RADIATOR, NO.2 (12 parts) 91631B0616 — not listed in this catalogue 9415180600 — not listed in this catalogue 16502 — FILLER SUB-ASSY, WATER (11 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (11 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (11 parts) 16400B — PLUG, RADIATOR DRAIN COCK (11 parts) 16400F — PACKING(FOR RADIATOR DRAIN COCK) (11 parts) 1104 — not listed in this catalogue 16363 — MOTOR, COOLING FAN (15 parts) 16471 — CAP SUB-ASSY, RESERVE TANK (11 parts) 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (11 parts) 16470A — HOSE OR PIPE(FOR RADIATOR RESERVE TANK) (10 parts) 16711 — SHROUD, FAN (11 parts) 9009904119 — not listed in this catalogue 7403 — not listed in this catalogue
162323L · 23 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
222 parts on this figure
Part number Description Fitment Price
16361 — Fan
16361-21090 Fan
2005-08 → 2007-08 ended
2NZFE NCP95 ¥4,330
16361-21100 Fan
2005-01 → 2007-08 ended
1NZFE NCP91 ¥4,330
16361-21100 Fan
2005-01 → 2005-08 ended
2NZFE NCP95 ¥4,330
16361-23070 Fan
2005-01 → 2007-08 ended
2SZFE SCP90 ¥4,270
16361-23070 Fan
2005-01 → 2007-08 ended
1KRFE KSP90 ¥4,270
16361-21090 Fan
2007-08 → 2008-08 ended
2NZFE NCP95 ¥4,330
16361-21100 Fan
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥4,330
16361-21100 Fan
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥4,330
16361-23070 Fan
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥4,270
16361-23070 Fan
2007-08 → 2008-08 ended
1KRFE KSP90 ¥4,270
16361-23070 Fan
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥4,270
16361-21090 Fan
2008-08 → 2010-12 ended
2NZFE NCP95 ¥4,330
16361-21100 Fan
2008-08 → 2010-12 ended
1NZFE NCP91 ¥4,330
16361-23070 Fan
2008-08 → 2010-12 ended
1KRFE KSP90 ¥4,270
16361-23070 Fan
2008-08 → 2010-12 ended
2SZFE SCP90 ¥4,270
16363 — Motor, Cooling Fan
16363-28150 Motor, Cooling Fan
2005-01 → 2007-08 ended
1KRFE KSP90 ¥25,200
16363-28150 Motor, Cooling Fan
2005-01 → 2007-08 ended
2SZFE SCP90 ¥25,200
16363-28150 Motor, Cooling Fan
2005-01 → 2007-08 ended
1NZFE NCP91 ¥25,200
16363-28150 Motor, Cooling Fan
2005-01 → 2005-08 ended
2NZFE NCP95 ¥25,200
16363-28160 Motor, Cooling Fan
2005-08 → 2007-08 ended
2NZFE NCP95 ¥15,800
16363-28150 Motor, Cooling Fan
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥25,200
16363-28150 Motor, Cooling Fan
2007-08 → 2008-08 ended
1KRFE KSP90 ¥25,200
16363-28150 Motor, Cooling Fan
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥25,200
16363-28150 Motor, Cooling Fan
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥25,200
16363-28150 Motor, Cooling Fan
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥25,200
16363-28160 Motor, Cooling Fan
2007-08 → 2008-08 ended
2NZFE NCP95 ¥15,800
16363-28150 Motor, Cooling Fan
2008-08 → 2010-12 ended
1KRFE KSP90 ¥25,200
16363-28150 Motor, Cooling Fan
2008-08 → 2010-12 ended
2SZFE SCP90 ¥25,200
16363-28150 Motor, Cooling Fan
2008-08 → 2010-12 ended
1NZFE NCP91 ¥25,200
16363-28160 Motor, Cooling Fan
2008-08 → 2010-12 ended
2NZFE NCP95 ¥15,800
16400 — Radiator Assy
16400-21270 Radiator Assy
2005-01 → 2007-08 ended
1NZFE NCP91 ¥25,700
16400-21300 Radiator Assy
2005-01 → 2007-08 ended
2NZFE NCP95 ¥28,900
16400-23160 Radiator Assy
2005-01 → 2007-08 ended
1KRFE KSP90 ¥25,700
16400-23160 Radiator Assy
2005-01 → 2007-08 ended
2SZFE SCP90 ¥25,700
16400-21270 Radiator Assy
2007-08 → 2008-09 ended
1NZFE NCP91 ¥25,700
16400-21300 Radiator Assy
2007-08 → 2008-08 ended
2NZFE NCP95 ¥28,900
16400-23160 Radiator Assy
2007-08 → 2008-08 ended
1KRFE KSP90 ¥25,700
16400-23160 Radiator Assy
2007-08 → 2008-09 ended
2SZFE SCP90 ¥25,700
16400-21270 Radiator Assy
2008-08 → 2010-12 ended
1NZFE NCP91 ¥25,700
16400-21300 Radiator Assy
2008-08 → 2010-12 ended
2NZFE NCP95 ¥28,900
16400-23160 Radiator Assy
2008-08 → 2010-12 ended
1KRFE KSP90 ¥25,700
16400-23160 Radiator Assy
2008-08 → 2010-12 ended
2SZFE SCP90 ¥25,700
16400B — Plug, Radiator Drain Cock
16417-21280 Plug, Radiator Drain Cock
2005-01 → 2007-08 ended
2SZFE SCP90 ¥360
16417-21280 Plug, Radiator Drain Cock
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥360
16417-21280 Plug, Radiator Drain Cock
2005-01 → 2007-08 ended
1KRFE KSP90 ¥360
16417-21280 Plug, Radiator Drain Cock
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥360
16417-21280 Plug, Radiator Drain Cock
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥360
16417-21280 Plug, Radiator Drain Cock
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥360
16417-21280 Plug, Radiator Drain Cock
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥360
16417-21280 Plug, Radiator Drain Cock
2007-08 → 2008-08 ended
1KRFE KSP90 ¥360
16417-21280 Plug, Radiator Drain Cock
2008-08 → 2010-12 ended
1KRFE KSP90 ¥360
16417-21280 Plug, Radiator Drain Cock
2008-08 → 2010-12 ended
2SZFE SCP90 ¥360
16417-21280 Plug, Radiator Drain Cock
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥360
16400F — Packing(FOR RADIATOR DRAIN COCK)
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥210
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16377-21200 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# —
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥580
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥580
16377-21200 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# —
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥580
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥580
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥580
16377-21200 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# —
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥580
90445-12078 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥580
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2005-01 → 2007-08 ended
2SZFE SCP90 ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2008-08 → 2010-12 ended
2SZFE SCP90 ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥100
16471 — Cap Sub-assy, Reserve Tank
16471-23030 Cap Sub-assy, Reserve Tank
2005-01 → 2007-08 ended
2SZFE SCP90 ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2005-01 → 2007-08 ended
1KRFE KSP90 ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2007-08 → 2008-08 ended
1KRFE KSP90 ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2008-08 → 2010-12 ended
1KRFE KSP90 ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2008-08 → 2010-12 ended
2SZFE SCP90 ¥0
16471-23030 Cap Sub-assy, Reserve Tank
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥0
16502 — Filler Sub-assy, Water
16502-21060 Filler Sub-assy, Water
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥2,650
16502-23010 Filler Sub-assy, Water
2005-01 → 2007-08 ended
2SZFE SCP90 ¥2,210
16502-23010 Filler Sub-assy, Water
2005-01 → 2007-08 ended
1KRFE KSP90 ¥2,210
16502-21060 Filler Sub-assy, Water
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥2,650
16502-21060 Filler Sub-assy, Water
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥2,650
16502-23010 Filler Sub-assy, Water
2007-08 → 2008-08 ended
1KRFE KSP90 ¥2,210
16502-23010 Filler Sub-assy, Water
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥2,210
16502-23010 Filler Sub-assy, Water
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥2,210
16502-21060 Filler Sub-assy, Water
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥2,650
16502-23010 Filler Sub-assy, Water
2008-08 → 2010-12 ended
1KRFE KSP90 ¥2,210
16502-23010 Filler Sub-assy, Water
2008-08 → 2010-12 ended
2SZFE SCP90 ¥2,210
16520A — Cap Sub-assy, Water Filler
16401-62100 Cap Sub-assy, Water Filler
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2007-08 → 2008-09 ended
2SZFE SCP90 ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,010
16401-31480 Cap Sub-assy, Water Filler
2009-03 → 2010-09 ended
1KRFE KSP90 ¥910
16401-31480 Cap Sub-assy, Water Filler
2009-03 → 2010-09 ended
2SZFE SCP90 ¥910
16401-31480 Cap Sub-assy, Water Filler
2009-03 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥910
16401-31520 Cap Sub-assy, Water Filler
2010-10 → 2010-12 ended
1KRFE KSP90 ¥910
16401-31520 Cap Sub-assy, Water Filler
2010-10 → 2010-12 ended
2SZFE SCP90 ¥910
16401-62100 Cap Sub-assy, Water Filler
2008-08 → 2009-02 ended
2SZFE SCP90 ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2008-08 → 2009-02 ended
1NZFE,2NZFE NCP9# ¥1,010
16401-62100 Cap Sub-assy, Water Filler
2008-08 → 2009-02 ended
1KRFE KSP90 ¥1,010
16522 — Bracket, Water Filler
16522-21010 Bracket, Water Filler
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥480
16522-21010 Bracket, Water Filler
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥480
16522-21010 Bracket, Water Filler
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥480
16522-21010 Bracket, Water Filler
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥480
16523A — Cushion, Radiator Support
16523-21030 Cushion, Radiator Support
2005-01 → 2007-08 ended
1KRFE KSP90 ¥220
16523-21030 Cushion, Radiator Support
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥220
16523-21030 Cushion, Radiator Support
2005-01 → 2007-08 ended
2SZFE SCP90 ¥220
16523-21030 Cushion, Radiator Support
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥220
16523-21030 Cushion, Radiator Support
2007-08 → 2008-08 ended
1KRFE KSP90 ¥220
16523-21030 Cushion, Radiator Support
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥220
16523-21030 Cushion, Radiator Support
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥220
16523-21030 Cushion, Radiator Support
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥220
16523-21030 Cushion, Radiator Support
2008-08 → 2010-12 ended
1KRFE KSP90 ¥220
16523-21030 Cushion, Radiator Support
2008-08 → 2010-12 ended
2SZFE SCP90 ¥220
16523-21030 Cushion, Radiator Support
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥220
16535 — Support, Radiator, Lower
90480-22025 Support, Radiator, Lower
2005-01 → 2007-08 ended
2SZFE SCP90 ¥120
90480-22025 Support, Radiator, Lower
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥120
90480-22025 Support, Radiator, Lower
2005-01 → 2007-08 ended
1KRFE KSP90 ¥120
90480-22025 Support, Radiator, Lower
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥120
90480-22025 Support, Radiator, Lower
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥120
90480-22025 Support, Radiator, Lower
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥120
90480-22025 Support, Radiator, Lower
2007-08 → 2008-08 ended
1KRFE KSP90 ¥120
90480-22025 Support, Radiator, Lower
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥120
90480-22025 Support, Radiator, Lower
2008-08 → 2010-12 ended
1KRFE KSP90 ¥120
90480-22025 Support, Radiator, Lower
2008-08 → 2010-12 ended
2SZFE SCP90 ¥120
90480-22025 Support, Radiator, Lower
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥120
16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET)
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥240
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥390
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥240
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥240
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥390
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥240
90467-34004 Clamp OR Clip, Hose(FOR RADIATOR INLET)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥390
16571C — Hose, Radiator, NO.1
16571-21120 Hose, Radiator, NO.1
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,080
16571-23080 Hose, Radiator, NO.1
2005-01 → 2007-08 ended
2SZFE SCP90 ¥1,610
16571-40040 Hose, Radiator, NO.1
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,430
16571-21120 Hose, Radiator, NO.1
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,080
16571-21120 Hose, Radiator, NO.1
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,080
16571-23080 Hose, Radiator, NO.1
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥1,610
16571-23080 Hose, Radiator, NO.1
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥1,610
16571-40040 Hose, Radiator, NO.1
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,430
16571-21120 Hose, Radiator, NO.1
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥1,080
16571-23080 Hose, Radiator, NO.1
2008-08 → 2010-12 ended
2SZFE SCP90 ¥1,610
16571-40040 Hose, Radiator, NO.1
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,430
16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2005-01 → 2007-08 ended
1KRFE KSP90 ¥240
90467-33006 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥240
90467-34004 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥390
90467-33006 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥240
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-08 → 2008-08 ended
1KRFE KSP90 ¥240
90467-33006 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥240
90467-34004 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥390
90467-34004 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥390
90467-33006 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2008-08 → 2010-12 ended
1KRFE KSP90 ¥240
90467-33006 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥240
90467-34004 note Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥390
16572D — Hose, Radiator, NO.2
16572-21090 Hose, Radiator, NO.2
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥1,080
16572-23080 Hose, Radiator, NO.2
2005-01 → 2007-08 ended
2SZFE SCP90 ¥2,380
16572-40010 Hose, Radiator, NO.2
2005-01 → 2007-08 ended
1KRFE KSP90 ¥1,800
16572-21090 Hose, Radiator, NO.2
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥1,080
16572-21090 Hose, Radiator, NO.2
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,080
16572-23080 Hose, Radiator, NO.2
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥2,380
16572-23080 Hose, Radiator, NO.2
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥2,380
16572-40010 Hose, Radiator, NO.2
2007-08 → 2008-08 ended
1KRFE KSP90 ¥1,800
16572-21090 Hose, Radiator, NO.2
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥1,080
16572-23080 Hose, Radiator, NO.2
2008-08 → 2009-05 ended
2SZFE SCP90 ¥2,380
16572-23081 Hose, Radiator, NO.2
2009-05 → 2010-12 ended
2SZFE SCP90 ¥2,160
16572-40010 Hose, Radiator, NO.2
2008-08 → 2010-12 ended
1KRFE KSP90 ¥1,800
16573B — Hose, Radiator, NO.3
16573-21040 Hose, Radiator, NO.3
2005-01 → 2007-08 ended
2NZFE NCP95 ¥1,340
16573-21060 Hose, Radiator, NO.3
2005-01 → 2007-08 ended
1NZFE NCP91 ¥1,080
16573-23010 note Hose, Radiator, NO.3
2005-01 → 2007-08 ended
2SZFE SCP90 ¥720
16573-23010 note Hose, Radiator, NO.3
2005-01 → 2007-08 ended
1KRFE KSP90 ¥720
16573-21040 Hose, Radiator, NO.3
2007-08 → 2008-08 ended
2NZFE NCP95 ¥1,340
16573-21060 Hose, Radiator, NO.3
2007-08 → 2008-08 ended
1NZFE NCP91 ILL,U ¥1,080
16573-21060 Hose, Radiator, NO.3
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥1,080
16573-23010 note Hose, Radiator, NO.3
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥720
16573-23010 note Hose, Radiator, NO.3
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥720
16573-23010 note Hose, Radiator, NO.3
2007-08 → 2008-08 ended
1KRFE KSP90 ¥720
16573-21040 Hose, Radiator, NO.3
2008-08 → 2010-12 ended
2NZFE NCP95 ¥1,340
16573-21060 Hose, Radiator, NO.3
2008-08 → 2010-12 ended
1NZFE NCP91 ¥1,080
16573-23010 note Hose, Radiator, NO.3
2008-08 → 2010-12 ended
1KRFE KSP90 ¥720
16573-23010 note Hose, Radiator, NO.3
2008-08 → 2010-12 ended
2SZFE SCP90 ¥720
16573C — Clamp OR Clip, Radiator Hose, NO.3
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2005-01 → 2007-08 ended
2SZFE SCP90 ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2008-08 → 2010-12 ended
2SZFE SCP90 ¥240
90467-33006 Clamp OR Clip, Radiator Hose, NO.3
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥240
16711 — Shroud, Fan
16711-21110 Shroud, Fan
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥5,900
16711-23090 Shroud, Fan
2005-01 → 2007-08 ended
2SZFE SCP90 ¥9,500
16711-23090 Shroud, Fan
2005-01 → 2007-08 ended
1KRFE KSP90 ¥9,500
16711-21110 Shroud, Fan
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥5,900
16711-21110 Shroud, Fan
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥5,900
16711-23090 Shroud, Fan
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥9,500
16711-23090 Shroud, Fan
2007-08 → 2008-08 ended
1KRFE KSP90 ¥9,500
16711-23090 Shroud, Fan
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥9,500
16711-21110 Shroud, Fan
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥5,900
16711-23090 Shroud, Fan
2008-08 → 2010-12 ended
1KRFE KSP90 ¥9,500
16711-23090 Shroud, Fan
2008-08 → 2010-12 ended
2SZFE SCP90 ¥9,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
