Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

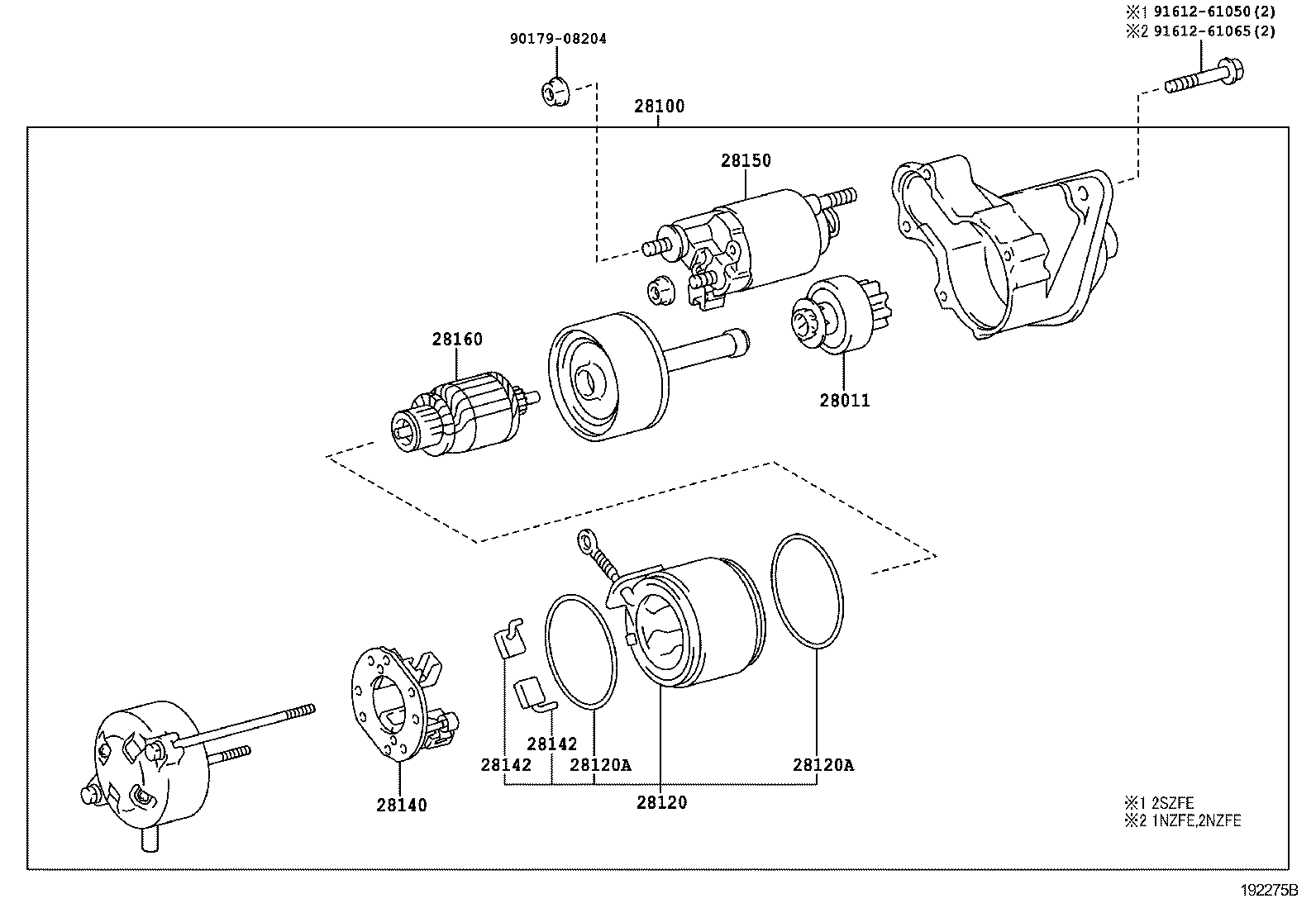

Exploded illustration 192275B 28011 — CLUTCH SUB-ASSY, STARTER (14 parts) 28140 — HOLDER ASSY, STARTER BRUSH (7 parts) 28150 — SWITCH ASSY, MAGNET STARTER (12 parts) 28120 — YOKE ASSY, STARTER (14 parts) 28142 — BRUSH, STARTER (3 parts) 28120A — RING, O(FOR STARTER YOKE) (2 parts) 28120A — RING, O(FOR STARTER YOKE) (2 parts) 28142 — BRUSH, STARTER (3 parts) 28160 — ARMATURE ASSY, STARTER (11 parts) 9161261065 — not listed in this catalogue 28100 — STARTER ASSY (32 parts) 9017908204 — not listed in this catalogue 9161261050 — not listed in this catalogue
192275B · 10 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
28011 — Clutch Sub-assy, Starter
28011-23030 note Clutch Sub-assy, Starter
2005-01 → 2007-08 ended
1KRFE KSP90 ¥7,500
28011-23030 Clutch Sub-assy, Starter
2005-01 → 2007-08 ended
2SZFE SCP90 ¥7,500
28011-40070 Clutch Sub-assy, Starter
2005-01 → 2007-08 ended
1KRFE KSP90 ¥7,600
28011-70020 Clutch Sub-assy, Starter
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥3,990
28011-23030 Clutch Sub-assy, Starter
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥7,500
28011-23030 note Clutch Sub-assy, Starter
2007-08 → 2008-08 ended
1KRFE KSP90 ¥7,500
28011-23030 Clutch Sub-assy, Starter
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥7,500
28011-40070 Clutch Sub-assy, Starter
2007-08 → 2008-08 ended
1KRFE KSP90 ¥7,600
28011-70020 Clutch Sub-assy, Starter
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥3,990
28011-70020 Clutch Sub-assy, Starter
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥3,990
28011-23030 Clutch Sub-assy, Starter
2008-08 → 2010-12 ended
2SZFE SCP90 ¥7,500
28011-23030 note Clutch Sub-assy, Starter
2008-08 → 2010-12 ended
1KRFE KSP90 ¥7,500
28011-40070 Clutch Sub-assy, Starter
2008-08 → 2010-12 ended
1KRFE KSP90 ¥7,600
28011-70020 Clutch Sub-assy, Starter
2008-08 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥3,990
28100 — Starter Assy
28100-21020 note Starter Assy
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥66,800
28100-21030 note Starter Assy
2005-01 → 2007-08 ended
1NZFE,2NZFE NCP9# ¥80,900
28100-23030 note Starter Assy
2005-01 → 2007-08 ended
2SZFE SCP90 ¥80,900
28100-23060 note Starter Assy
2005-01 → 2007-08 ended
2SZFE SCP90 ¥66,800
28100-40070 note Starter Assy
2005-01 → 2007-08 ended
1KRFE KSP90 ¥66,800
28100-40090 note Starter Assy
2005-01 → 2007-08 ended
1KRFE KSP90 ¥80,900
28100-40110 note Starter Assy
2005-04 → 2007-08 ended
1KRFE KSP90 B,F ¥80,900
28100-21020 note Starter Assy
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥66,800
28100-21020 note Starter Assy
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥66,800
28100-21030 note Starter Assy
2007-08 → 2008-08 ended
1NZFE,2NZFE NCP9# F,ILL,U ¥80,900
28100-21030 note Starter Assy
2007-08 → 2008-09 ended
1NZFE NCP91 RS ¥80,900
28100-23030 note Starter Assy
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥80,900
28100-23030 note Starter Assy
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥80,900
28100-23060 note Starter Assy
2007-08 → 2008-08 ended
2SZFE SCP90 F,ILL,U ¥66,800
28100-23060 note Starter Assy
2007-08 → 2008-09 ended
2SZFE SCP90 RS ¥66,800
28100-40070 note Starter Assy
2007-08 → 2008-08 ended
1KRFE KSP90 ¥66,800
28100-40090 note Starter Assy
2007-08 → 2008-08 ended
1KRFE KSP90 ¥80,900
28100-40110 note Starter Assy
2007-08 → 2008-08 ended
1KRFE KSP90 B,F ¥80,900
28100-21020 note Starter Assy
2008-08 → 2009-06 ended
1NZFE,2NZFE NCP9# ¥66,800
28100-21021 note Starter Assy
2009-07 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥66,800
28100-21030 note Starter Assy
2008-08 → 2009-06 ended
1NZFE,2NZFE NCP9# ¥80,900
28100-21031 note Starter Assy
2009-07 → 2010-12 ended
1NZFE,2NZFE NCP9# ¥80,900
28100-23030 note Starter Assy
2008-08 → 2009-06 ended
2SZFE SCP90 ¥80,900
28100-23031 note Starter Assy
2009-07 → 2010-12 ended
2SZFE SCP90 ¥80,900
28100-23060 note Starter Assy
2008-08 → 2009-06 ended
2SZFE SCP90 ¥66,800
28100-23061 note Starter Assy
2009-07 → 2010-12 ended
2SZFE SCP90 ¥66,800
28100-40070 note Starter Assy
2008-08 → 2009-06 ended
1KRFE KSP90 ¥66,800
28100-40071 note Starter Assy
2009-07 → 2010-12 ended
1KRFE KSP90 ¥66,800
28100-40090 note Starter Assy
2008-08 → 2009-10 ended
1KRFE KSP90 ¥80,900
28100-40091 note Starter Assy
2009-11 → 2010-12 ended
1KRFE KSP90 ¥80,900
28100-40110 note Starter Assy
2008-08 → 2009-05 ended
1KRFE KSP90 B,F ¥80,900
28100-40111 note Starter Assy
2009-06 → 2010-08 ended
1KRFE KSP90 B,F ¥80,900
28120 — Yoke Assy, Starter
28120-23020 Yoke Assy, Starter
2005-01 → 2007-08 ended
1KRFE KSP90 —
28120-70020 Yoke Assy, Starter
2005-01 → 2007-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-70050 note Yoke Assy, Starter
2005-01 → 2007-08 ended
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 —
28120-23020 Yoke Assy, Starter
2007-08 → 2008-08 ended
1KRFE KSP90 —
28120-70020 Yoke Assy, Starter
2007-08 → 2008-09 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-70050 note Yoke Assy, Starter
2007-08 → 2008-09 ended
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 —
28120-23020 Yoke Assy, Starter
2008-08 → 2009-07 ended
1KRFE KSP90 —
28120-40120 Yoke Assy, Starter
2009-07 → 2010-12 ended
1KRFE KSP90 —
28120-40130 note Yoke Assy, Starter
2009-07 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-40130 note Yoke Assy, Starter
2009-11 → 2010-12 ended
1KRFE KSP90 —
28120-47120 Yoke Assy, Starter
2009-07 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-70020 Yoke Assy, Starter
2008-08 → 2009-07 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-70050 note Yoke Assy, Starter
2008-08 → 2009-07 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28120-70050 note Yoke Assy, Starter
2008-08 → 2009-11 ended
1KRFE KSP90 —
28120A — Ring, O(FOR STARTER YOKE)
90099-14092 Ring, O(FOR STARTER YOKE)
2009-07 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
90099-14092 note Ring, O(FOR STARTER YOKE)
2009-11 → 2010-12 ended
1KRFE KSP90 —
28140 — Holder Assy, Starter Brush
28140-70020 Holder Assy, Starter Brush
2005-01 → 2007-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28140-70020 note Holder Assy, Starter Brush
2005-01 → 2007-08 ended
1KRFE KSP90 —
28140-70020 Holder Assy, Starter Brush
2007-08 → 2008-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 F,ILL,U —
28140-70020 note Holder Assy, Starter Brush
2007-08 → 2008-08 ended
1KRFE KSP90 —
28140-70020 Holder Assy, Starter Brush
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS —
28140-70020 Holder Assy, Starter Brush
2008-08 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 —
28140-70020 note Holder Assy, Starter Brush
2008-08 → 2010-12 ended
1KRFE KSP90 —
28142 — Brush, Starter
28142-10020 Brush, Starter
2009-07 → 2010-12 ended
1KRFE KSP90 ¥370
28142-70020 note Brush, Starter
2009-11 → 2010-12 ended
1KRFE KSP90 ¥260
28142-70020 Brush, Starter
2009-07 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥260
28150 — Switch Assy, Magnet Starter
28150-16160 Switch Assy, Magnet Starter
2005-01 → 2007-05 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥9,300
28150-16160 note Switch Assy, Magnet Starter
2005-01 → 2007-05 ended
1KRFE KSP90 ¥9,300
28150-21020 Switch Assy, Magnet Starter
2007-06 → 2007-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥9,400
28150-21020 note Switch Assy, Magnet Starter
2007-06 → 2007-08 ended
1KRFE KSP90 ¥9,400
28150-40070 Switch Assy, Magnet Starter
2005-01 → 2007-08 ended
1KRFE KSP90 ¥10,700
28150-21020 Switch Assy, Magnet Starter
2007-08 → 2008-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 F,ILL,U ¥9,400
28150-21020 note Switch Assy, Magnet Starter
2007-08 → 2008-08 ended
1KRFE KSP90 ¥9,400
28150-21020 Switch Assy, Magnet Starter
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥9,400
28150-40070 Switch Assy, Magnet Starter
2007-08 → 2008-08 ended
1KRFE KSP90 ¥10,700
28150-21020 Switch Assy, Magnet Starter
2008-08 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥9,400
28150-21020 note Switch Assy, Magnet Starter
2008-08 → 2010-12 ended
1KRFE KSP90 ¥9,400
28150-40070 Switch Assy, Magnet Starter
2008-08 → 2010-12 ended
1KRFE KSP90 ¥10,700
28160 — Armature Assy, Starter
28160-40070 Armature Assy, Starter
2005-01 → 2007-08 ended
1KRFE KSP90 ¥10,000
28160-70021 Armature Assy, Starter
2005-01 → 2007-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥9,800
28160-70050 note Armature Assy, Starter
2005-01 → 2007-08 ended
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 ¥12,000
28160-40070 Armature Assy, Starter
2007-08 → 2008-08 ended
1KRFE KSP90 ¥10,000
28160-70021 Armature Assy, Starter
2007-08 → 2008-08 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 F,ILL,U ¥9,800
28160-70021 Armature Assy, Starter
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥9,800
28160-70050 note Armature Assy, Starter
2007-08 → 2008-08 ended
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 B,F,ILL,U ¥12,000
28160-70050 note Armature Assy, Starter
2007-08 → 2008-09 ended
1NZFE,2SZFE NCP91,SCP90 RS ¥12,000
28160-40070 Armature Assy, Starter
2008-08 → 2010-12 ended
1KRFE KSP90 ¥10,000
28160-70021 Armature Assy, Starter
2008-08 → 2010-12 ended
1NZFE,2NZFE,2SZFE NCP9#,SCP90 ¥9,800
28160-70050 note Armature Assy, Starter
2008-08 → 2010-12 ended
1KRFE,1NZFE,2NZFE,2SZFE KSP90,NCP9#,SCP90 ¥12,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
