Toyota Vitz

2005-01 → 2010-12 · chassis KSP90,NCP9#,SCP90 · catalogue 112120 · Japan

Supported model Data version 2011-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

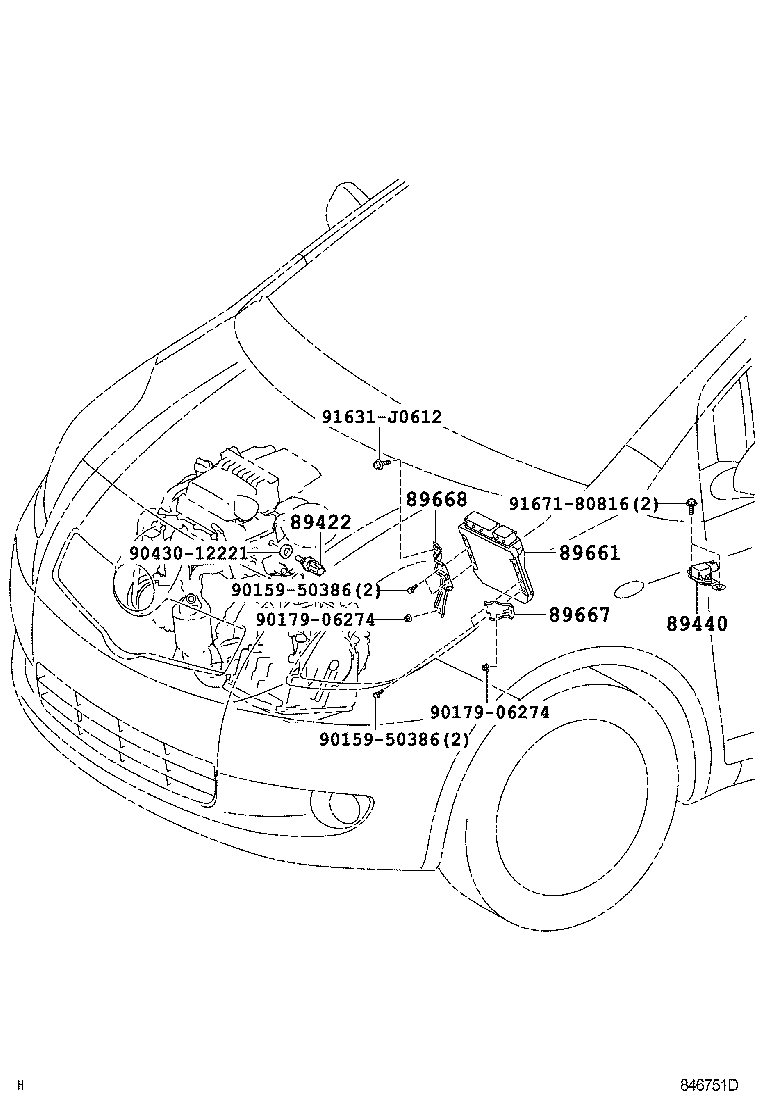

Exploded illustration 846751D 89661 — COMPUTER, ENGINE CONTROL (38 parts) 9017906274 — not listed in this catalogue 9015950386 — not listed in this catalogue 9015950386 — not listed in this catalogue 89667 — BRACKET, ENGINE CONTROL COMPUTER (6 parts) 89668 — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (4 parts) 91631J0612 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167180816 — not listed in this catalogue 89422 — SENSOR, WATER TEMPERATURE (FOR E.F.I.) (4 parts) 89440 — SENSOR ASSY, DECELERATION (9 parts) 9043012221 — not listed in this catalogue
846751D · 5 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
89422 — Sensor, Water Temperature (FOR E.F.I.)
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥2,410
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥2,410
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥2,410
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥2,410
89440 — Sensor Assy, Deceleration
89440-52020 Sensor Assy, Deceleration
2005-01 → 2006-03 ended
KSP90,NCP91,SCP90 CVFC ¥22,300
89440-52050 Sensor Assy, Deceleration
2006-04 → 2007-06 ended
KSP90,NCP91,SCP90 CVFC ¥22,100
89440-52070 Sensor Assy, Deceleration
2007-07 → 2007-08 ended
KSP90,NCP91,SCP90 CVFC ¥22,100
89441-12060 Sensor Assy, Deceleration
2007-04 → 2007-08 ended
NCP95 ¥18,400
89441-60010 Sensor Assy, Deceleration
2005-01 → 2007-03 ended
NCP95 ¥21,600
89440-52070 Sensor Assy, Deceleration
2007-08 → 2008-09 ended
KSP90,NCP91,SCP90 CVFC ¥22,100
89441-12060 Sensor Assy, Deceleration
2007-08 → 2008-08 ended
NCP95 ¥18,400
89440-52070 Sensor Assy, Deceleration
2008-08 → 2010-12 ended
KSP90,NCP91,SCP90 ¥22,100
89441-12060 Sensor Assy, Deceleration
2008-08 → 2010-12 ended
NCP95 ¥18,400
89661 — Computer, Engine Control
89661-52A90 note Computer, Engine Control
2005-01 → 2007-08 ended
SCP90 ¥113,000
89661-52B00 note Computer, Engine Control
2005-01 → 2005-12 ended
NCP91 CVFC ¥113,000
89661-52B10 note Computer, Engine Control
2005-01 → 2007-08 ended
NCP91 5F ¥111,000
89661-52B20 note Computer, Engine Control
2005-01 → 2007-08 ended
NCP95 F ¥113,000
89661-52C70 note Computer, Engine Control
2005-01 → 2005-02 ended
KSP90 ¥113,000
89661-52C71 note Computer, Engine Control
2005-03 → 2006-09 ended
KSP90 ¥113,000
89661-52C72 note Computer, Engine Control
2006-10 → 2007-08 ended
KSP90 ¥113,000
89661-52C80 note Computer, Engine Control
2005-04 → 2006-09 ended
KSP90 B,F ¥113,000
89661-52C81 note Computer, Engine Control
2006-10 → 2007-08 ended
KSP90 B,F ¥113,000
89661-52D50 note Computer, Engine Control
2005-01 → 2007-08 ended
NCP95 F ¥113,000
89661-52D50 note Computer, Engine Control
2005-01 → 2007-08 ended
NCP95 ILL,U ¥113,000
89661-52F20 note Computer, Engine Control
2005-12 → 2007-08 ended
NCP91 CVFC ¥113,000
89661-52B20 note Computer, Engine Control
2007-08 → 2008-08 ended
NCP95 F ¥113,000
89661-52C72 note Computer, Engine Control
2007-08 → 2008-08 ended
KSP90 ¥113,000
89661-52C81 note Computer, Engine Control
2007-08 → 2008-08 ended
KSP90 B,F ¥113,000
89661-52D50 note Computer, Engine Control
2007-08 → 2008-08 ended
NCP95 ILL,U ¥113,000
89661-52D50 note Computer, Engine Control
2007-08 → 2008-08 ended
NCP95 F ¥113,000
89661-52G00 note Computer, Engine Control
2007-08 → 2008-08 ended
SCP90 F,ILL,U ¥113,000
89661-52G00 note Computer, Engine Control
2007-08 → 2008-09 ended
SCP90 RS ¥113,000
89661-52G10 note Computer, Engine Control
2007-08 → 2008-09 ended
NCP91 5F ¥111,000
89661-52G20 note Computer, Engine Control
2007-08 → 2008-09 ended
NCP91 CVFC RS ¥133,000
89661-52G20 note Computer, Engine Control
2007-08 → 2008-08 ended
NCP91 ILL,U ¥133,000
89661-52B20 note Computer, Engine Control
2008-08 → 2010-08 ended
NCP95 F ¥113,000
89661-52C72 note Computer, Engine Control
2008-08 → 2009-08 ended
KSP90 ¥113,000
89661-52C81 note Computer, Engine Control
2008-08 → 2010-08 ended
KSP90 B,F ¥113,000
89661-52D50 note Computer, Engine Control
2008-08 → 2010-08 ended
NCP95 ILL,U ¥113,000
89661-52D50 note Computer, Engine Control
2008-08 → 2010-08 ended
NCP95 F ¥113,000
89661-52G00 note Computer, Engine Control
2008-08 → 2009-08 ended
SCP90 ¥113,000
89661-52G10 note Computer, Engine Control
2008-09 → 2010-08 ended
NCP91 5F ¥111,000
89661-52G20 note Computer, Engine Control
2008-08 → 2010-08 ended
NCP91 CVFC ¥133,000
89661-52M60 note Computer, Engine Control
2009-08 → 2010-08 ended
KSP90 ¥147,000
89661-52M70 note Computer, Engine Control
2009-08 → 2010-08 ended
SCP90 ¥142,000
89661-52Q00 note Computer, Engine Control
2010-08 → 2010-12 ended
SCP90 ¥134,000
89661-52Q10 note Computer, Engine Control
2010-08 → 2010-12 ended
NCP95 F ¥134,000
89661-52Q20 note Computer, Engine Control
2010-08 → 2010-12 ended
NCP95 ILL,U ¥134,000
89661-52Q20 note Computer, Engine Control
2010-08 → 2010-12 ended
NCP95 F ¥134,000
89661-52Q60 note Computer, Engine Control
2010-08 → 2010-12 ended
KSP90 ¥125,000
89661-52U50 note Computer, Engine Control
2010-08 → 2010-12 ended
NCP91 ¥133,000
89667 — Bracket, Engine Control Computer
89667-52190 Bracket, Engine Control Computer
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥560
89667-52190 Bracket, Engine Control Computer
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥560
89667-52190 Bracket, Engine Control Computer
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥560
89667-52190 Bracket, Engine Control Computer
2008-08 → 2009-08 ended
SCP90 ¥560
89667-52190 Bracket, Engine Control Computer
2008-08 → 2010-12 ended
KSP90,NCP9# ¥560
89667-52190 Bracket, Engine Control Computer
2010-08 → 2010-12 ended
SCP90 ¥560
89668 — Bracket, Engine Control Computer, NO.2
89668-52210 Bracket, Engine Control Computer, NO.2
2005-01 → 2007-08 ended
KSP90,NCP9#,SCP90 ¥1,080
89668-52210 Bracket, Engine Control Computer, NO.2
2007-08 → 2008-08 ended
KSP90,NCP9#,SCP90 B,F,ILL,U ¥1,080
89668-52210 Bracket, Engine Control Computer, NO.2
2007-08 → 2008-09 ended
NCP91,SCP90 RS ¥1,080
89668-52210 Bracket, Engine Control Computer, NO.2
2008-08 → 2010-12 ended
KSP90,NCP9#,SCP90 ¥1,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
