Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 7 illustrations

Illustrations

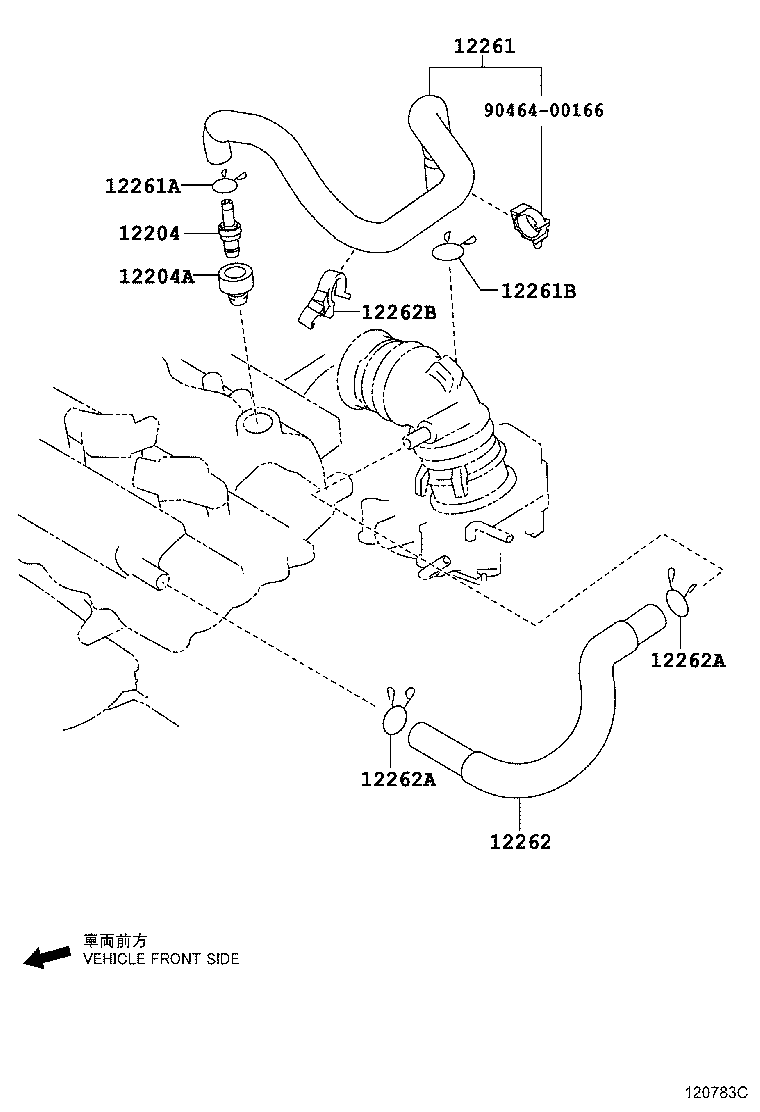

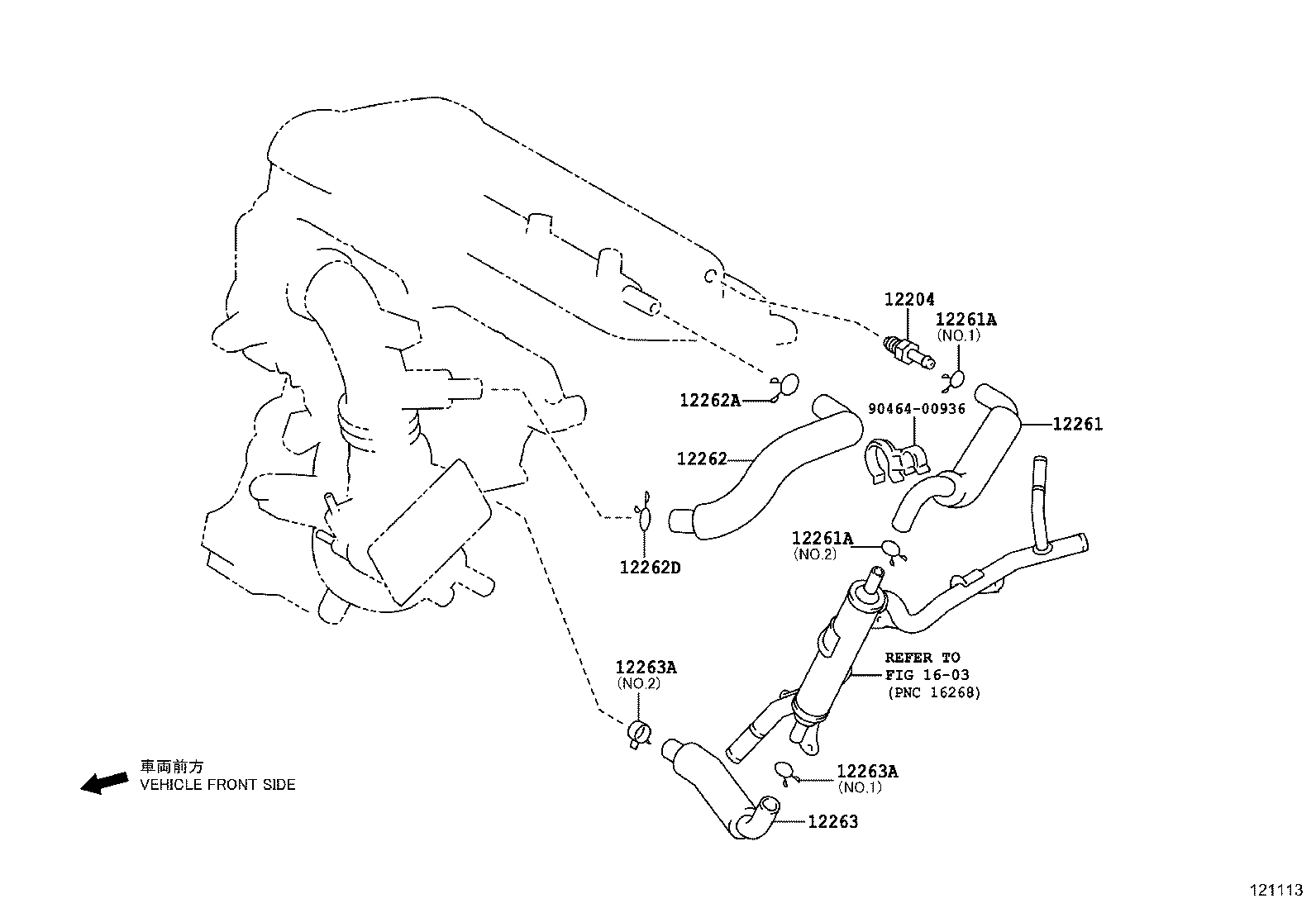

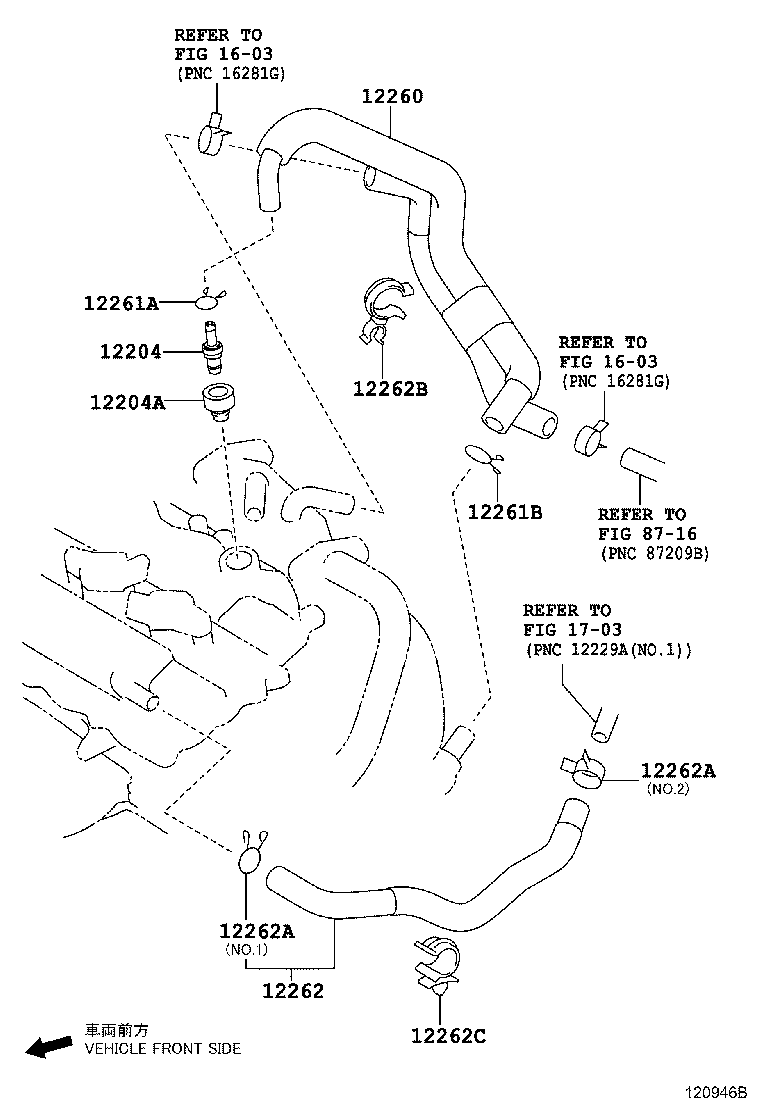

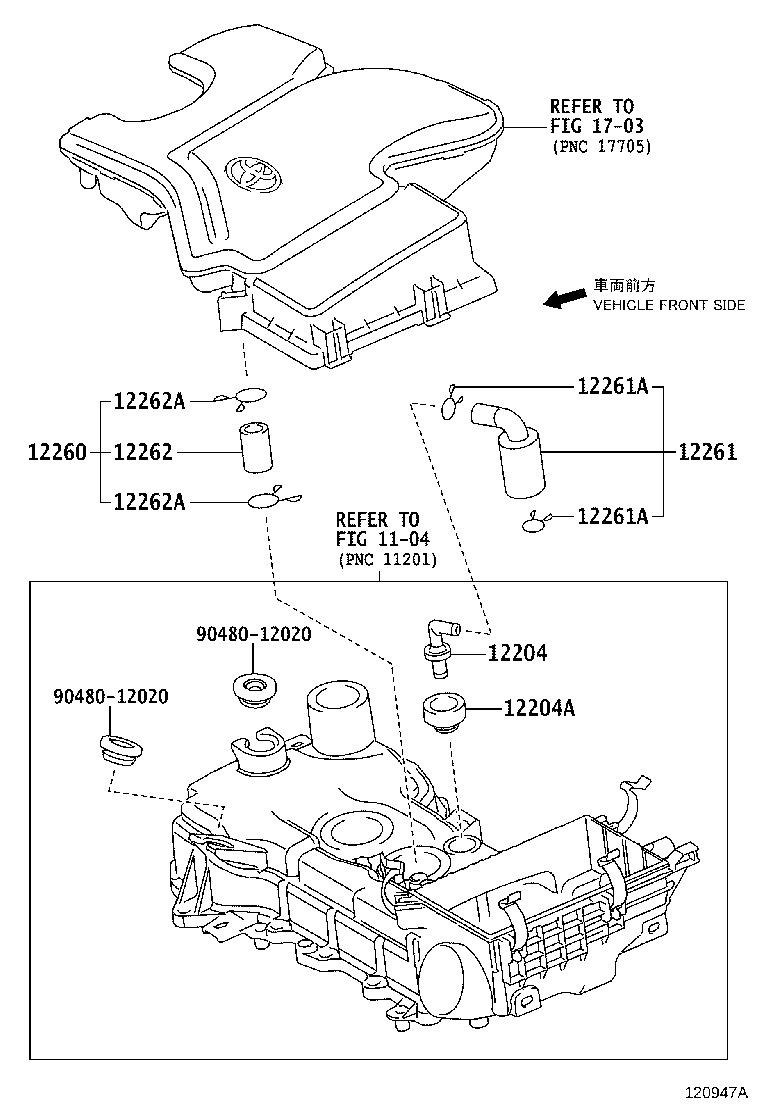

Figure 121193 121193 2010-12 → 2014-04 Figure 120947A 120947A 2014-04 → — Figure 120782A 120782A 2010-12 → — Figure 120783C 120783C 2010-12 → — Figure 120946B 120946B 2014-04 → — Figure 120922B 120922B 2013-09 → 2014-02 Figure 121113 121113 2017-01 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12262C Clamp, Ventilation Hose, NO.2
12262D Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
