Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

44 part groups · 10 illustrations

Illustrations

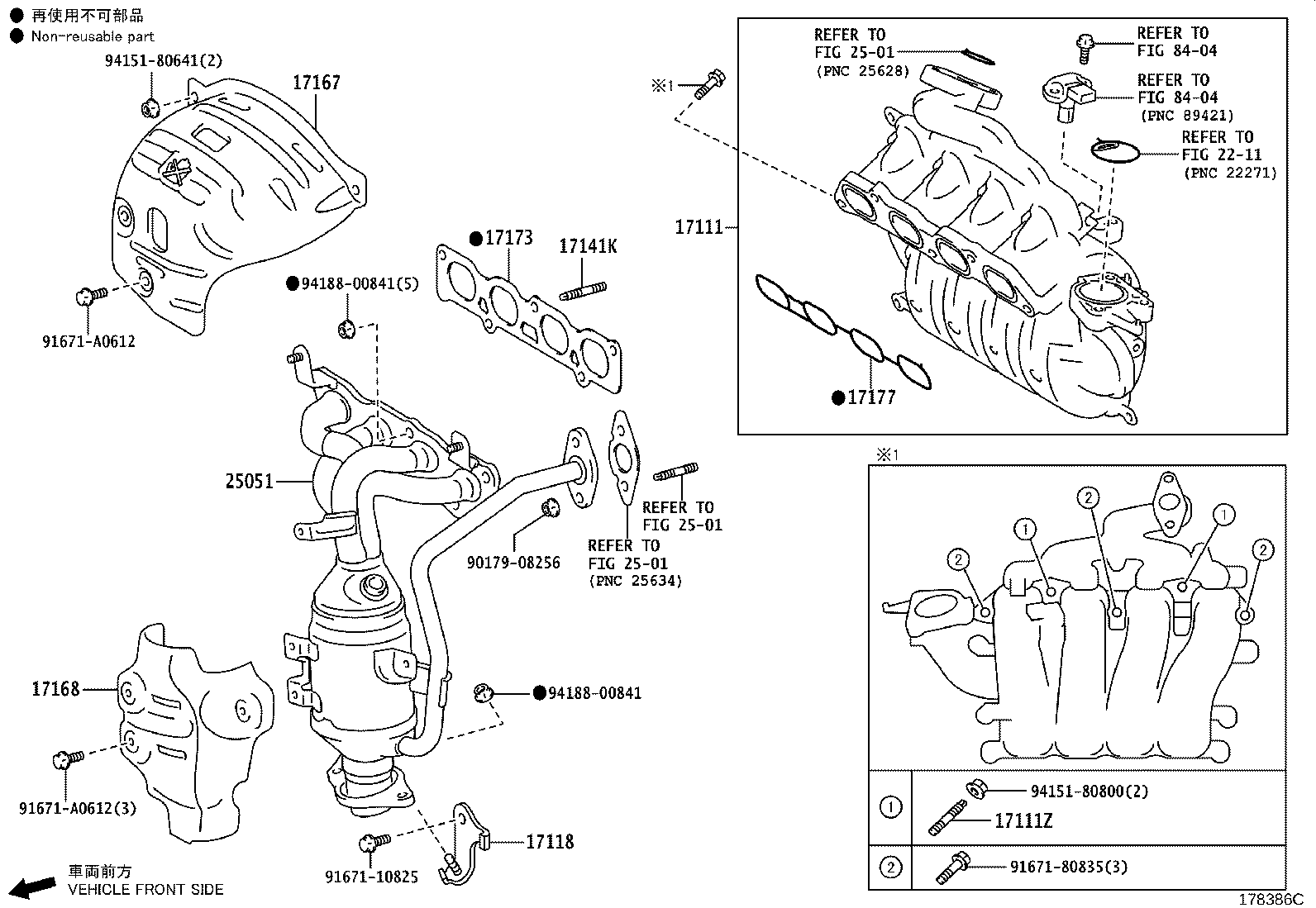

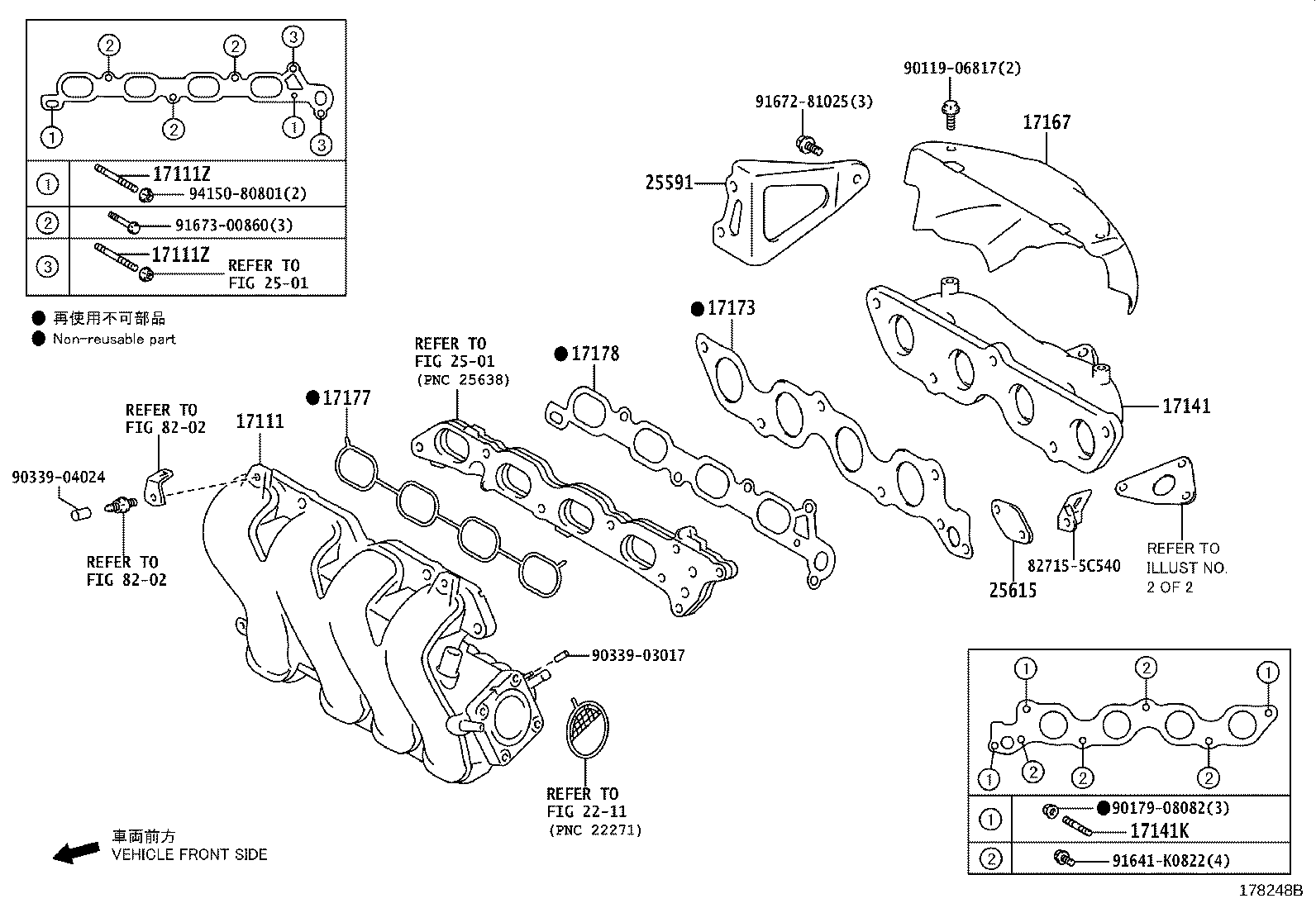

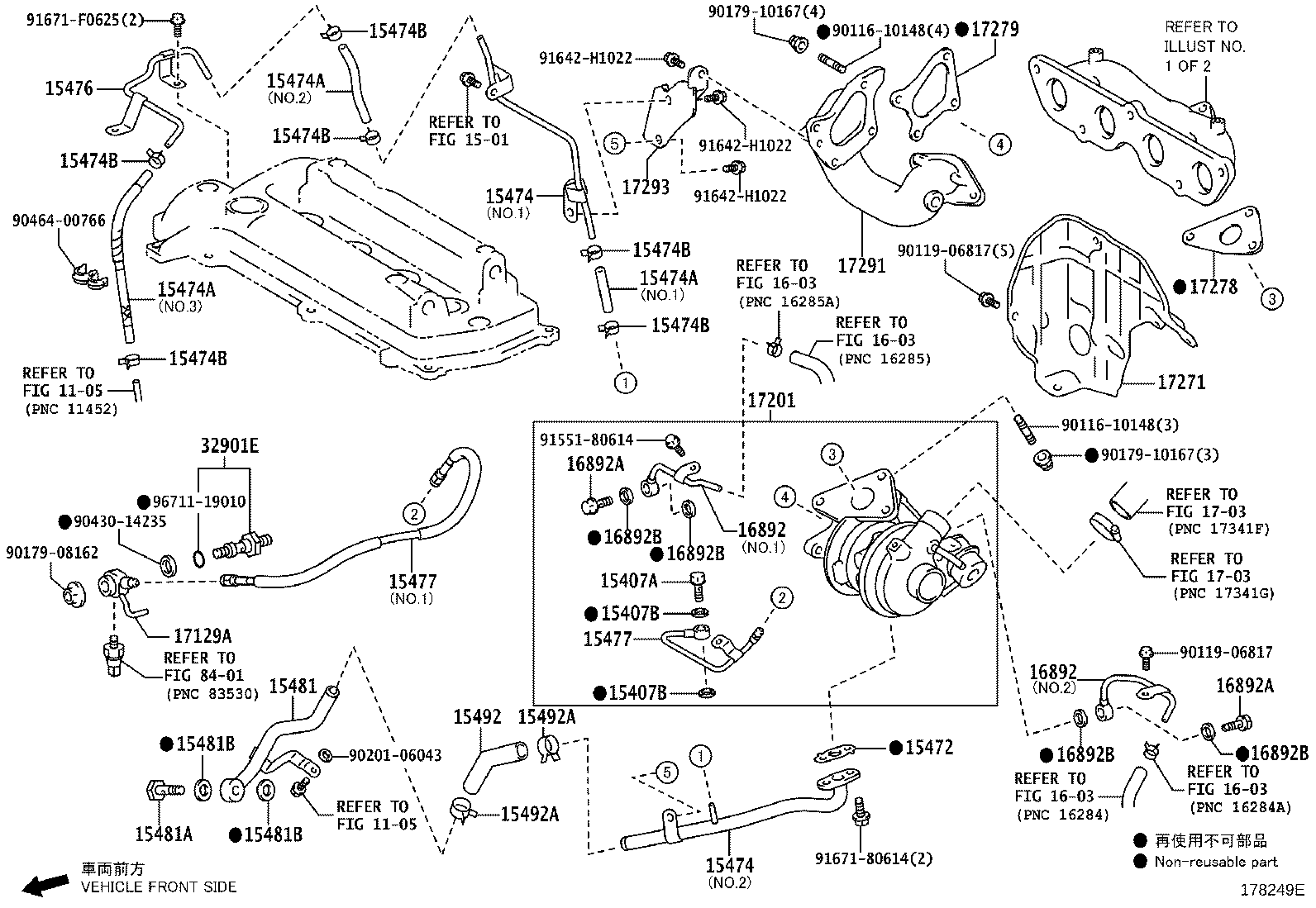

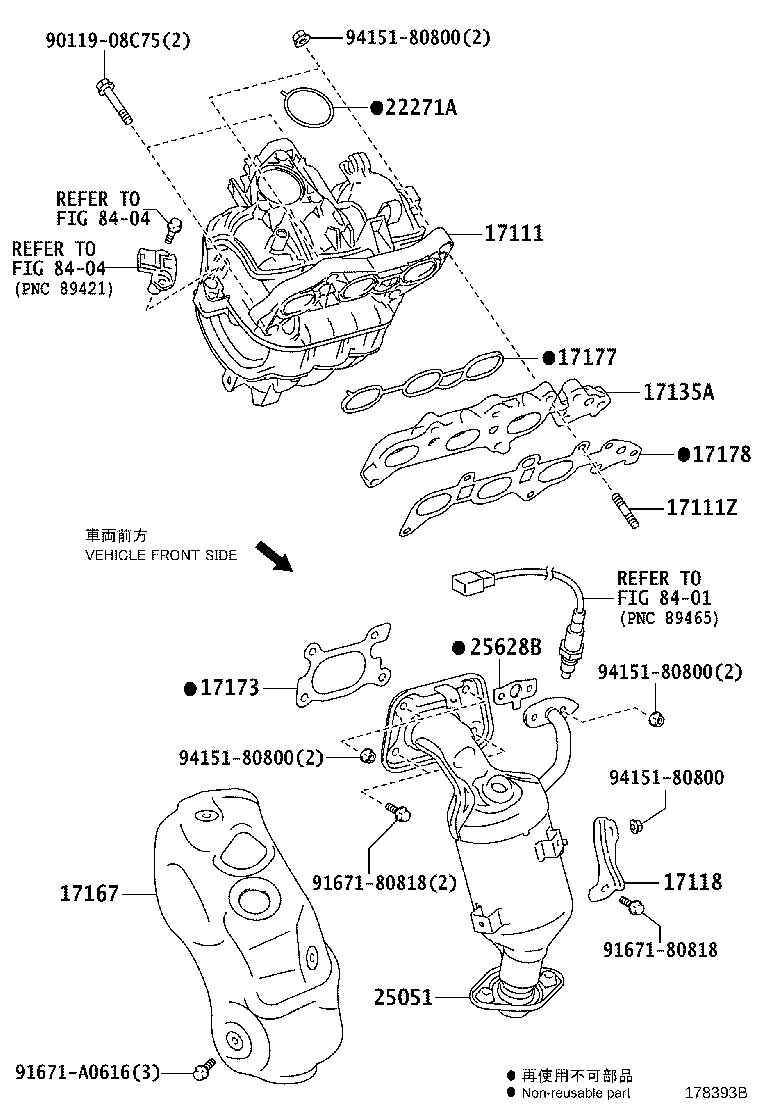

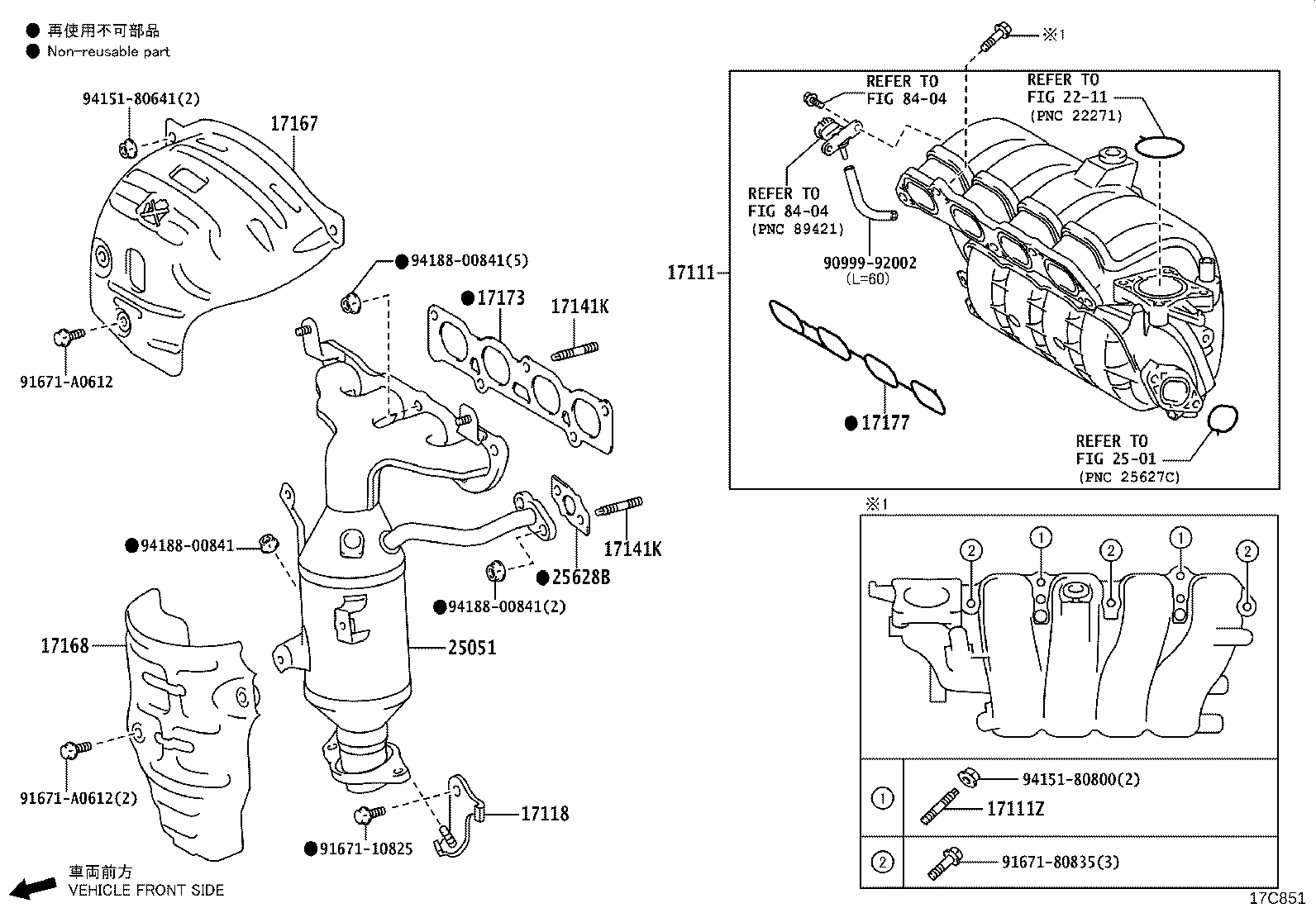

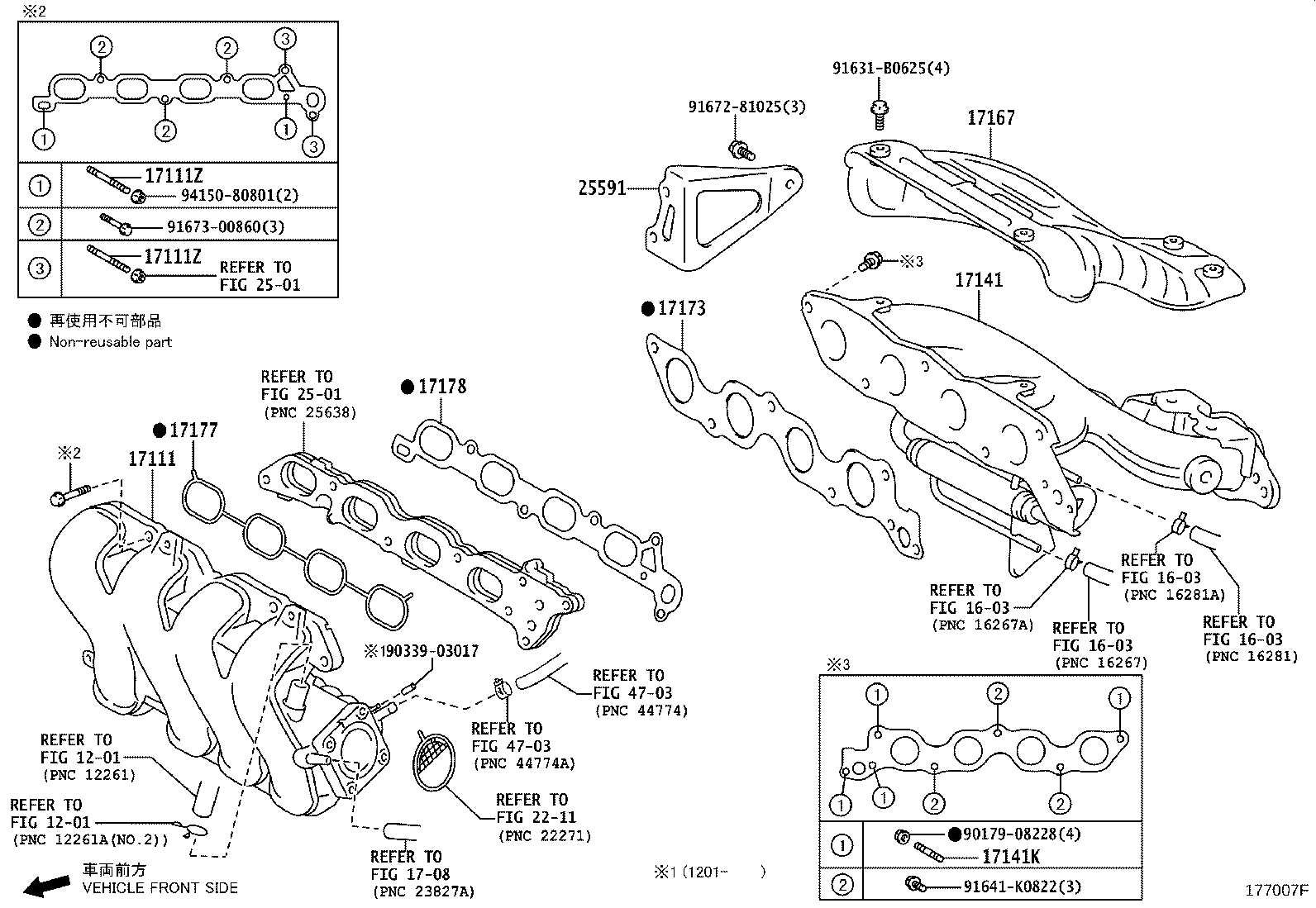

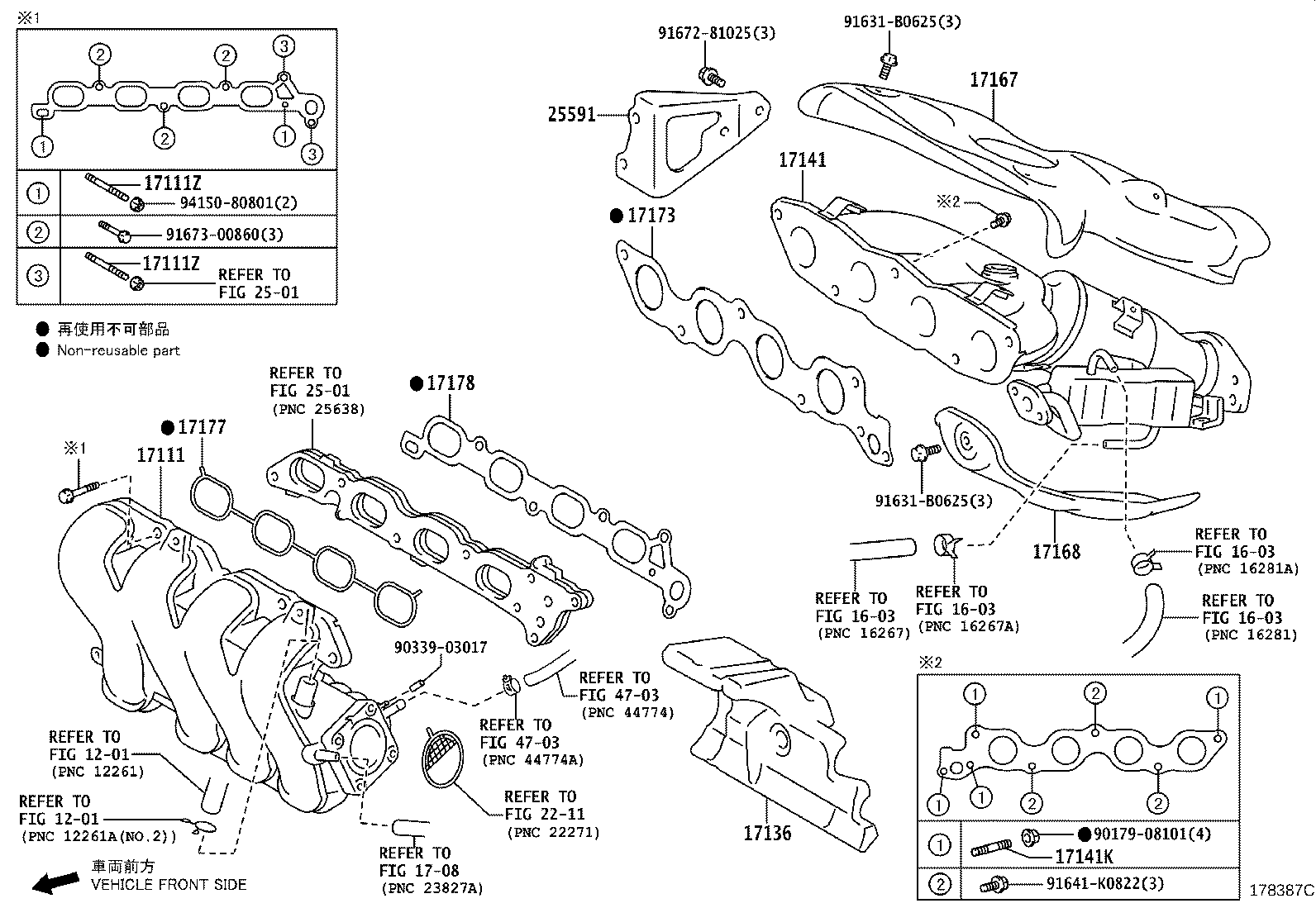

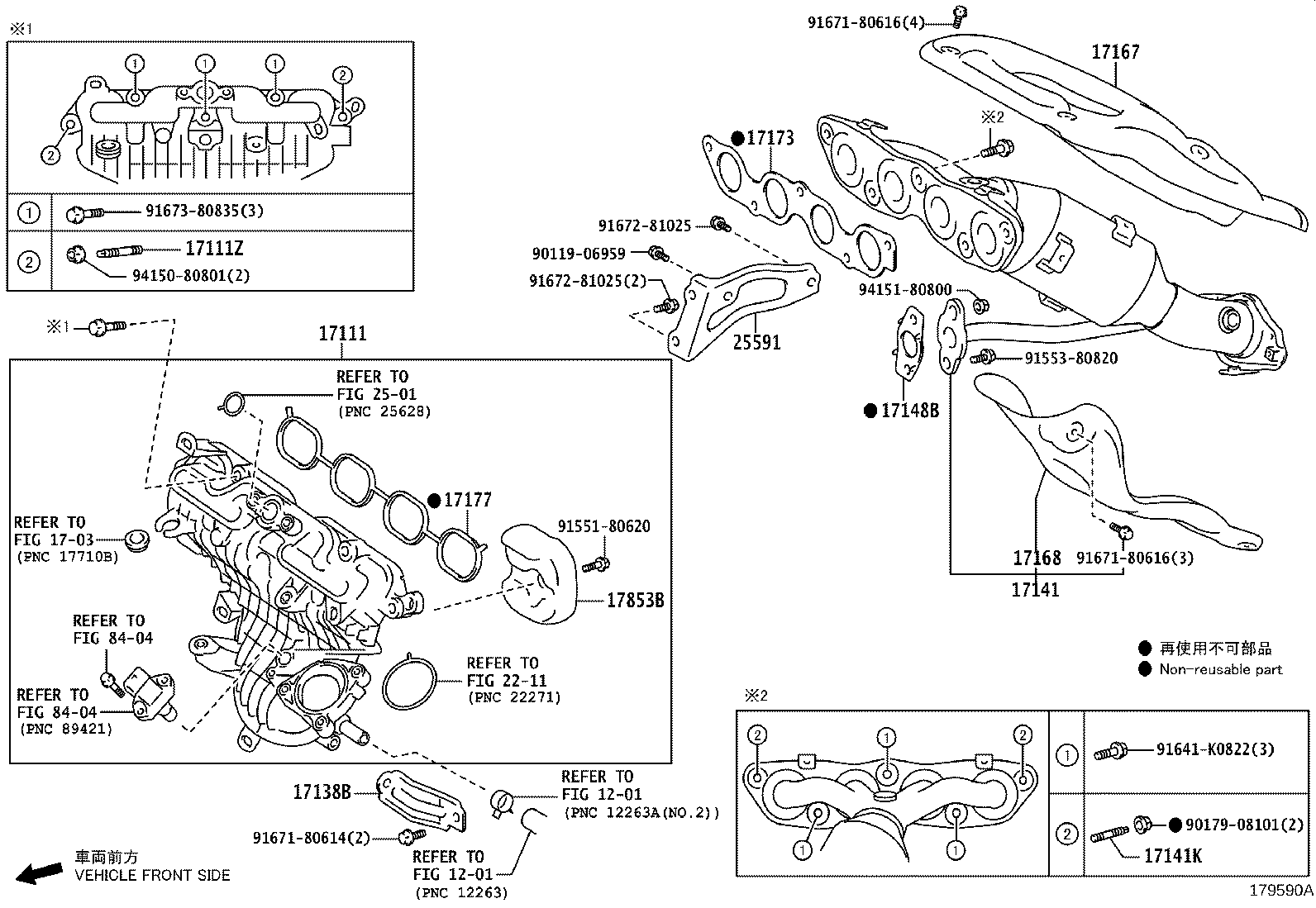

Figure 174357G 174357G 2010-12 → 2014-04 Figure 178393B 178393B 2014-04 → — Figure 177007F 177007F 2010-12 → 2014-04 Figure 177007F 177007F 2014-04 → — Figure 178387C 178387C 2014-04 → — Figure 17C851 17C851 2010-12 → — Figure 178386C 178386C 2014-04 → — Figure 178248B 178248B 2013-09 → 2014-02 Figure 178249E 178249E 2013-09 → 2014-02 Figure 179590A 179590A 2017-01 → —

Part groups

PNCDescription
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15476 Pipe, Turbo Oil Outlet, NO.2
15477 Pipe, Turbo Oil Inlet
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15492 Hose, Turbo Oil Outlet, NO.2
15492A Clip(FOR TURBO OIL OUTLET HOSE NO.2)
16892 Connector, Turbo Water
16892A Bolt, Union(FOR TURBO WATER CONNECTOR)
16892B Gasket(FOR TURBO WATER CONNECTOR)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17129A Union, NO.1
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148B Gasket, Egr Inlet
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17853B Insulator, Intake Manifold
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25591 Bracket, Manifold Support
25615 Plate, Egr Hole Cover, NO.1
25628B Gasket, Egr Inlet
32901E Union Sub-assy, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
