Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

45 part groups · 10 illustrations

Illustrations

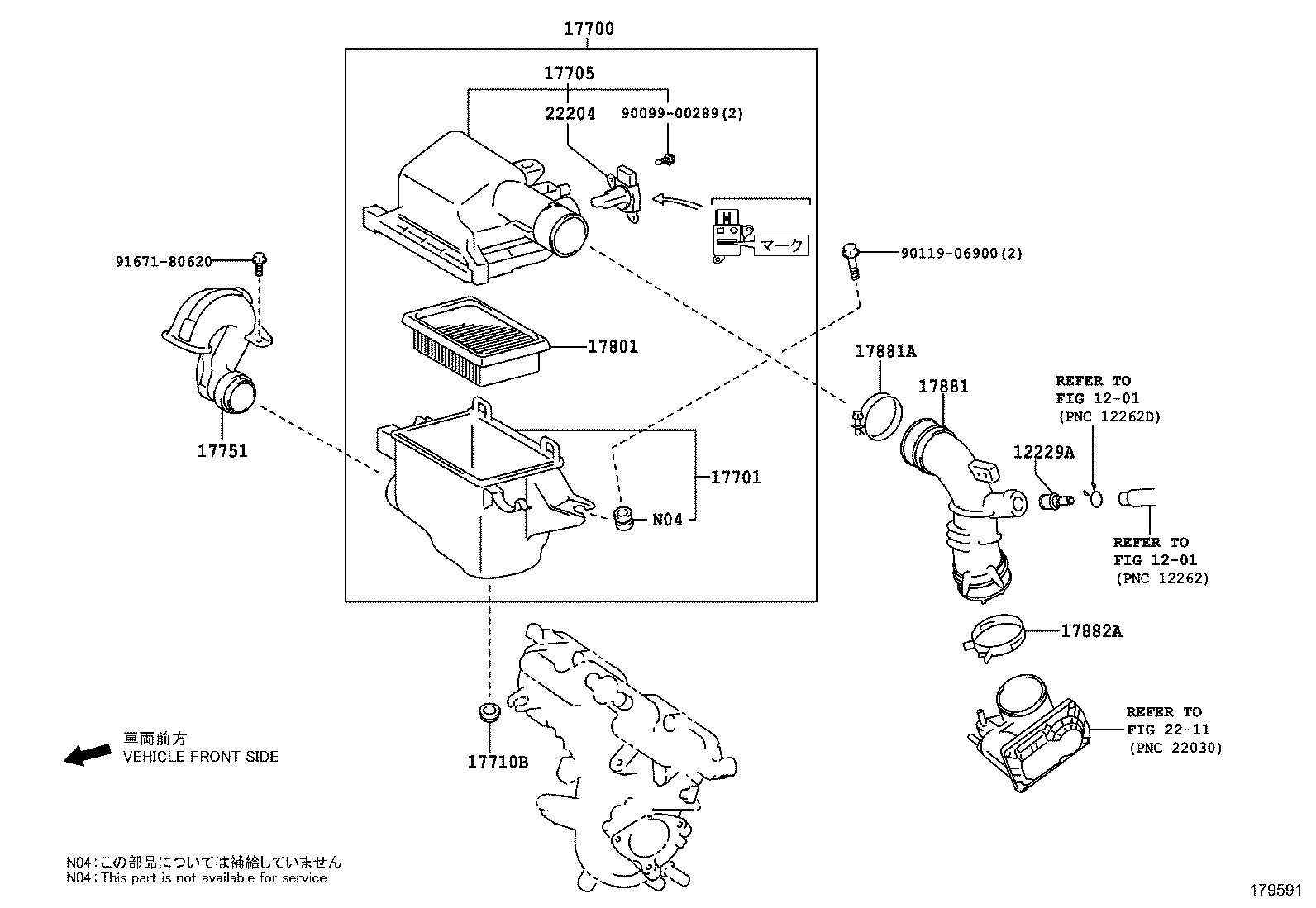

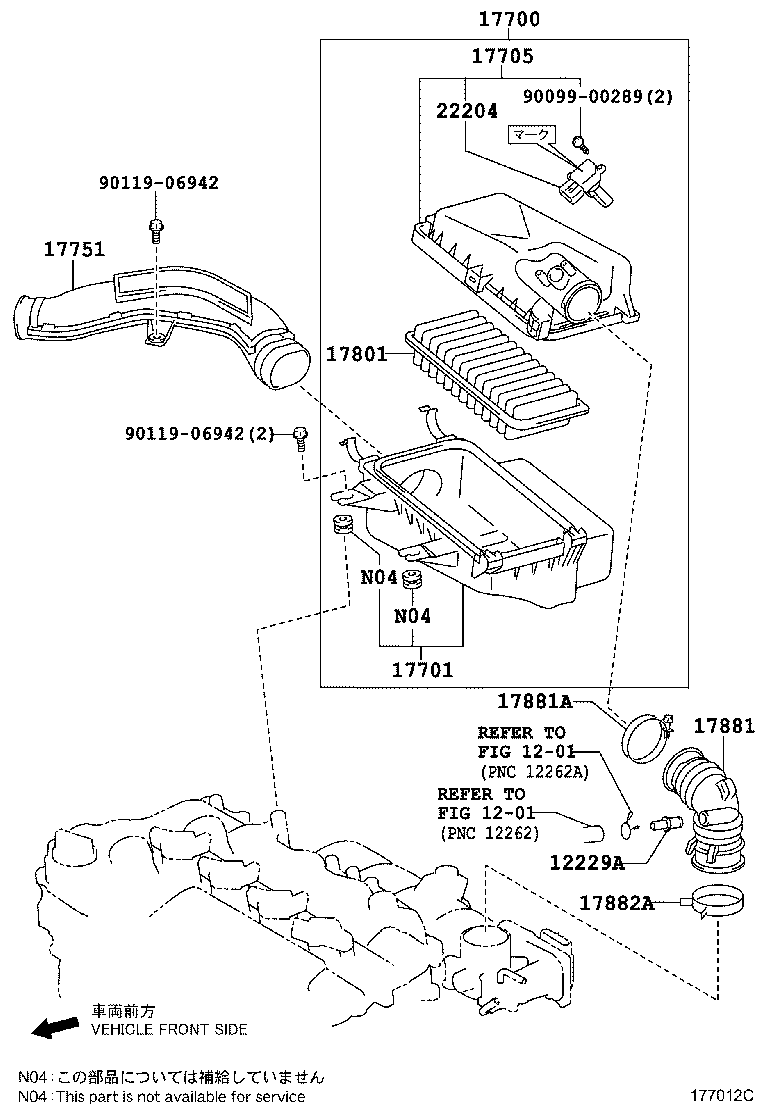

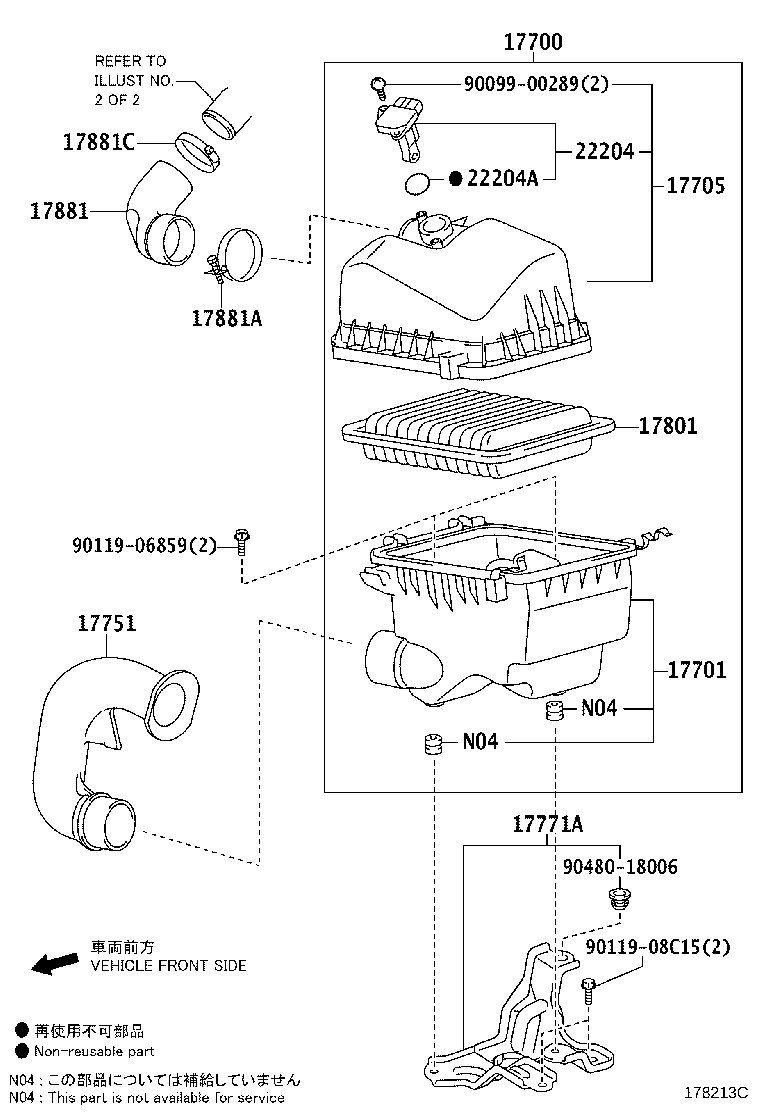

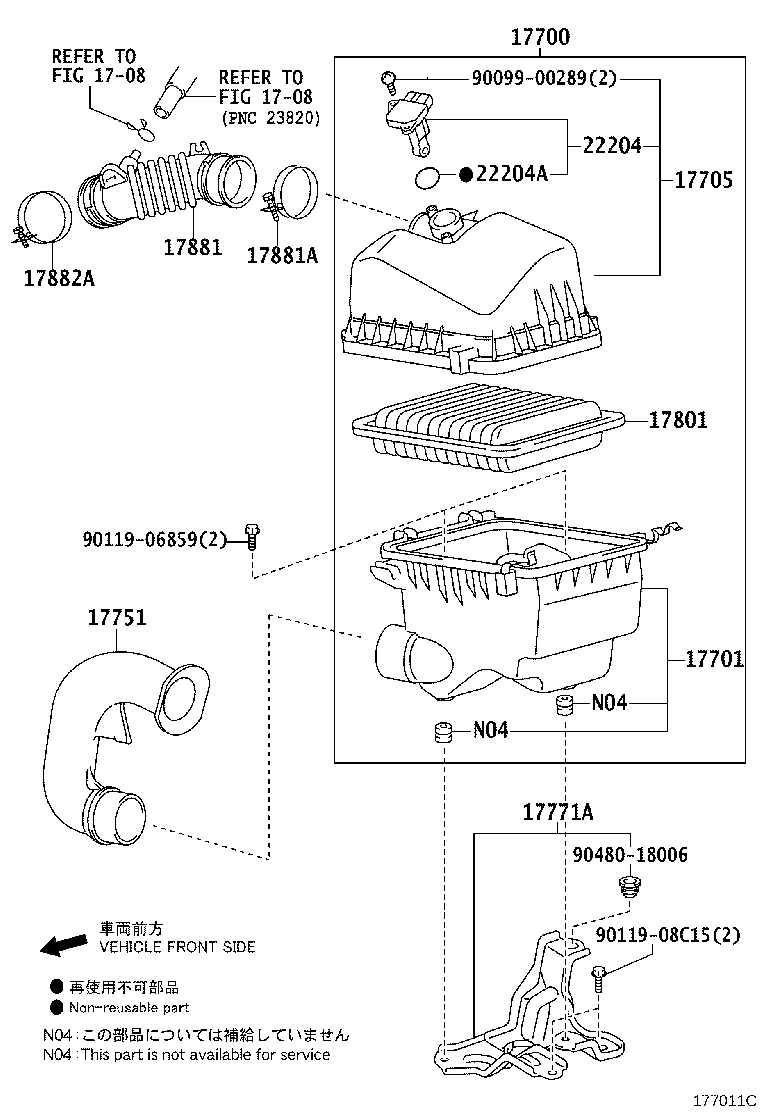

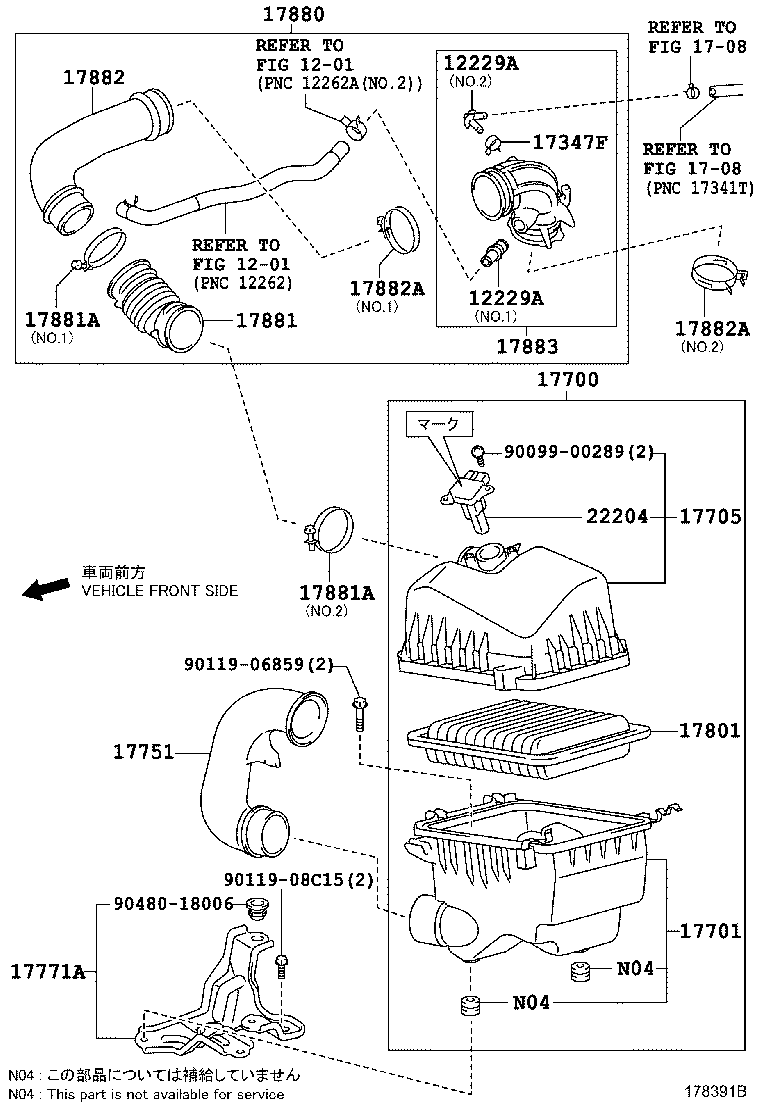

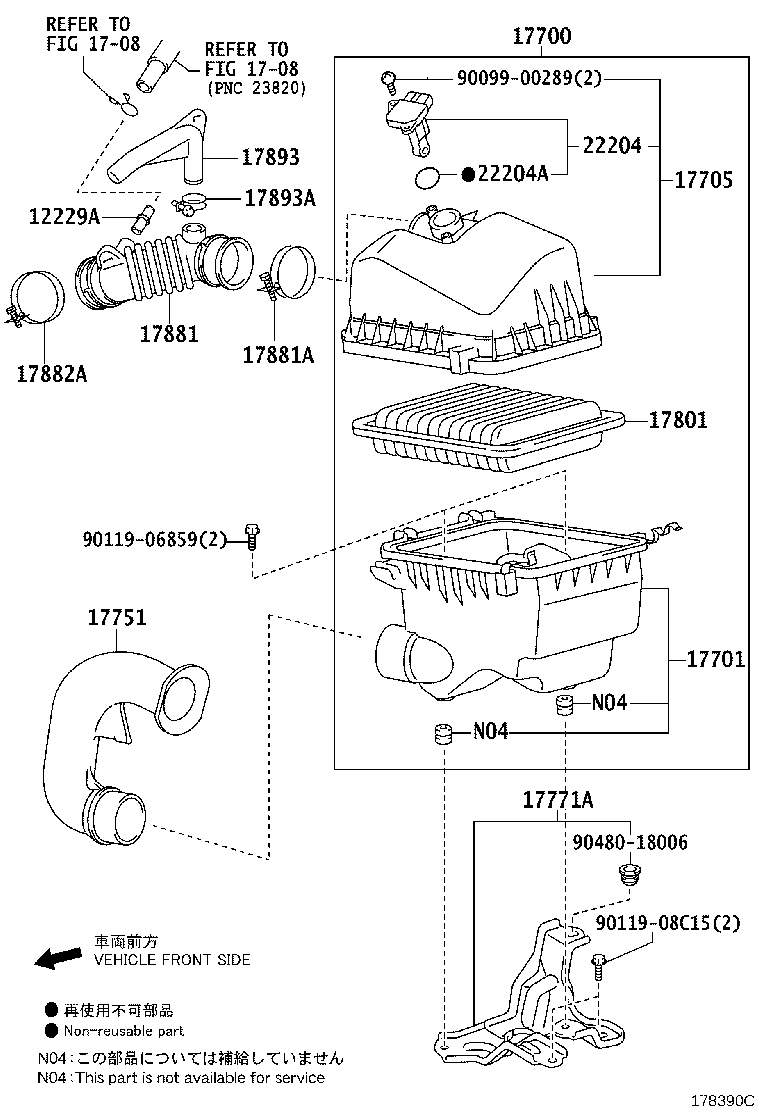

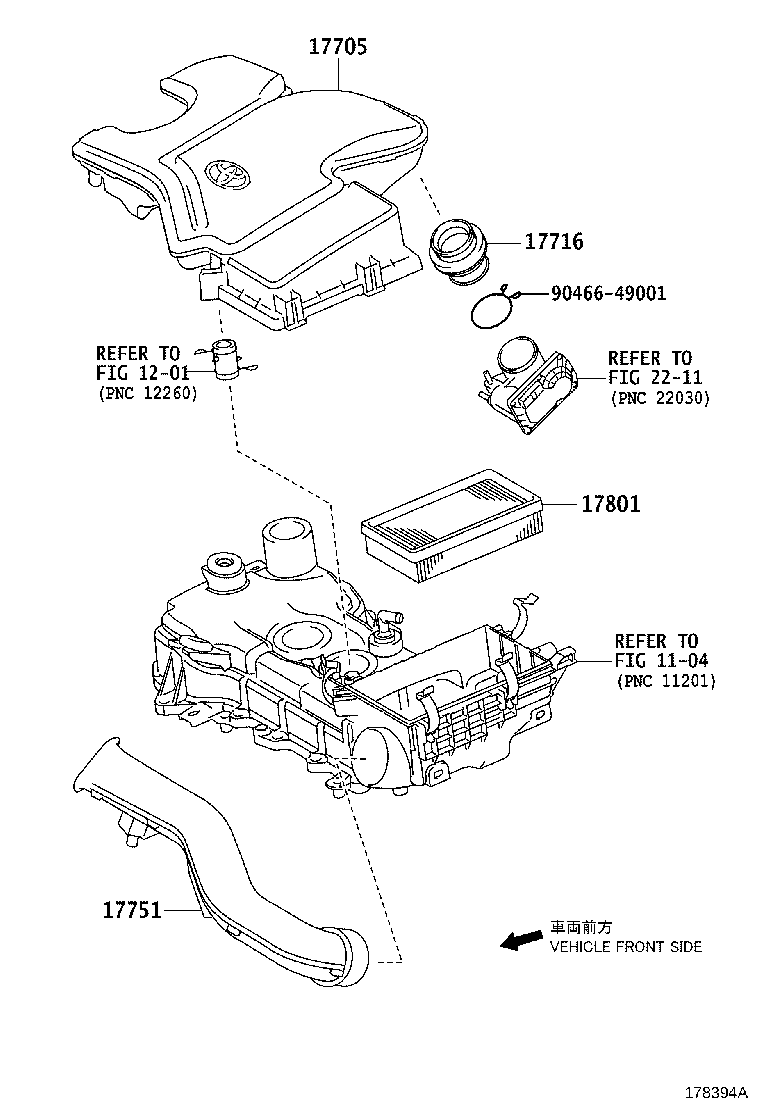

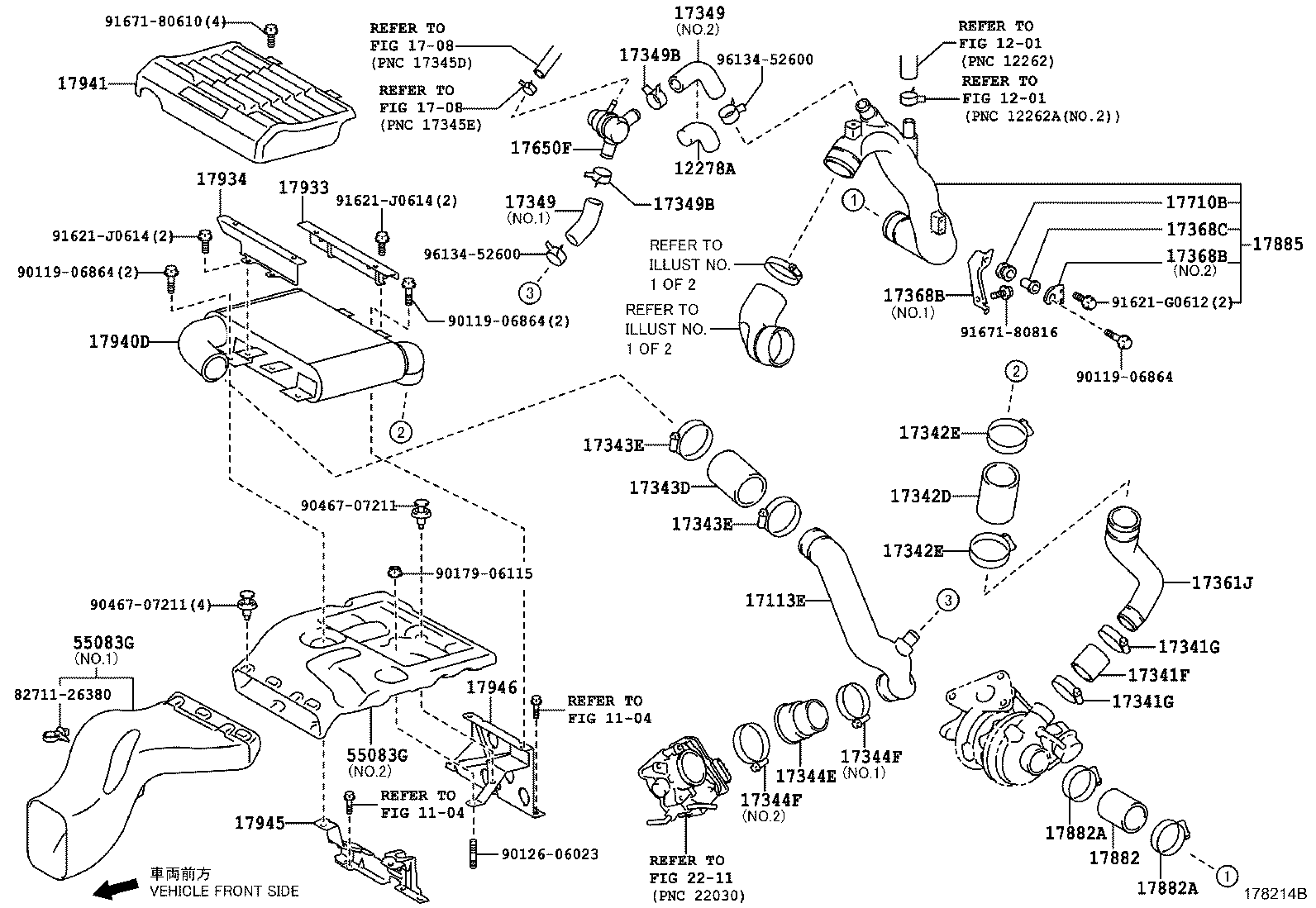

Figure 17A088 17A088 2010-12 → 2014-04 Figure 178394A 178394A 2014-04 → — Figure 177011C 177011C 2010-12 → 2014-04 Figure 177011C 177011C 2014-04 → — Figure 178390C 178390C 2014-04 → — Figure 177012C 177012C 2010-12 → — Figure 178391B 178391B 2014-04 → — Figure 178213C 178213C 2013-09 → 2014-02 Figure 178214B 178214B 2013-09 → 2014-02 Figure 179591 179591 2017-01 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
12278A Insulator, Ventilation Hose Heat
17113E Pipe, Intake, NO.1
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17347F Clamp OR Clip(FOR AIR HOSE)
17349 Hose, Intake Pipe
17349B Clamp, Hose(FOR INTAKE PIPE)
17361J Tube, Air, NO.1
17368B Support, Air Tube
17368C Bush(FOR AIR TUBE SUPPORT)
17650F Valve Assy, Air By-pass, NO.2
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17716 Support,Air Cleaner Cap
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17933 Bracket, Hot Air Shroud, NO.1
17934 Bracket, Hot Air Shroud, NO.2
17940D Intercooler Assy
17941 Guide, Intercooler Air, NO.1
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
55083G Duct Sub-assy, Front Ventilator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
