Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

23 part groups · 9 illustrations

Illustrations

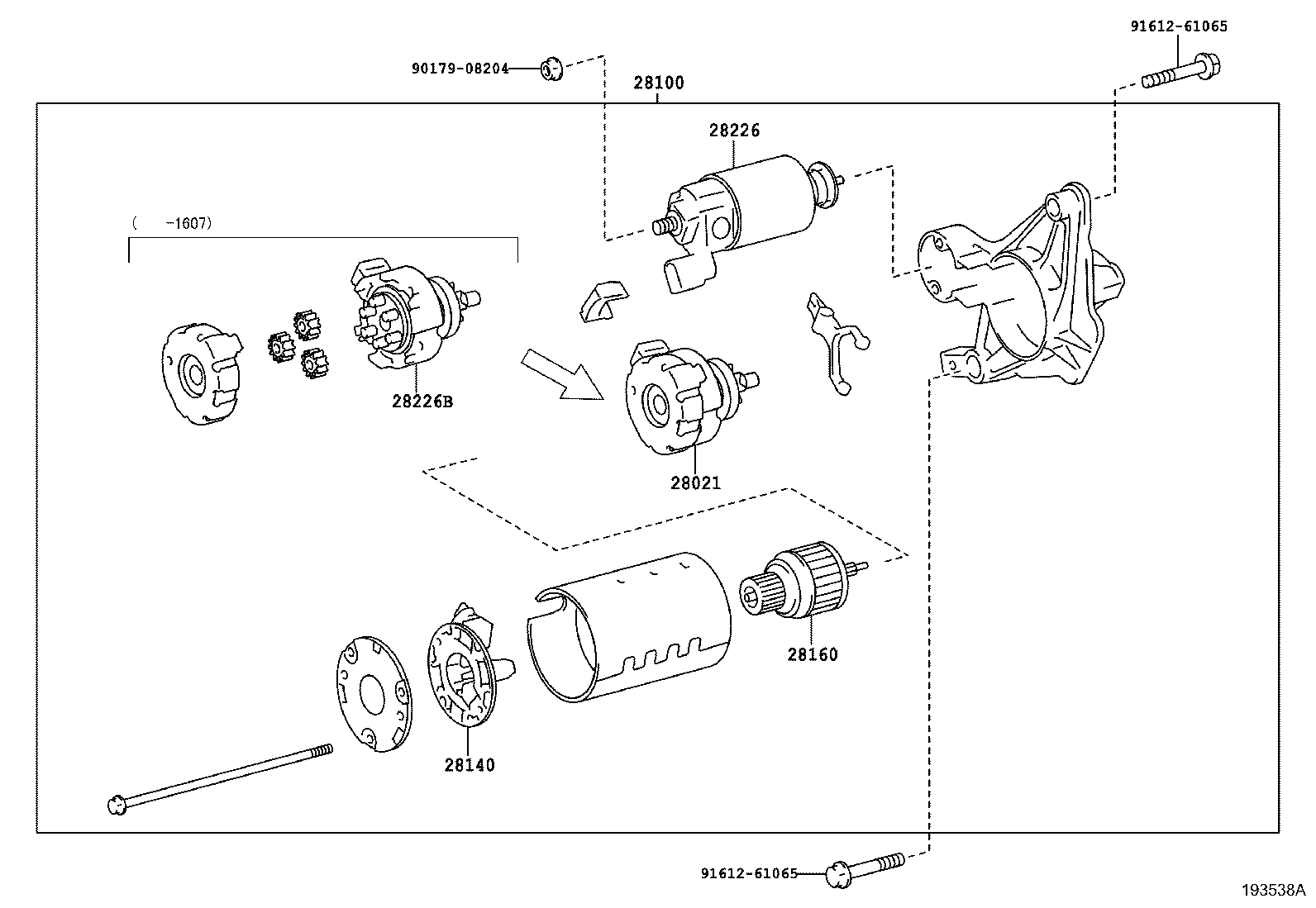

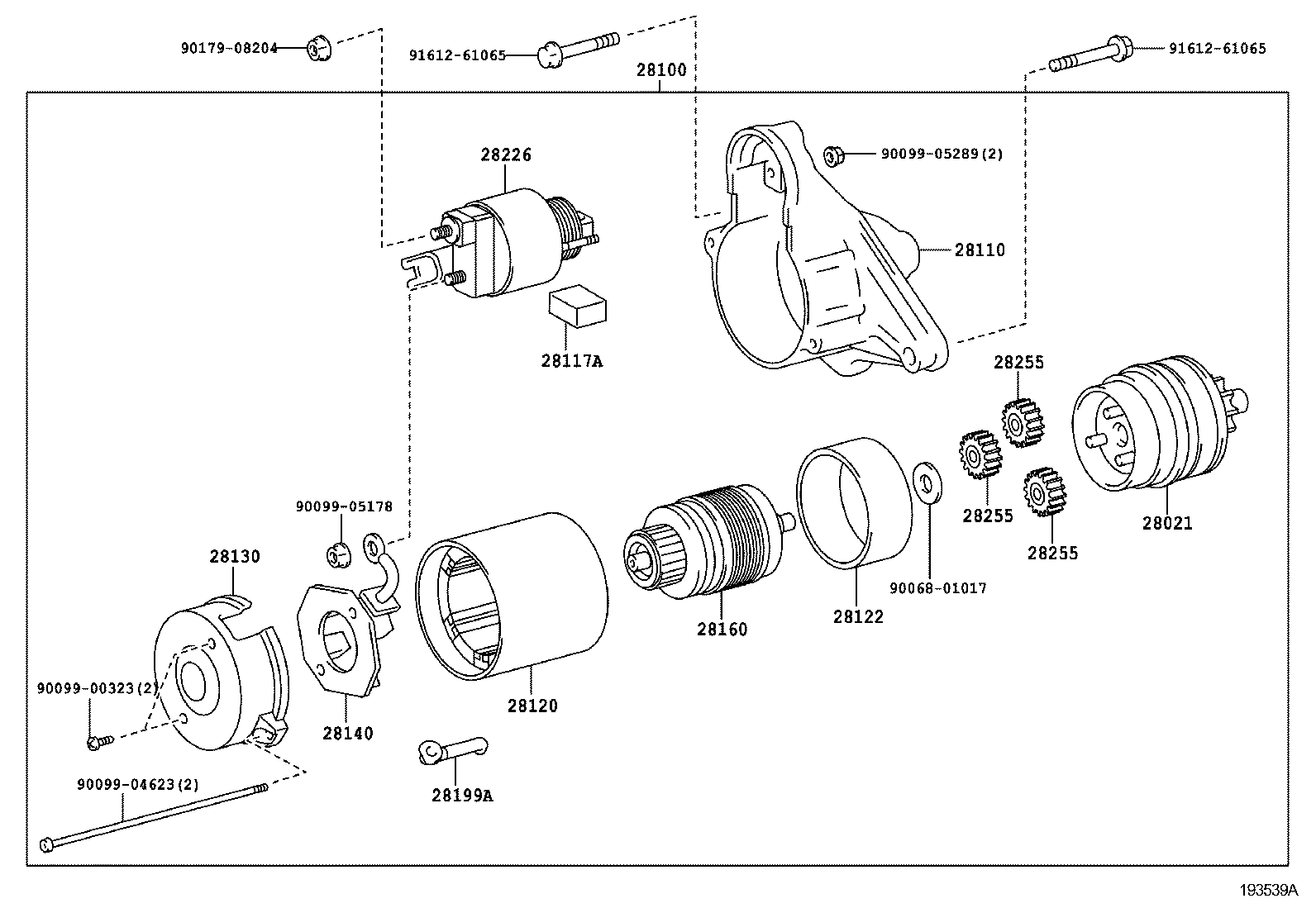

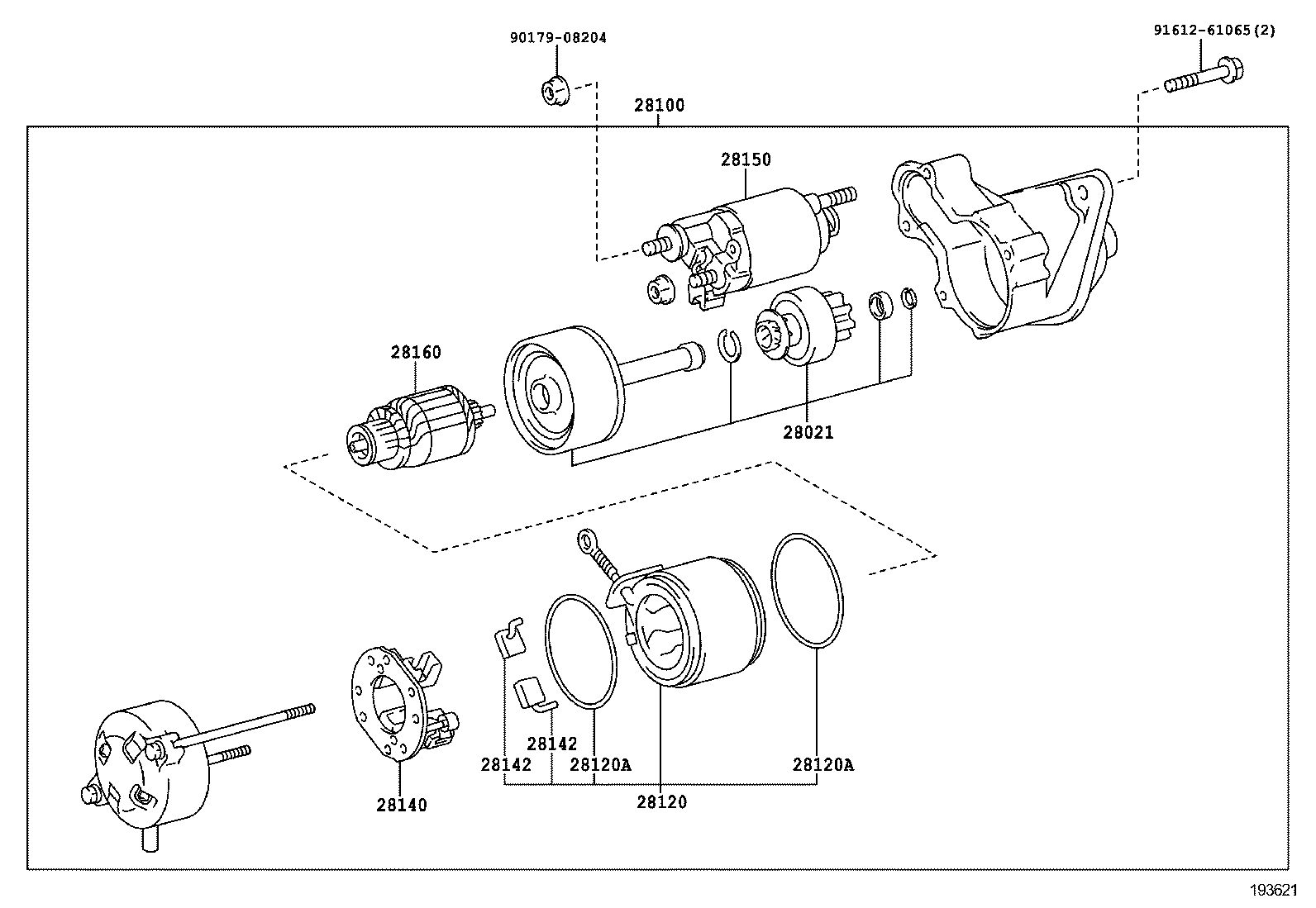

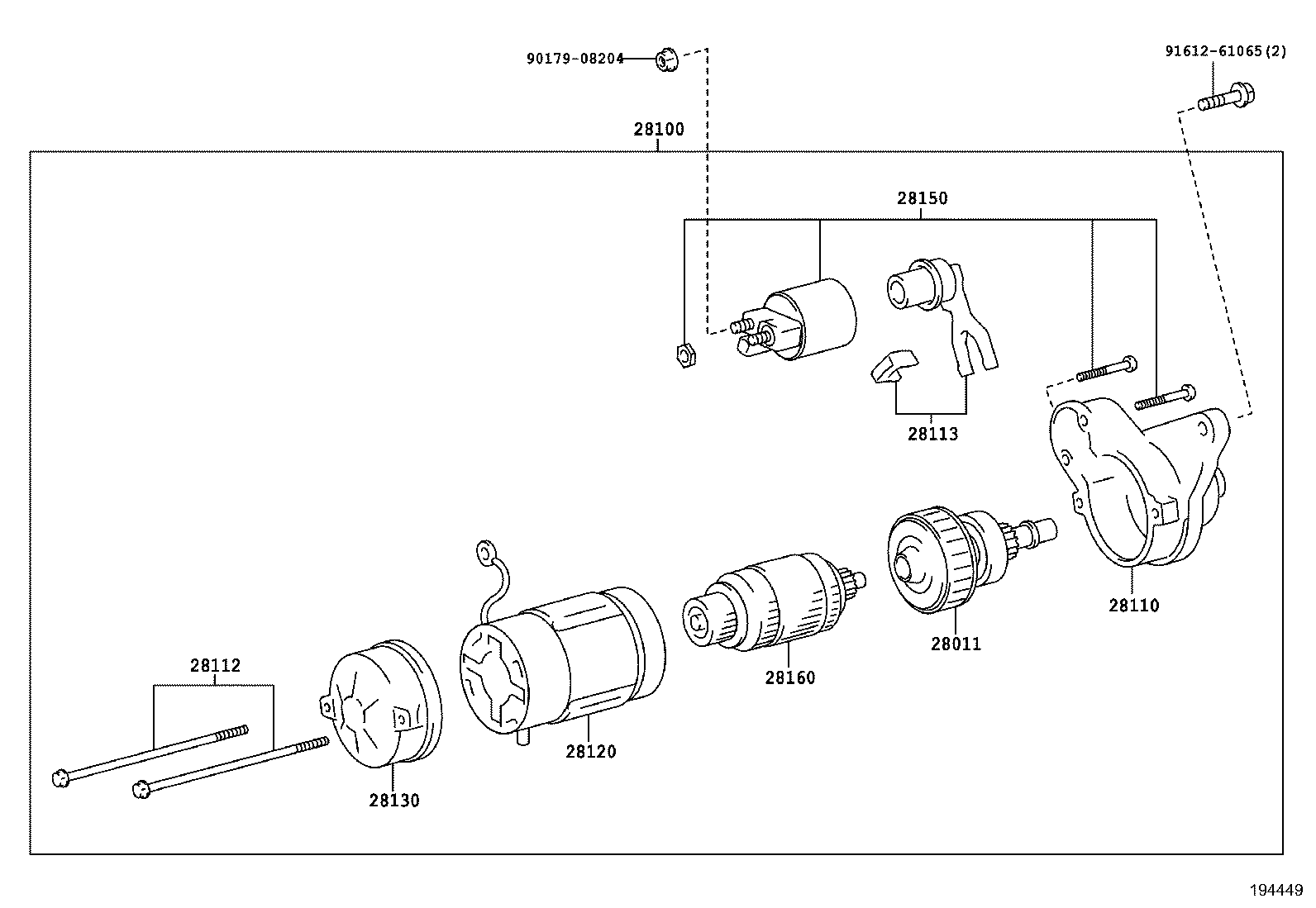

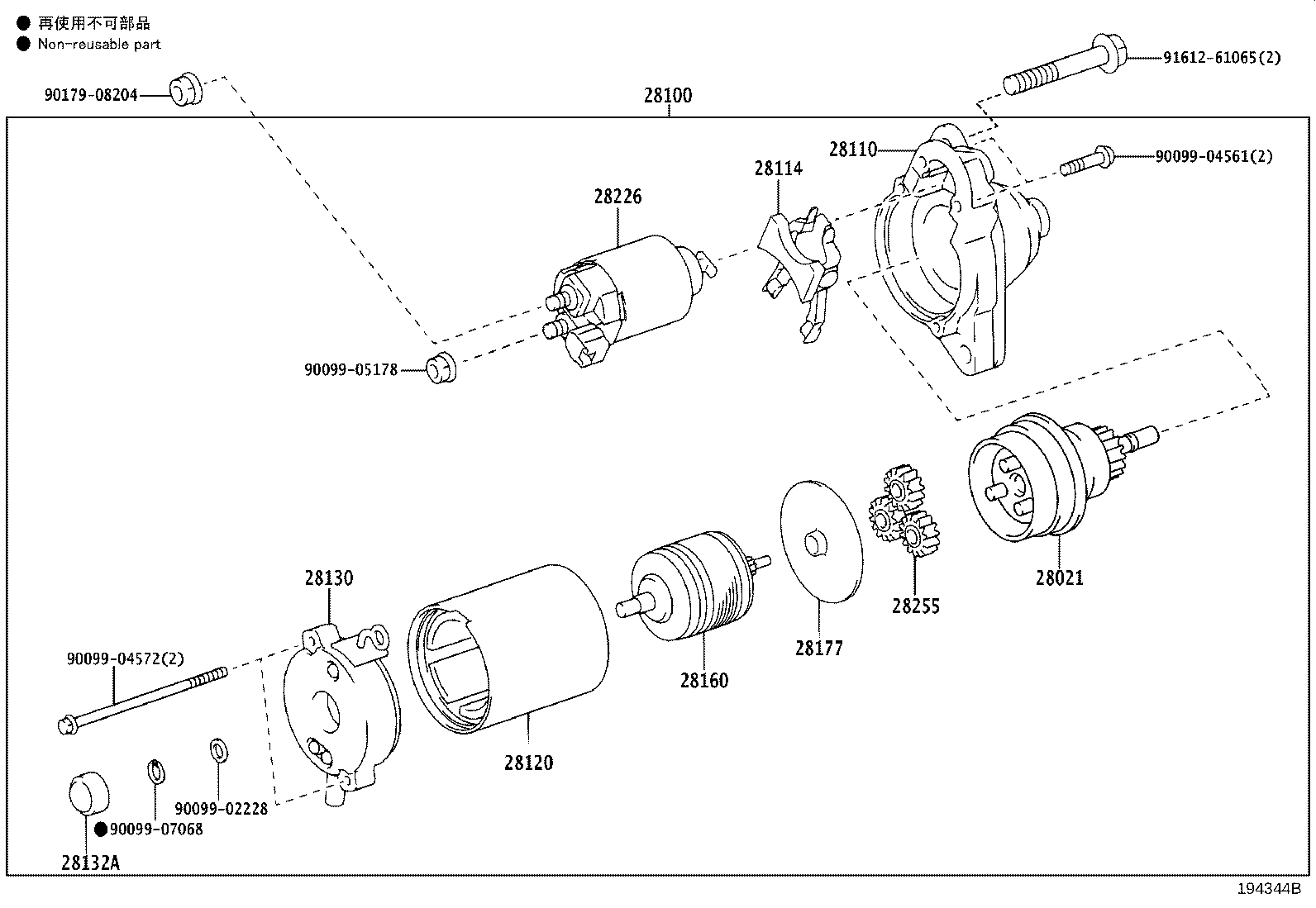

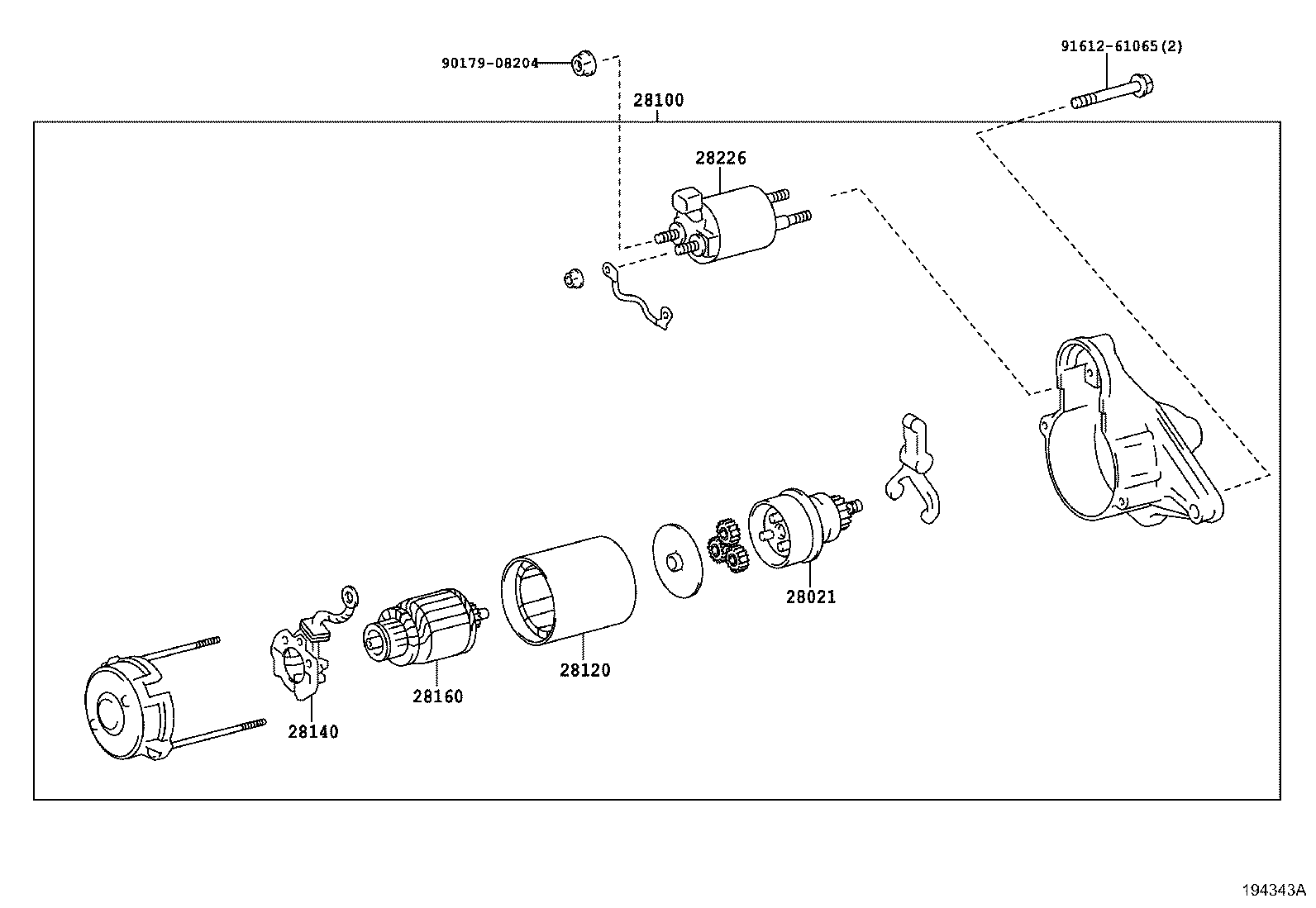

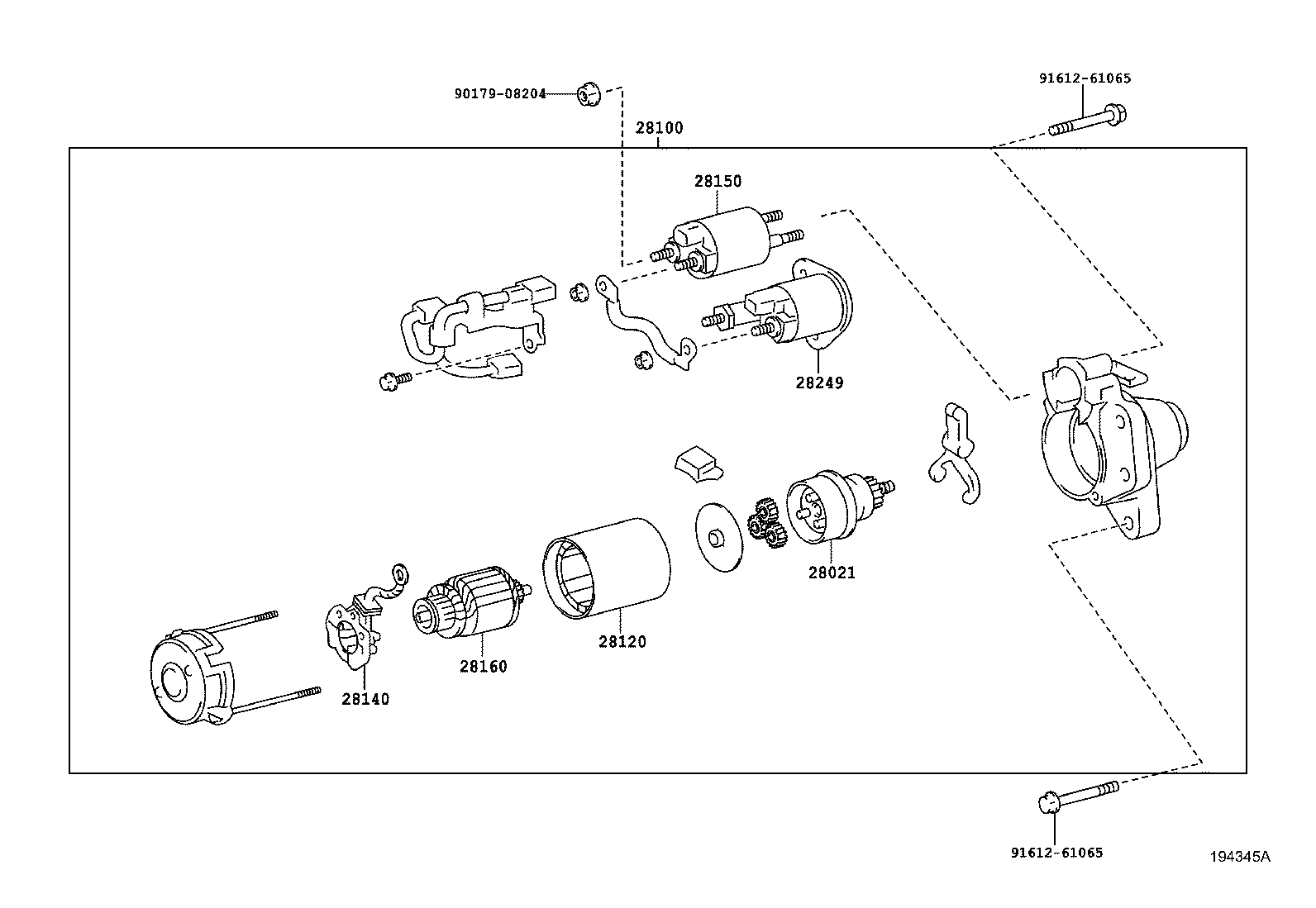

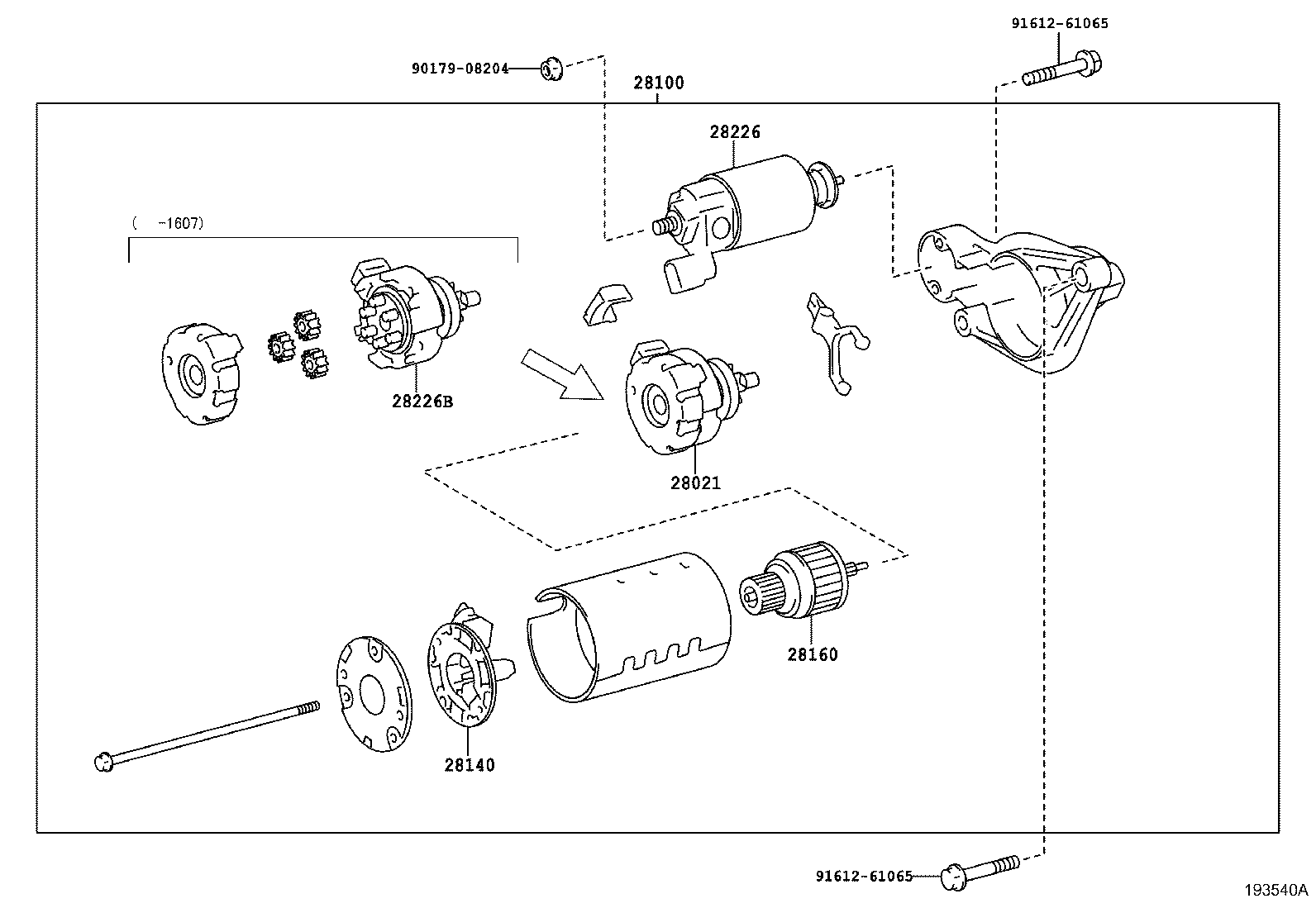

Figure 194346A 194346A 2010-12 → — Figure 193621 193621 2010-12 → — Figure 194449 194449 2014-04 → — Figure 193538A 193538A 2010-12 → — Figure 193539A 193539A 2010-12 → 2014-04 Figure 193540A 193540A 2010-12 → — Figure 194343A 194343A 2014-04 → — Figure 194344B 194344B 2014-04 → — Figure 194345A 194345A 2014-04 → 2017-01

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28122 Collar, Space
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28226 Starter Kit, Battery Terminal
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
