Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02

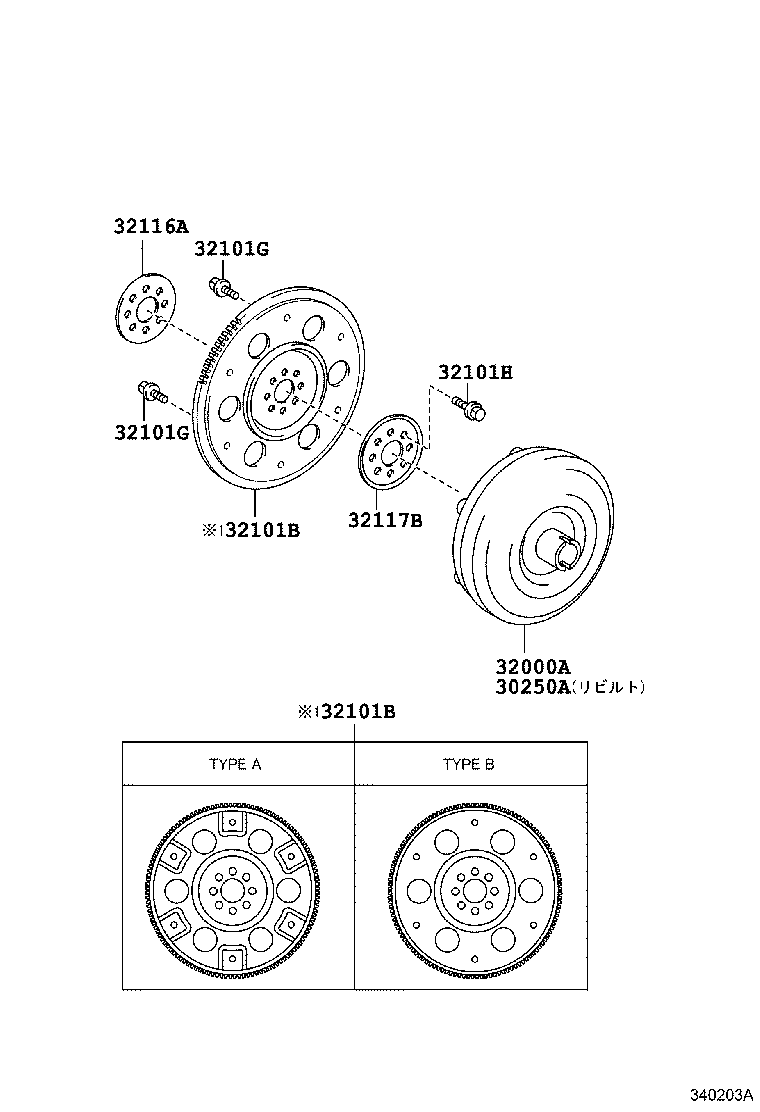

Torque Converter, Front Oil Pump(CVT)
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 30250A | Converter Assy, Torque, Rebuilt |
| 32000A | Converter Assy, Torque |
| 32101B | Gear Sub-assy, Drive Plate & Ring |
| 32101G | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101H | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116A | Spacer, Drive Plate, Front |
| 32117B | Spacer, Drive Plate, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
