Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02
Disc Wheel & Wheel Cap
8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |

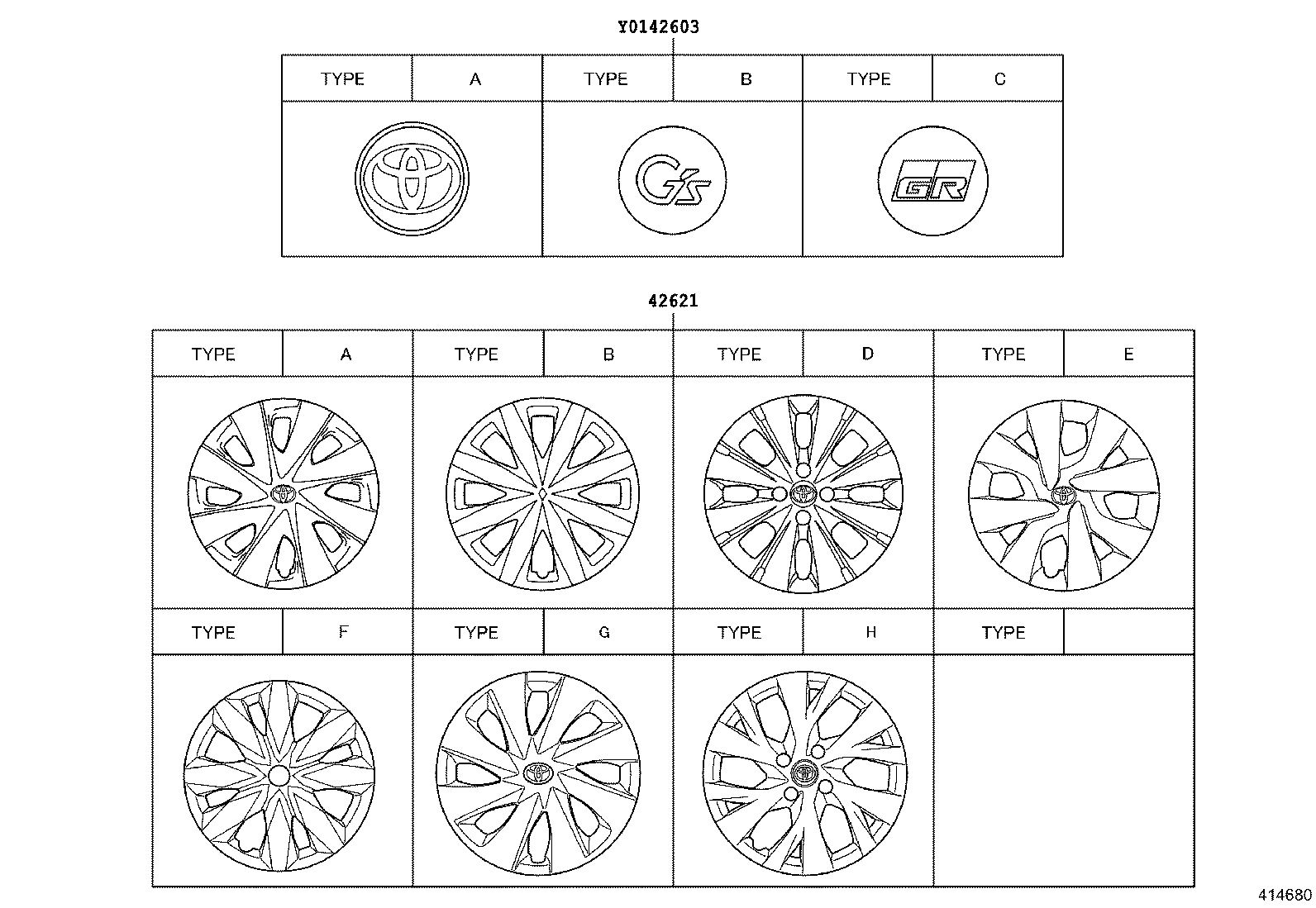

| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
| 75919 | Sticker, Wheel Decor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
