Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 6 illustrations

Illustrations

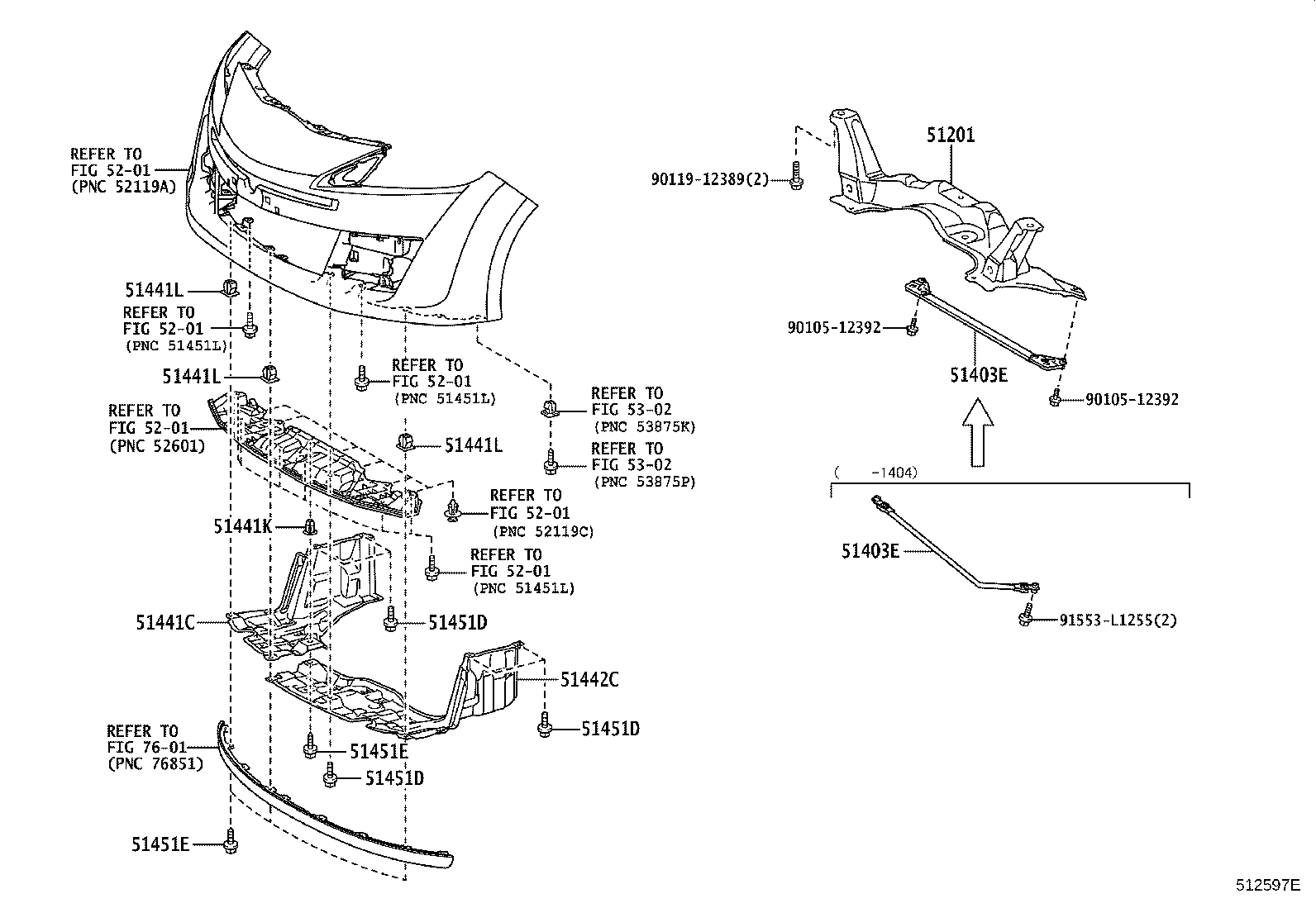

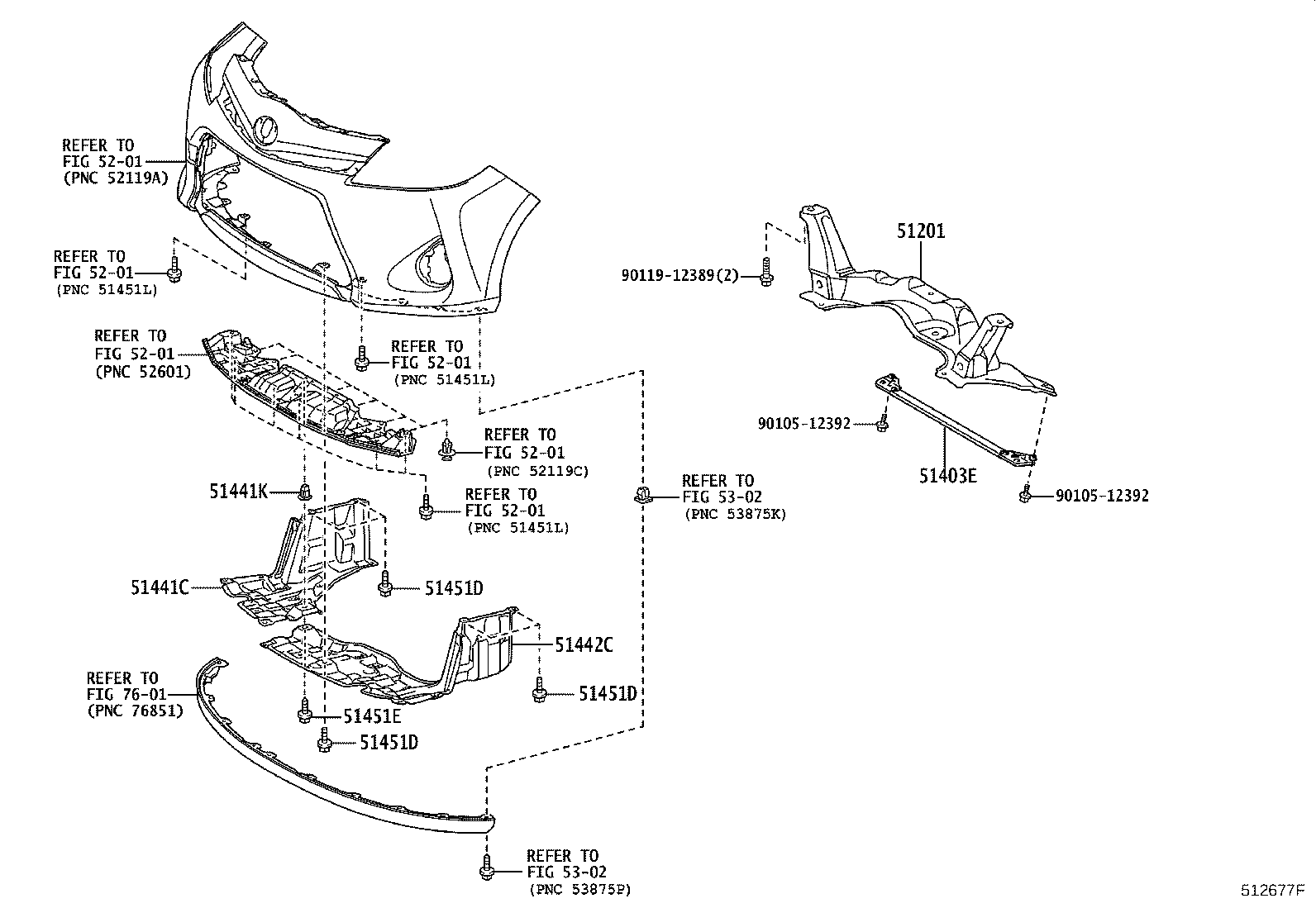

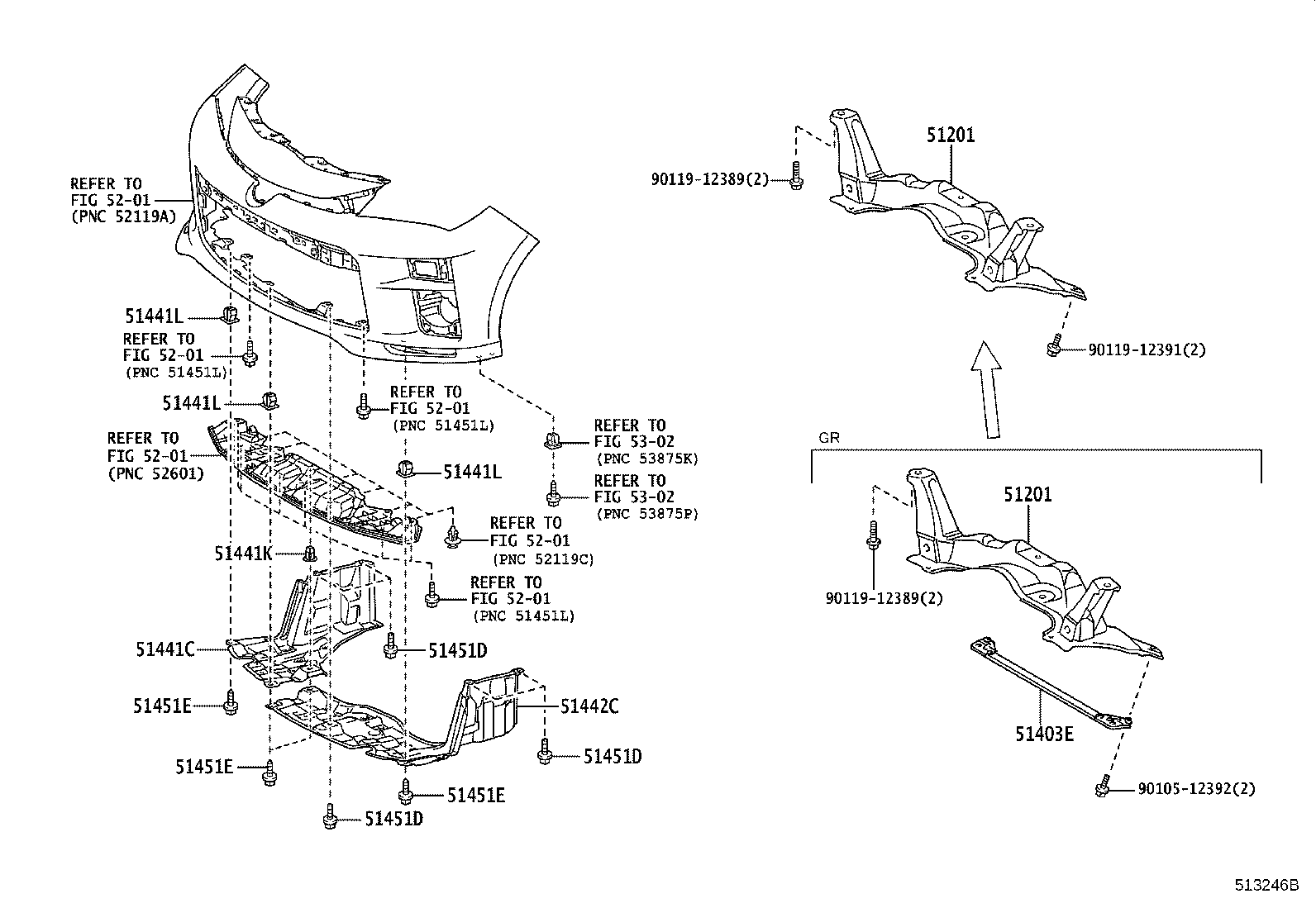

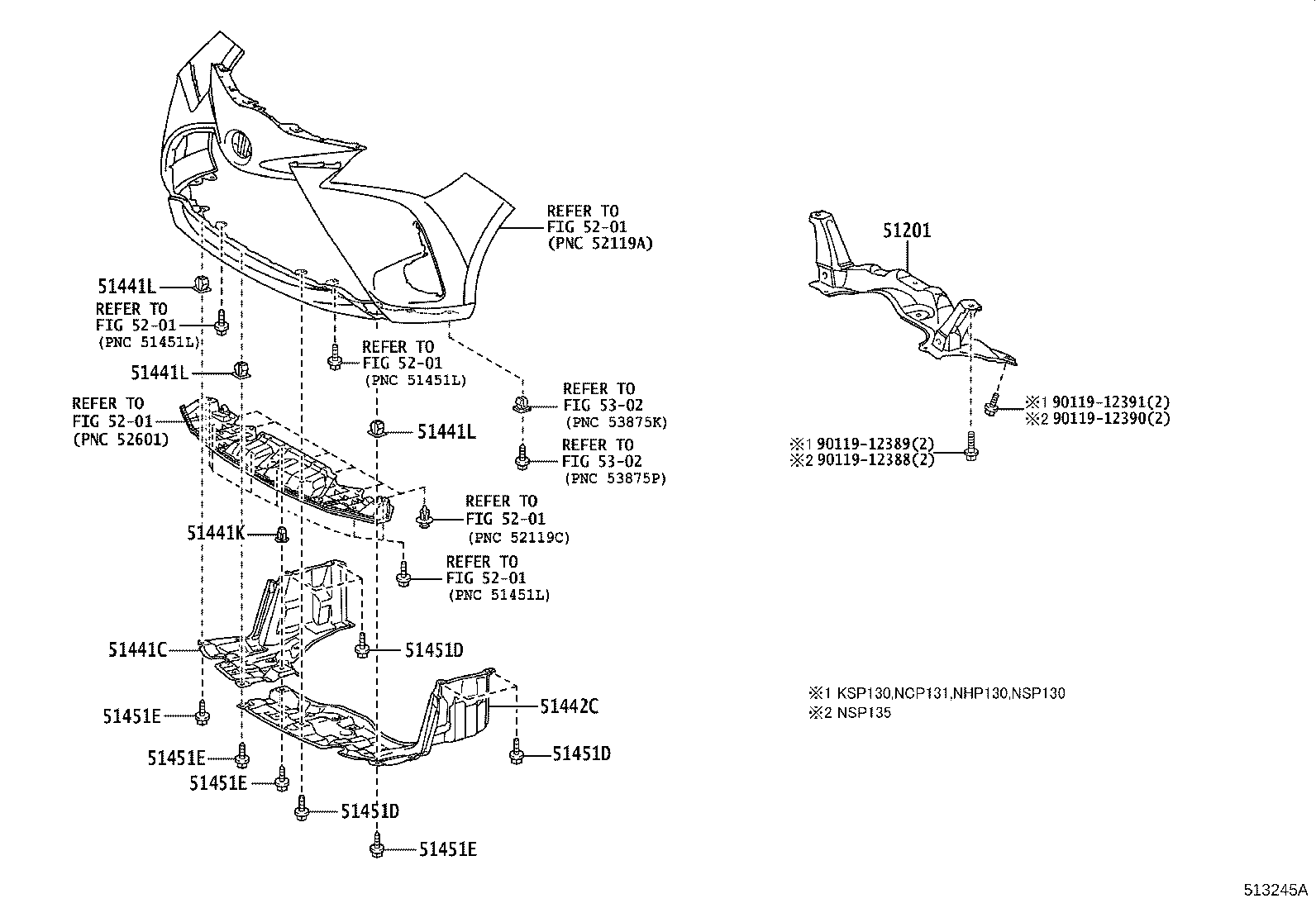

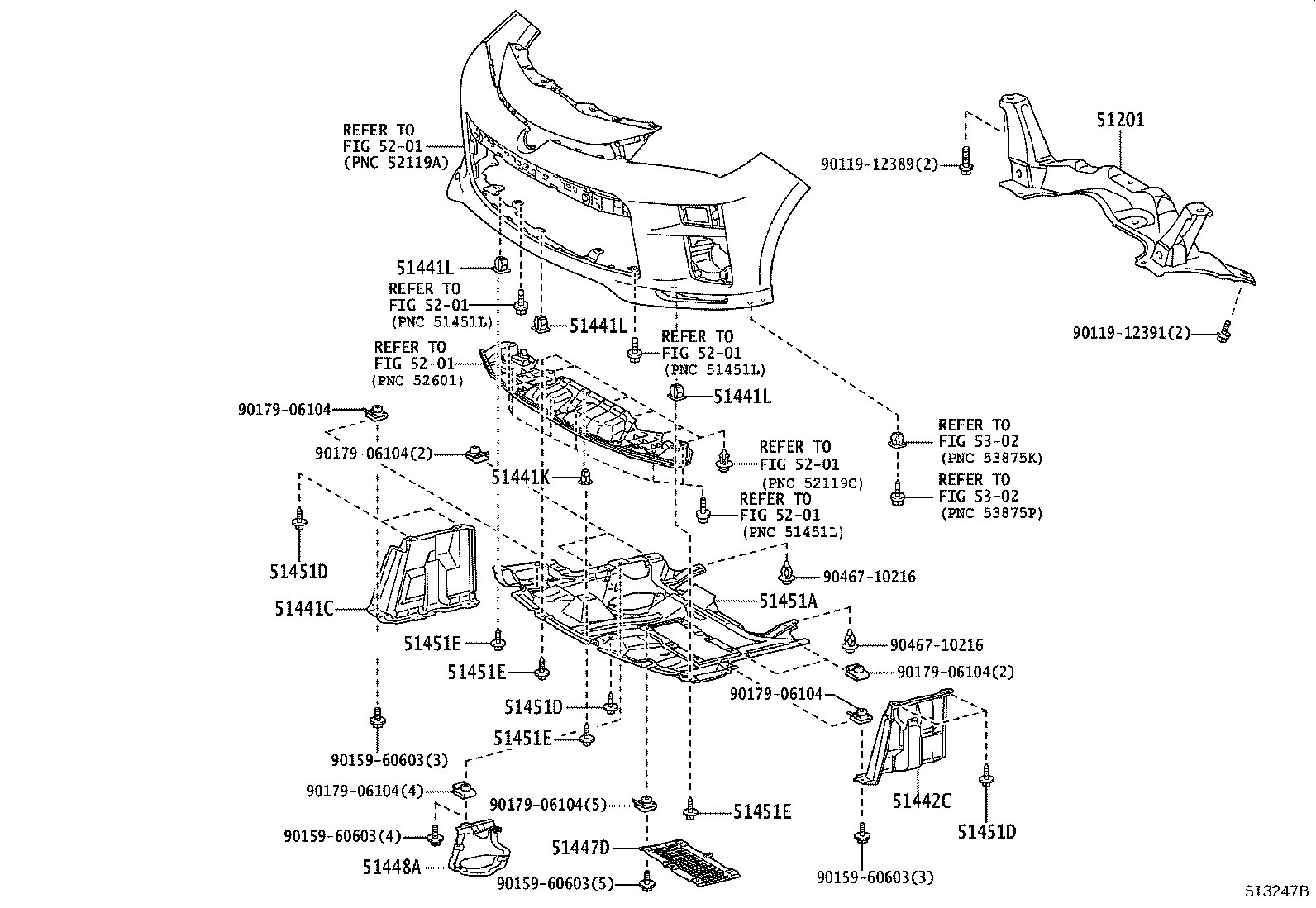

Figure 512596D 512596D 2010-12 → 2017-01 Figure 512597E 512597E 2011-10 → 2017-01 Figure 512677F 512677F 2013-09 → 2014-02 Figure 513245A 513245A 2017-01 → — Figure 513246B 513246B 2017-09 → — Figure 513247B 513247B 2017-09 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51403E Brace Sub-assy, Front Suspension Member
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51441L Grommet, NO.2(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51447D Cover, Engine Under, NO.4 Center
51448A Cover, Engine Side Under, RH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451E Screw, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
