Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 6 illustrations

Illustrations

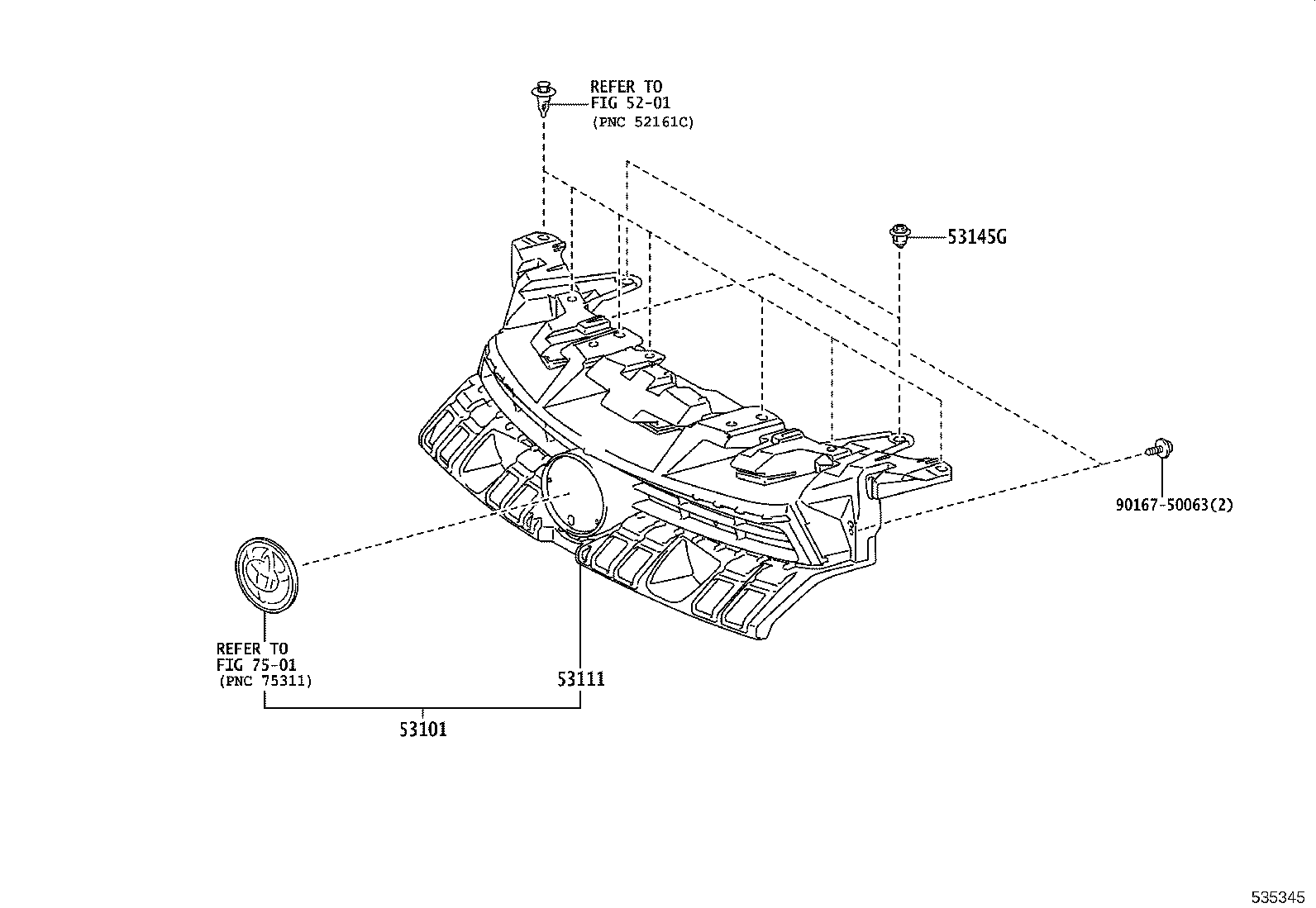

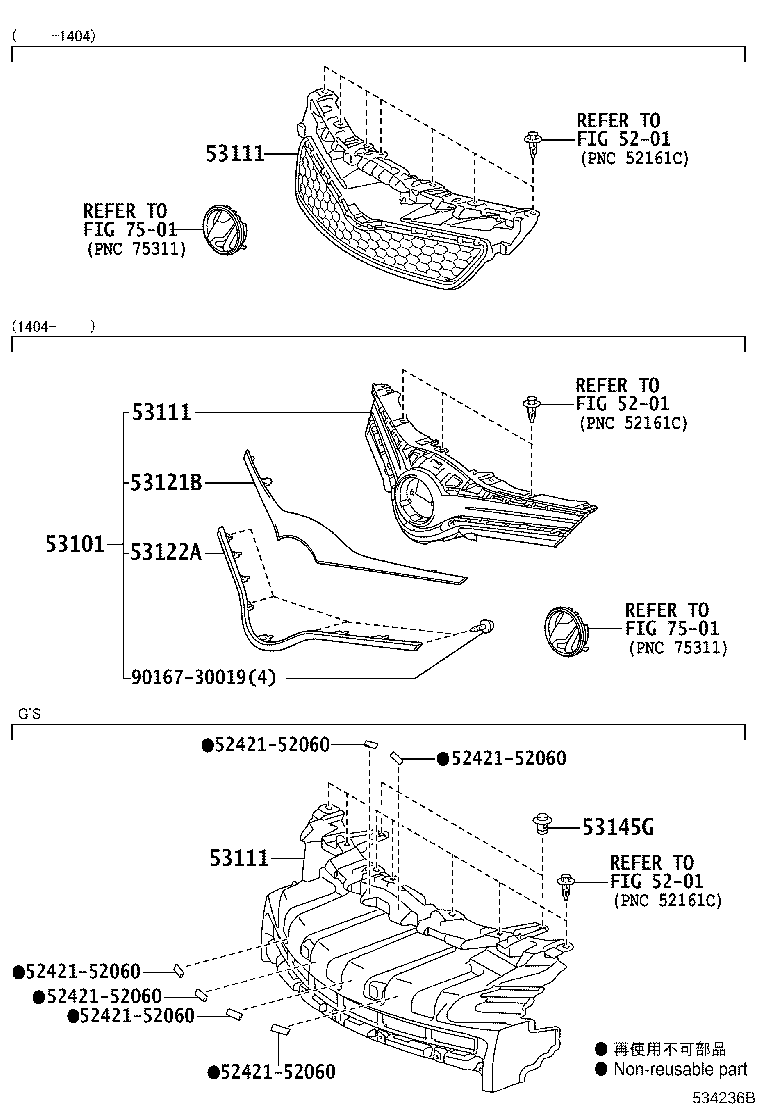

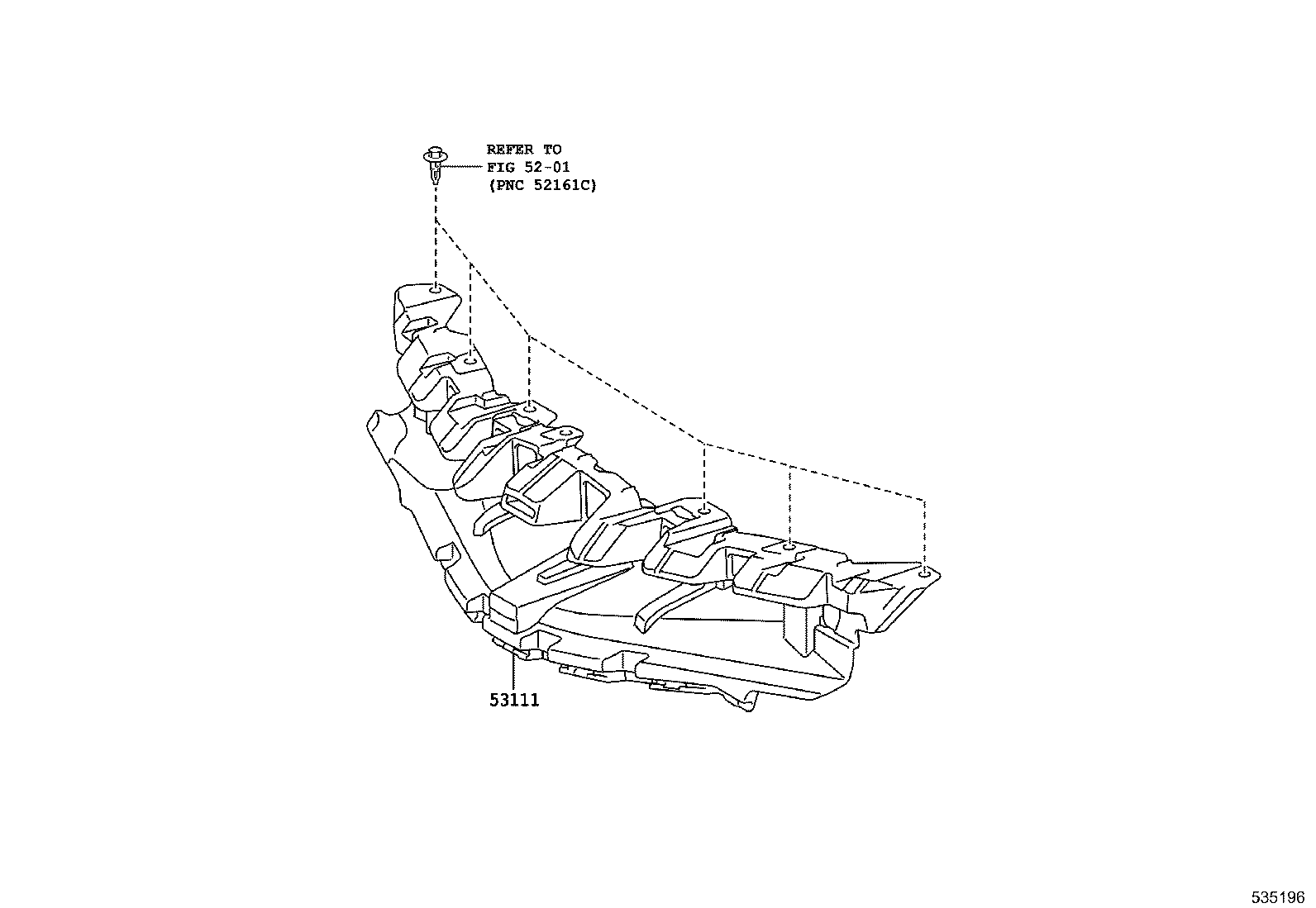

Figure 533373E 533373E 2010-12 → 2014-04 Figure 534234A 534234A 2014-04 → 2017-01 Figure 534236B 534236B 2010-12 → — Figure 534144 534144 2013-09 → 2014-02 Figure 535196 535196 2017-01 → — Figure 535345 535345 2017-09 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53121A Moulding, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53122A Moulding, Radiator Grille, Lower
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53145G Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
