Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

21 part groups · 3 illustrations

Illustrations

Figure 585203B

585203B 2010-12 → —

Figure 584005D

584005D 2010-12 → —

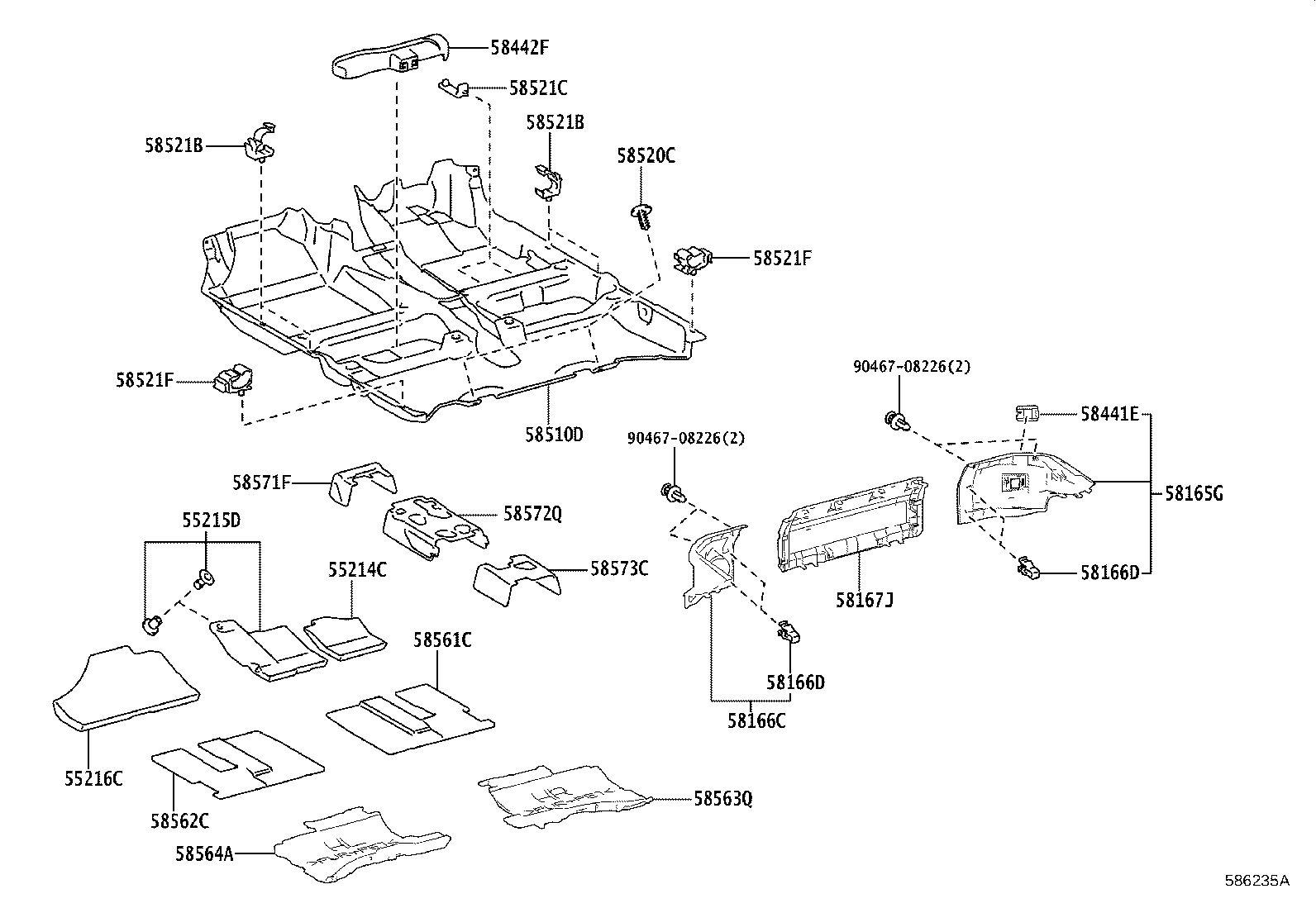

Figure 586235A

586235A 2017-01 → —

Part groups

PNC	Description
55214C	Pad, Dash Panel Insulator, NO.2
55215D	Pad, Dash Panel Insulator, NO.3
55216C	Pad, Dash Panel Insulator, NO.4
58165G	Cover, Front Floor, RH
58166C	Cover, Front Floor, LH
58166D	Clip, Floor Cover
58167J	Cover, Front Floor, Center
58441E	Cover, Battery Service Hole
58442F	Cover, Jack
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58521B	Hook, Floor Carpet
58521C	Hook, Floor Carpet NO.2
58521F	Hook, Floor Carpet
58561C	Silencer, Front Floor, NO.1
58562C	Silencer, Front Floor, NO.2
58563Q	Silencer, Front Floor, NO.3
58564A	Silencer, Front Floor, NO.4
58571F	Pad, Front Floor, Front
58572Q	Pad, Front Floor, Front NO.2
58573C	Pad, Front Floor Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
