Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

23 part groups · 4 illustrations

Illustrations

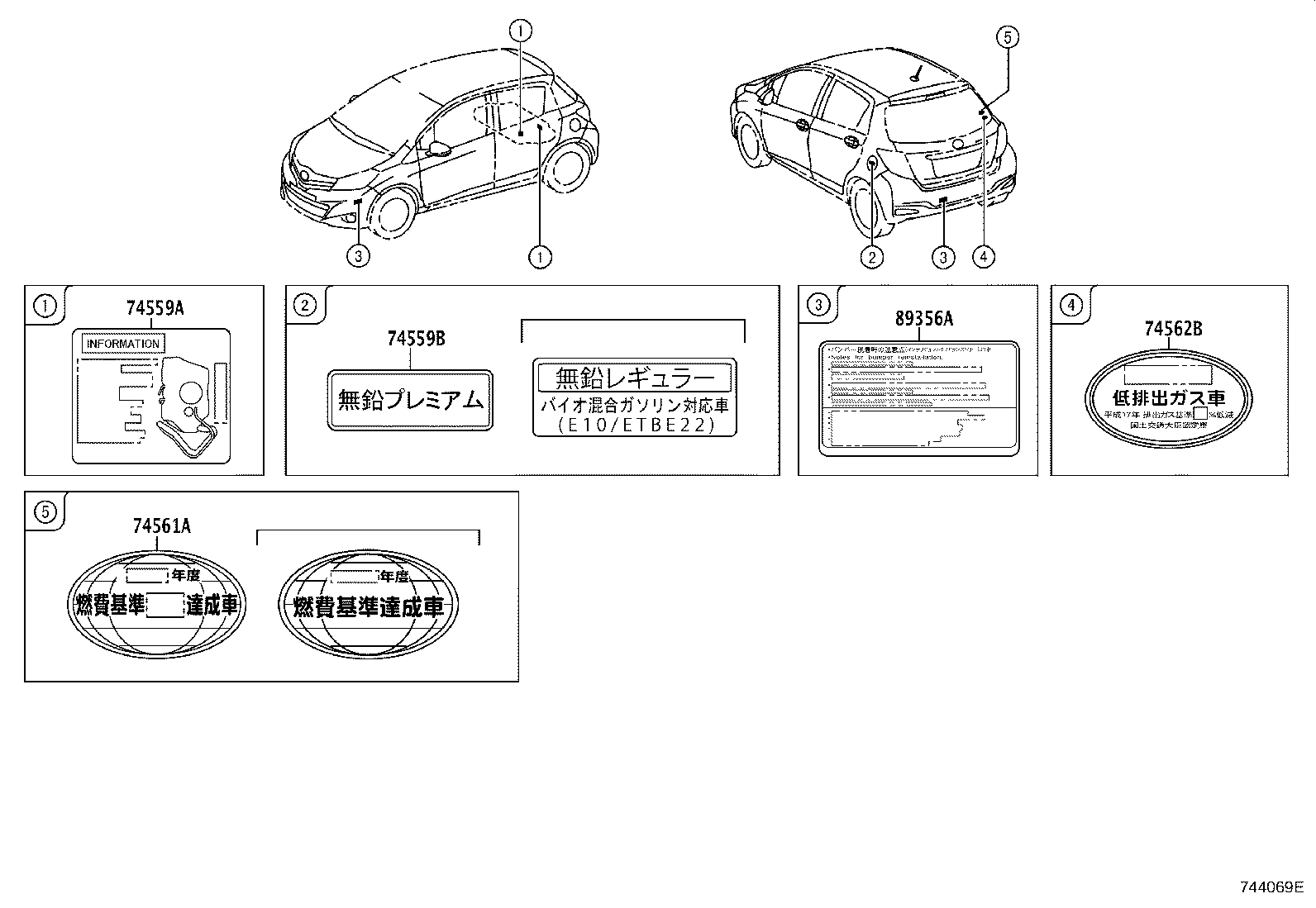

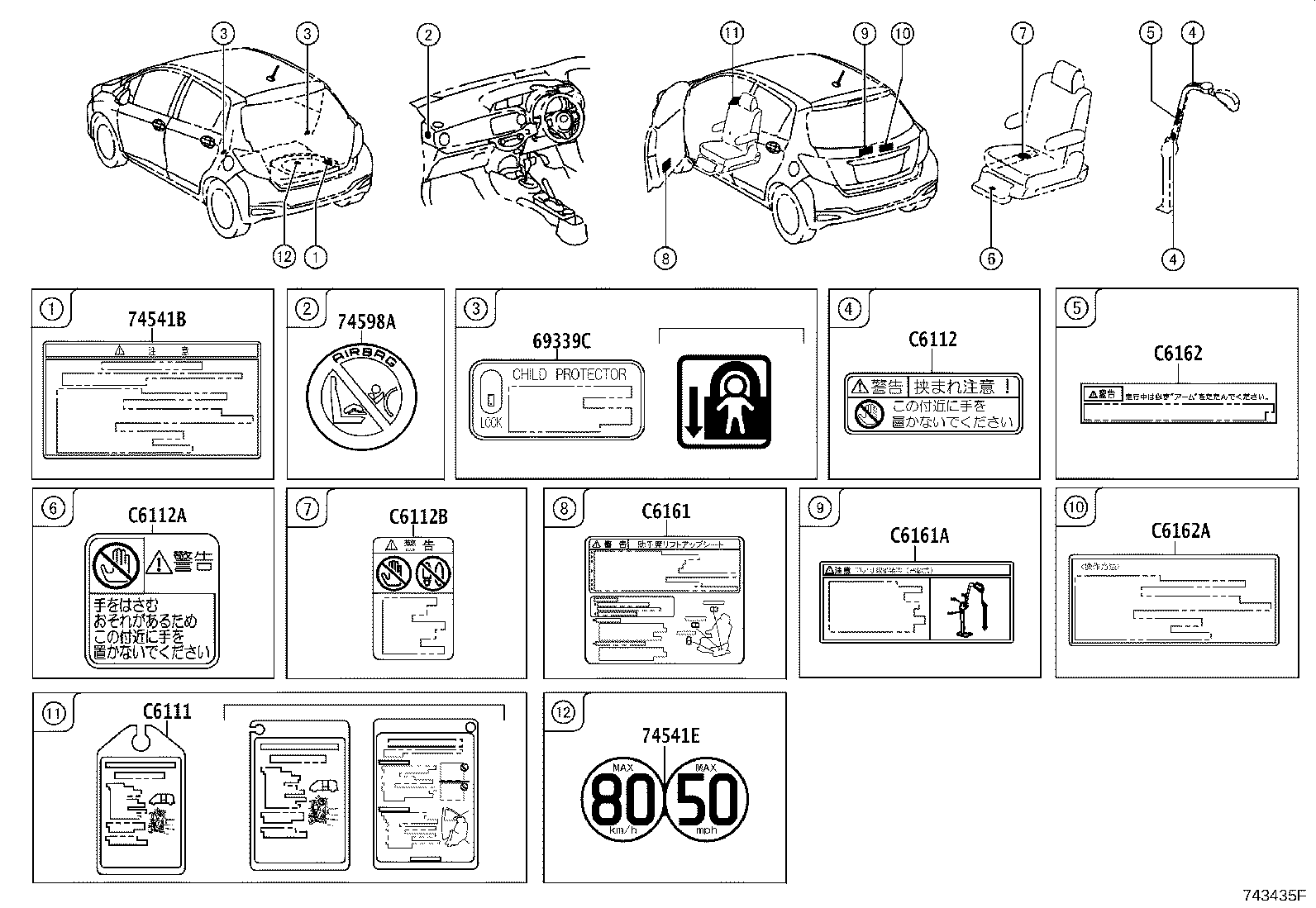

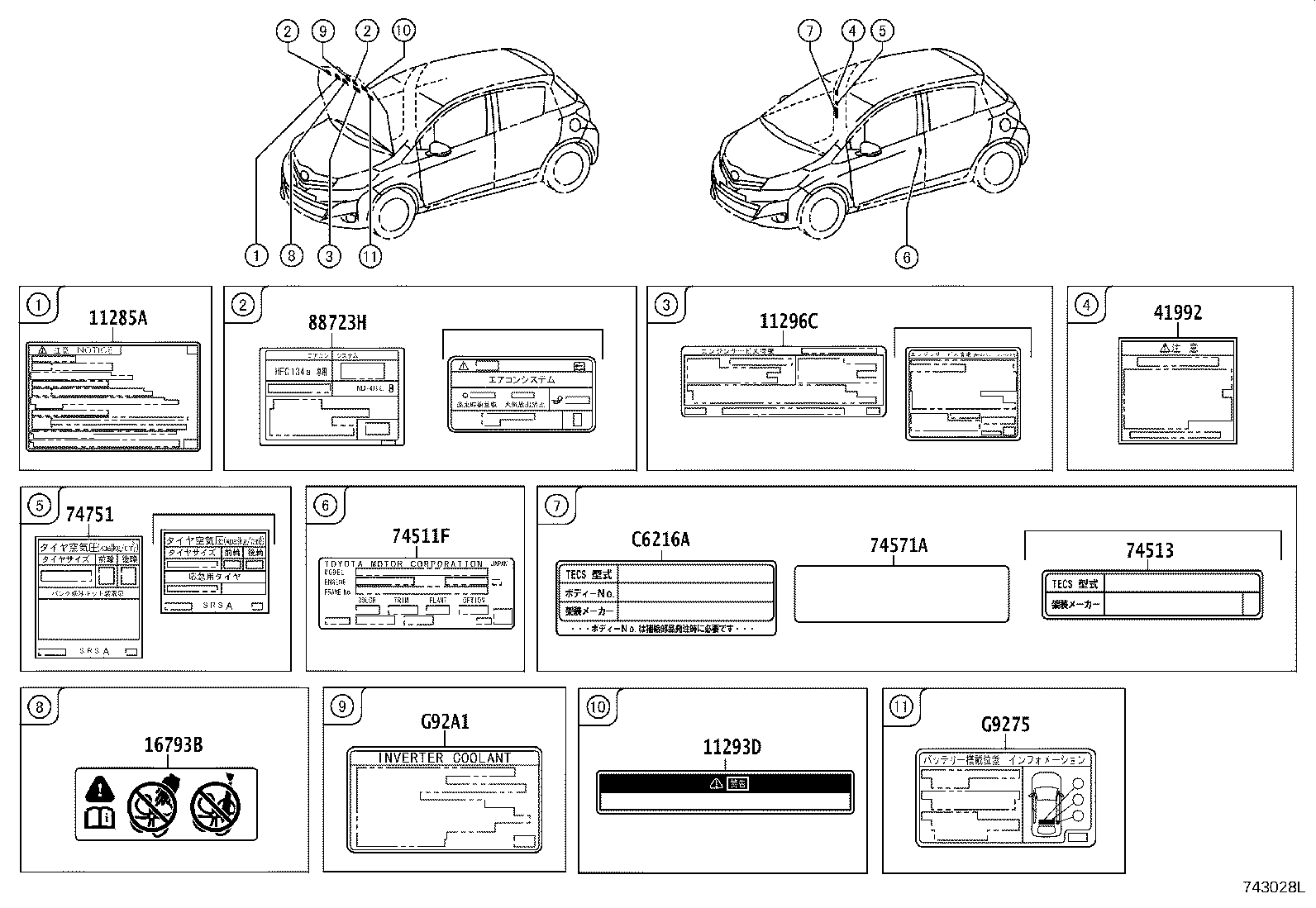

Figure 745417A 745417A 2010-12 → — Figure 743028L 743028L 2010-12 → — Figure 744069E 744069E 2010-12 → — Figure 743435F 743435F 2010-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74513 Label, Identification Number Information
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
