Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

34 part groups · 14 illustrations

Illustrations

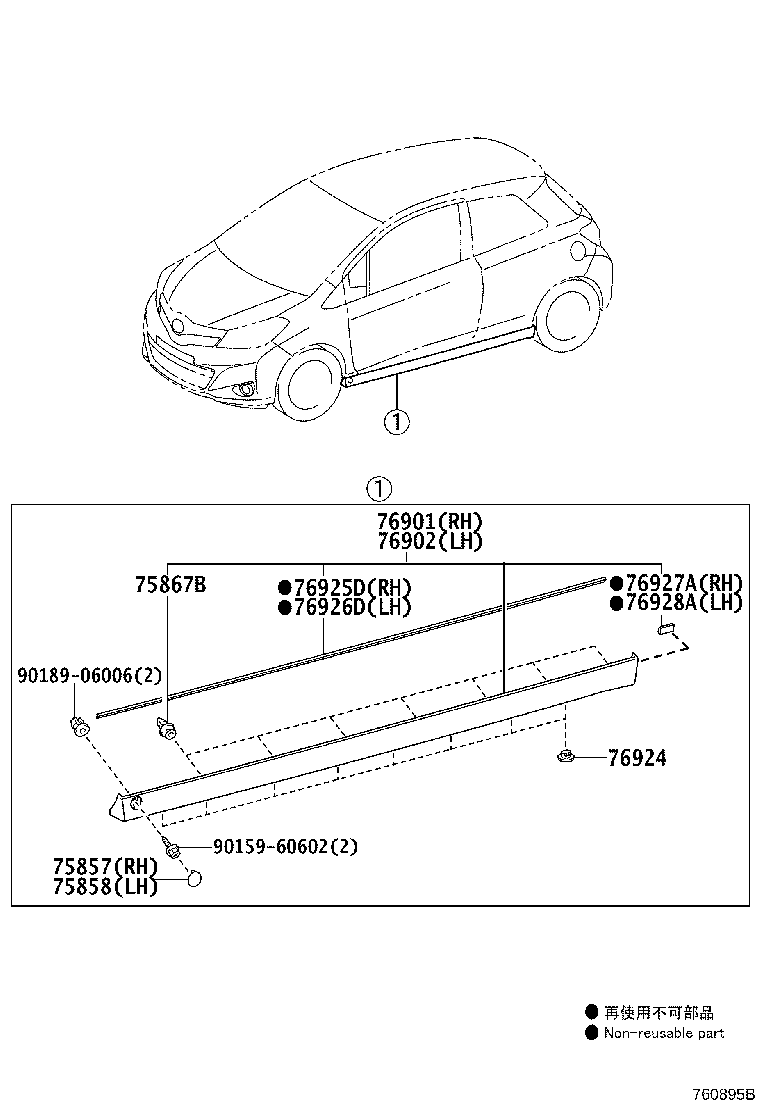

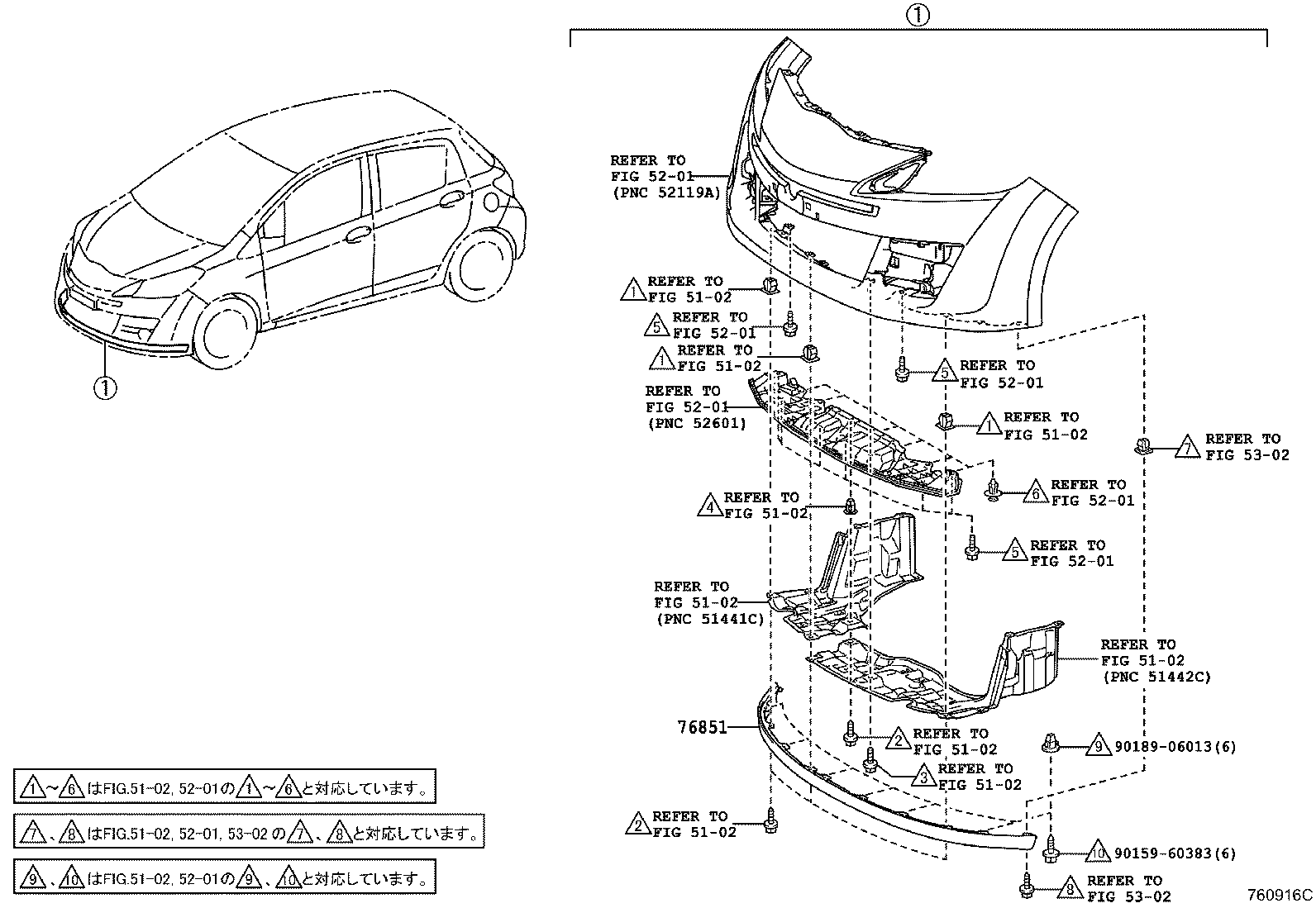

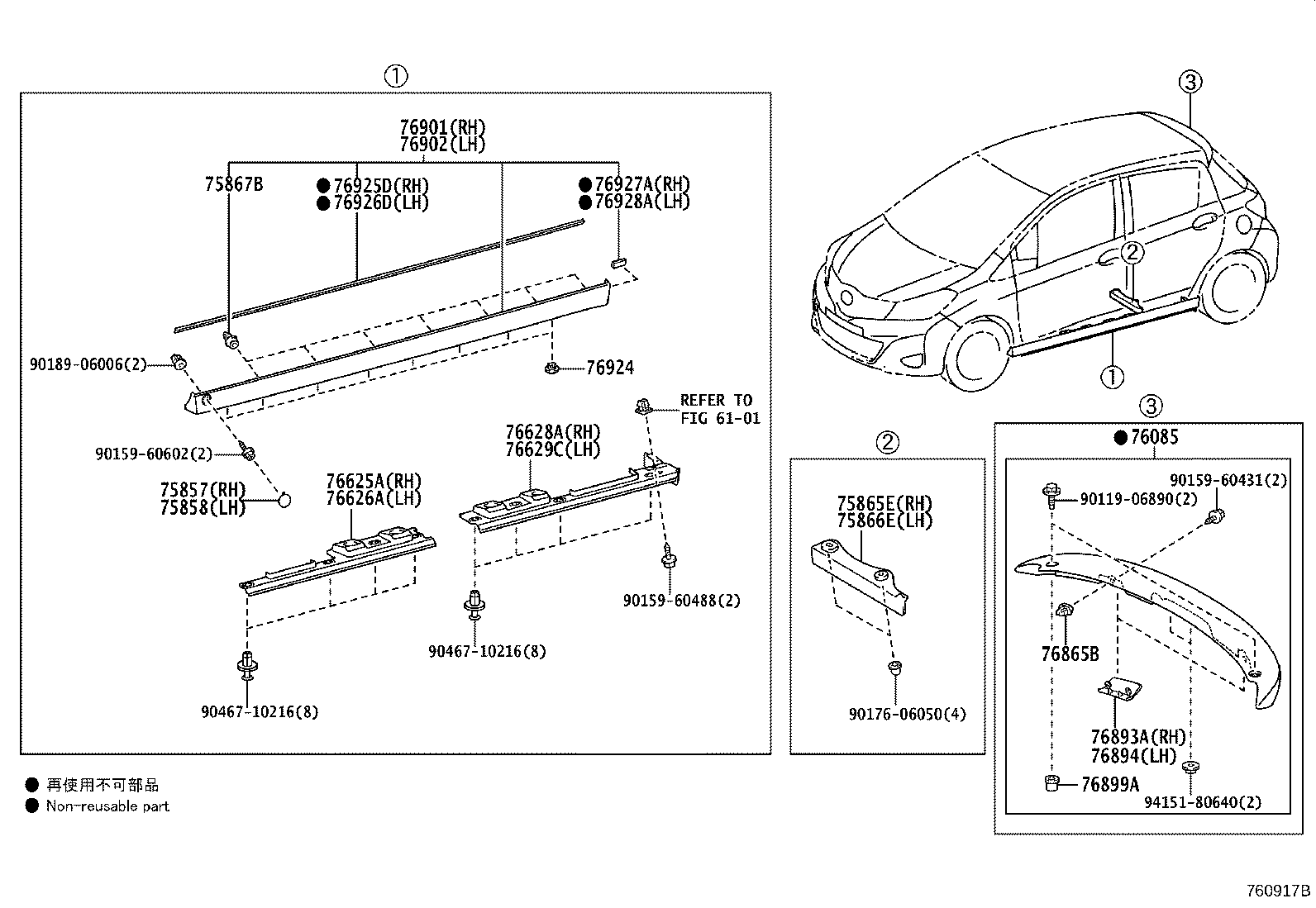

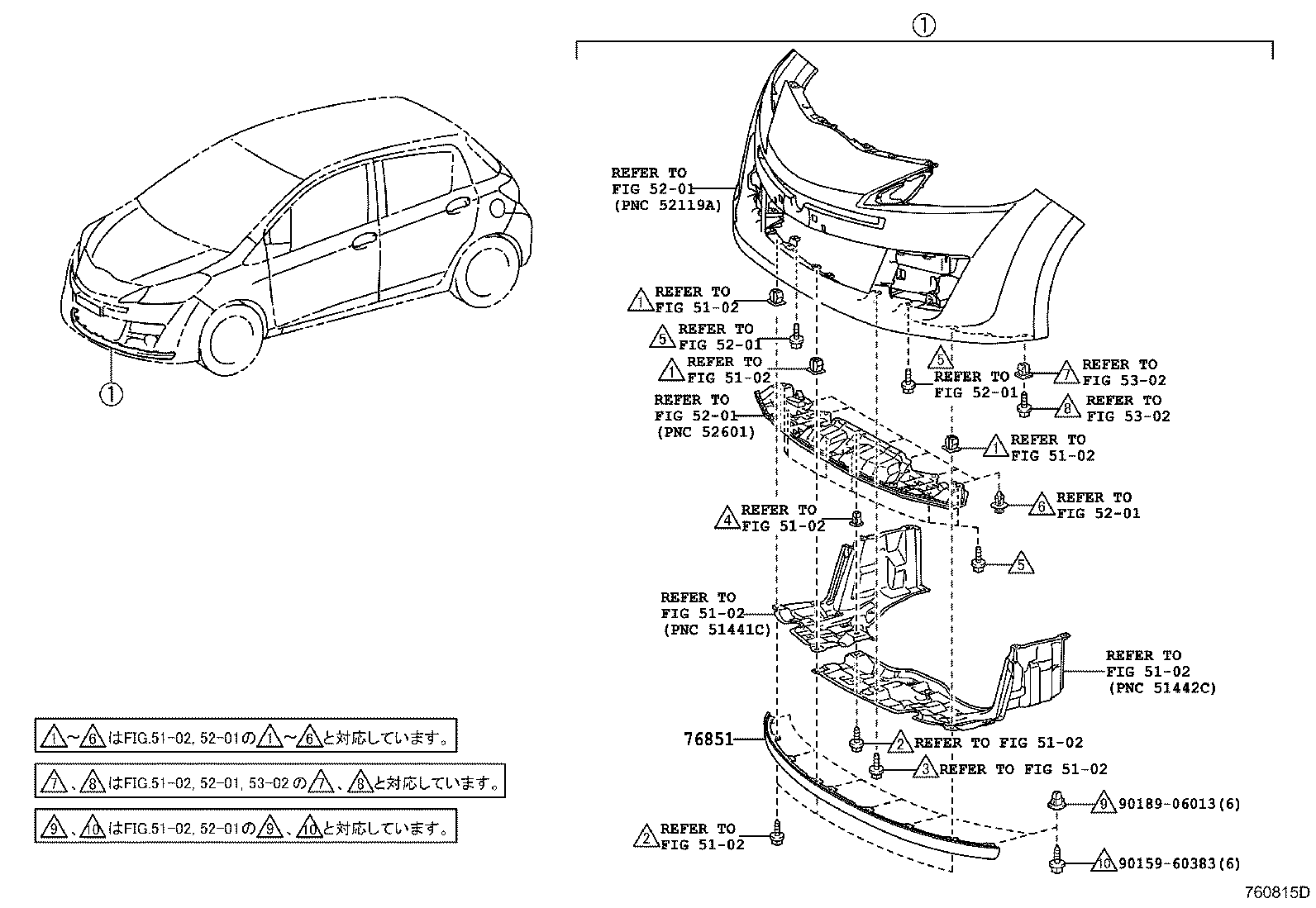

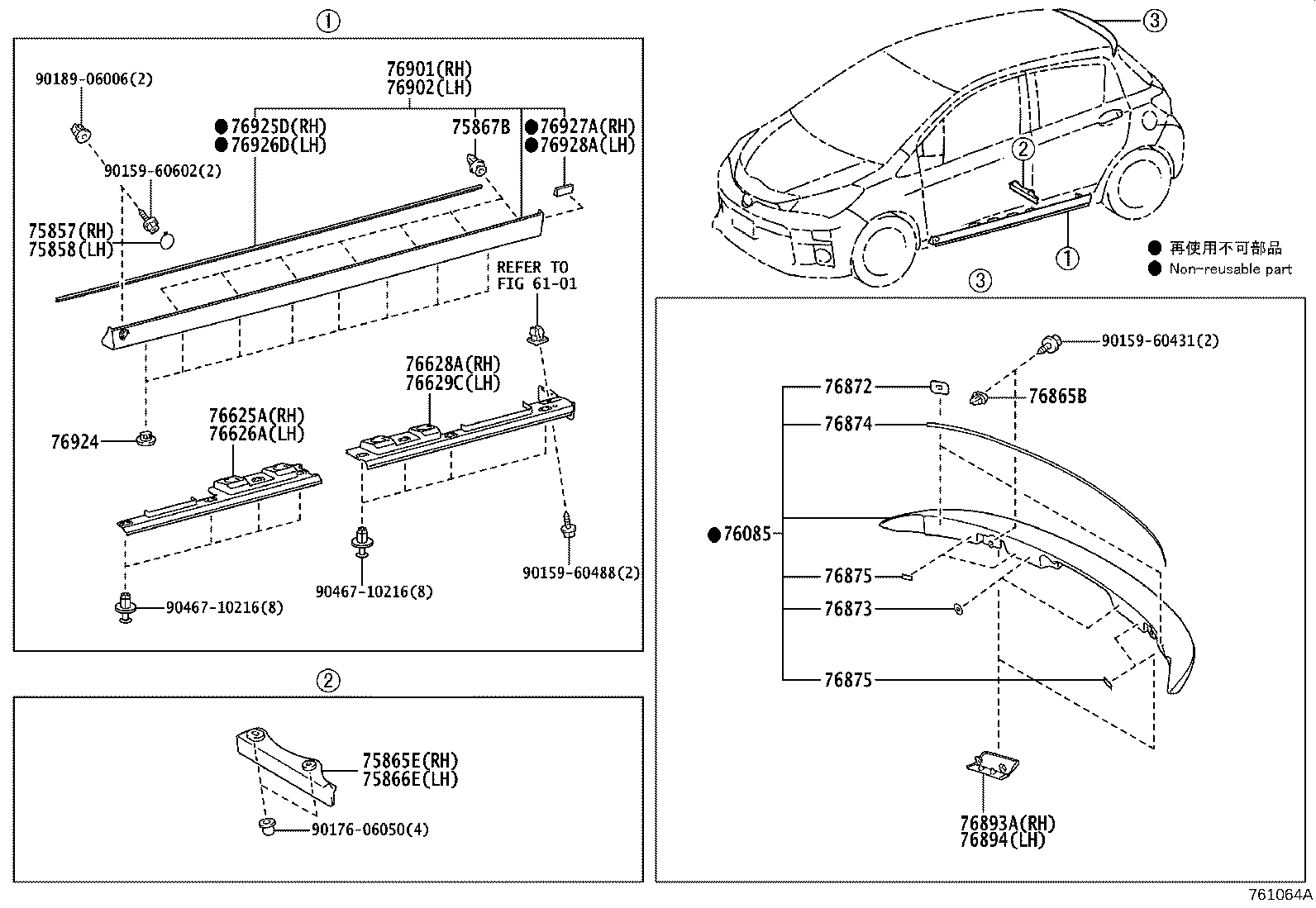

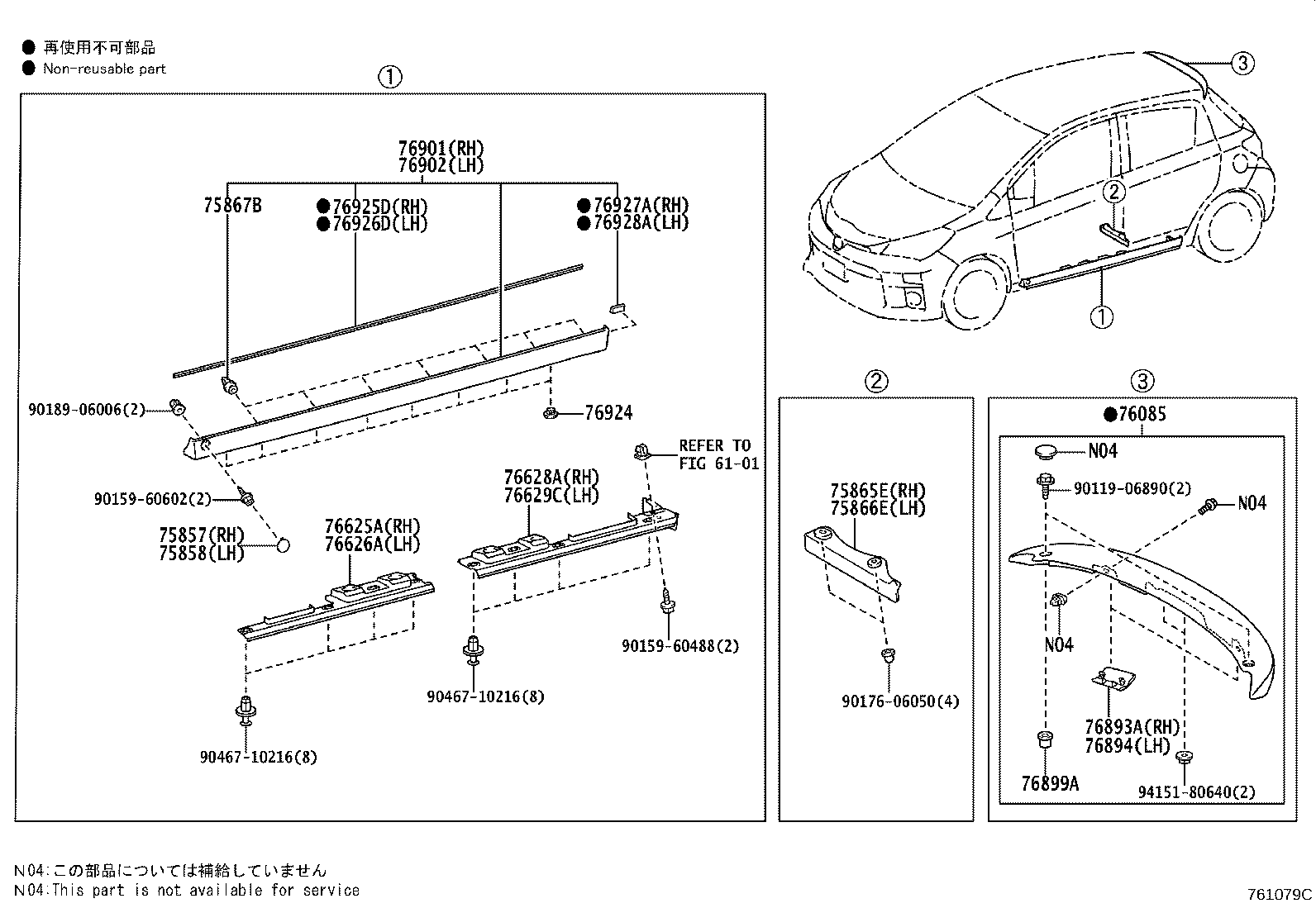

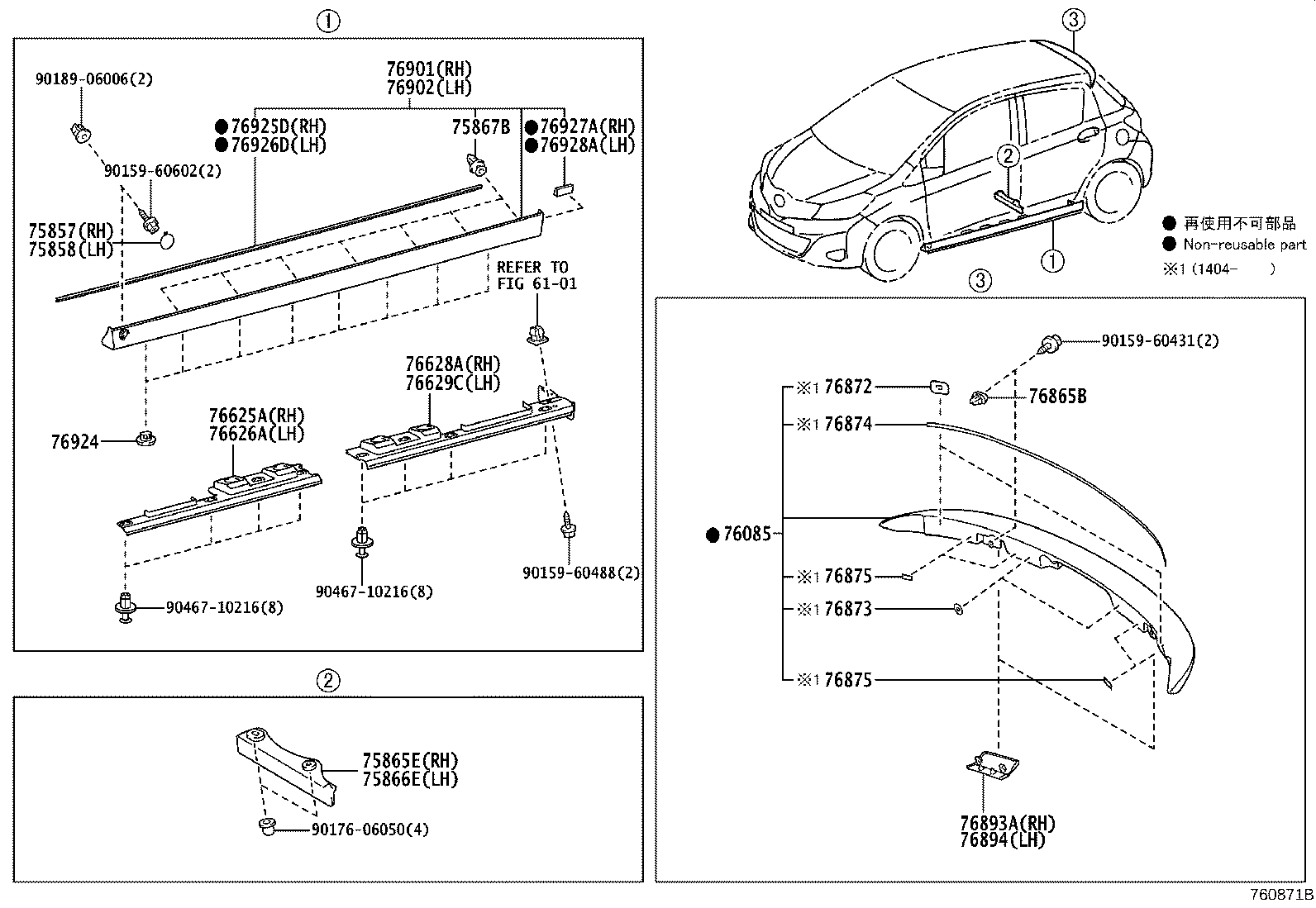

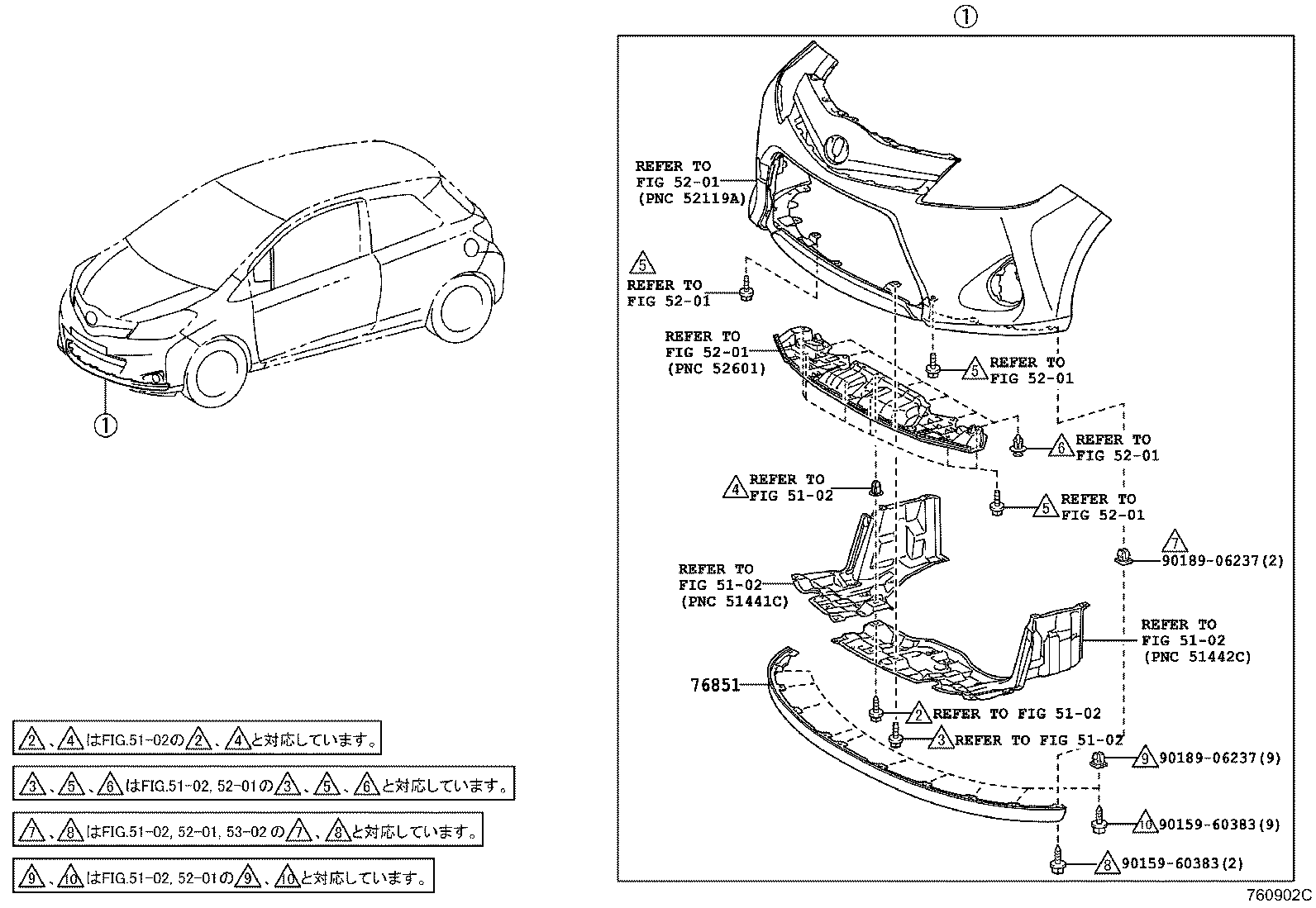

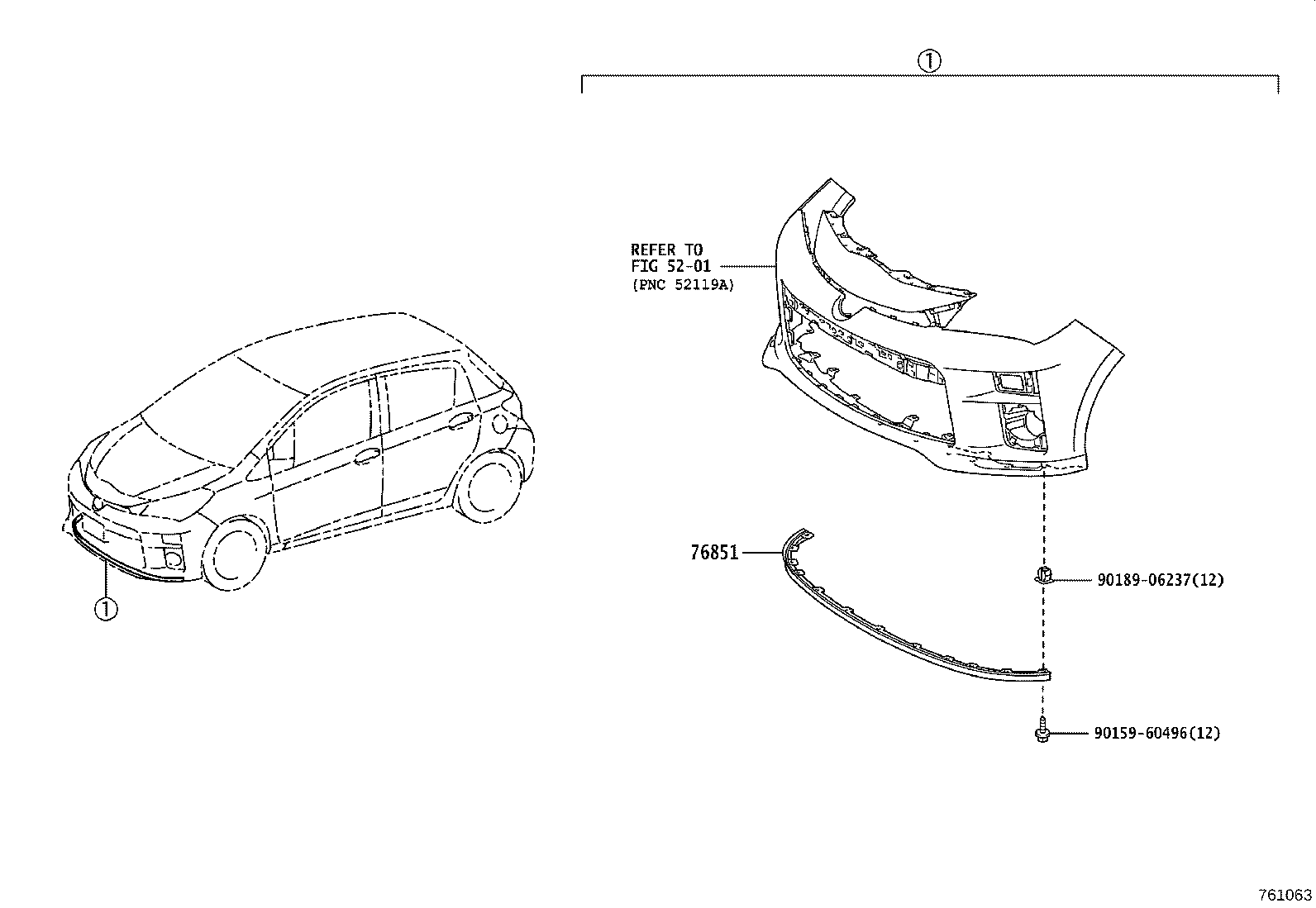

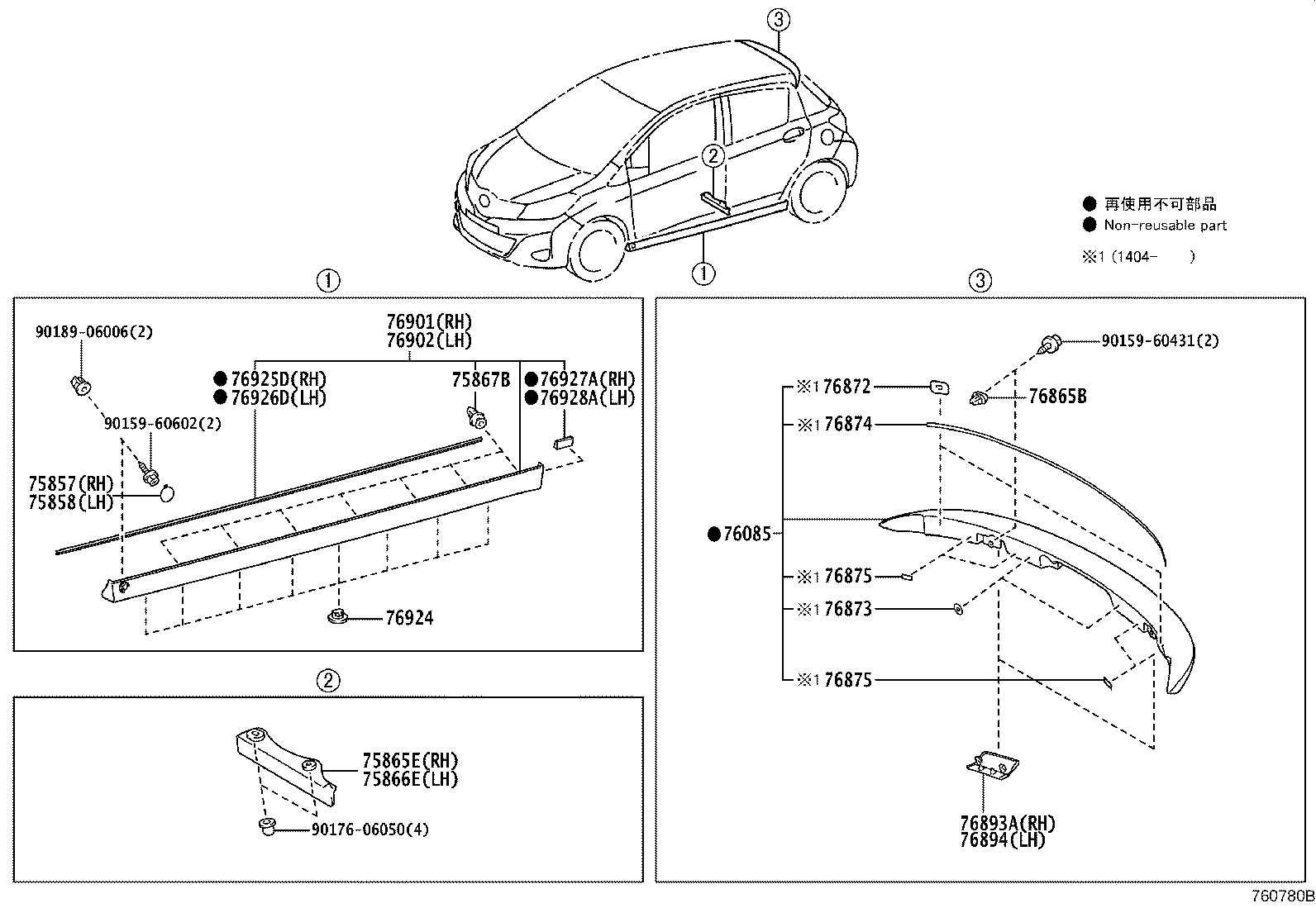

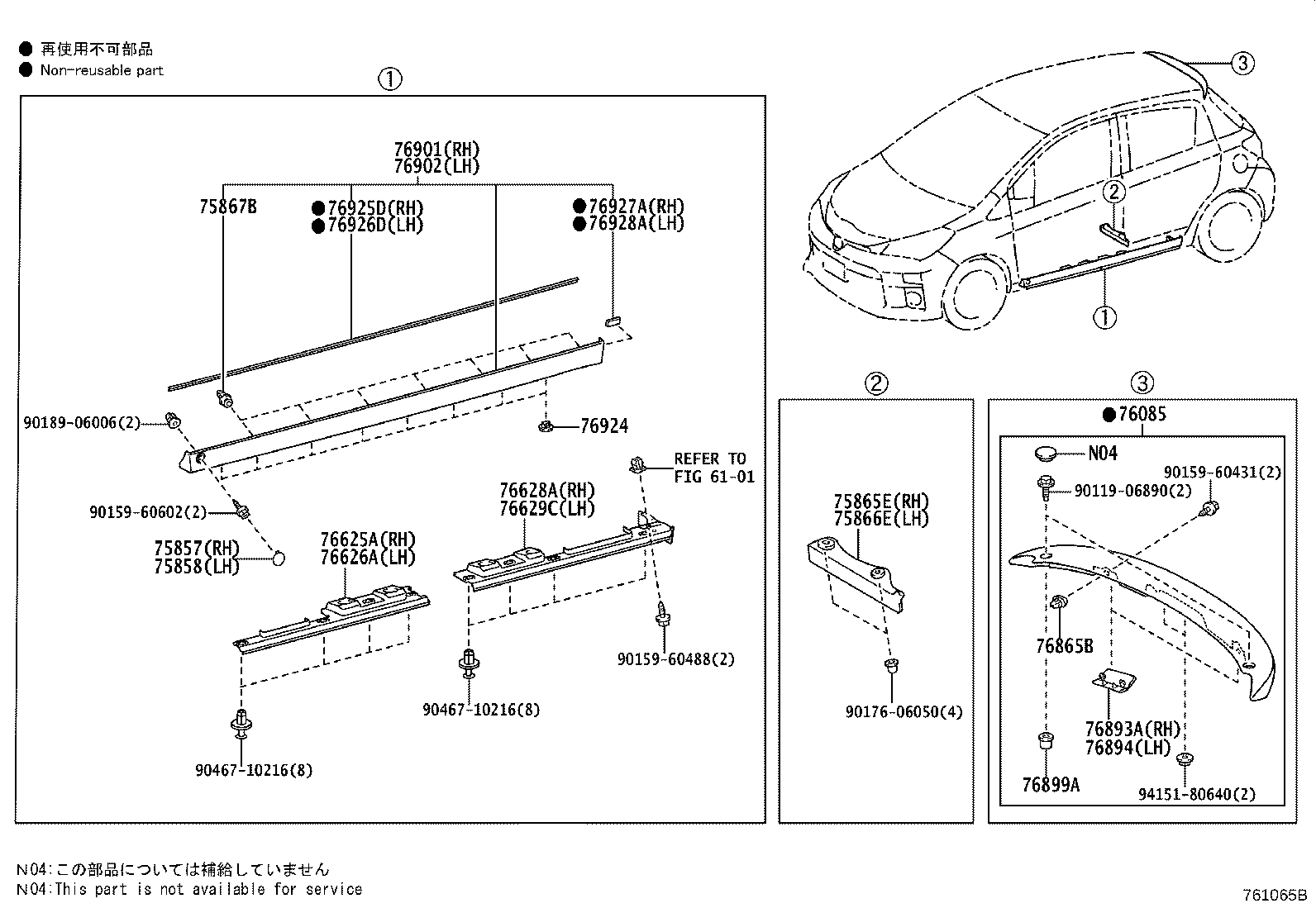

Figure 761046B 761046B 2010-12 → — Figure 760781G 760781G 2010-12 → — Figure 760780B 760780B 2010-12 → — Figure 760782F 760782F 2010-12 → — Figure 760815D 760815D 2011-10 → 2014-04 Figure 760916C 760916C 2014-04 → — Figure 760871B 760871B 2011-10 → — Figure 760917B 760917B 2014-04 → — Figure 761063 761063 2017-09 → — Figure 761064A 761064A 2017-09 → — Figure 761065B 761065B 2017-09 → — Figure 761079C 761079C 2017-09 → — Figure 760902C 760902C 2013-09 → 2014-02 Figure 760895B 760895B 2013-09 → 2014-02

Part groups

PNCDescription
52161G Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75857 Cover, Rocker Panel Moulding, RH
75858 Cover, Rocker Panel Moulding, LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
75867B Clip, Rocker Panel Moulding
76085 Spoiler Sub-assy, Rear
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625A Mudguard, Rear Body, RH
76625D Mudguard, Quarter Panel, Rear RH
76626A Mudguard, Rear Body, LH
76626D Mudguard, Quarter Panel, Rear LH
76628A Mudguard, Rear Body, Rear
76629C Mudguard, Rear Body, Rear LH
76647 Retainer, Quarter Panel Rear Mudguard
76851 Cover, Front Spoiler
76865B Retainer, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76899A Nut, Rear Spoiler
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76924 Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76927A Protector, Side Mudguard, Rear RH
76928A Protector, Side Mudguard, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
