Toyota Vitz
2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan
Supported model
Data version 2020-02

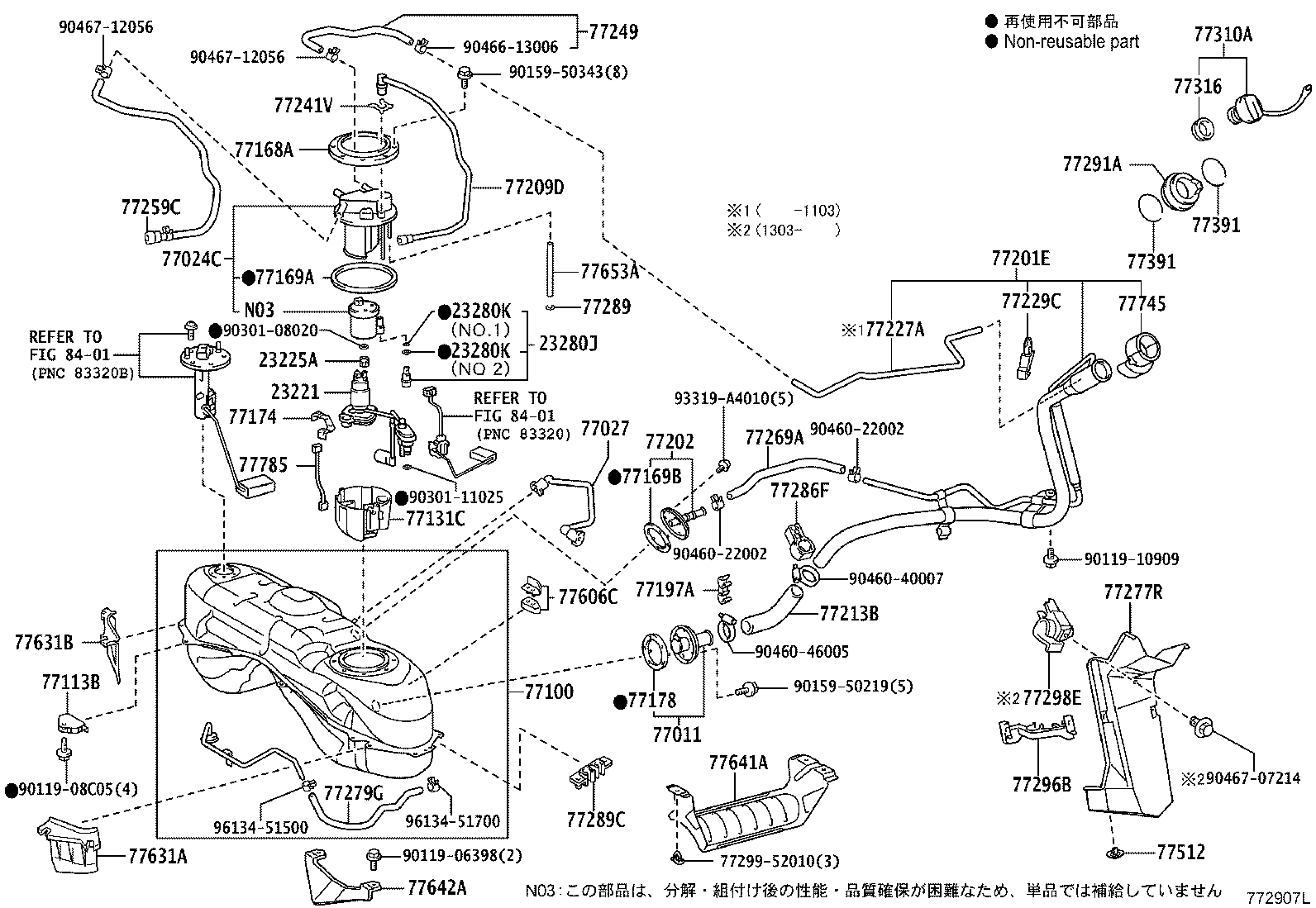

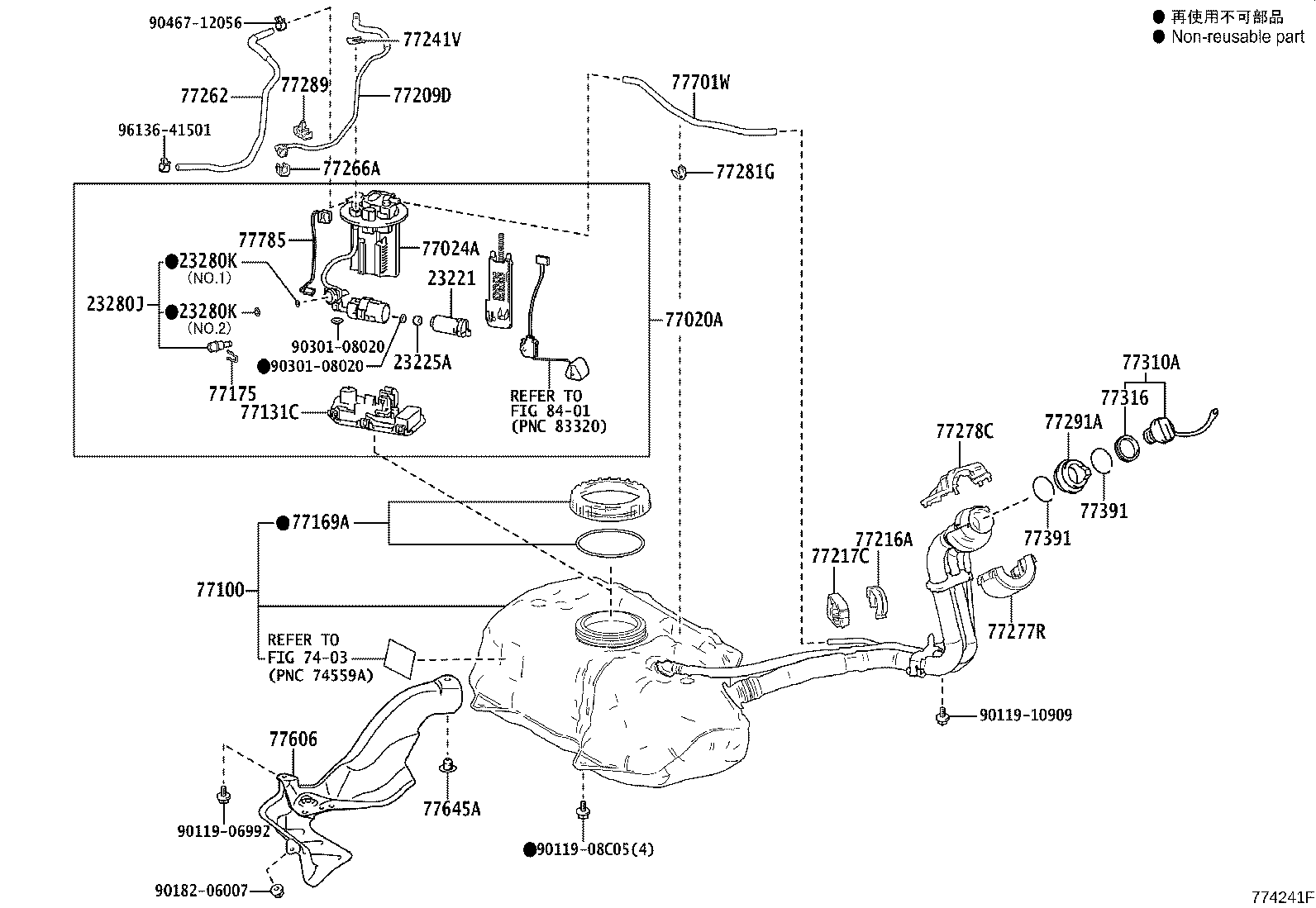

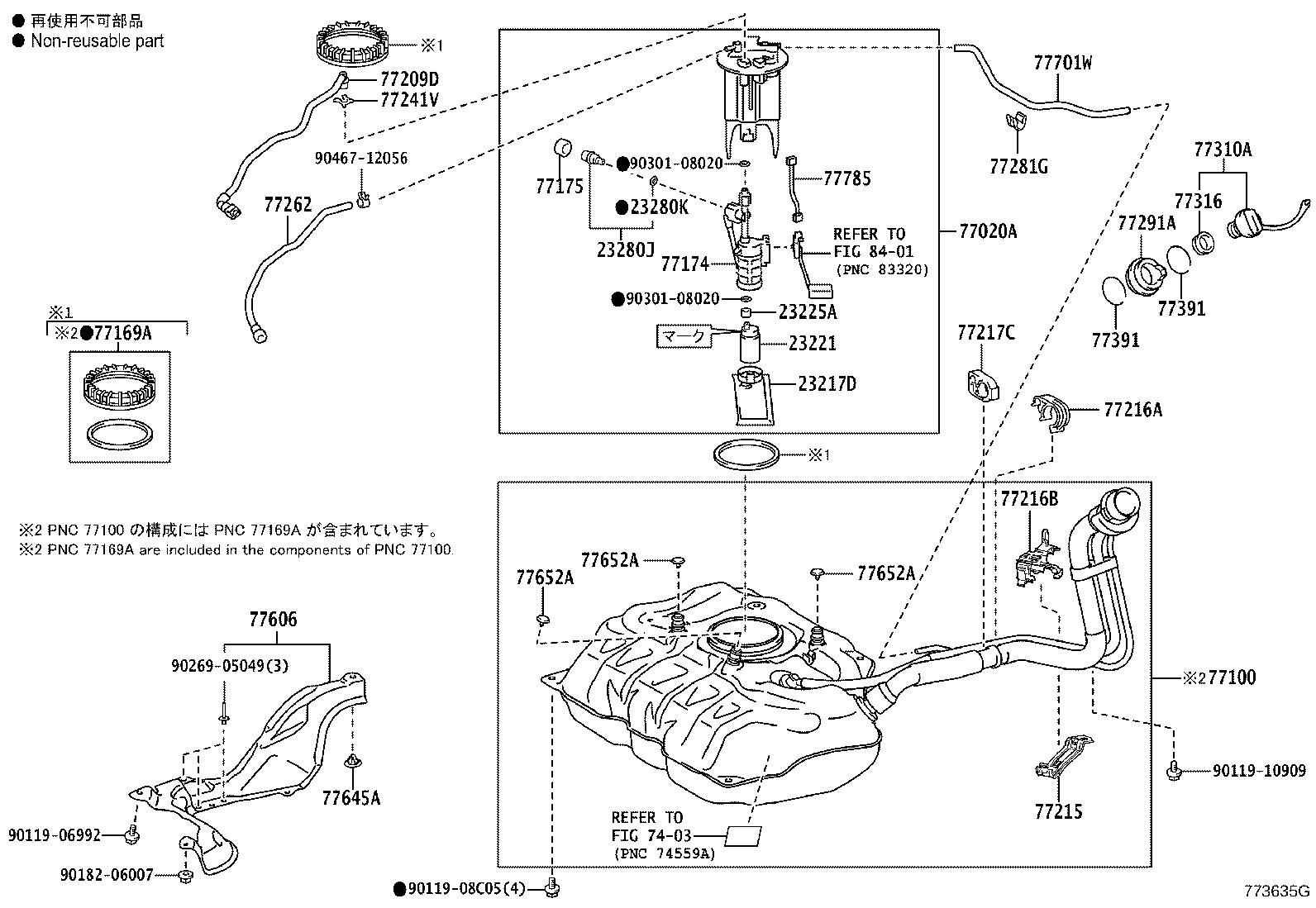

Fuel Tank & Tube
80 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 64648A | Grommet, Luggage Door Lock Opener |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77024C | Plate Sub-assy, Fuel Suction W/Fuel Filter |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |

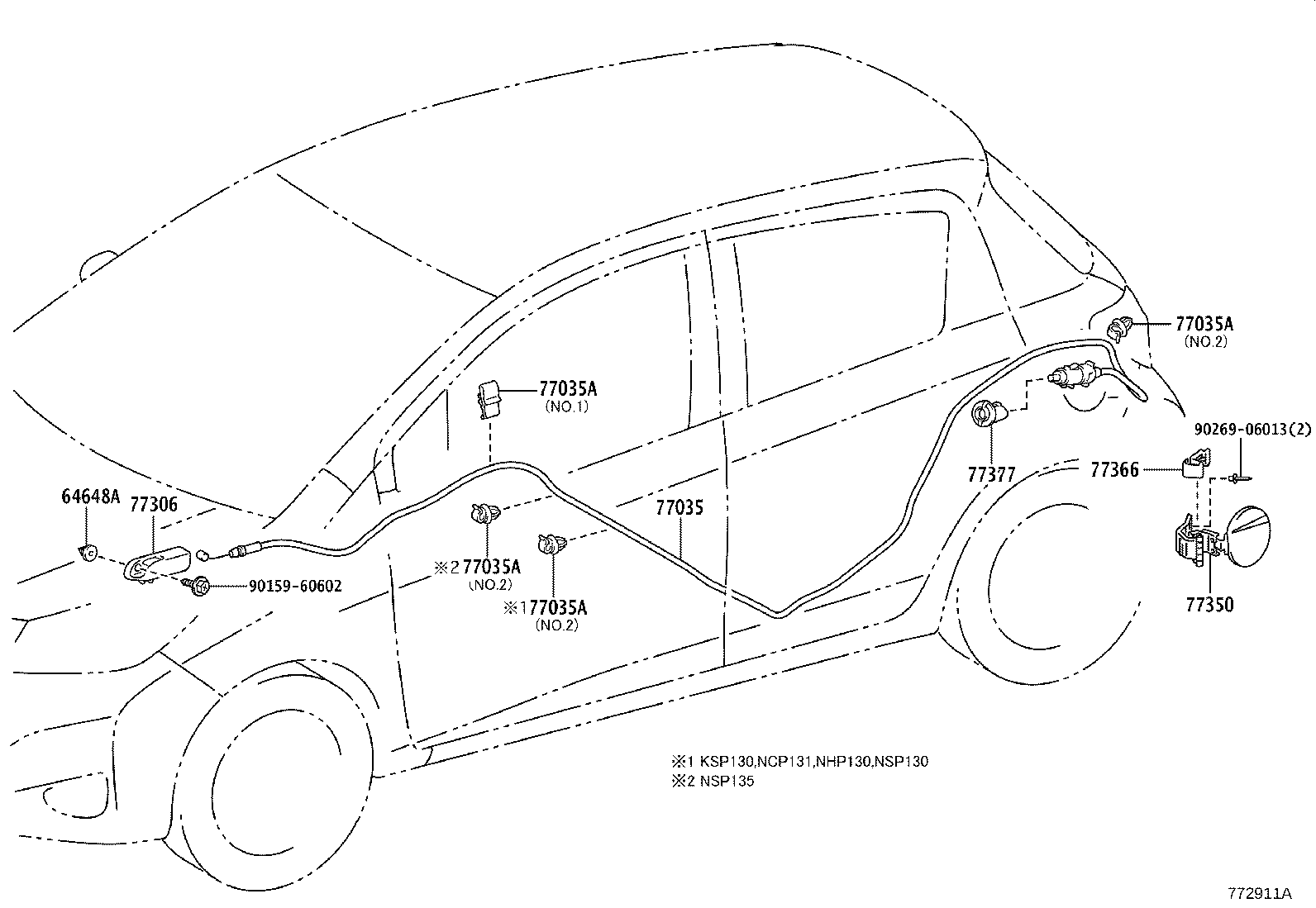

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77113B | Plate, Fuel Tank Side |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77169B | Gasket, Fuel Suction Tube Set, NO.1 |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77202 | Tube Sub-assy, Breather |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77215 | Plate, Fuel Tank Filler Pipe Flange |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77216B | Support, Fuel Tank Filler Pipe, NO.2 |
| 77217C | Support, Fuel Tank Filler Pipe, NO.2 |
| 77227A | Tube, Fuel Tank Evaporation Vent |
| 77229C | Clamp, Breather Tube |
| 77241V | Clip, Tube Joint |
| 77246C | Support, Fuel Main Tube |
| 77249 | Hose, Fuel Emission |

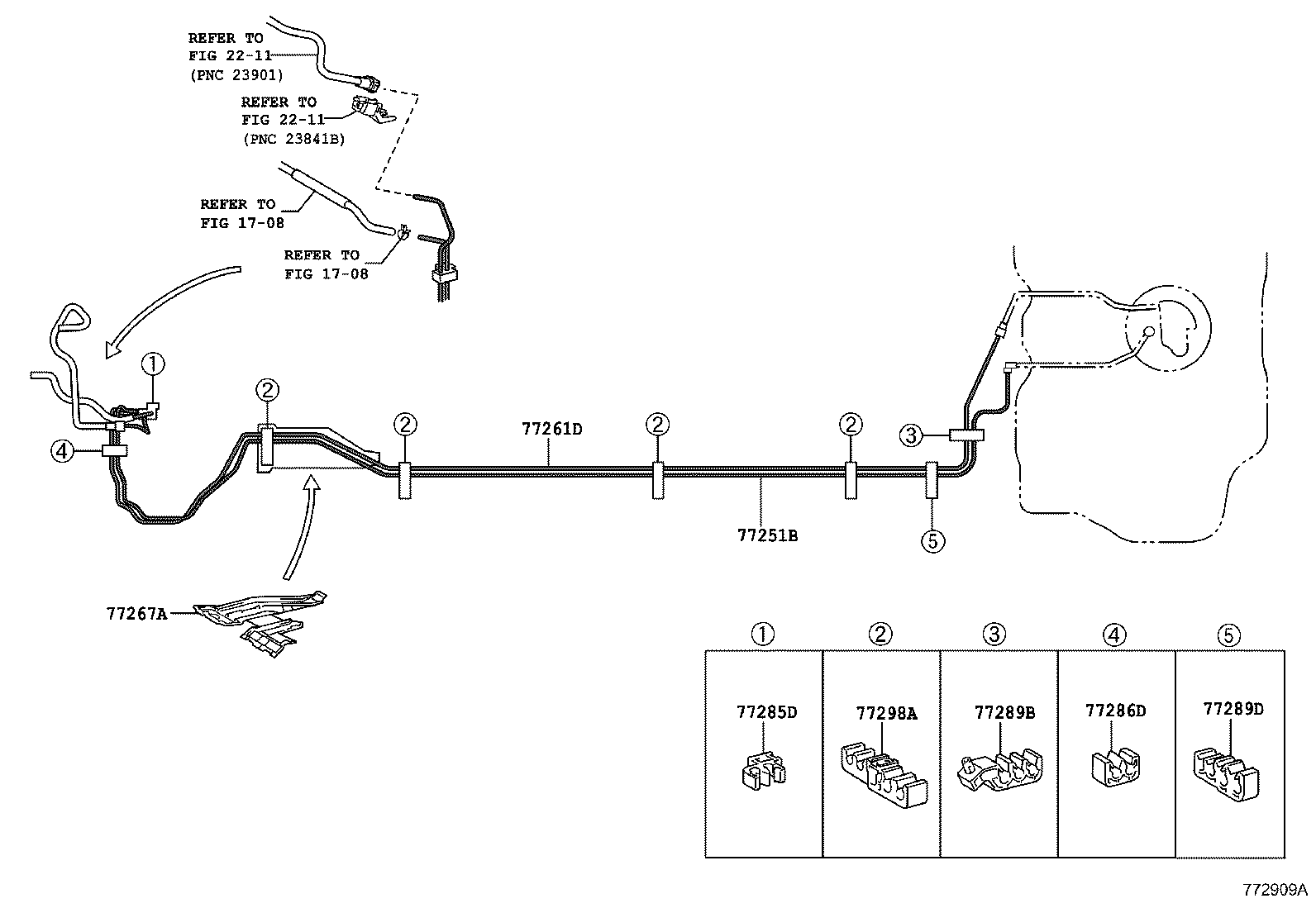

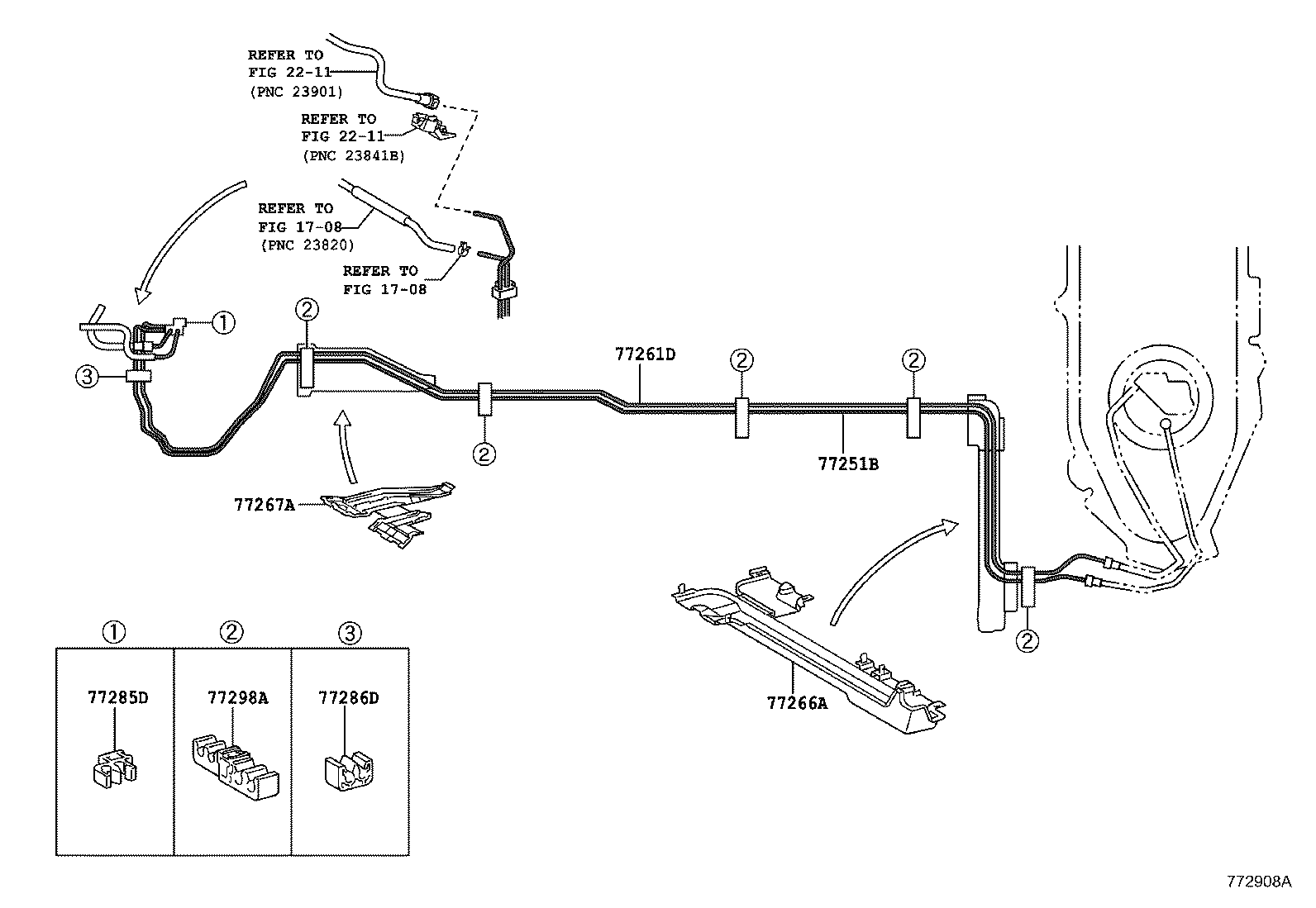

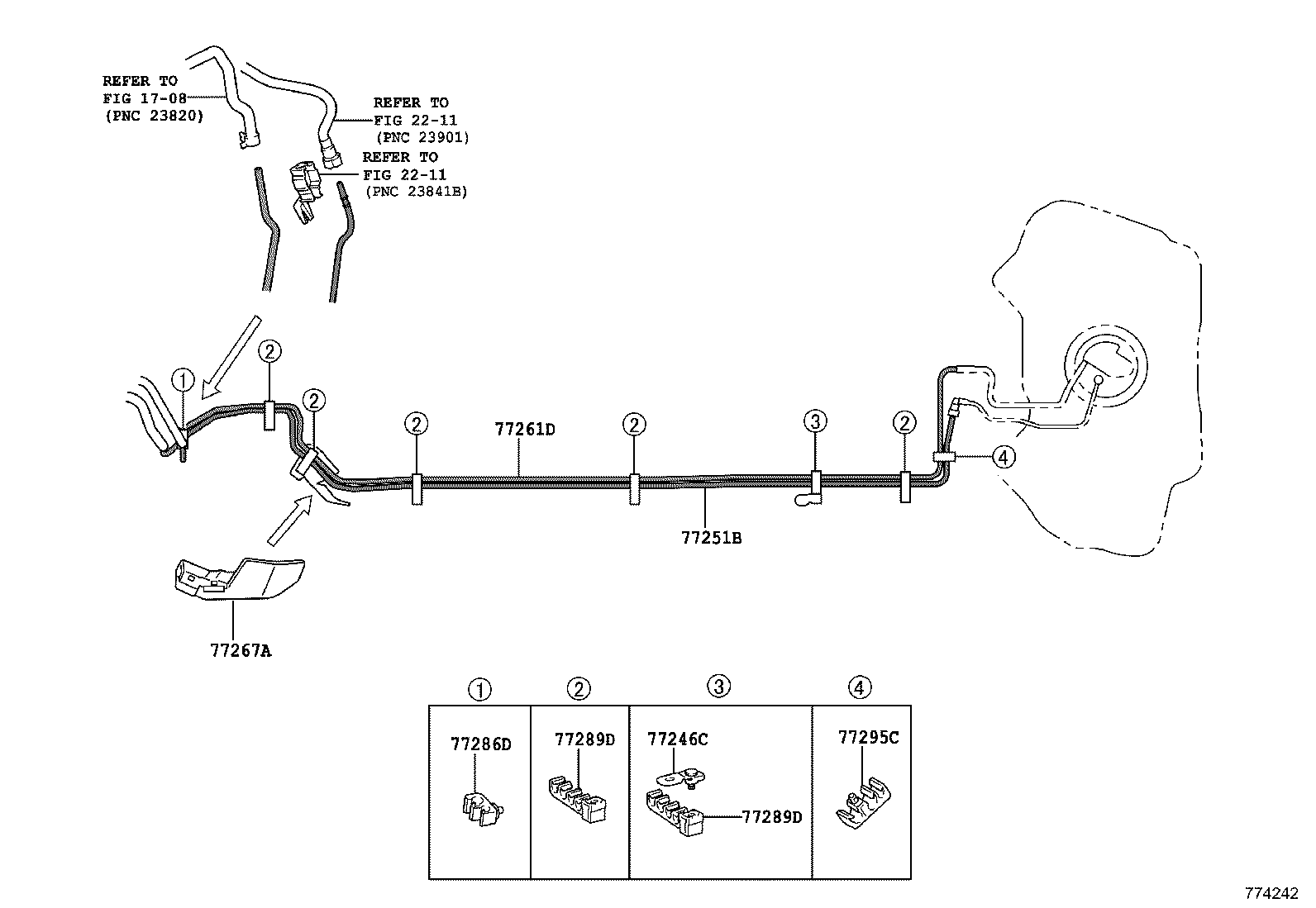

| 77251B | Tube, Fuel Main |
| 77259C | Hose, Fuel |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77279G | Hose, Fuel, NO.2 |
| 77281G | Clamp, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77289D | Clamp, Fuel Tube, NO.5 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298E | Support, Fuel Tube Protector, NO.3 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77512 | Bracket, Fuel Tank, Rear |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77631B | Protector, Fuel Tank, Lower Center |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77645A | Retainer, Fuel Tank Protector |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77654A | Cushion, Fuel Tank, NO.4 |
| 77701W | Hose Sub-assy, Canister Outlet, NO.1 |
| 77745 | Filter, Charcoal Canister, NO.1 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
