Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

9 part groups · 8 illustrations

Illustrations

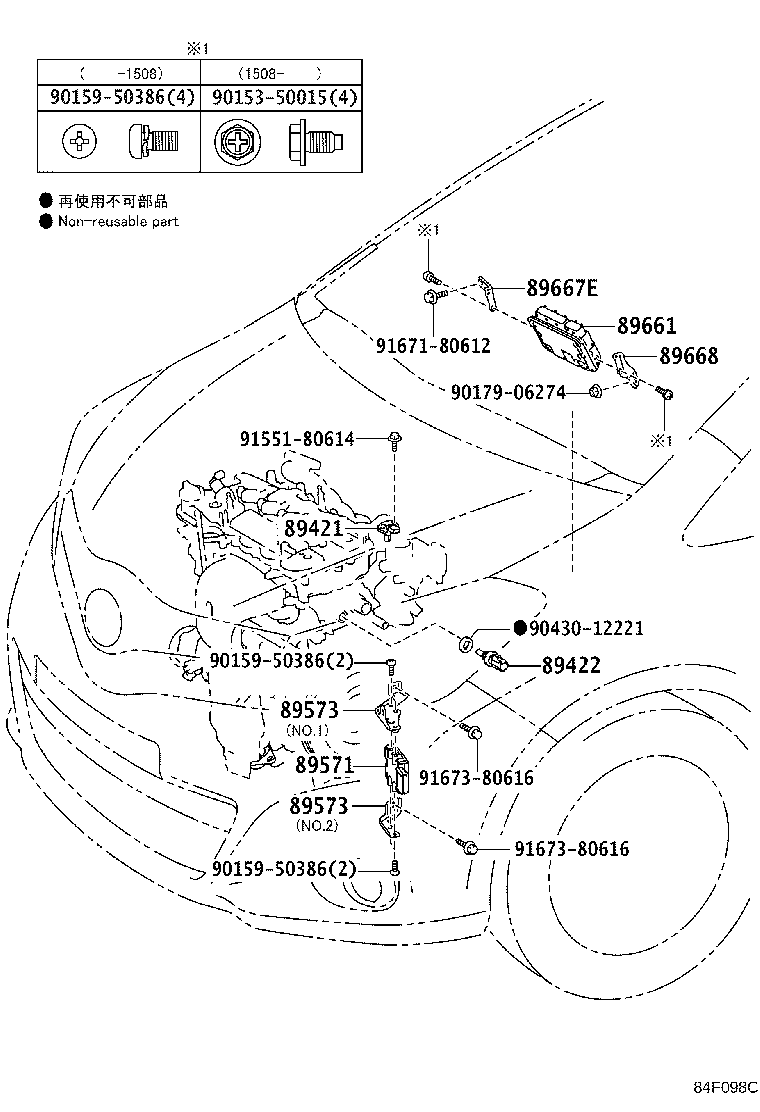

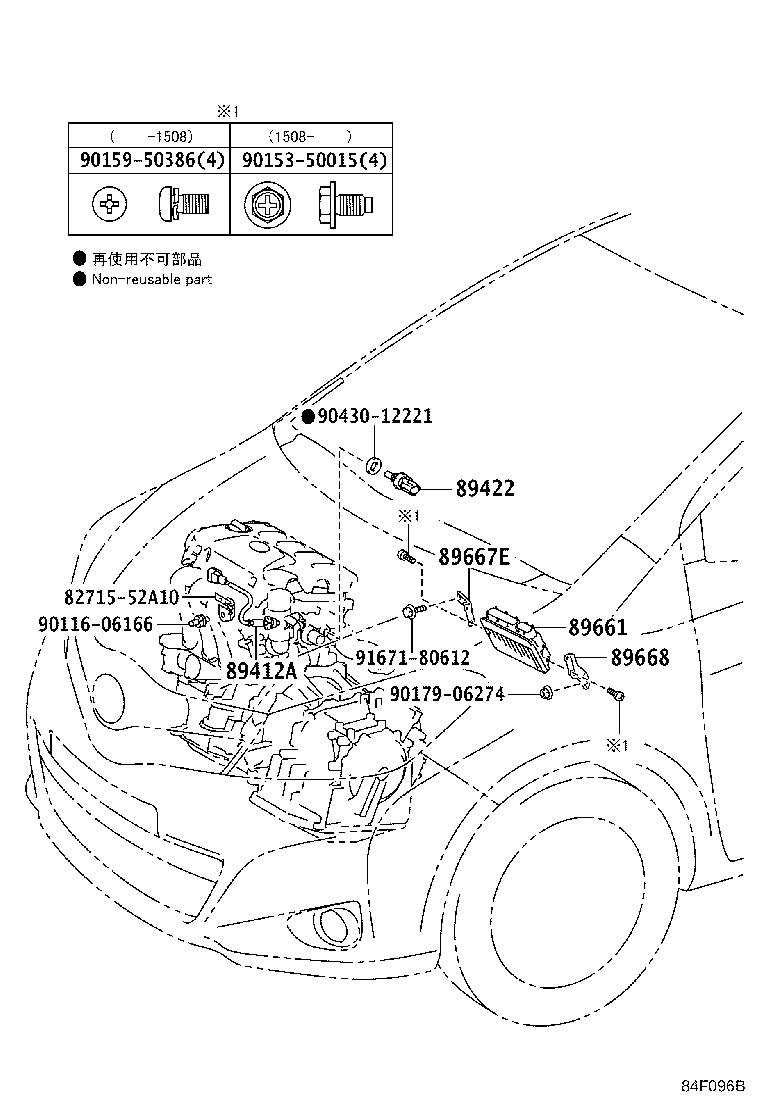

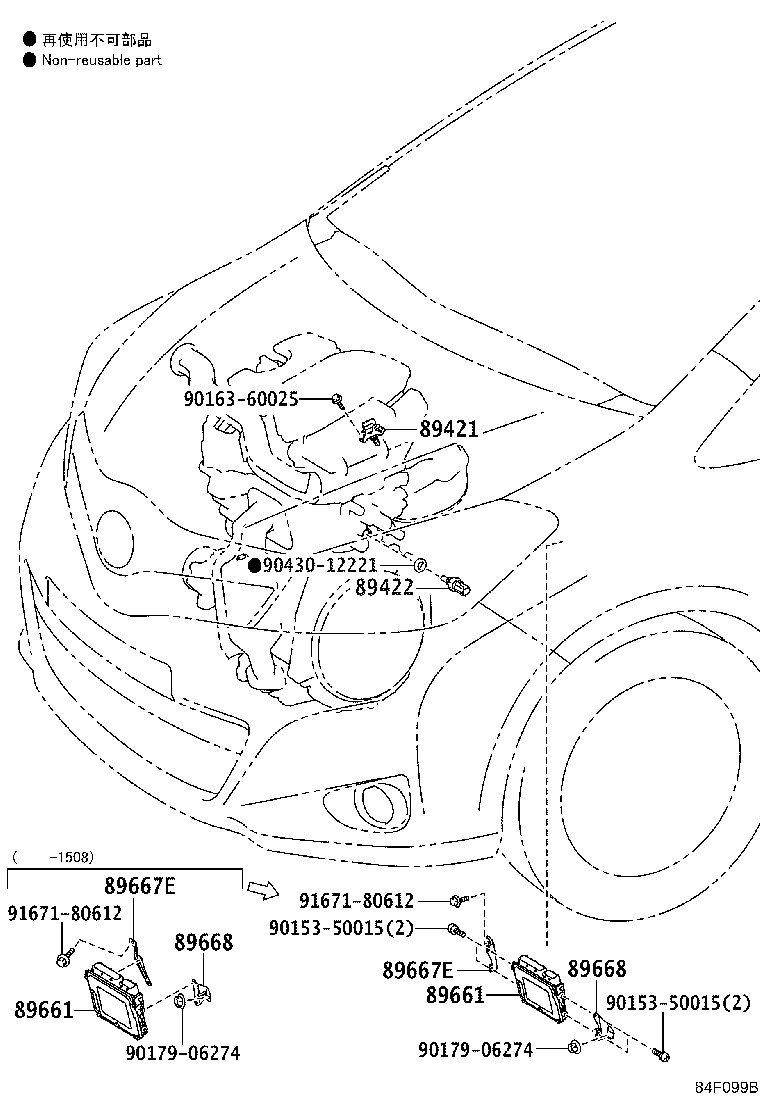

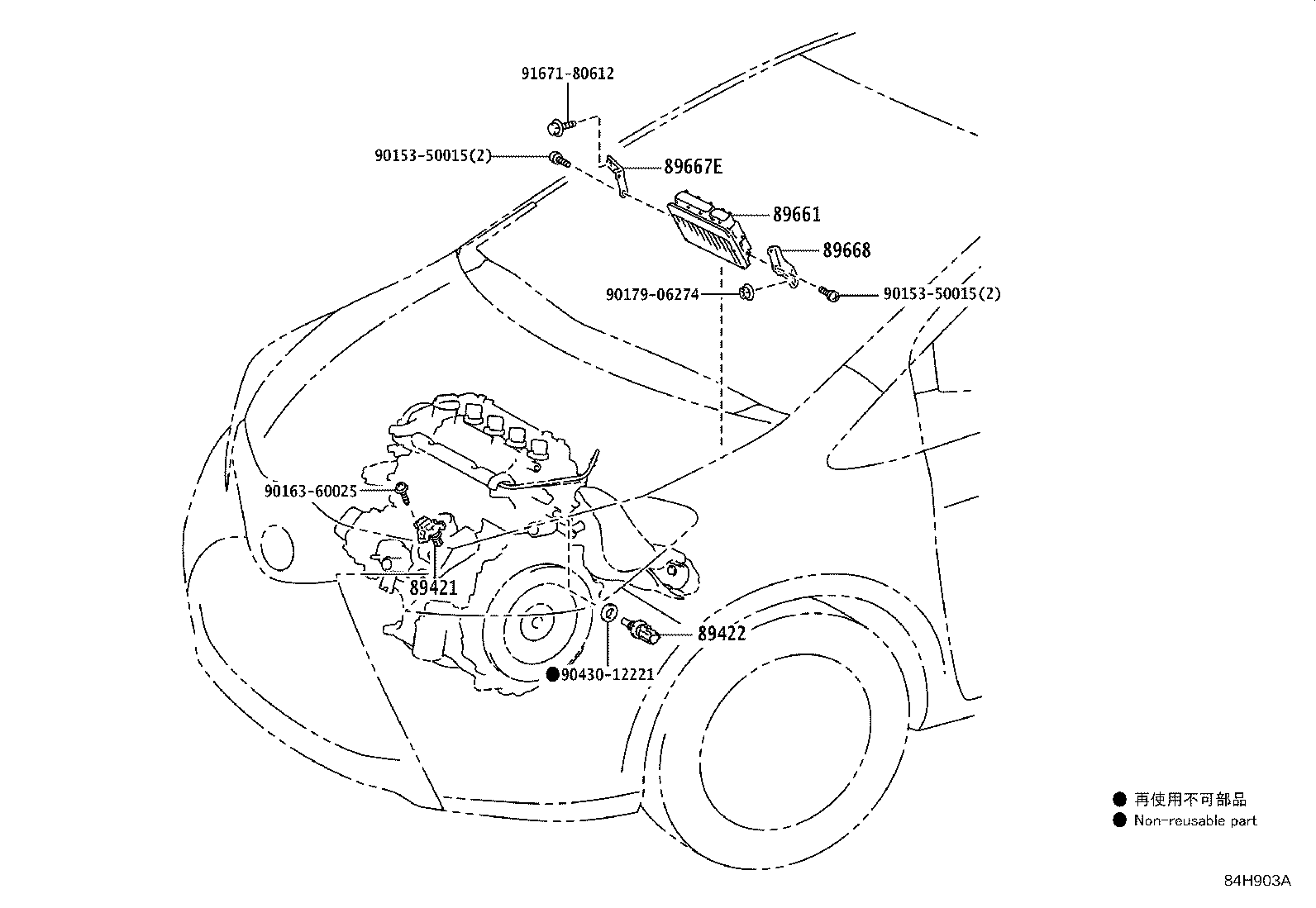

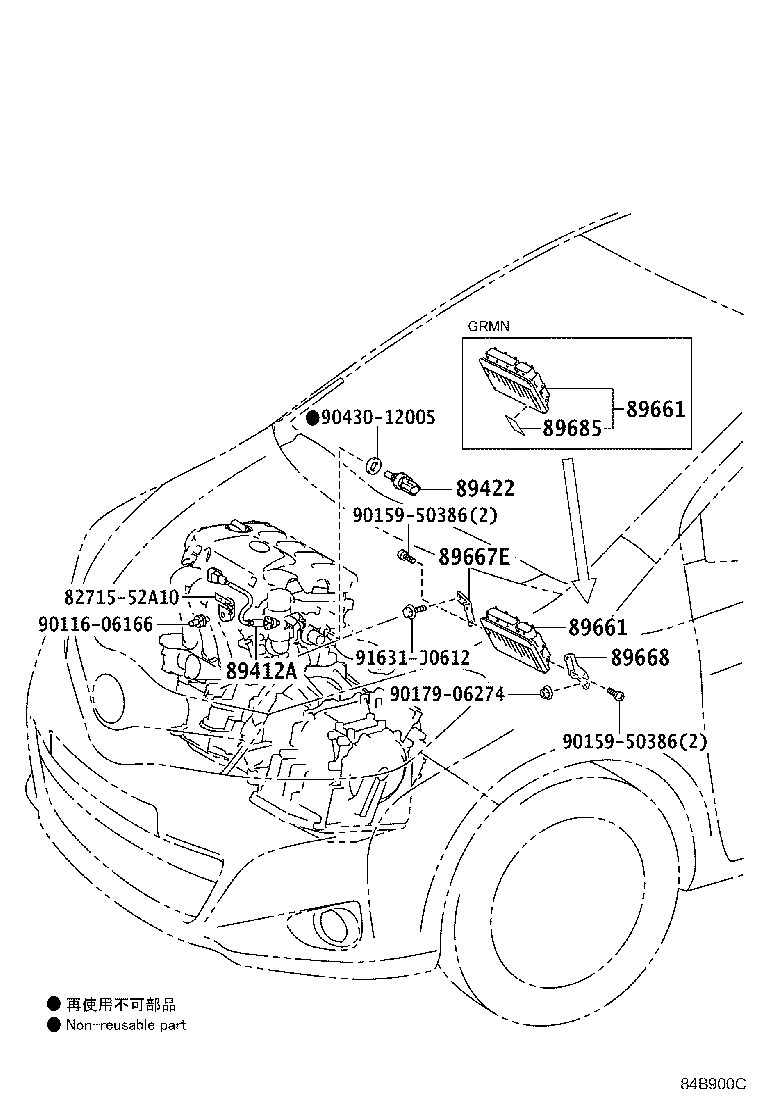

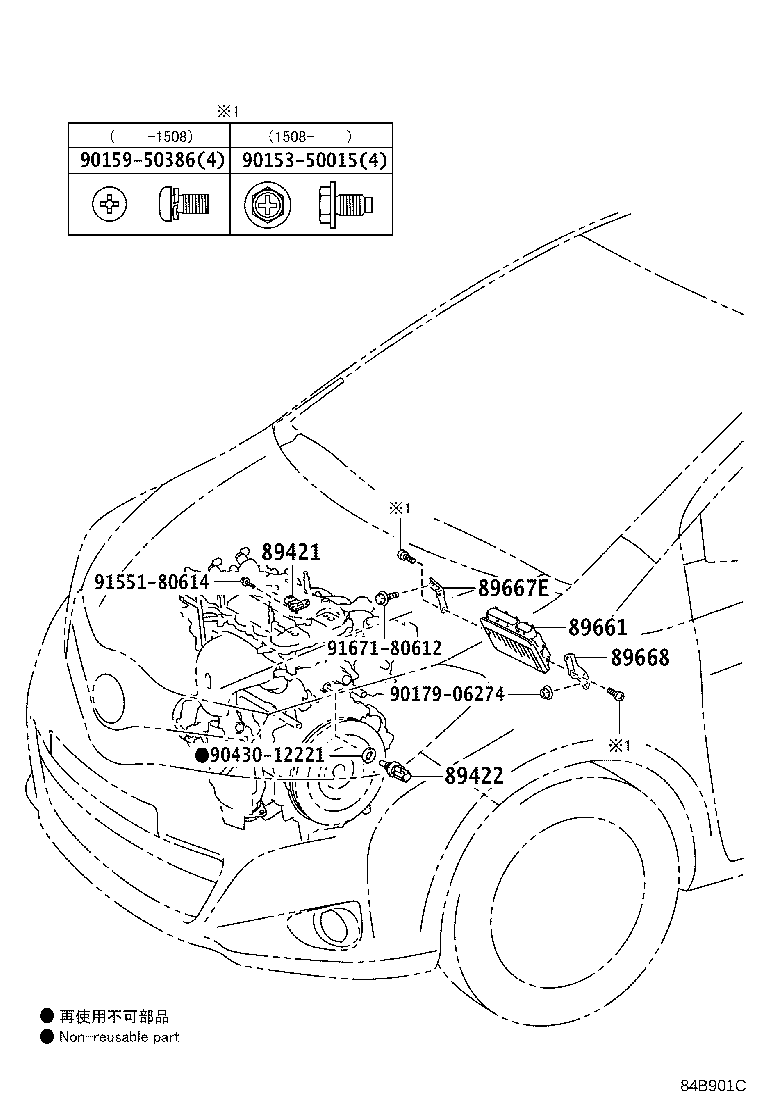

Figure 84B899C 84B899C 2010-12 → 2014-04 Figure 84B900C 84B900C 2010-12 → 2014-04 Figure 84B901C 84B901C 2010-12 → 2014-04 Figure 84B901C 84B901C 2014-04 → — Figure 84F099B 84F099B 2014-04 → — Figure 84F096B 84F096B 2014-04 → — Figure 84F098C 84F098C 2014-04 → — Figure 84H903A 84H903A 2017-01 → —

Part groups

PNCDescription
89412A Sensor, E.G.R Gas Temperature
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89685 Label, Engine Control Computer Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
