Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01
Front Seat & Seat Track
203 part groups · 27 illustrations

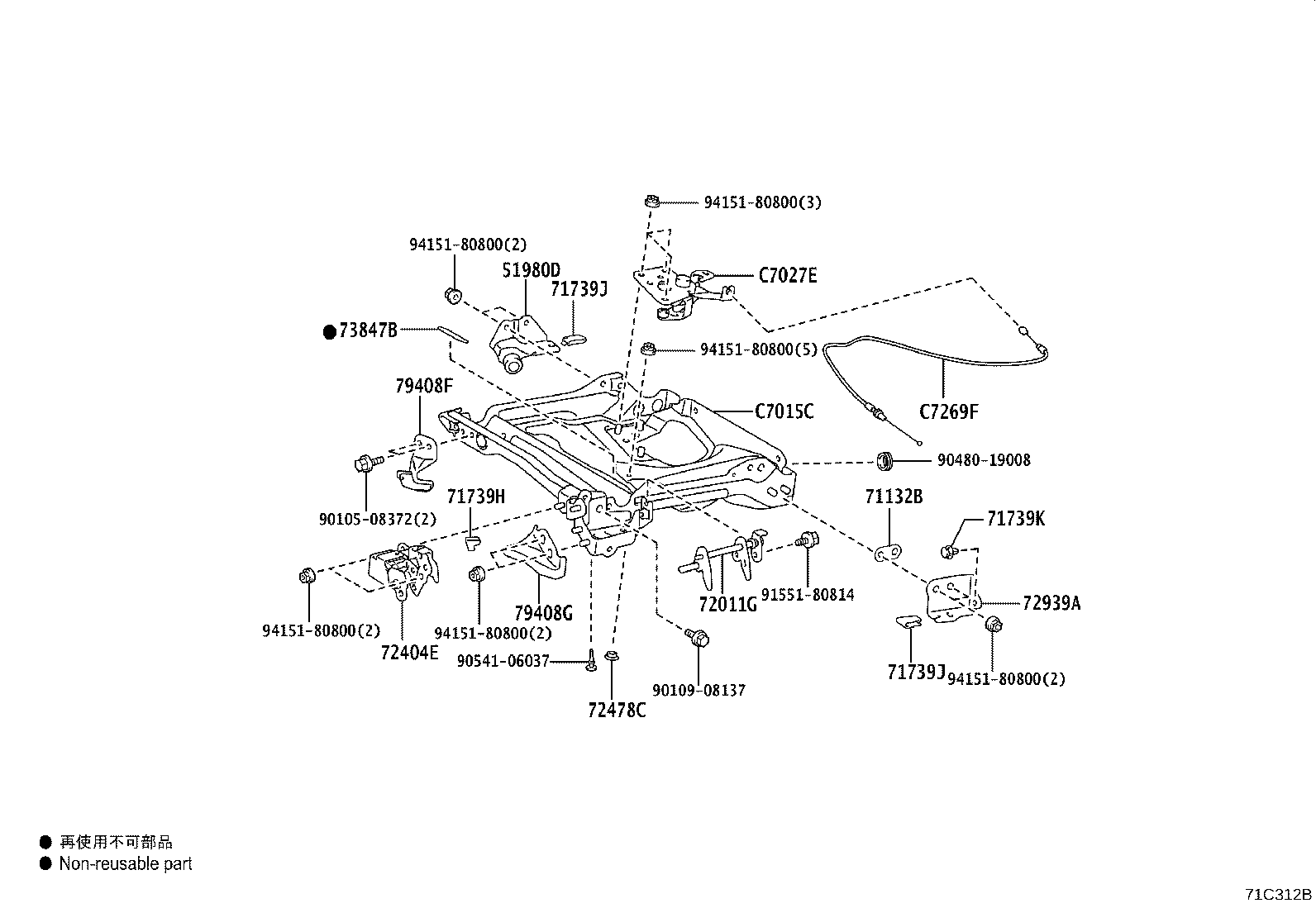

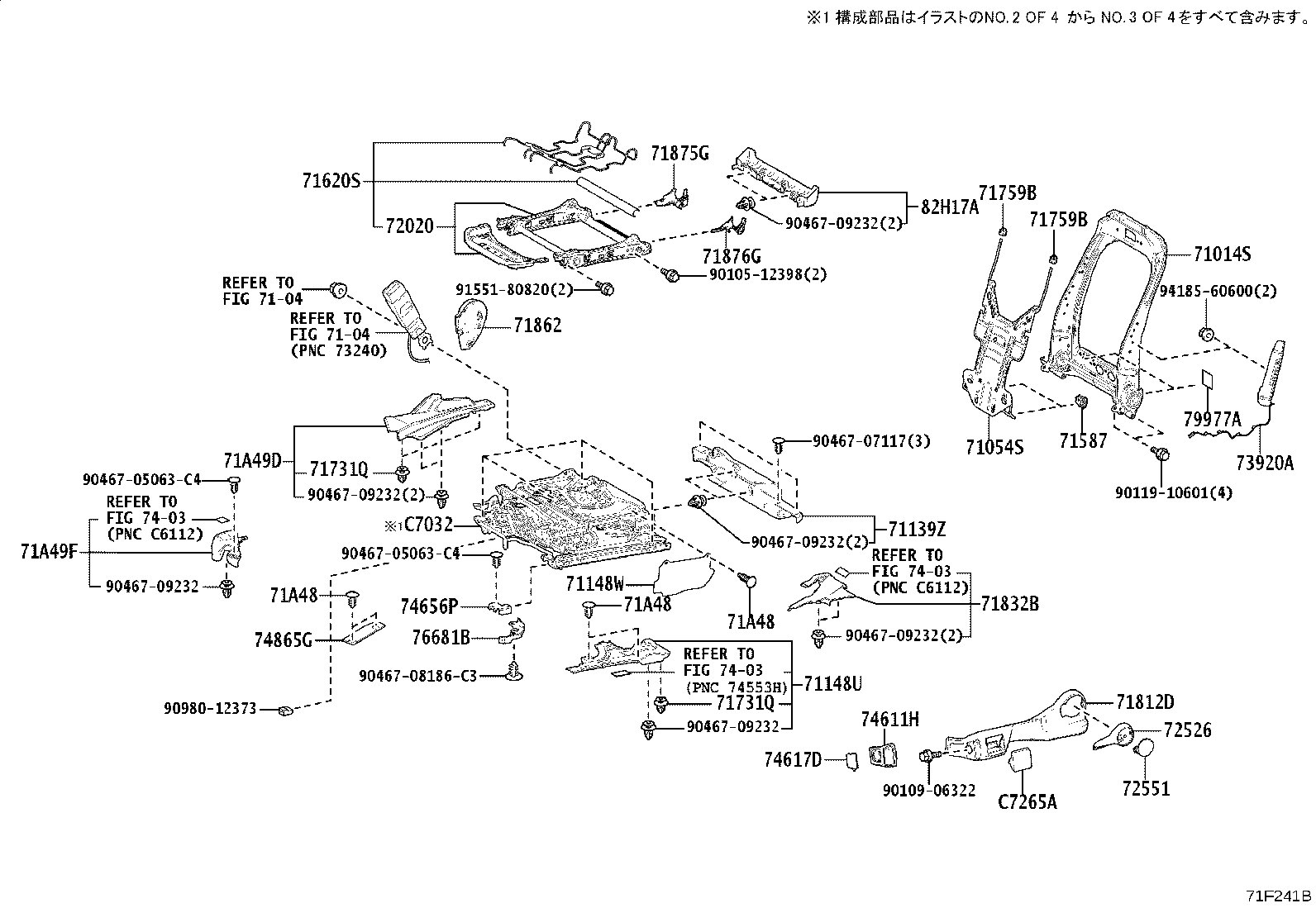

Illustrations
Part groups
| PNC | Description |
|---|---|
| 51980C | Hook Assy, Pintle, RH |
| 51980D | Hook Assy, Pintle, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71131B | Plate, Front Seat Cushion, NO.1 |
| 71132B | Plate, Front Seat Cushion, NO.2 |
| 71139C | Cover, Front Seat Leg, RH |
| 71139R | Clip, Front Seat Leg Cover, RH |
| 71139S | Clip, Front Seat Leg Cover, LH |
| 71139Z | Cover, Front Seat Leg, LH |
| 71148T | Cover, Front Seat Leg, Outer NO.1(FOR RH SEAT) |
| 71148U | Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT) |
| 71148V | Cover, Front Seat Leg, Outer NO.2(FOR RH SEAT) |
| 71148W | Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT) |
| 71148X | Cover, Front Seat Leg, Outer RH |
| 71148Y | Cover, Front Seat Leg, Outer LH |
| 71148Z | Clip, Front Seat Leg Cover, RH |
| 71200S | Seat Assy, Front LH |
| 71301E | Link Sub-assy, Rear Seat Cushion, RH |
| 71301F | Link Sub-assy, Rear Seat Cushion, LH |
| 71361D | Bracket, Front Seat Set, NO.1 Front Outer(FOR RH SEAT) |
| 71361E | Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT) |
| 71361F | Bracket, Front Seat Set, NO.1 Rear Outer(FOR RH SEAT) |
| 71361G | Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT) |
| 71362A | Bracket, Front Seat Set, NO.2 Rear Inner(FOR RH SEAT) |
| 71362B | Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537A | Protector, Front Seat Cushion |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537E | Protector, Front Seat Cushion, NO.1 |
| 71537F | Protector, Front Seat Cushion, NO.2 |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71587 | Protector, Front Seatback Edge |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71731C | Fastener, Seat Cover, RH |
| 71731D | Fastener, Seat Cover, LH |
| 71731P | Fastener, Seat Cover, RH |
| 71731Q | Fastener, Seat Cover, LH |
| 71739C | Cushion, Seat Support, RH NO.1 |
| 71739D | Cushion, Seat Support, RH NO.2 |
| 71739E | Cushion, Seat Support, RH NO.3 |
| 71739F | Cushion, Seat Support, RH NO.4 |
| 71739G | Cushion, Seat Support, RH NO.5 |
| 71739H | Cushion, Seat Support, LH NO.1 |
| 71739J | Cushion, Seat Support, LH NO.2 |
| 71739K | Cushion, Seat Support, LH NO.3 |
| 71739L | Cushion, Seat Support, LH NO.4 |
| 71739M | Cushion, Seat Support, LH NO.5 |
| 71753 | Tray, Front Seat Under |
| 71759B | Hook, Front Seatback |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867V | Shield, Front Seat Cushion, Front RH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71931 | Support, Front Seat Headrest |
| 71A48 | Clip, Front Seat Leg Cover, LH |
| 71A49C | Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT) |
| 71A49D | Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT) |
| 71A49E | Cover, Front Seat Leg, Inner NO.2(FOR RH SEAT) |
| 71A49F | Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT) |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72011F | Hinge Sub-assy, Front Seat, RH |
| 72011G | Hinge Sub-assy, Front Seat, LH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72094C | Lock Sub-assy, Front Seat Turn, RH |
| 72094D | Lock Sub-assy, Front Seat Turn, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72138N | Cover, Seat Track Bracket, Outer Rear LH |
| 72139B | Spring, Seat Track Memory |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158E | Cover, Seat Track Bracket, Inner Rear LH |
| 72185 | Bracket, Seat Track Lower Side |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72201B | Handle Sub-assy, Seat Track LH |
| 72210 | Cable Assy, Seat Track Control |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72219 | Cover, Adjuster Spring Hook |
| 72241A | Lever, Seat Track Lock |
| 72250G | Lock Assy, Front Seat, RH |
| 72250H | Lock Assy, Front Seat, LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265E | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72303A | Lever Sub-assy, Seat Track Lock, RH |
| 72404B | Link Sub-assy, Front Seat Adjuster, RH NO.1 |
| 72404C | Link Sub-assy, Front Seat Adjuster, LH NO.1 |
| 72404D | Link Sub-assy, Front Seat Adjuster, RH NO.2 |
| 72404E | Link Sub-assy, Front Seat Adjuster, LH NO.2 |
| 72478B | Bush, Vertical Adjuster, RH |
| 72478C | Bush, Vertical Adjuster, LH |
| 72494A | Handle, Front Seat Vertical Adjuster, RH |
| 72497B | Cover, Vertical Adjuster Bracket, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72551 | Cover, Reclining Hinge, NO.1 |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72939 | Hook, Seat Turn Lock, RH |
| 72939A | Hook, Seat Turn Lock, LH |
| 72992 | Cover, Front Seat Cushion, LH |
| 73162B | Bracket, Belt Anchor Bar, Rear RH |
| 73162C | Bracket, Belt Anchor Bar, Rear LH |
| 73508A | Rail Sub-assy, Front Seat Under Tray, NO.2 |
| 73847A | Cushion, Seat Suspension Stopper, RH |
| 73847B | Cushion, Seat Suspension Stopper, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 74611H | Grip, Assist |
| 74617D | Plug, Assist Grip |
| 74656N | Cover, Hand Rail Bar, RH |
| 74656P | Cover, Hand Rail Bar, LH |
| 74656Q | Clip, Hand Rail Bar Cover, RH |
| 74656R | Clip, Hand Rail Bar Cover, LH |
| 74820G | Protector Assy, Front LH |
| 74865F | Cover, Center Protector, RH |
| 74865G | Cover, Center Protector, LH |
| 76681A | Cover, Outside Moulding End, NO.1 RH |
| 76681B | Cover, Outside Moulding End, NO.1 LH |
| 76681C | Clip, Outside Moulding End Cover, NO.1 RH |
| 76681D | Clip, Outside Moulding End Cover, NO.1 LH |
| 79408D | Hook Sub-assy, NO.4 Seat, Inner RH |
| 79408E | Hook Sub-assy, NO.4 Seat, Outer RH |
| 79408F | Hook Sub-assy, NO.4 Seat, Inner LH |
| 79408G | Hook Sub-assy, NO.4 Seat, Outer LH |
| 79977A | Felt, Seatback |
| 79977G | Felt, Front Seatback, RH |
| 79977H | Felt, Front Seatback, LH |
| 82667D | Holder, Connector |
| 82711F | Clamp, Wiring Harness |
| 82711G | Clamp, Wiring Harness |
| 82H17 | Protector, Wiring Harness, RH |
| 82H17A | Protector, Wiring Harness, LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
| C7015B | Panel Sub-assy, Turn Table, RH |
| C7015C | Panel Sub-assy, Turn Table, LH |
| C7027D | Lock Sub-assy, Welcab Seat Turn, RH |
| C7027E | Lock Sub-assy, Welcab Seat Turn, LH |
| C7031 | Swivel Sub-assy, Front Seat, RH |
| C7032 | Swivel Sub-assy, Front Seat, LH |
| C7106 | Roller Sub-assy, Slide Table, RH |
| C7106A | Roller Sub-assy, Slide Table, LH |
| C7160D | Panel Assy, Slide Table, RH |
| C7160E | Panel Assy, Slide Table, LH |
| C7207 | Bracket Sub-assy, Interlock, Lower RH NO.1 |
| C7207A | Bracket Sub-assy, Interlock, Lower LH NO.1 |
| C7230H | Track Assy, Welcab Seat, RH(FOR RH SEAT) |
| C7230J | Track Assy, Welcab Seat, LH(FOR RH SEAT) |
| C7240 | Track Assy, Welcab Seat, RH(FOR LH SEAT) |
| C7240A | Track Assy, Welcab Seat, LH(FOR LH SEAT) |
| C7265 | Handle, Seat Turn Lock, RH |
| C7265A | Handle, Seat Turn Lock, LH |
| C7269E | Cable, Seat Turn Lock Release, RH NO.1 |
| C7269F | Cable, Seat Turn Lock Release, LH NO.1 |
| C7269G | Cable, Seat Turn Lock Release, RH NO.2 |
| C7269H | Cable, Seat Turn Lock Release, LH NO.2 |
| C7985C | Guard, Rear Seat Turn, RH |
| C7985D | Guard, Rear Seat Turn, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
