Toyota Yaris
2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan
Supported model
Data version 2024-01
Mirror

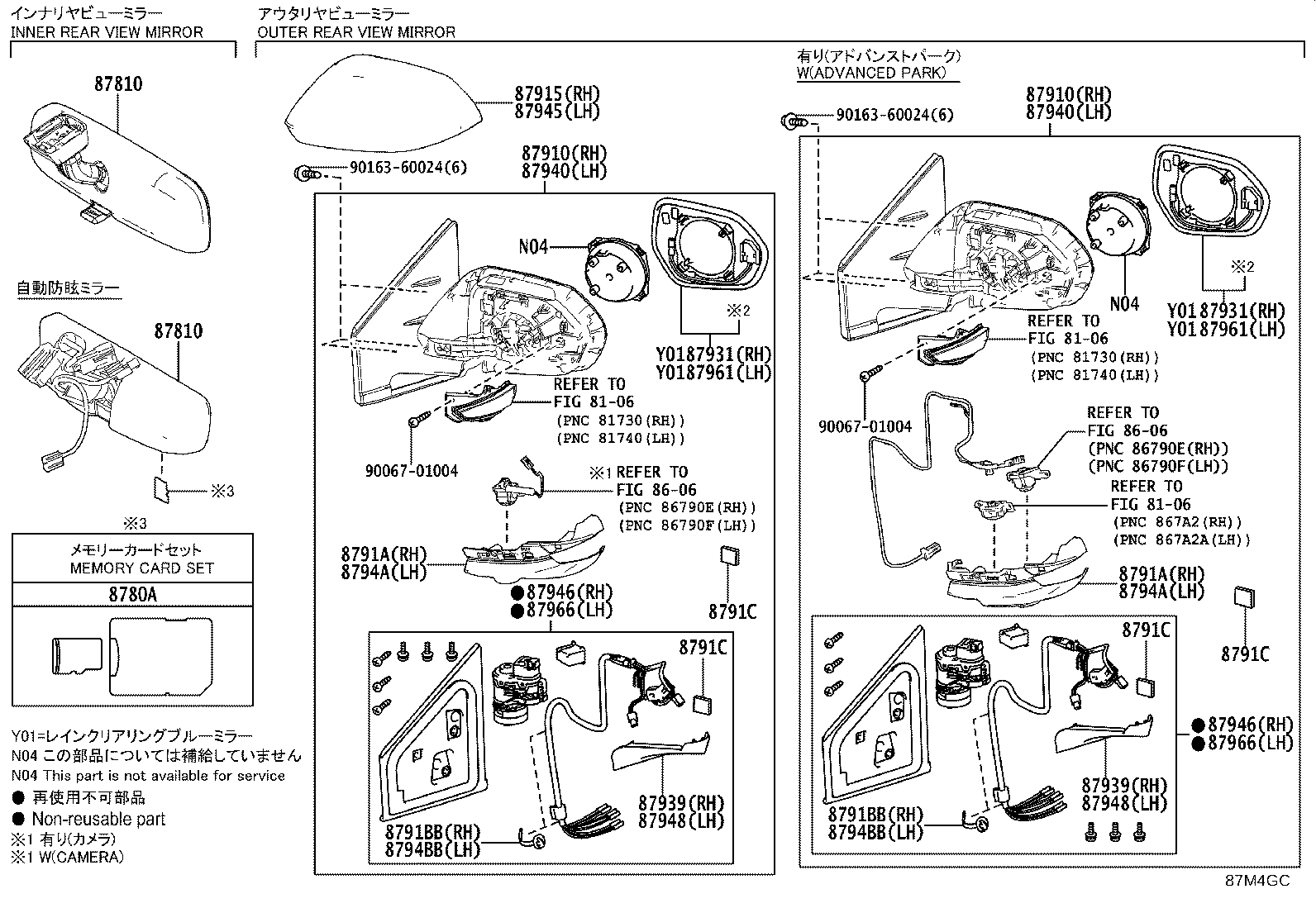

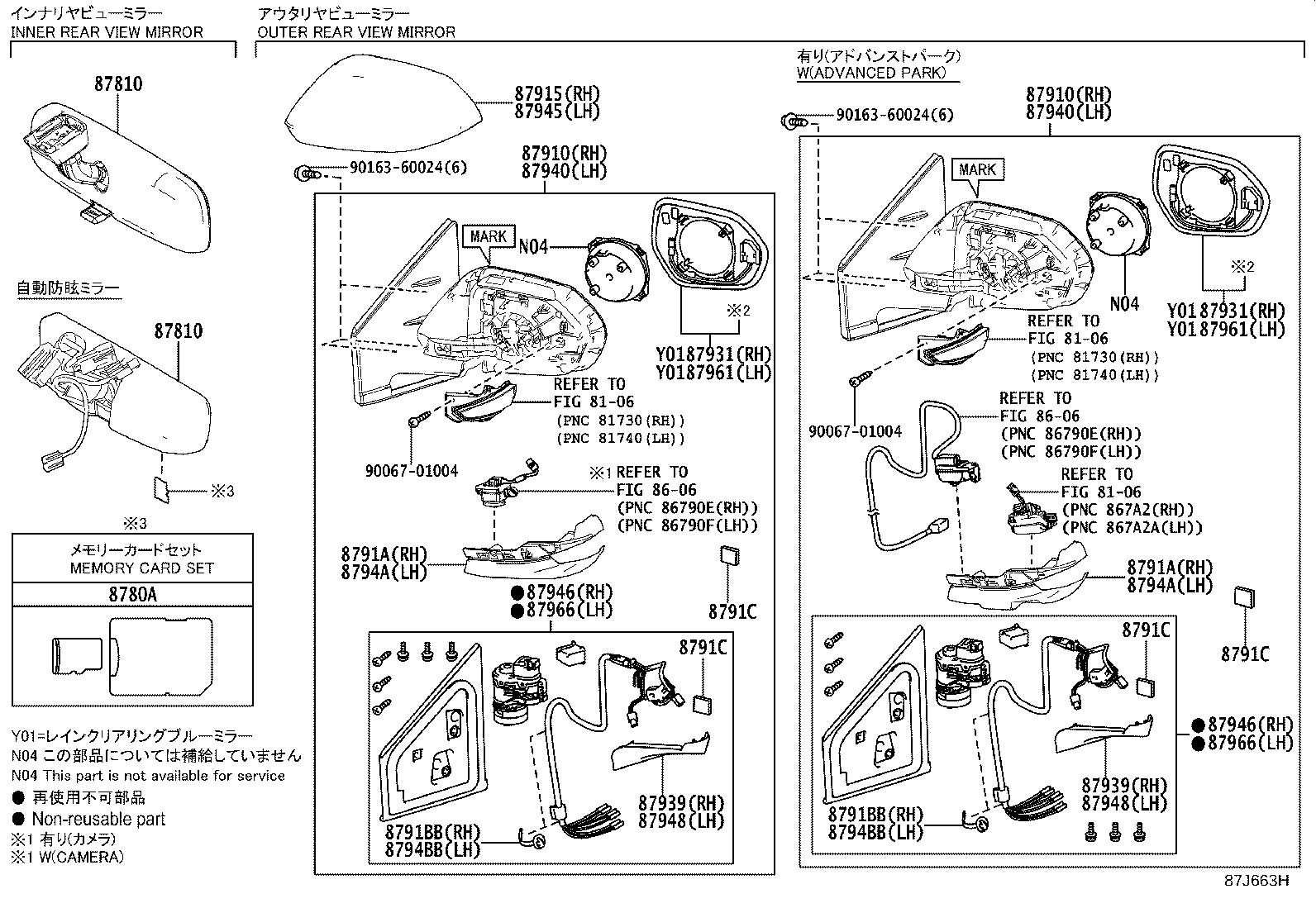

17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 8780A | Memory Card Set, Inner Rear View Mirror |
| 87810 | Mirror Assy, Inner Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 8791BB | Stay, Outer Mirror, RH |
| 8791C | Seal, Outer Mirror |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 8794BB | Stay, Outer Mirror, LH |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
