Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

20 part groups · 10 illustrations

Illustrations

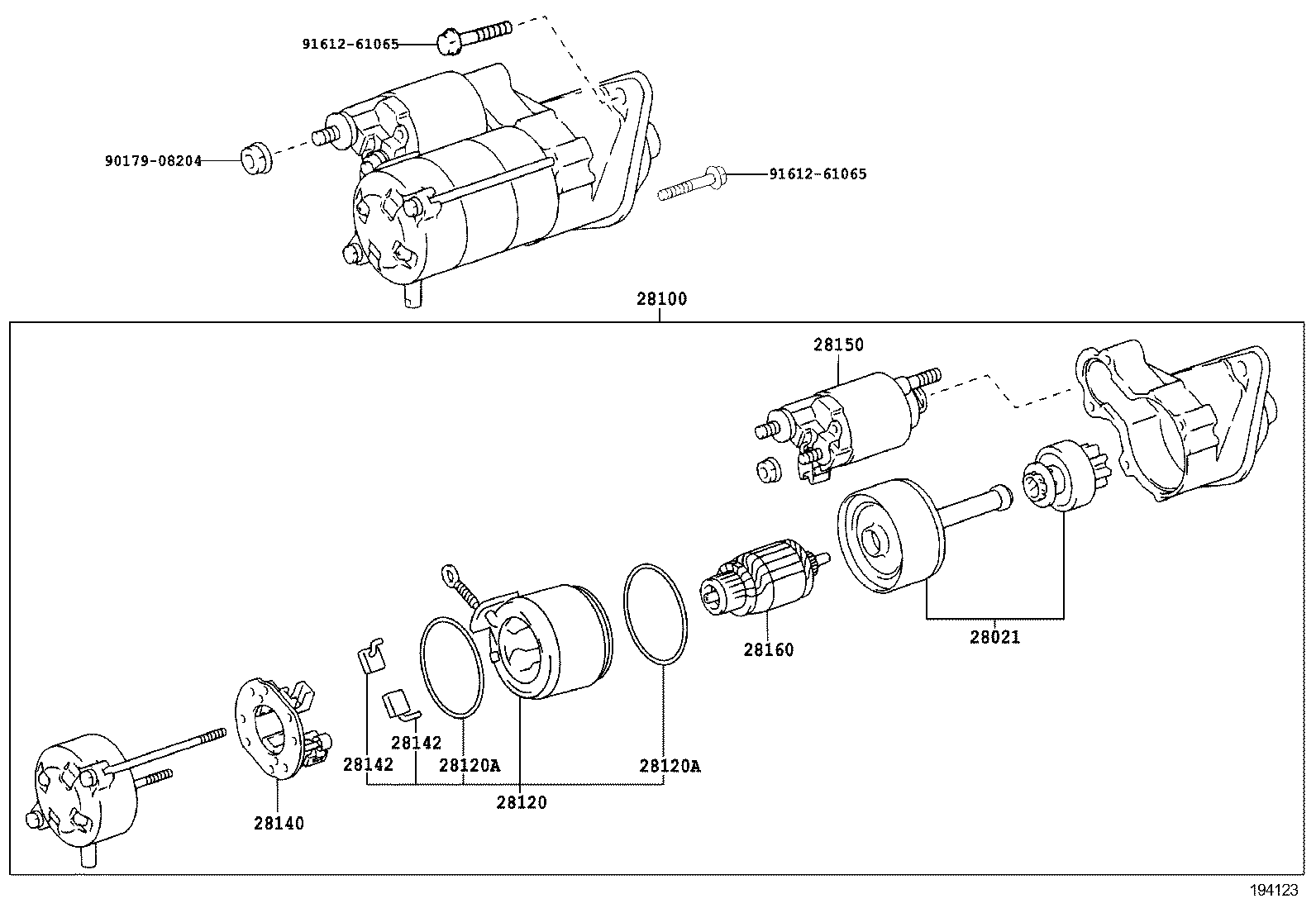

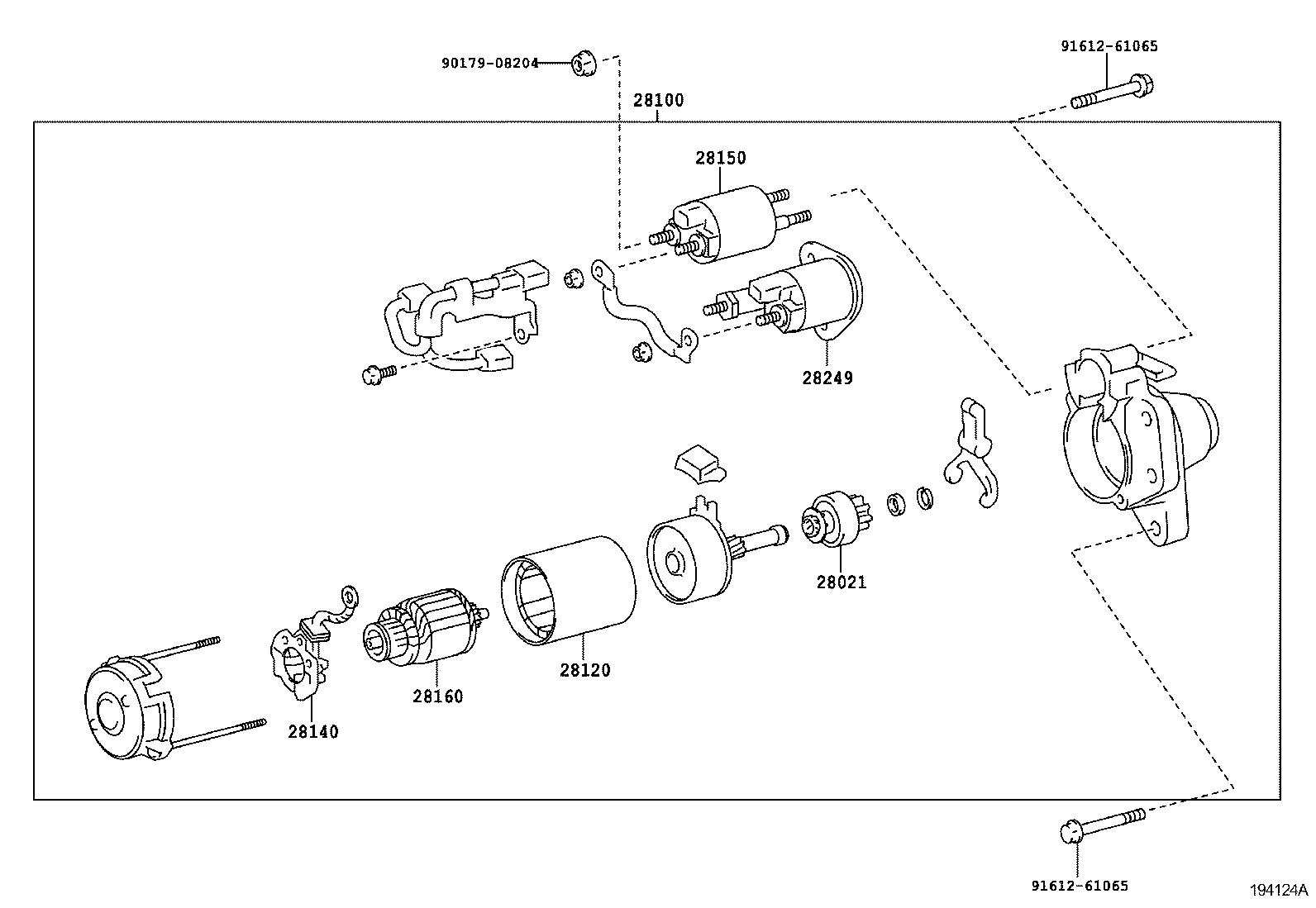

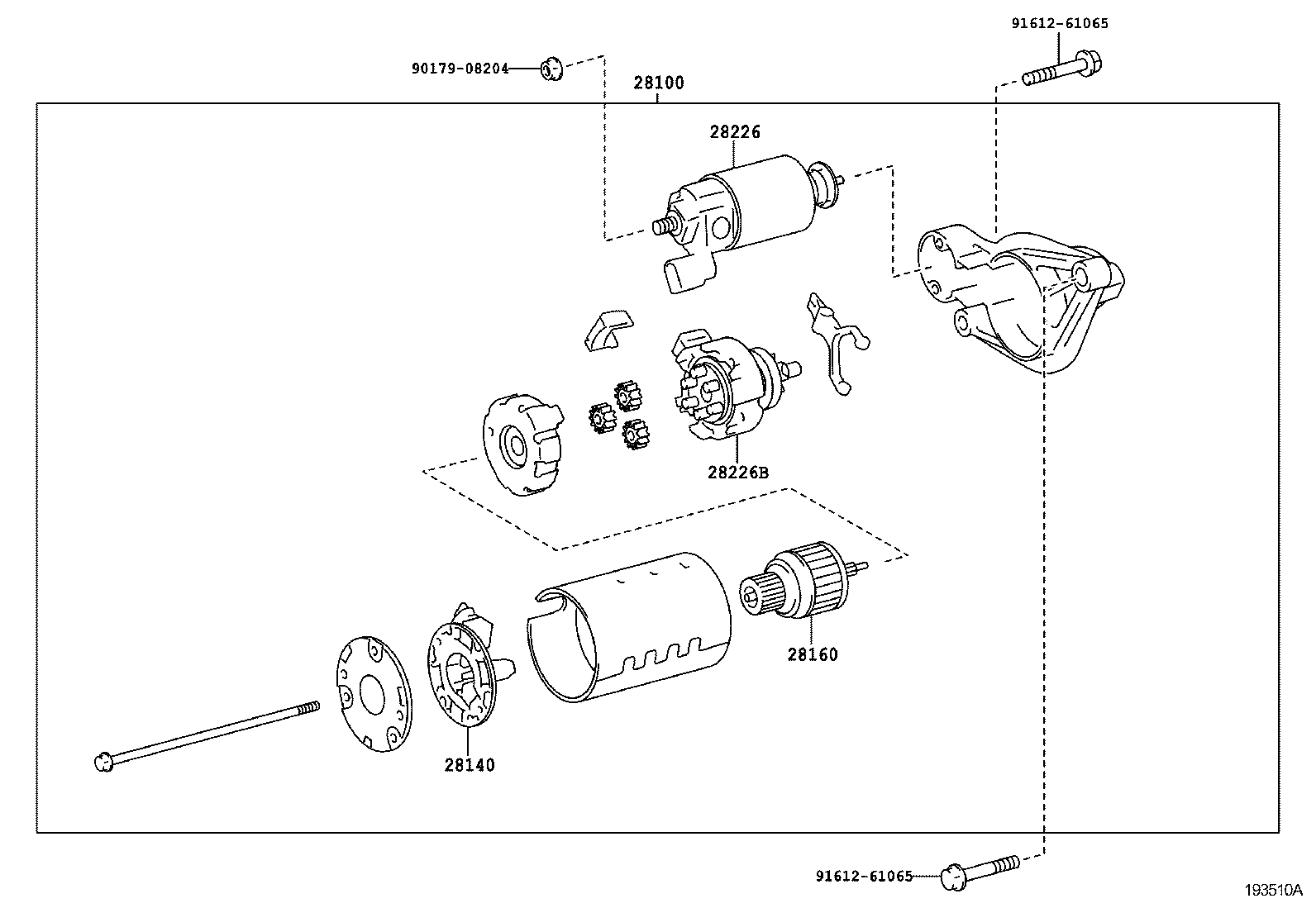

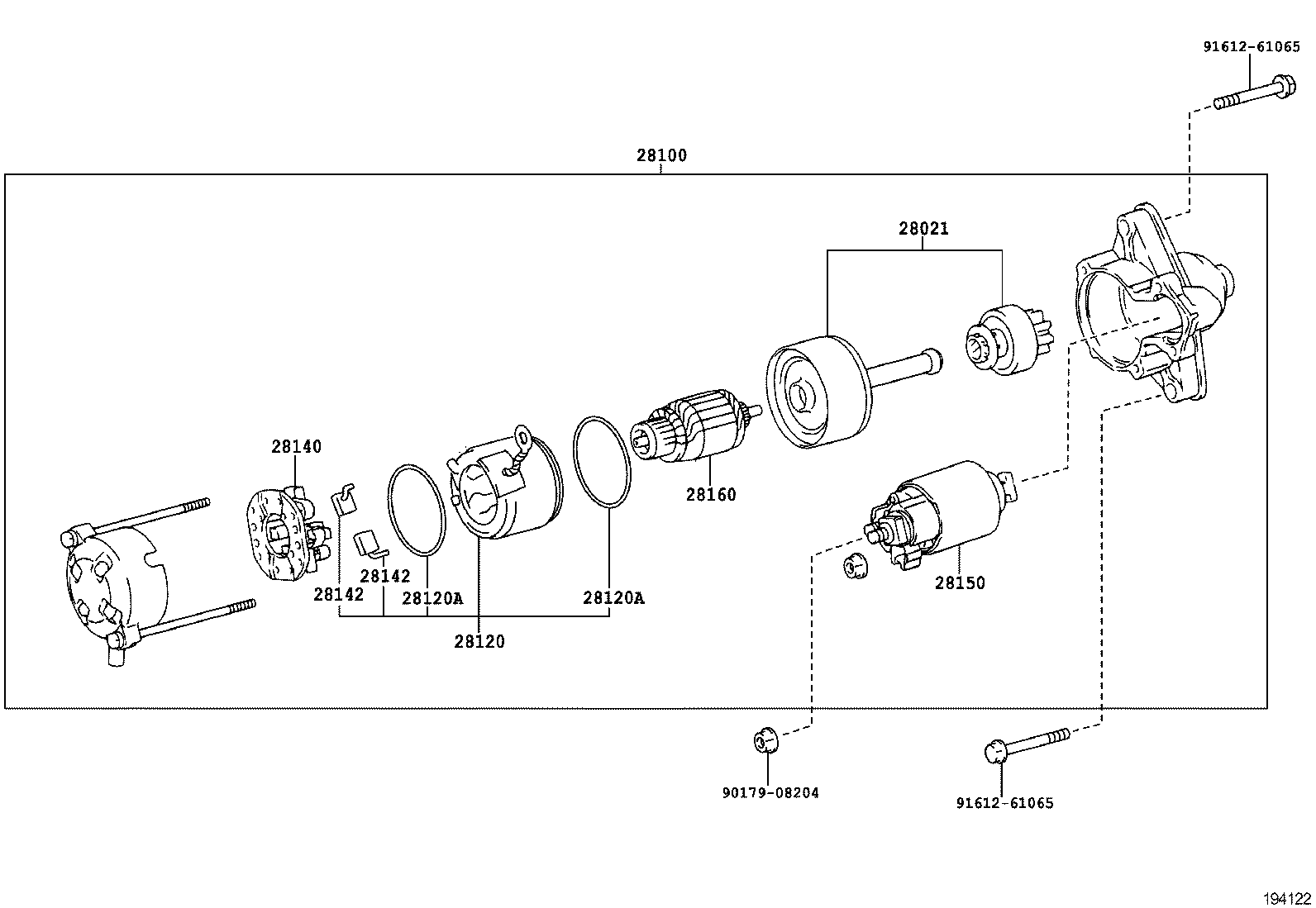

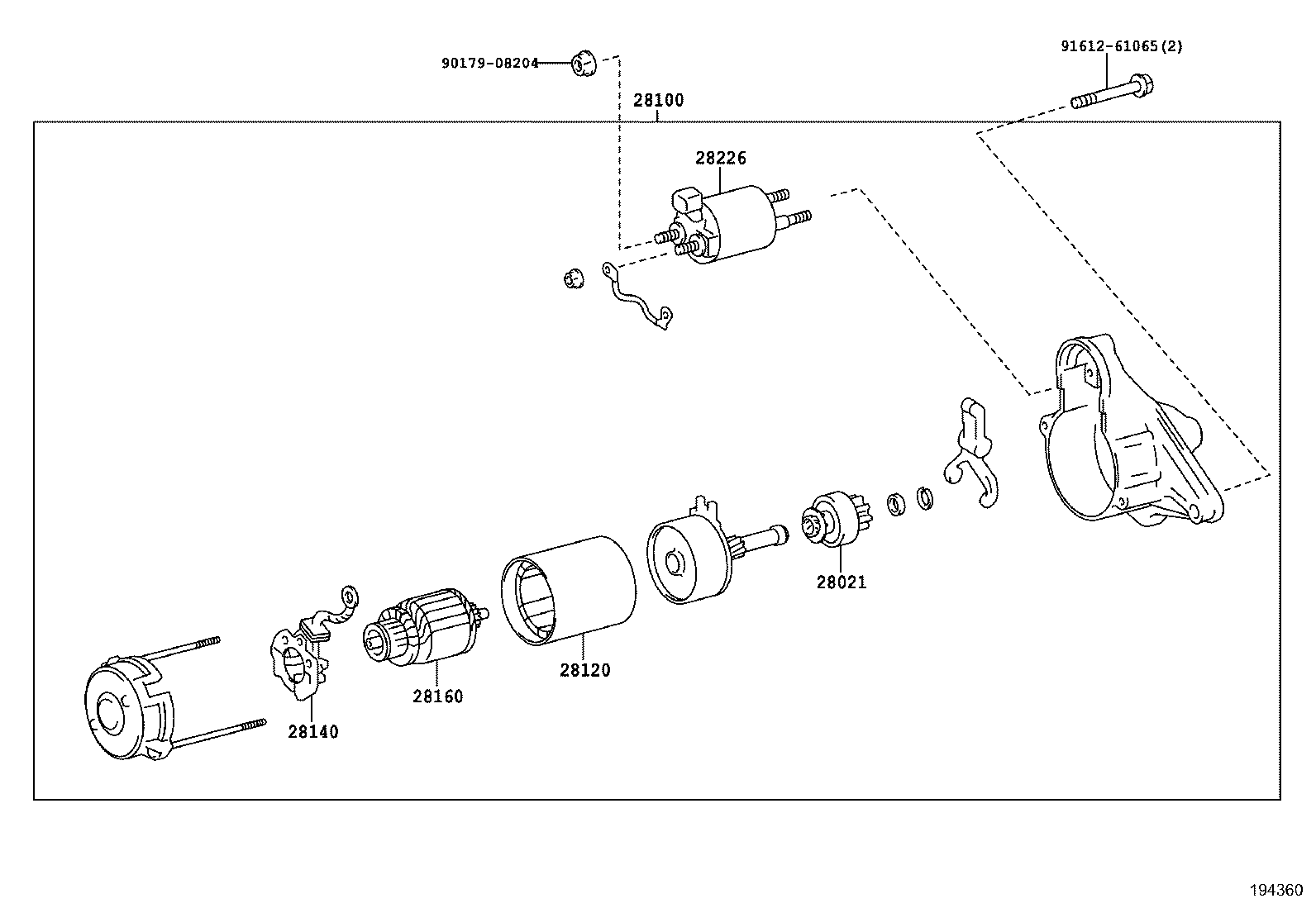

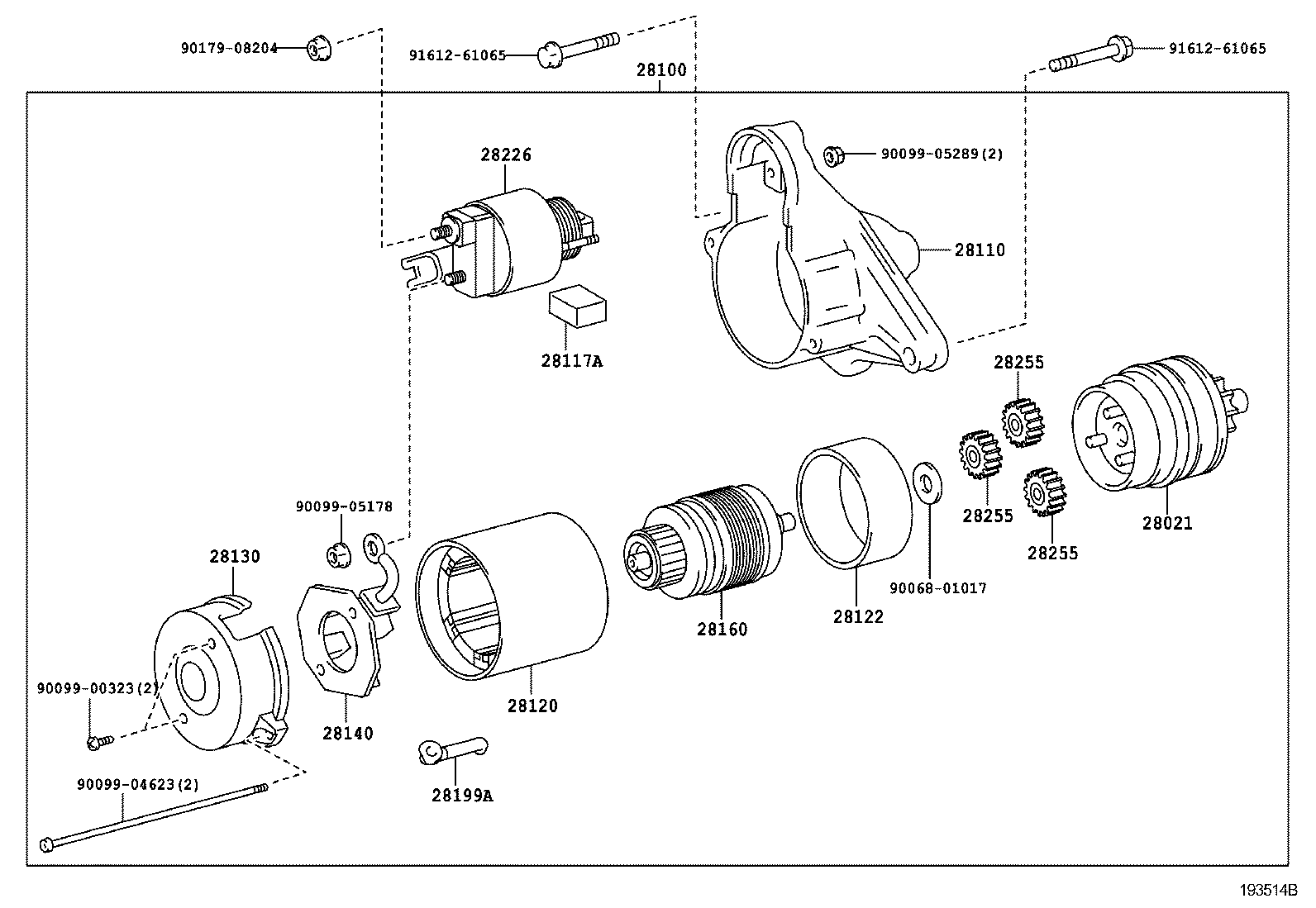

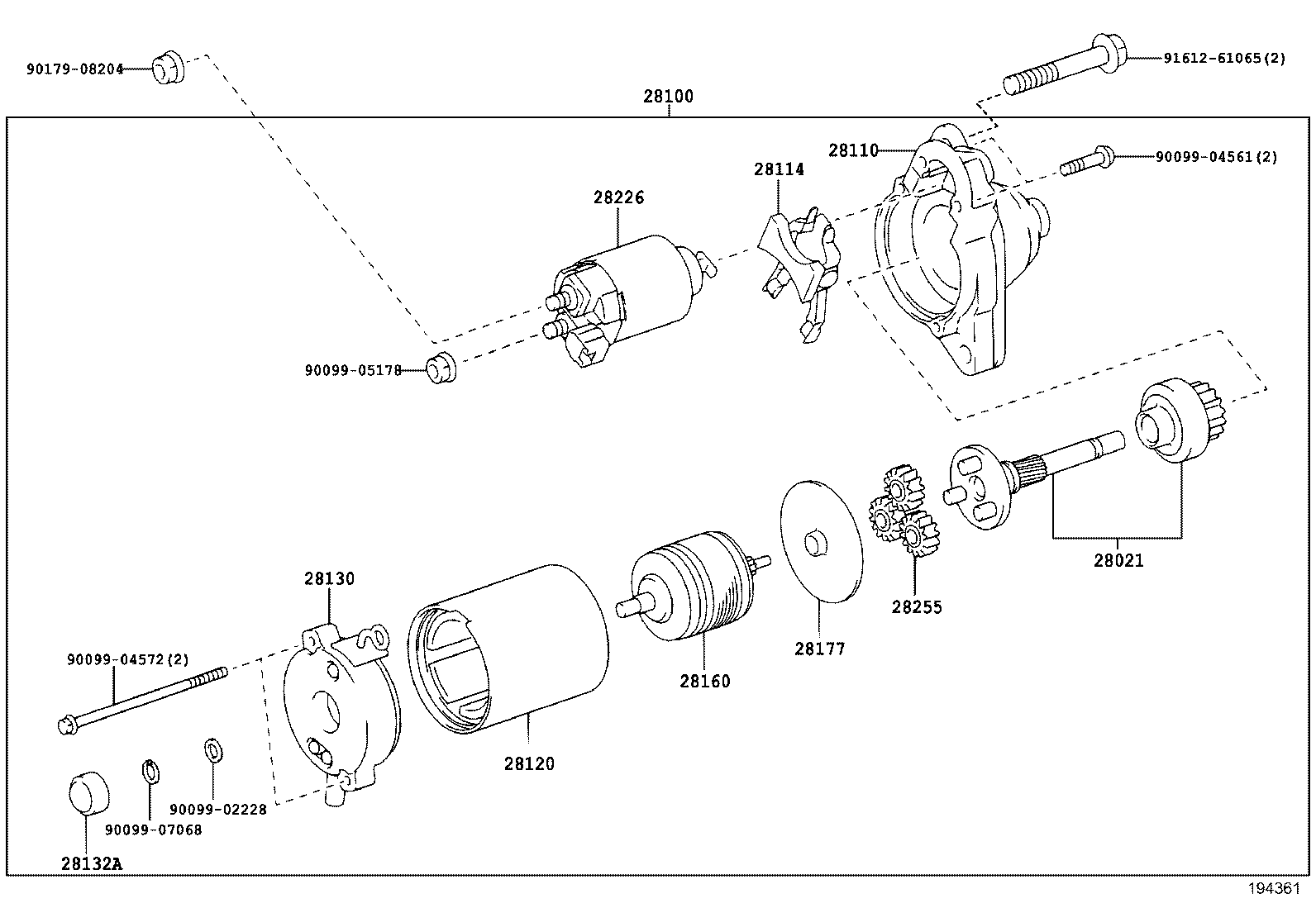

Figure 193511A 193511A 2010-11 → — Figure 193514B 193514B 2011-11 → 2014-05 Figure 193510A 193510A 2010-11 → 2012-08 Figure 193510A 193510A 2012-08 → 2014-05 Figure 193510A 193510A 2014-05 → — Figure 194122 194122 2012-08 → 2014-05 Figure 194123 194123 2012-08 → 2014-05 Figure 194124A 194124A 2012-08 → — Figure 194361 194361 2014-05 → — Figure 194360 194360 2014-05 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28117A Seal, Rubber
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28122 Collar, Space
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28226 Starter Kit, Battery Terminal
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
