Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01
Front Seat & Seat Track
168 part groups · 44 illustrations
Illustrations
716985G
716985G

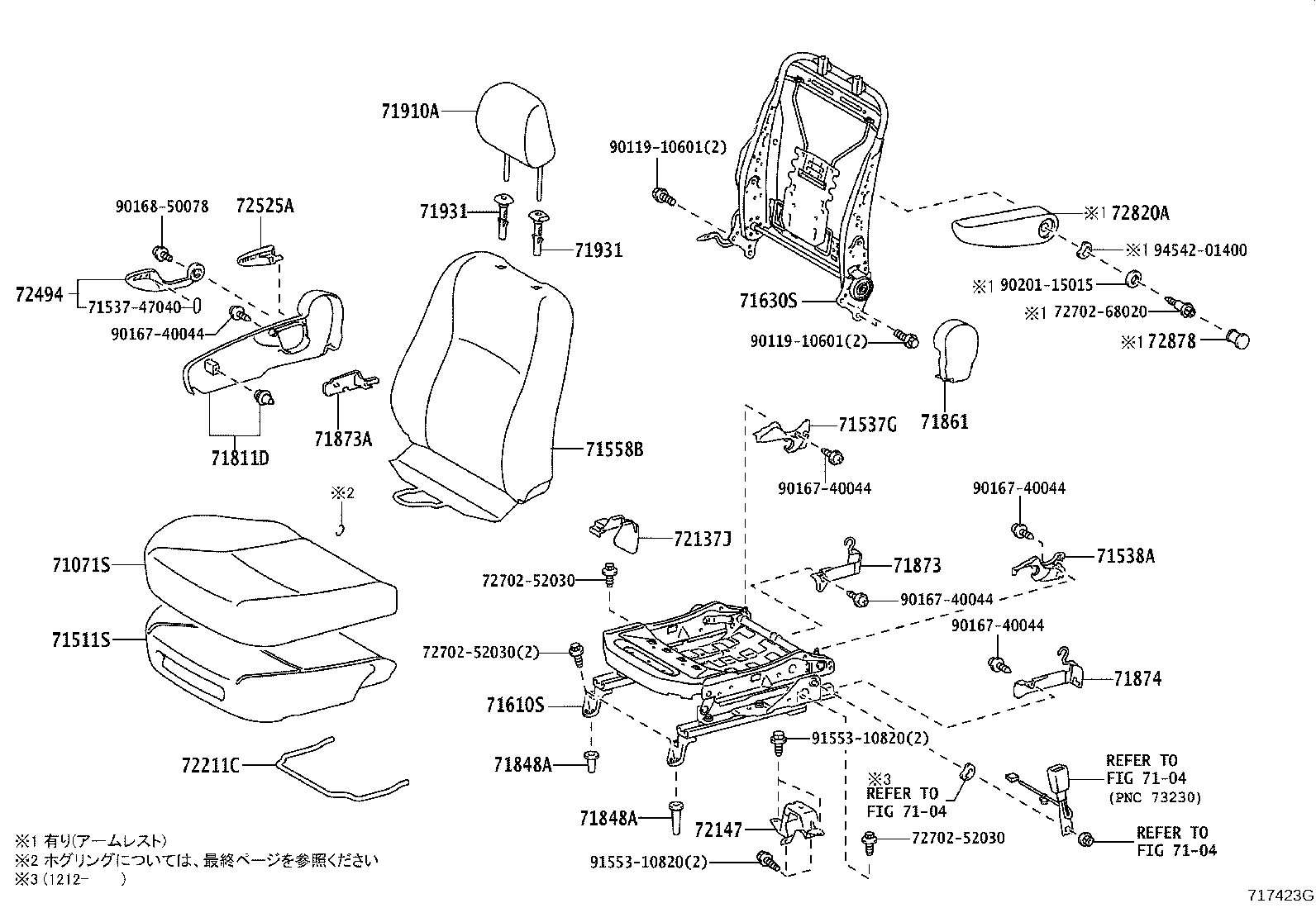

717423G

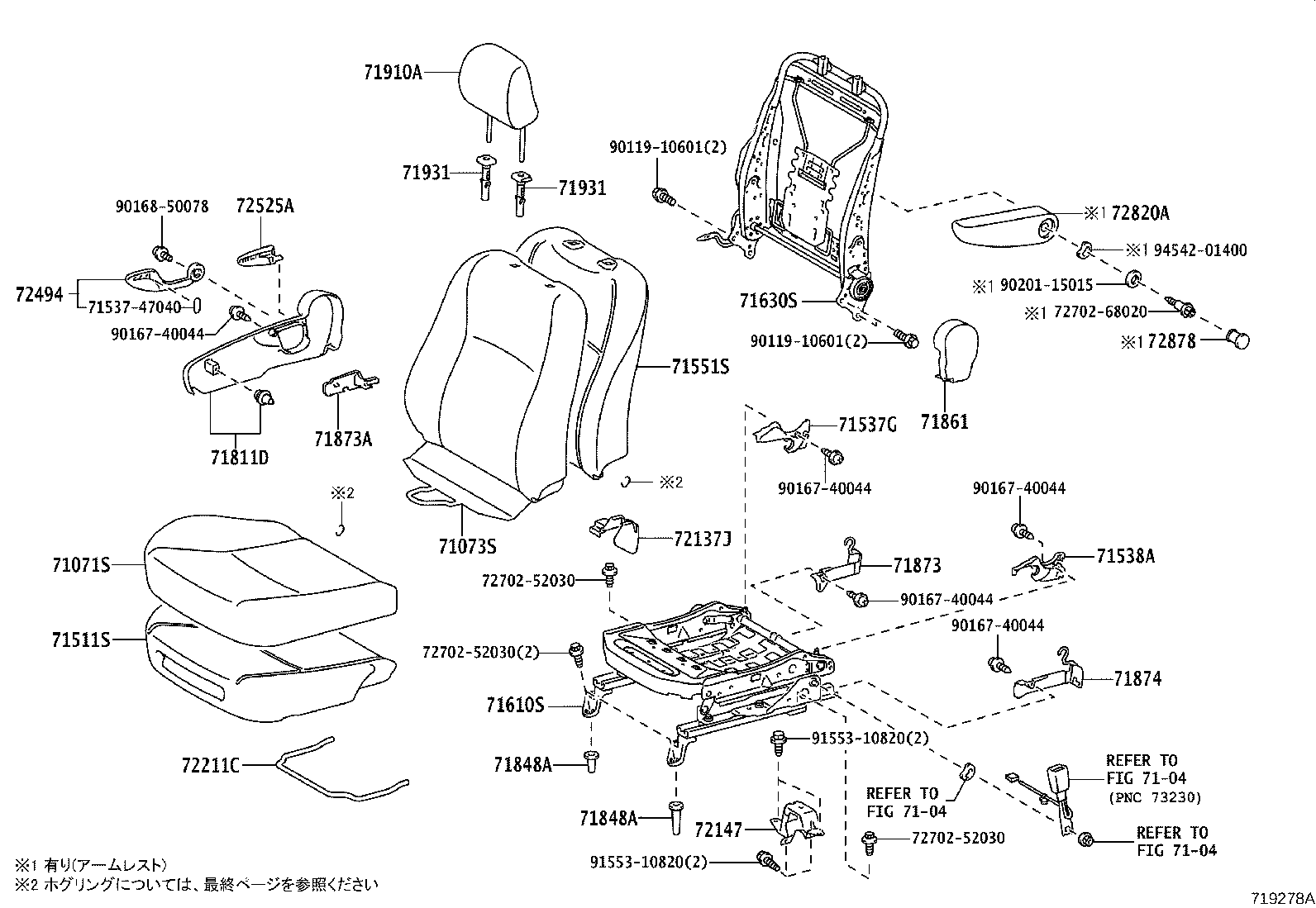

719278A

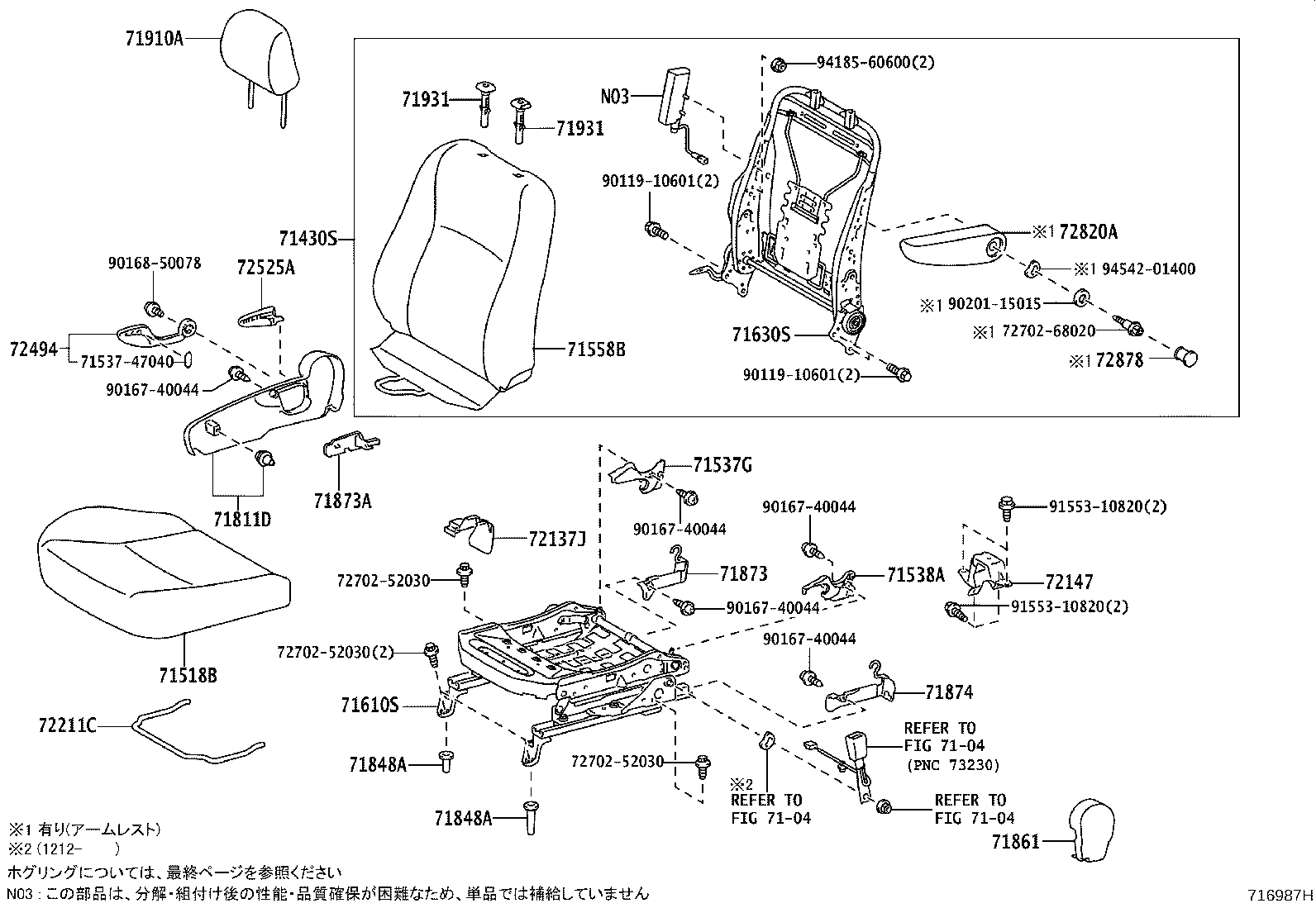

716987H
716987H

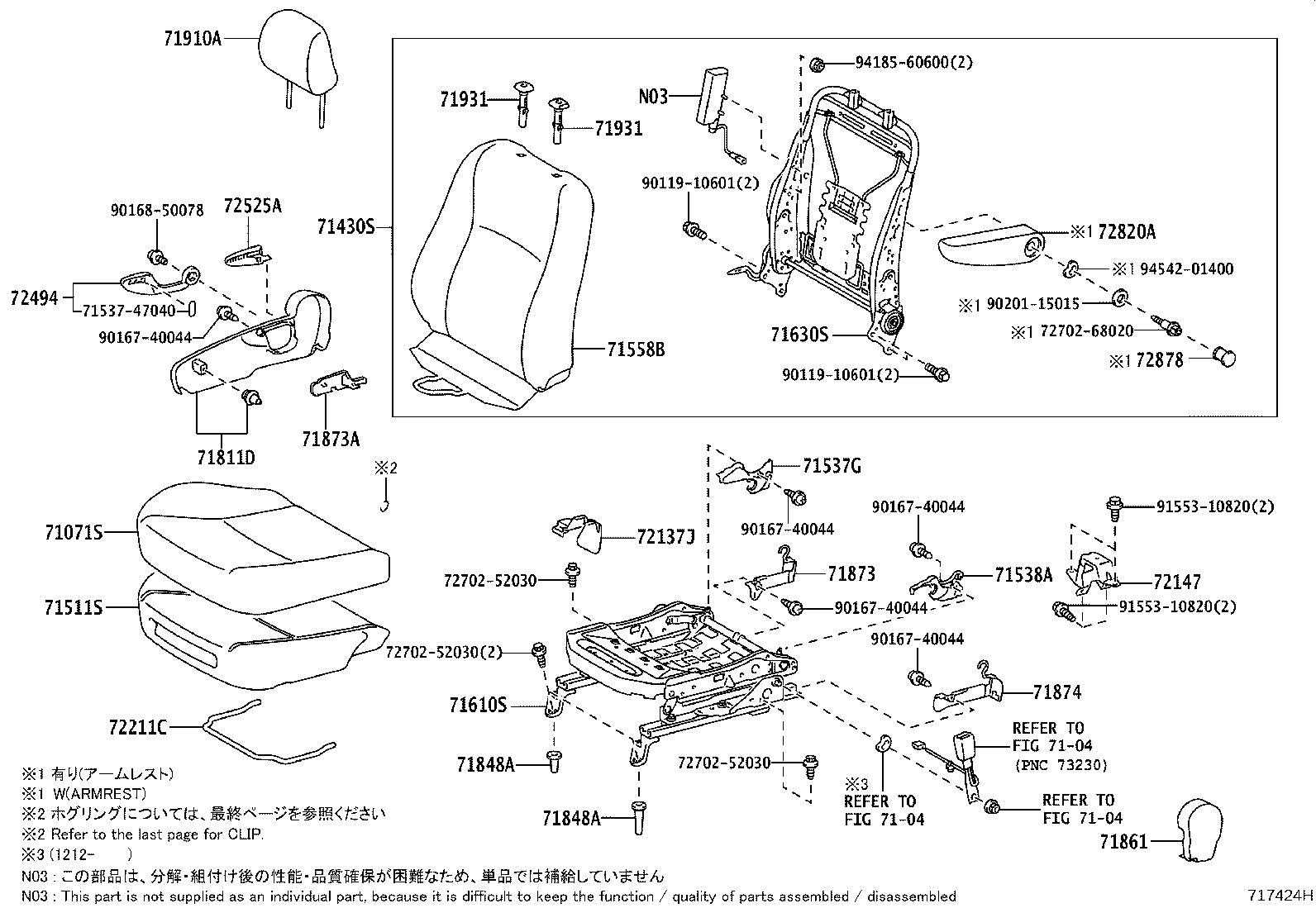

717424H

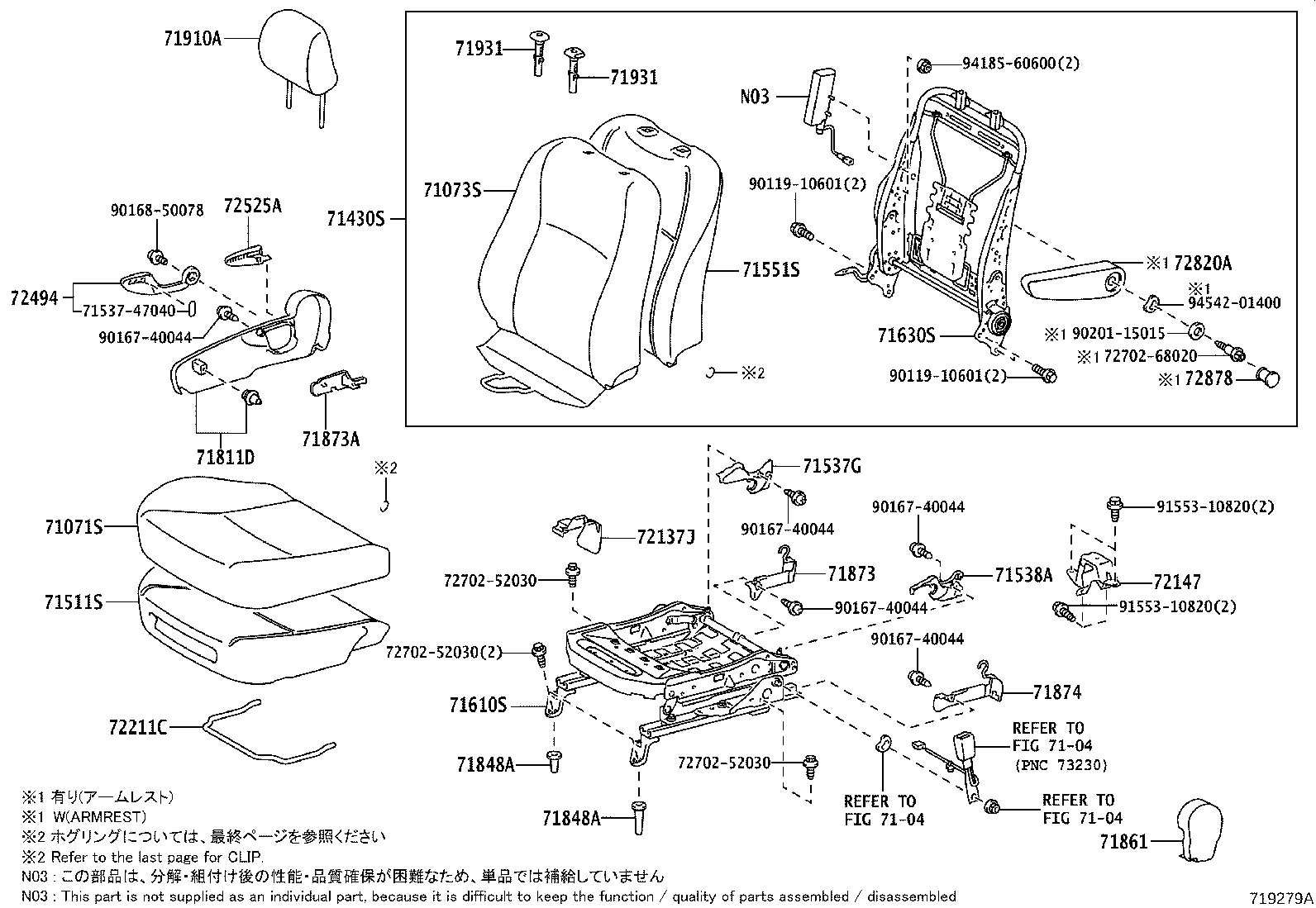

719279A

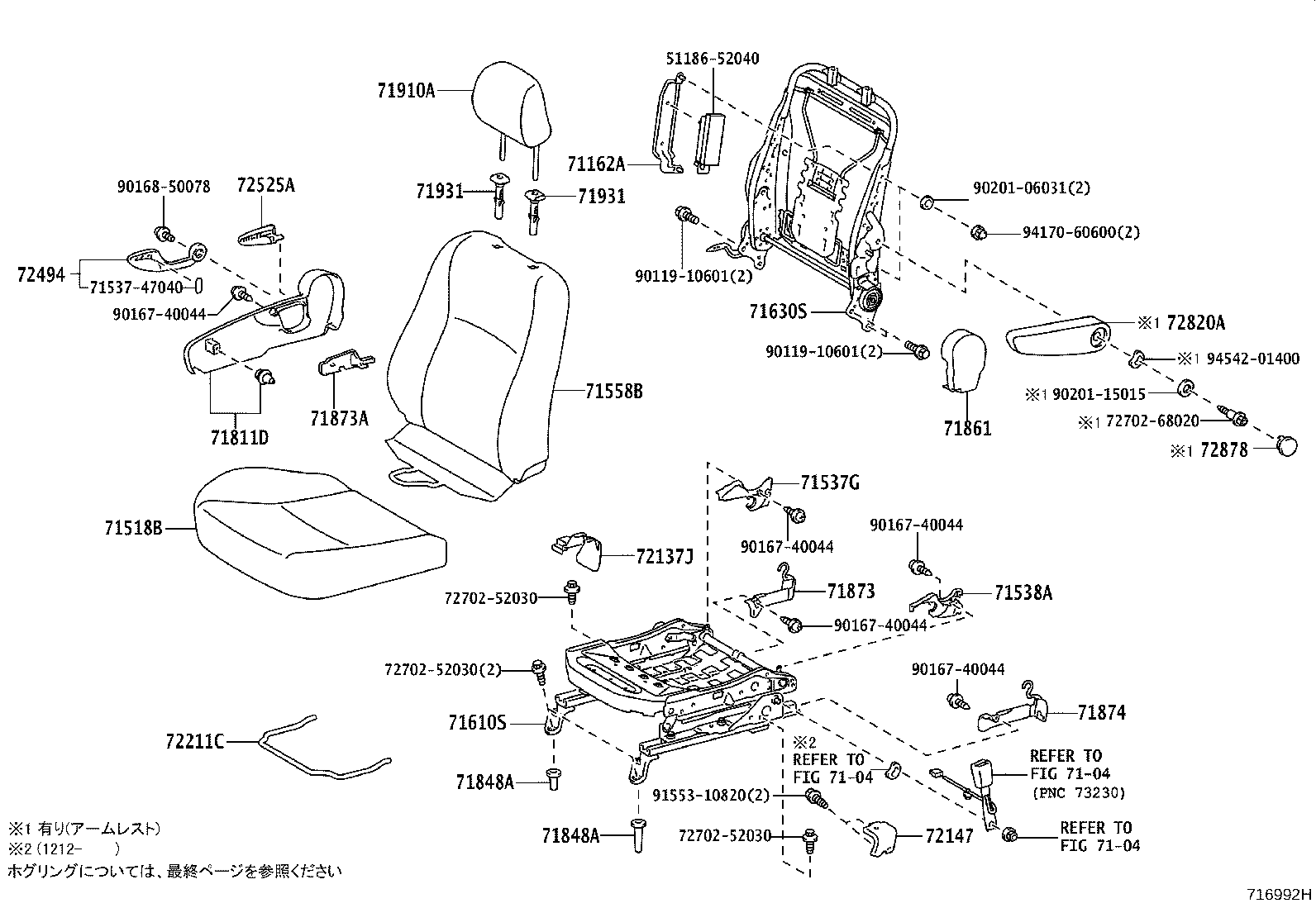

716992H
716992H

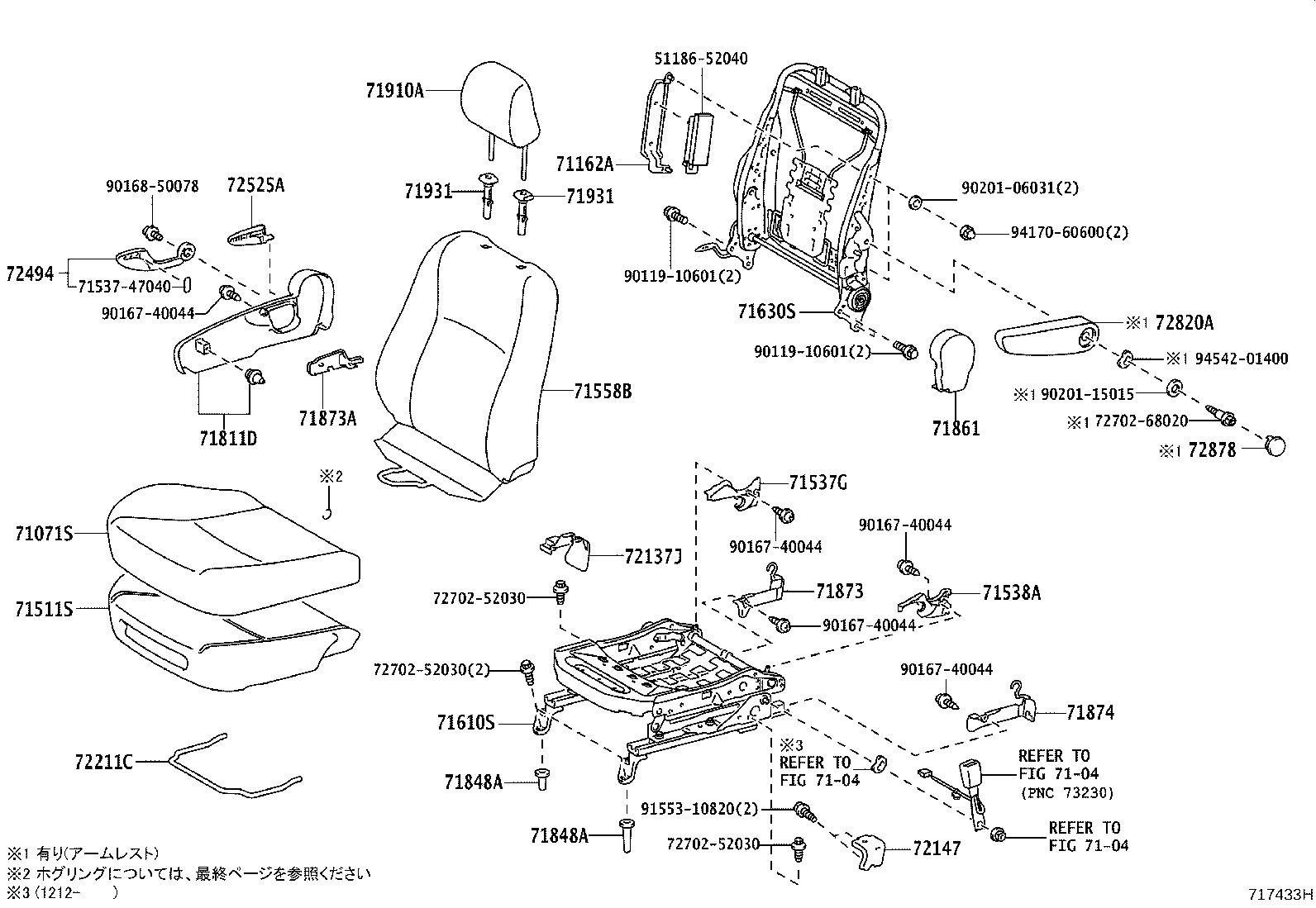

717433H

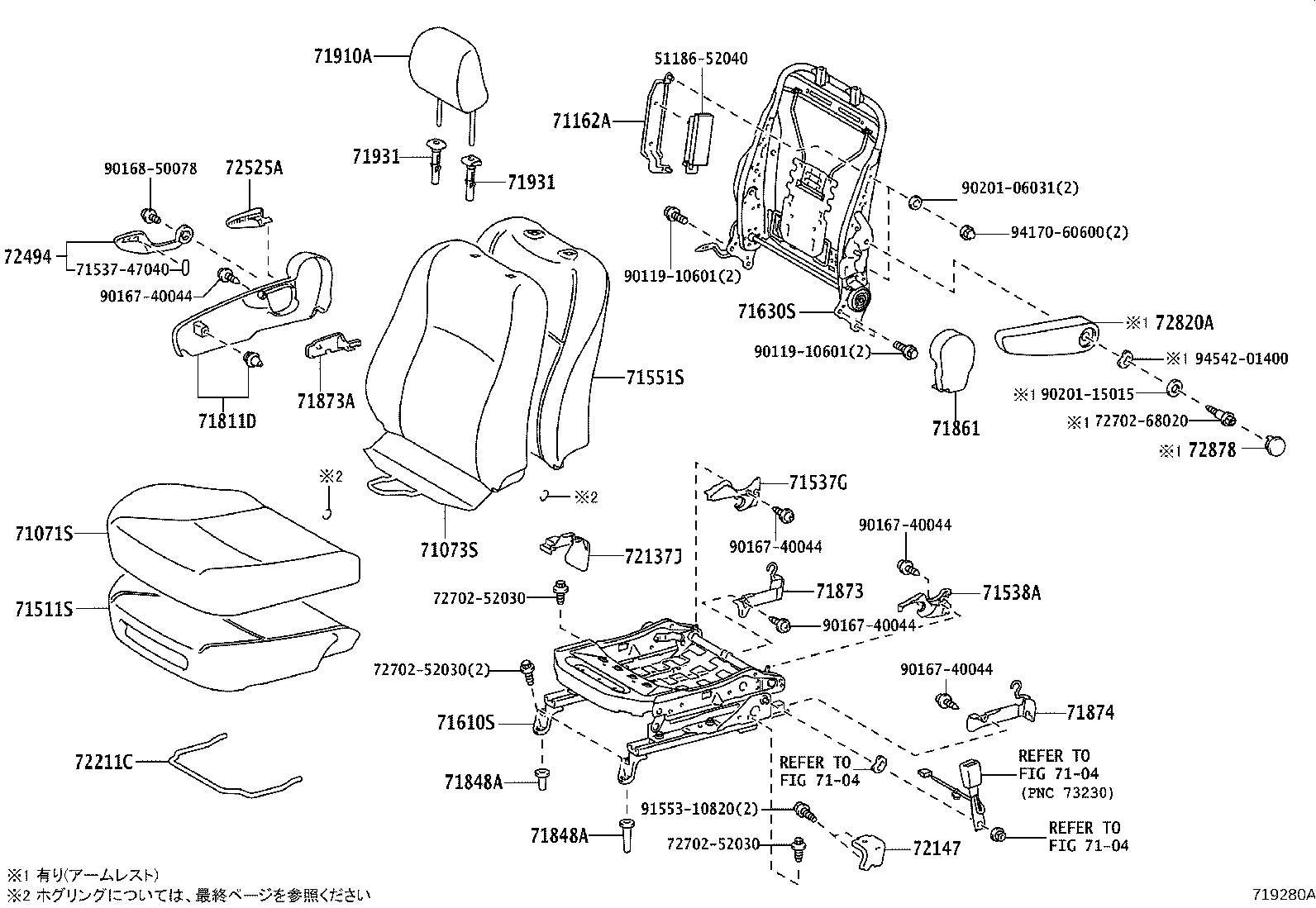

719280A

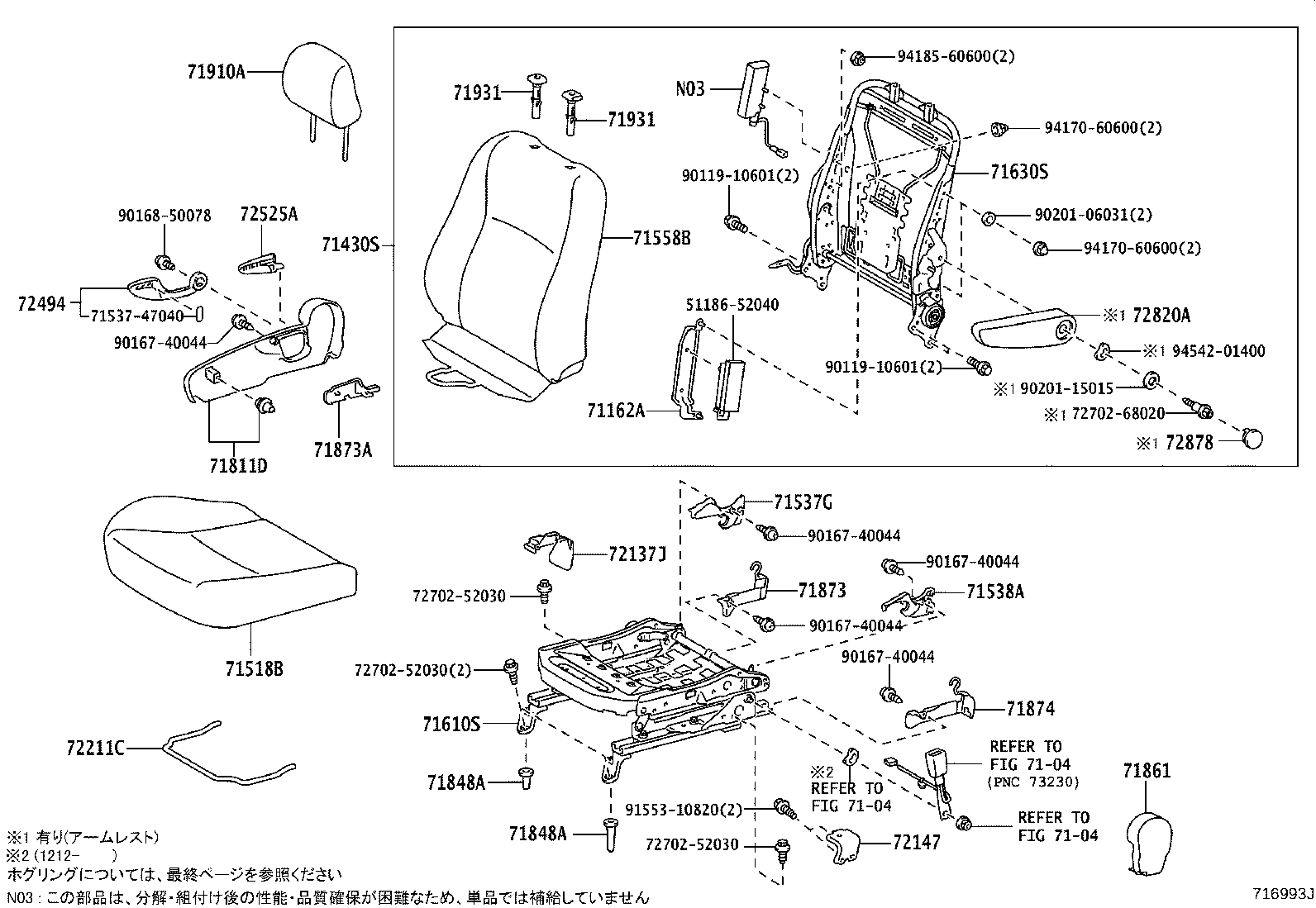

716993J
716993J

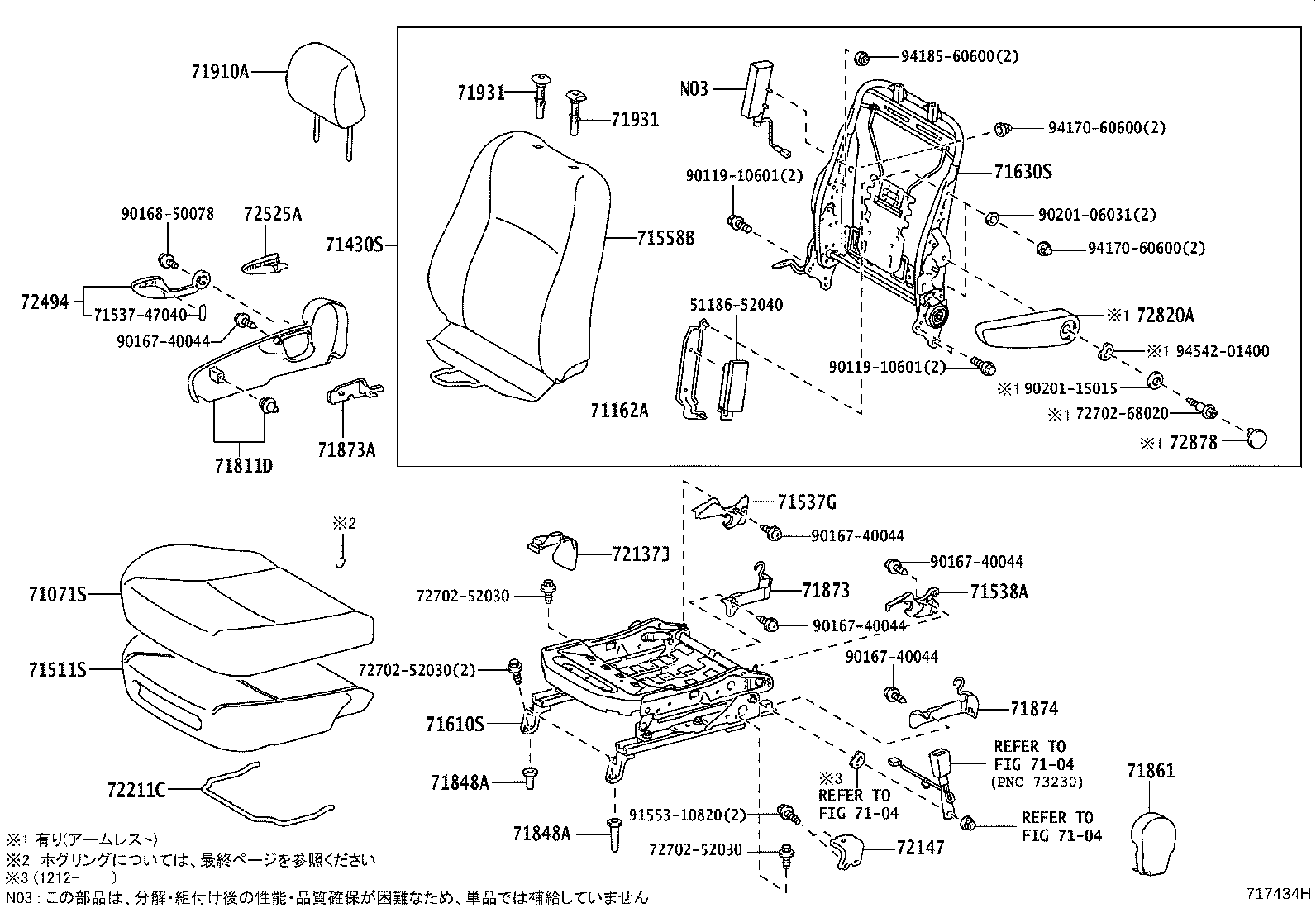

717434H

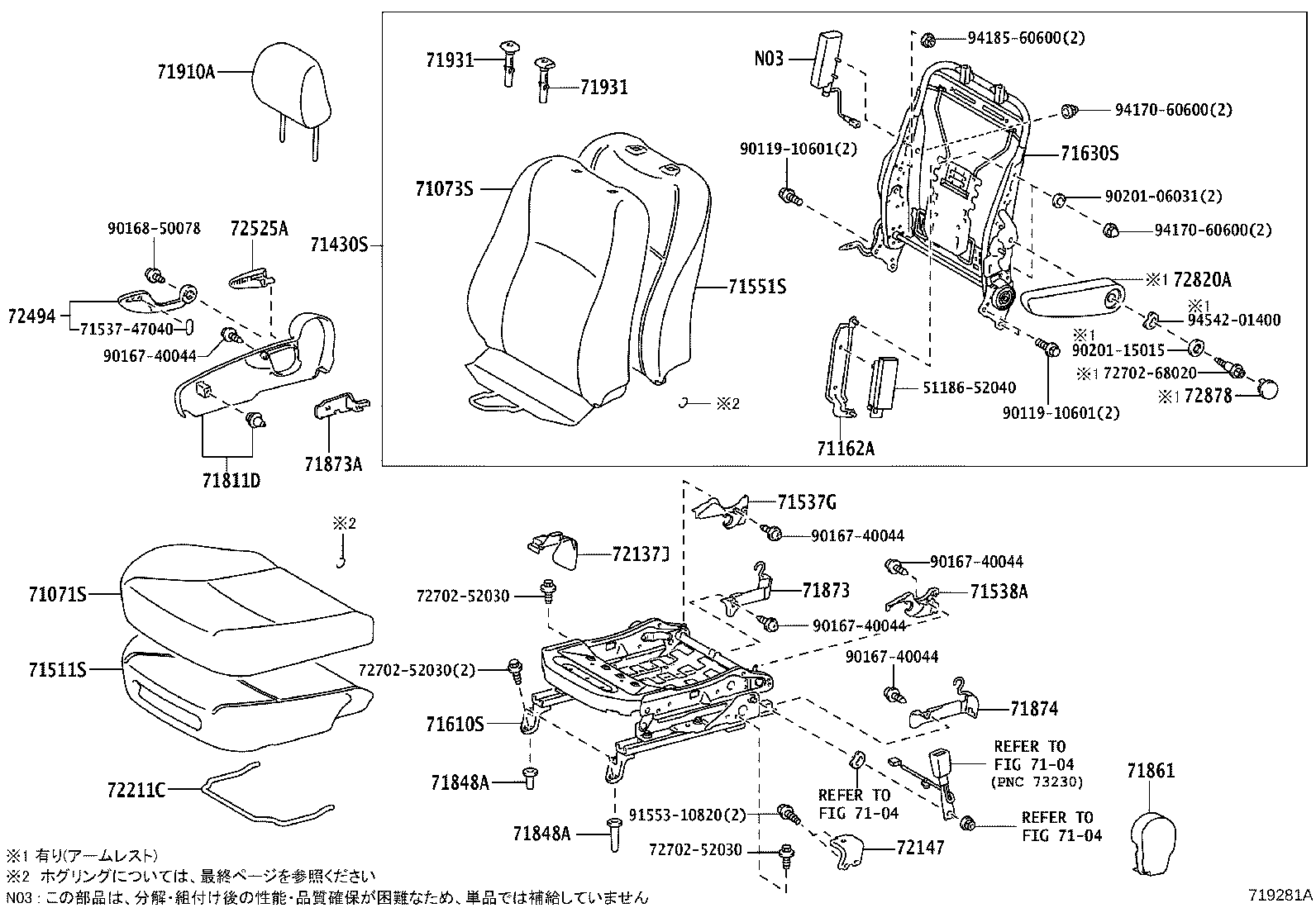

719281A

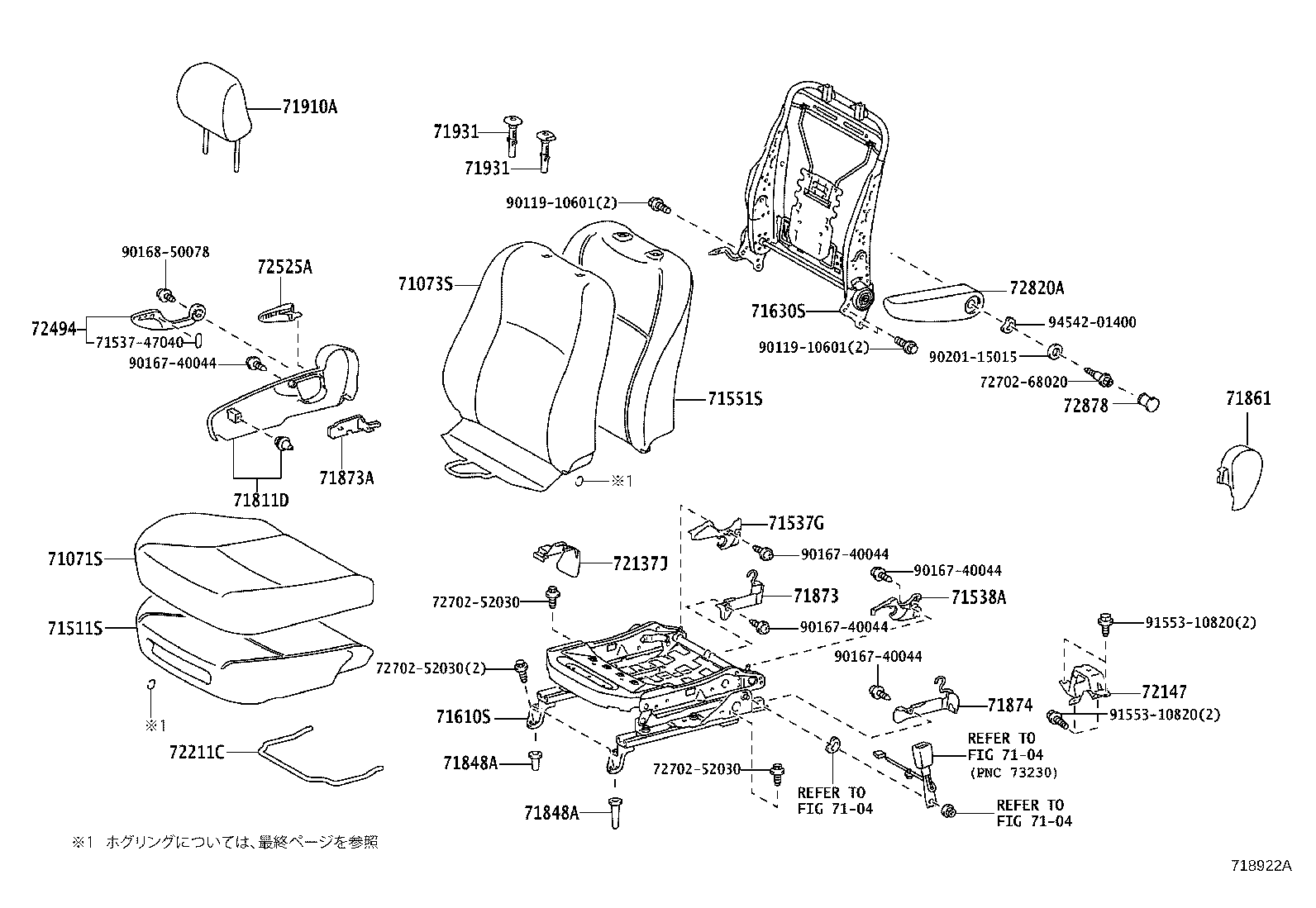

718922A

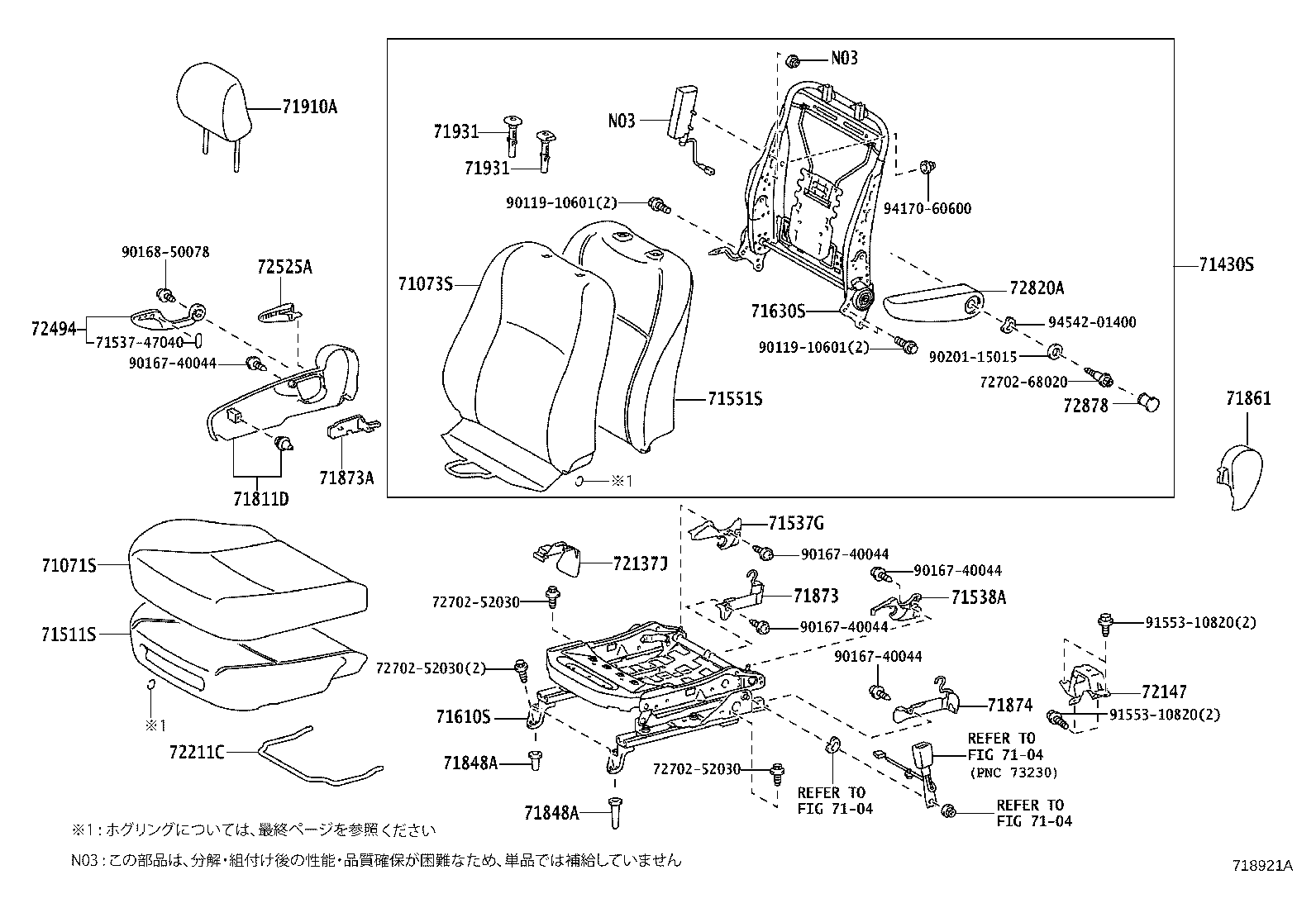

718921A

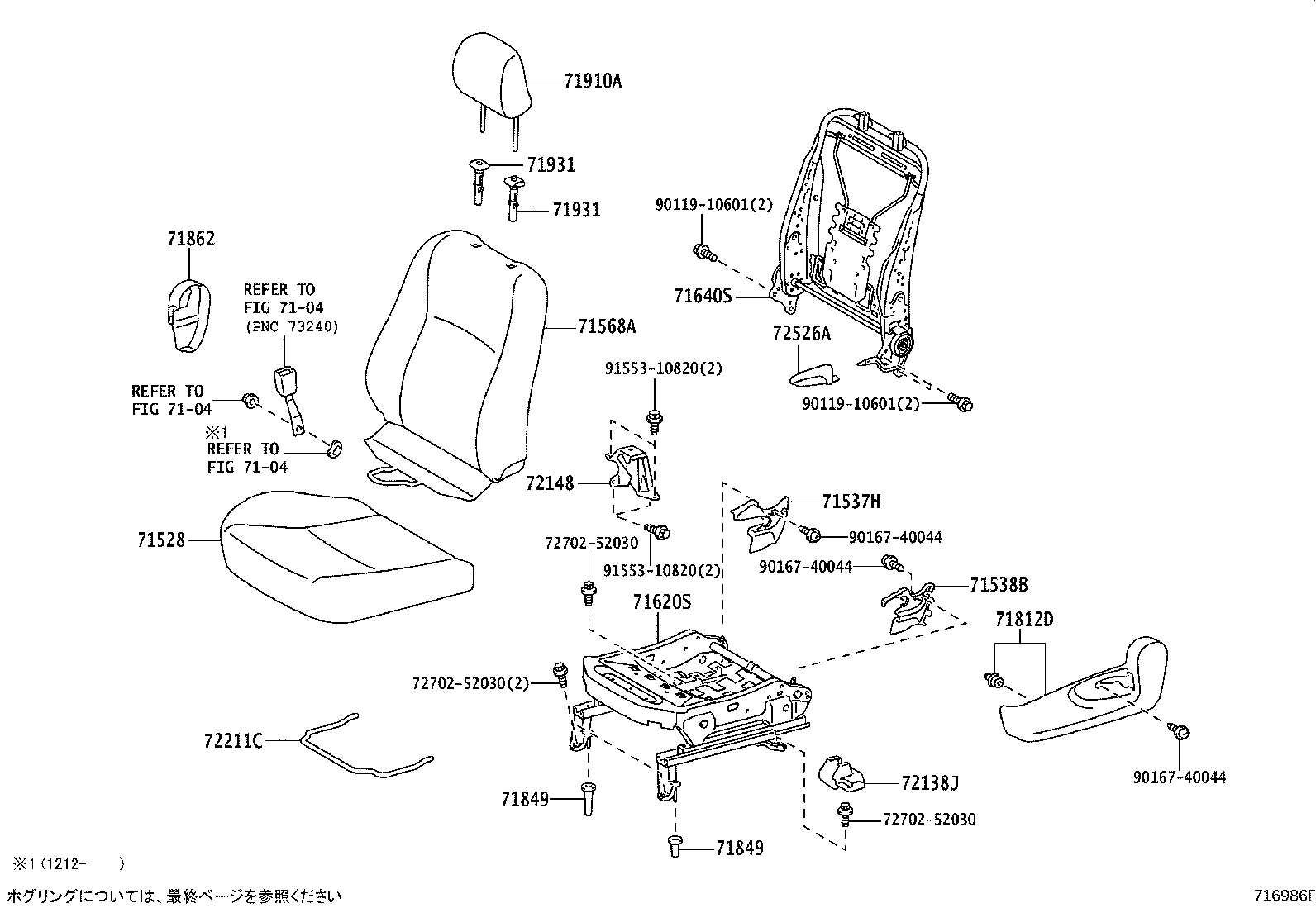

716986F
716986F

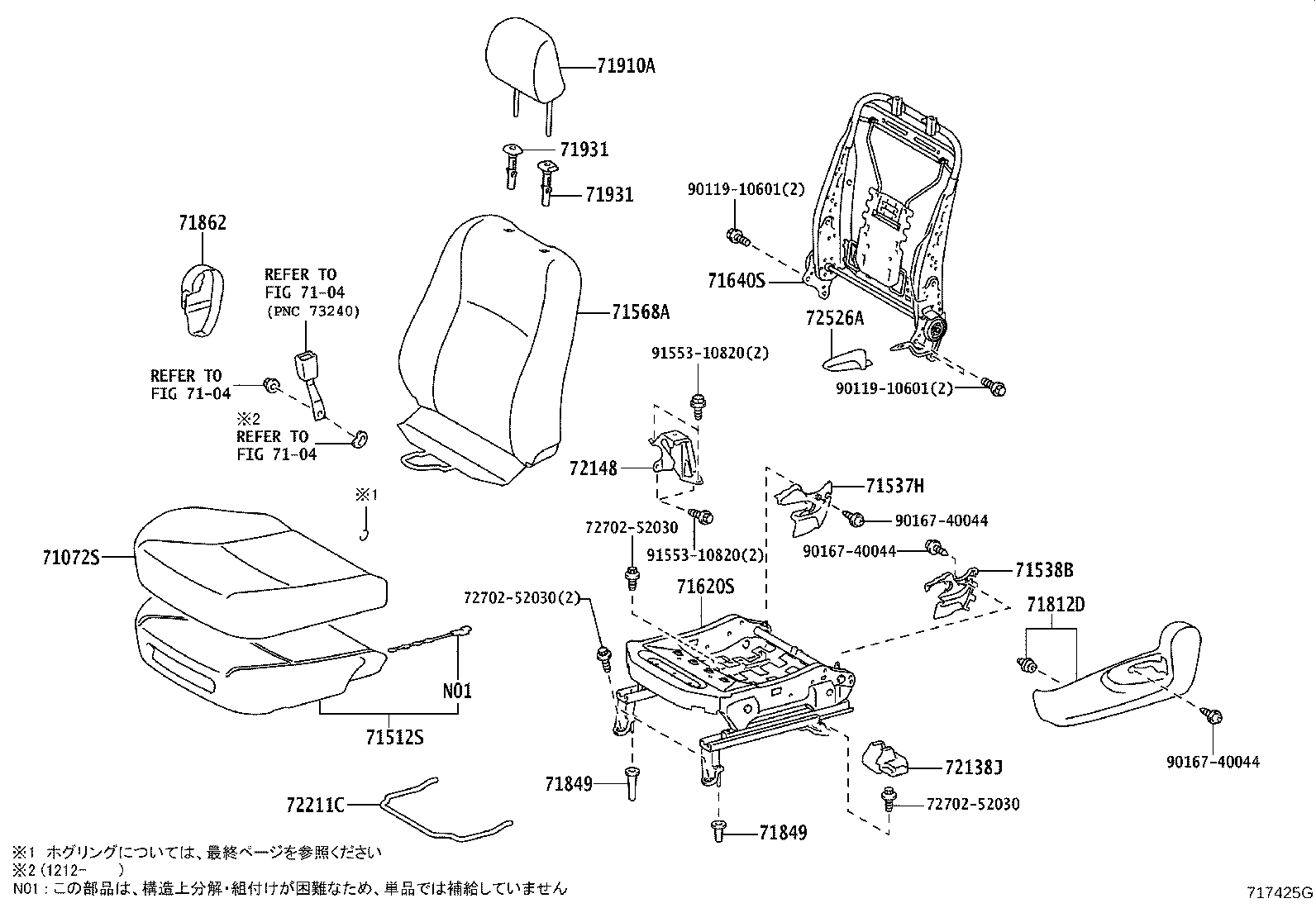

717425G

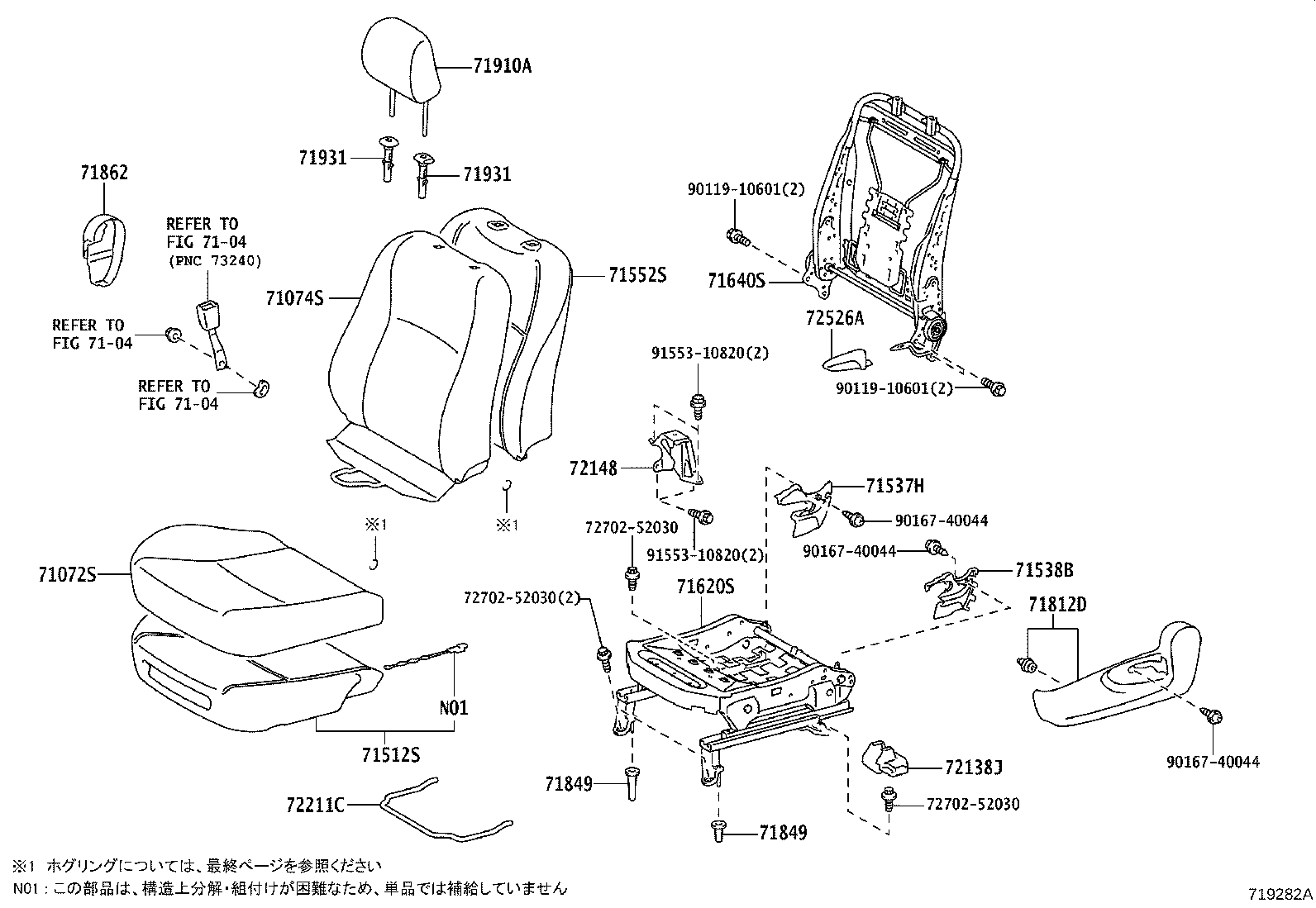

719282A

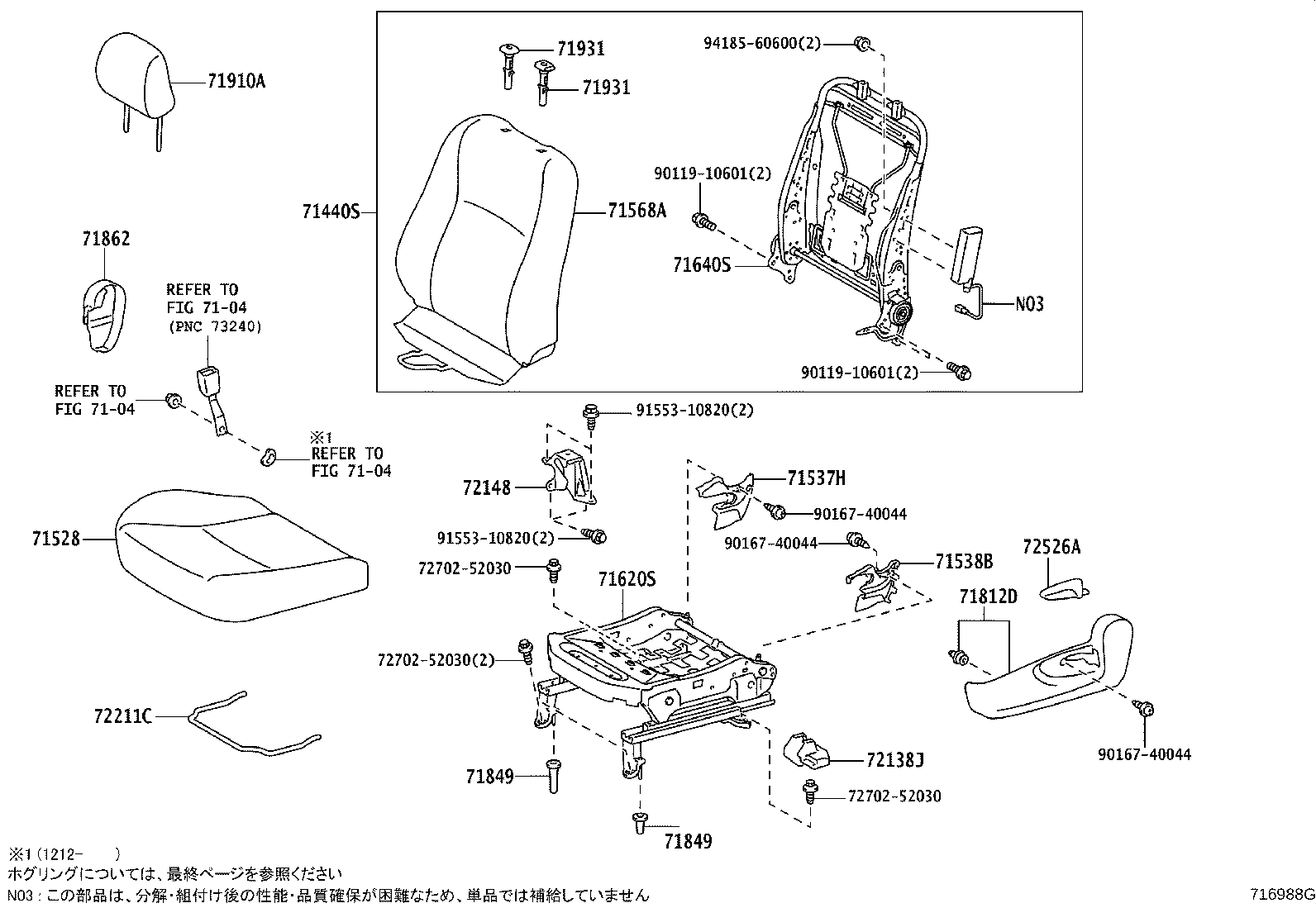

716988G
716988G

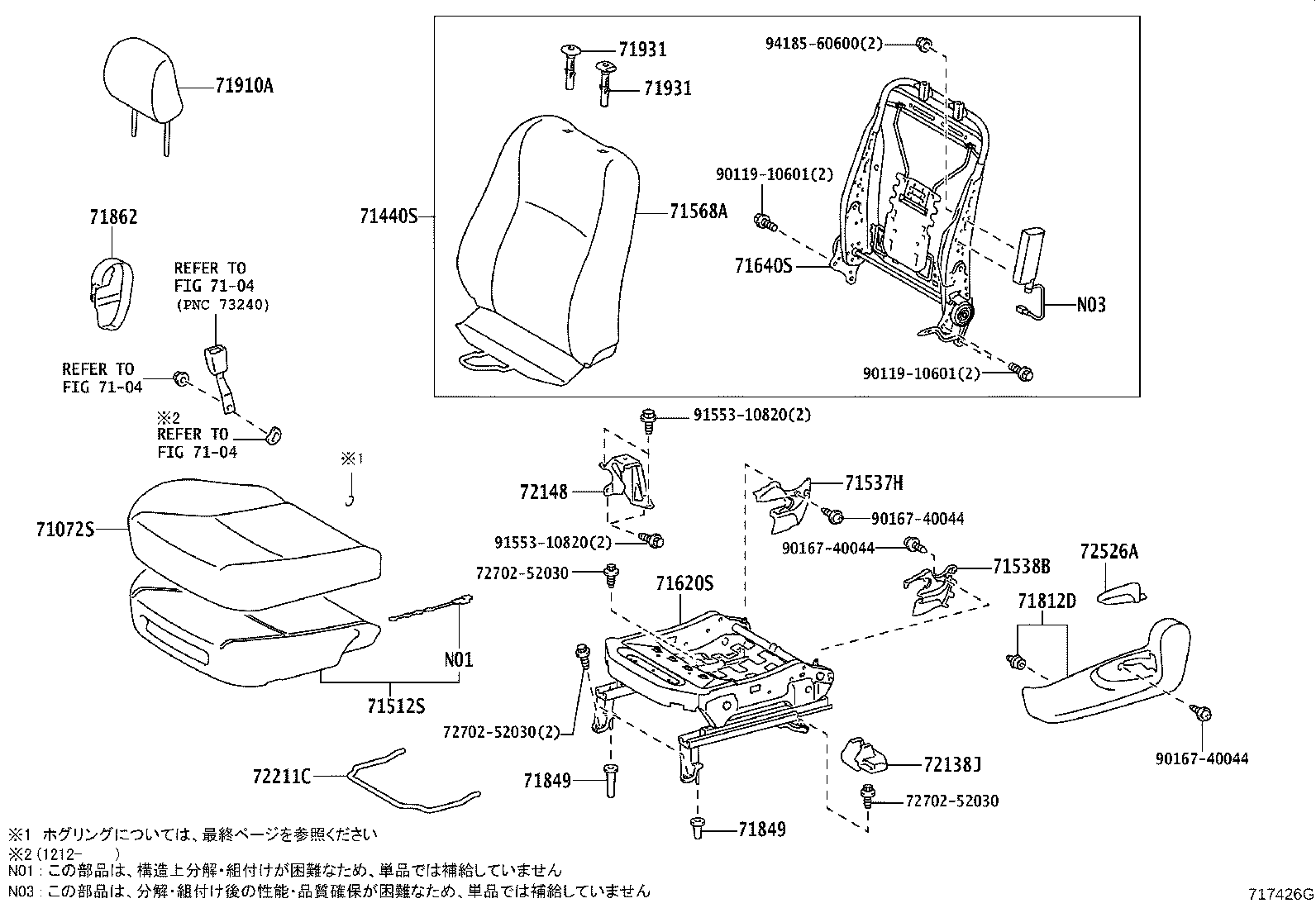

717426G

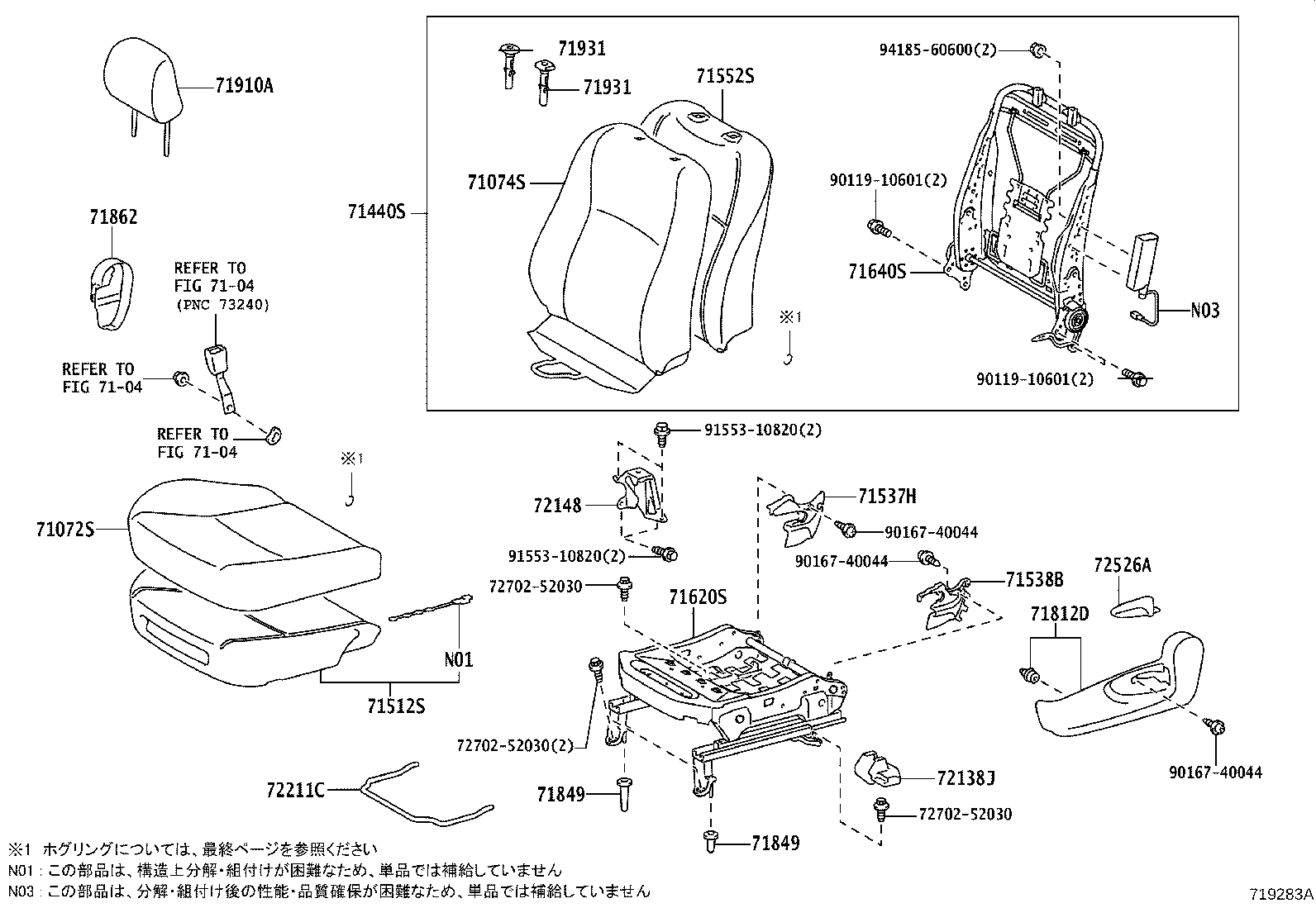

719283A

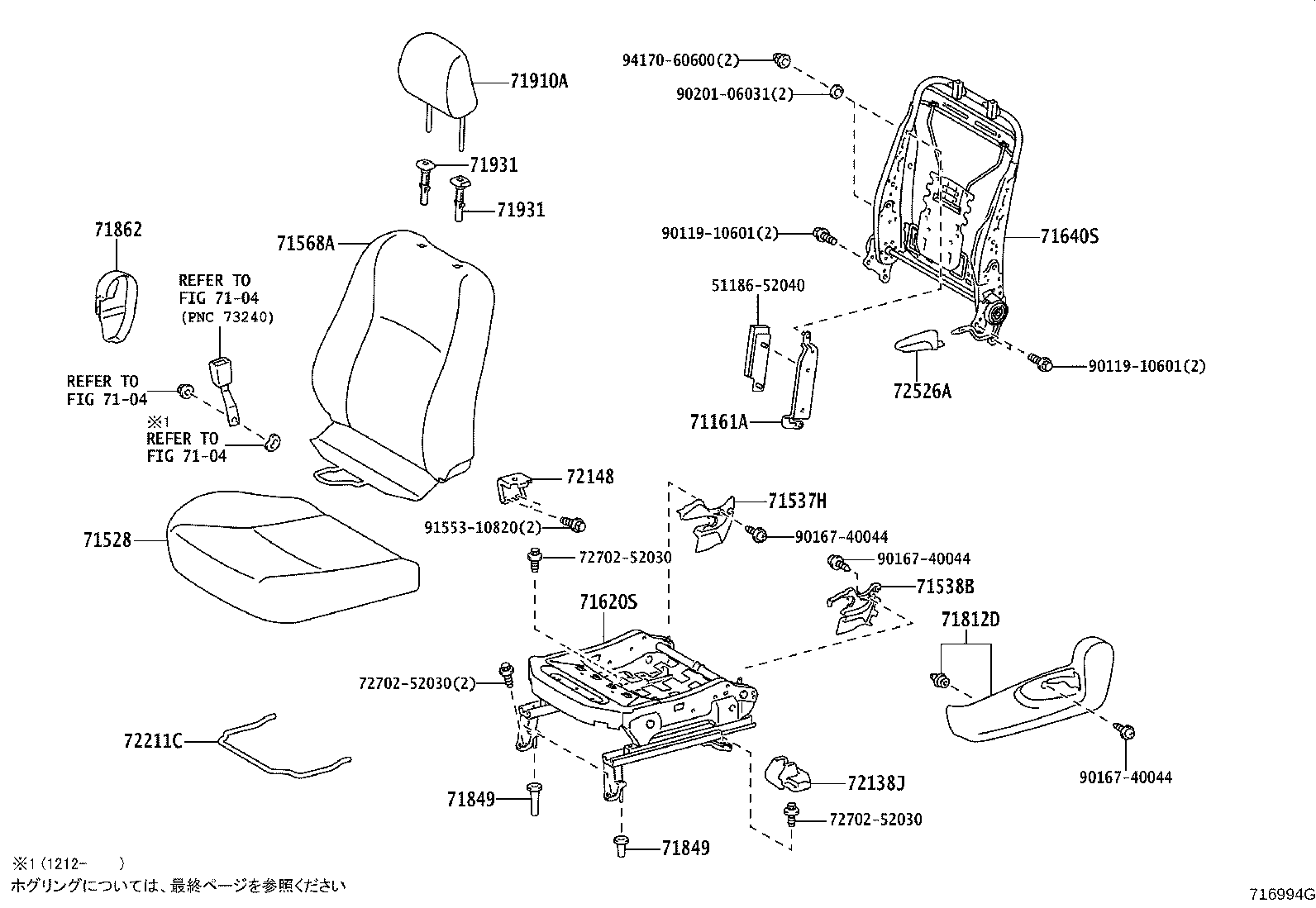

716994G
716994G

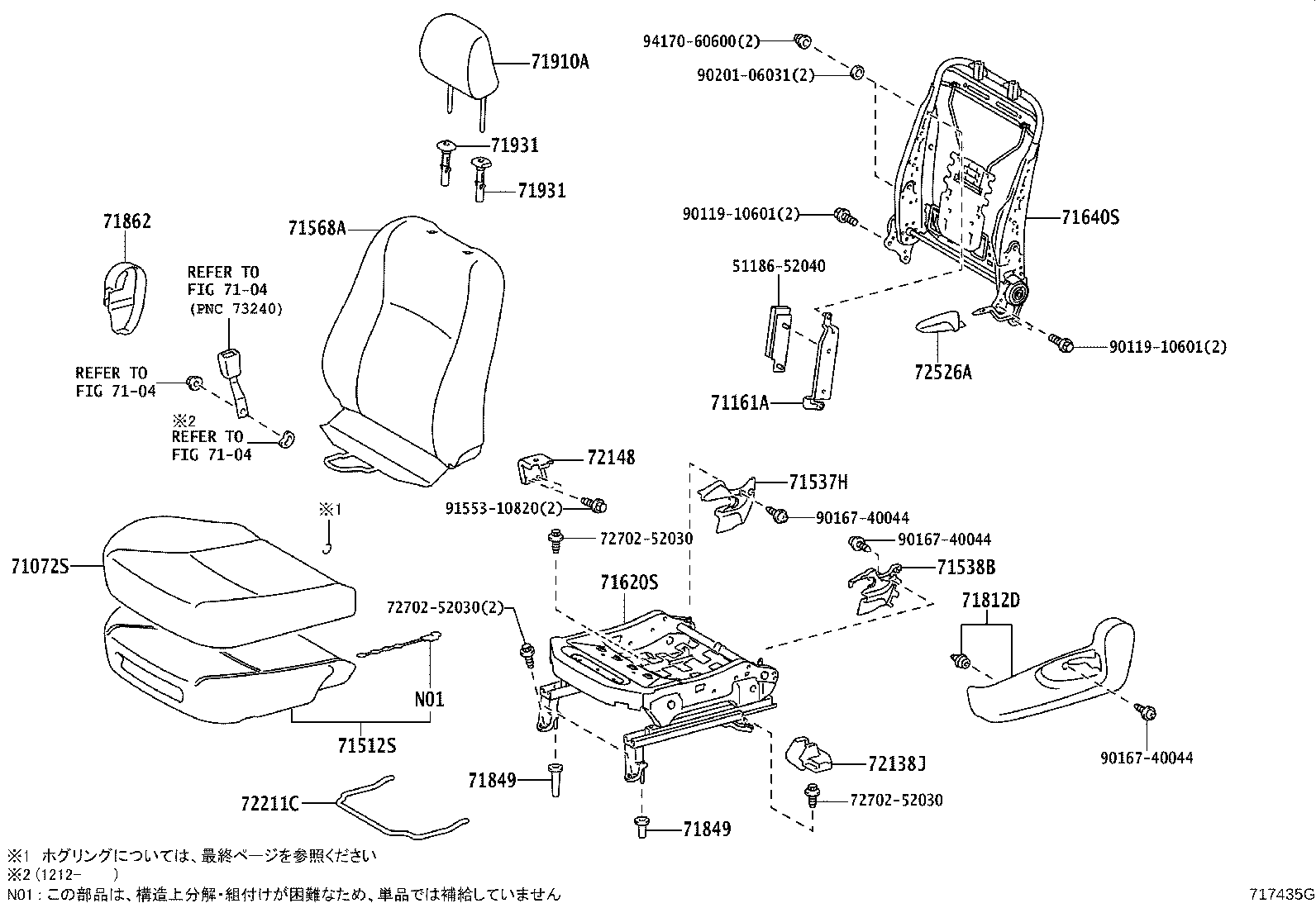

717435G

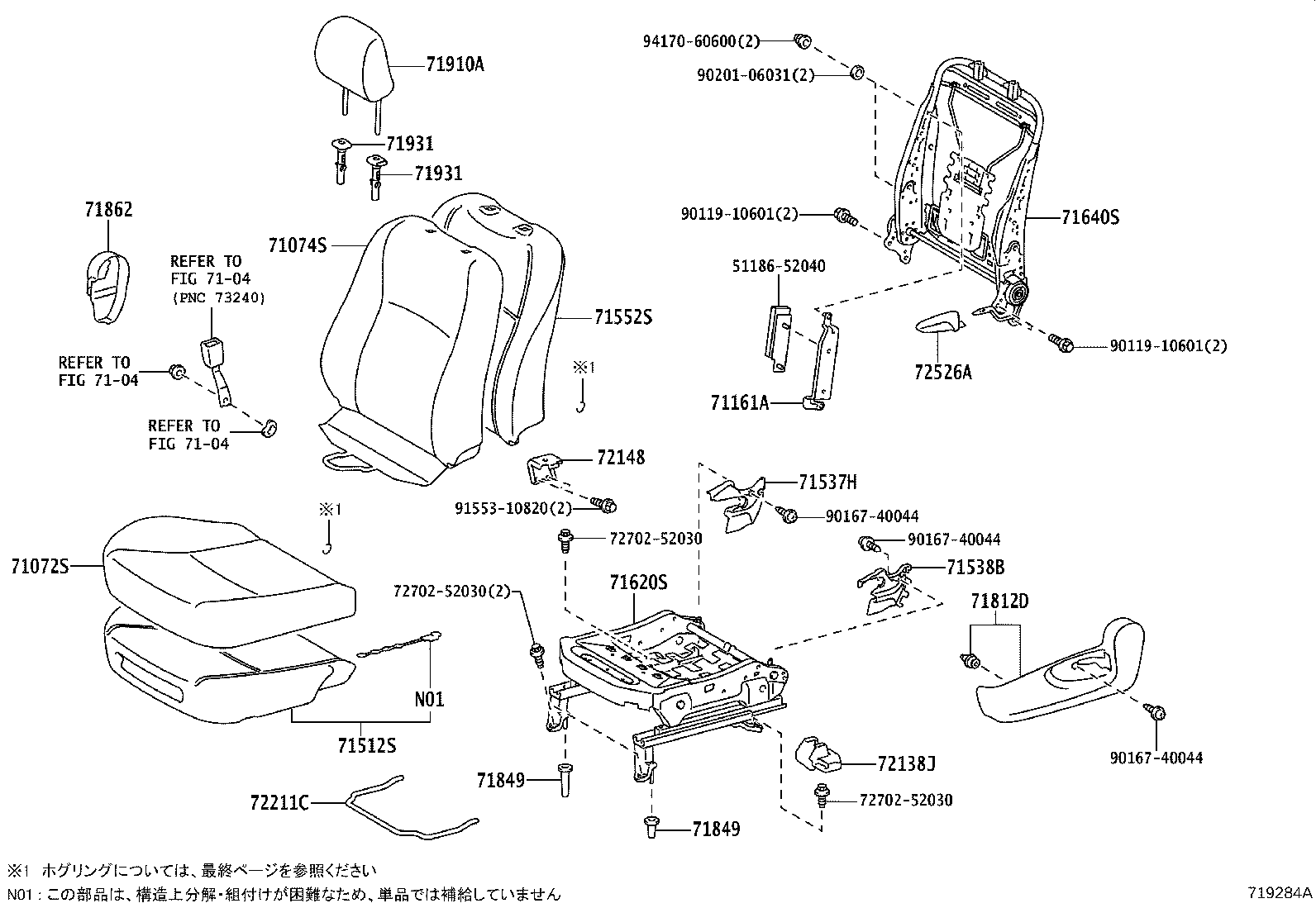

719284A

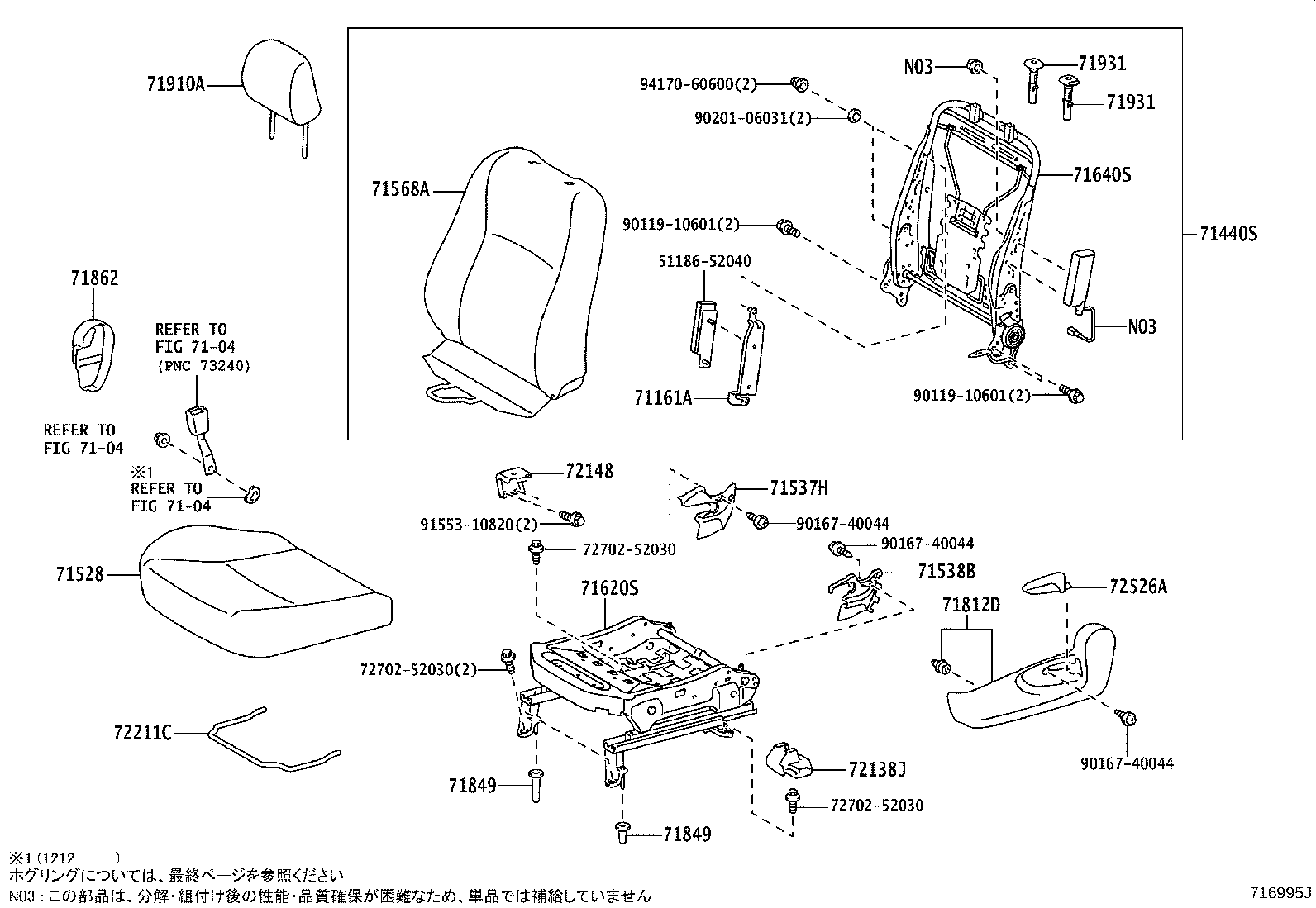

716995J
716995J

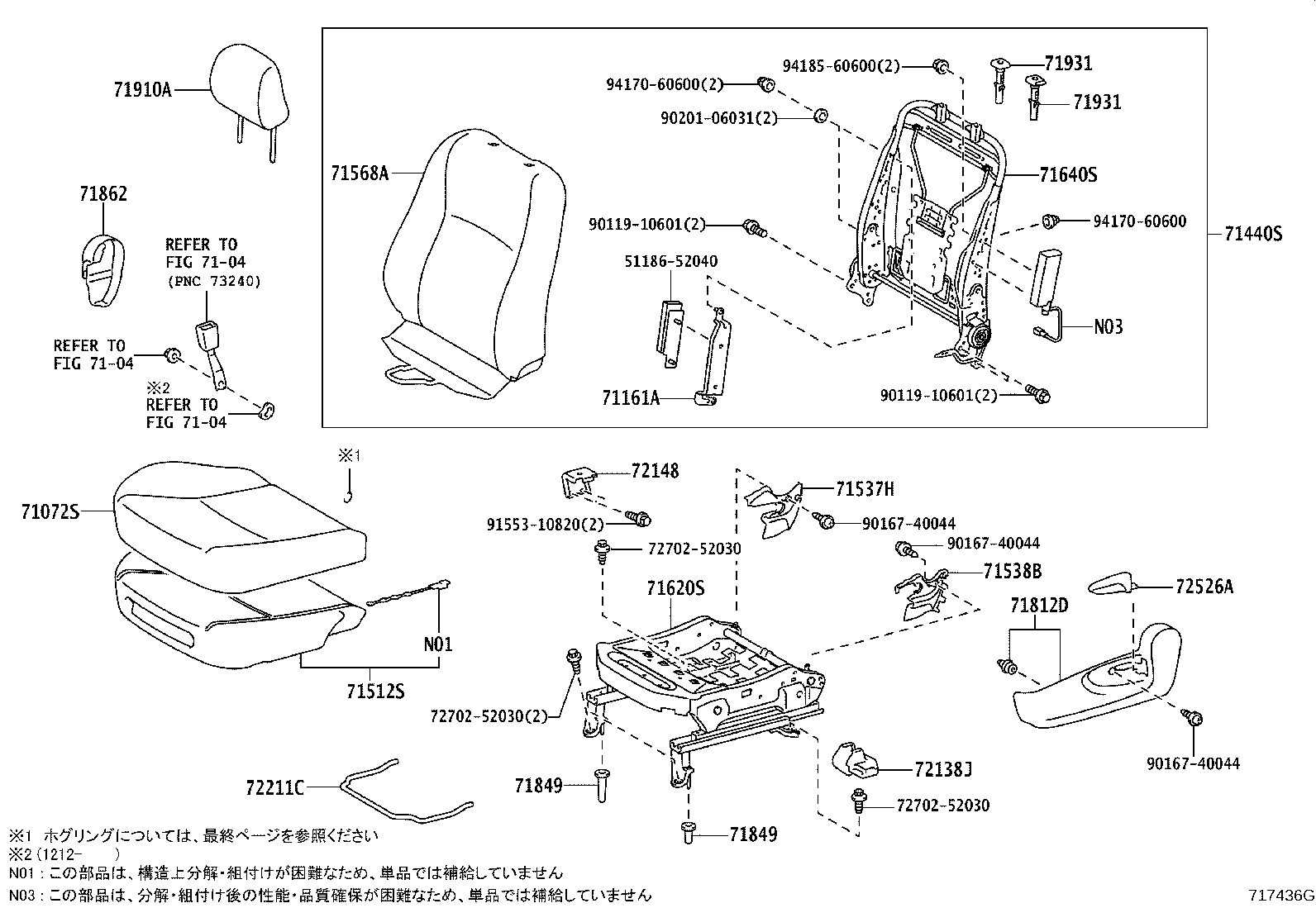

717436G

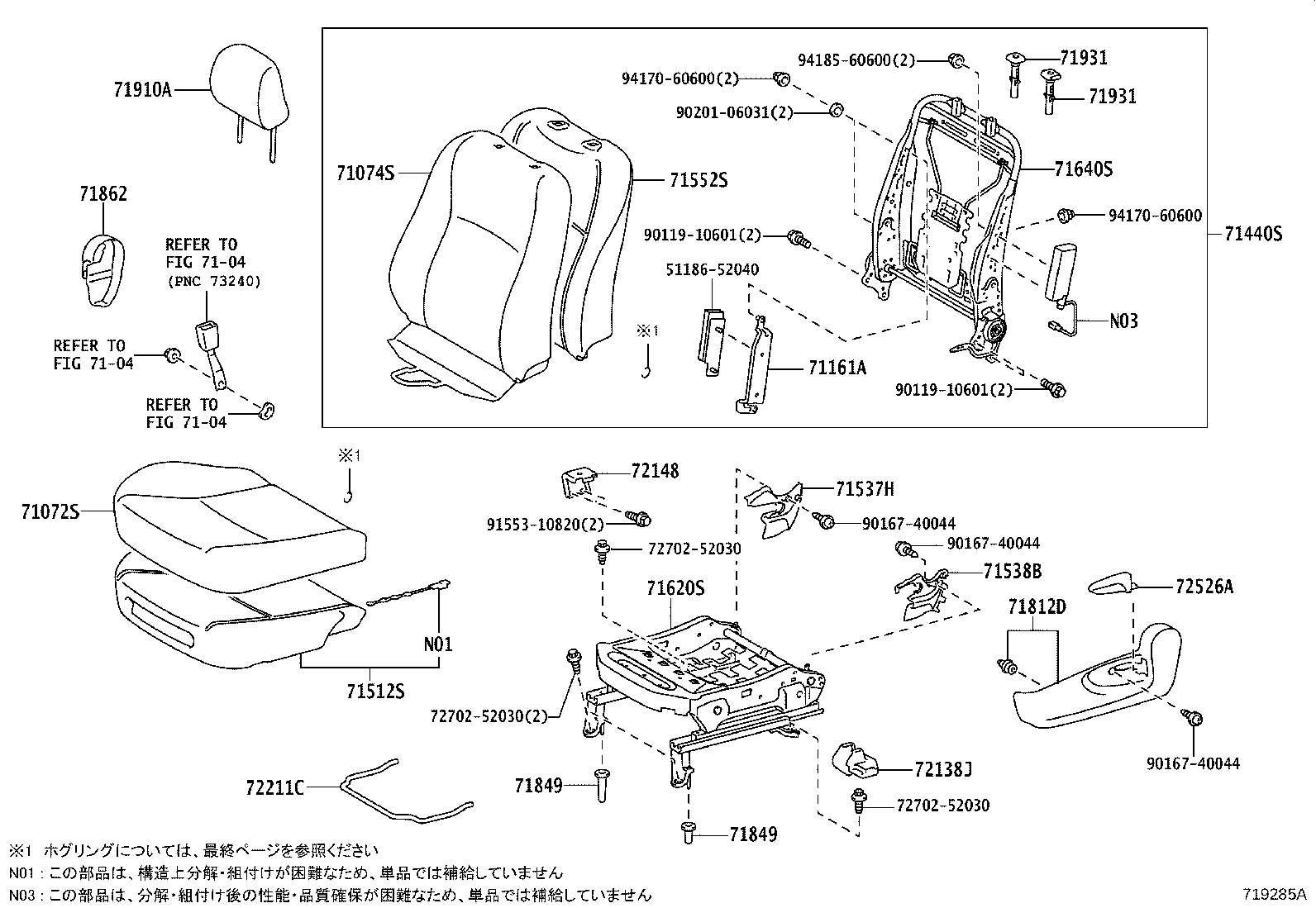

719285A

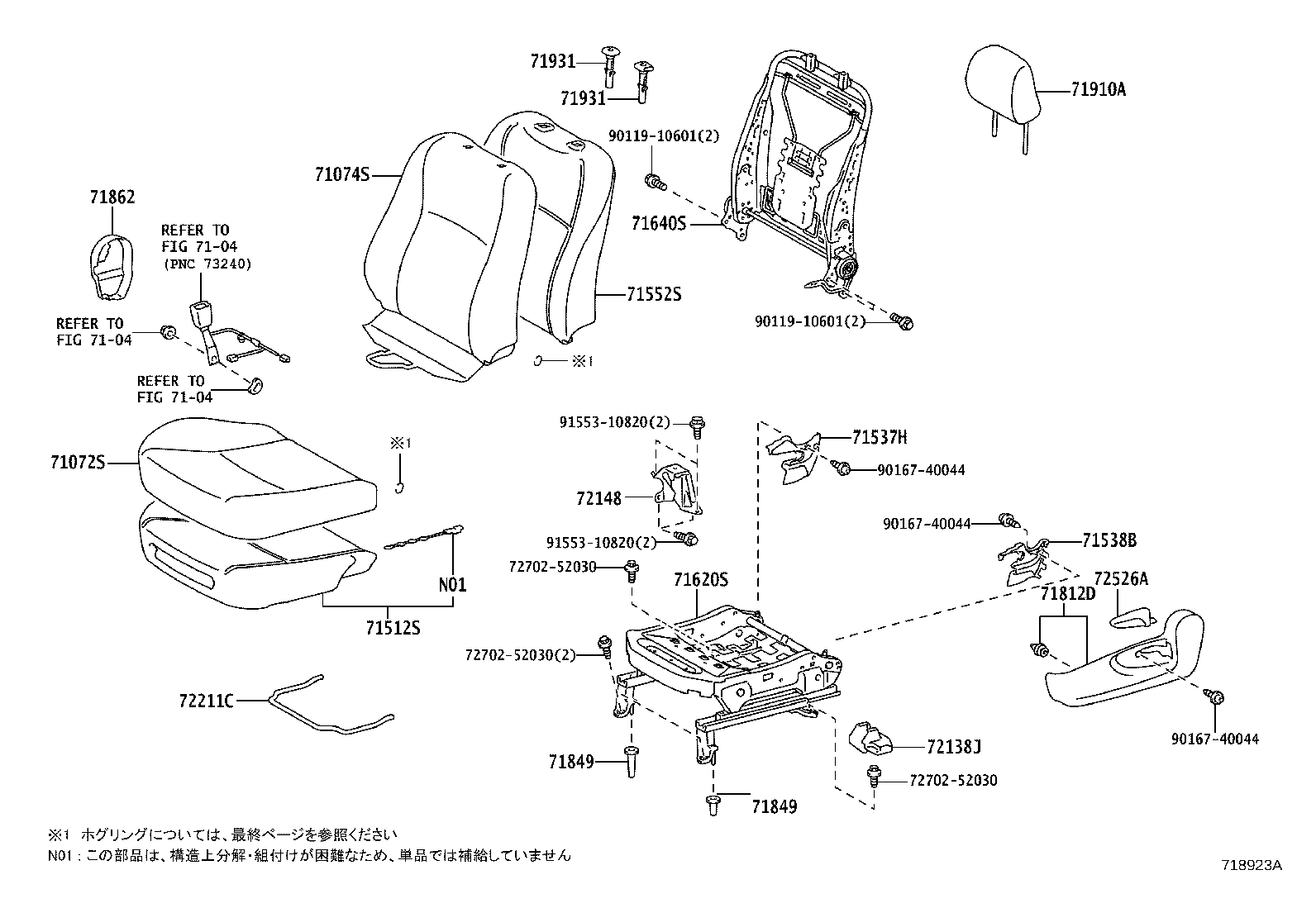

718923A

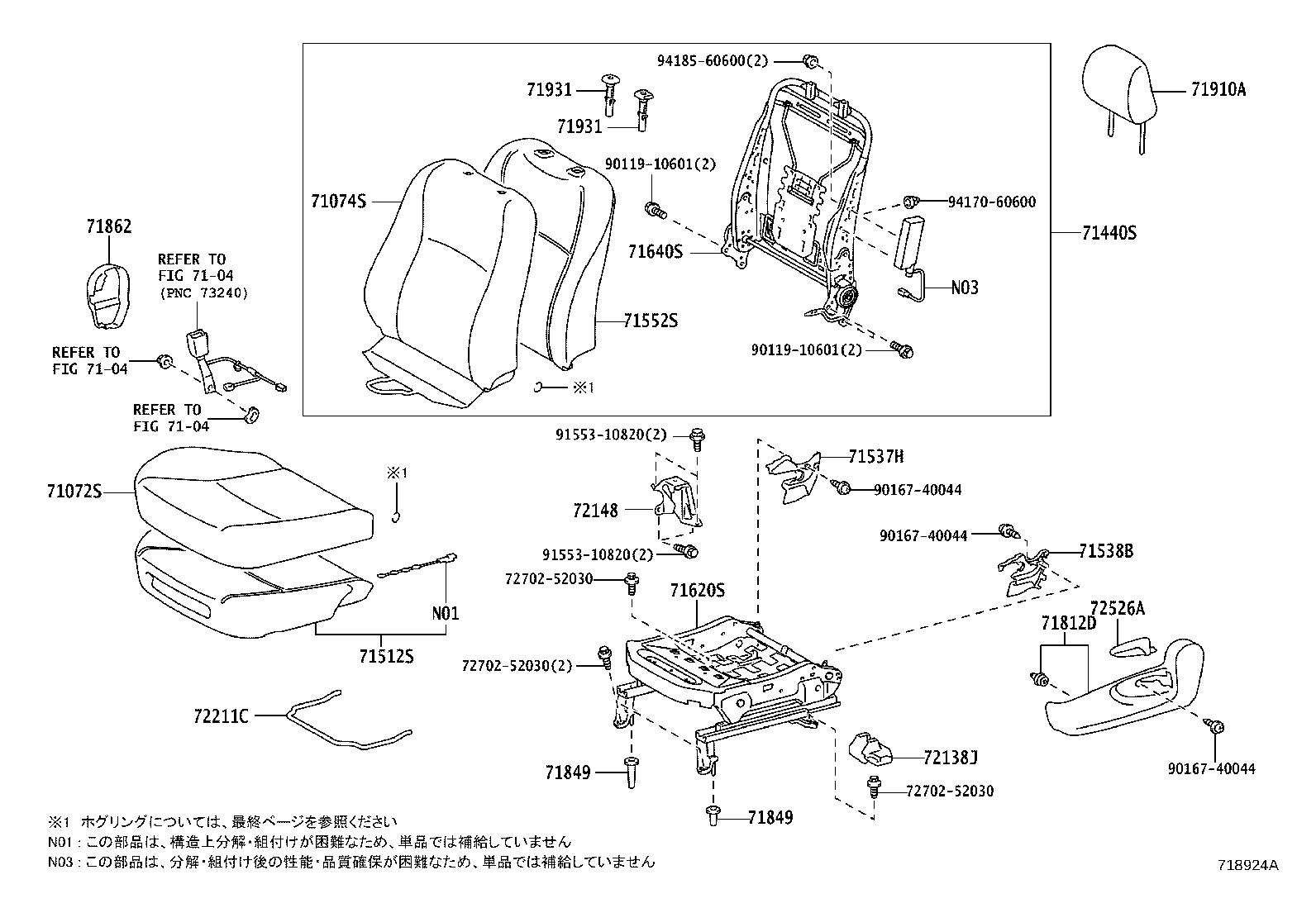

718924A

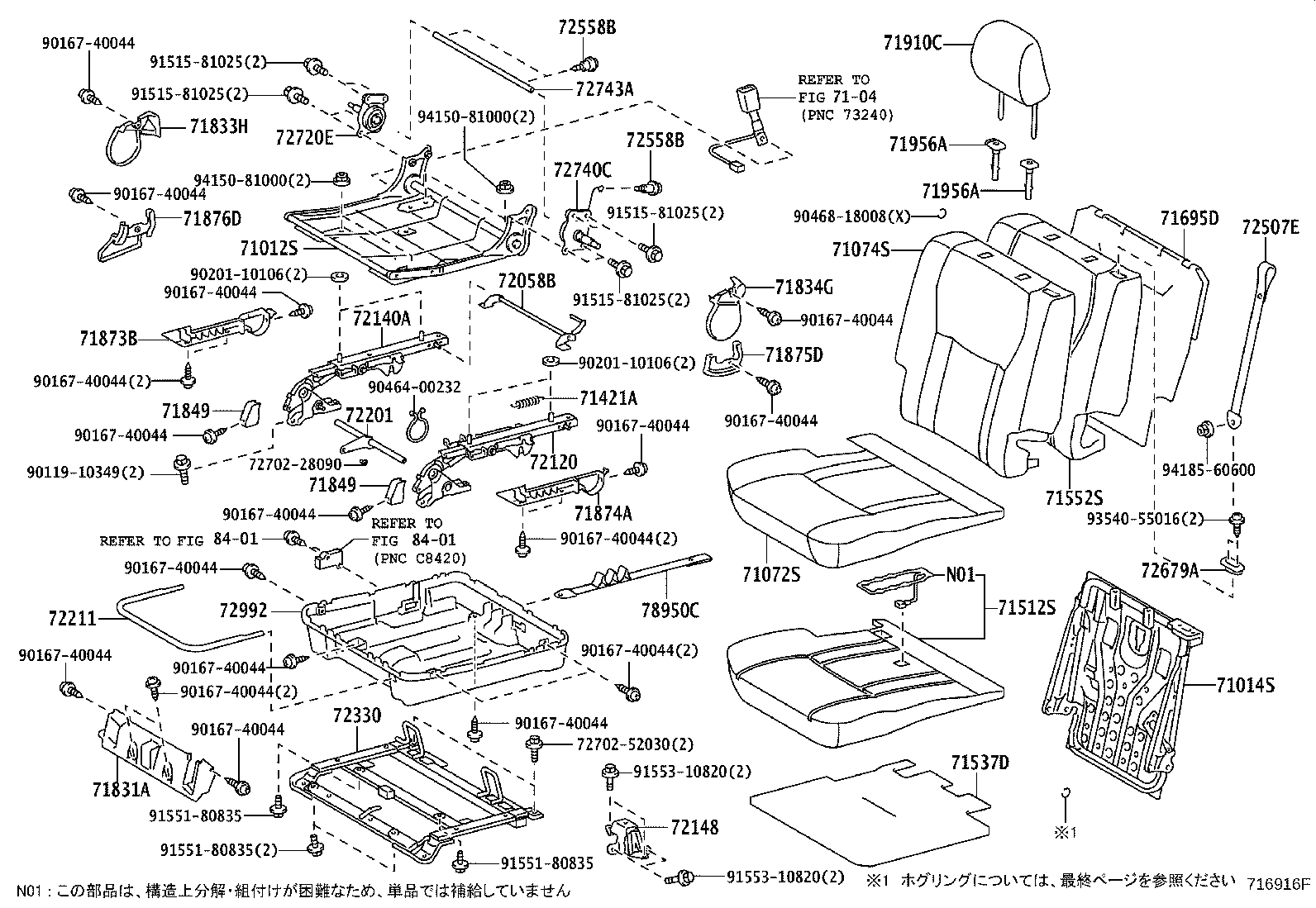

716916F

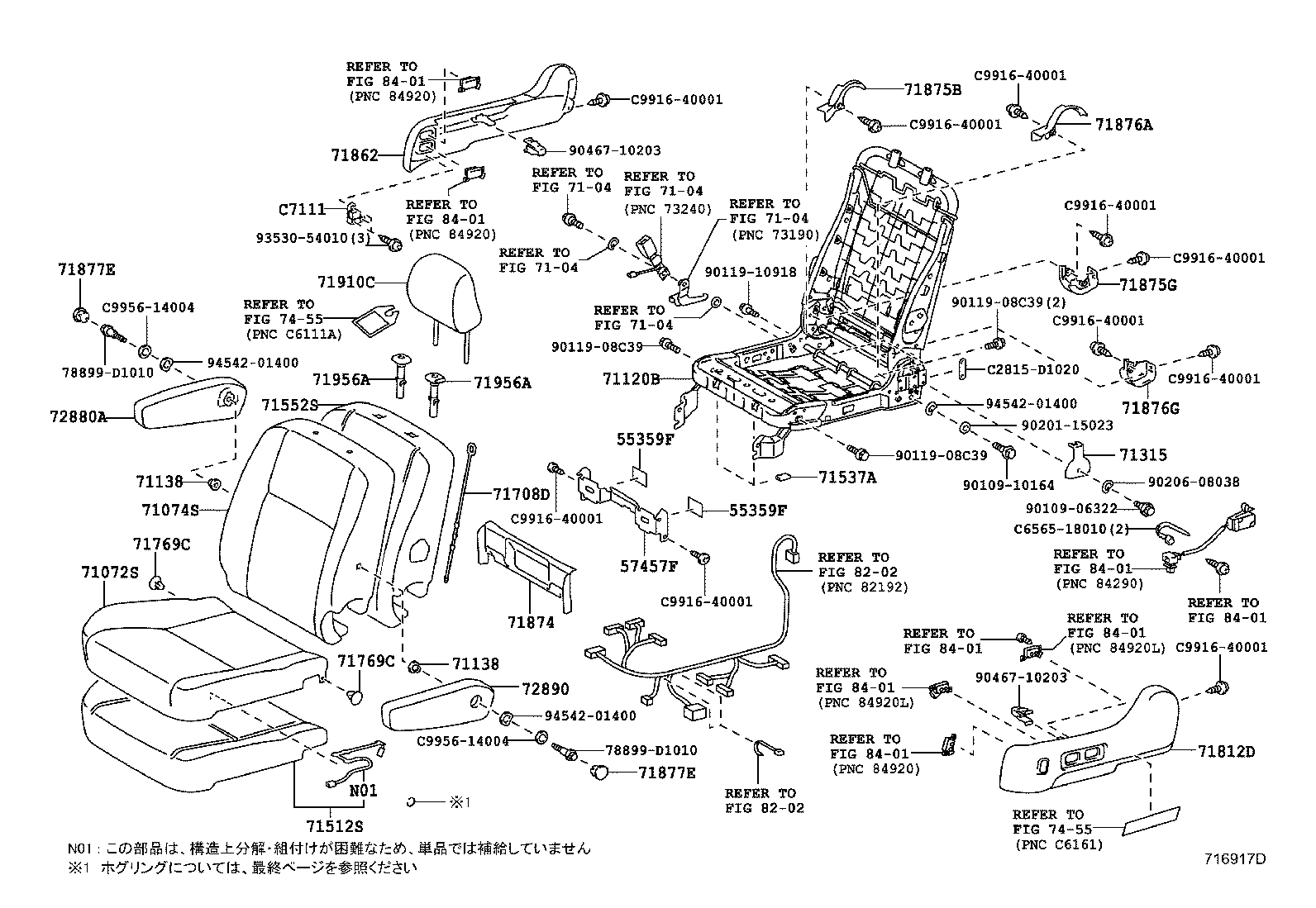

716917D

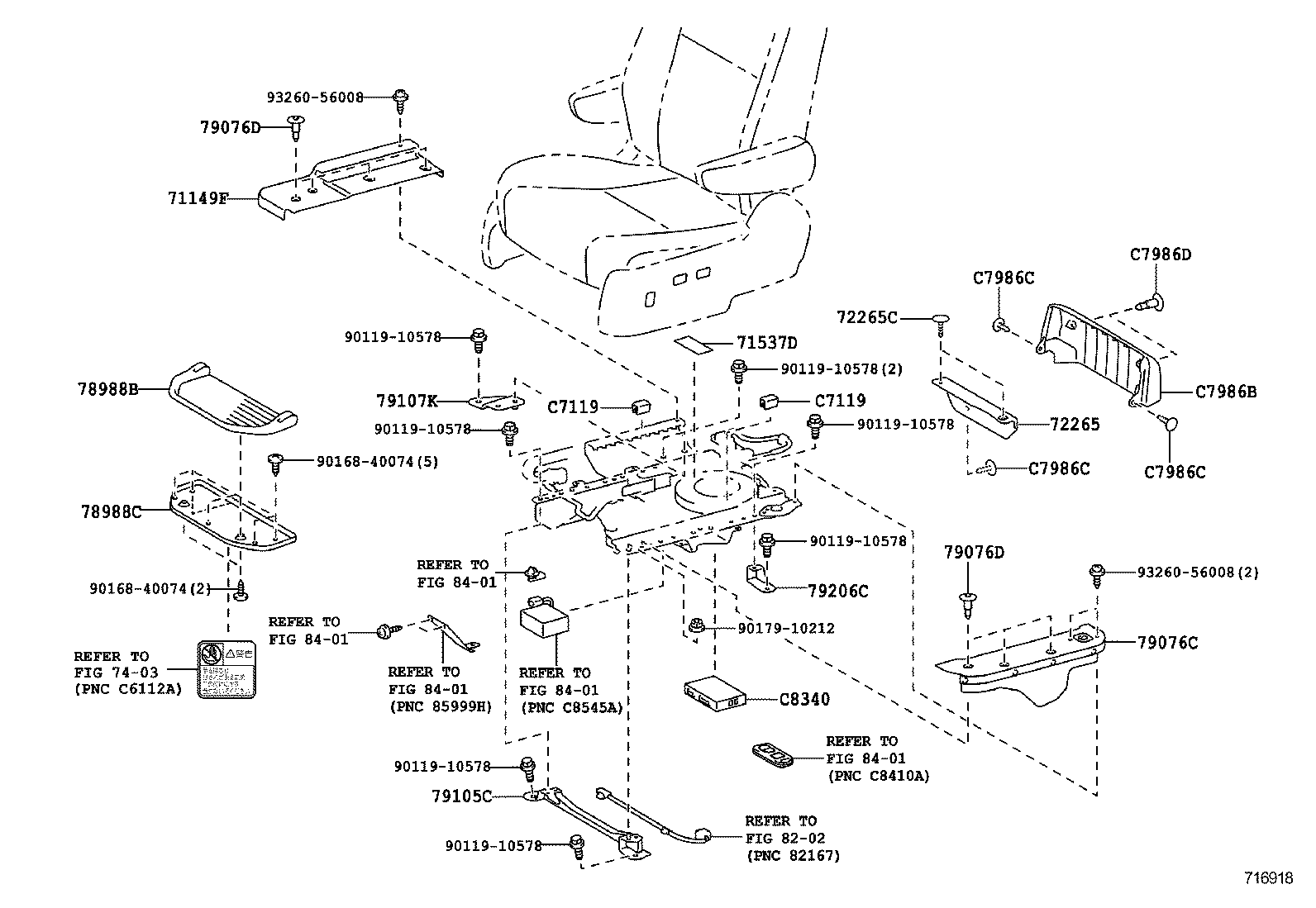

716918

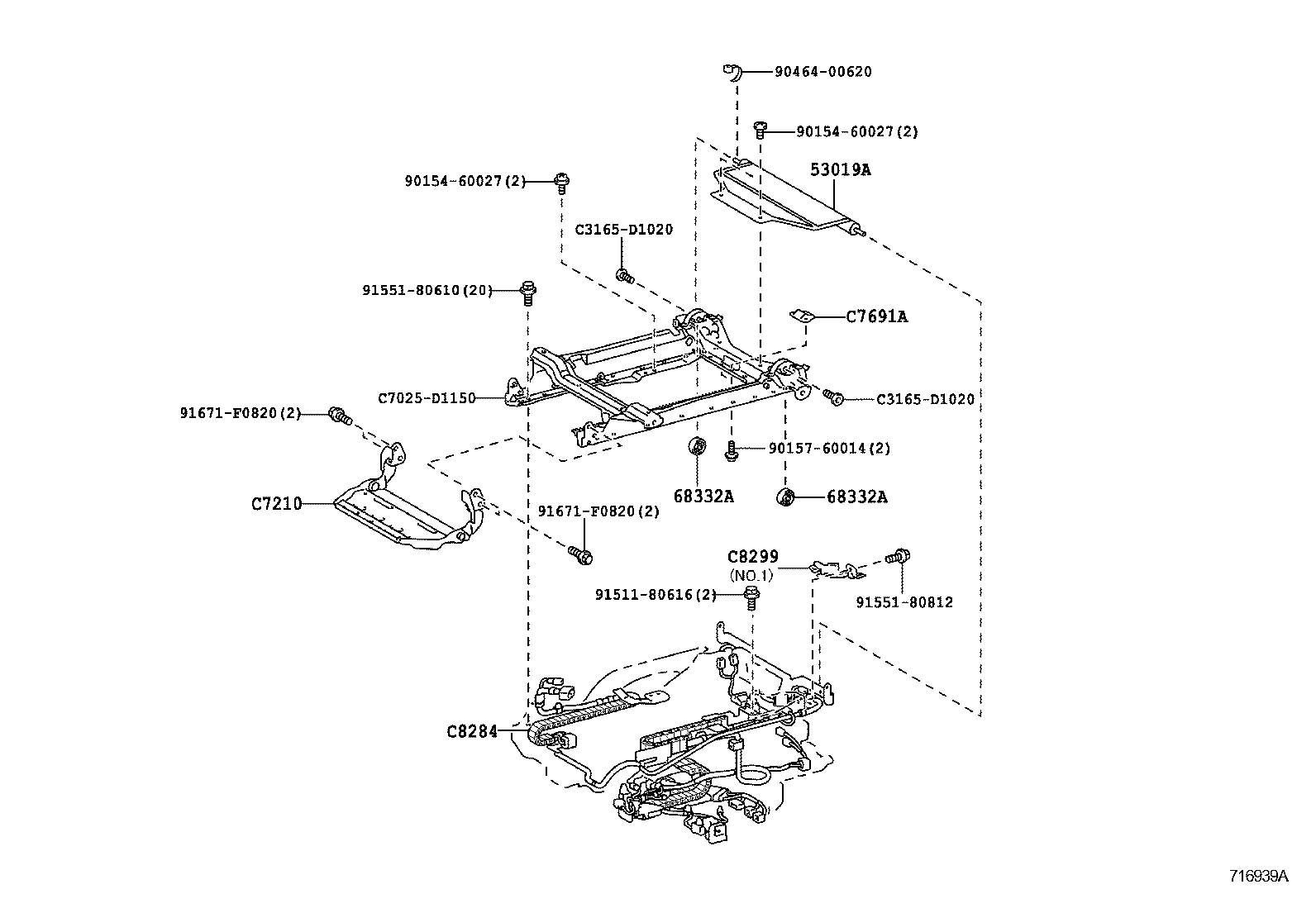

716939A

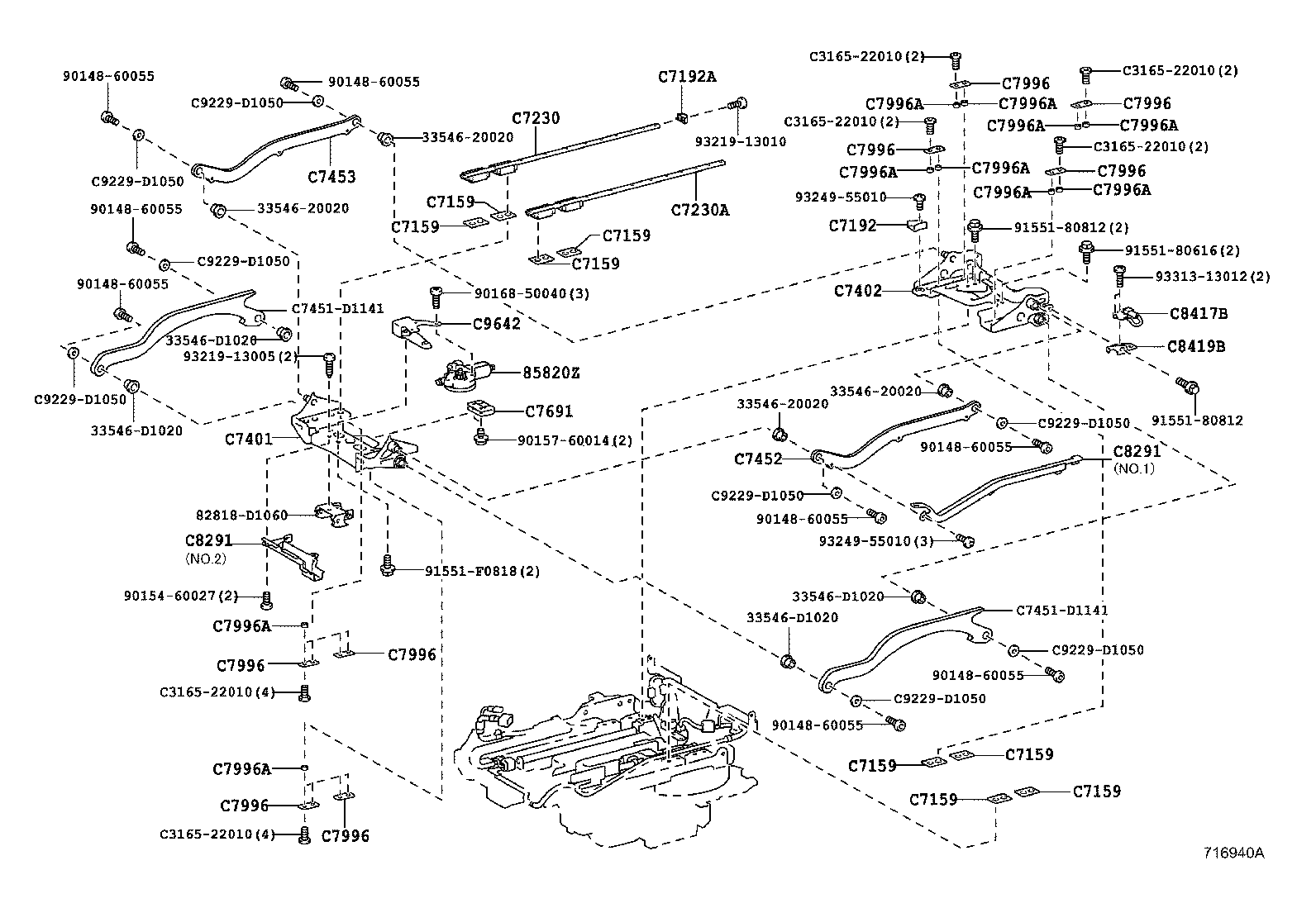

716940A

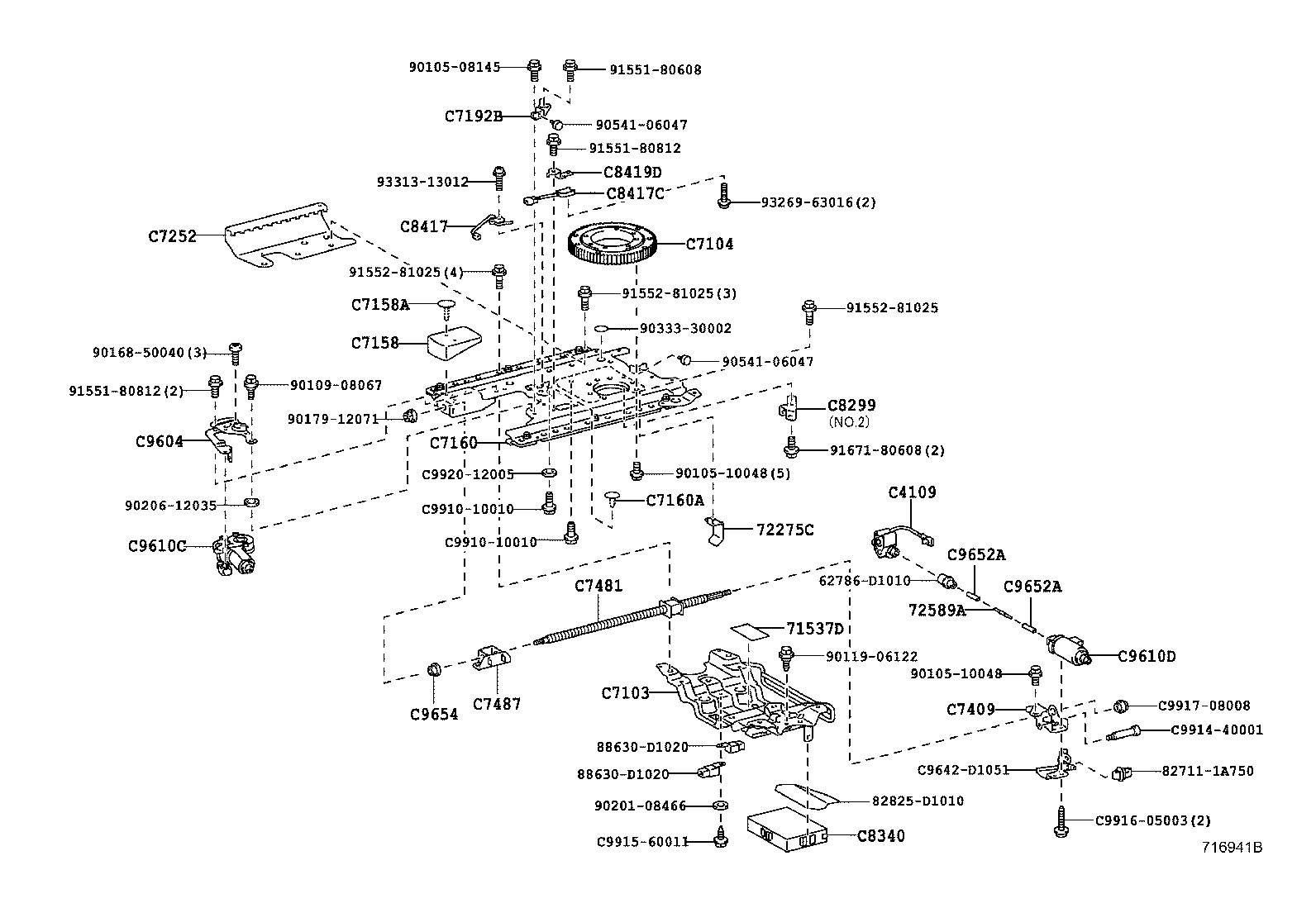

716941B

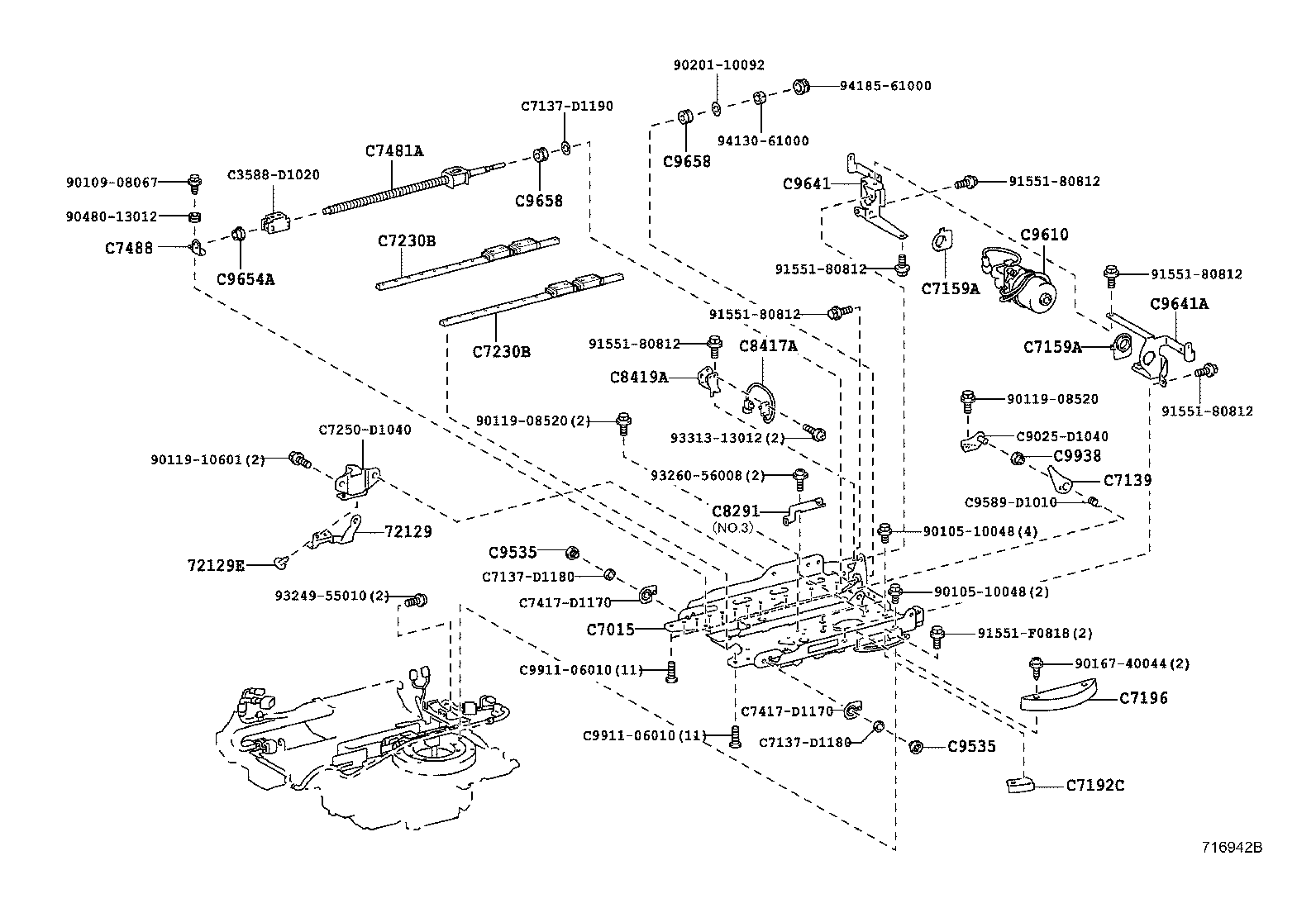

716942B
718165B
Part groups
| PNC | Description |
|---|---|
| 53019A | Shutter Sub-assy, Radiator |
| 55359F | Cushion, Welcab Seat |
| 57457F | Bracket, Front Seat |
| 68332A | Roller, Slide Door, Lower |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71138 | Spacer, Front Seat Set |
| 71149F | Cover, Front Seat Leg, Inner |
| 71161A | Bracket, Front Seatback |
| 71162A | Bracket, Front Seatback, Lower |
| 71315 | Plate, Front Seat Hinge |
| 71421A | Spring, Front Seat Cushion |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537A | Protector, Front Seat Cushion |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71695D | Protector, Seat |
| 71708D | Strap Sub-assy, Seat Cover, LH |
| 71769C | Clip, Front Seat Cushion Cover |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831A | Cover, Front Seat Hinge |
| 71833H | Cover, Rear Seat Reclining, NO.1 RH |
| 71834G | Cover, Rear Seat Reclining, NO.1 LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875D | Cover, Reclining Adjuster Outside, RH |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876D | Cover, Reclining Adjuster Outside, LH |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71877E | Cover, Seat Armrest Hole, LH |
| 71910A | Headrest Assy, Front Seat |
| 71910C | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71956A | Support, Front Seat Headrest |
| 72058B | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129E | Clip(FOR SEAT TRACK LOWER RAIL PROTECTOR) |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72147 | Bracket, Front Inner Seat Track, Lower Rear RH |
| 72148 | Bracket, Front Inner Seat Track, Lower Rear LH |
| 72201 | Handle Sub-assy, Seat Track |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72265C | Clip, Seat Track Upper Rail Cover |
| 72275C | Stopper, Front Seat Track Slide |
| 72330 | Stand Assy,Seat |
| 72494 | Handle, Vertical Adjusting, RH |
| 72507E | Handle Sub-assy, Reclining Release, NO.1 |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72558B | Stopper, Reclining (FRONT SEAT) |
| 72589A | Cable, Reclining Remote Control |
| 72679A | Bezel, NO.2 Seatback Lock Control |
| 72720E | Adjuster Assy, NO.1 Seat Reclining, LH |
| 72740C | Adjuster Assy, NO.2 Seat Reclining, LH |
| 72743A | Rod, Rear Seat Reclining |
| 72820A | Armrest Assy, Seat, LH |
| 72878 | Cover, Seat Armrest, LH |
| 72880A | Armrest Assy, Front Seat, Inner RH |
| 72890 | Armrest Assy, Seat, C LH |
| 72992 | Cover, Front Seat Cushion, LH |
| 78950C | Band Assy, Fold Seat Stopper |
| 78988B | Cover, Front Seat Footrest, NO.1 |
| 78988C | Cover, Front Seat Footrest, NO.2 |
| 79076C | Cover Sub-assy, Front Seat Leg |
| 79076D | Clip, Seat Leg Cover |
| 79105C | Leg Sub-assy, Front Seat |
| 79107K | Leg Sub-assy, Front Seat, RH |
| 79206C | Leg Sub-assy, Front Seat, LH |
| 85820Z | Motor Assy, Power Seat |
| C4109 | Housing Sub-assy, Slide Door Lock, Rear |
| C7015 | Panel Sub-assy, Turn Table |
| C7103 | Panel Sub-assy, Welcab Seat Leg, NO.1 |
| C7104 | Plate Sub-assy, Seat Turn |
| C7111 | Bracket, Seat Holder, Front |
| C7119 | Protector, Welcab Seat Holder |
| C7139 | Bracket, Hook |
| C7158 | Cover, Welcab Seat Leg |
| C7158A | Clip, Welcab Seat Leg Cover |
| C7159 | Cushion, Welcab Seat Leg Stopper |
| C7159A | Cushion, Welcab Seat Leg Stopper, NO.1 |
| C7160 | Panel Assy, Slide Table |
| C7160A | Clip, Slide Table Panel |
| C7192 | Plate, Seat Holder Stopper, NO.1 |
| C7192A | Plate, Seat Holder Stopper, NO.2 |
| C7192B | Plate, Seat Holder Stopper, NO.3 |
| C7192C | Plate, Seat Holder Stopper, NO.4 |
| C7196 | Cover, Turn Table, NO.1 |
| C7210 | Footrest Assy, Welcab Seat |
| C7230 | Track Assy, Welcab Seat, NO.1 |
| C7230A | Track Assy, Welcab Seat, NO.2 |
| C7230B | Track Assy, Welcab Seat, NO.3 |
| C7252 | Bracket, Welcab Seat Track Stopper, NO.2 |
| C7401 | Guide Sub-assy, Welcab Seat, Front |
| C7402 | Guide Sub-assy, Welcab Seat, Rear |
| C7409 | Bracket Sub-assy, Welcab Seat Rod Support, NO.1 |
| C7452 | Arm, Welcab Seat Link, NO.2 |
| C7453 | Arm, Welcab Seat Link, NO.3 |
| C7481 | Rod, Welcab Seat, NO.1 |
| C7481A | Rod, Welcab Seat, NO.2 |
| C7487 | Plate, Welcab Seat Rod Support, NO.1 |
| C7488 | Plate, Welcab Seat Rod Support, NO.2 |
| C7691 | Cushion, Seat Flat, NO.1 RH |
| C7691A | Cushion, Seat Flat, NO.2 RH |
| C7986B | Cover, Front Seat Turn Guard |
| C7986C | Clip, Front Seat Turn Guard Cover, NO.1 |
| C7986D | Clip, Front Seat Turn Guard Cover, NO.2 |
| C7996 | Spacer, Turn Seat, NO.1 |
| C7996A | Spacer, Turn Seat, NO.2 |
| C8284 | Wire, Power Lift Main |
| C8291 | Protector, Tecs Wiring Harness |
| C8299 | Bracket, Welcab Seat Harness Connector |
| C8340 | Computer Assy, Welcab Device Control |
| C8417 | Switch, Limit, NO.1 |
| C8417A | Switch, Limit, NO.2 |
| C8417B | Switch, Limit, NO.3 |
| C8417C | Switch, Limit, NO.4 |
| C8419A | Bracket, Limit Switch |
| C8419B | Bracket, Limit Switch |
| C8419D | Bracket, Limit Switch, NO.1 |
| C9535 | Pulley, Power Lift |
| C9604 | Bracket Sub-assy, Power Lift Motor |
| C9610 | Motor Assy, Power Lift |
| C9610C | Motor Assy, Lift UP Seat Turn |
| C9610D | Motor Assy, Lift UP Seat Slide |
| C9641 | Bracket, Power Lift Motor, NO.1 |
| C9641A | Bracket, Power Lift Motor, NO.1 |
| C9642 | Bracket, Power Lift Motor, NO.2 |
| C9652A | Cap, Power Lift Cylinder |
| C9654 | Collar, Power Lift Cylinder |
| C9654A | Collar, Power Lift Cylinder |
| C9658 | Plate, Power Lift Cylinder Rod |
| C9938 | Bush |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
