Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

108 part groups · 12 illustrations

Illustrations

716903E 2010-11 → —

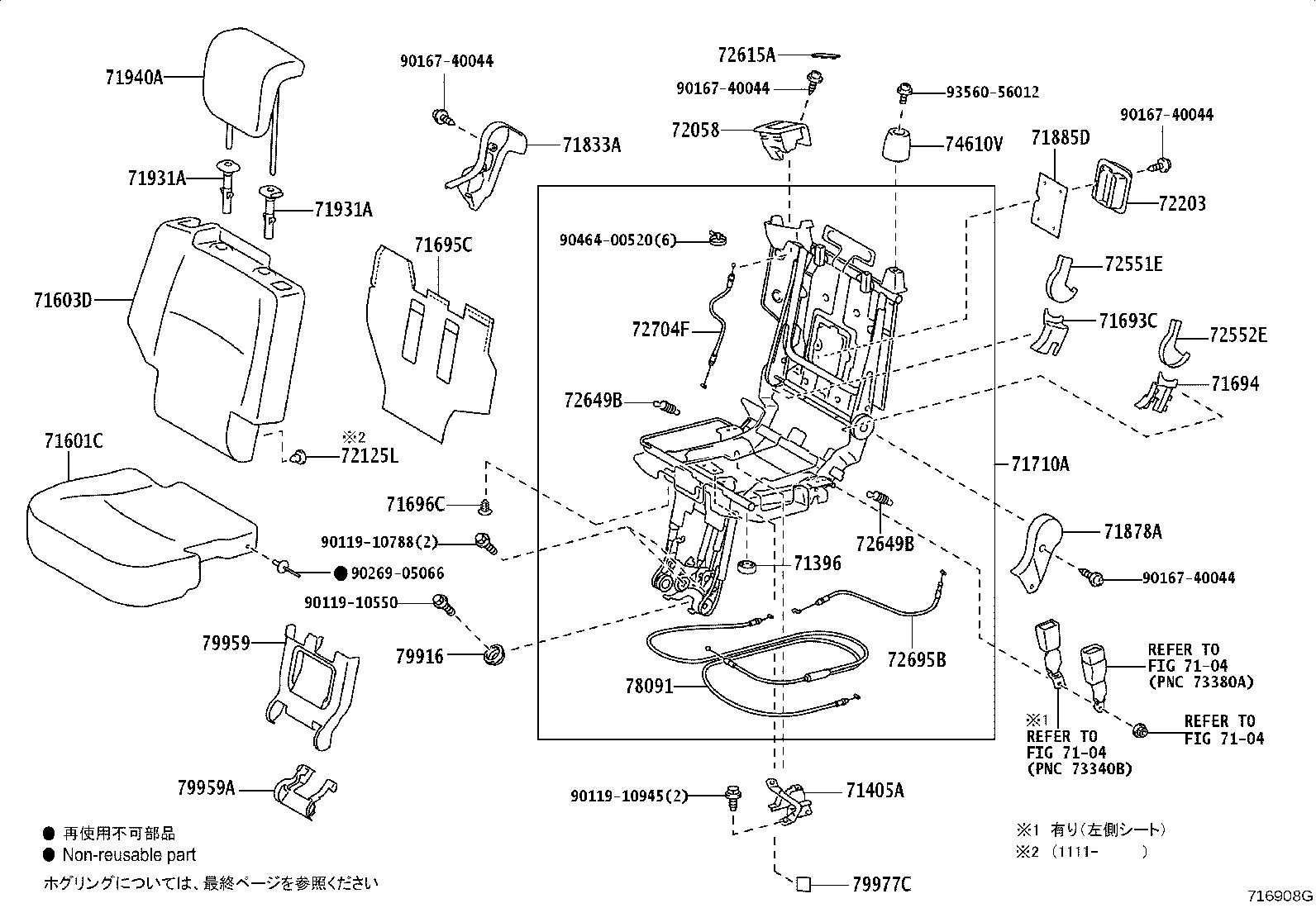

716908G 2010-11 → —

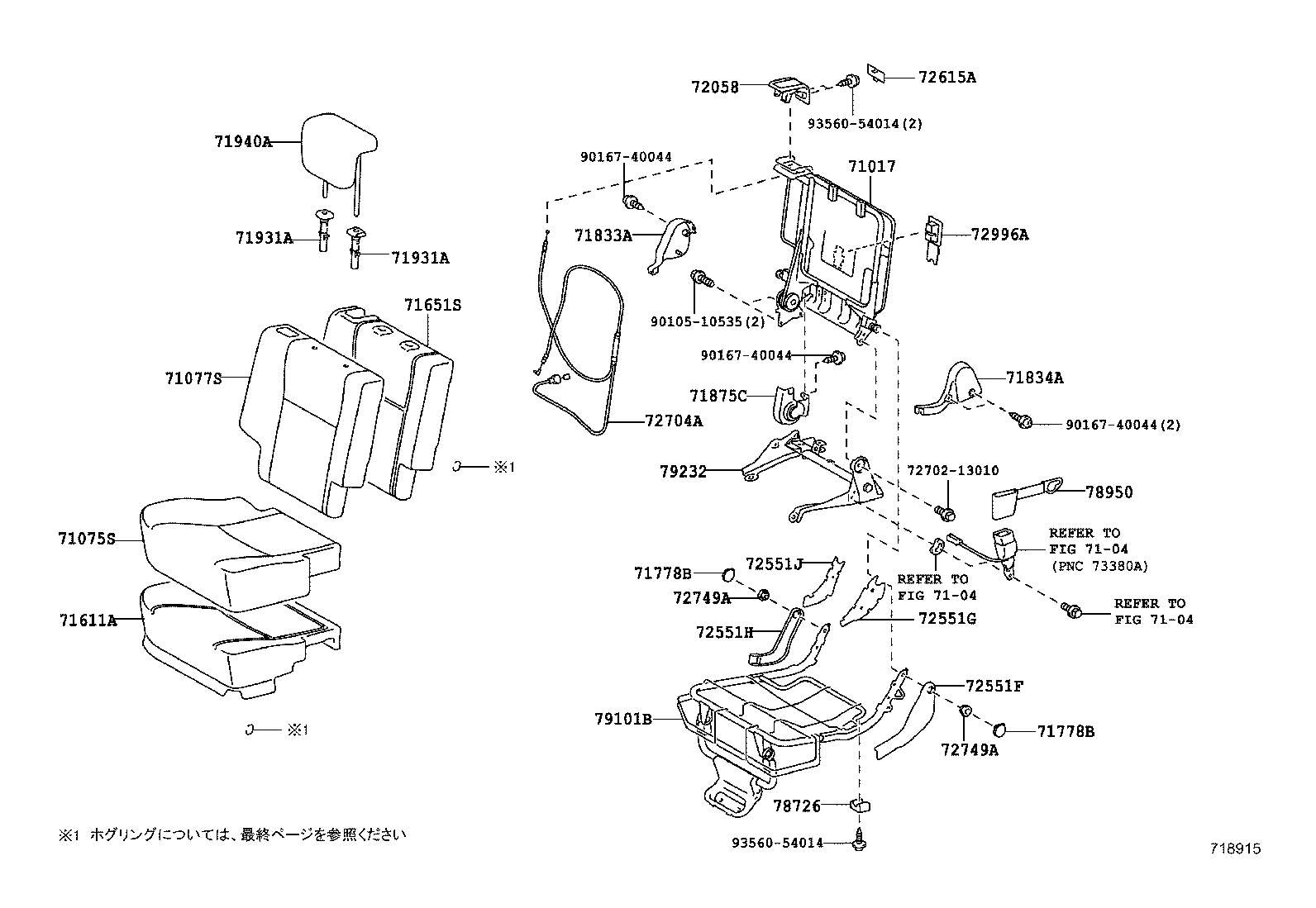

718915 2014-05 → —

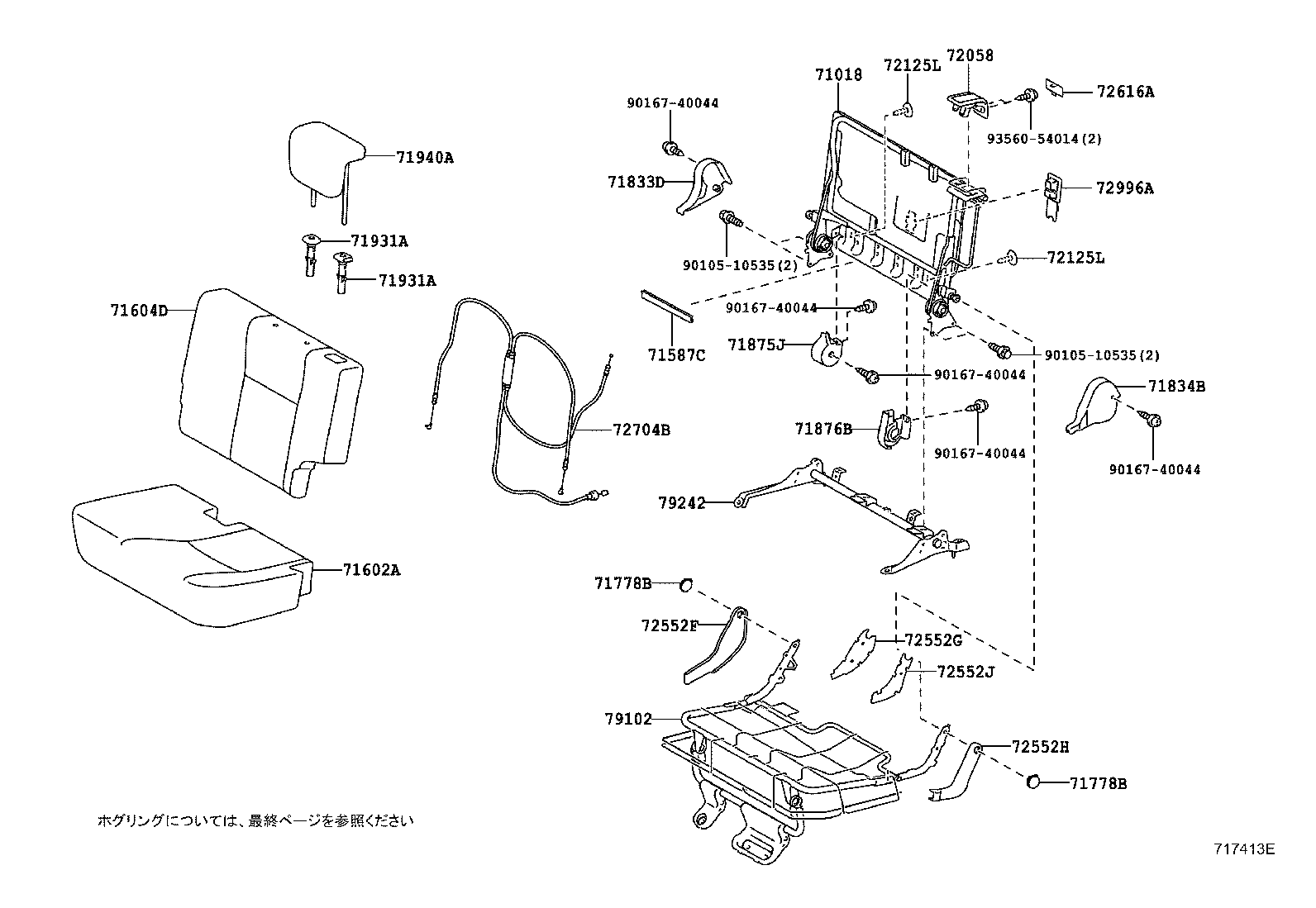

717413E 2010-11 → 2011-11

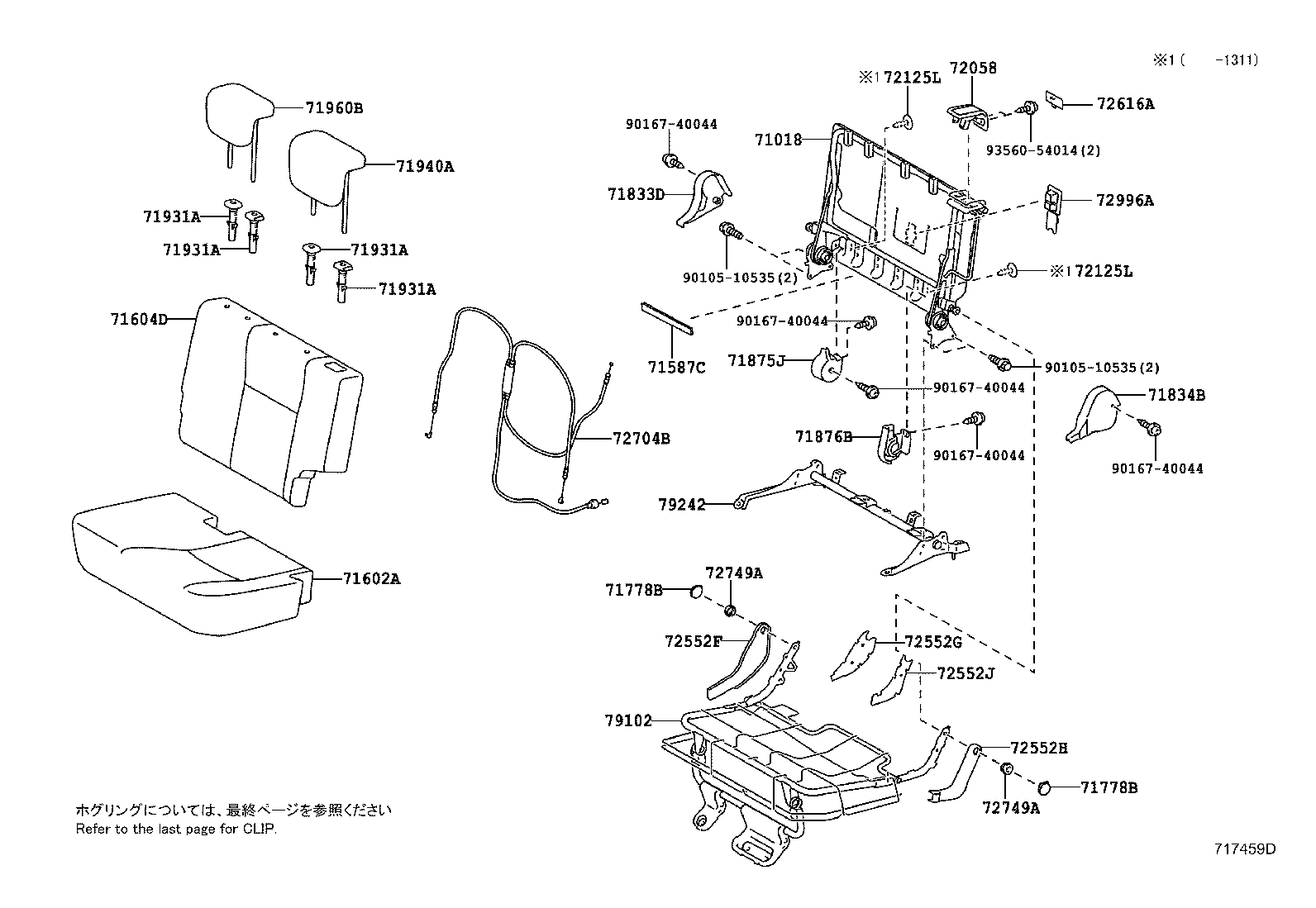

717459D 2011-11 → —

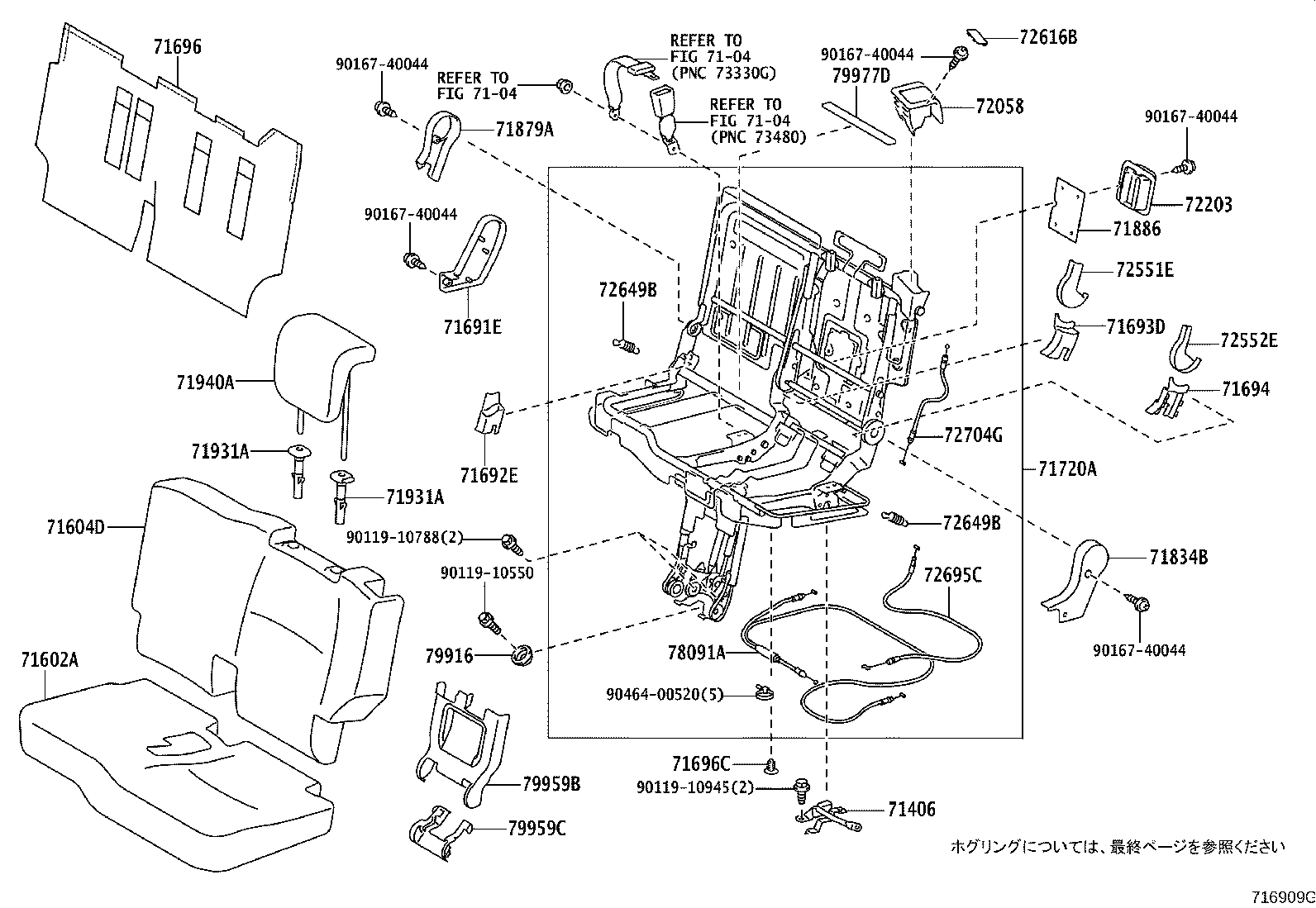

716909G 2010-11 → 2011-11

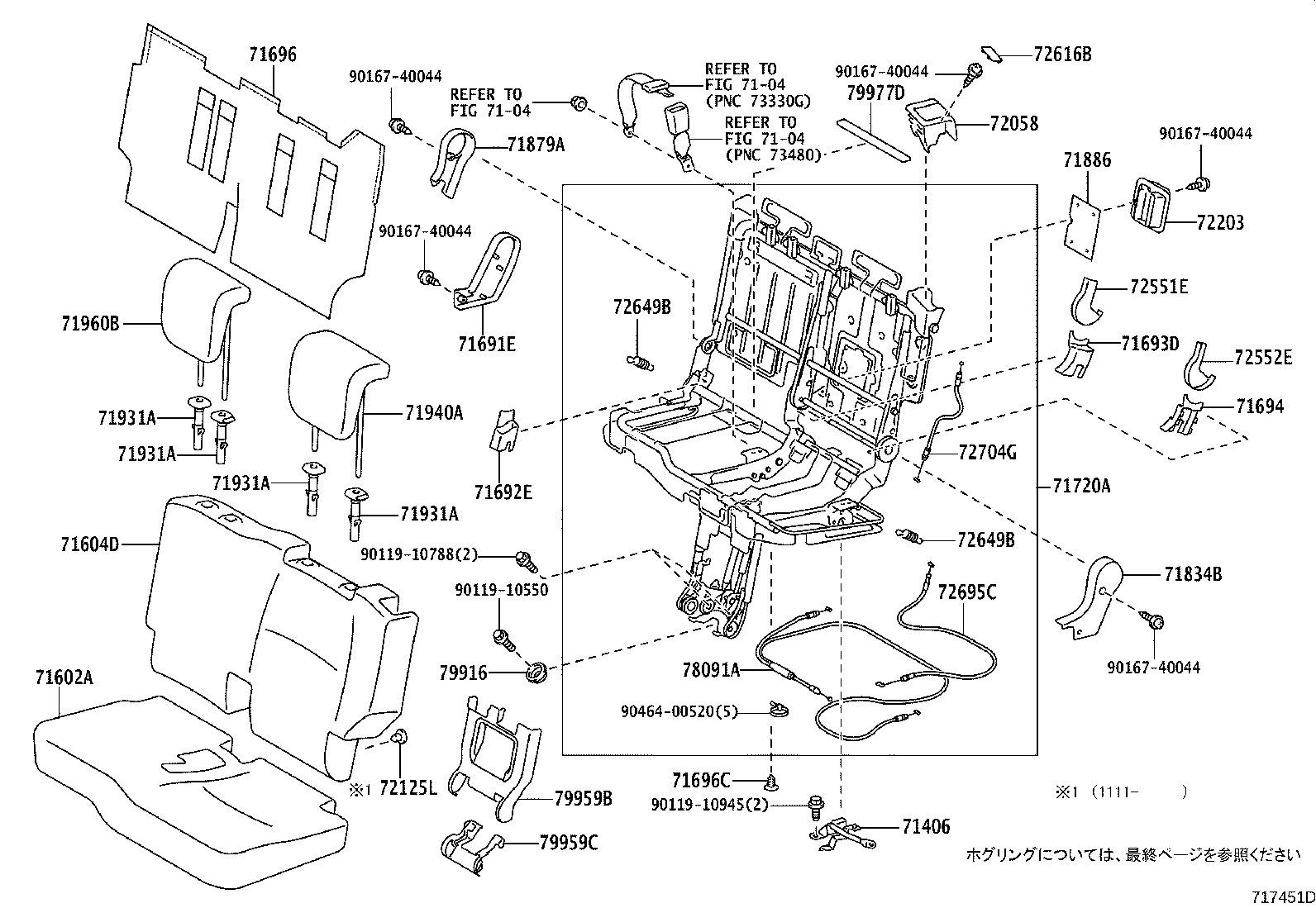

717451D 2011-11 → —

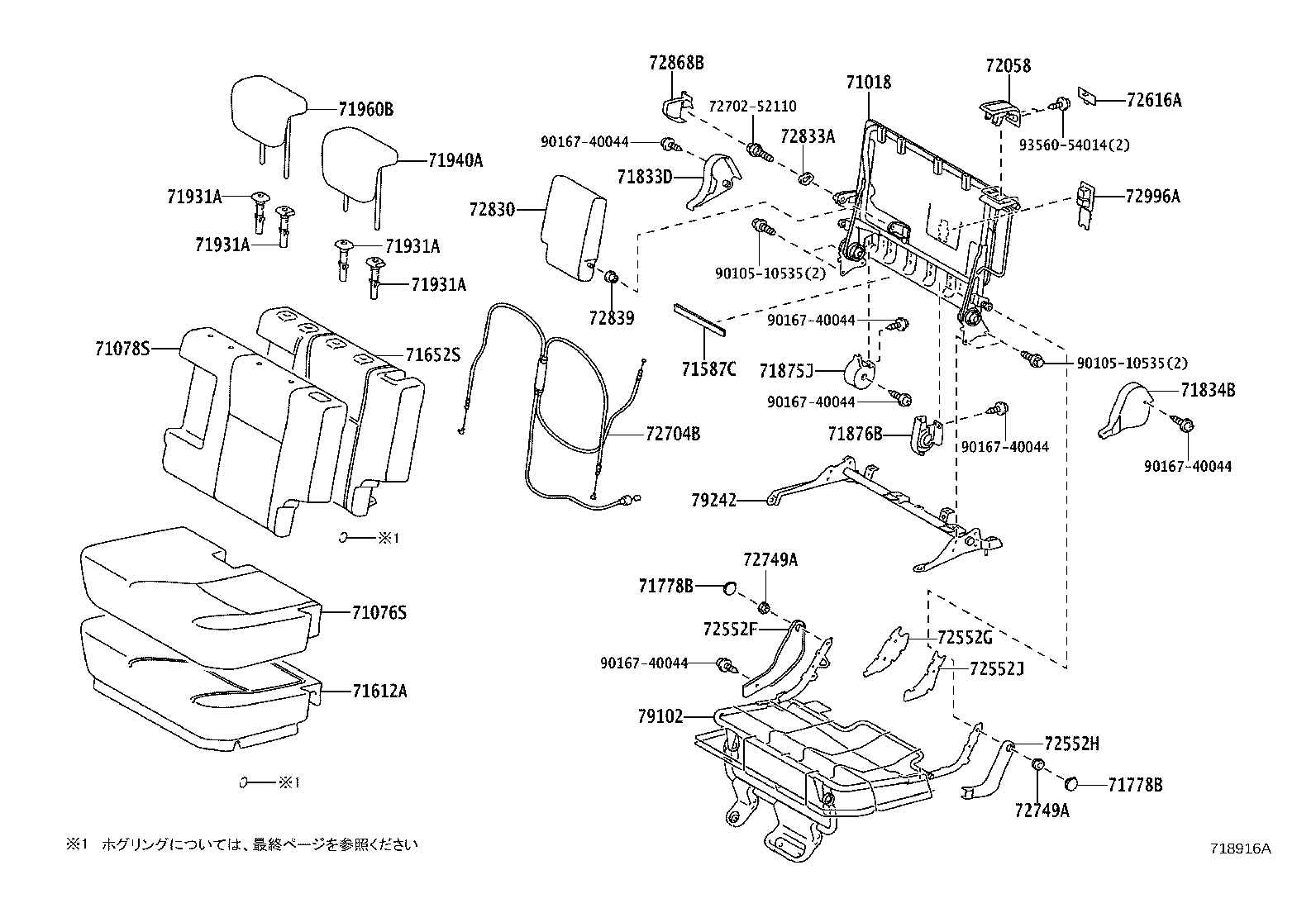

718916A 2014-05 → —

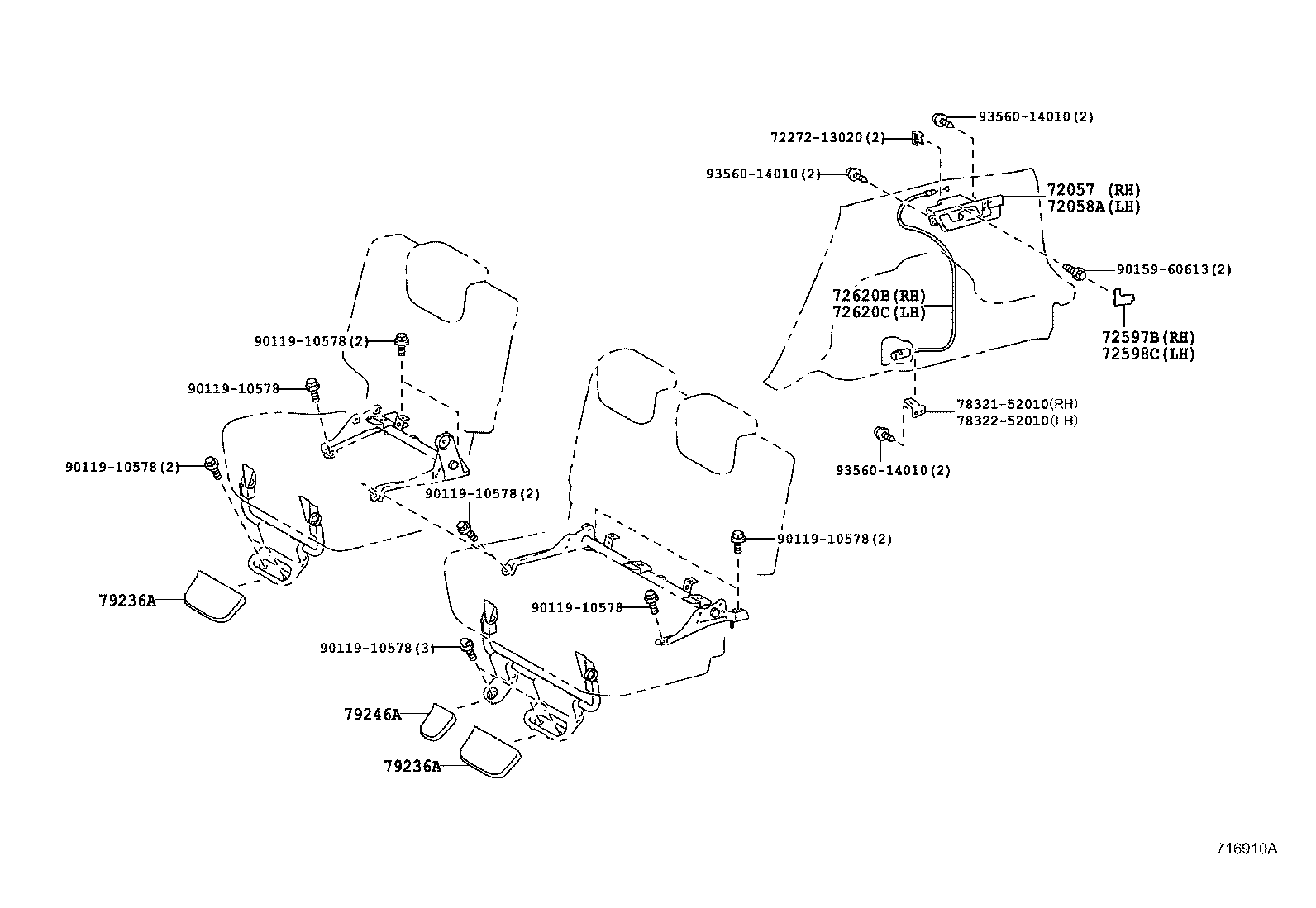

716910A 2010-11 → —

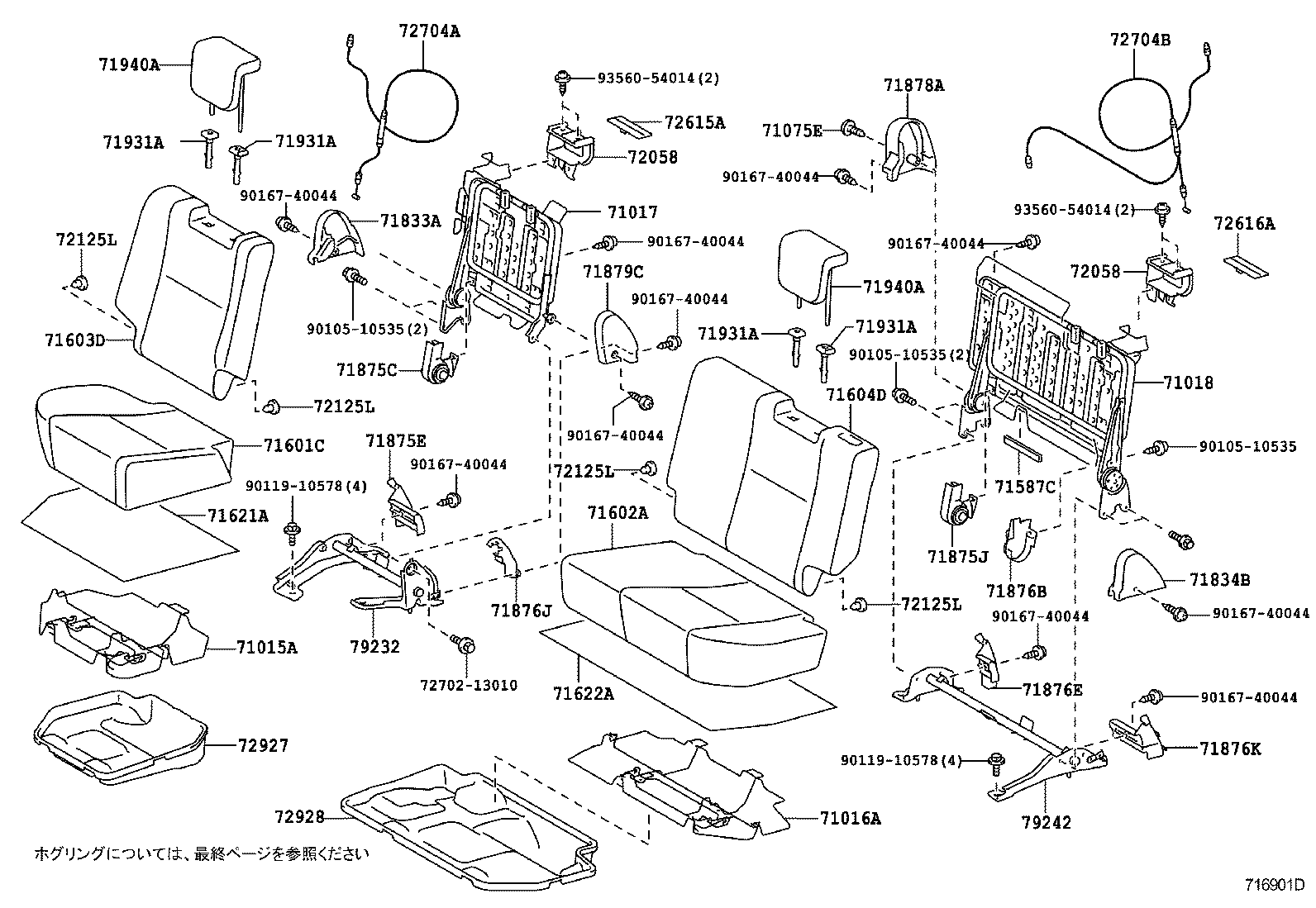

716901D 2010-11 → 2011-11

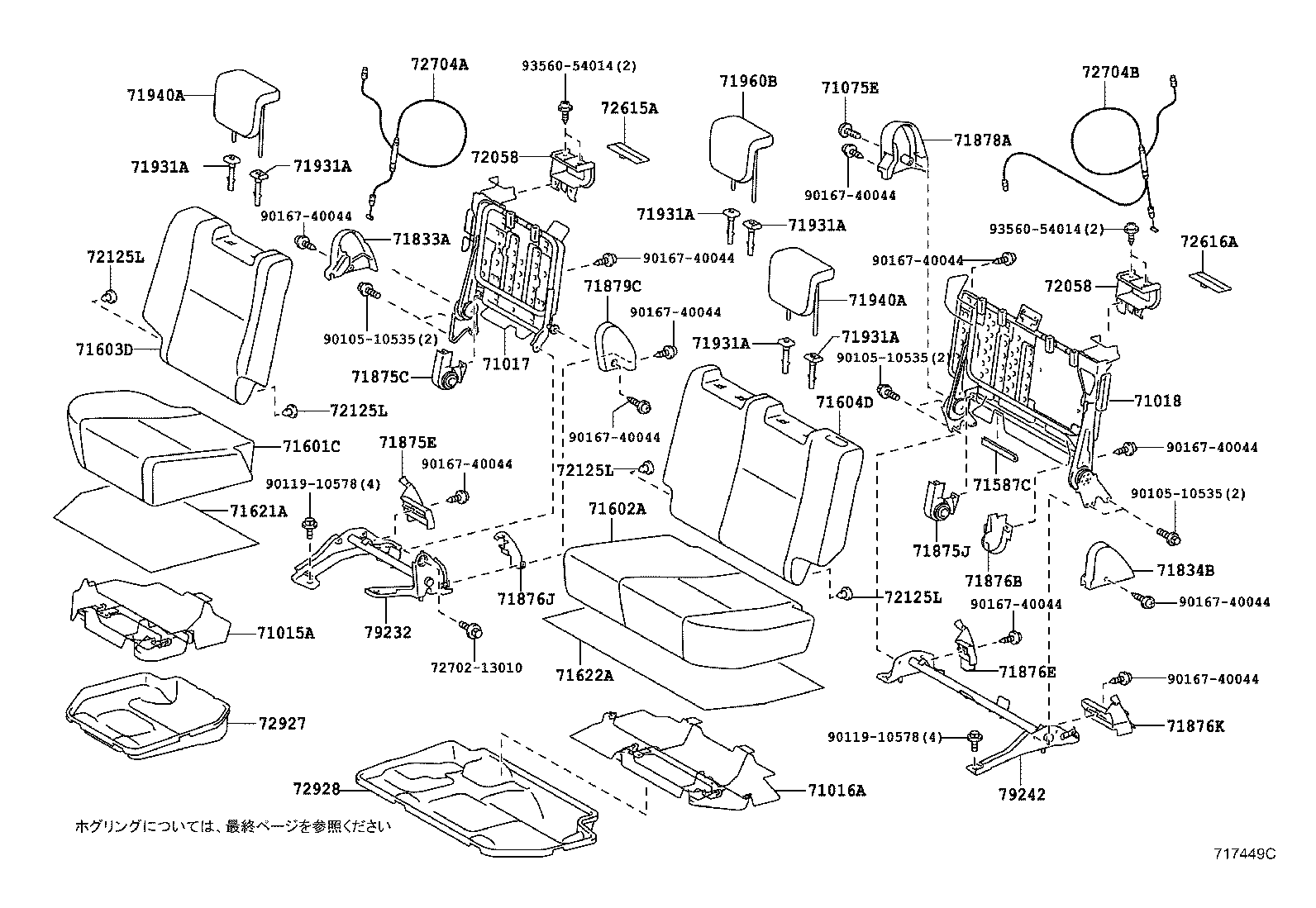

717449C 2011-11 → —

718165B 2010-11 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71396	Cushion, Rear Seat Support, Rear
71405A	Striker Sub-assy, Rear Seat Lock, RH
71406	Striker Sub-assy, Rear Seat Lock, LH
71587C	Protector, Rear Seatback Edge NO.2
71601C	Pad Sub-assy, Rear Seat Cushion W/Cover, RH
71602A	Pad Sub-assy, Rear Seat Cushion W/Cover, LH
71603D	Pad Sub-assy, Rear Seatback W/Cover, RH
71604D	Pad Sub-assy, Rear Seatback W/Cover, LH
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71621A	Pad, Rear Seat Cushion Silencer, A
71622A	Pad, Rear Seat Cushion Silencer, B
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E	Cover, Rear Seat Cushion Hinge, NO.1
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71693C	Cover, Rear Seat Cushion Hinge, Outer RH
71693D	Cover, Rear Seat Cushion Hinge, Inner RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71695C	Protector, Rear Seat, NO.1
71696	Protector, Rear Seat, NO.2
71696C	Clip, Rear Seat Protector
71710A	Frame Assy, Rear Side Seat, RH
71720A	Frame Assy, Rear Side Seat, LH
71778B	Cover, Rear Seat Side Hinge Male, RH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833D	Cover Rear Seat Reclining, RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875J	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71876E	Cover, Reclining Adjuster Inside, LH
71876J	Cover, Reclining Adjuster Inside, LH
71876K	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71885D	Carpet, Rear Seatback, RH
71886	Carpet, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058	Lever Sub-assy, Rear Seat Lock Control
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72125L	Retainer, Rear Seatback Pad
72203	Handle Sub-assy, Rear Seat Track
72551E	Cover, Reclining Hinge, RH
72551F	Cover, Reclining Link, RH NO.1
72551G	Cover, Reclining Link, RH NO.2
72551H	Cover, Reclining Link, RH NO.3
72551J	Cover, Reclining Link, RH NO.4
72552E	Cover, Reclining Hinge, LH
72552F	Cover, Reclining Link, LH NO.1
72552G	Cover, Reclining Link, LH NO.2
72552H	Cover, Reclining Link, LH NO.3
72552J	Cover, Reclining Link, LH NO.4
72597B	Bezel, Reclining Remote Control Lever, NO.1
72598C	Bezel, Reclining Remote Control, LH
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72616B	Cover, Rear Seat Lock Striker
72620B	Cable Assy, Rear NO.1 Seat Lock
72620C	Cable Assy, Rear NO.1 Seat Lock
72649B	Spring, Rear Seat Cushion Support
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72704F	Cable, Rear Seat Reclining Control, NO.3
72704G	Cable, Rear Seat Reclining Control, NO.4
72749A	Spacer, Rear Seat Reclining
72830	Armrest Assy, Rear Seat, Center
72833A	Plate, Seat Center Armrest, Inner
72839	Shim, Rear Seat Armrest Hinge
72868B	Cover, Center Armrest Hinge
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72996A	Cover, Rear Seatback
74610V	Grip Assy, Assist
78091	Cable Sub-assy, Fold Seat Lock Control
78091A	Cable Sub-assy, Fold Seat Lock Control
78726	Cushion, Sub Seat Cushion Frame
78950	Band Assy, Fold Seat Stopper, NO.1
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79232	Leg, Rear NO.2 Seat, RH
79236A	Cover, NO.2 Seat Leg
79242	Leg, Rear NO.2 Seat, LH
79246A	Cover, NO.2 Seat Leg, NO.2
79916	Bracket, Seat Leg, NO.2
79959	Cover, RR Seat Leg
79959A	Cover, Rear Seat Leg, RH
79959B	Cover, Rear Seat Leg, LH
79959C	Cover, Rear Seat Leg
79977C	Felt, Seat Cushion, RH
79977D	Felt, Seat Cushion, LH
