Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

52 part groups · 15 illustrations

Illustrations

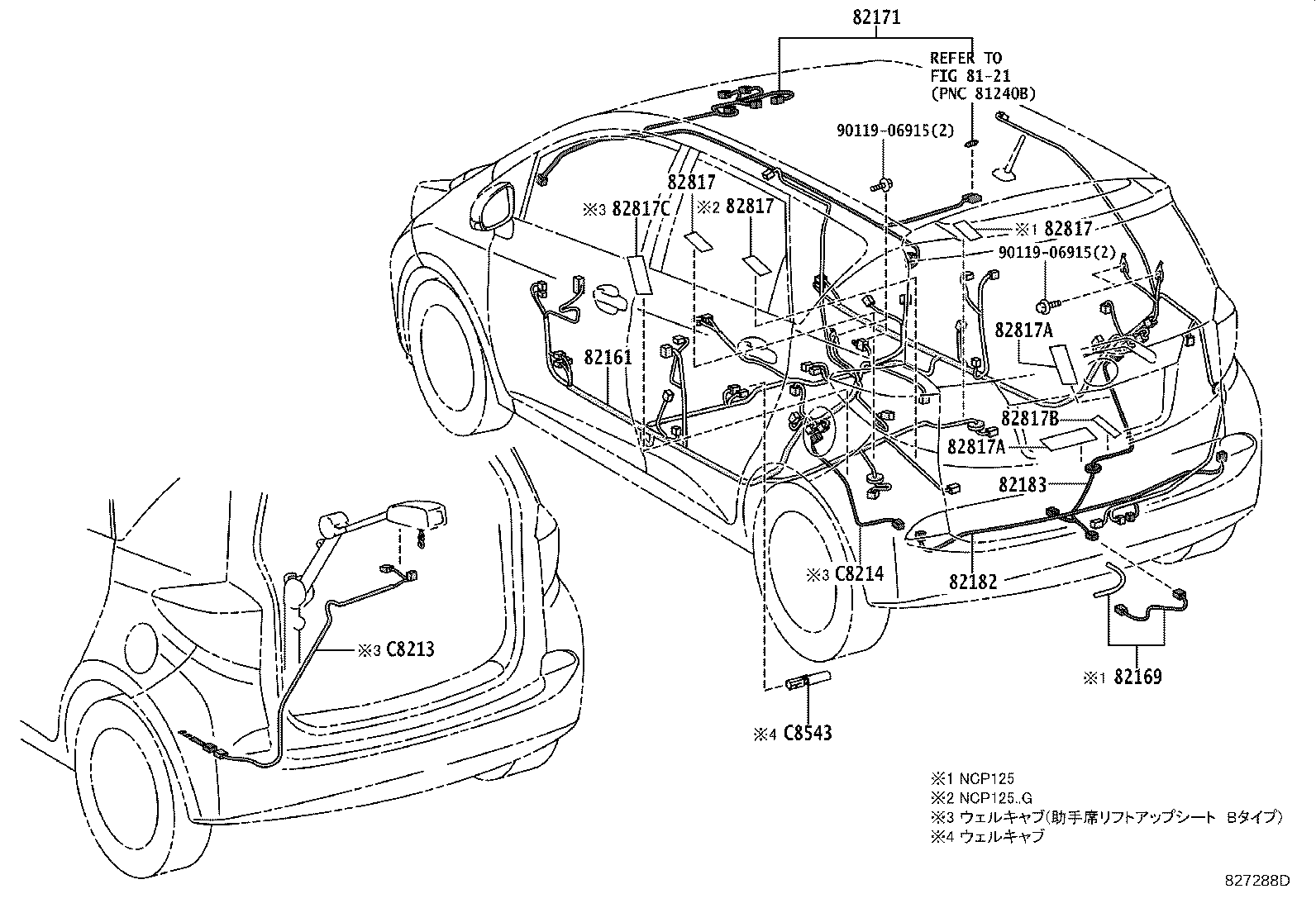

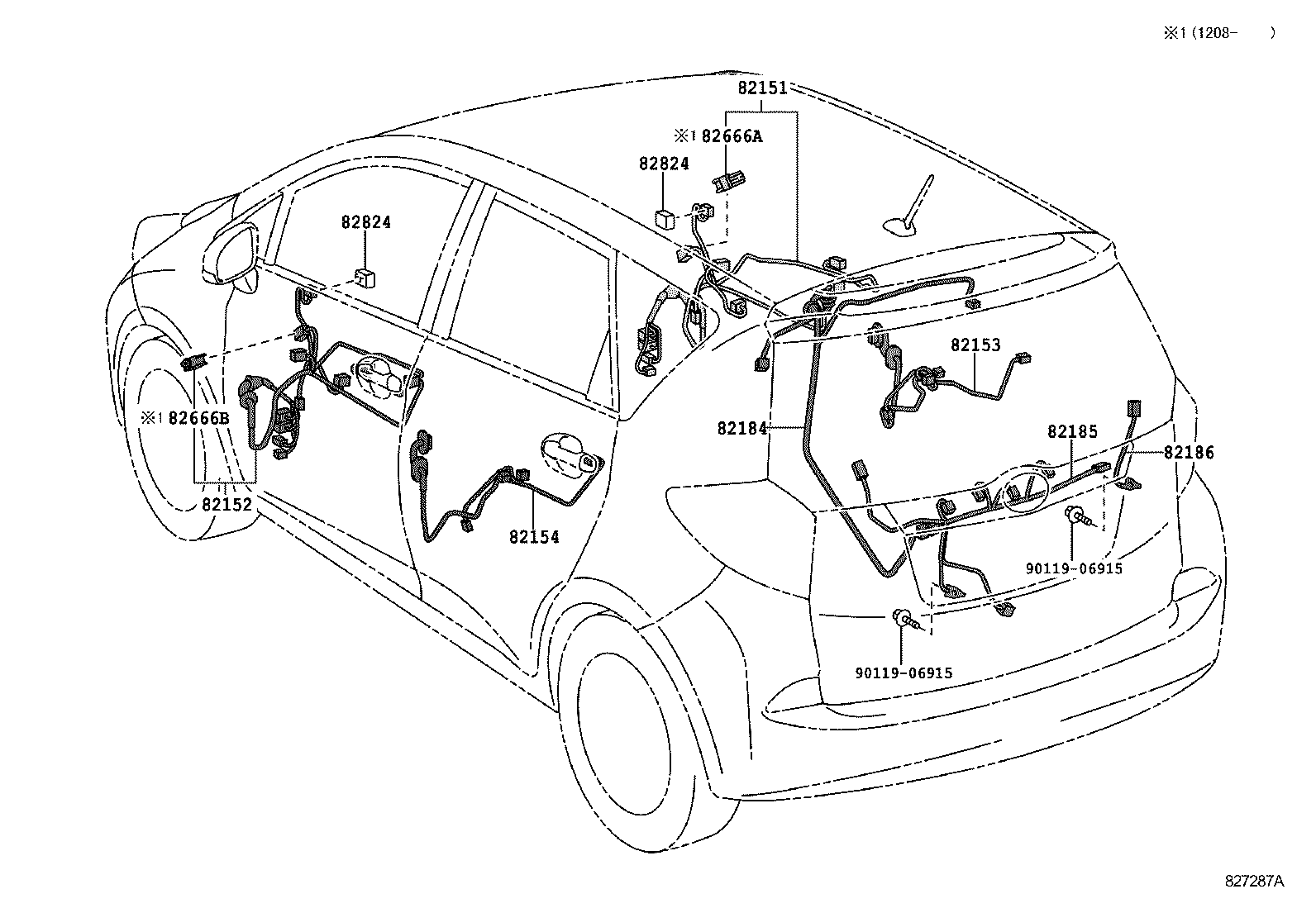

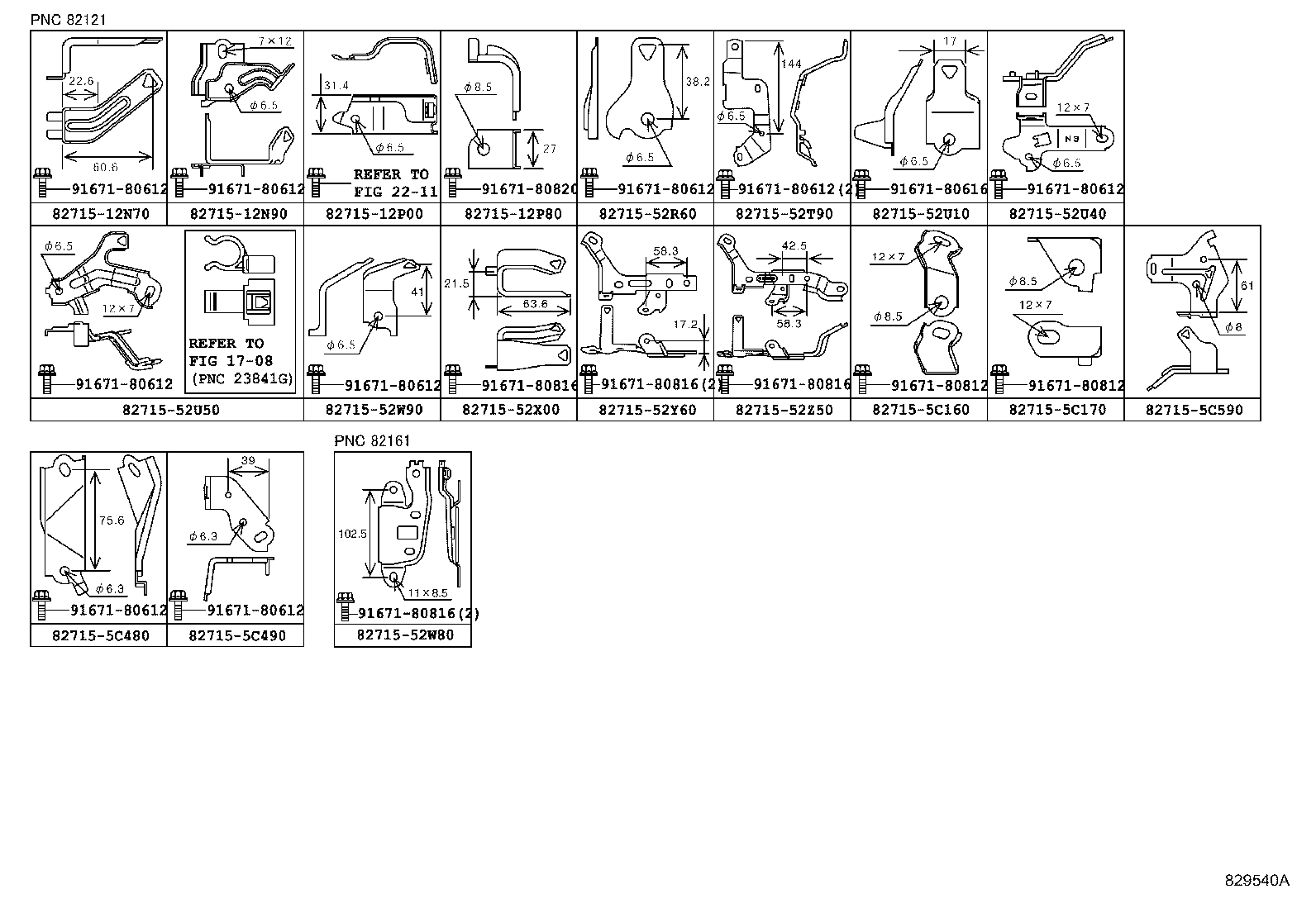

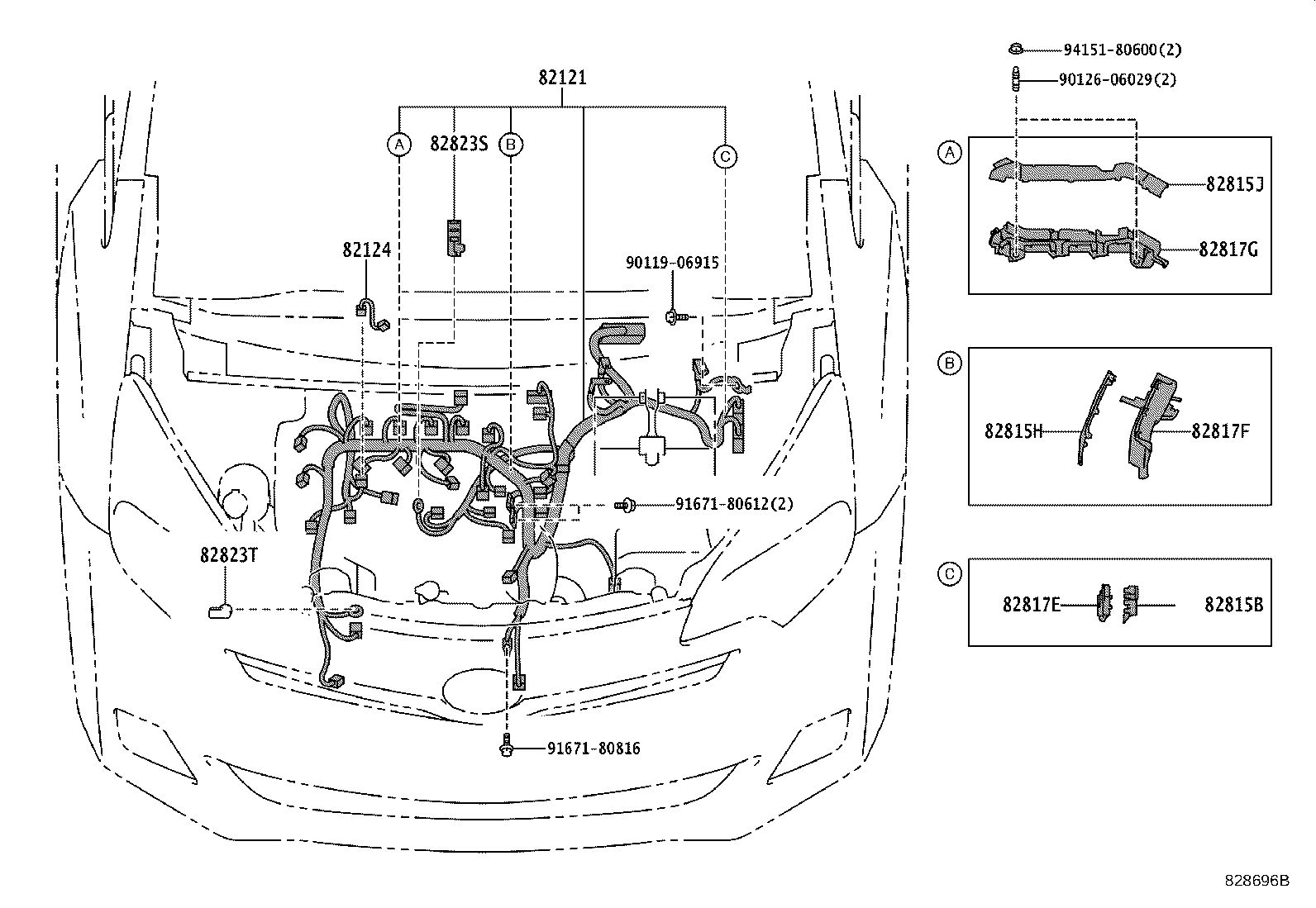

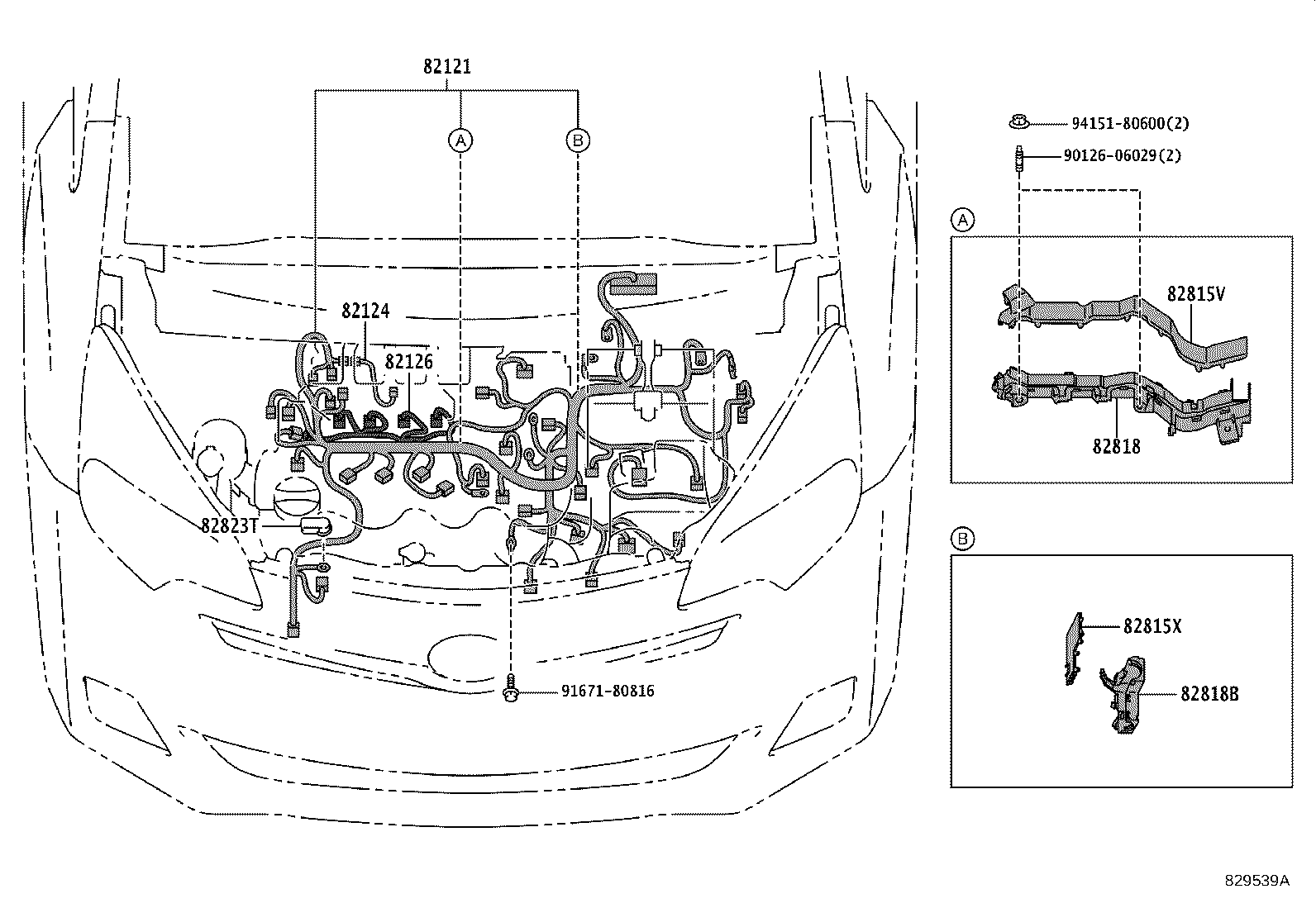

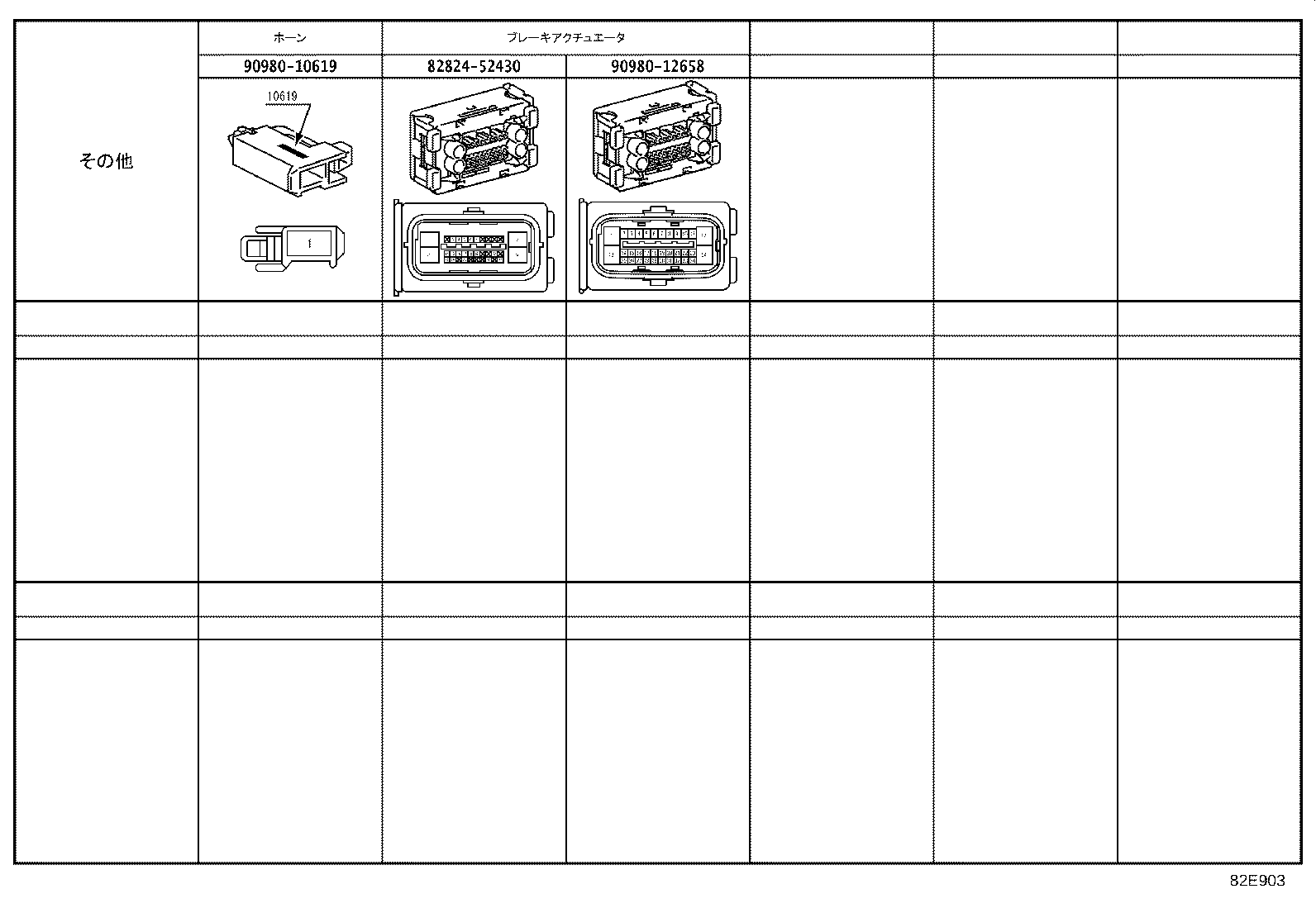

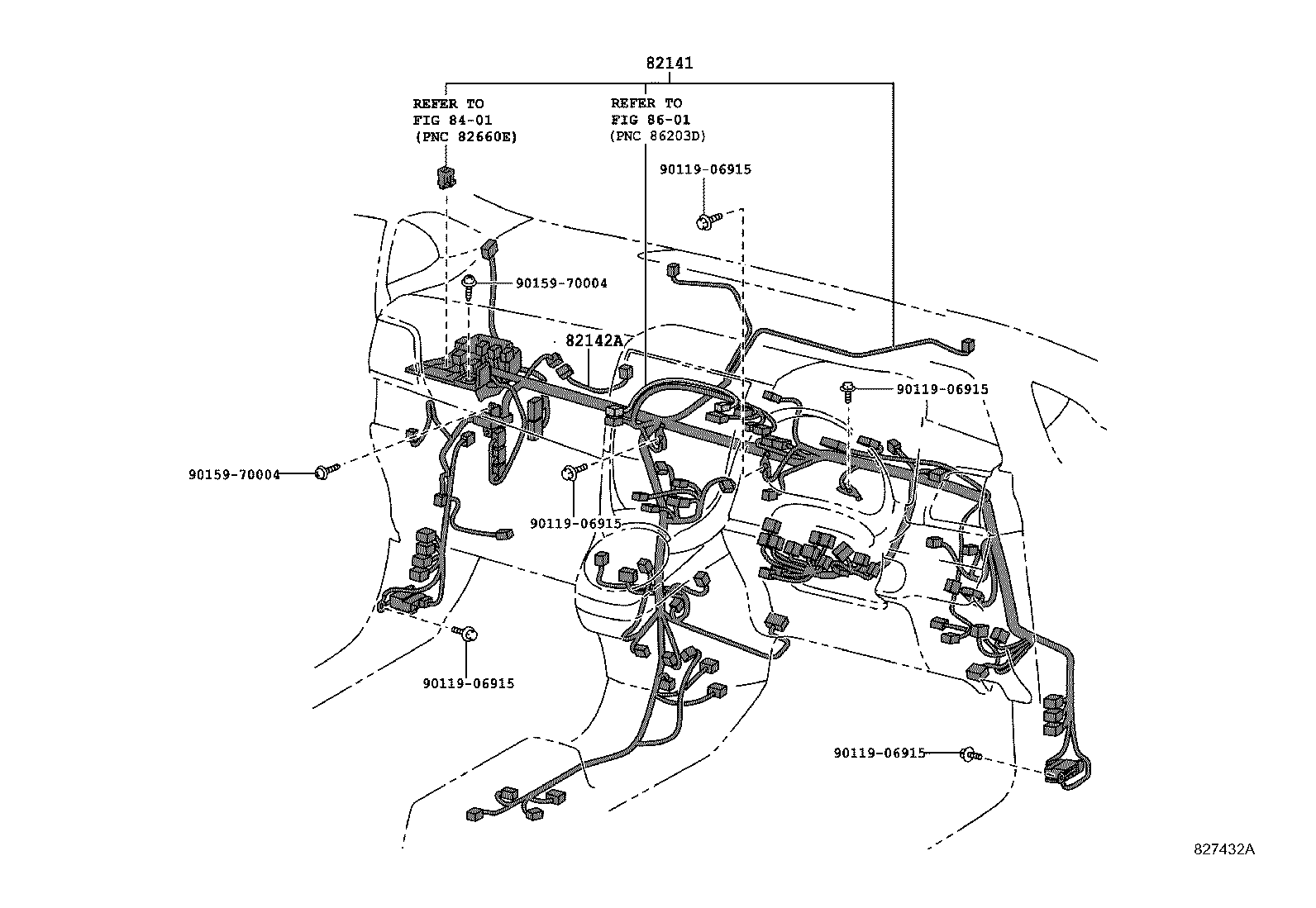

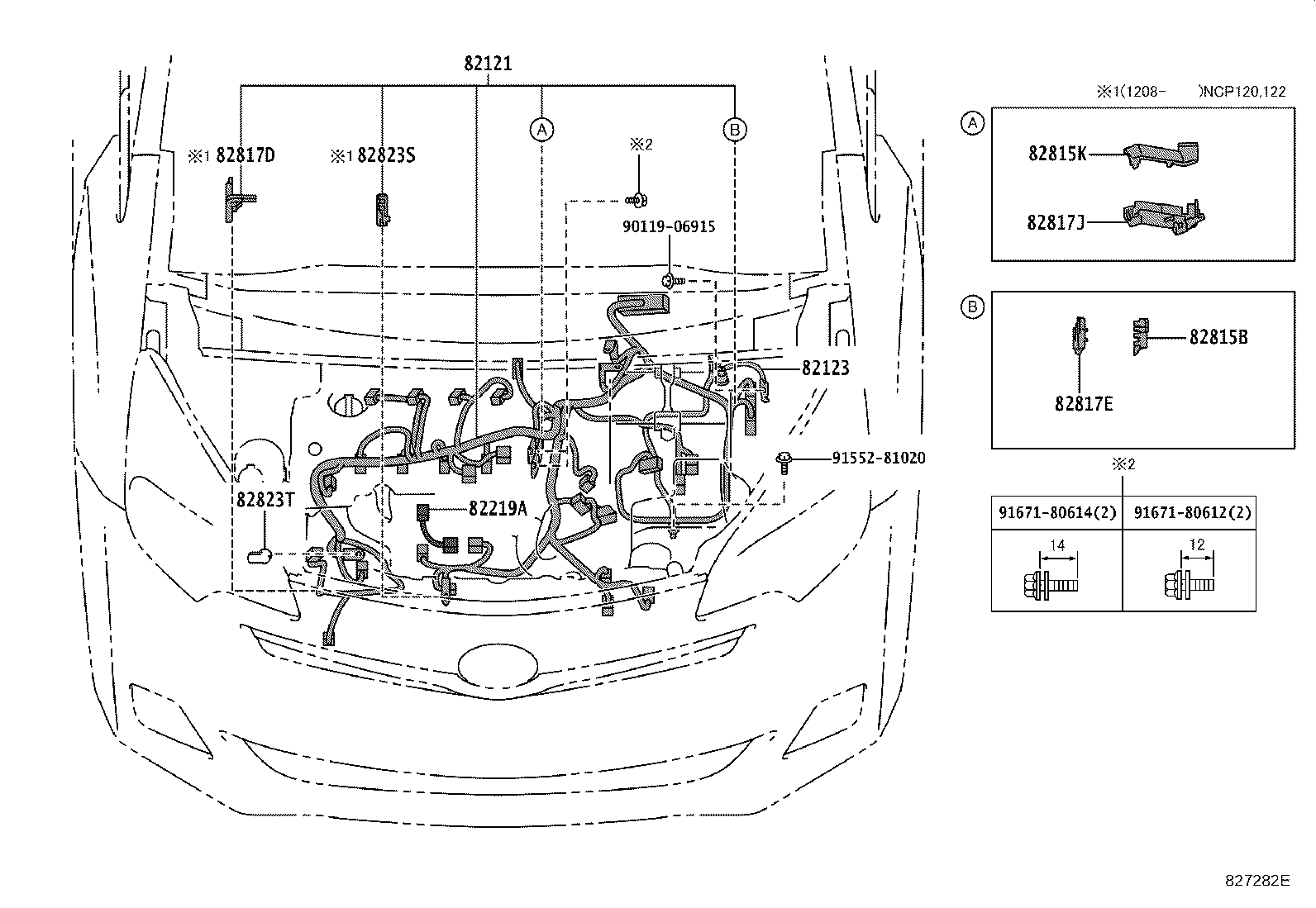

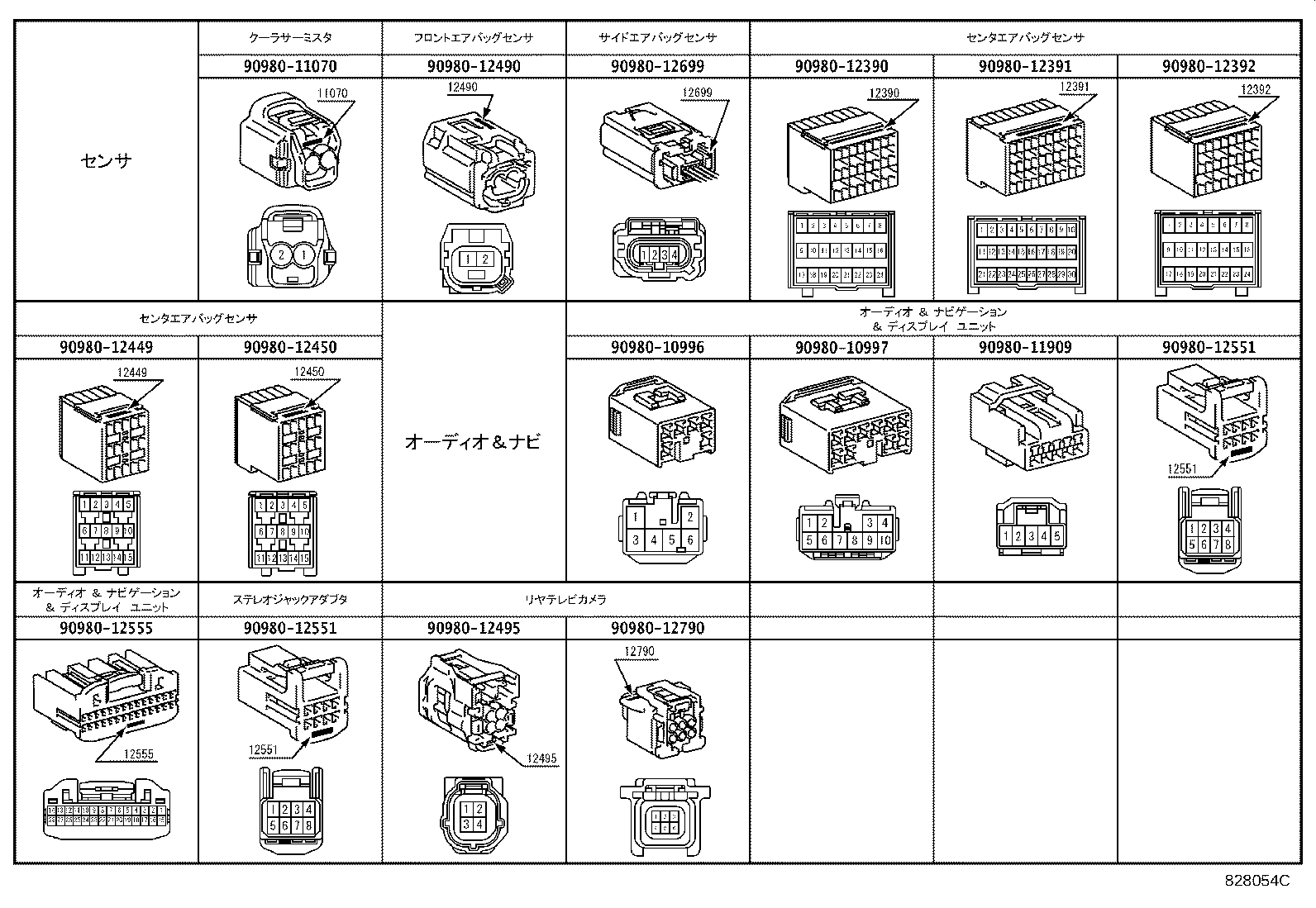

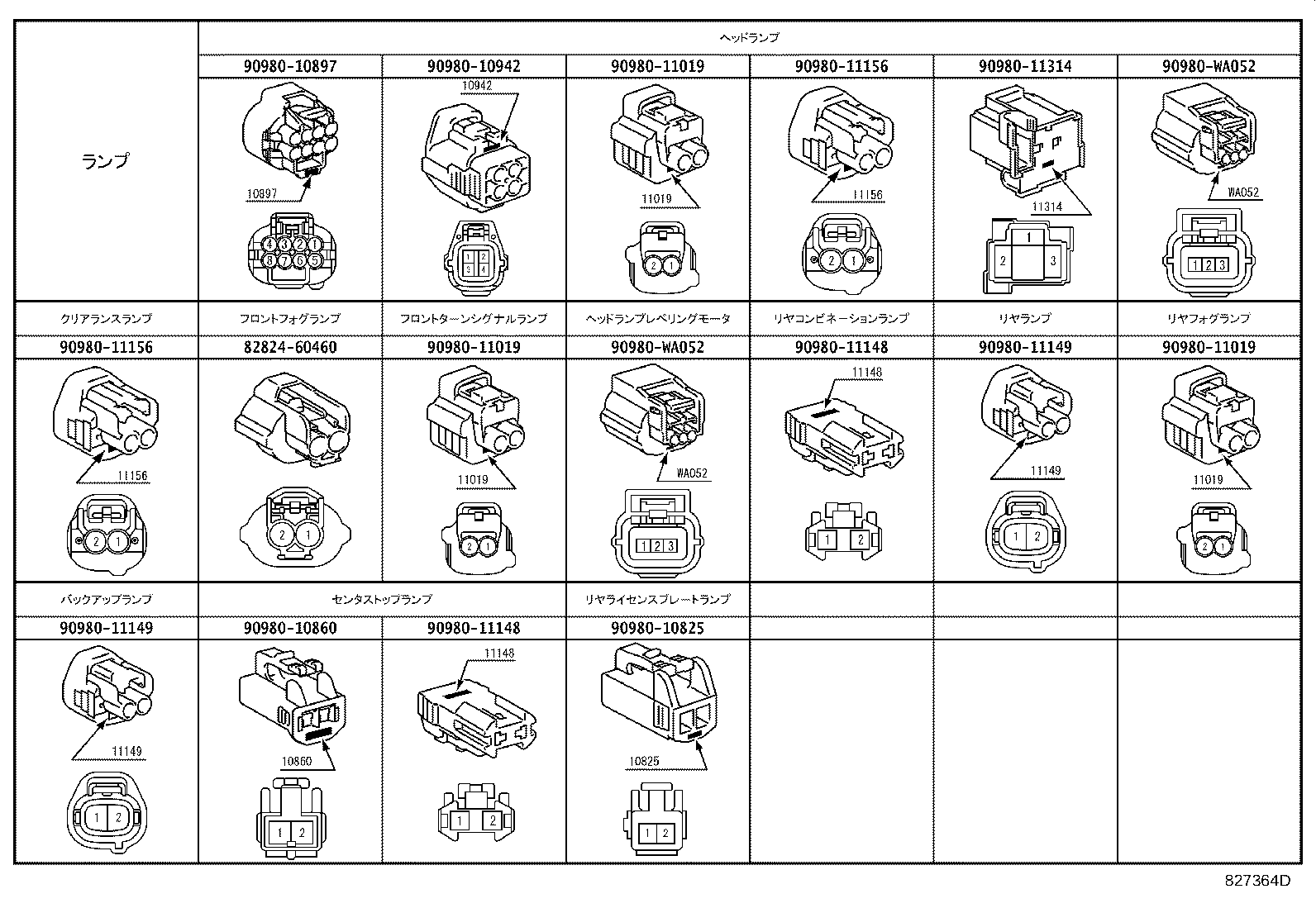

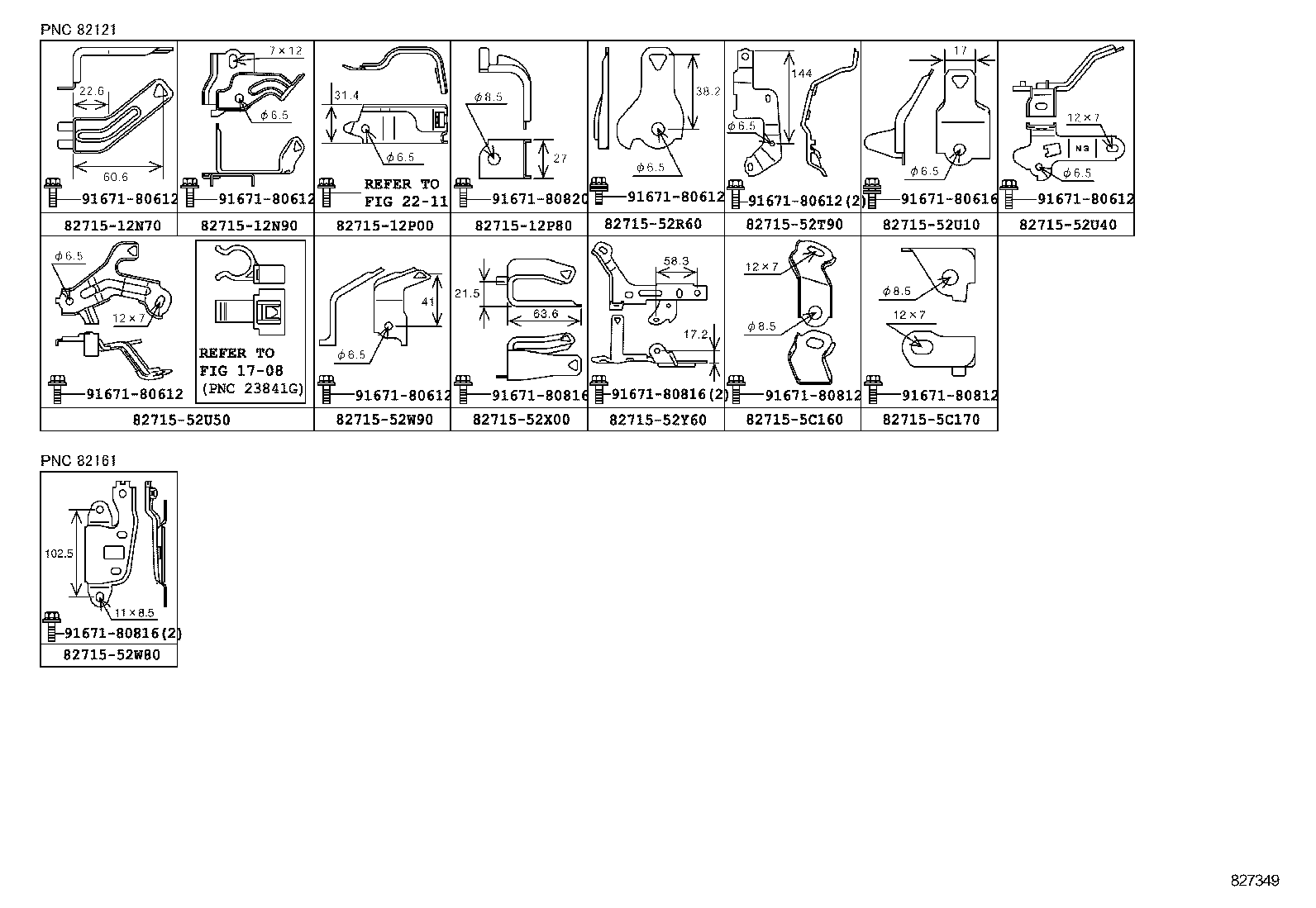

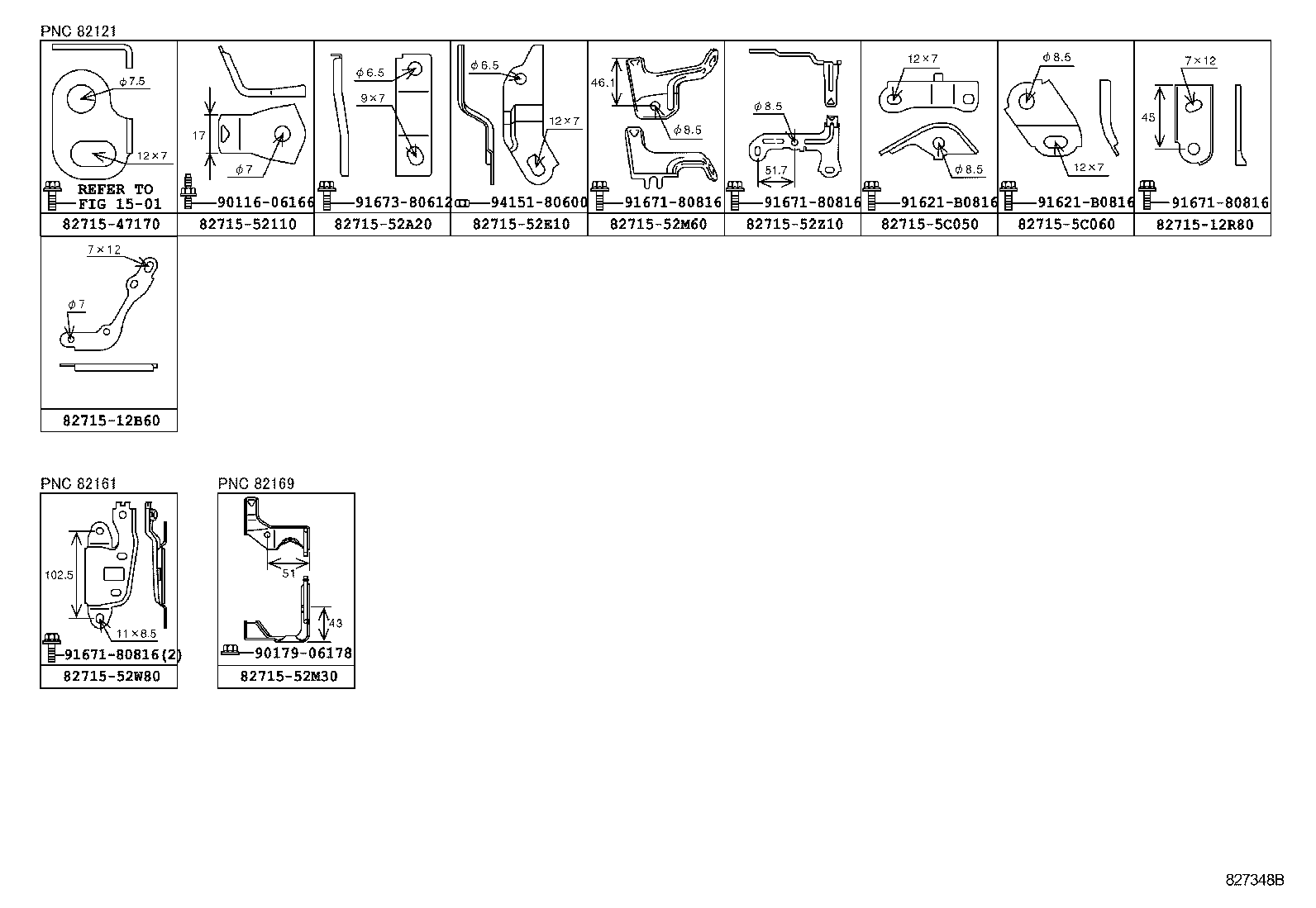

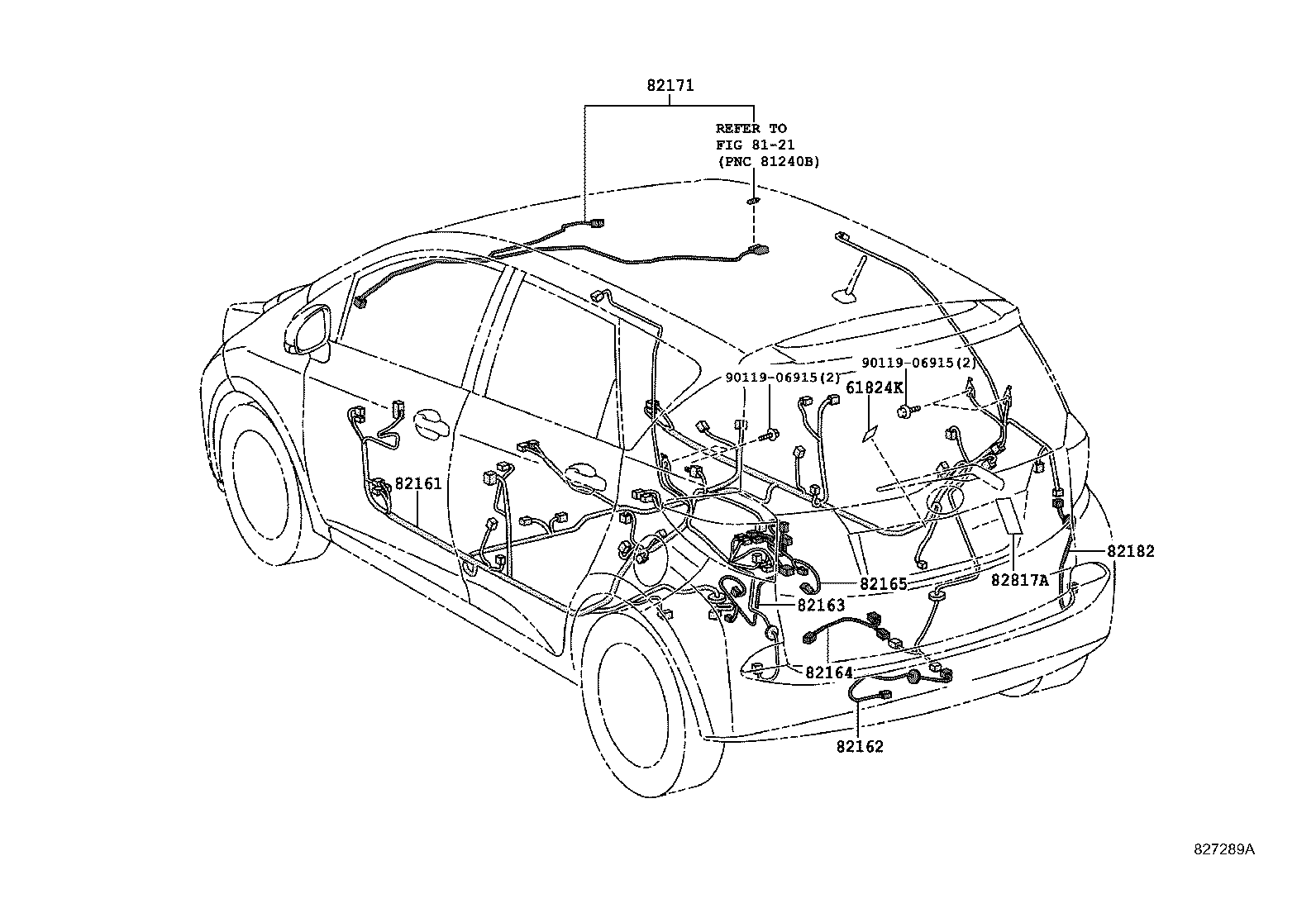

Figure 827280A 827280A 2010-11 → — Figure 827282E 827282E 2010-11 → — Figure 828696B 828696B 2010-11 → 2014-05 Figure 829539A 829539A 2014-05 → — Figure 827432A 827432A 2010-11 → — Figure 827287A 827287A 2010-11 → — Figure 827288D 827288D 2010-11 → — Figure 827289A 827289A 2010-11 → — Figure 827290 827290 2010-11 → — Figure 827348B 827348B 2010-11 → — Figure 827349 827349 2010-11 → 2014-05 Figure 829540A 829540A 2014-05 → — Figure 827364D 827364D 2010-11 → — Figure 828054C 828054C 2010-11 → — Figure 82E903 82E903 2010-11 → —

Part groups

PNCDescription
61824K Plate, Noise Control, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82815B Cover, Wiring Harness Protector
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815V Cover, Wiring Harness Protector, NO.1
82815X Cover, Wiring Harness Protector, NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
C8213 Wire, Power Lift Motor TO Body
C8214 Wire, Power Lift Motor
C8543 Resistor, Emergency
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
