Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

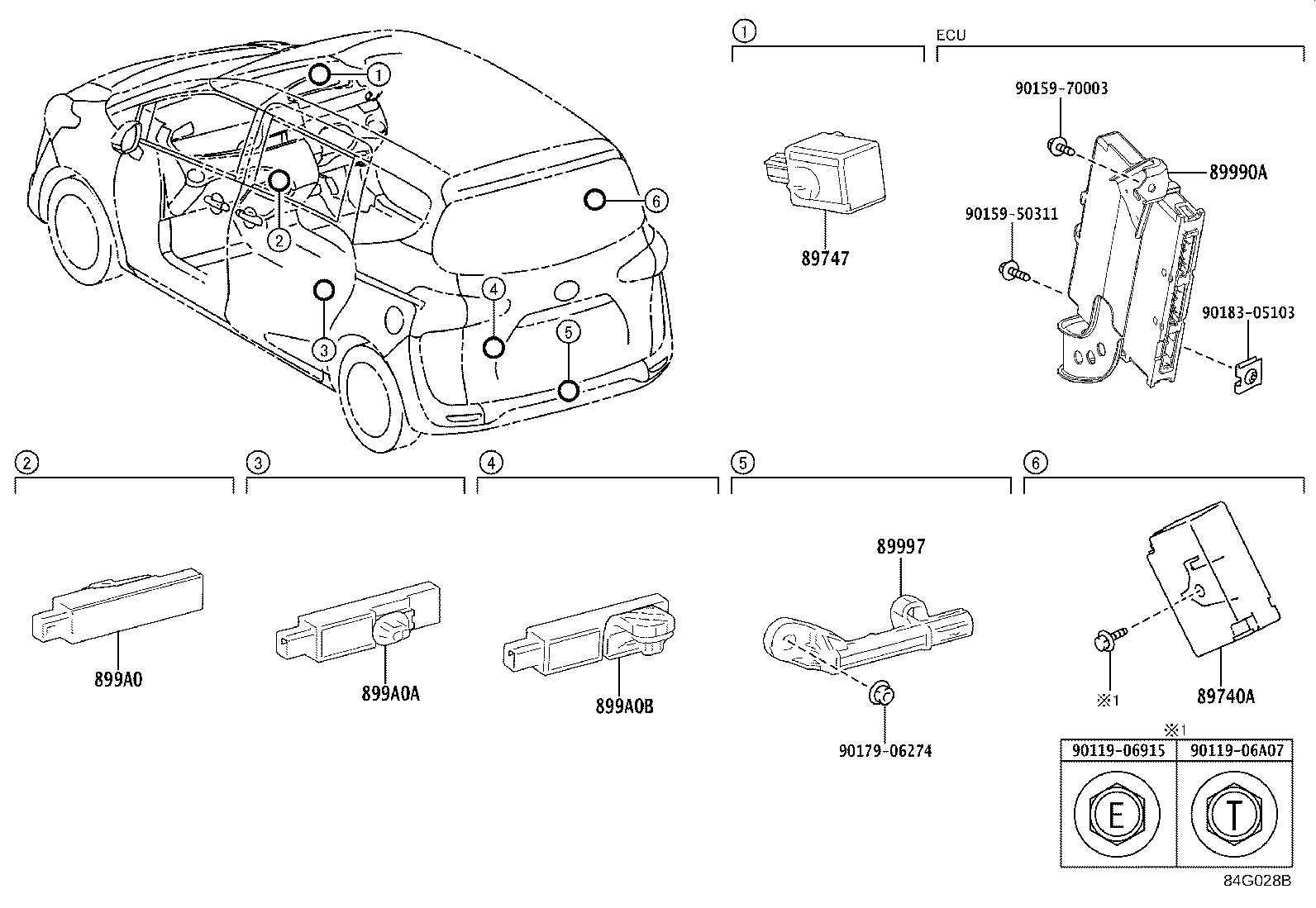

Exploded illustration 84G028B 89740A — RECEIVER ASSY, SMART DOOR CONTROL (9 parts) 89990A — COMPUTER ASSY, SMART KEY (18 parts) 89747 — BUZZER, WIRELESS DOOR LOCK (6 parts) 899A0 — ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 (6 parts) 899A0A — ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 (5 parts) 899A0B — ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 (8 parts) 89997 — ANTENNA, ELECTRICAL KEY (4 parts) 9015950311 — not listed in this catalogue 9015970003 — not listed in this catalogue 9018305103 — not listed in this catalogue 9017906274 — not listed in this catalogue 9011906915 — not listed in this catalogue 9011906A07 — not listed in this catalogue
84G028B · 7 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
89740A — Receiver Assy, Smart Door Control
89740-52440 note Receiver Assy, Smart Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥15,500
89740-52440 Receiver Assy, Smart Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥15,500
89740-52440 note Receiver Assy, Smart Door Control
2015-06 → 2018-09 ended
NSP172 X ¥15,500
89740-52440 Receiver Assy, Smart Door Control
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥15,500
89740-52440 note Receiver Assy, Smart Door Control
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥15,500
89740-52440 note Receiver Assy, Smart Door Control
2018-09 → 2020-06 ended
NSP172 WKX ¥15,500
89740-52570 Receiver Assy, Smart Door Control
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥12,900
89740-52570 note Receiver Assy, Smart Door Control
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥12,900
89740-52570 note Receiver Assy, Smart Door Control
2020-06 → 2022-07 ended
NSP172 WKX ¥12,900
89747 — Buzzer, Wireless Door Lock
89747-30040 Buzzer, Wireless Door Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,900
89747-30040 note Buzzer, Wireless Door Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,900
89747-30040 note Buzzer, Wireless Door Lock
2015-06 → 2018-09 ended
NSP172 X ¥2,900
89747-30040 Buzzer, Wireless Door Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥2,900
89747-30040 note Buzzer, Wireless Door Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,900
89747-30040 note Buzzer, Wireless Door Lock
2018-09 → 2022-07 ended
NSP172 WKX ¥2,900
89990A — Computer Assy, Smart Key
89990-52480 Computer Assy, Smart Key
2015-06 → 2018-09 ended
NCP175,NSP170 G ¥59,300
89990-52480 note Computer Assy, Smart Key
2015-06 → 2018-09 ended
NCP175,NSP170 X ¥59,300
89990-52490 Computer Assy, Smart Key
2015-07 → 2018-09 ended
NHP170 G ¥59,300
89990-52490 note Computer Assy, Smart Key
2015-07 → 2018-09 ended
NHP170 X ¥59,300
89990-52540 Computer Assy, Smart Key
2015-06 → 2018-09 ended
NSP172 G ¥59,300
89990-52540 note Computer Assy, Smart Key
2015-06 → 2018-09 ended
NSP172 X ¥59,300
89990-52650 Computer Assy, Smart Key
2018-09 → 2020-06 ended
NCP175,NSP170 FNBSG,G,GCERO ¥59,300
89990-52650 note Computer Assy, Smart Key
2018-09 → 2020-06 ended
NCP175,NSP170 FNBSX,X ¥59,300
89990-52660 Computer Assy, Smart Key
2018-09 → 2020-06 ended
NHP170 FNBSG,G,GCERO ¥59,300
89990-52660 note Computer Assy, Smart Key
2018-09 → 2020-06 ended
NHP170 FNBSX,X ¥59,300
89990-52670 Computer Assy, Smart Key
2018-09 → 2020-06 ended
NSP172 WKG ¥59,300
89990-52670 note Computer Assy, Smart Key
2018-09 → 2020-06 ended
NSP172 WKX ¥59,300
89990-52740 note Computer Assy, Smart Key
2020-06 → 2022-07 ended
NCP175,NSP170 FNBSX,X ¥49,400
89990-52740 Computer Assy, Smart Key
2020-06 → 2022-07 ended
NCP175,NSP170 FNBSG,FNGCR,G,GCERO ¥49,400
89990-52750 Computer Assy, Smart Key
2020-06 → 2022-07 ended
NHP170 FNBSG,FNGCR,G,GCERO ¥49,400
89990-52750 note Computer Assy, Smart Key
2020-06 → 2022-07 ended
NHP170 FNBSX,X ¥49,400
89990-52760 Computer Assy, Smart Key
2020-06 → 2022-07 ended
NSP172 WKG ¥49,400
89990-52760 note Computer Assy, Smart Key
2020-06 → 2022-07 ended
NSP172 WKX ¥49,400
89997 — Antenna, Electrical Key
89997-30100 Antenna, Electrical Key
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥1,800
89997-30100 note Antenna, Electrical Key
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥1,800
89997-30100 Antenna, Electrical Key
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥1,800
89997-30100 note Antenna, Electrical Key
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥1,800
899A0 — Antenna Assy, Indoor Electrical Key, NO.1
899A0-60010 Antenna Assy, Indoor Electrical Key, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥1,410
899A0-60010 note Antenna Assy, Indoor Electrical Key, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥1,410
899A0-60010 note Antenna Assy, Indoor Electrical Key, NO.1
2015-06 → 2018-09 ended
NSP172 X ¥1,410
899A0-60010 note Antenna Assy, Indoor Electrical Key, NO.1
2018-09 → 2022-07 ended
NSP172 WKX ¥1,410
899A0-60010 note Antenna Assy, Indoor Electrical Key, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥1,410
899A0-60010 Antenna Assy, Indoor Electrical Key, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥1,410
899A0A — Antenna Assy, Indoor Electrical Key, NO.2
899A0-47010 Antenna Assy, Indoor Electrical Key, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥1,410
899A0-47010 note Antenna Assy, Indoor Electrical Key, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥1,410
899A0-47010 note Antenna Assy, Indoor Electrical Key, NO.2
2015-06 → 2018-09 ended
NSP172 X ¥1,410
899A0-47010 Antenna Assy, Indoor Electrical Key, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥1,410
899A0-47010 note Antenna Assy, Indoor Electrical Key, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥1,410
899A0B — Antenna Assy, Indoor Electrical Key, NO.3
899A0-47030 Antenna Assy, Indoor Electrical Key, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥1,560
899A0-47030 note Antenna Assy, Indoor Electrical Key, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥1,560
899A0-52070 Antenna Assy, Indoor Electrical Key, NO.3
2015-06 → 2018-09 ended
NSP172 G ¥1,410
899A0-52070 note Antenna Assy, Indoor Electrical Key, NO.3
2015-06 → 2018-09 ended
NSP172 X ¥1,410
899A0-47030 Antenna Assy, Indoor Electrical Key, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥1,560
899A0-47030 note Antenna Assy, Indoor Electrical Key, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥1,560
899A0-52070 Antenna Assy, Indoor Electrical Key, NO.3
2018-09 → 2022-07 ended
NSP172 WKG ¥1,410
899A0-52070 note Antenna Assy, Indoor Electrical Key, NO.3
2018-09 → 2022-07 ended
NSP172 WKX ¥1,410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
