Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04

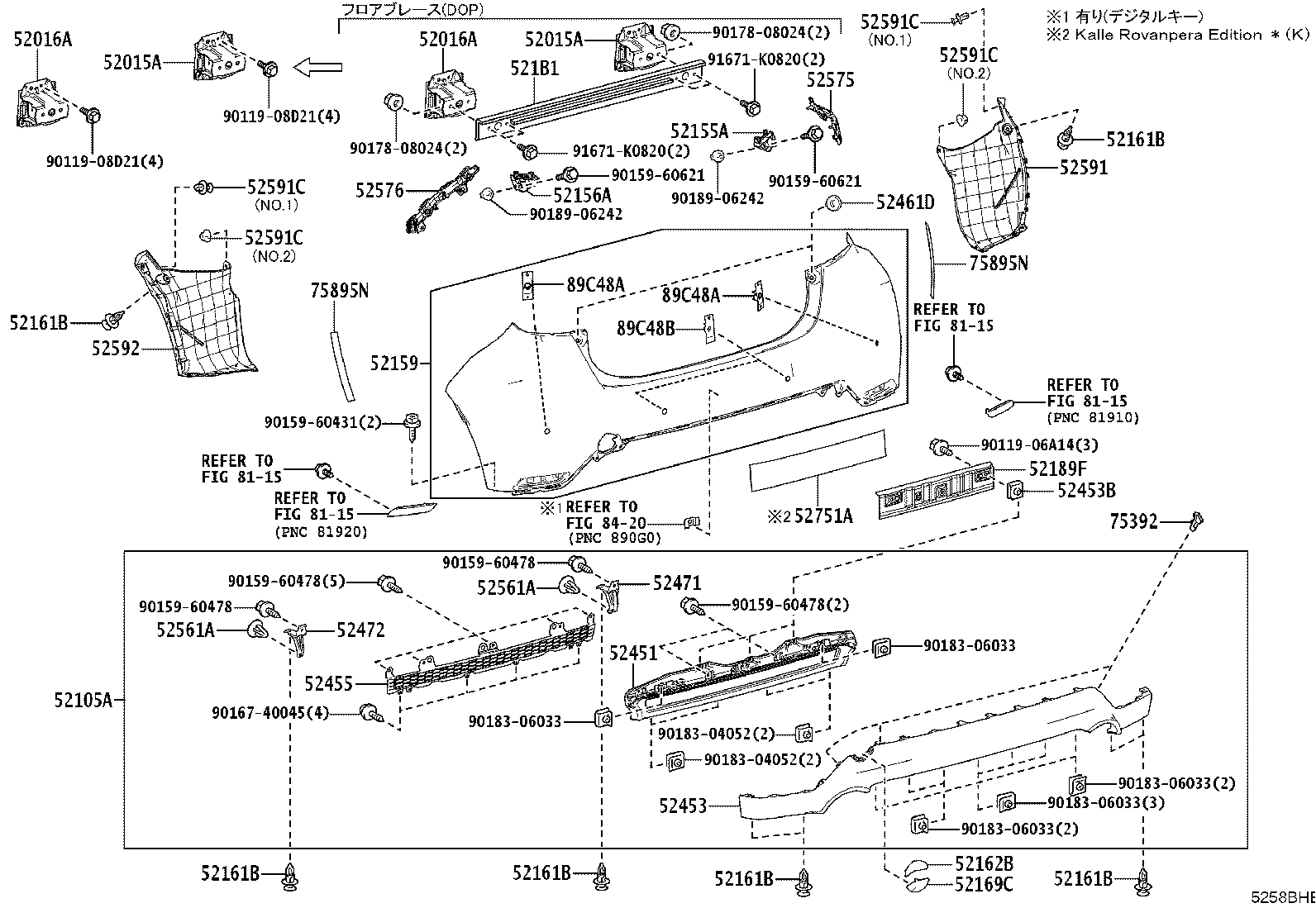

Rear Bumper & Bumper Stay
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52105A | Bumper Sub-assy, Rear Center |
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52169C | Cover, Rear Bumper, Lower |
| 52189F | Insulator, Rear Bumper Arm |
| 521B1 | Brace, Rear Bumper Arm TO Bumper Arm |
| 52451 | Guard, Rear Bumper |
| 52453 | Guard, Rear Bumper, Center |
| 52453B | Nut |
| 52455 | Insert, Rear Bumper Guard |
| 52461D | Cushion, Rear Bumper |
| 52471 | Retainer, Rear Bumper Guard, RH |
| 52472 | Retainer, Rear Bumper Guard, LH |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52591C | Clip, Rear Bumper Side Seal |
| 52592 | Seal, Rear Bumper Side, LH |
| 52751A | Moulding, Rear Bumper, Center |
| 75392 | Retainer, Outside Moulding |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
