Toyota Starlet

1978-02 → 1984-09 · chassis KP6# · catalogue 121120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 11 illustrations

Illustrations

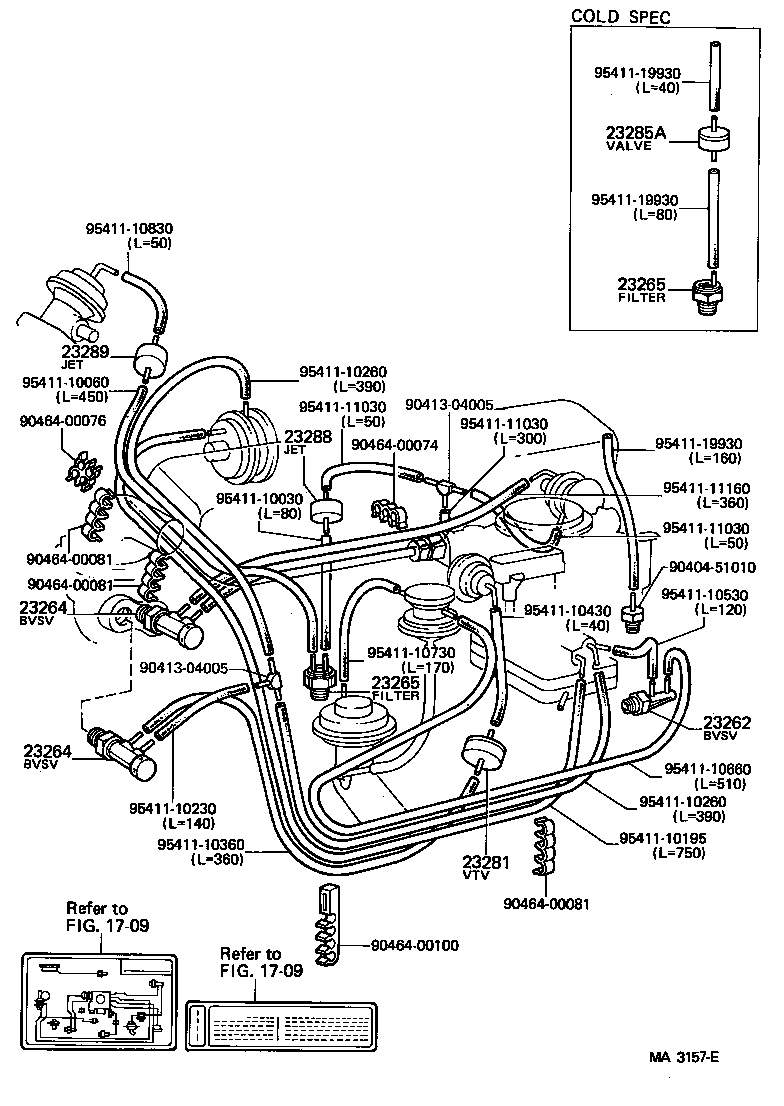

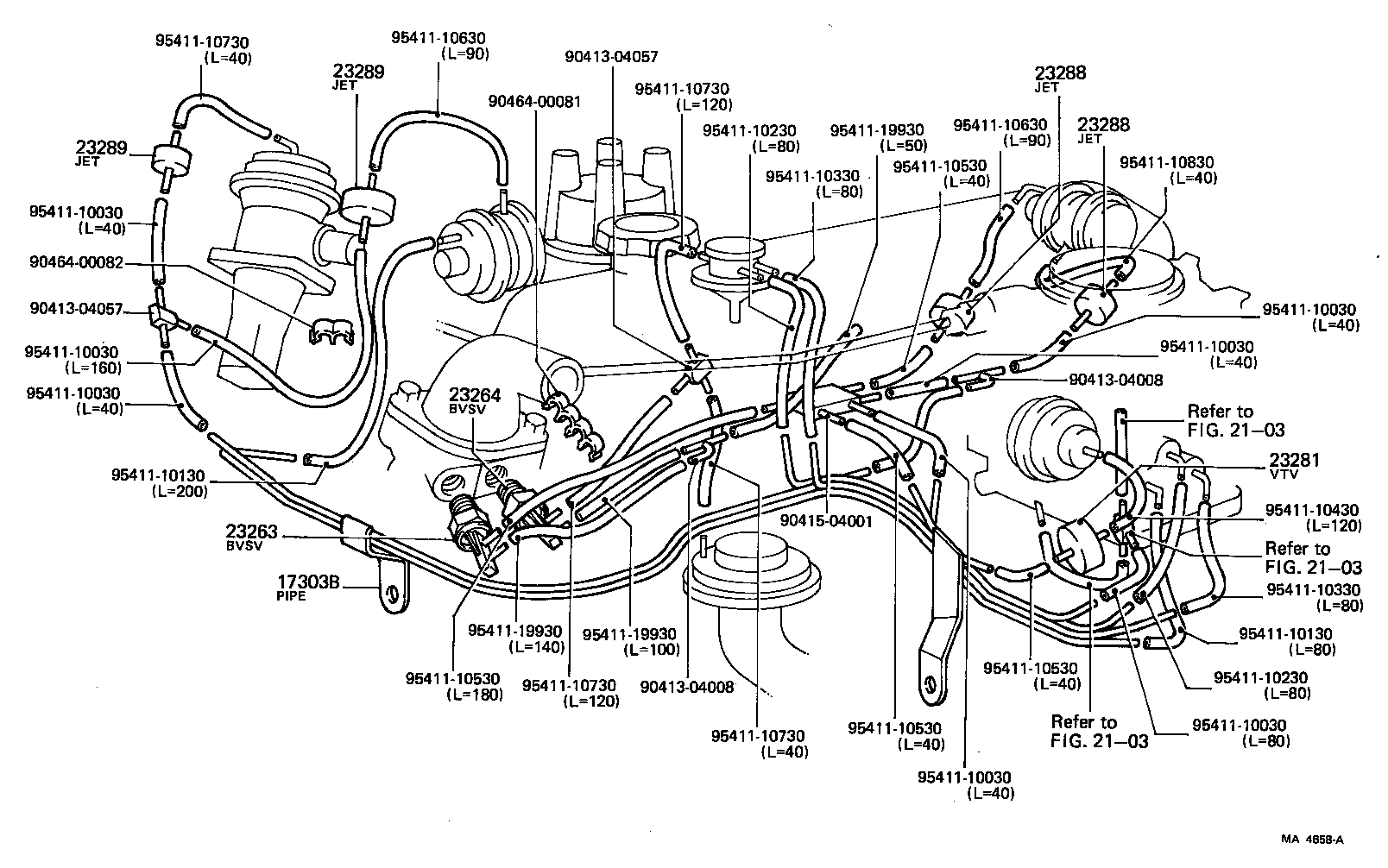

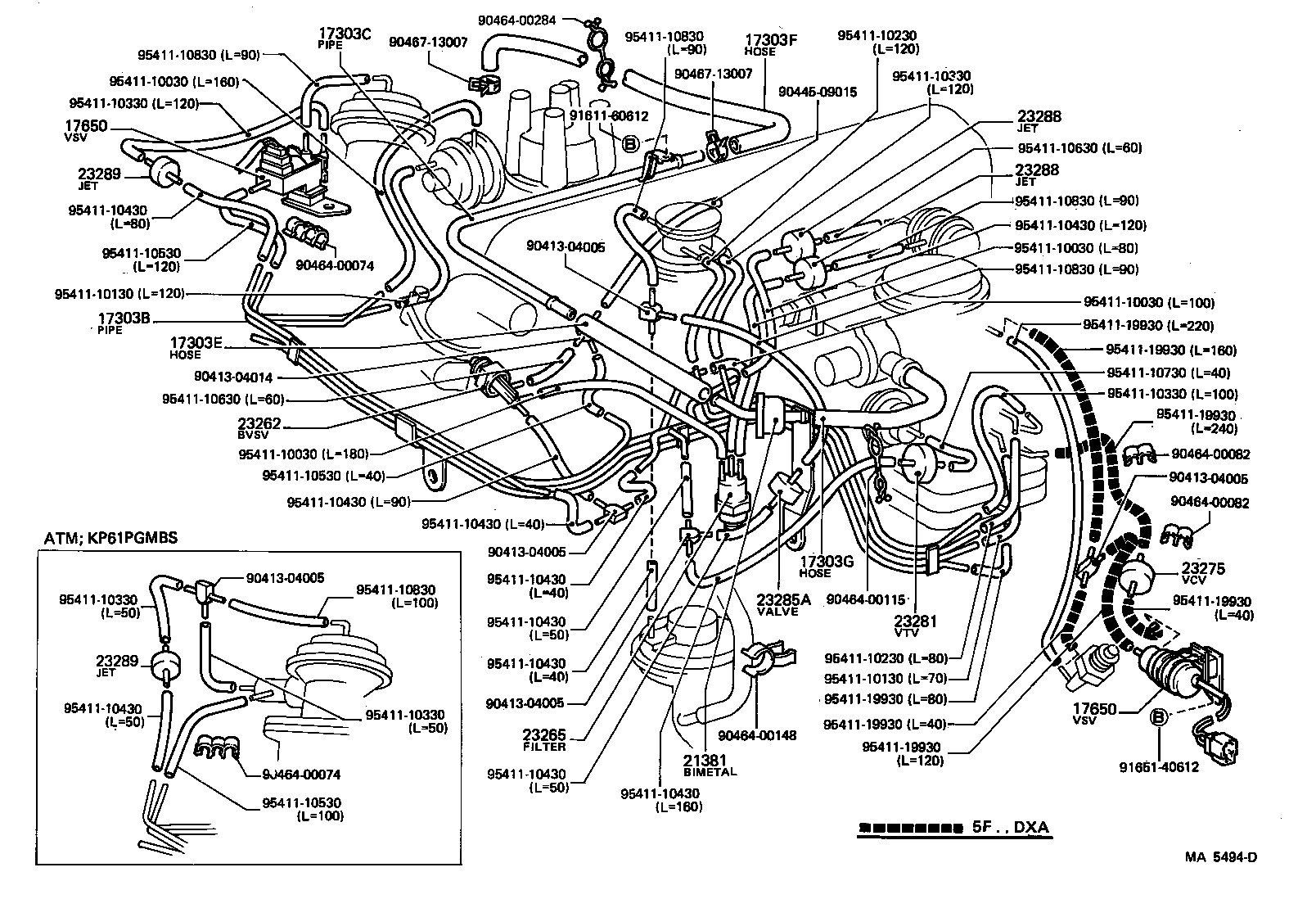

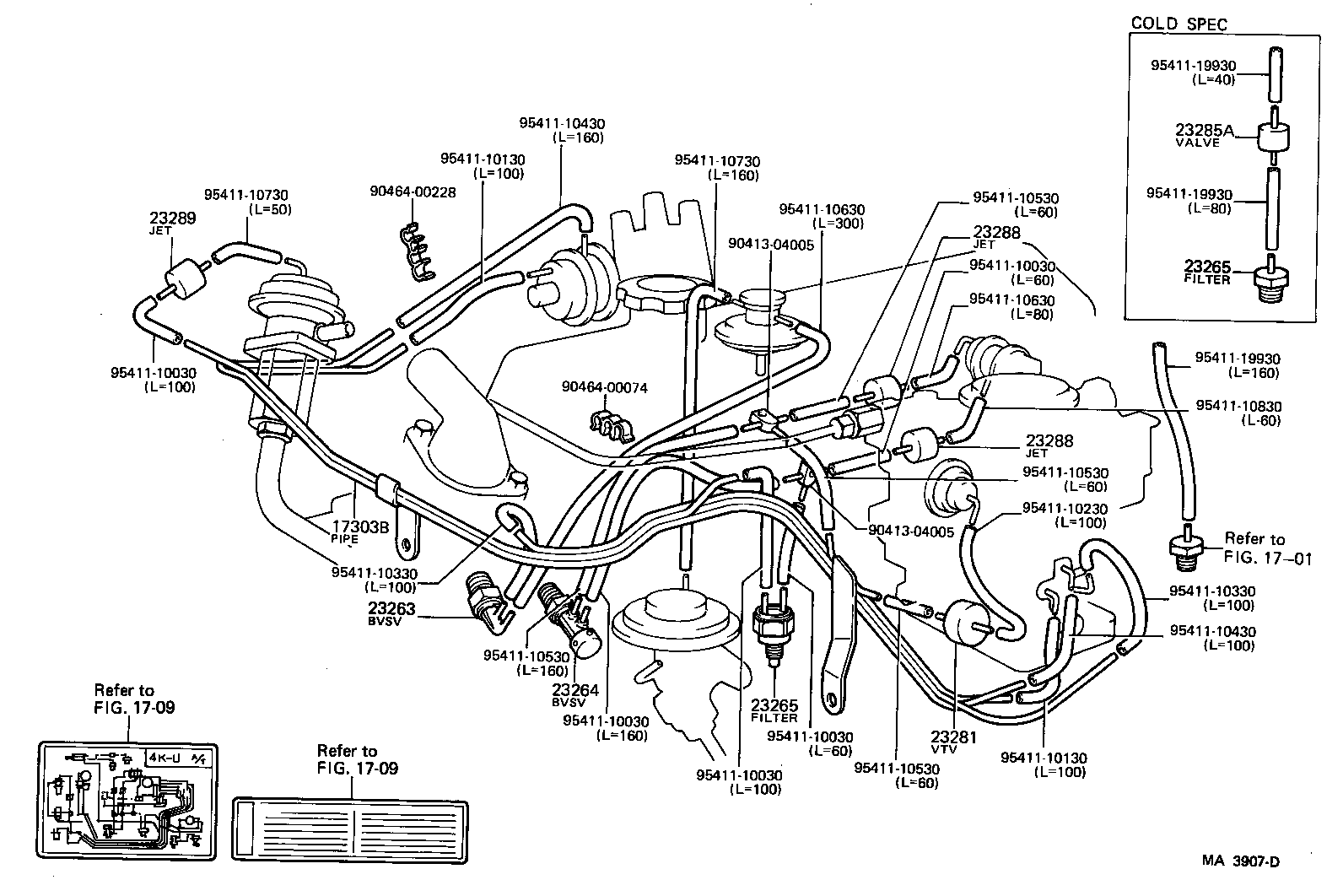

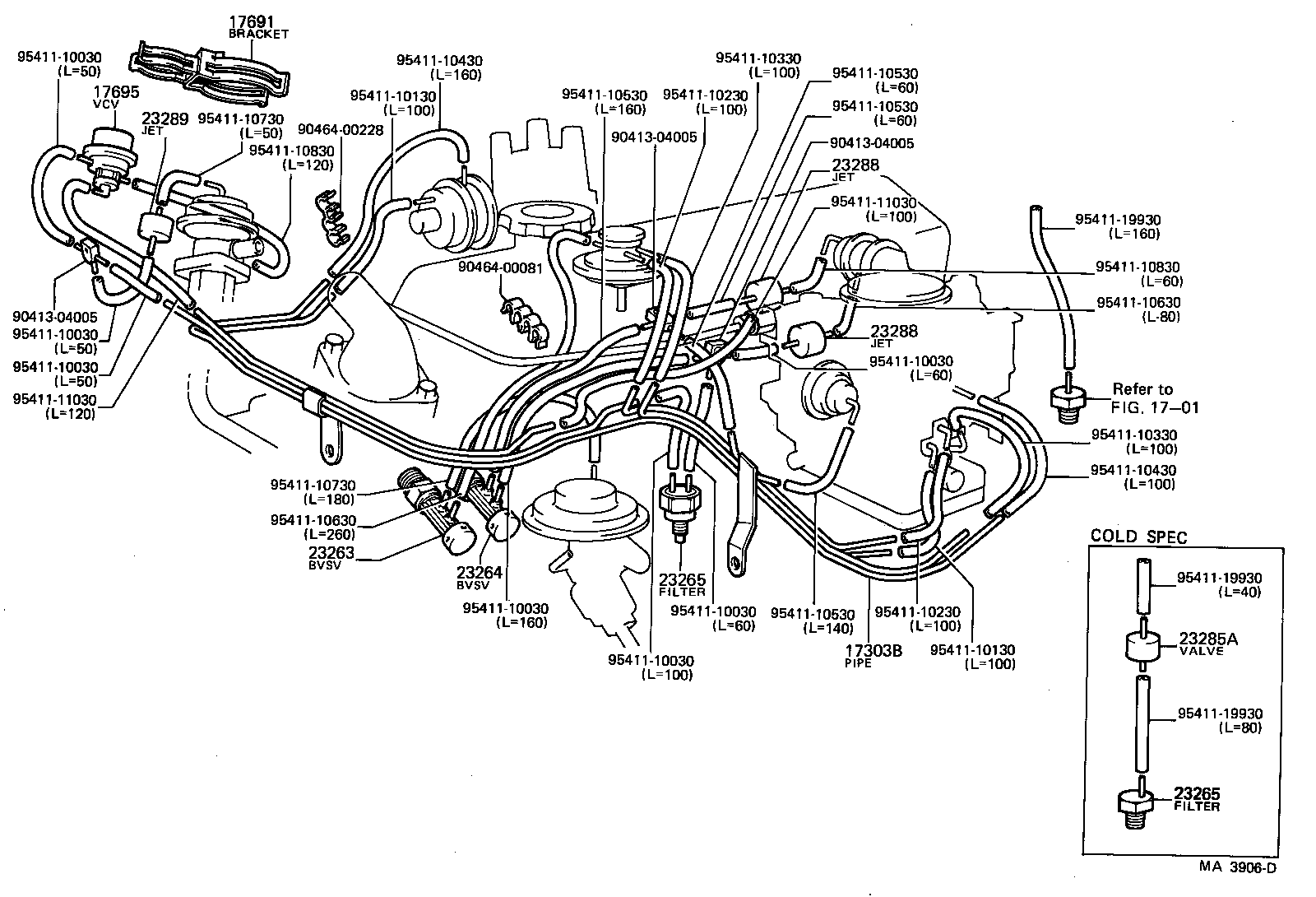

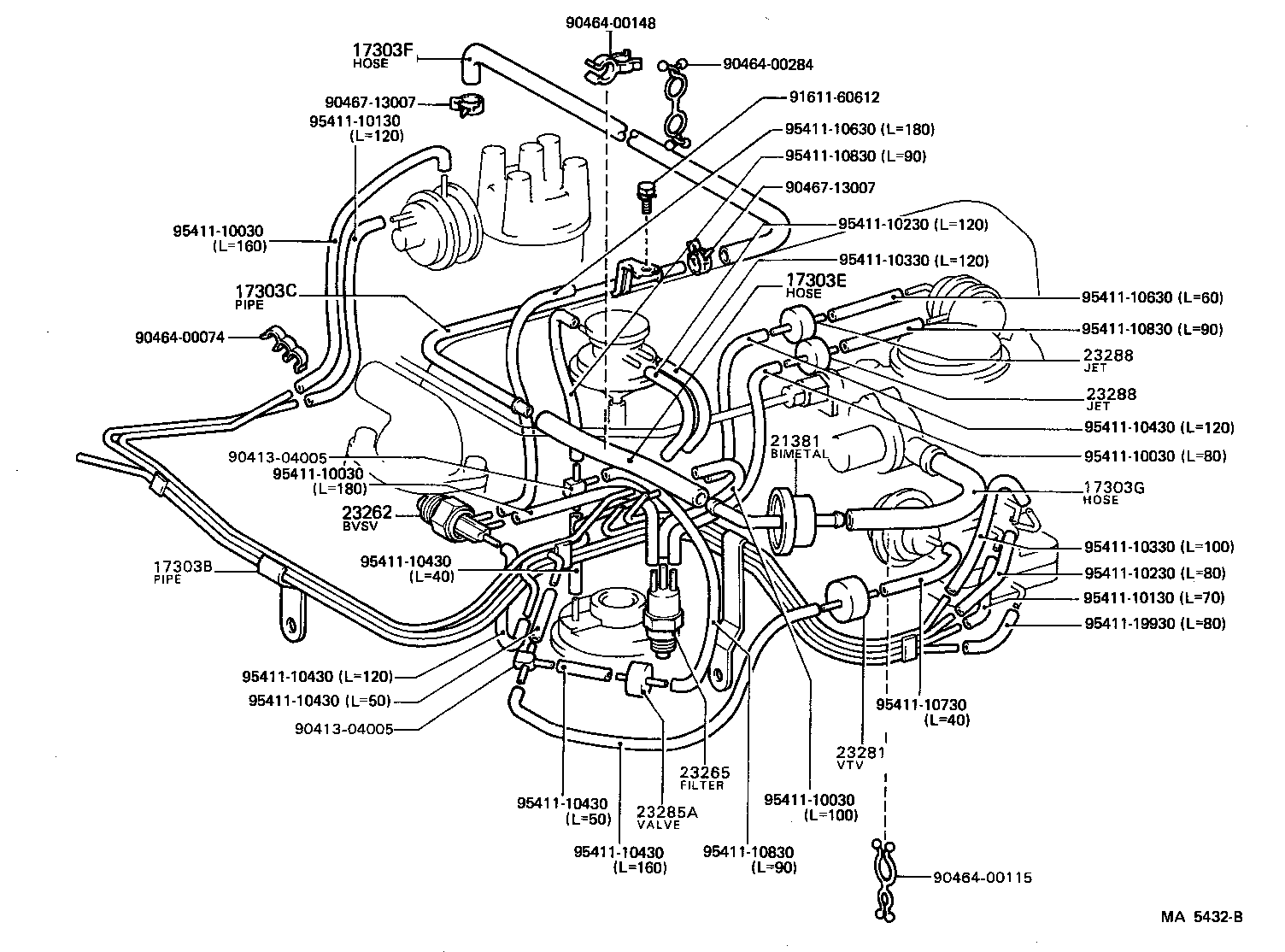

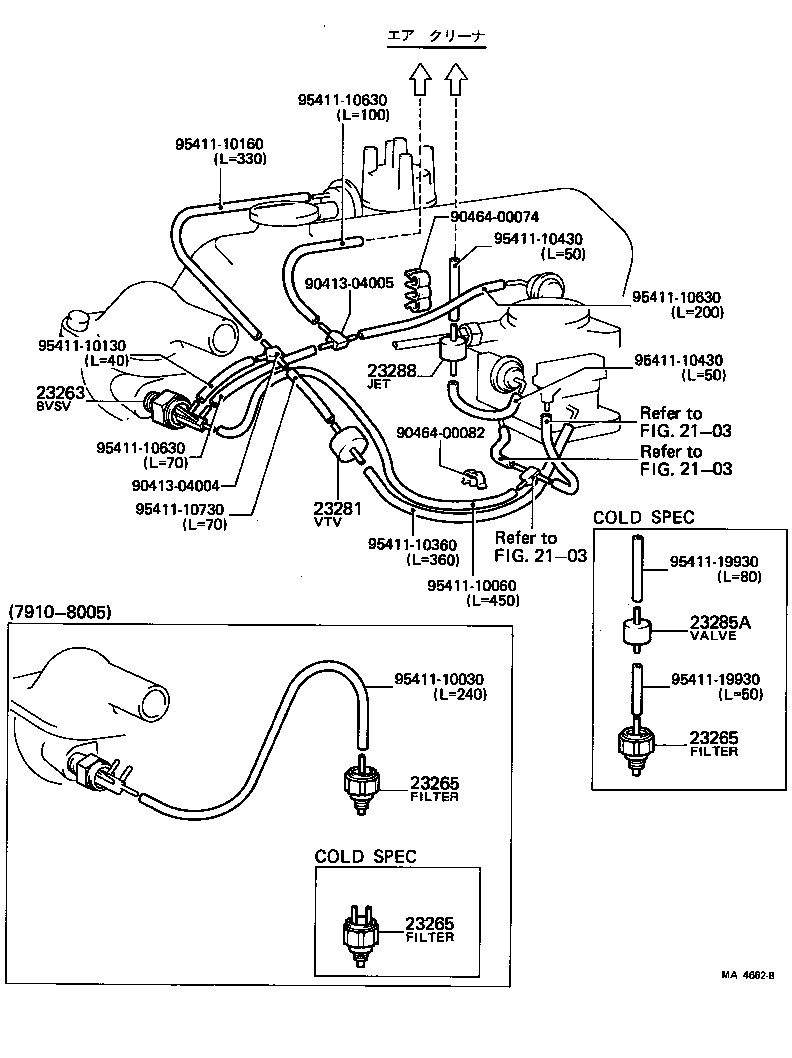

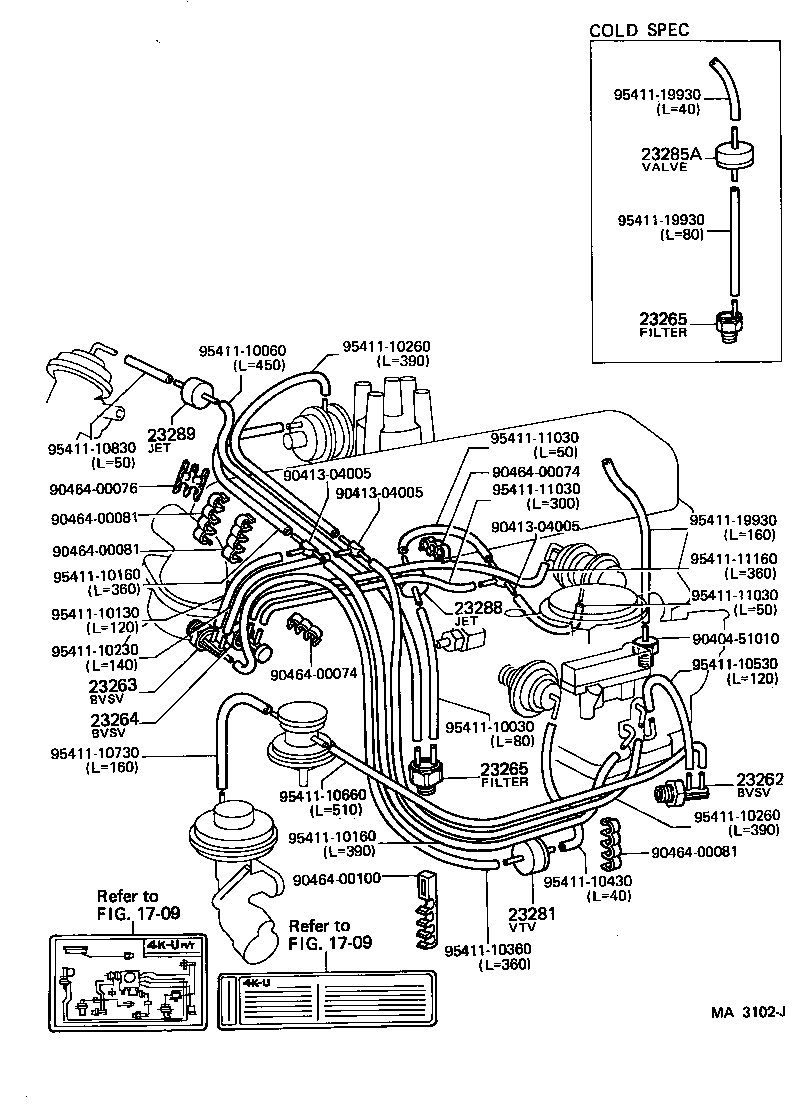

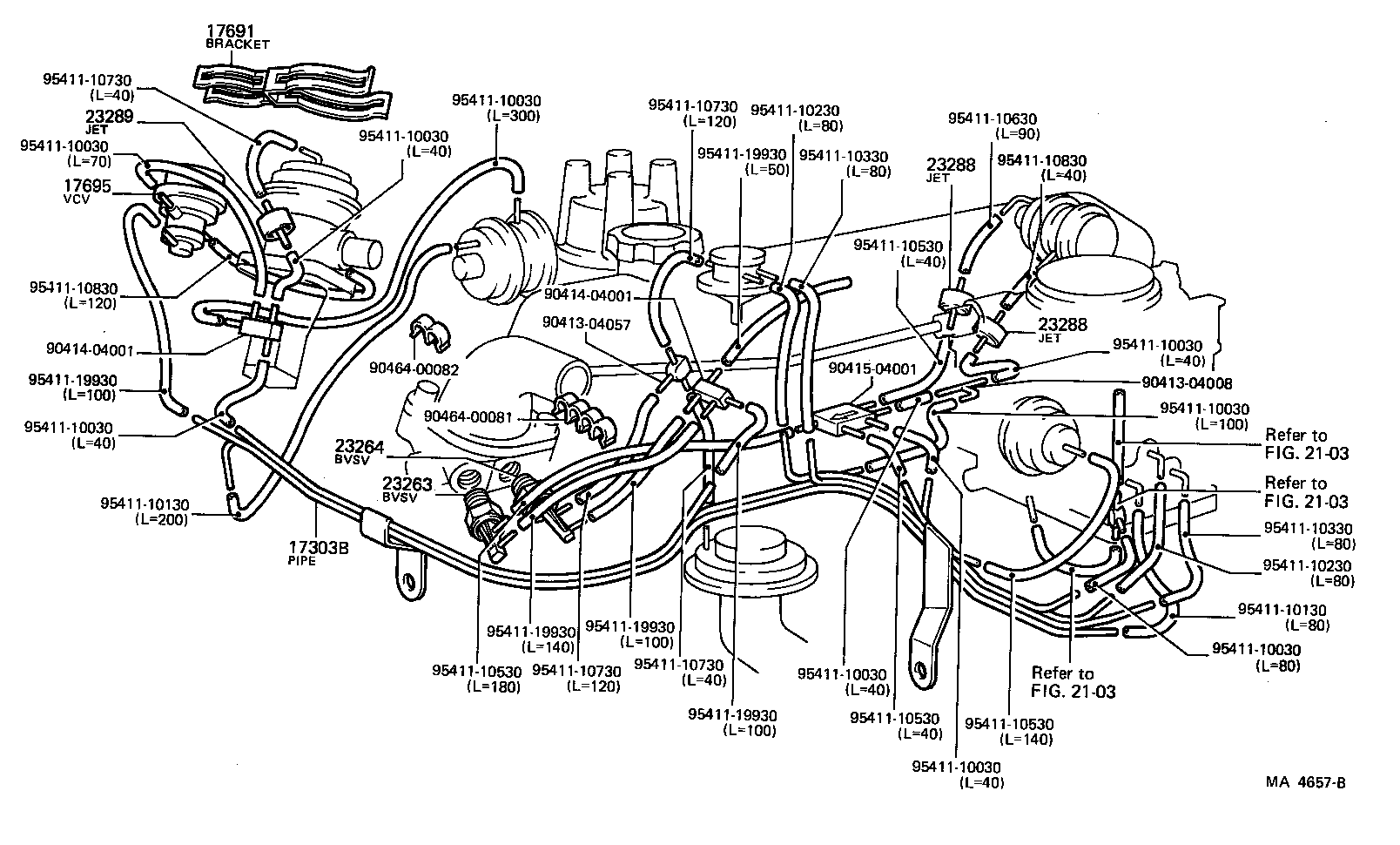

Figure MA9500 MA9500 1978-02 → — Figure MA4662B MA4662B 1978-10 → 1982-01 Figure MA3102J MA3102J 1978-02 → 1979-03 Figure MA3906D MA3906D 1979-03 → 1980-05 Figure MA4657B MA4657B 1980-05 → 1981-08 Figure MA3157E MA3157E 1978-02 → 1979-03 Figure MA3907D MA3907D 1979-03 → 1980-05 Figure MA4658A MA4658A 1980-05 → 1981-08 Figure MA5494D MA5494D 1981-08 → — Figure MA5432B MA5432B 1982-01 → — Figure MA6071A MA6071A 1982-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17695 Valve Assy, Vacuum Control
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
