Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP7# · catalogue 121130 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 8 illustrations

Illustrations

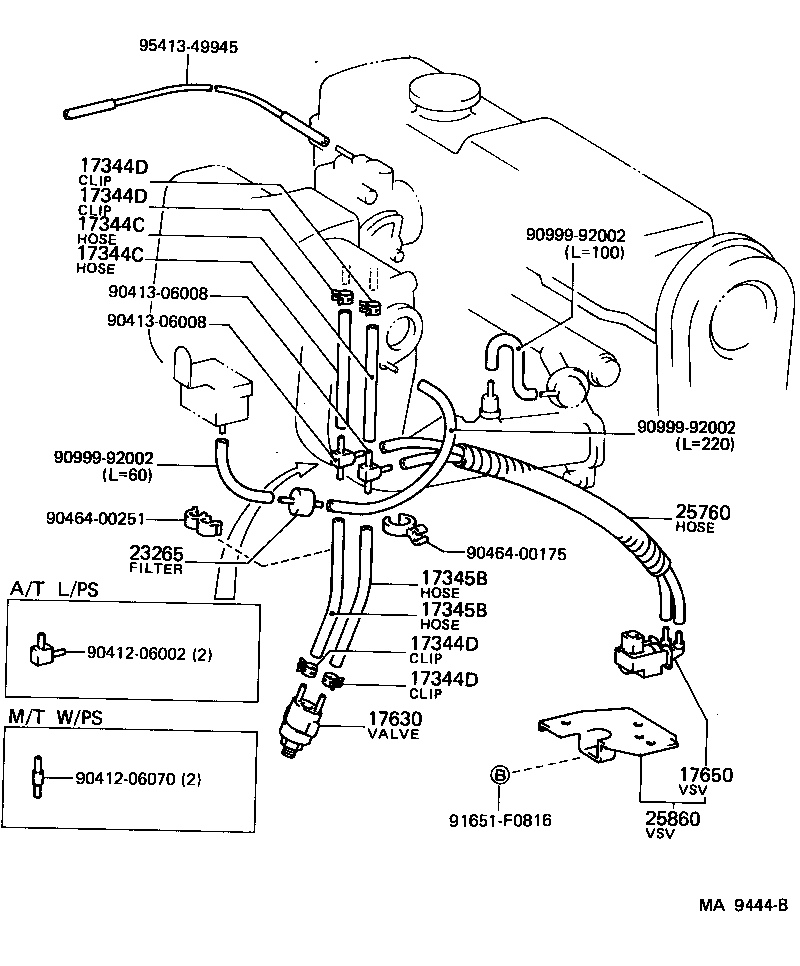

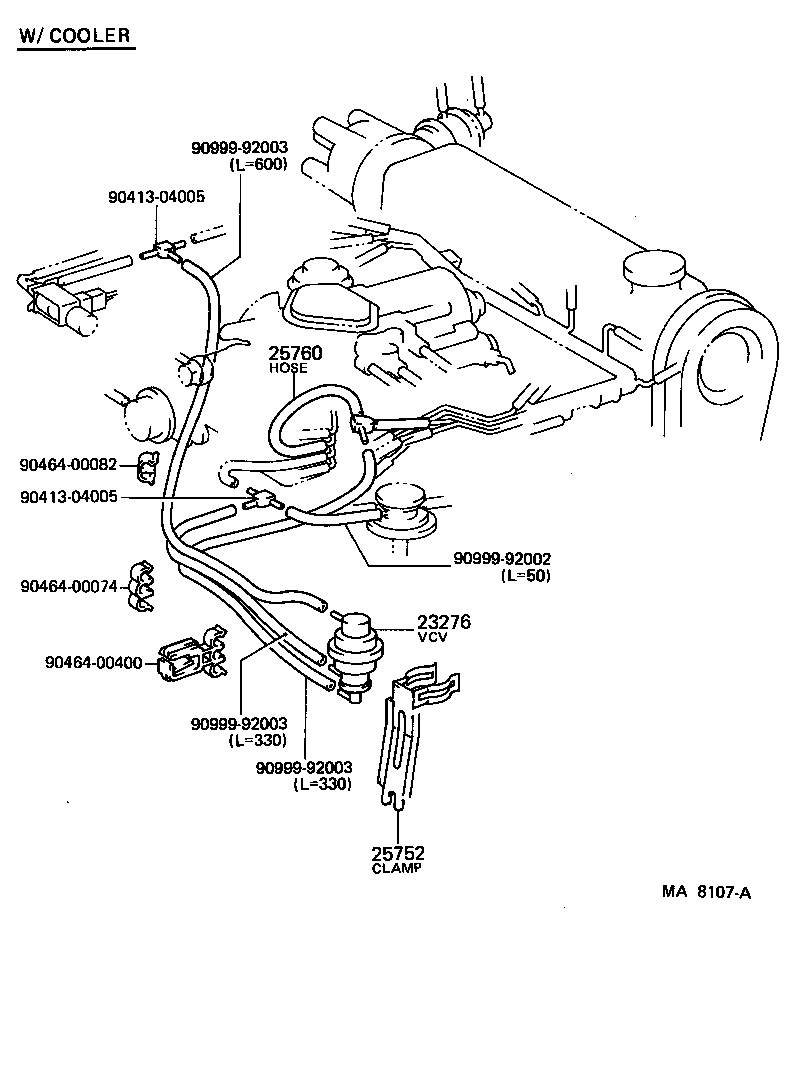

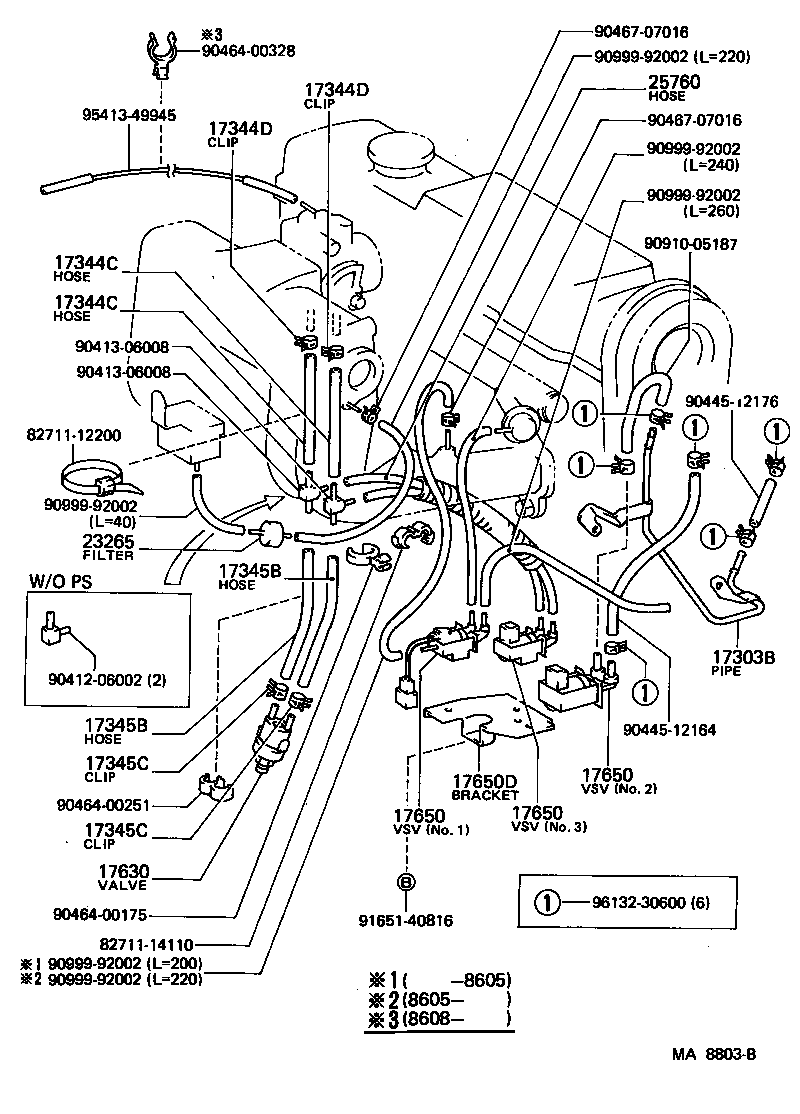

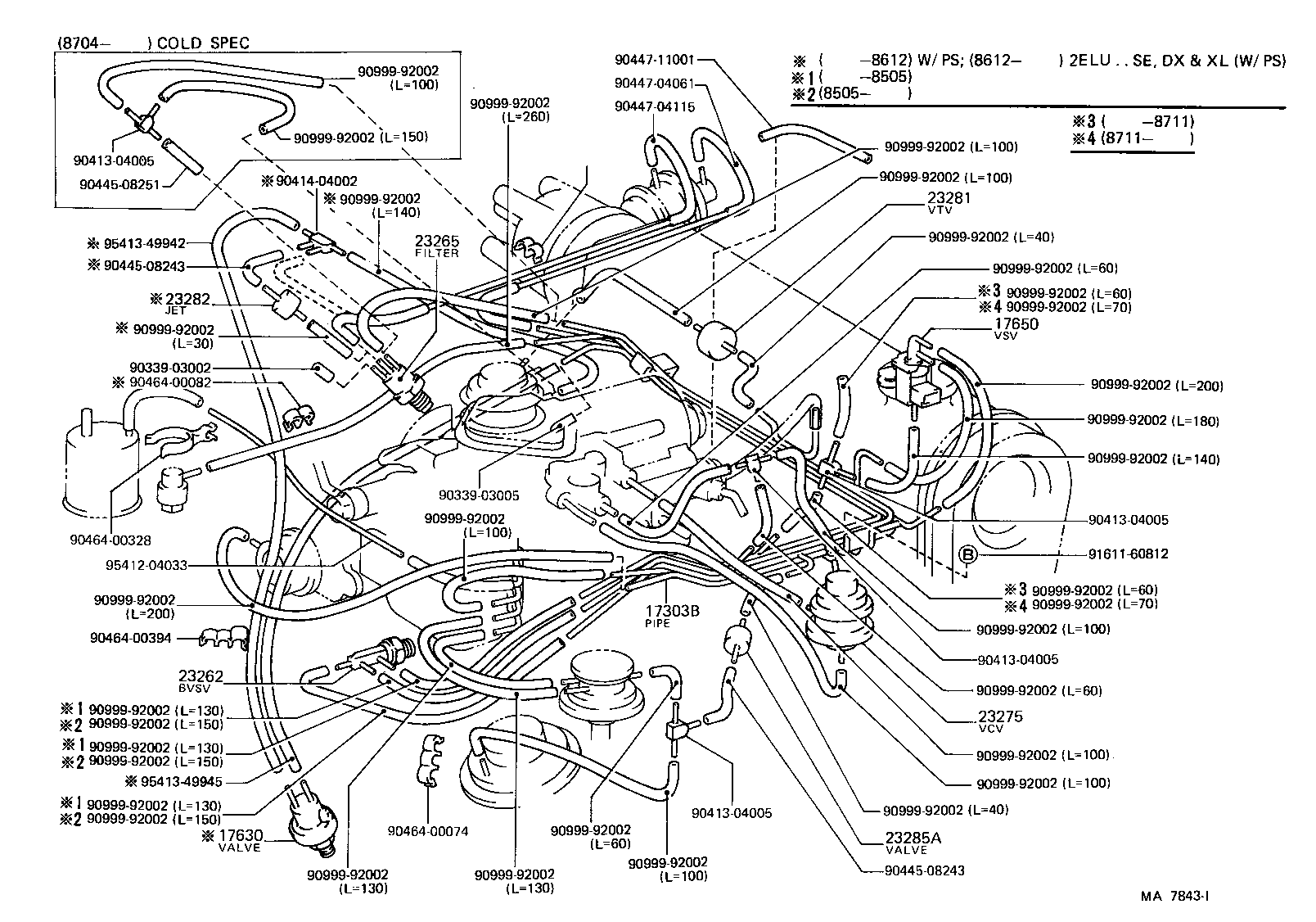

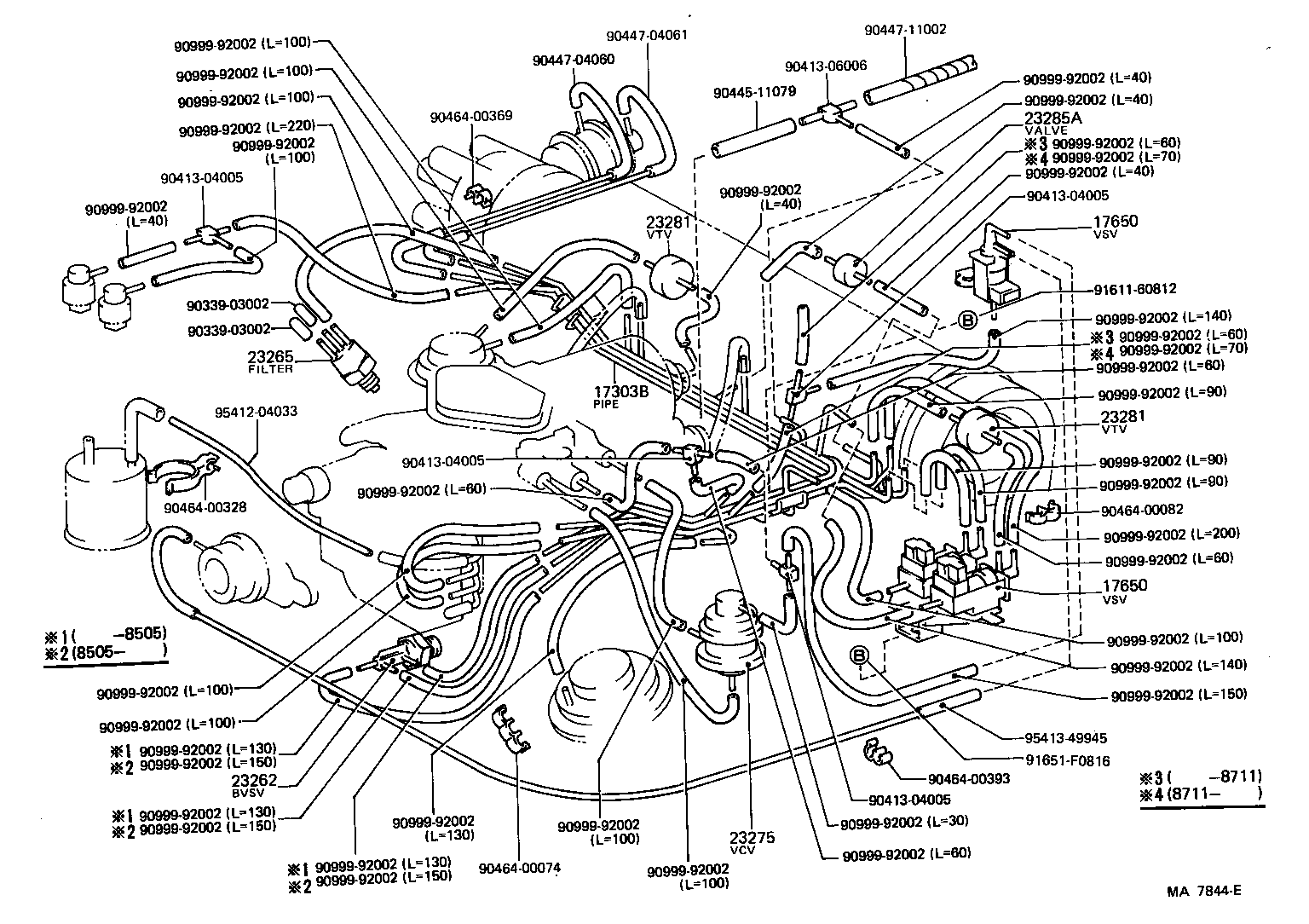

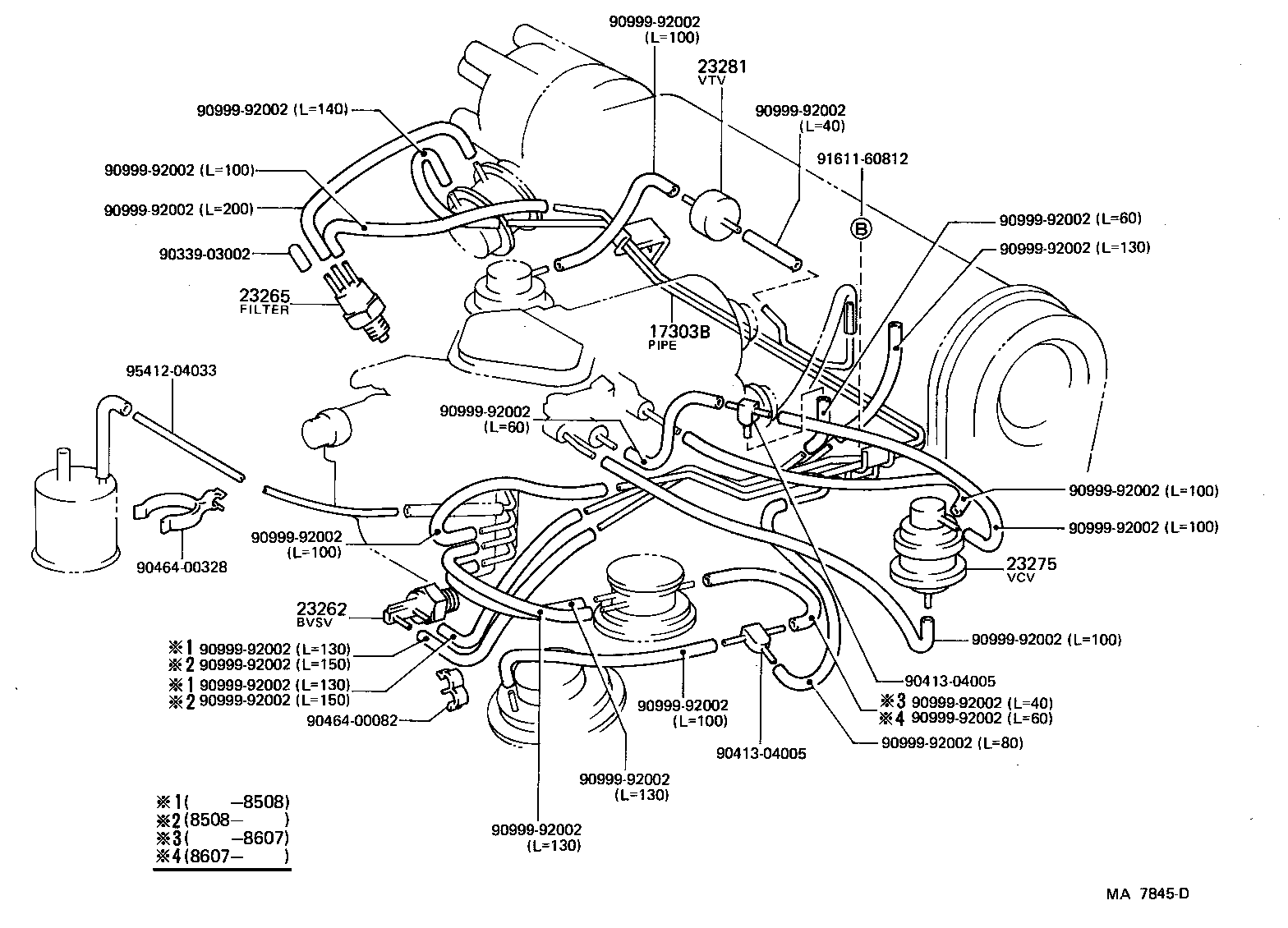

Figure MA9503A MA9503A 1984-10 → — Figure MA7843I MA7843I 1984-10 → — Figure MA7844E MA7844E 1984-10 → — Figure MA8107A MA8107A 1984-10 → — Figure MA7845D MA7845D 1984-10 → — Figure MA7875B MA7875B 1984-10 → 1986-12 Figure MA9444B MA9444B 1986-12 → — Figure MA8803B MA8803B 1986-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
